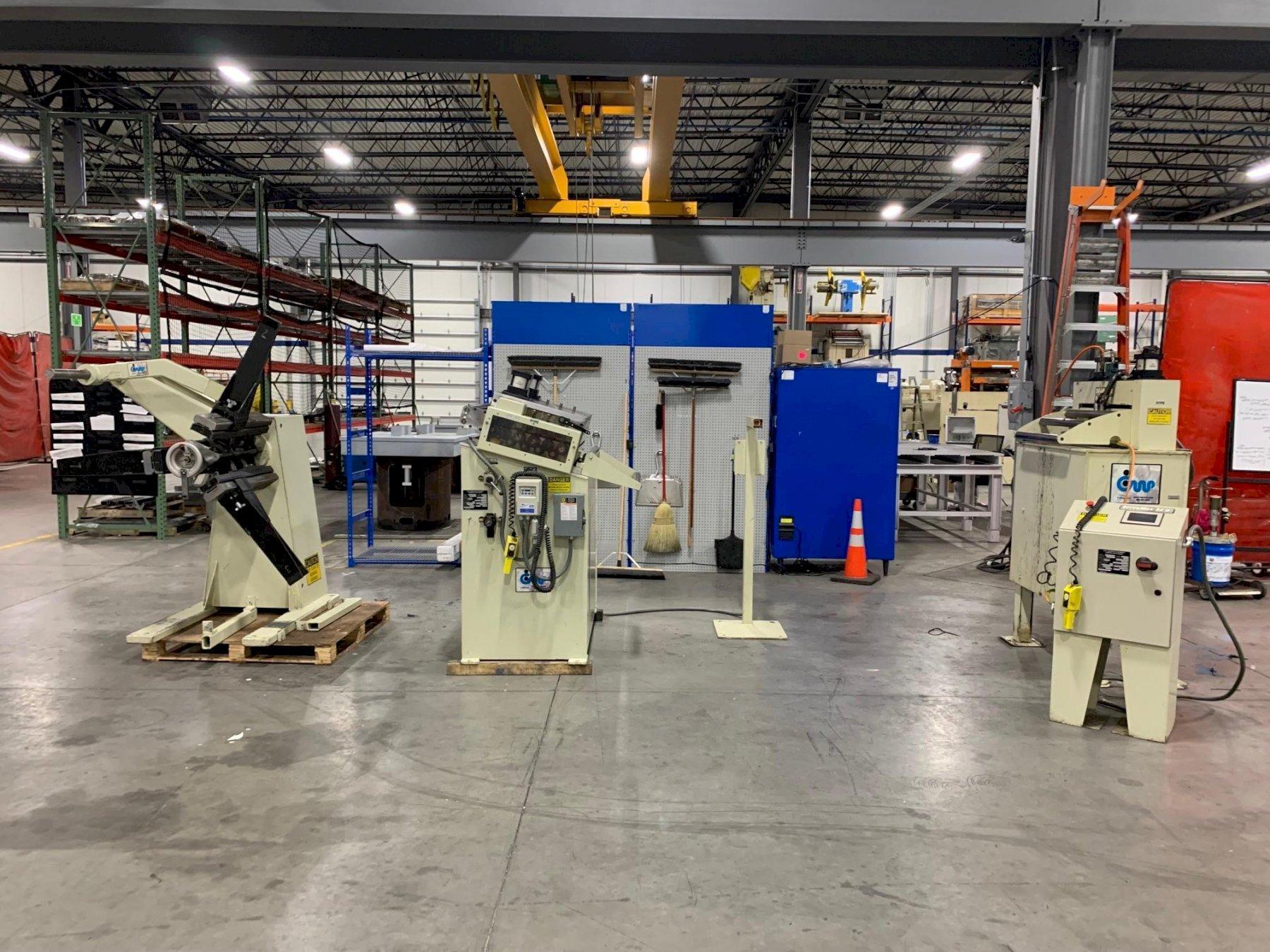

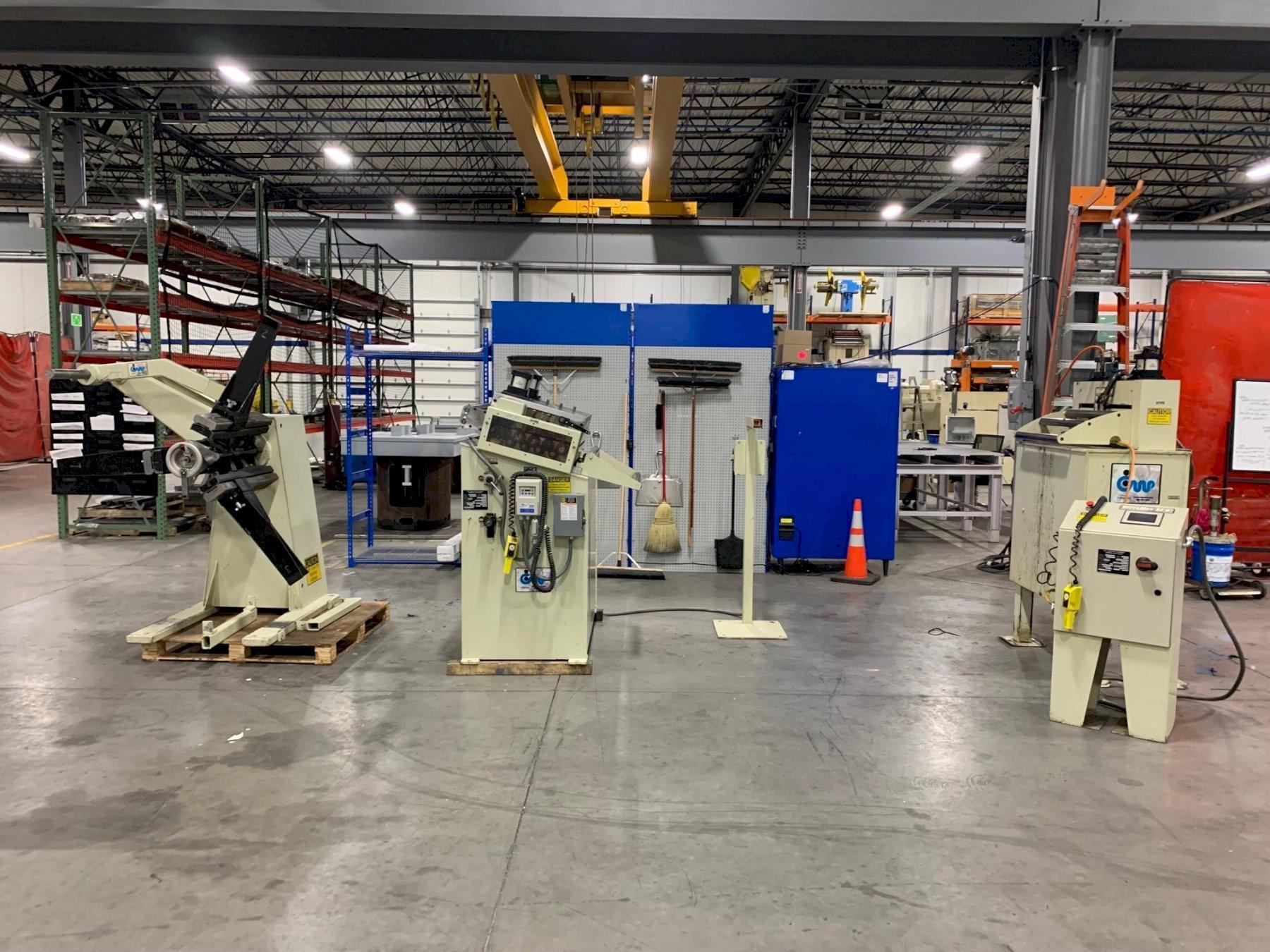

6,500 lbs x 24" Wide Cooper-Weymouth Peterson Conventional Coil Feed Line

Manufacturer

COOPER WEYMOUTH PETERSON

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2786

Model

24CRS

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 6500 pounds
Coil Width - 24 inches
Coil Thickness - .125 inches


Conventional Coil Feed Line General Specifications
6500 lbs Max Coil Weight
24" Max. Coil Width
.125" Max. Stock Thickness at Full Width
60" Max Coil O.D.
13-17" I.D. Range

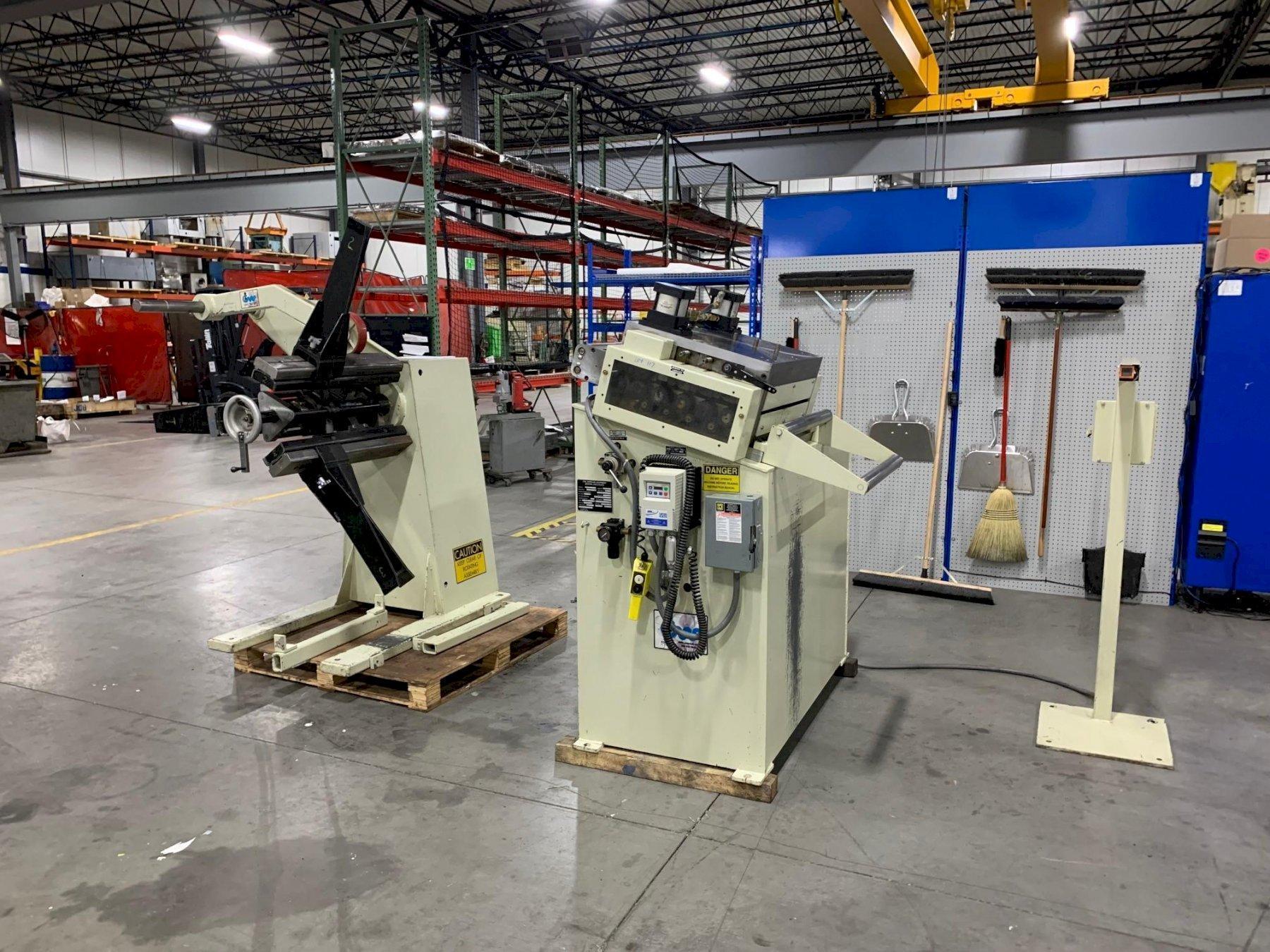

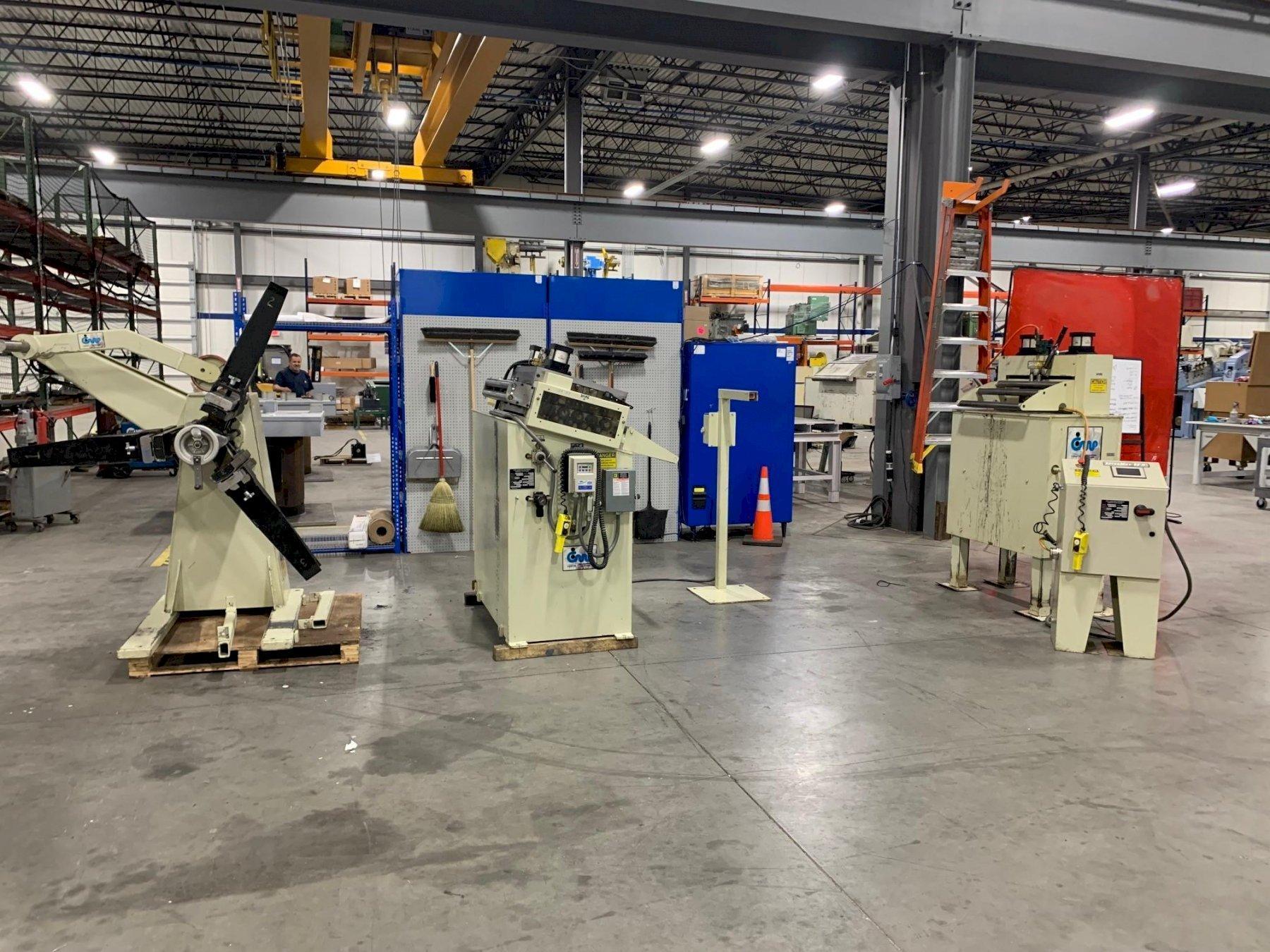

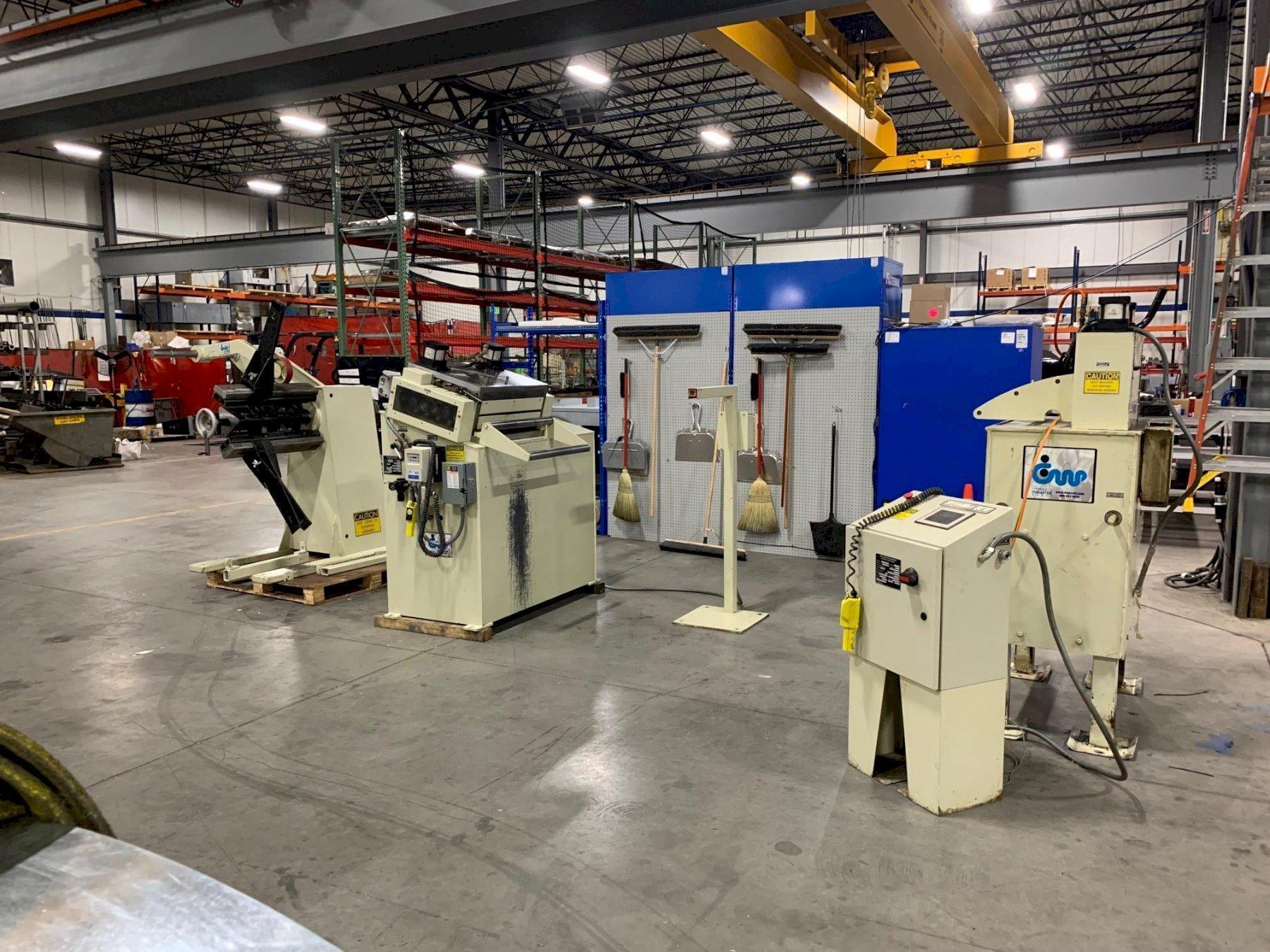

Coil Feed Line Equipment and Features:

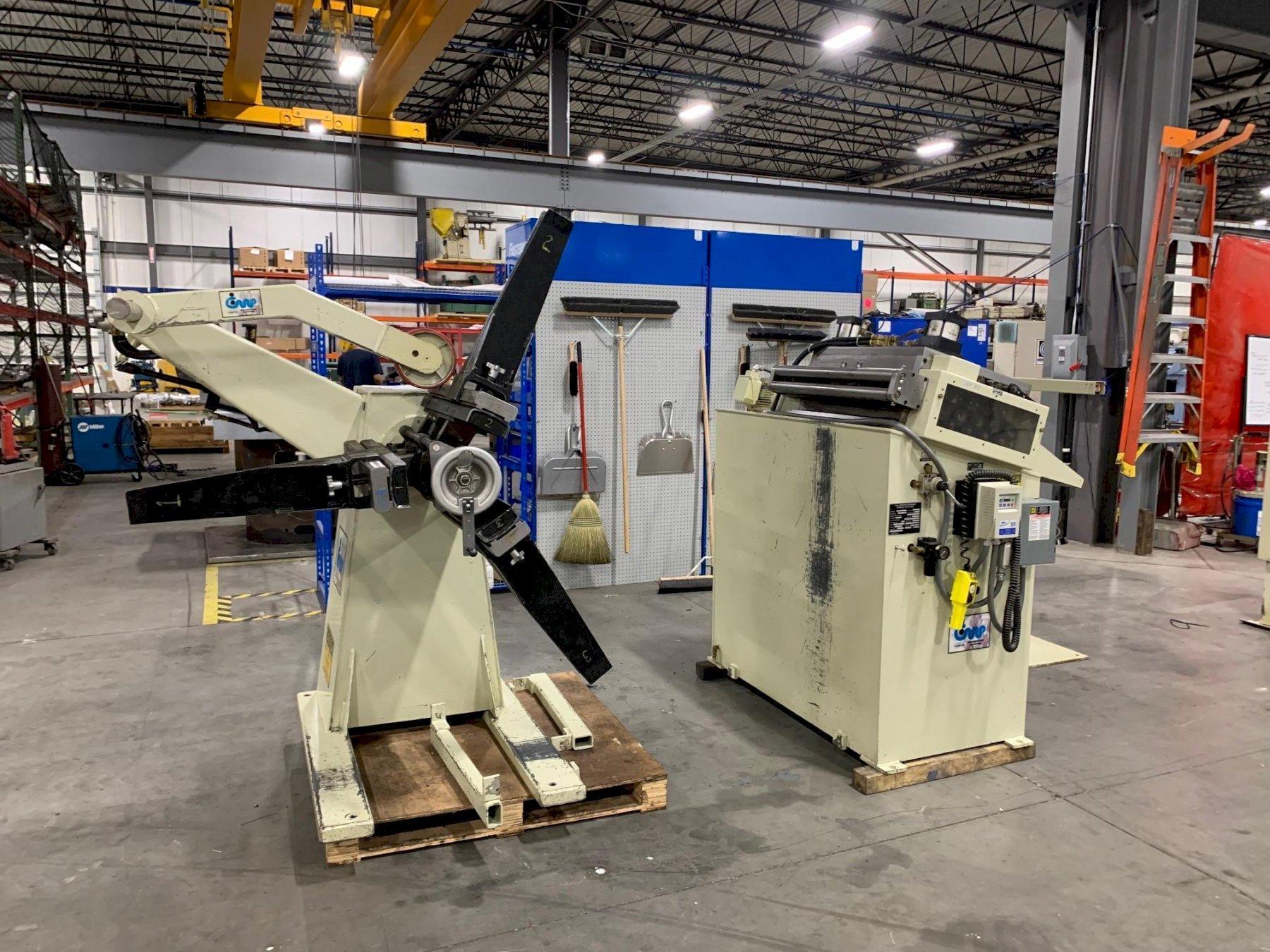

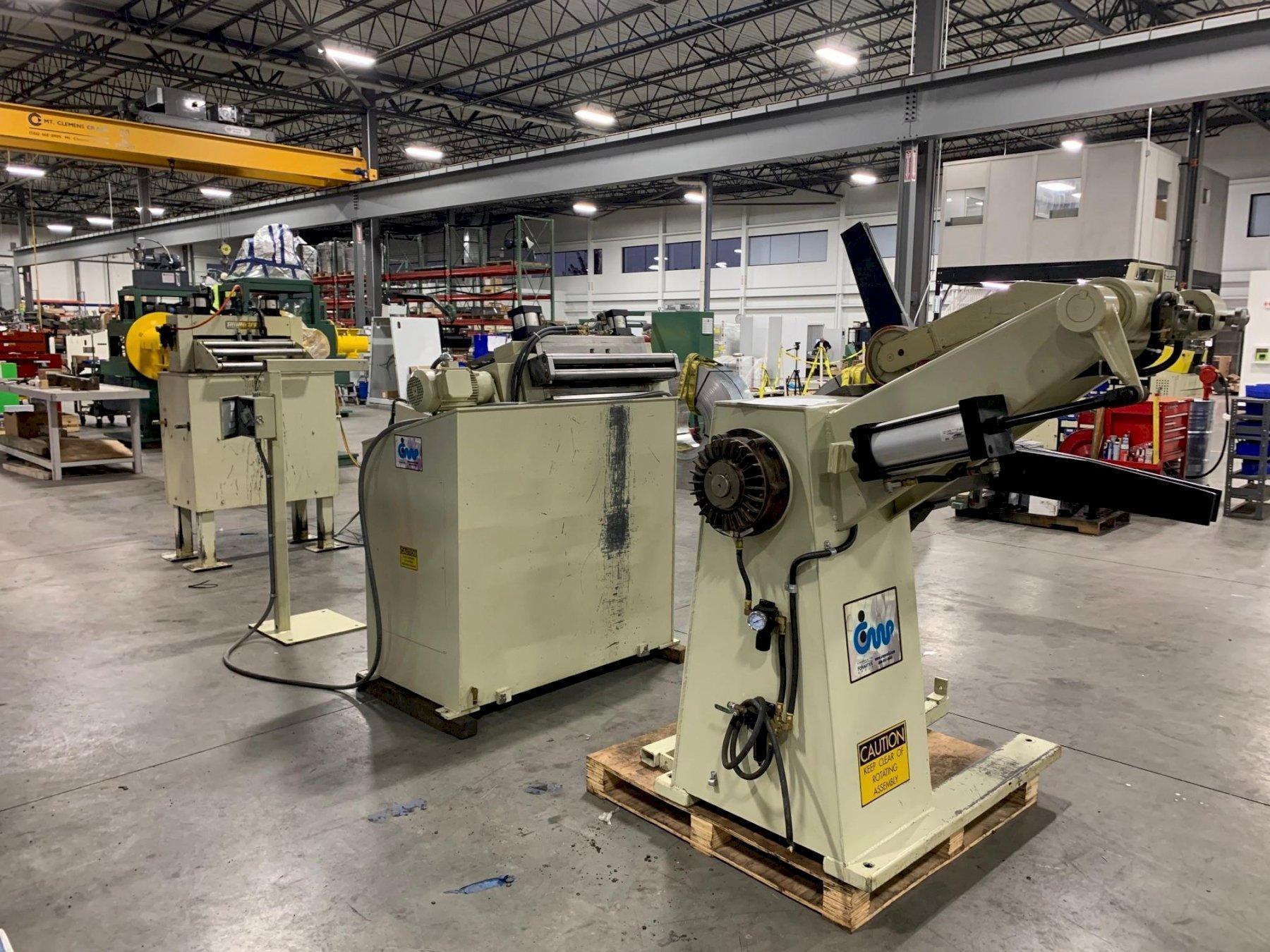

Cooper-Weymouth, Peterson Uncoiler Model# 4R-24
Serial Number C29145-2
Three Leaf Mandrel Coil Reeel
Manual Coil Reel Mandrel Expansion
Air operated coil hold down arm (air actuated)
Air drag brake mounted on main coil reel spindle
Adjustable brake - Pull off Tension

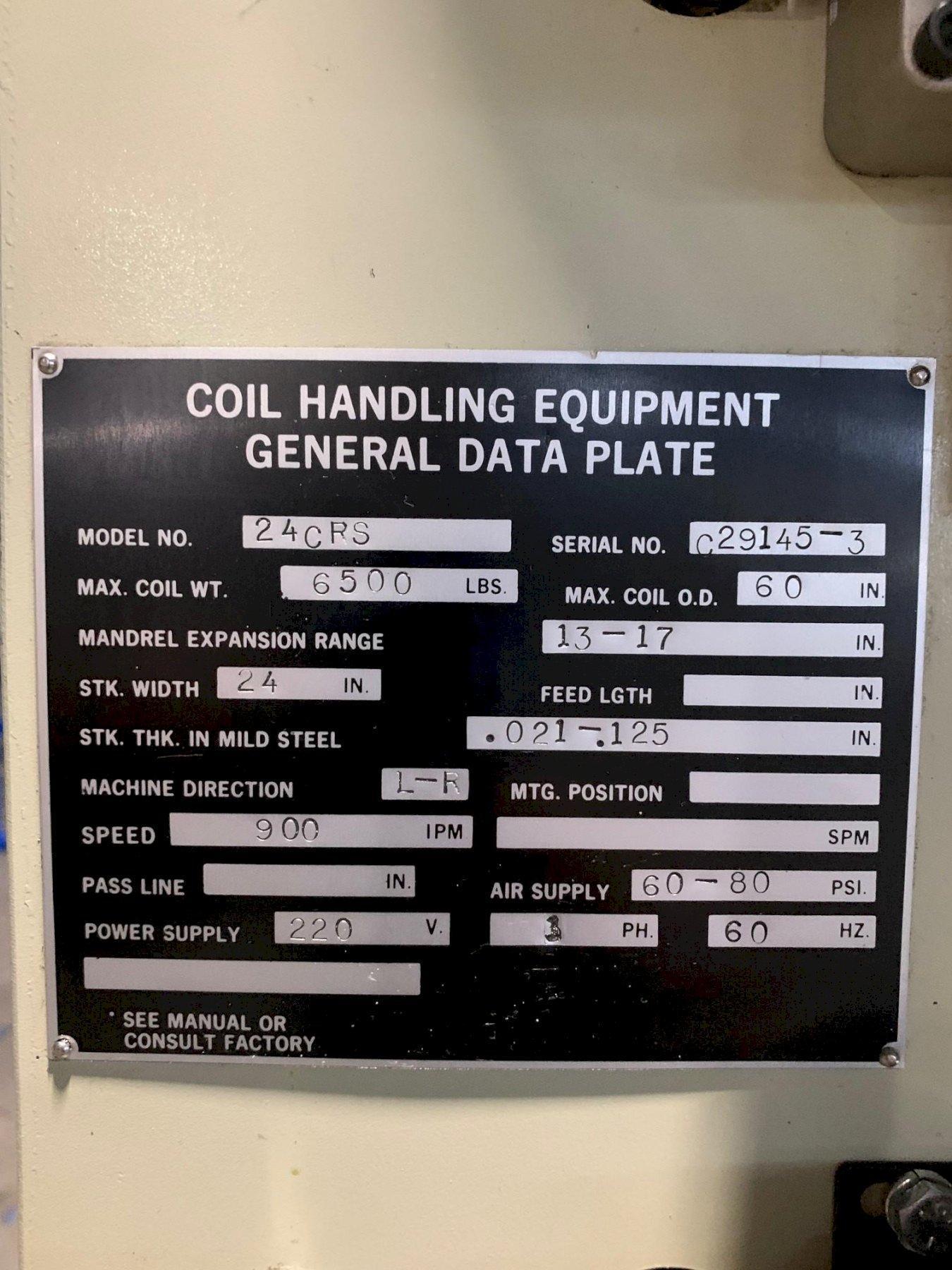

Cooper-Weymouth, Peterson Powered Coil Straightener Model# 24CRS
Serial Number C29145-3
Entry and exit powered coil straightener pinch rolls
Air operated entry powered coil straightener pinch roll adjustment
Manual exit upper powered coil straightener pinch roll adjustment
Seven coil straightening rolls x 2.75" diameter
Manual individual upper coil straightening roll adjustments
Entry stock width edge guides
Hand held pendant control for jog forward and reverse
Variable speed powered coil straightener drive system
Exit cascade loop support rollers
Loop control

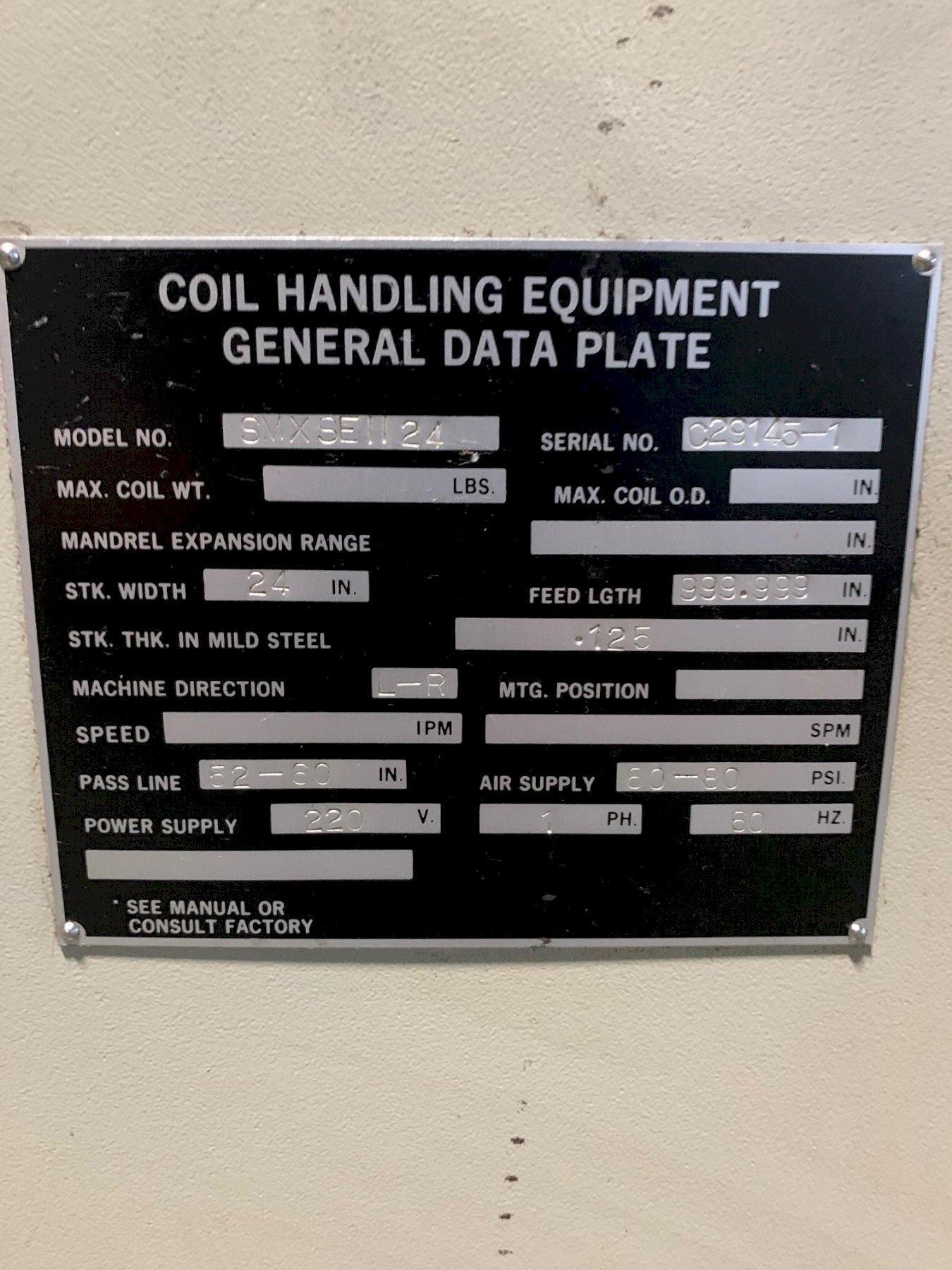

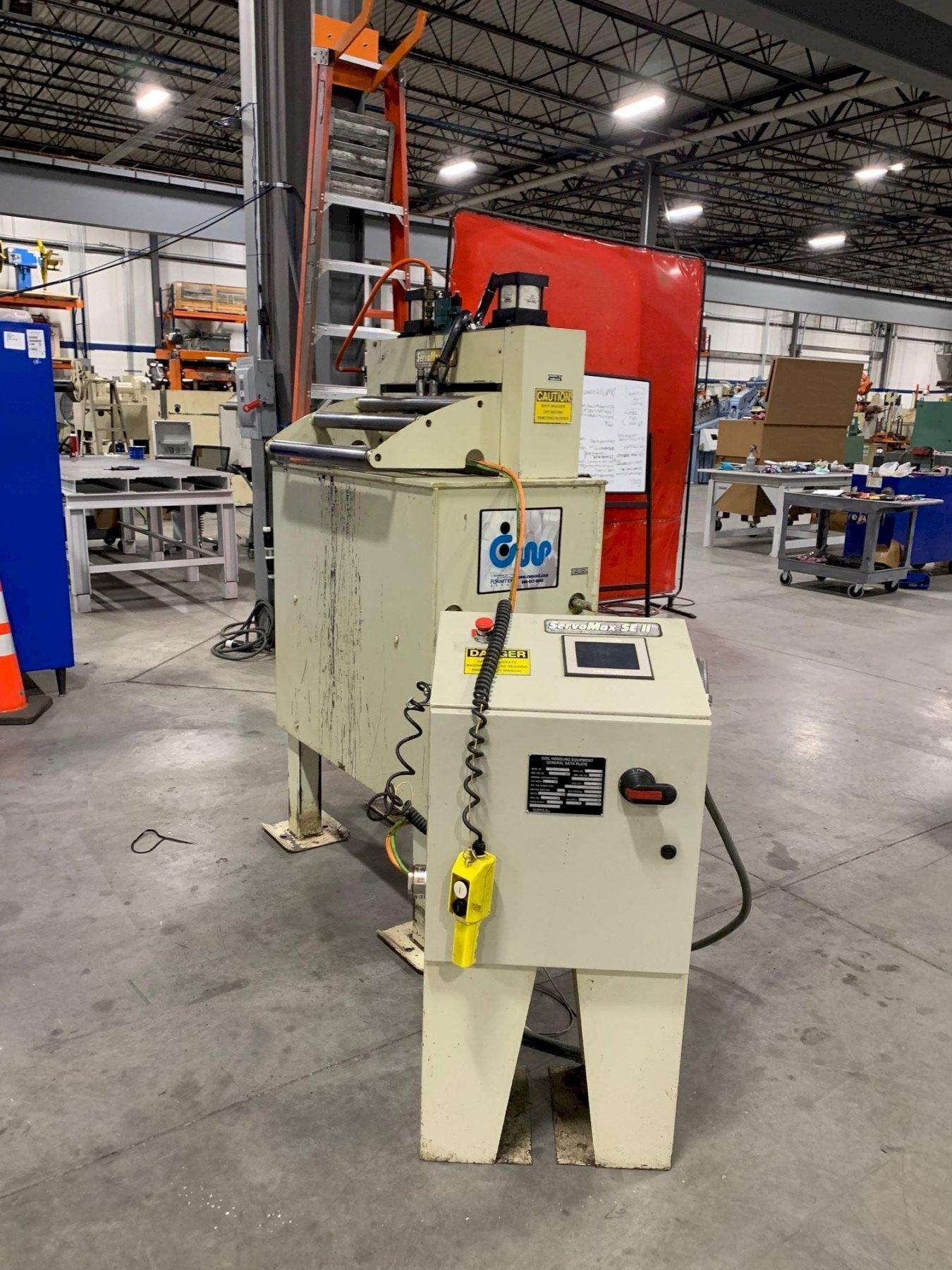

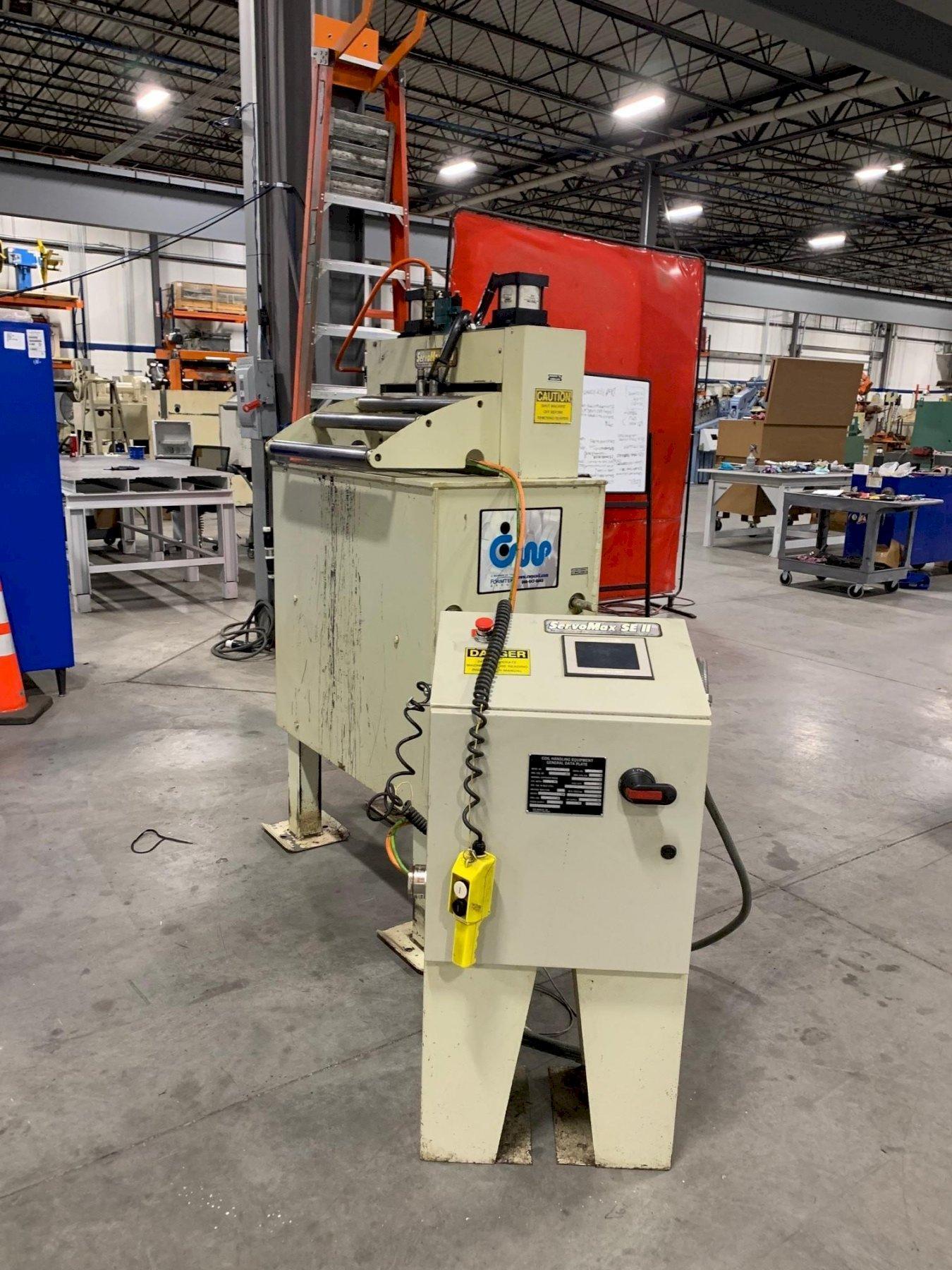

Cooper-Weymouth, Peterson Coil Servo Roll Feed Model# SMXSEII24
Serial Number C29145-1
2.75 inch diameter upper and lower servo feed rolls
Air operated upper servo feed roll lift/pilot
Adjustable stock width edge guides
Entry cascade loop support rollers
Free standing base with adjustable pass line height
AC servo roll feed drive and controls
Job memory micro adjust batch count etc
Pilot pin mode
Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect

Can be seen under power upon request!
