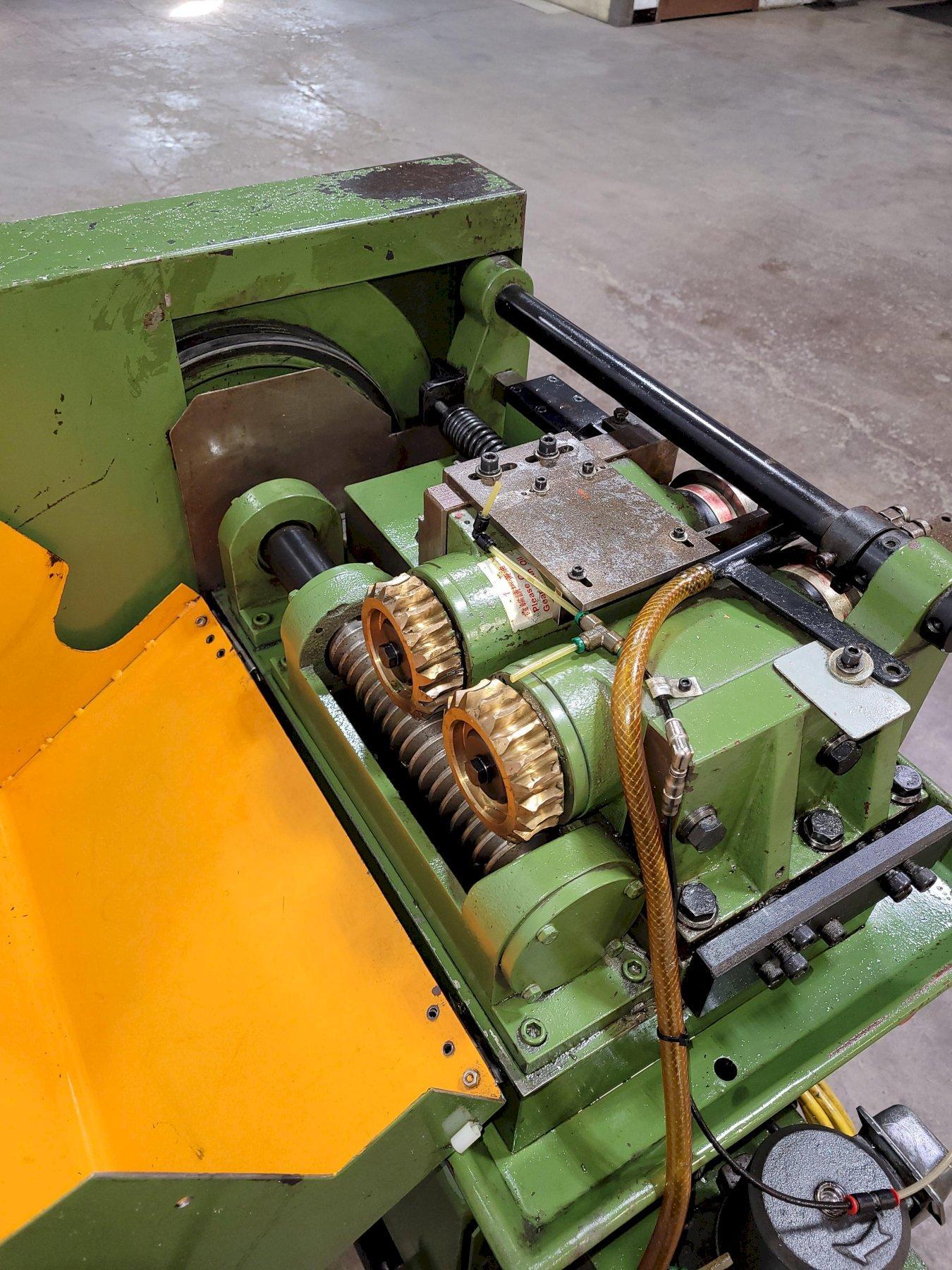

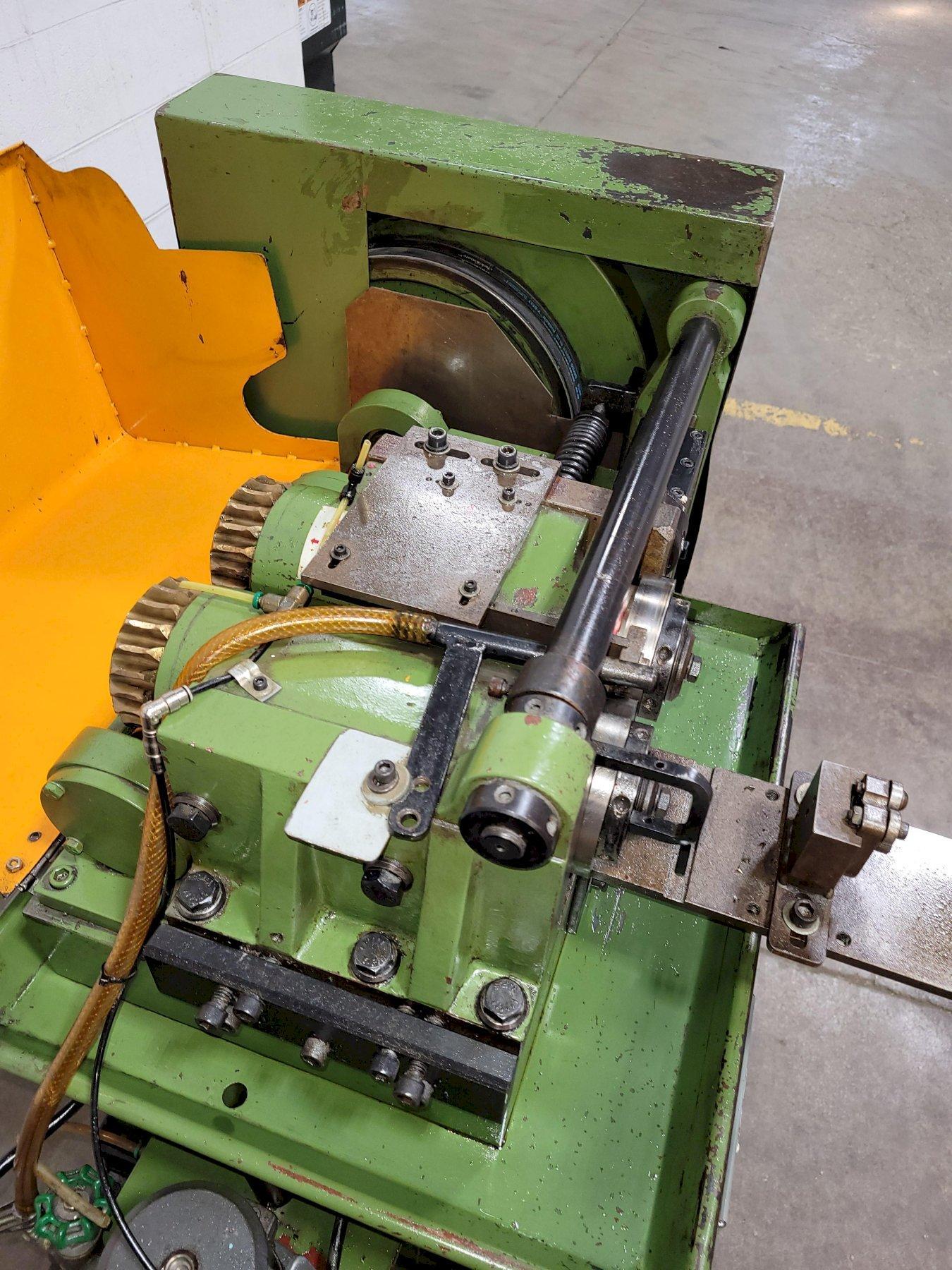

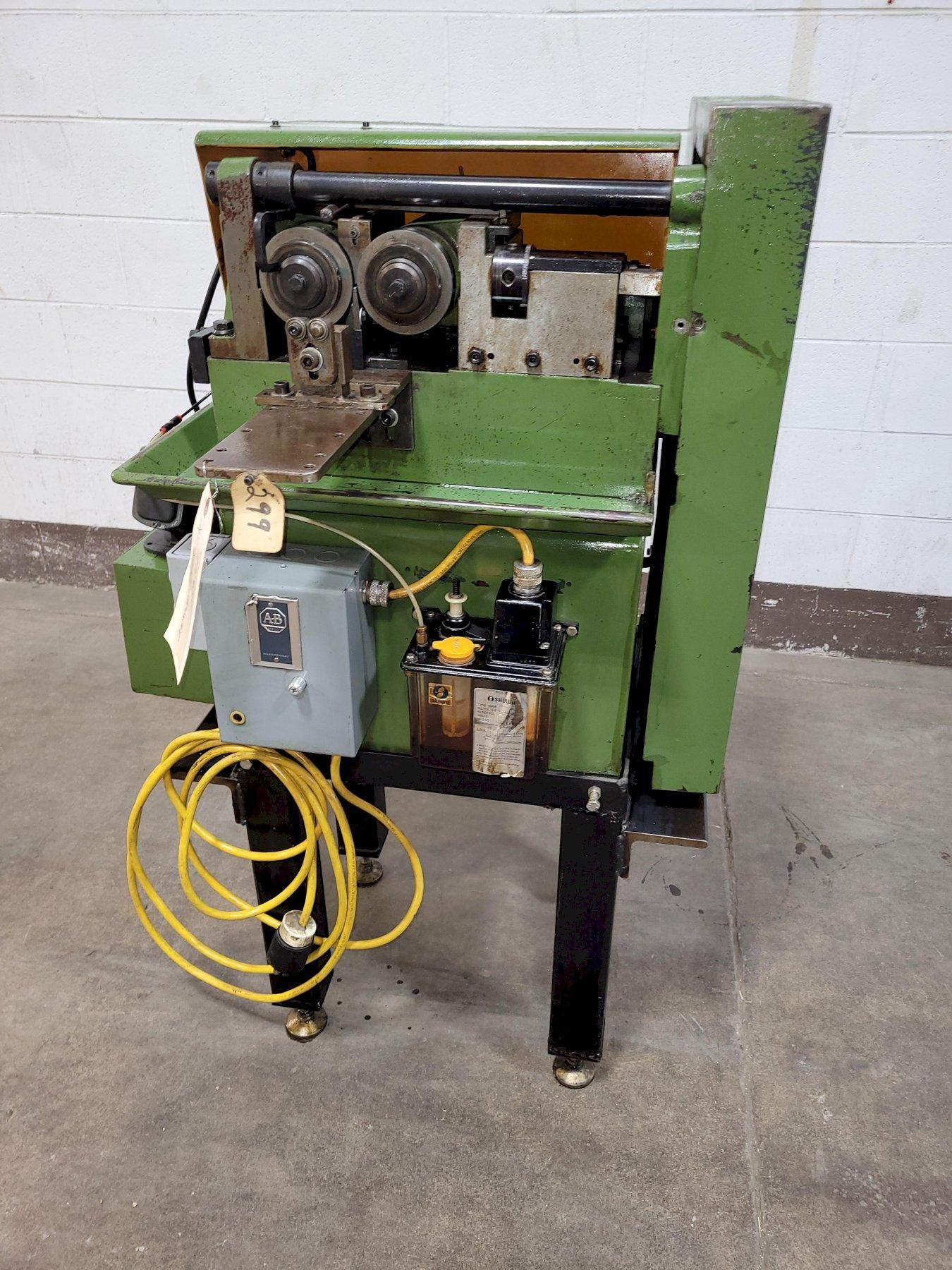

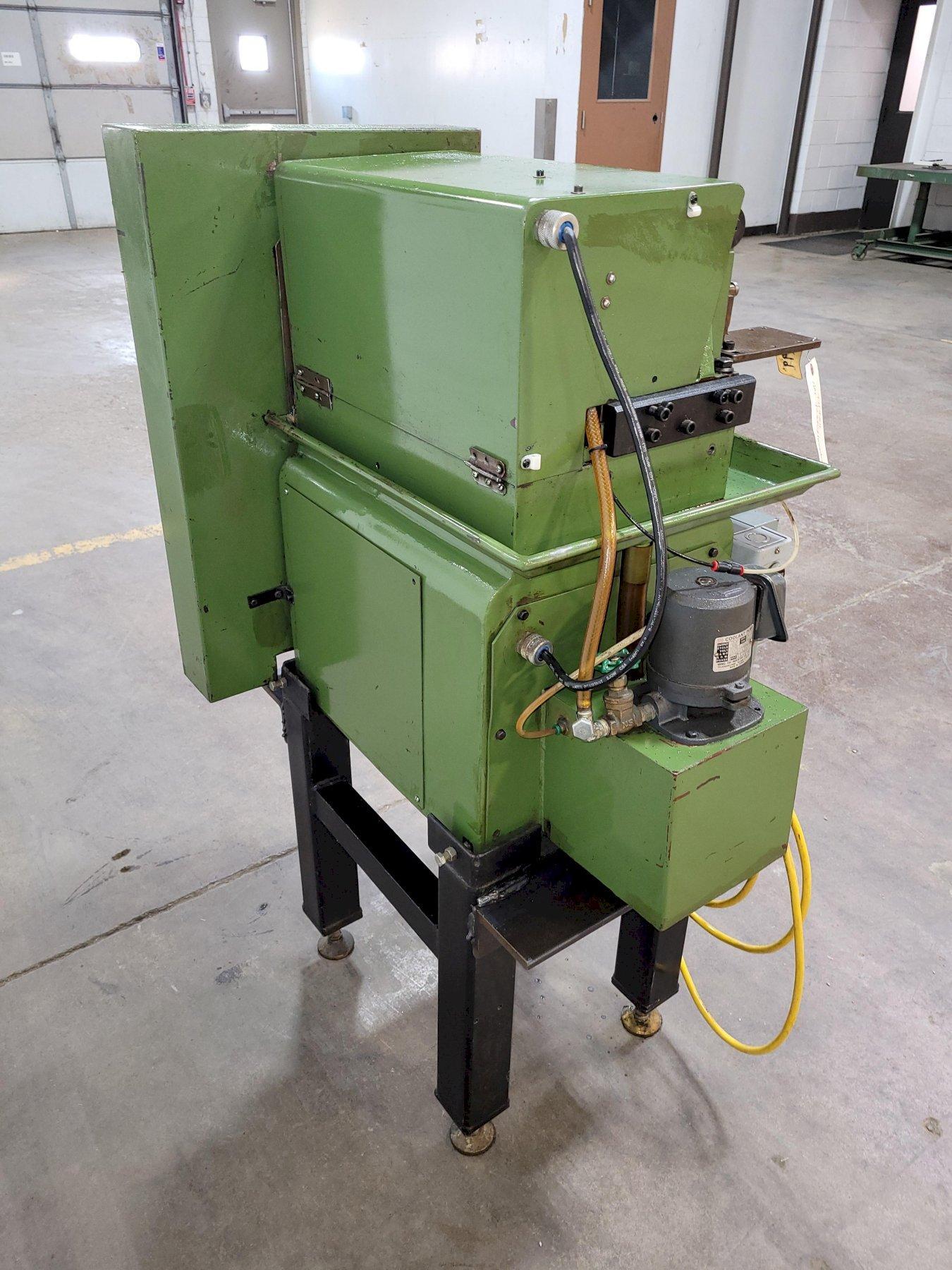

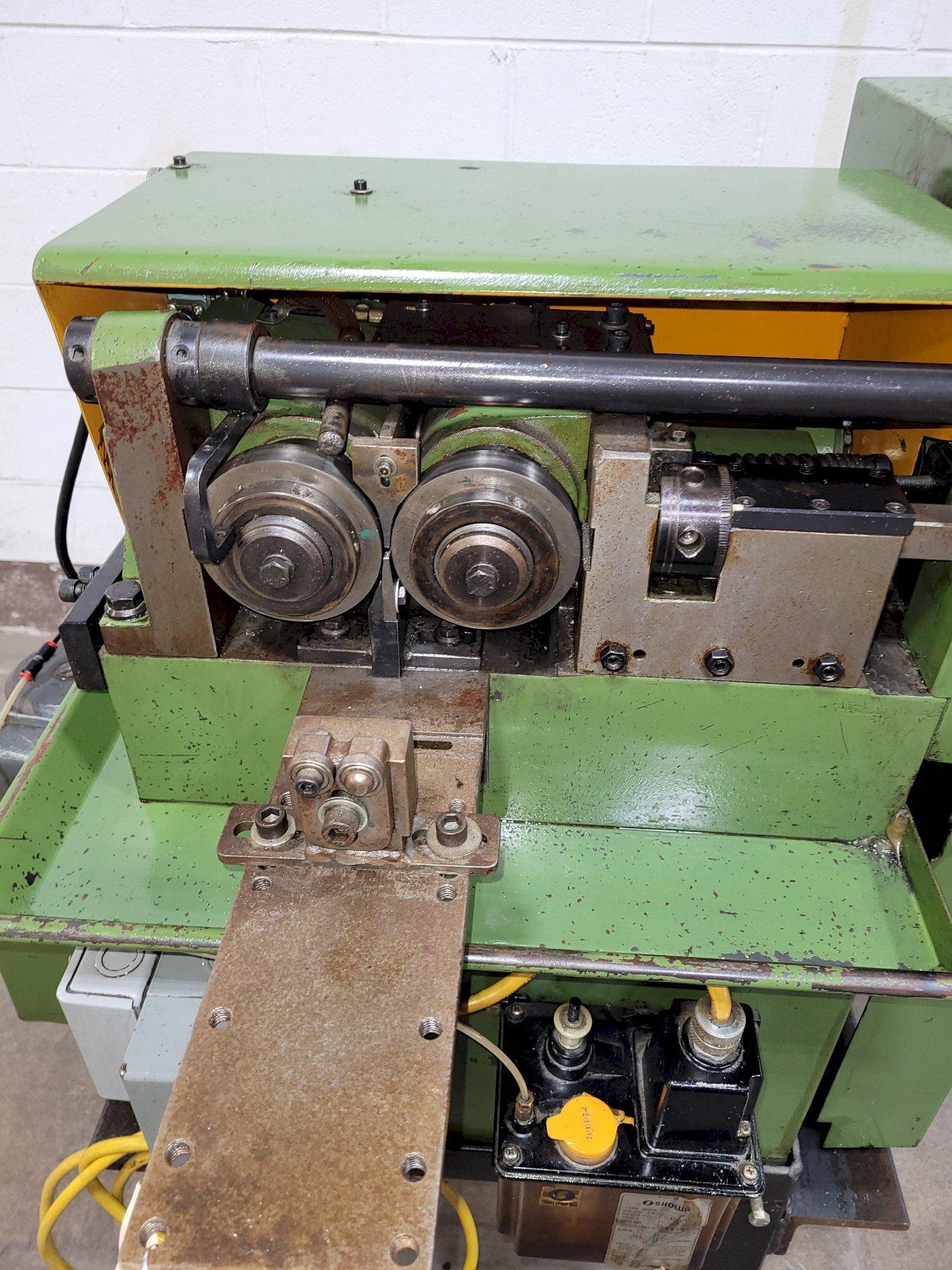

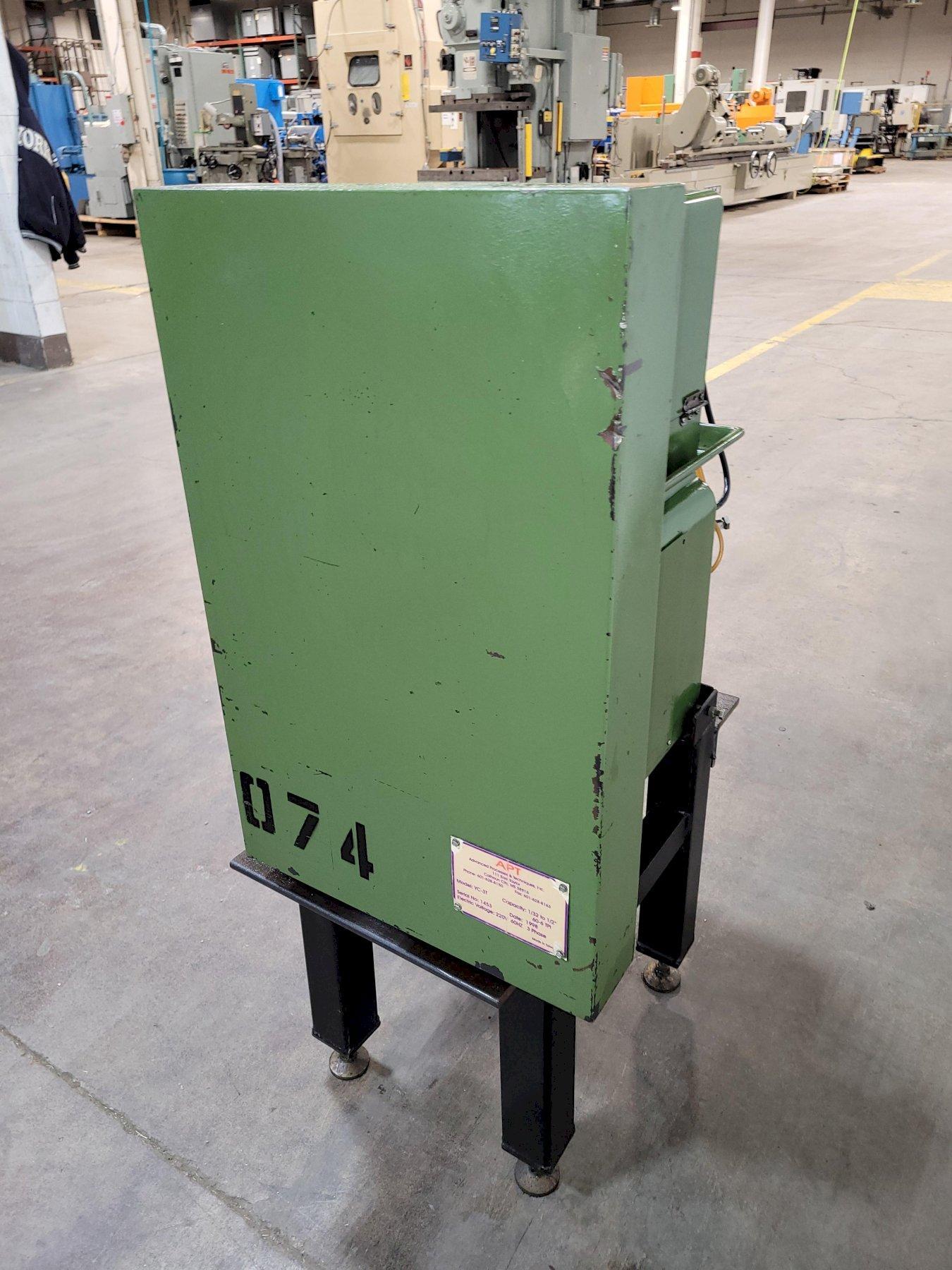

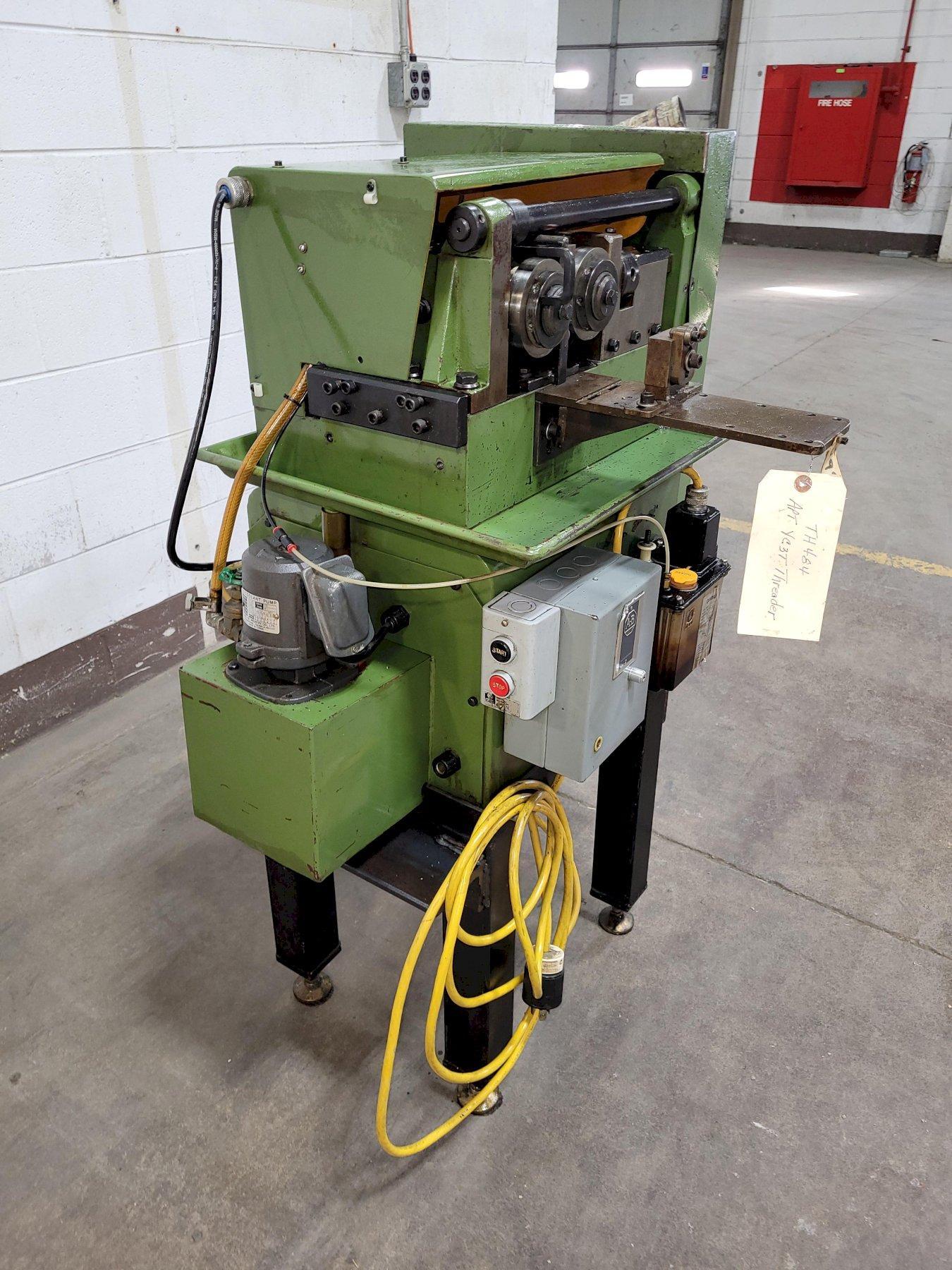

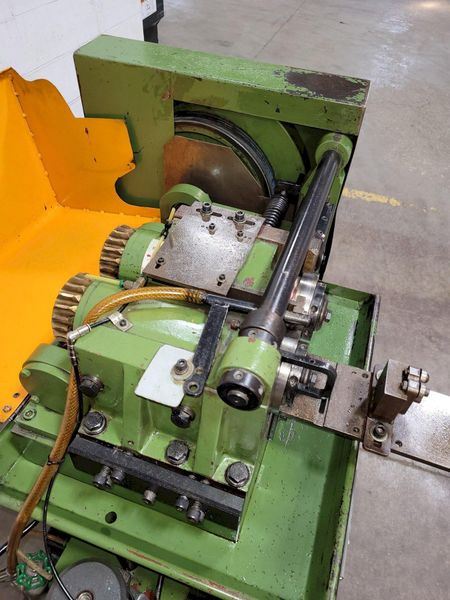

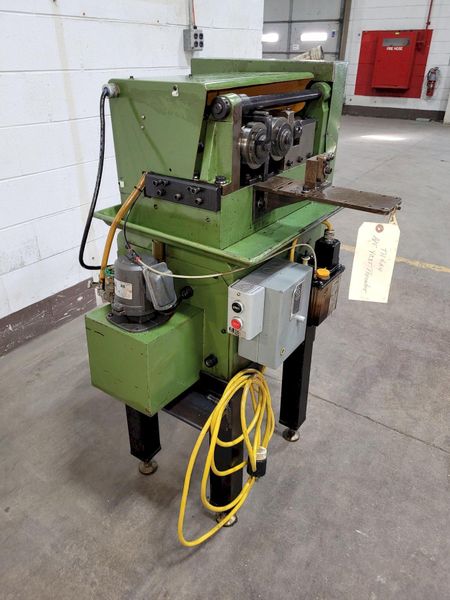

½” YIEH-Chen Model YC-3T Cam Driven Thread Rolling Machine

½” YIEH-Chen Model YC-3T Cam Driven Thread Rolling Machine

Manufacturer

YIEH CHEN

Spec Sheet

Workpiece Range - :
Outside Diameter - 0.8 - 12.5 mm / 1/32" - 1/2"
Thread Pitch - 0.4 - 1.5P / 60 - 6 TPI
Max. Length - 30 (40) mm / 1-1/8" (1-9/16")
Roll Dies - :
Rolling Speed - 40 rpm
Max. Outside Diameter - 100 mm / 3.93”
Inside Diameter - 50.5 mm / 1.98”
Max. Width - 30 (40) mm / 1.18”
Max. Center Distance of Die-Spindle - 130 mm / 5.11”
Min. Center Distance of Die-spindle - 90 mm / 3.5”
Output (Pcs/Min.) - 20 - 40
Motor - :
For Spindle - 1HP, 3 Phase, 60 Cycle, 220 Volt
For Coolant Pump - 1/8 HP
Machine Body - :
Floor Space - 30” x 36”
Approx. Weight - 395 kg

EQUIPPED WITH:
Push Button Start/Stop. Cam Operated Rolling Slide. Adjustable Skew. Coolant Pump and Tank. Manual Lubrication. Work Support.
