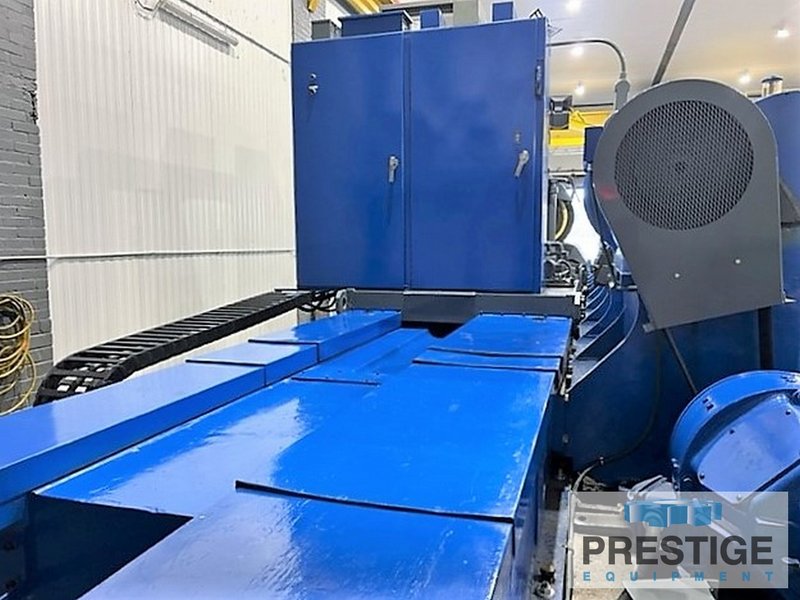

Cincinnati M-4869, 36" x 192", 1800 RPM, 14,500Lb Capacity, Fagor DRO, MPE Coolant System, 30HP, #32278

Manufacturer

CINCINNATI

Category

Grinding Machines

Type

GRINDERS, ROLL

Stock

32278

Model

M-4869

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32278

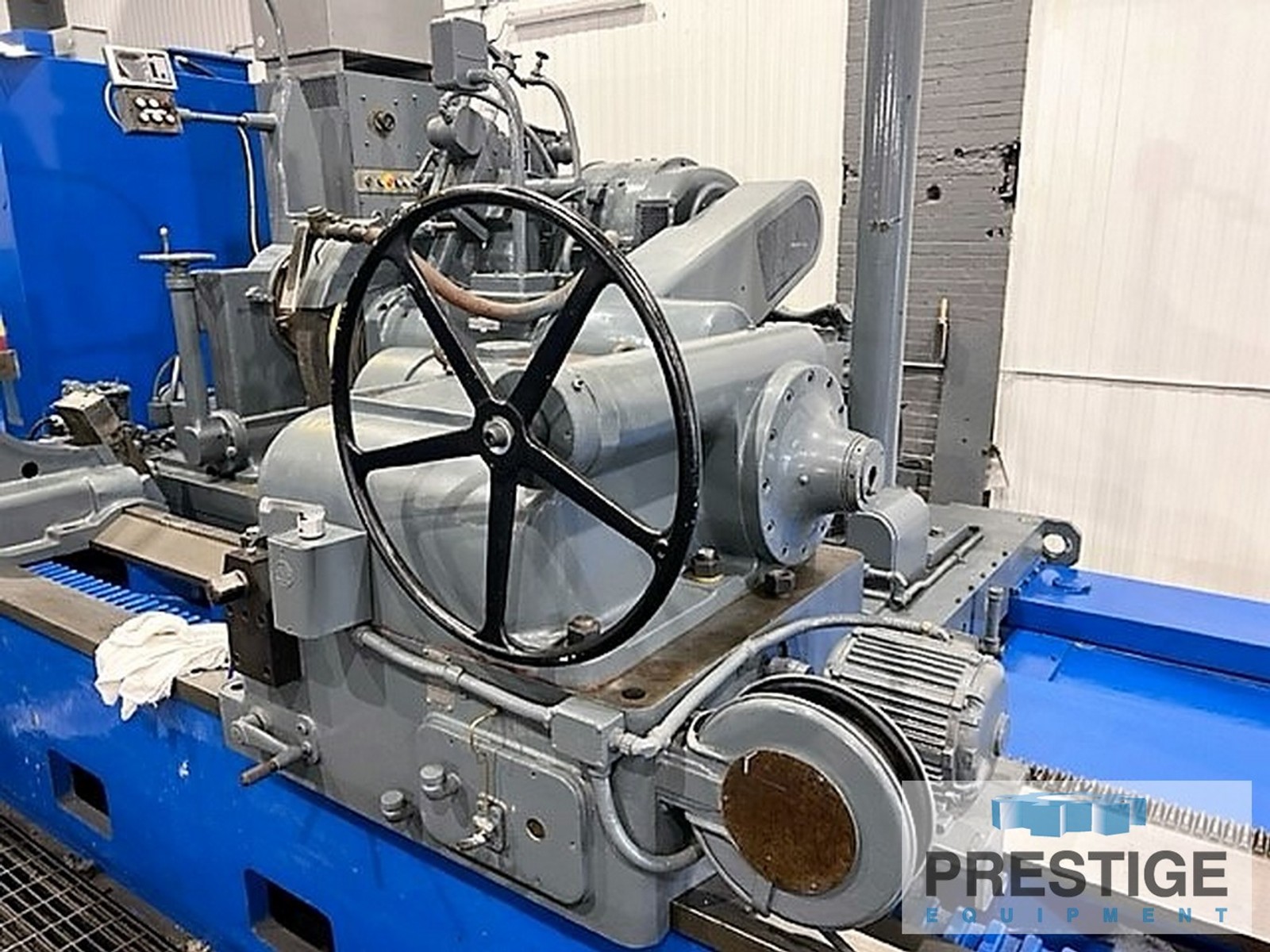

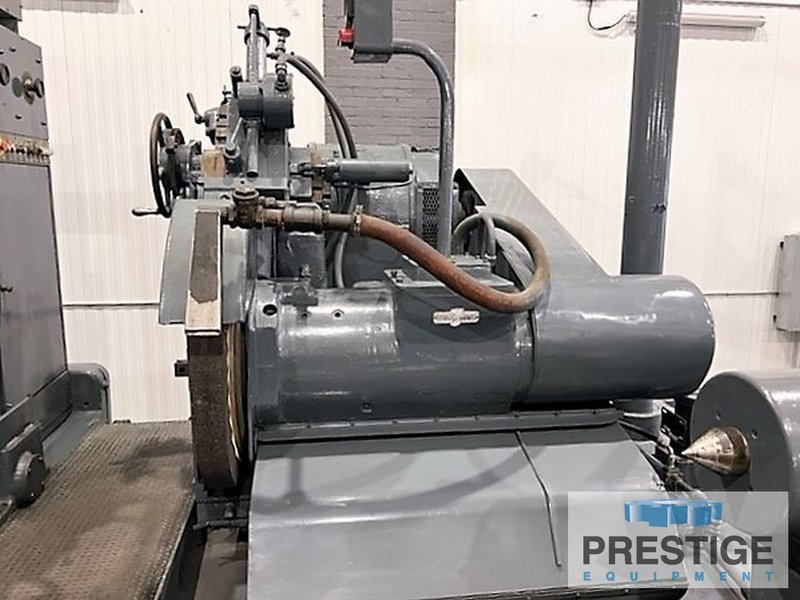

Cincinnati 36" x 192" M-4869 Roll Grinder

FEATURES:

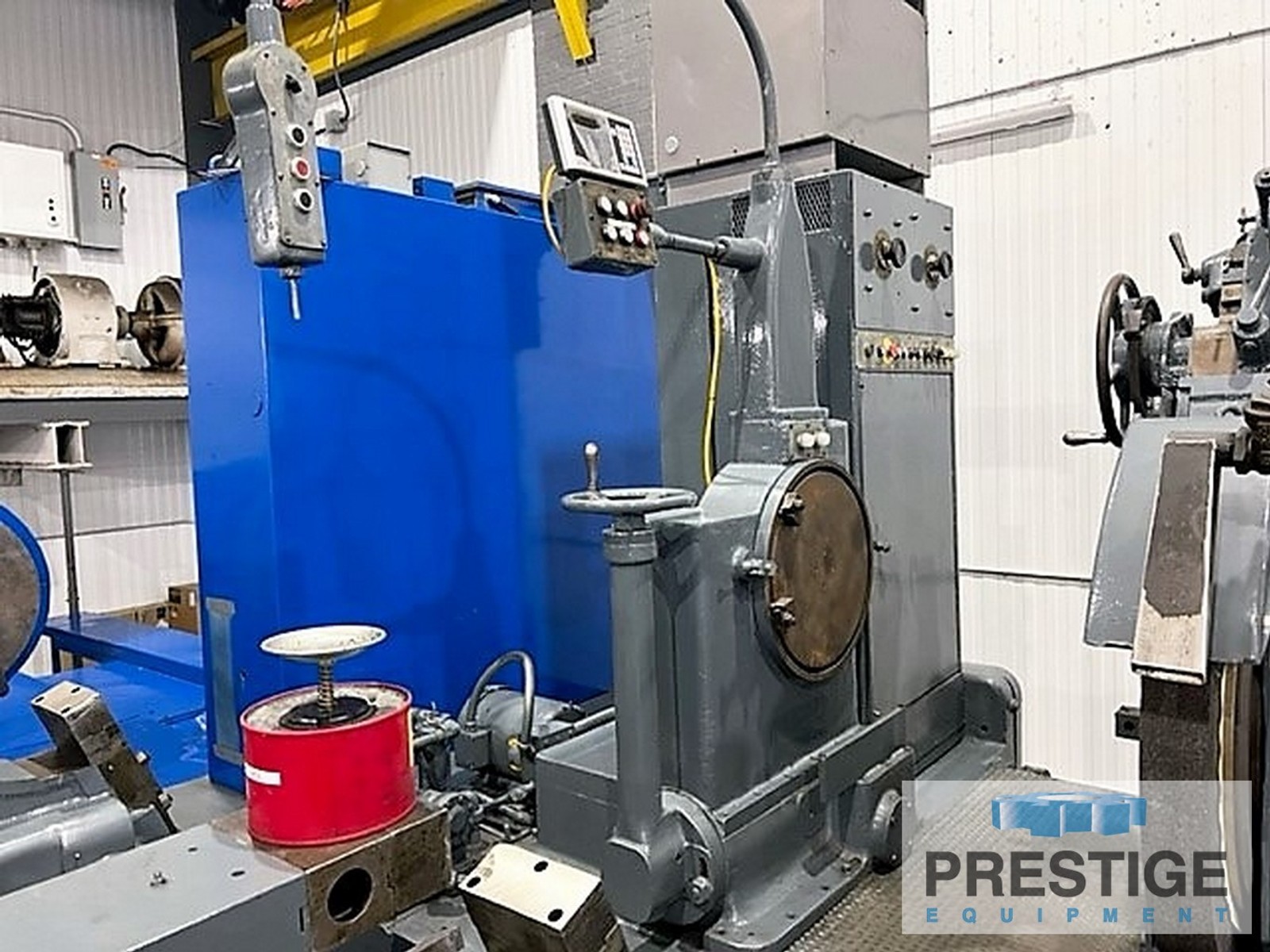

Fagor Digital Readouts
Barnes MPE 60 Coolant System
Change Gears for Crowning

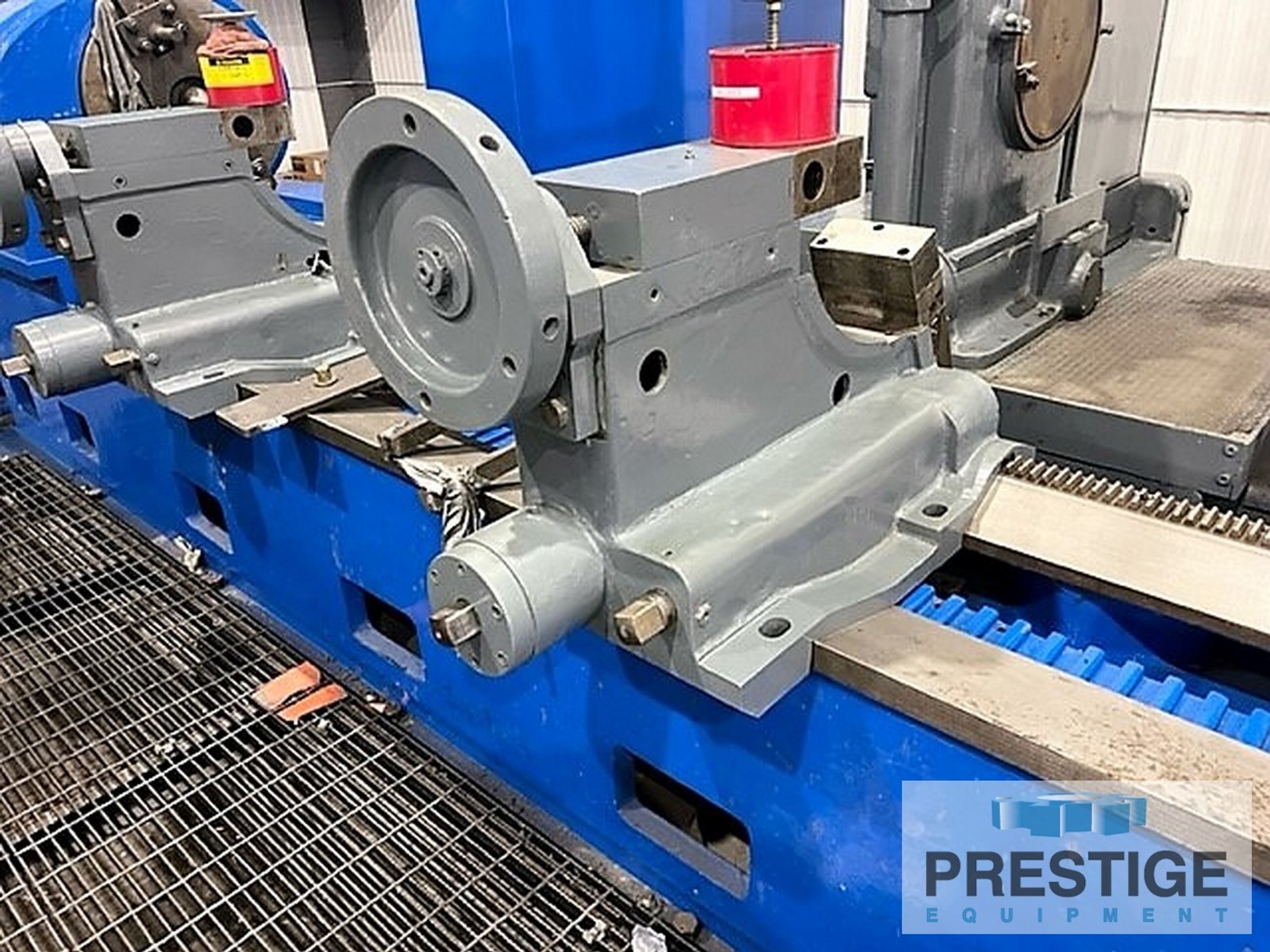

Journal Rests
Machine Rebuilt in 2021

SPECIFICATION:
Maximum Swing Over Bed ................ 36"
Maximum Roll Length ................... 192"
Grinding Wheel Dimensions ............. 36" x 4" x 20"
Grinding Wheel Speeds ................. 60 - 1,800 RPM

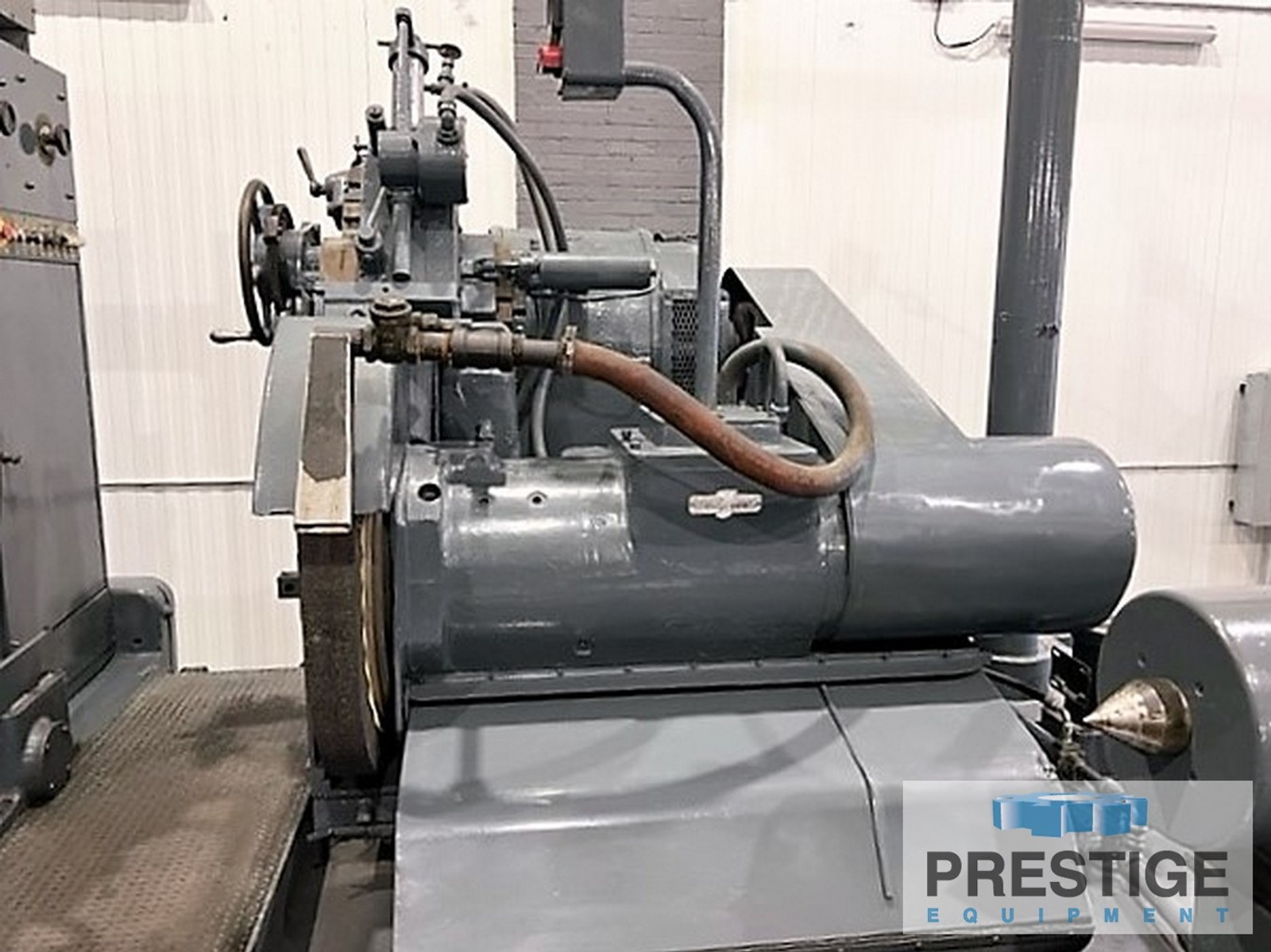

Grinding Head Motor ................... 30 HP

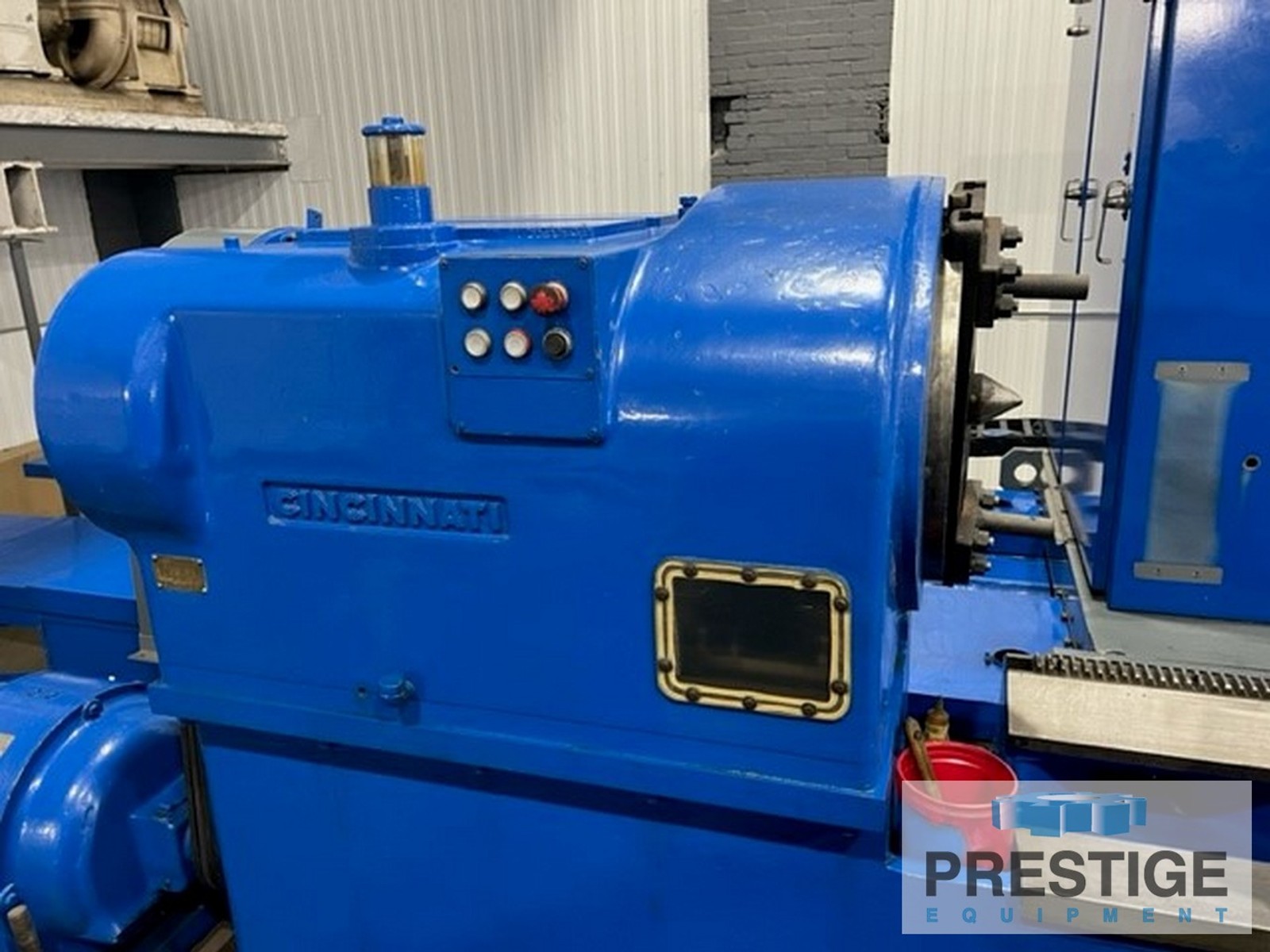

Headstock Speeds ...................... 9 - 32 RPM
Headstock Motor ....................... 15 HP
Infeed, Programmable .................. .000010" - .004"
Maximum Infeed Rate ................... 30 IPM

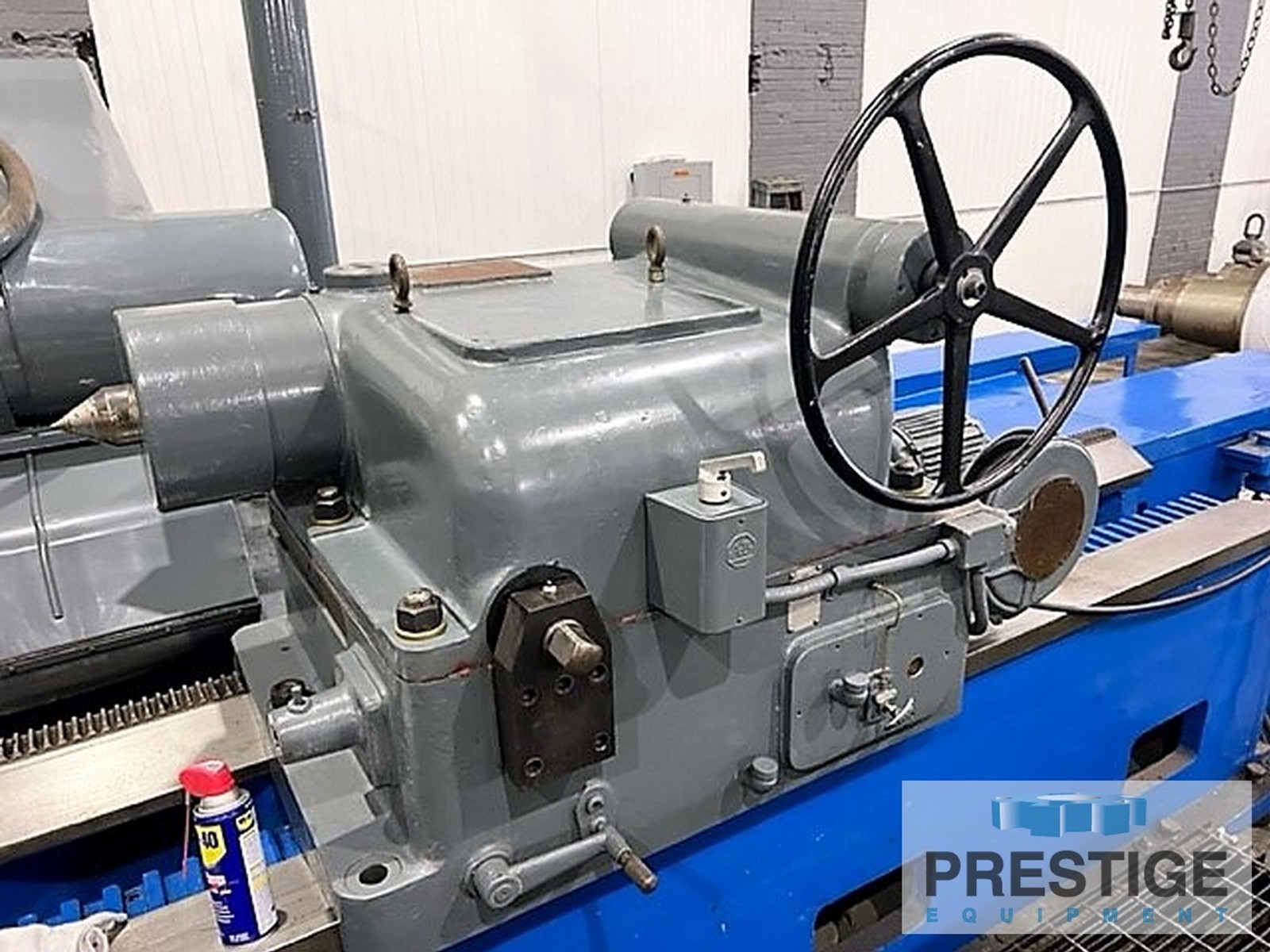

Tailstock Quill Diameter .............. 6"
Tailstock Quill Travel ................ 20.375"

EQUIPPED WITH:
Fagor Digital Readouts
Barnes MPE 60 Coolant System
Change Gears for Crowning
Journal Rests
Wheel Hub
Equalizer Drive
Way Covers

NOTE:
Machine was Rebuilt in 2021

NOTE:
Inspect in Plant Under Power
