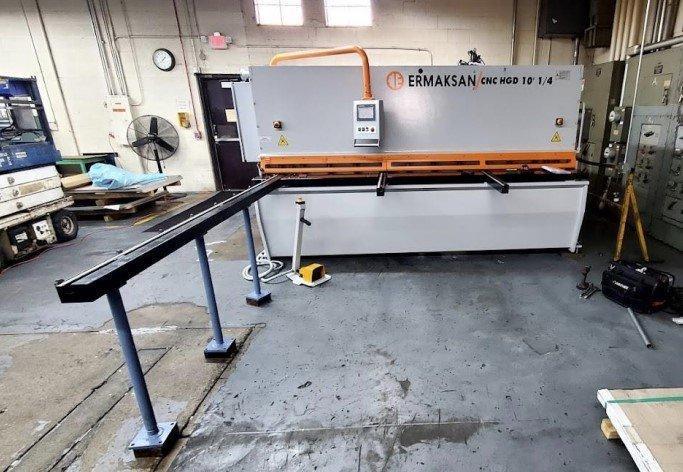

2019 Ermaksan HGD-B 3100-06 Hydraulic Shear (#4700)

Manufacturer

Stock

None

Model

None listed

Dealer Location

Florida

Spec Sheet



1/4" X 10' Hydraulic Shear with Ercut 7 Control, Cutting Line Illumination and Shadow Line, Hydraulic Blade Gap CNC Adjustment, LEUZE MLD 520 Rear Protection Light Curtain, Hardened Blade and 1 Meter Squaring Arm

GENERAL SPECIFICATIONS
Cutting Length: 120"
Cutting Capacity: 1/4"
Cutting Angle: 1.5°
Stroke: 8.3"
Stroke Per Minute: 16
Hold Downs: 14
Main Motor: 15 HP
Back Gauge Motor: 1 HP
Oil Capacity: 40 Gallons
Blade Gap Adjustment: .002" - .060"
Back Gauge Stroke: 39.5"
Back Gauge Speed: 260 IPM
Sheet Support Arms: 2
Table Length: 135"
Table Height: 31.5"
Machine Dimensions: 114" X 155" X 83"
Machine Weight: 16,060 LBS


INCLUDES: Ercut 7 Control, Cutting Line Illumination and Shadow Line, Hydraulic Blade Gap CNC Adjustment, LEUZE MLD 520 Rear Protection Light Curtain, Hardened Blade and 1 Meter Squaring Arm


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
