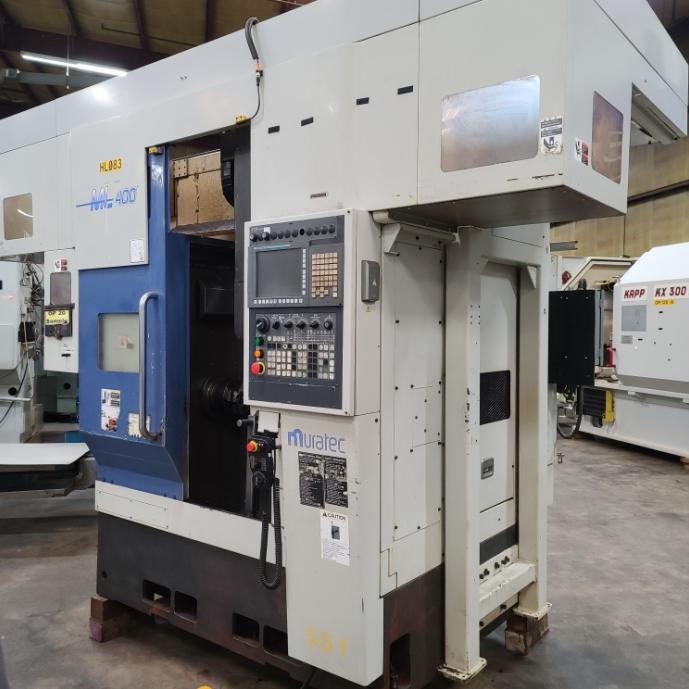

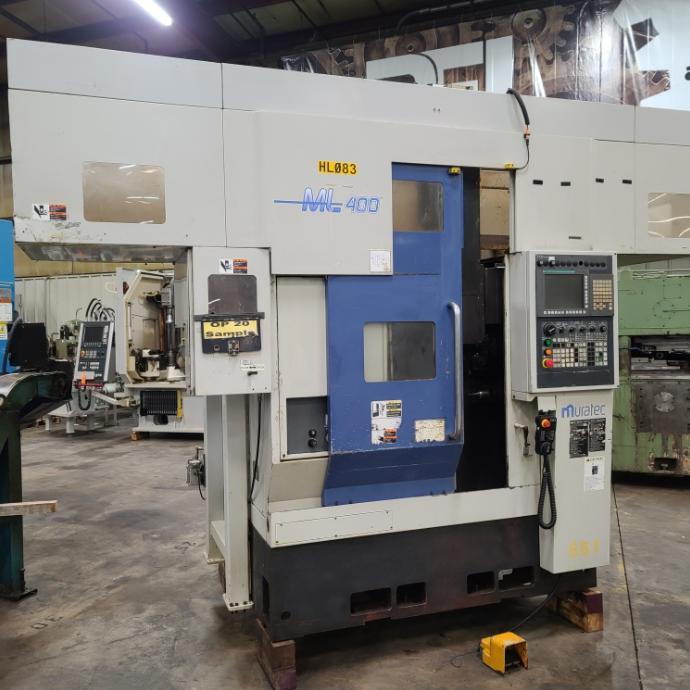

2011 Muratec ML 400G CNC Turning Center (#4702)

Manufacturer

Category

Lathes

Type

LATHES, TURNING

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



13.3” X 7.8” X 15.3” with Fanuc Control, Optional Heavy Duty A/C Spindle Motors, Tailstocks, Single Turrets, Gantry Loaders, Part Holders and Chip Conveyors

GENERAL SPECIFICATIONS
Maximum Swing: 340 mm
Chuck Size: 6/8” 165mm / 205mm
Maximum Cutting Diameter :
- With Loader: 200mm
- Without Loader: 200mm
Maximum Part Length:
- With Loader: 390mm
- Without Loader: 400mm
Number Of Turret Positions: 6
X Axis Stroke: 130mm
Z Axis Stroke: 430mm
Quill Axis Stroke: 300mm
Rapid Traverse X-Axis: 20 M/Min
Rapid Traverse Z-Axis: 32 M/Min
Rapid Traverse Quill Axis: 20 M/Min
Maximum Spindle Speed: 45 - 4500 RPM
Standard Byte Tools: 20mm
Max Diameter Boring Bars: 32mm
Max Weight Of Part In Loader: 10 KG
Machine Weight With Loader Tools: 4500 KG
Machine Floor Space with Gantry: 3280 mm W X 1650 mm H
Machine Height with Gantry: 3300 mm

INCLUDES: Fanuc Control, Optional Heavy Duty A/C Spindle Motors, Tailstocks, Single Turrets, Gantry Loaders, Part Holders and Chip Conveyors


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
