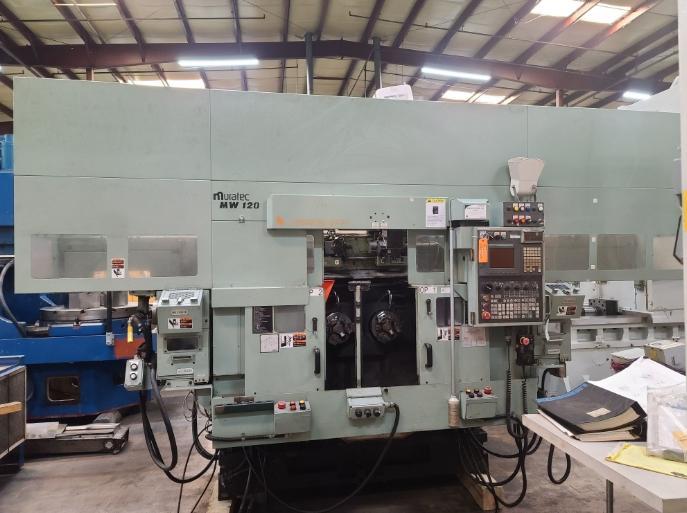

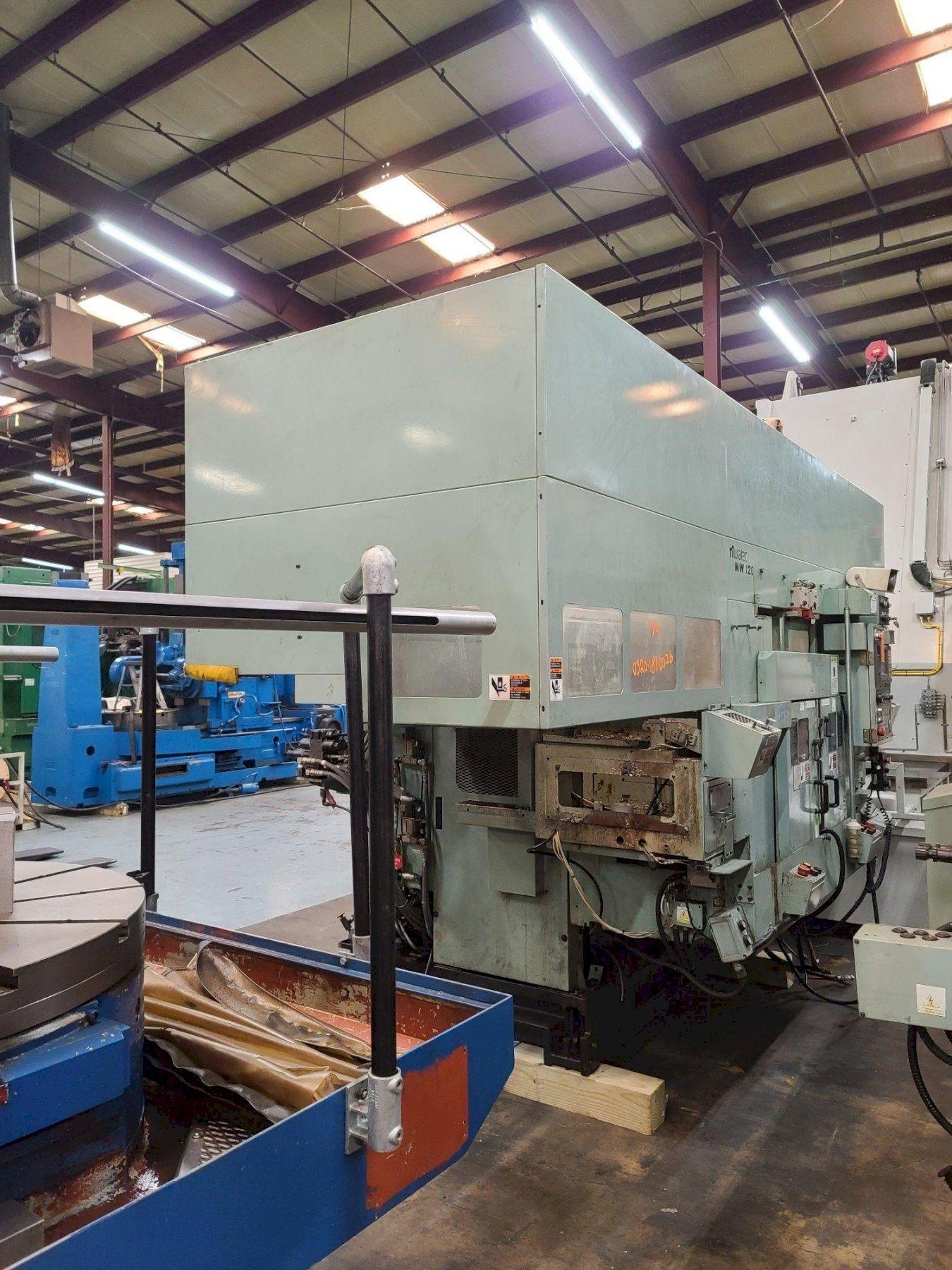

2005 Muratec MW120 CNC Turning Center (#4703)

Manufacturer

Category

Lathes

Type

LATHES, TURNING

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

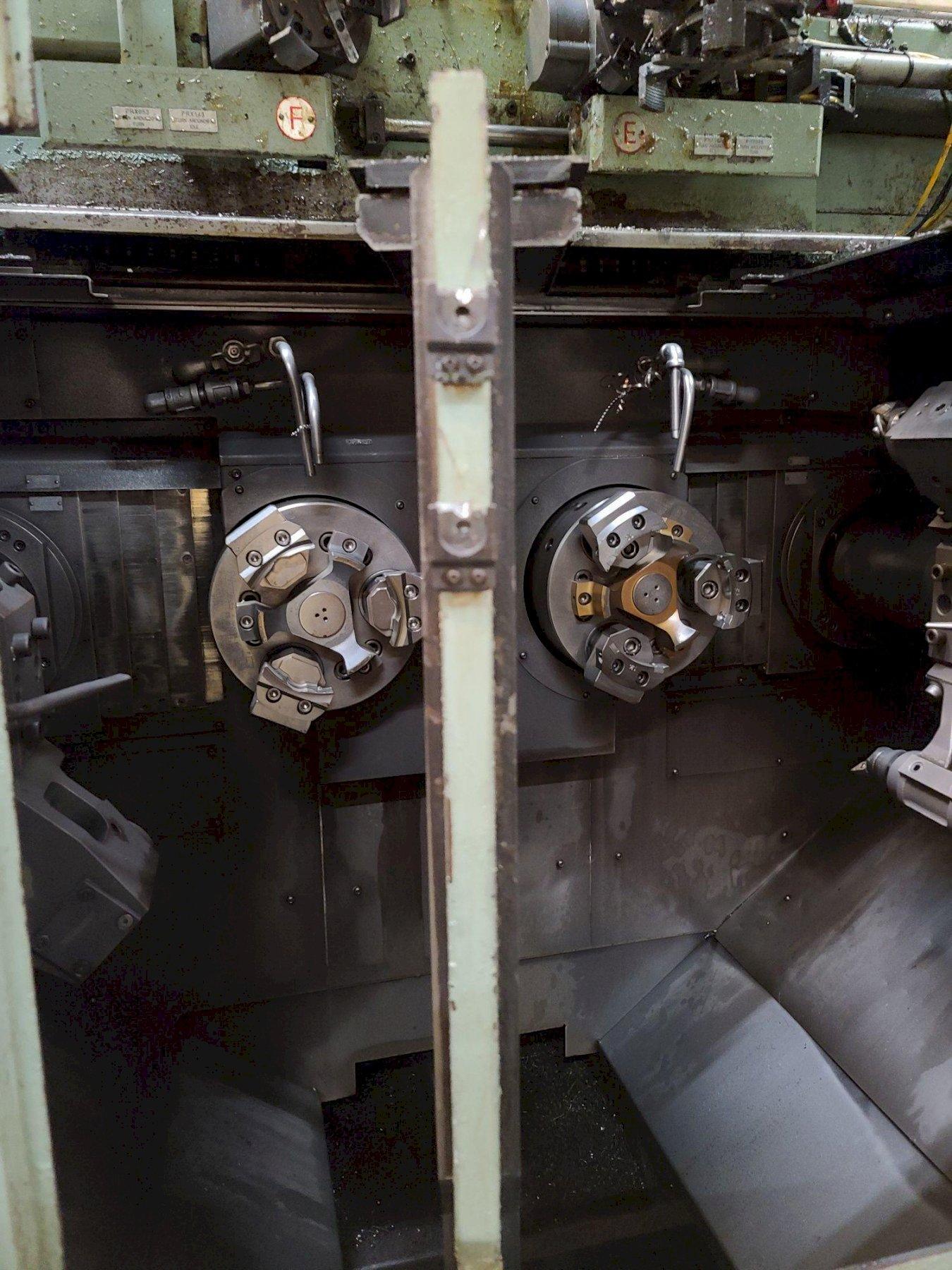

11.6” X 4.7” X 13.3” CNC Turning Center with Muratec / Fanuc Pendant Controller, (2) 8" Diameter Howa Chucks Model Ho11Mb8, Single Gantry Style Machines, Chip Conveyors and Gantry Load & Unload Software Package and Wiring

GENERAL SPECIFICATIONS
Distance Between Spindles: 340 mm
Max Swing: 295 mm
Chuck Size: 205 mm
Max Diameter with Loader: 120 mm
Max Diameter Without Loader: 230 mm
Number Of Turret Stations: 8
Stroke - X-Axis Radius: 130 mm
- Z-Axis: 145 mm
Rapid Traverse Rate X-Axis: 24 M/Min
Z-Axis: 24 M/Min
Max Spindle Speed: 4500 Rpm
Standard Tools - Shank Size OD Tools: 20 mm
- Max Shank Diam Boring Bar: 40 mm
Machine Weight: 4400 Kg
Machine Foot Print Length X Width: 1900 mm X 1760 mm

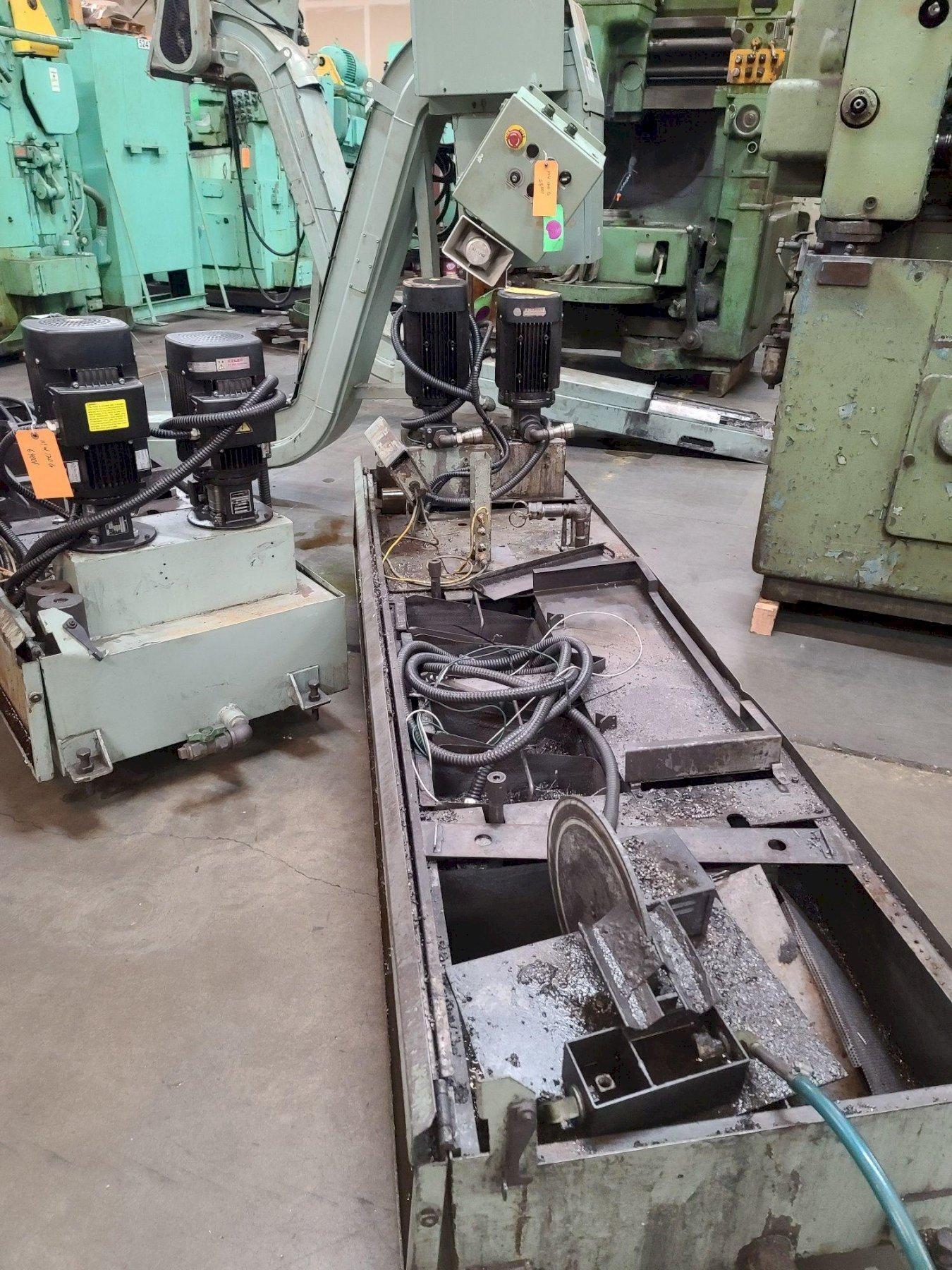

INCLUDES: Muratec / Fanuc Pendant Controller, (2) 8" Diameter Howa Chucks Model Ho11Mb8, Single Gantry Style Machines, Chip Conveyors and Gantry Load & Unload Software Package and Wiring

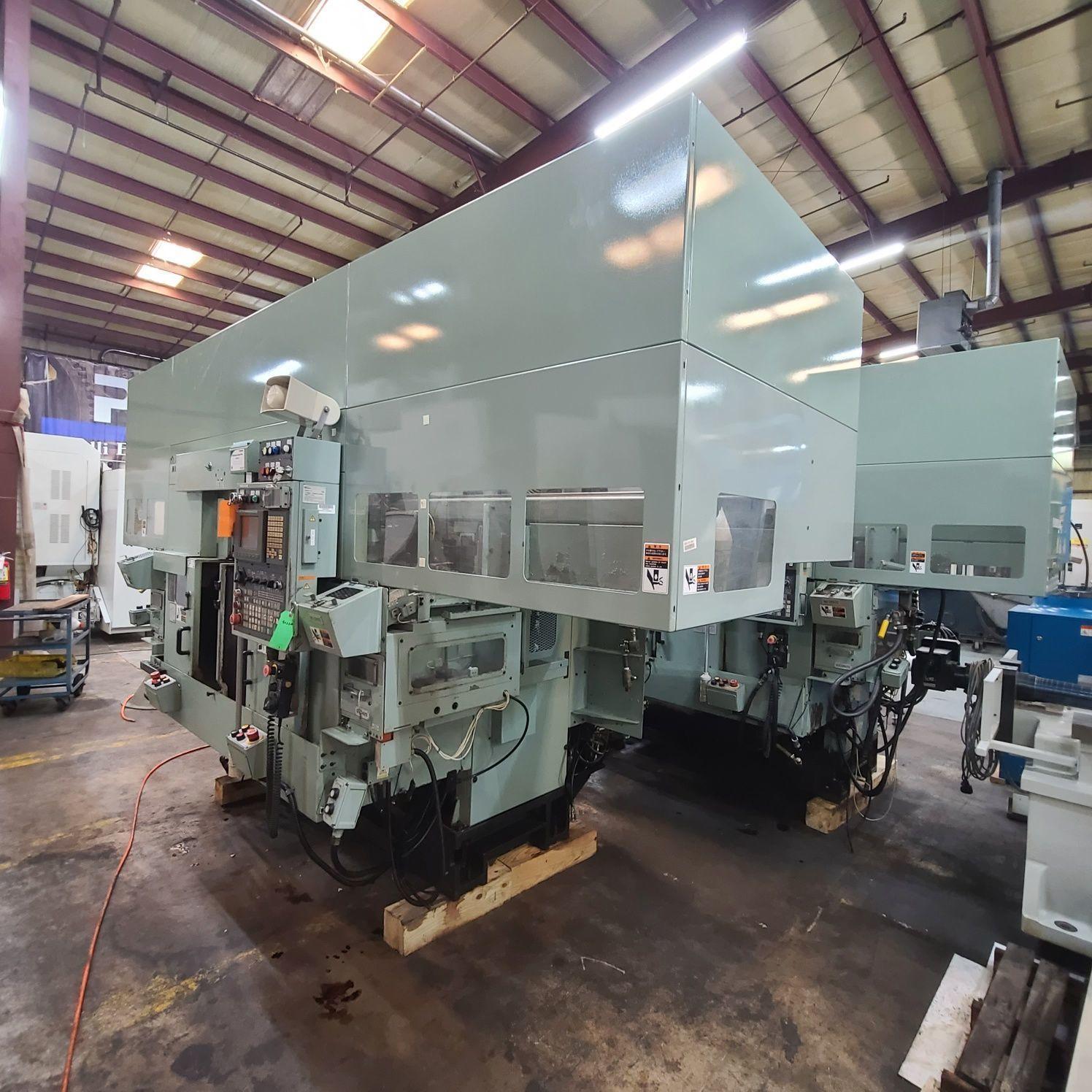

*** TWO AVAILABLE ***


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
