Maag Gear SH250 Gear Shaper, 98.4" Max dia., 25.8" Max face, updated PLC & scales #32021

Manufacturer

MAAG

Category

Gear Machines

Type

GEAR SHAPERS

Stock

32021

Model

SH250

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32021

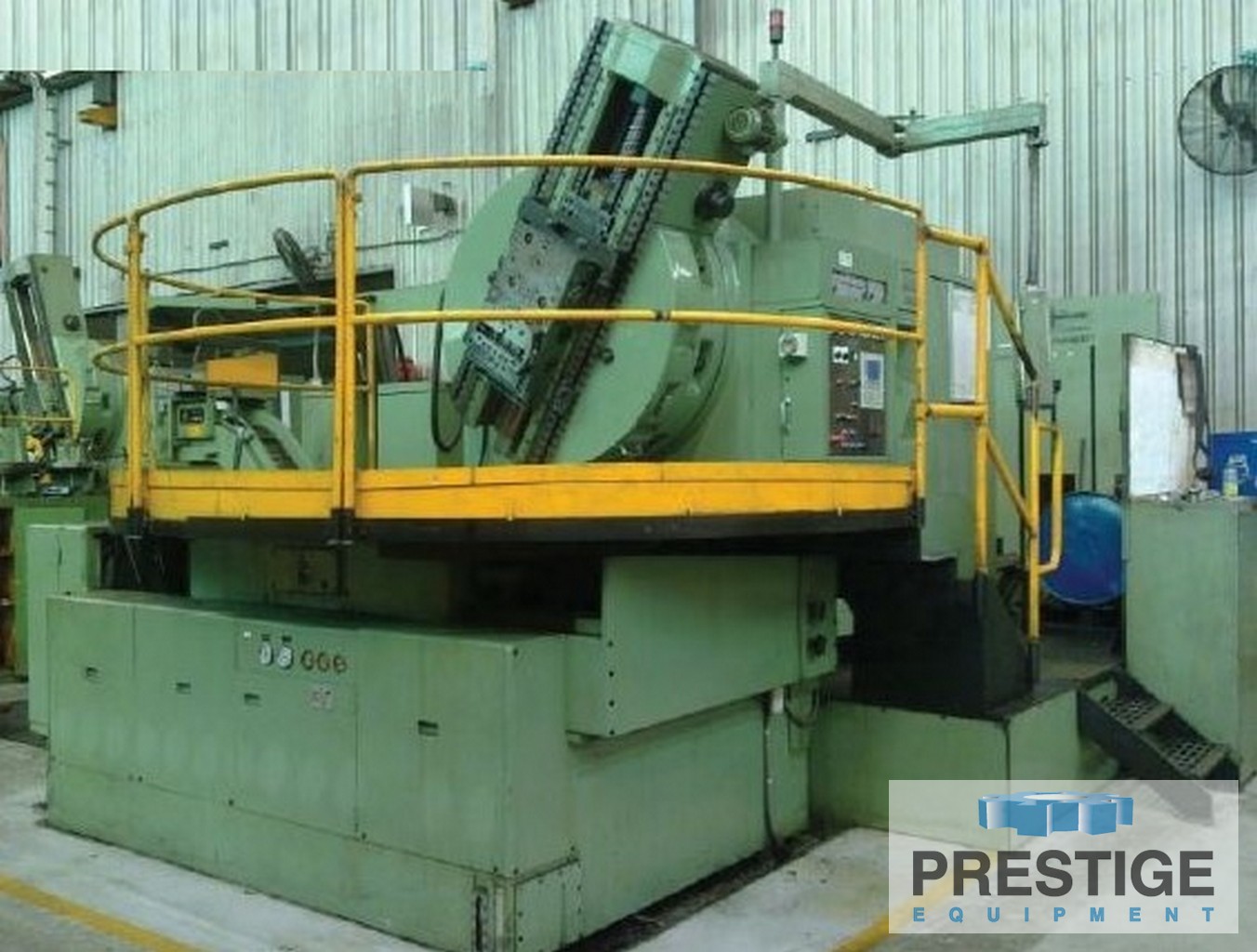

Maag Gear SH250 Gear Shaper

FEATURES:
Siemens Simatic HMI

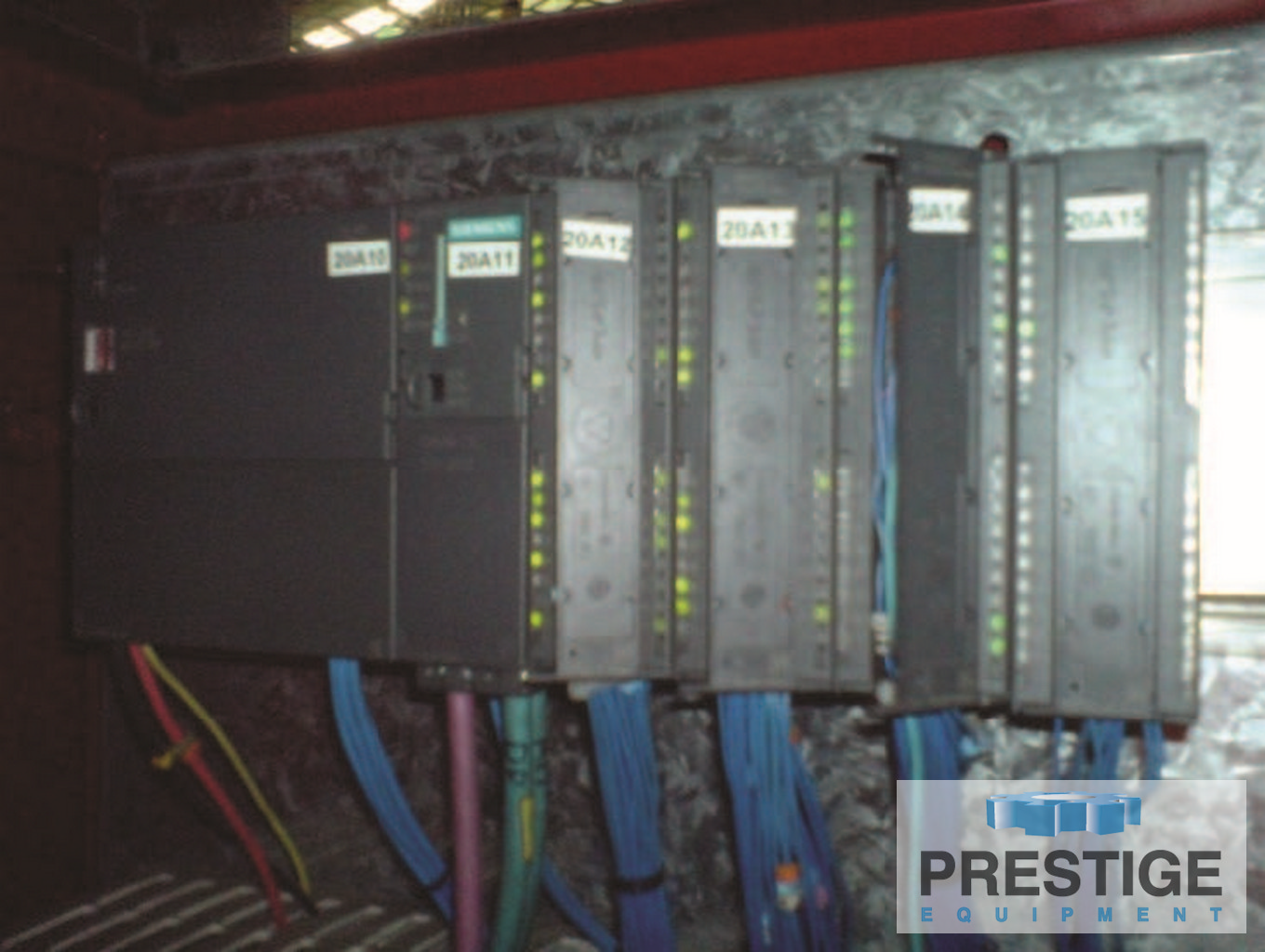

Siemens S7-300 PLC

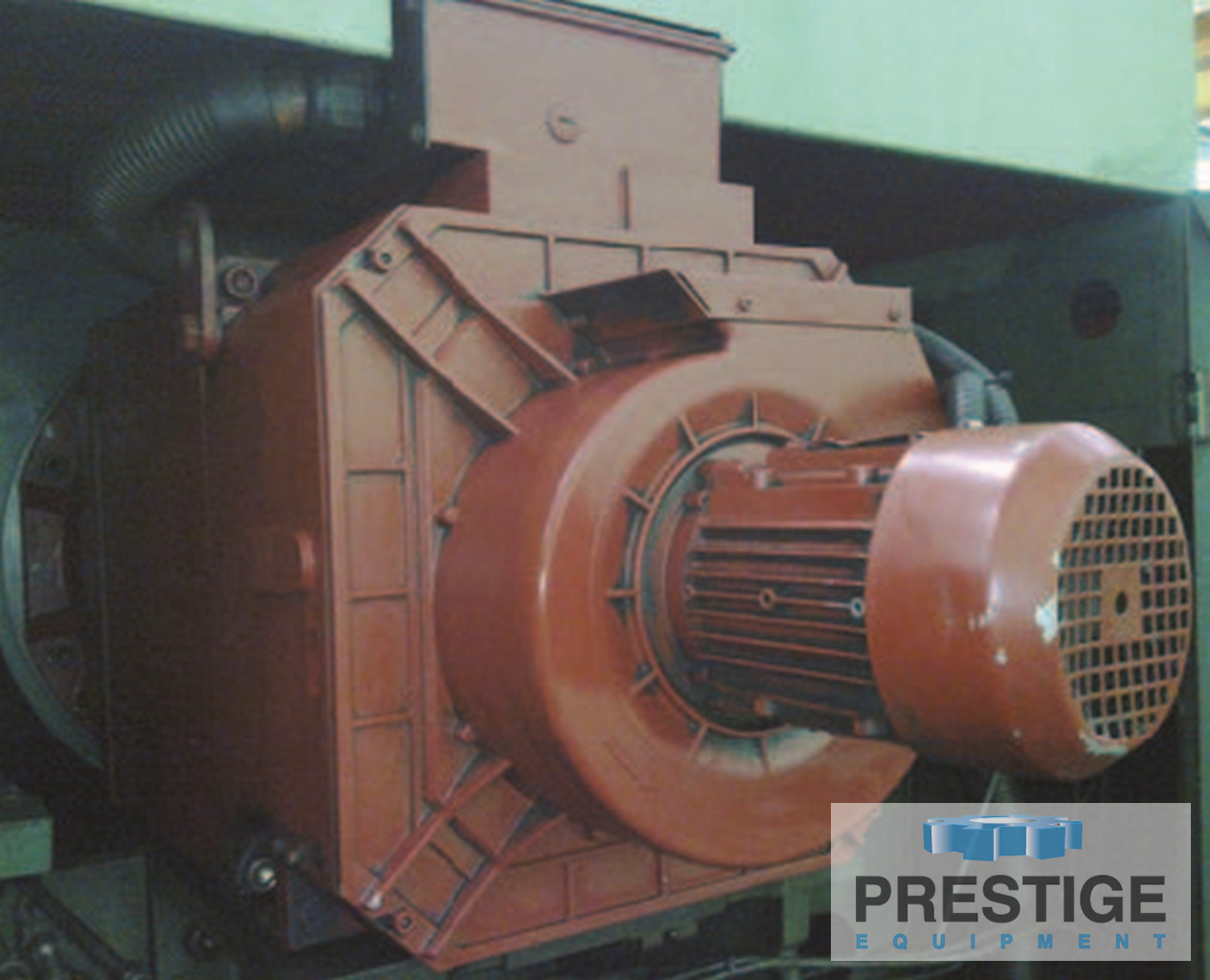

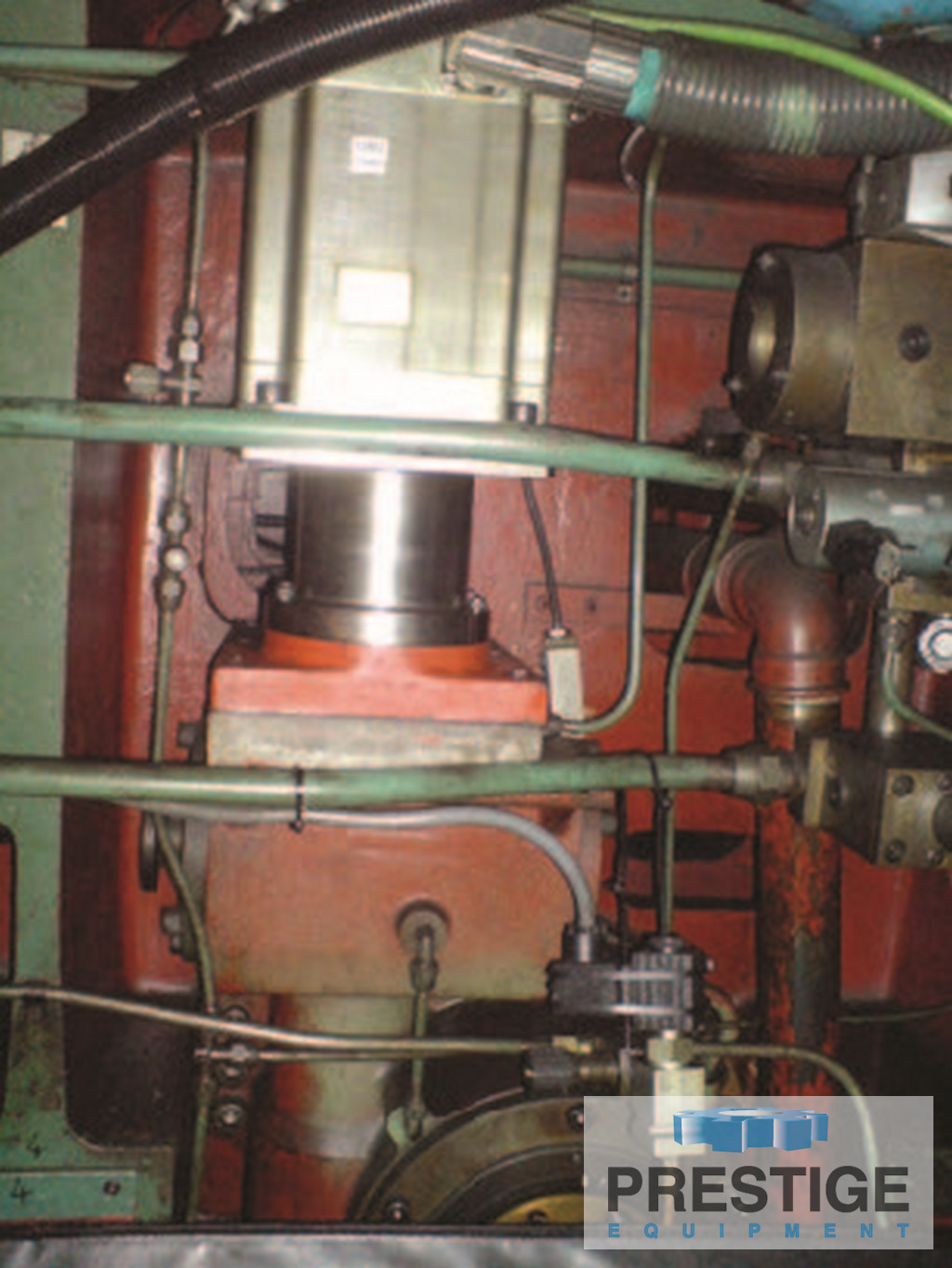

Siemens 71 KW Ram Motor

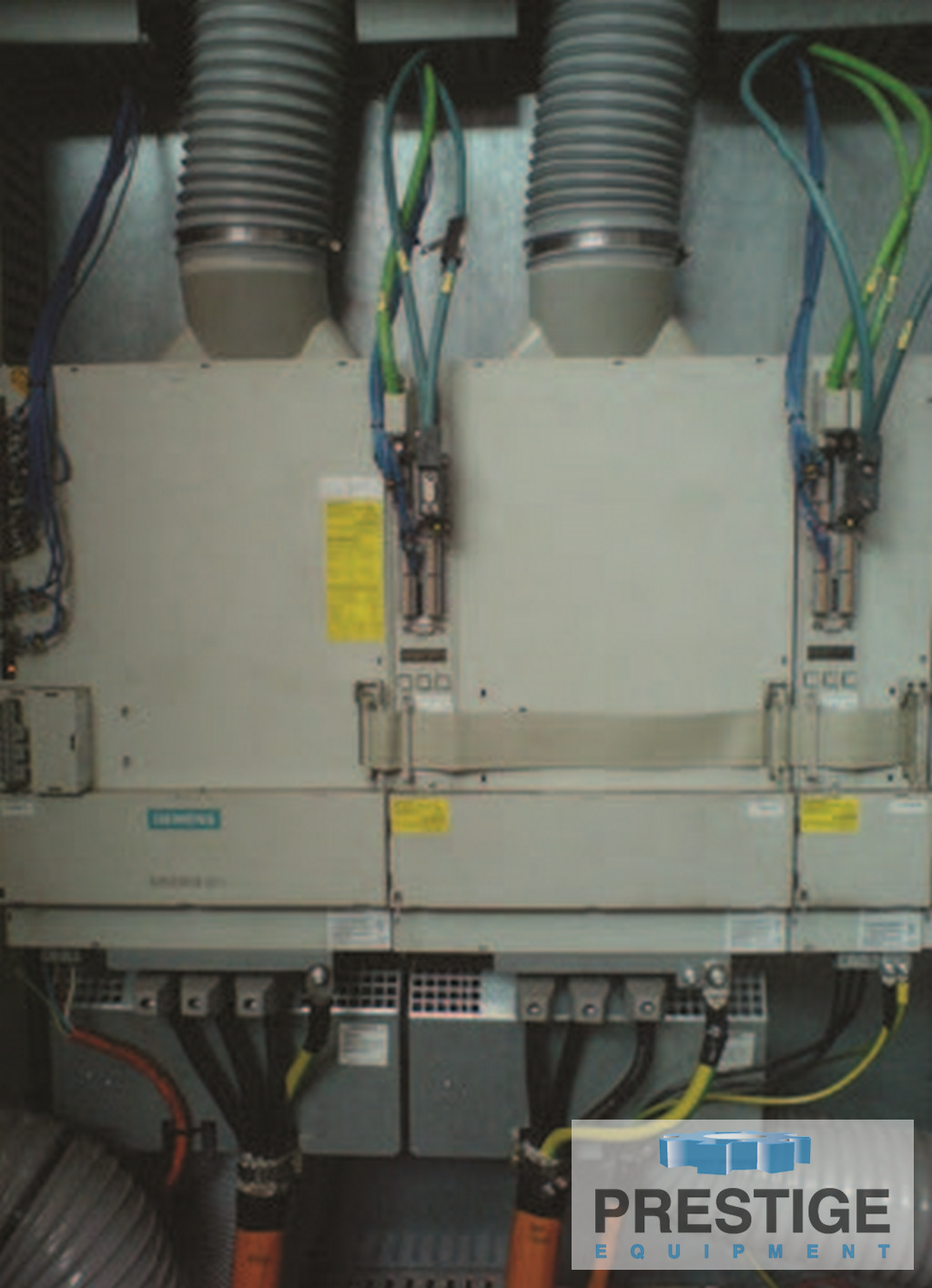

Siemens 611U Drives
Siemens 48Nm X-Axis Servo Motor
Heidenhain LC182 Linear Scale on X-Axis

SPECIFICATIONS:
Ram Stroke, Max, ..................... 27.55"
Ram Stroke, Min ....................... 2.75"
TOP AND BOTTOM OVERRUN OF CUTTER ...... .78" - 1.37"
RAM SPEED, CUTTING AND RETURN ......... 157.48 1574 IPM
MAX. GENERATING PATH OF WORK TABLE .... 43.3"
DIAMETER OF INDEXING WORM GEAR ........ 43.93"
DIAMETER OF WORK TABLE BORE ........... 16.53"
MAX. WORK TABLE BORE SHAFT LENGTH ..... 47.24"
MAX. TOTAL WEIGHT OF WORK AND FIXTURE . 15000kg
WORK TABLE, TOP FACE ABOVE BASE ....... 49.21"
X-AXIS TRAVERSE SPEED ................. 0 to 78.74 IPM
X-AXIS TRAVEL DISTANCE ................ 49.21"
GENERATING FEED, NO. OF RAM STROKES.... .31" to 1505.9" Per Pitch
CARRIAGE INFEED, PLUNGE CUTTING ....... 0.0003" to 0.019" Per Stroke

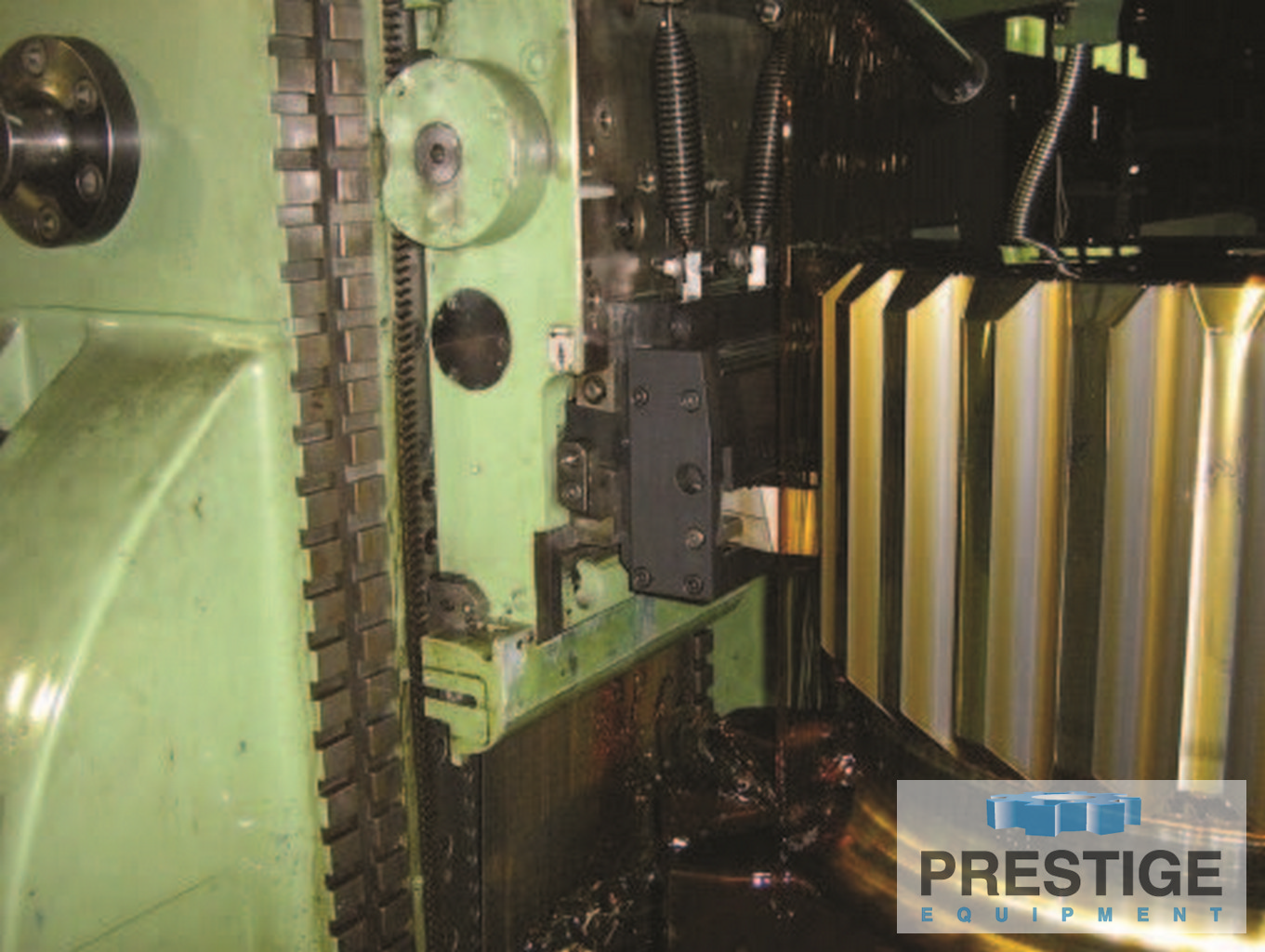

CUTTER HOLDER SLOT, LxWxD ............. 11.25" x 1.96" x 2.63"
MAX. CUTTER LENGTH .................... 12.28"
MAX. MODULE WITH RACK TYPE CUTTER ..... 30
MIN. MODULE WITH RACK TYPE CUTTER ..... 2
MODULE WITH SINGLE TOOTH CUTTER ....... 50
MAX. NUMBER OF TEETH .................. 1000
MIN. NUMBER OF TEETH .................. 12
MAX. HELIX ANGLE ...................... unlimited
MAX. TIP CIRCLE DIA., SPUR GEARS ...... 98.42"
MIN. TIP CIRCLE DIA., SPUR GEARS ...... 7.87"
MAX. FACE WIDTH ........................ 25.98"

EQUIPPED WITH:
Siemens Simatic HMI
Siemens S7-300 PLC
Siemens 71 KW Ram Motor
Siemens 611U Drives
Siemens 48Nm X-Axis Servo Motor
Heidenhain LC182 Linear Scale on X-Axis
