Maag SH-450 CNC Gear Shaper, 199" Max. Dia., 66" Max height, Siemens CNC Controls, #32023

Manufacturer

MAAG

Category

Gear Machines

Type

GEAR SHAPERS

Stock

32023

Model

SH450

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32023

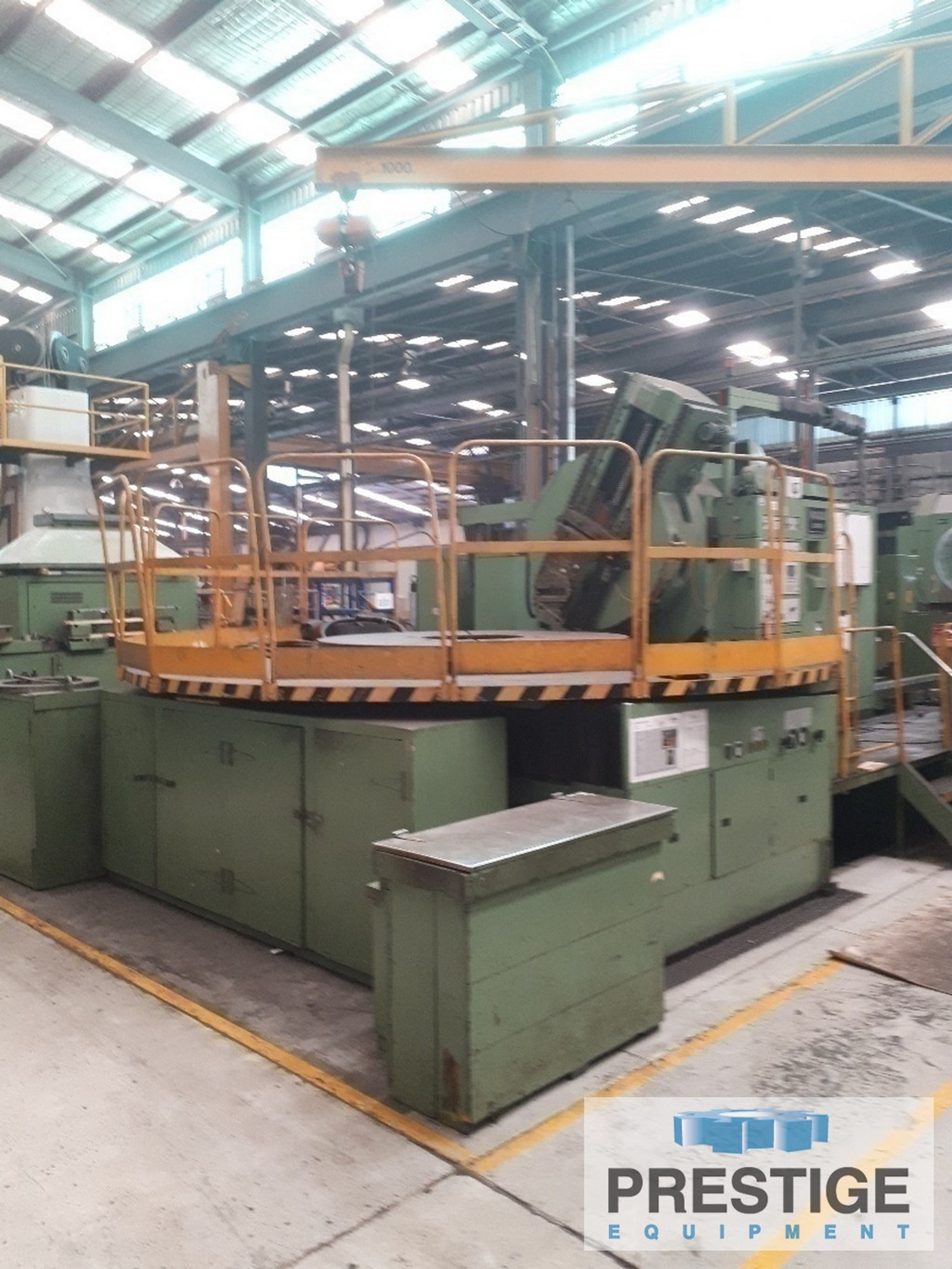

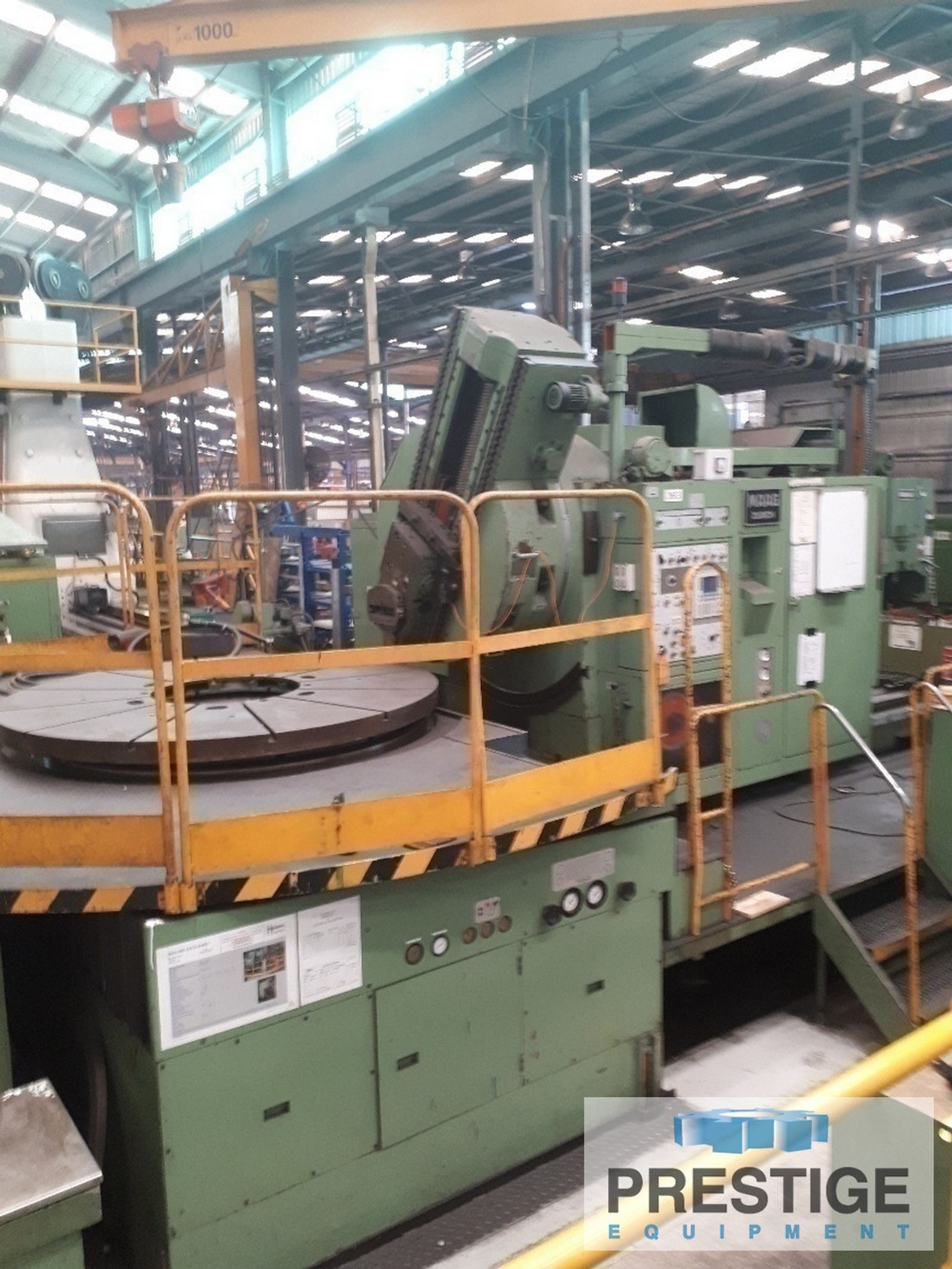

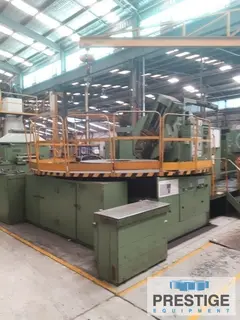

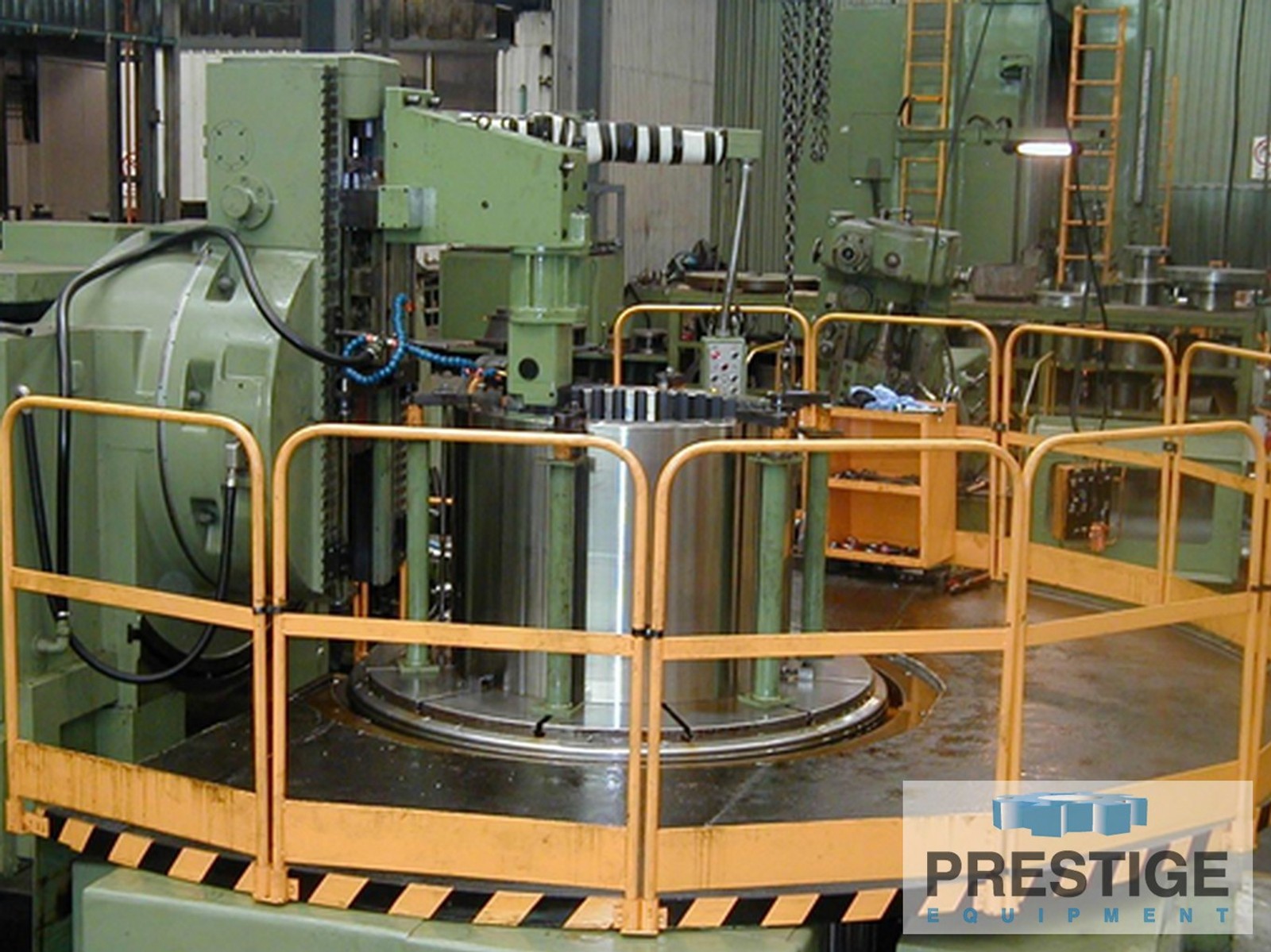

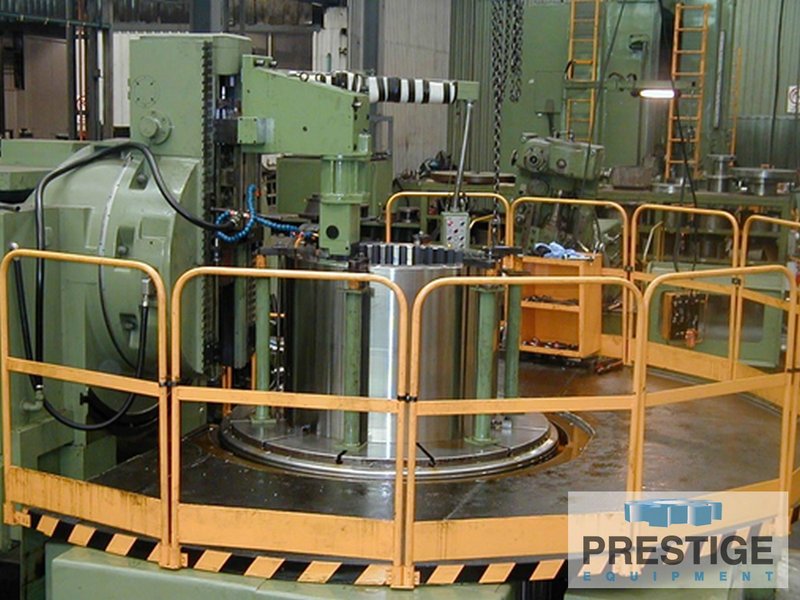

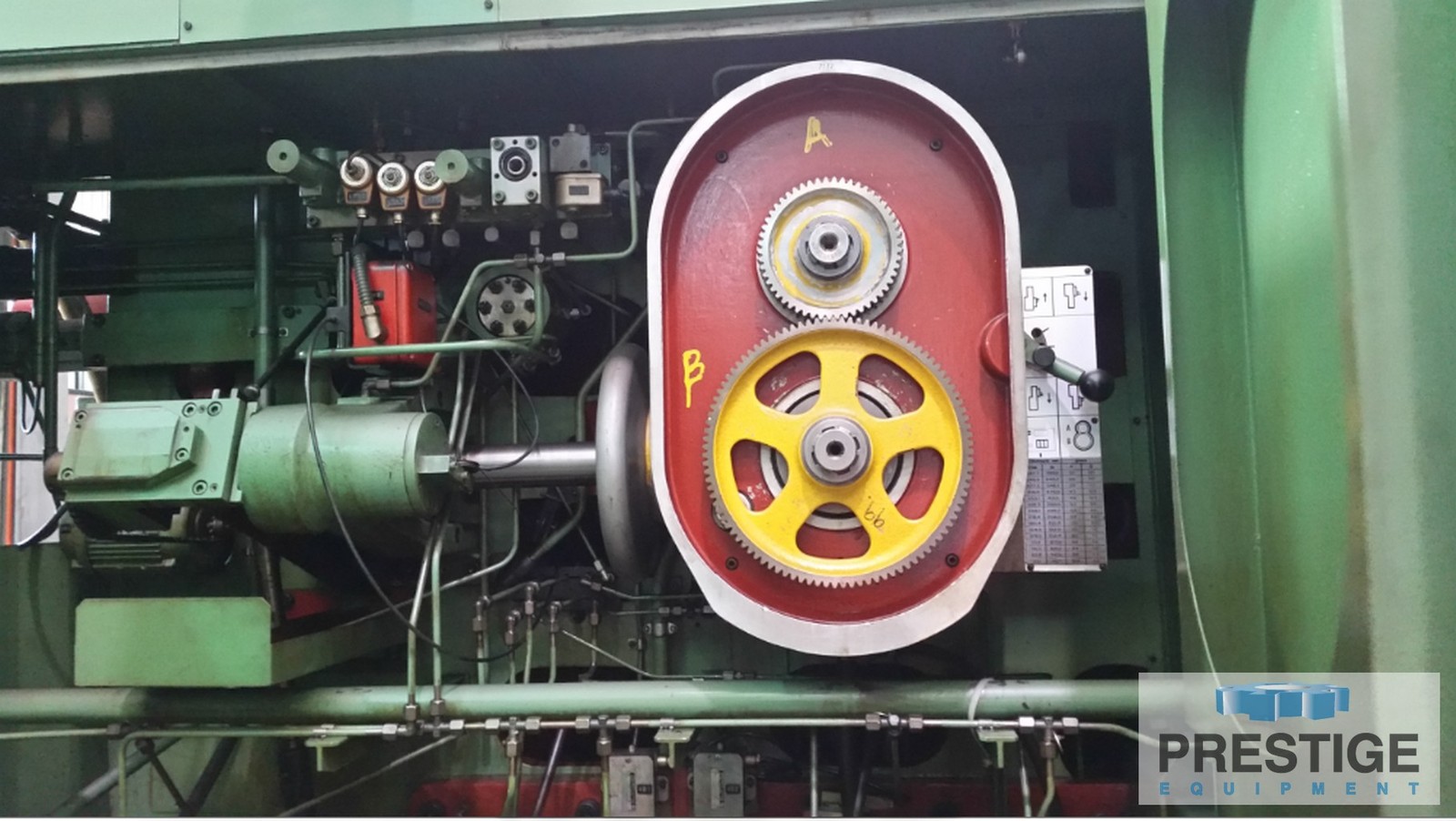

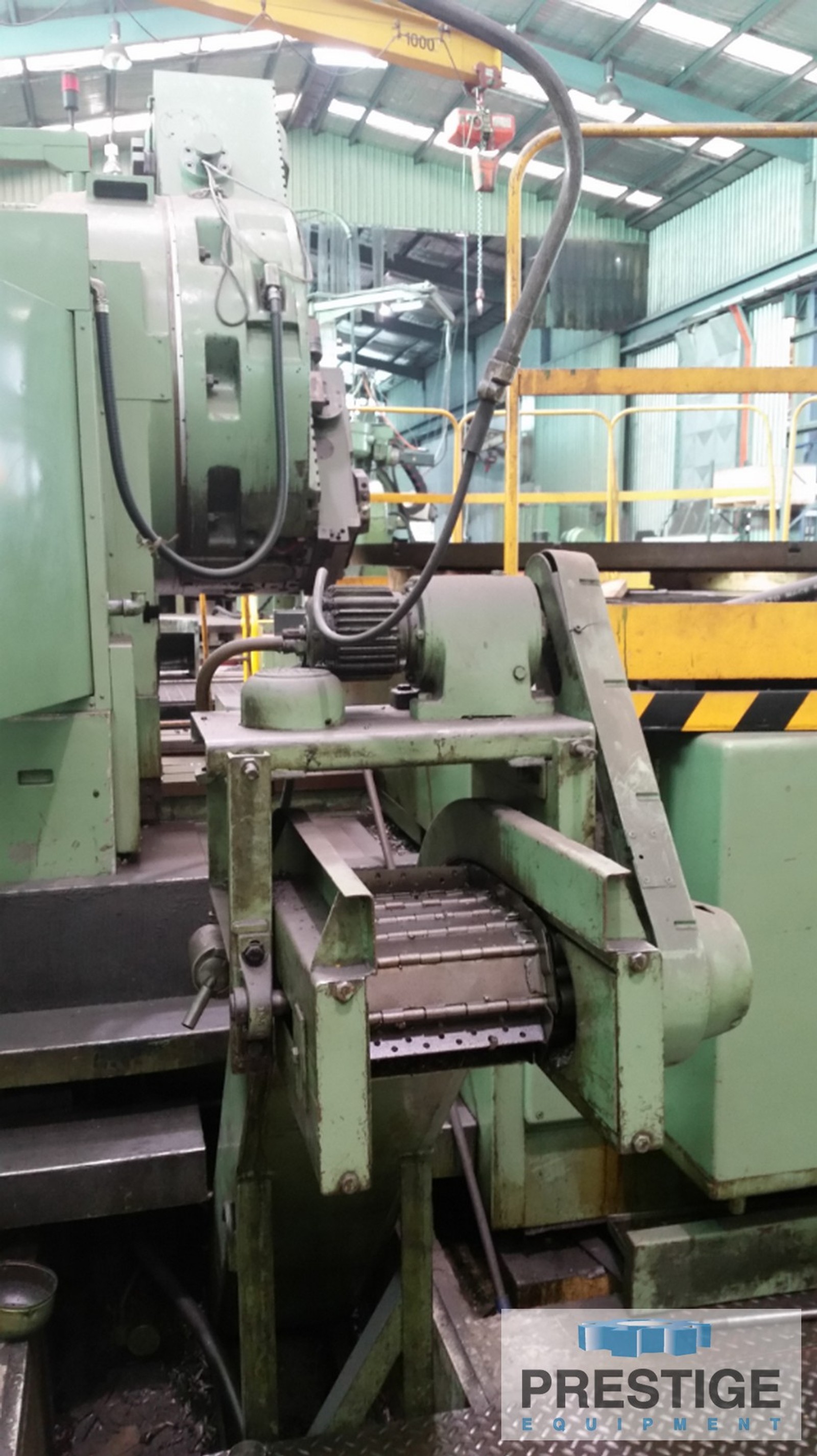

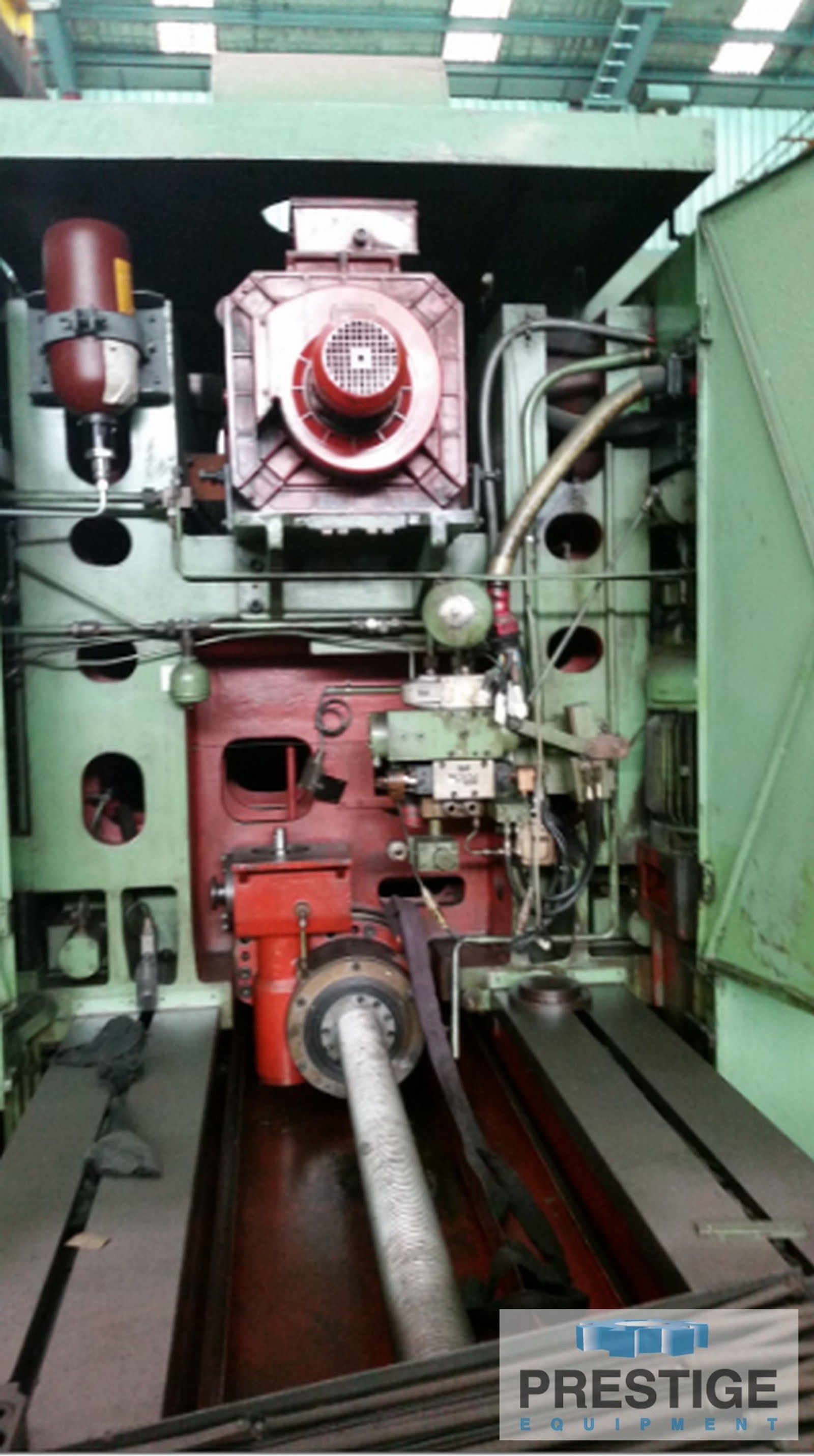

Maag SH-450 CNC Gear Shaper

FEATURES:

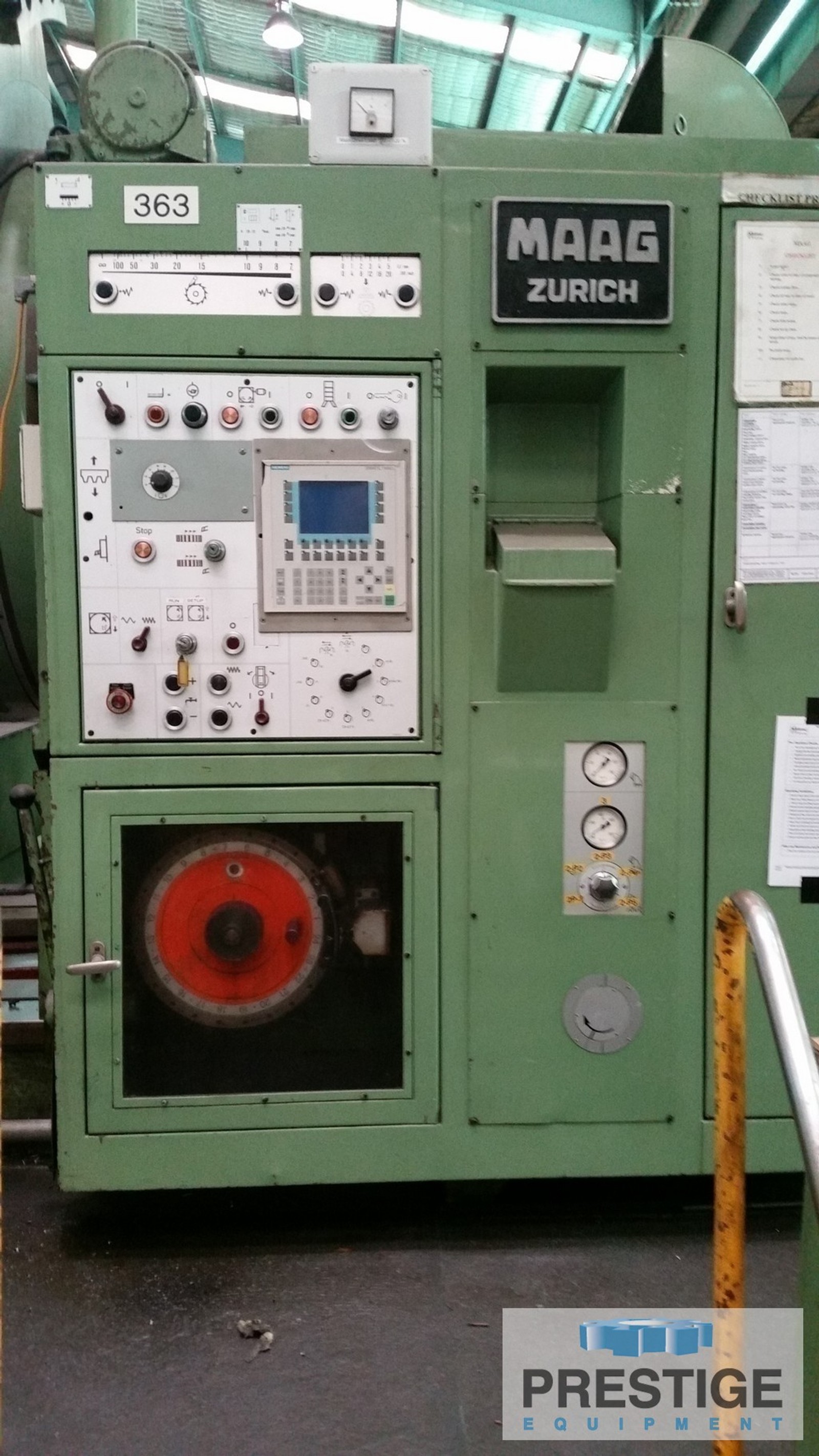

Siemens 2-Axis CNC Control
Siemens Drives & PLC
Crowning Via Longitudinal Correction Device
Tip & Root Relief

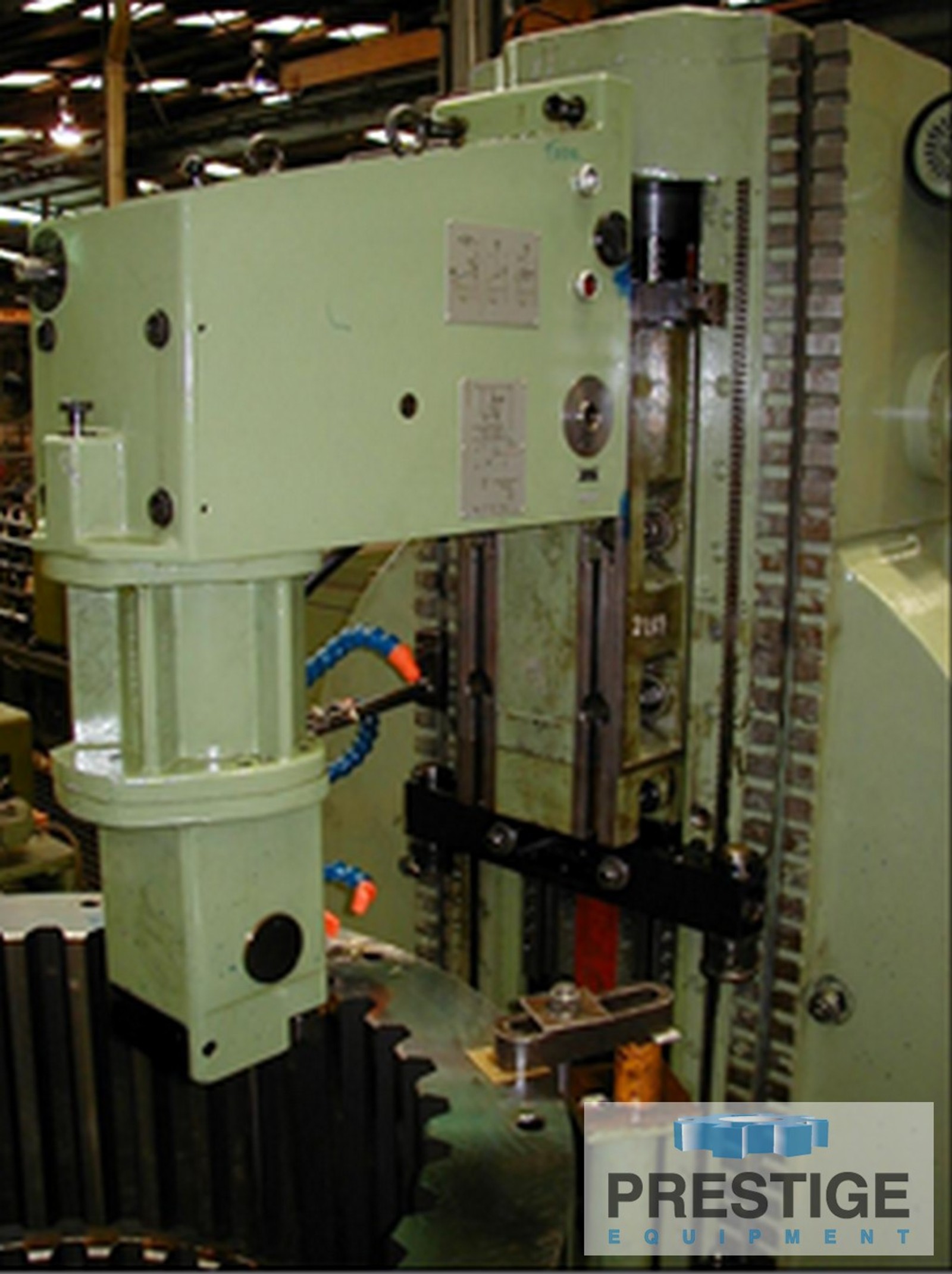

JVA Attachment For Internal Gears And Splines


SPECIFICATIONS:
C-Axis ................................ 360 Degrees
Y-Axis ................................ 360 Degrees
A-Axis ................................ Unlimited Helix
X-Axis ................................ 89.37"
Z-Axis ................................ 27.55"
Diameter of Work Table Bore ........... 23.62"
Table Dimensions ...................... 68.89"
Table Hole Diameter ................... 23.62" x 51.18"
Maximum Workpiece Diameter ............ 199.29"
Maximum Workpiece Height .............. 66.41"
Power Max ............................. 71 kW
Maximum Tip Circle Diameter ........... 178.74"
Minimum Tip Circle Diameter ........... 20.78"
Net Weight ............................ 50 Ton

EQUIPPED WITH:
Siemens CNC Control, Drives, & PLC
Full 2-Axis CNC Control and Programming With Simple Tooling
Crowning Done With Longitudinal Correction Device
Tip And Root Relief Possible
Internal gears and spline done with JVA attatchment.

TYPES OF GEARS:
Highly Accurate Spur, Helical, Double Helical Gears, Spline Shafts
and Coupling Done By Generation
