48" (1220mm) x .134" (3.4mm) x 20,000# Paxson Loop Slitting Line with 3 Heads

Manufacturer

PAXSON

Category

Slitters and Slitting Lines

Type

SLITTING LINES

Stock

102099

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Width - 48 inches
Thickness - .134 inches
Coil Weight - 20000 pounds
Arbor Size - 6 inches


General Specifications:
Max Width: 48" (1220mm)
Thickness Range: .009"-.134" (.229mm-3.40mm)
Max Coil Weight: 20,000#
Coil ID: 16"-20" on Entry and 20" on Exit (Entry ID 406mm-508mm and Exit ID 508mm)
Max Coil OD: 60" (1524mm)
Line Speed: 400 FPM and 800 FPM (Two Speed Gear Box) (130m/min and 244m/min)
Line Direction: Right to Left

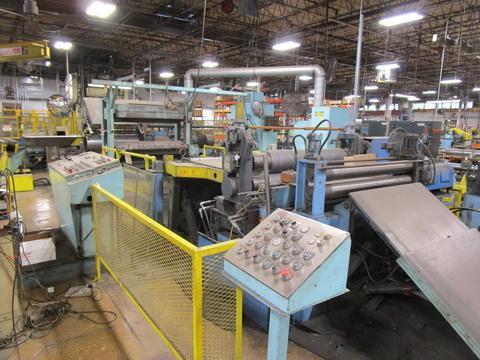

Complete with the Following Components:
Entry L-Type Coil Car

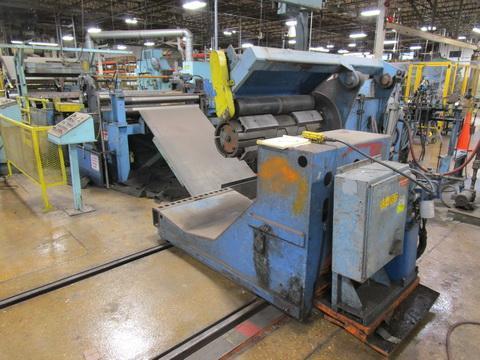

Mandrel Uncoiler with Hold Down Roll
Peeler Table with Pinch Rolls
Pinch Rolls
Edge Guides

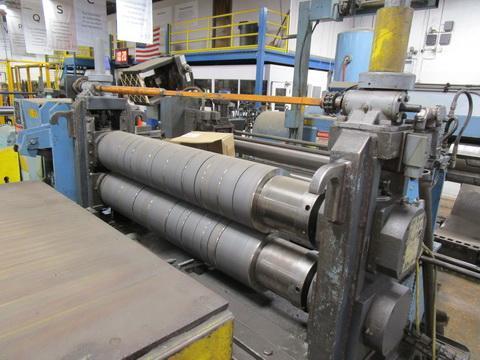

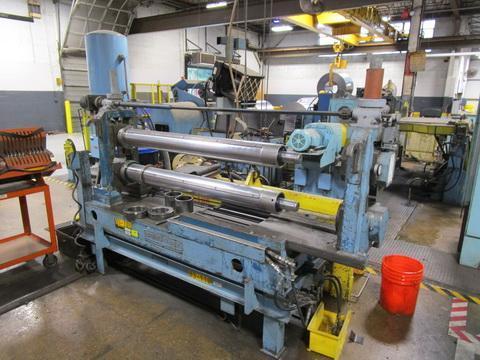

(3) Slitter Heads- Crane Removable Type
Pit Carry Over Table
Pit
Tension Stand

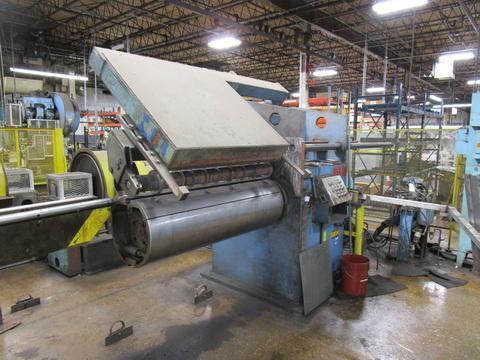

Recoiler
(2) Scrap Winders
Exit Turnstile

Complete Set of Tooling, Knives, Spacers, and Rubbers
Spare Parts
Drawings and Manuals
