72" x .500" Butech Cassette Leveler

Manufacturer

BUTECH

Category

Fabricating Machines

Type

LEVELERS, TENSION

Stock

102096

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Width - 72 inches
Thickness - .500 inches
Work Roll Diameter - 5.5 inches
Number of Work Rolls - 11


Manufacturer: Butech
Year of Manufacture: 2002
Material: HR, HRHS, HRPO
Yield Strength: 85,000 PSI max.
Strip Thickness: .500 " maximum, .060" minimum
Strip Width: 72" max., 24" min.
Line Speed: 0 to 326 or 400 FPM max. as determined with customer
Line Direction: Left to Right
Guide Reference: Centerline
(2) 250 HP DC Motors

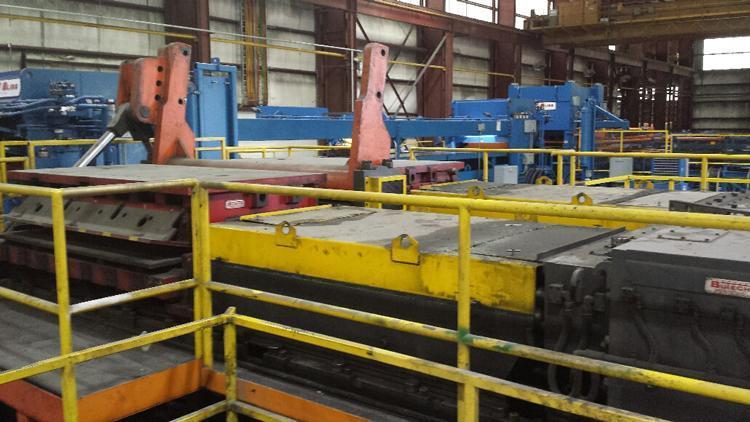

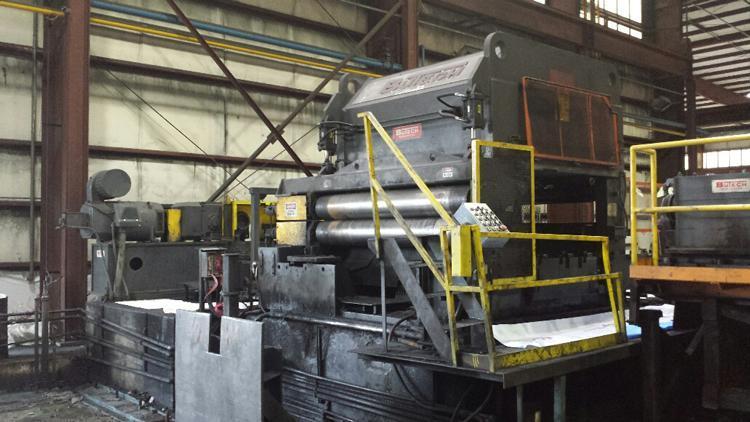

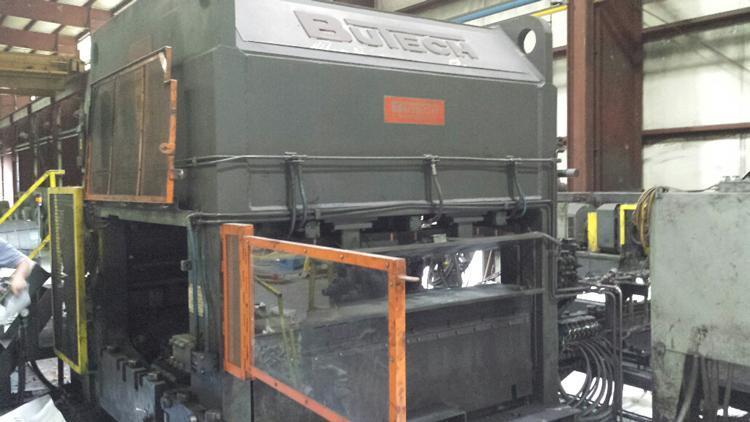

Butech Precision Roller Leveler with Quick Change
Roll Nest Cassettes and Floor Mounted Injector System

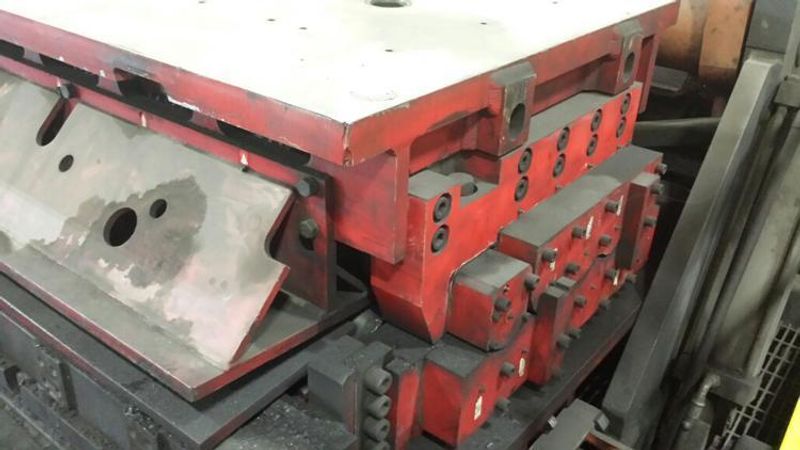

(11) Roll Heavy Gage Cassette Specifications:
Pinch Roll Size: 10" (254 mm) dia. x 80" (2030 mm) face
Work Roll Quantity: 11, 5 up, 6 down
Work Roll Size: 5.500" (140 mm) dia. x 80" (2030 mm) face
Back Up Flights: 7 top and bottom
Strip Thickness Range: .500" maximum, .125" minimum

(17) Roll Light Gauge Cassette Specifications:
Work Roll Quantity: 17, 8 up, 9 down
Work Roll Size: 2.750" (70 mm) dia. x 80" (2030 mm) face
Back Up Flights: 7 top and bottom
Strip Thickness Range: 0.200" max., .060" min.

OVER ONE MILLION DOLLARS IN SPARE PARTS
including work rolls and back up rolls for each cassette
