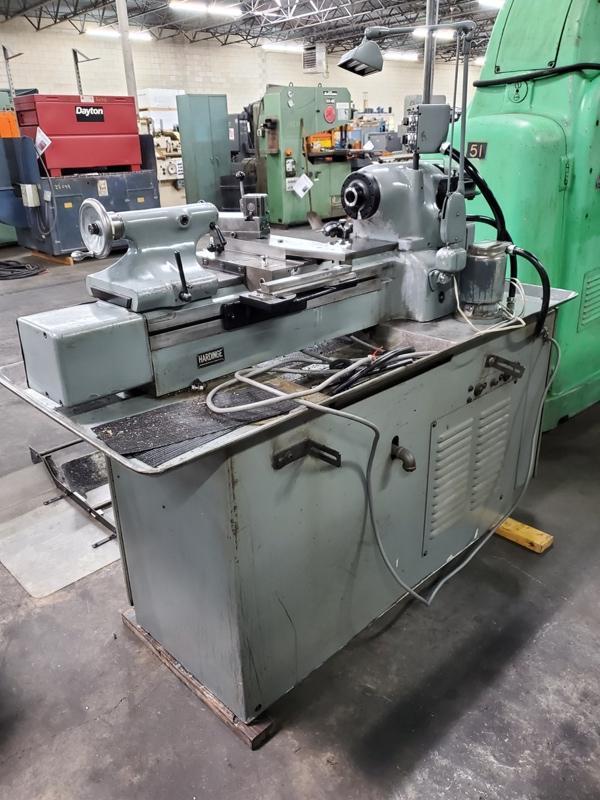

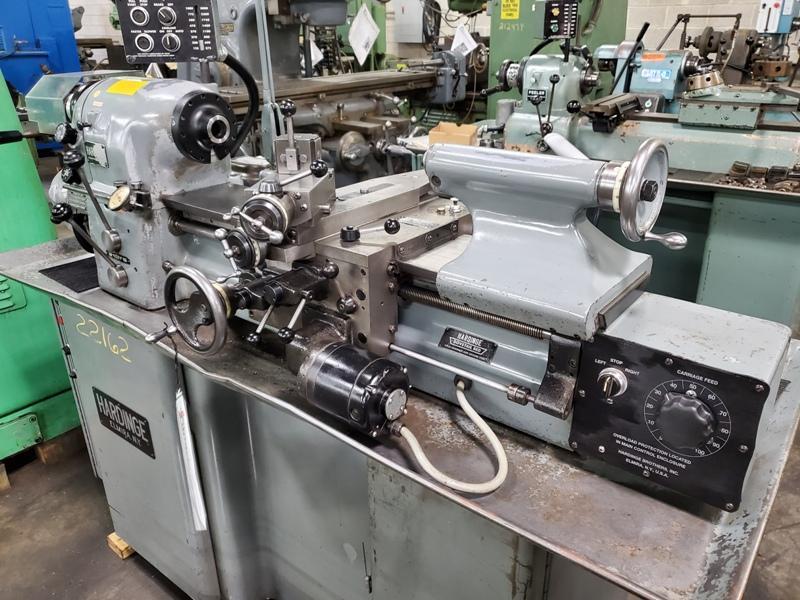

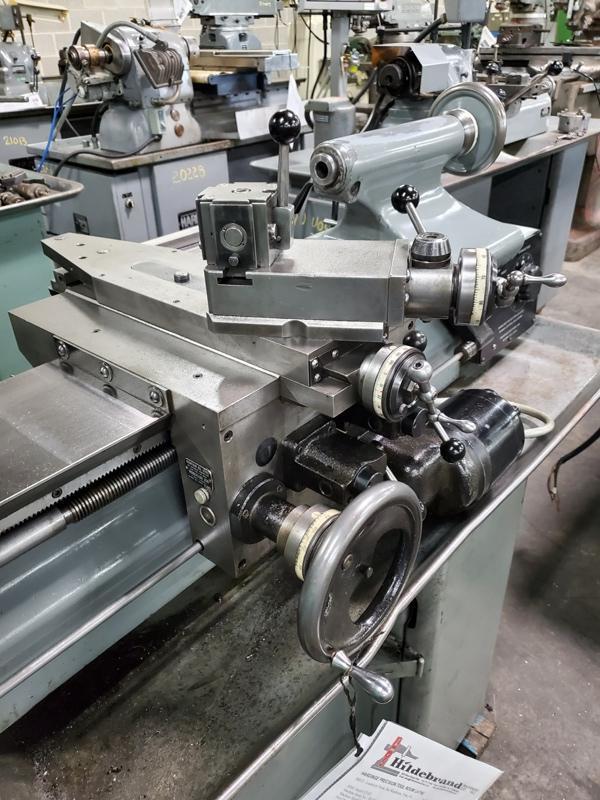

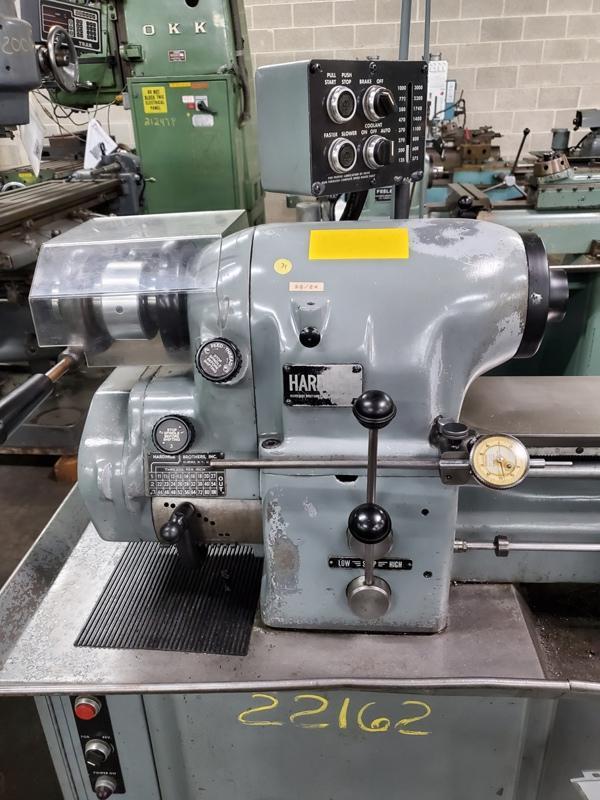

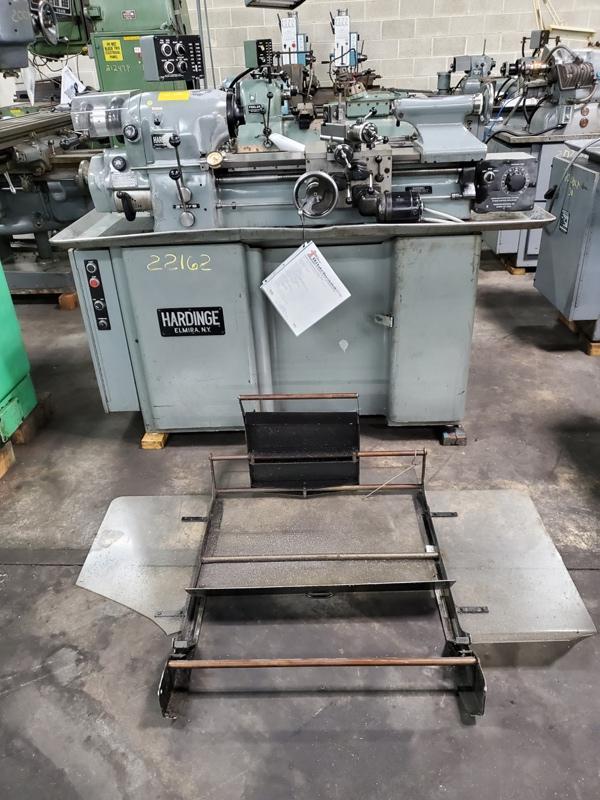

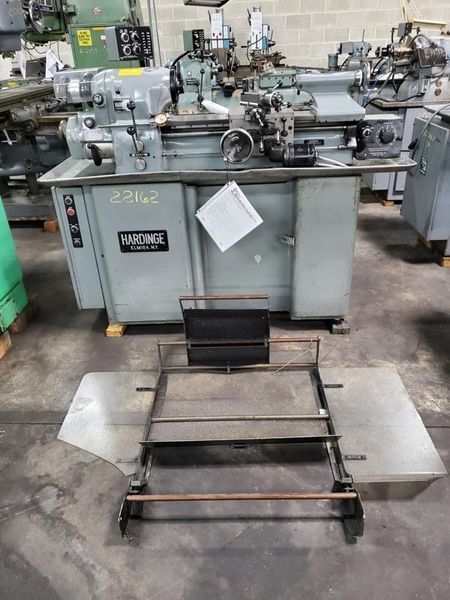

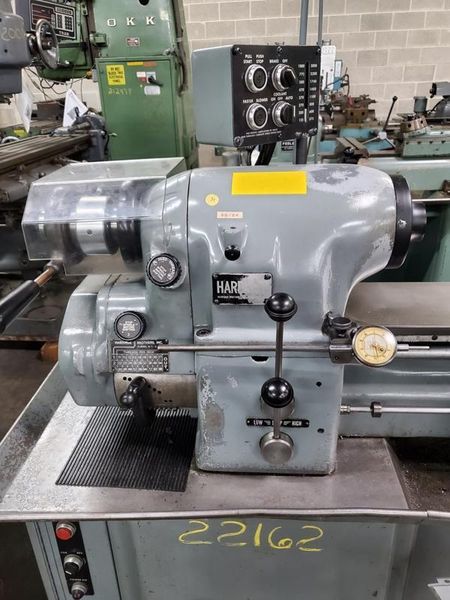

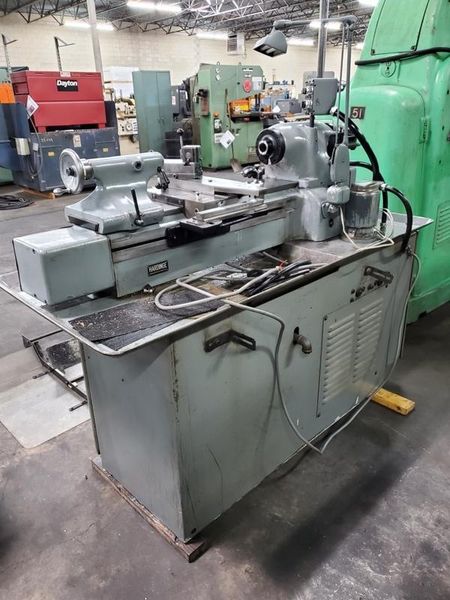

HARDINGE PRECISION TOOL ROOM LATHE HLVH, clean machine with tooling and taper attachment

Manufacturer

HARDINGE

Category

Lathes

Type

LATHES, TOOLROOM

Stock

22162

Model

HLVH

Dealer Location

Pennsylvania

Price

$17,500.00

Request a Quote
View Contact Information

Spec Sheet

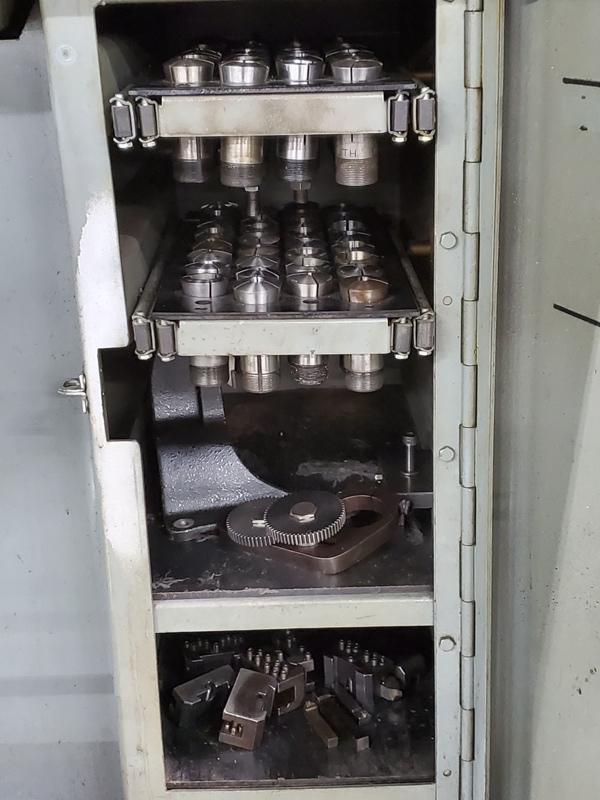

HARDINGE PRECISION TOOL ROOM LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $17,500.00 HMC Stock # 22162 Machine Serial No.: HLVH-4827 Machine Model No.: HLVH New Date: 1971 Swing Over Bed: 11" Swing Over Carriage: 9" Swing Over Cross Slide: 6" Distance Between Centers: 18" Hole Thru Spindle: 1-1/4" Spindle Speeds: 125 to 3,000 RPM, Variable Spindle Nose: External Hardinge Taper, 5C Internal Taper Compound Slide Travel: 3" Cross Slide Travel: 5-1/2" Feed Range: 1/4 to 7 IPM, Variable Collet Capacity: 1-1/16" Diameter, Round Tailstock Quill Taper: #2 Morse Tailstock Quill Travel: 3-3/4" (27) Threads: 11 to 108 TPI EQUIPPED WITH: FIMS Quick Change Tool Post Assorted FIMS Quick Change Holders Taper Attachment Follower Rest Standard Hardinge Gear Banjo Assorted Hardinge 5C Collets Rear Splash Guard Work Light Coolant Pump 1.5 HP Motor Wired for 3 Phase, 60 Cycle, 220 Volts Overall Size: 72" L-R x 30" F-B x 64" H x 1,875 Lbs.
