36" X 6" PAXSON SLITTING LINE: STOCK #15194

Manufacturer

PAXSON

Category

Slitters and Slitting Lines

Type

SLITTING LINE ACCESSORIES

Stock

15194

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................... 234
CAPACITY MILD STEEL .................. (10) CUTS .125 MILD STEEL
                                       (25) CUTS .050 MILD STEEL
HAND OF LINE ......................... L TO R

CONSISTS OF:

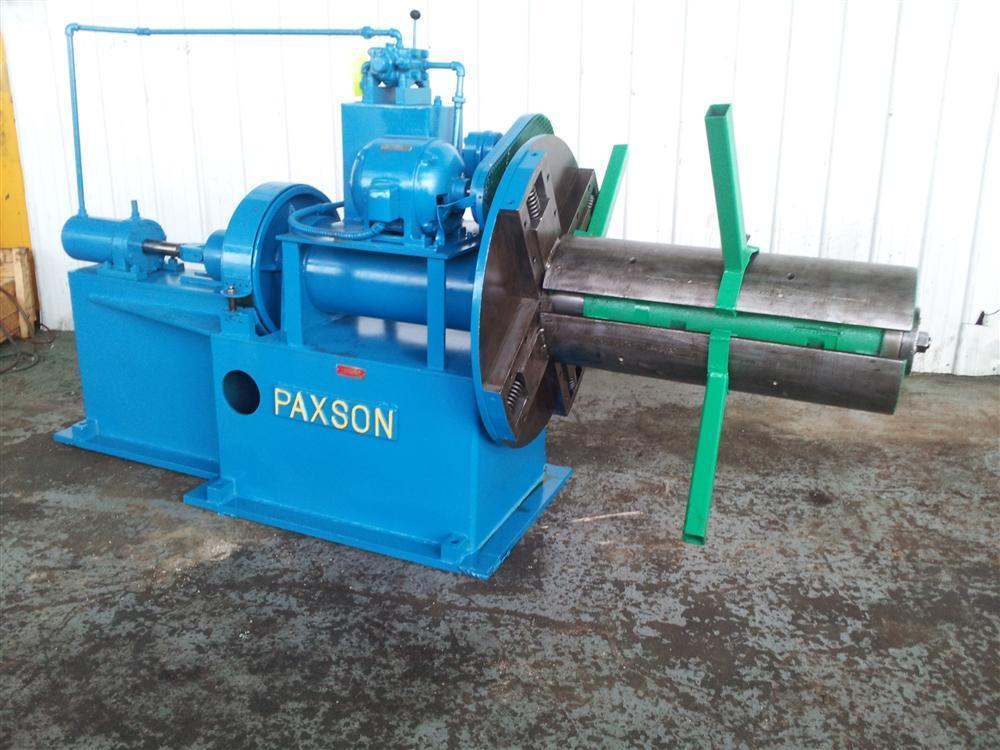

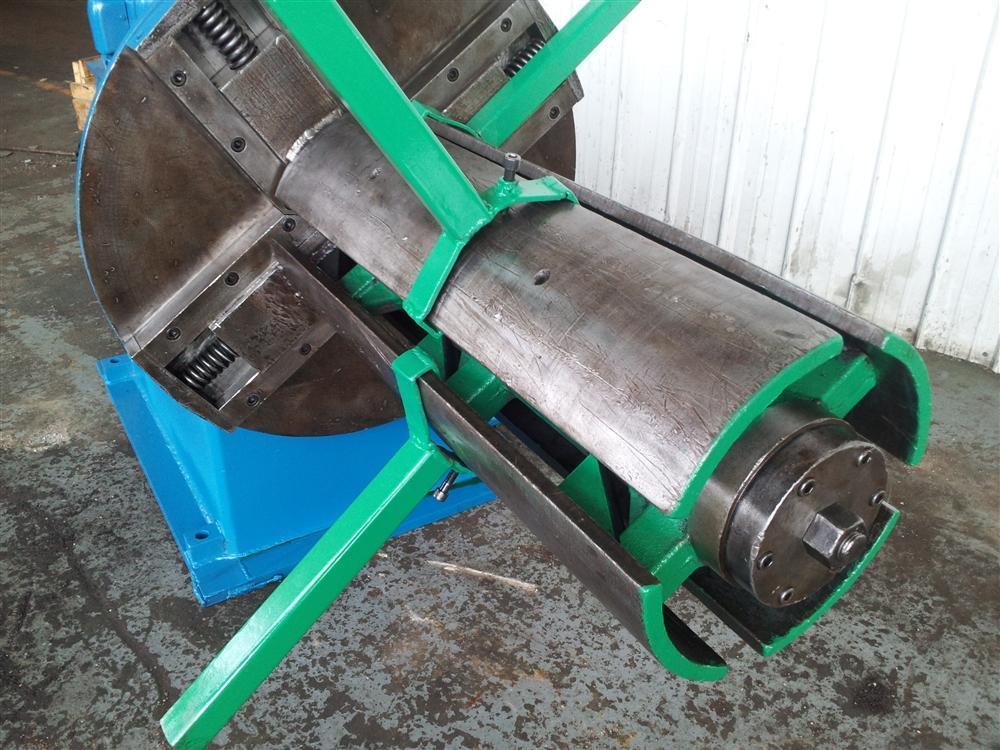

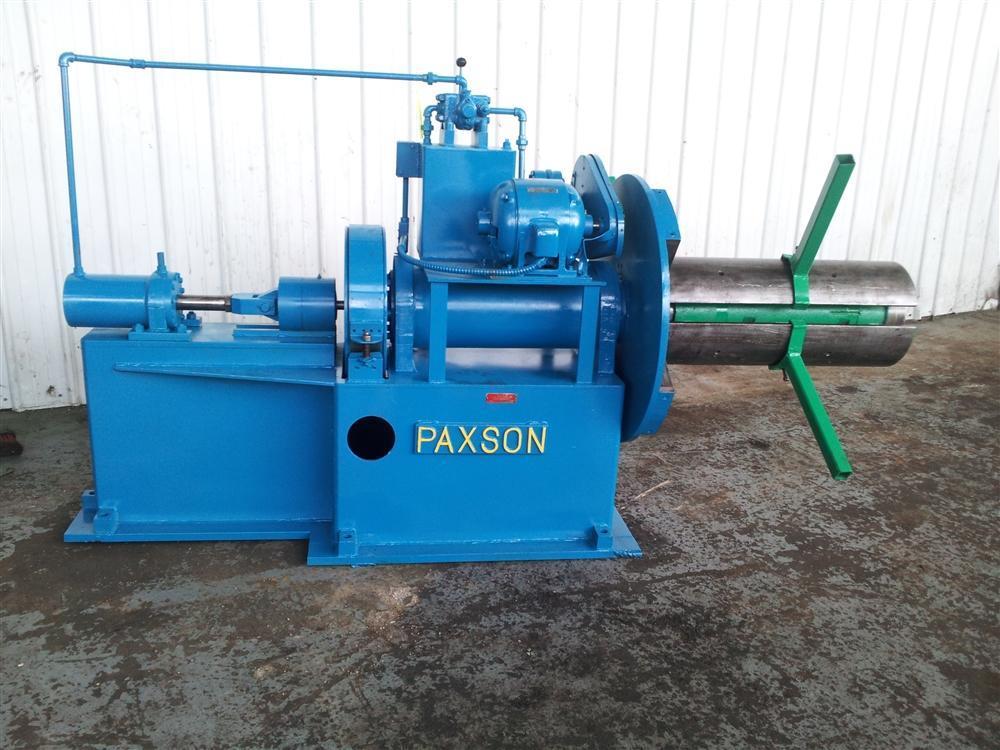

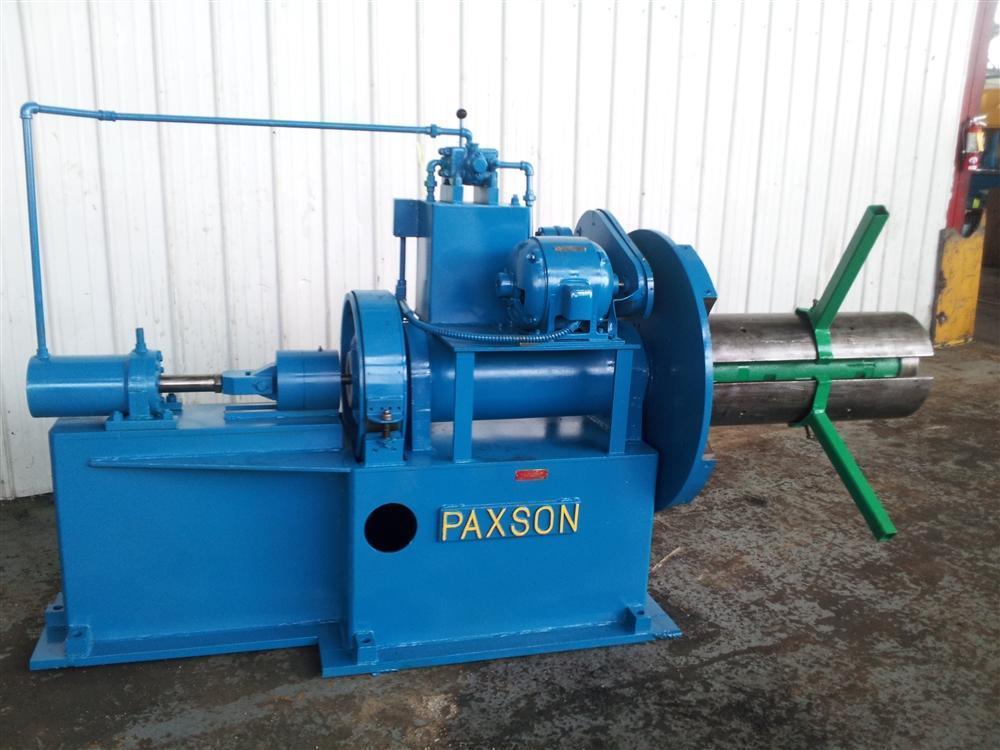

UNCOILER:
CAPACITY ............................. 10,000 LBS
MANDREL FACE ......................... 48"
HYD EXPANSION TAPER SHOE ............. 16" - 21"
MAX COIL DIA ......................... 48"
NAX COIL WIDTH ....................... 36"
DRAG BRAKE BAND TYPE ................. YES
NUMBR OF KEEPERS ..................... 4
SPRING LOADED SEGMENTS ............... YES

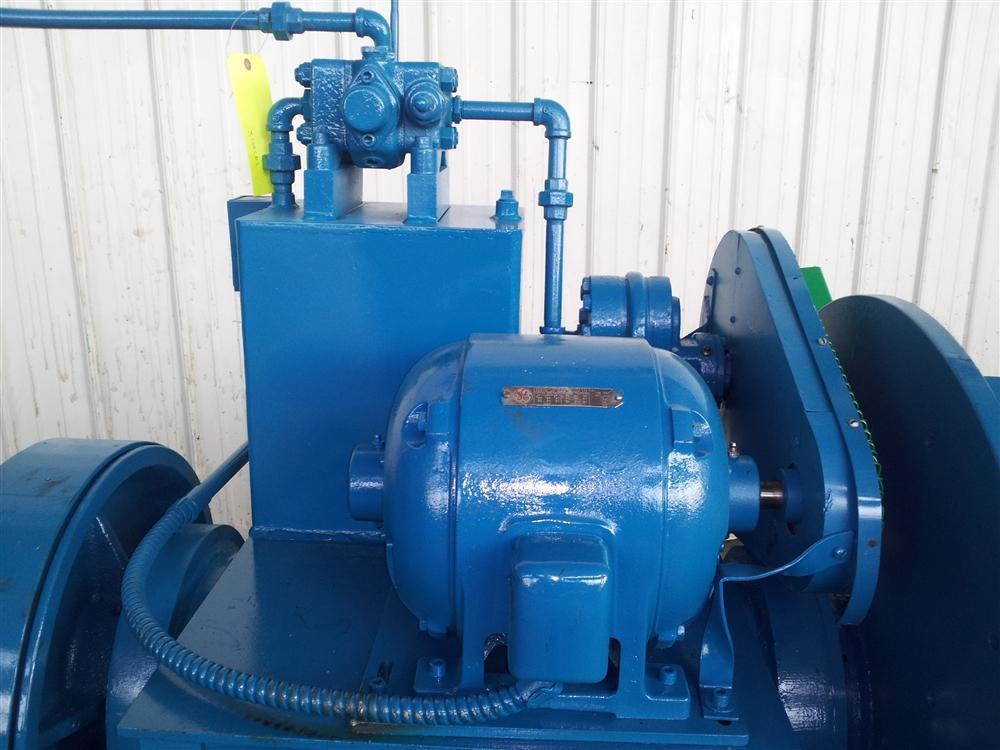

MOTOR ................................ 3 HP / 220/440 / 3 / 60

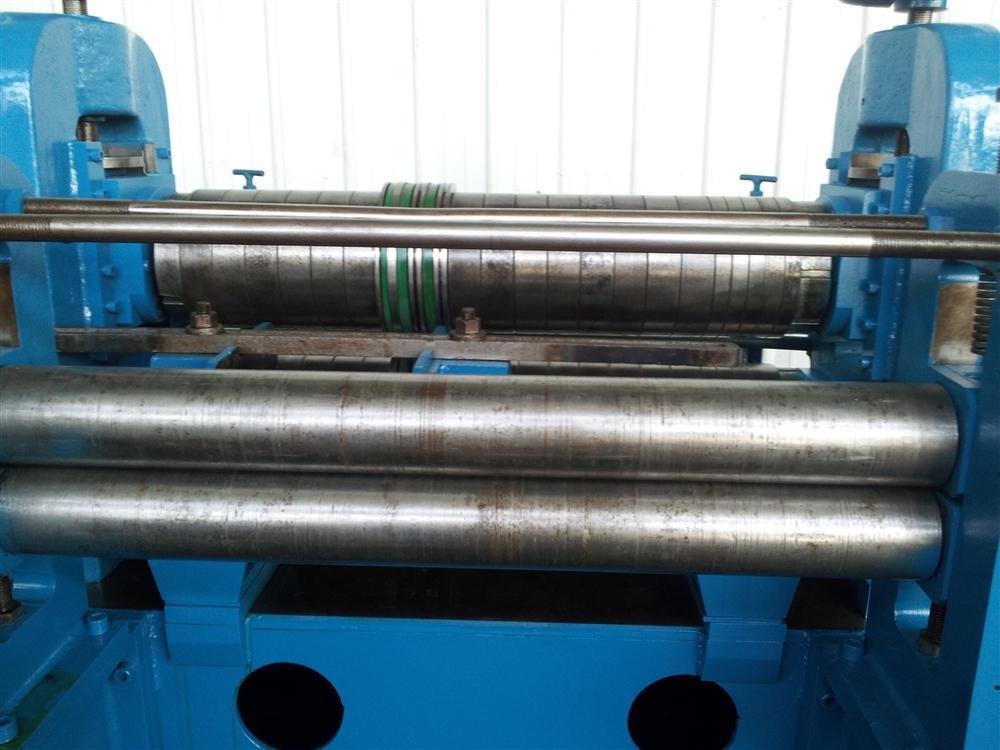

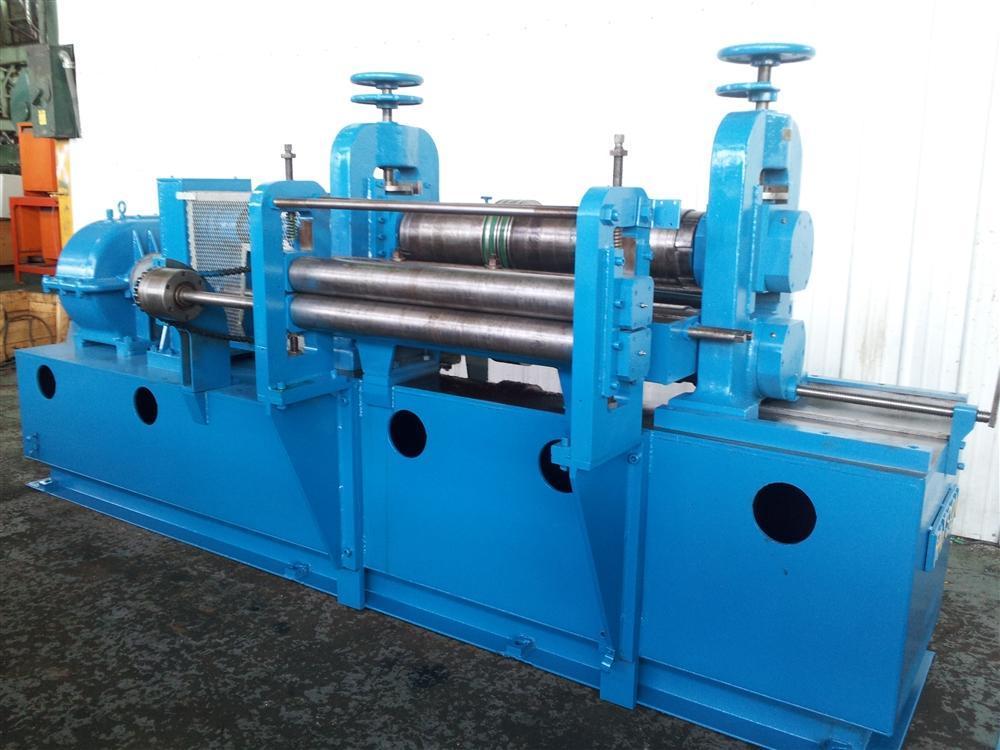

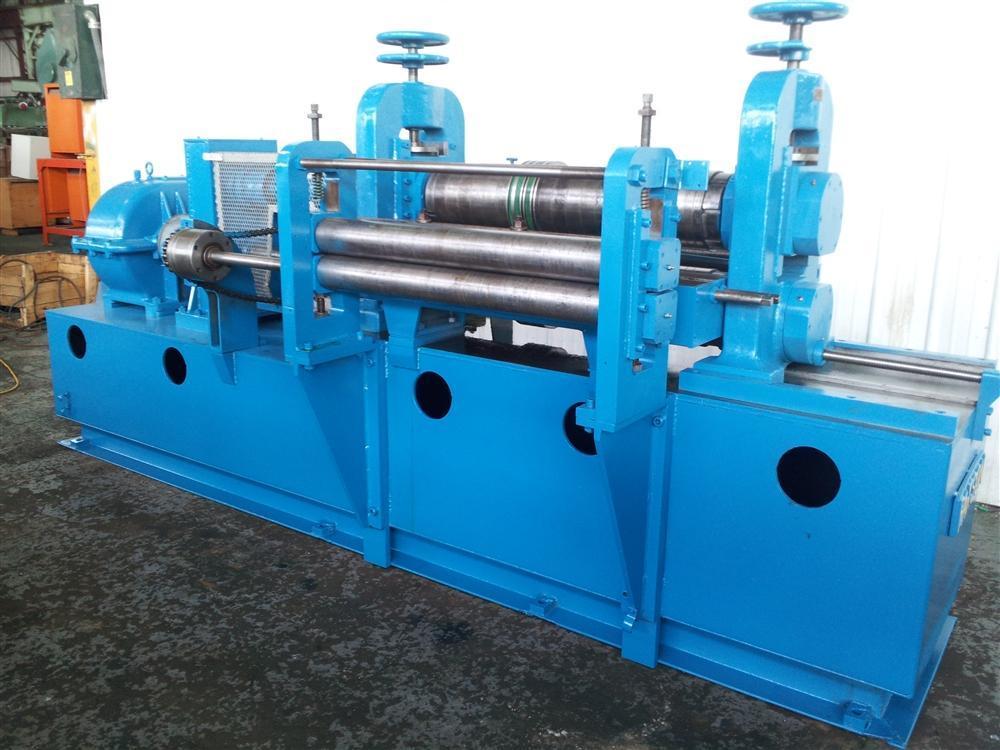

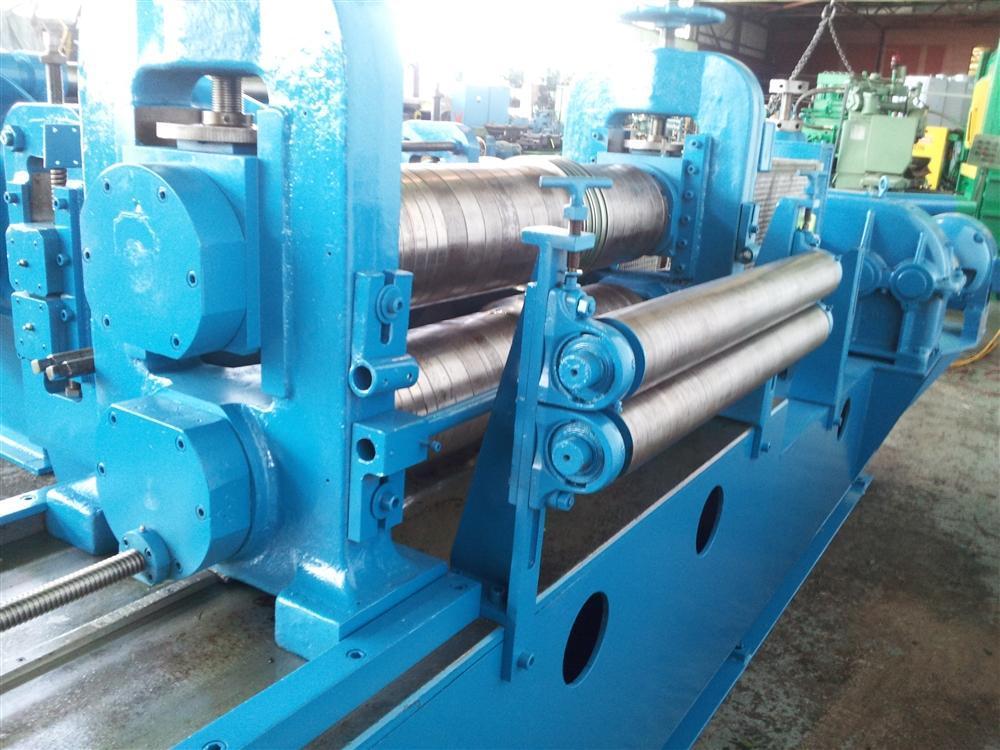

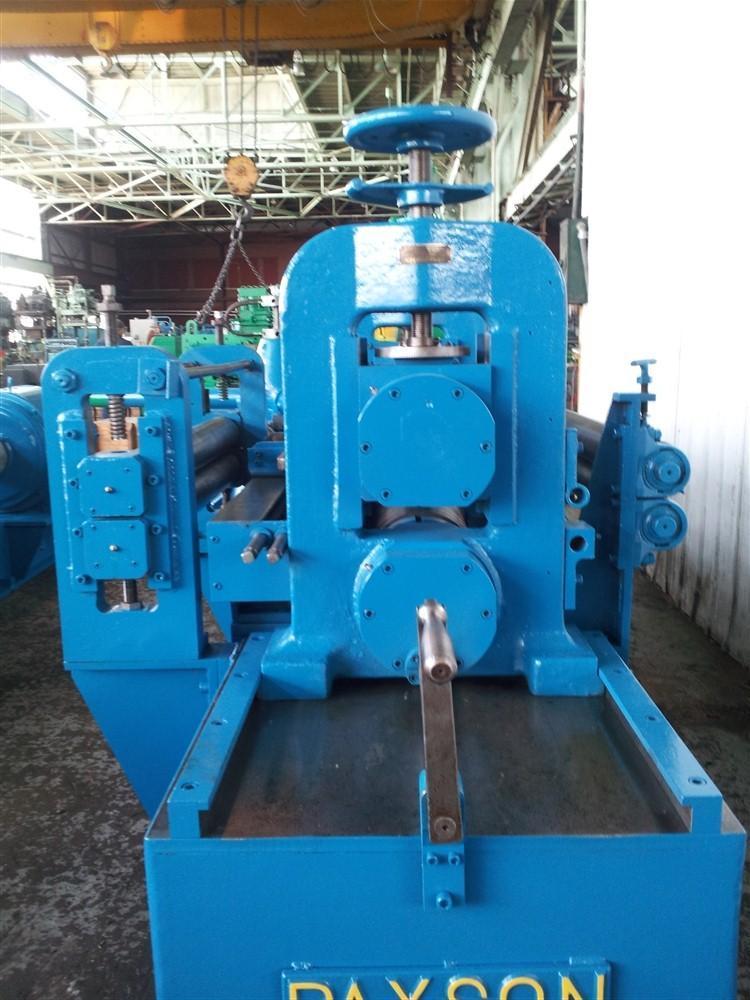

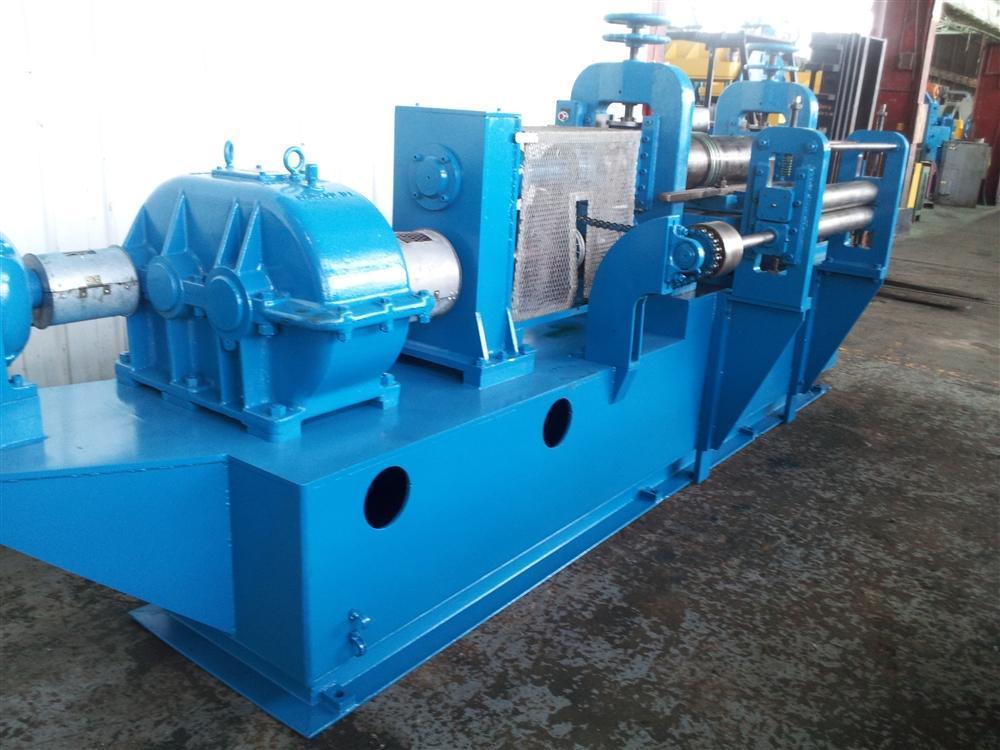

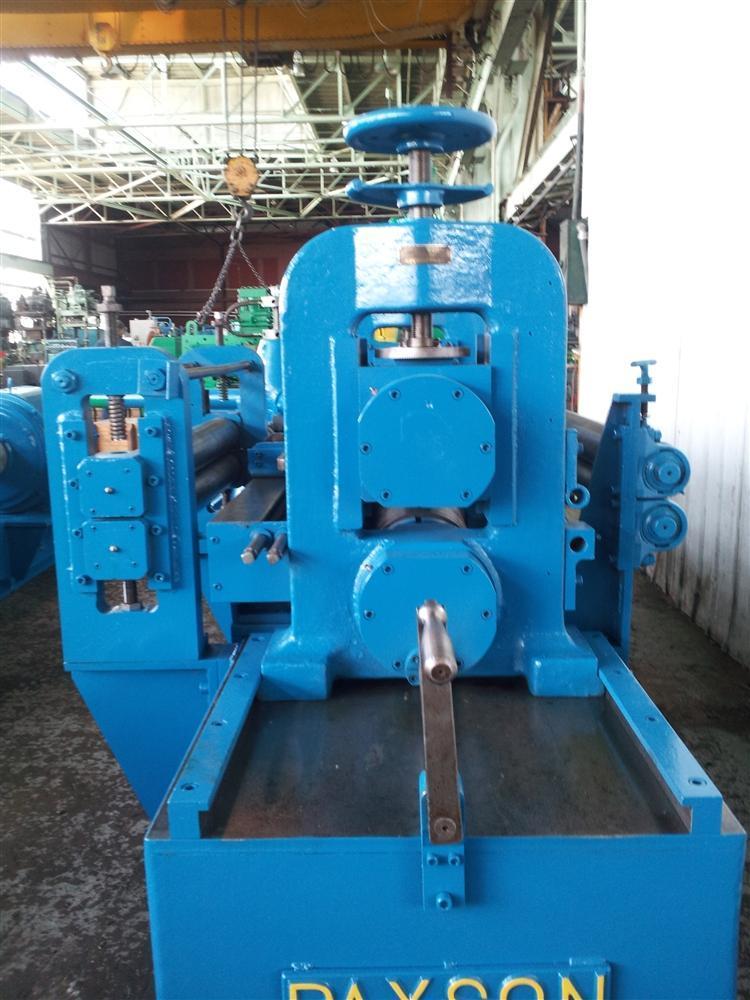

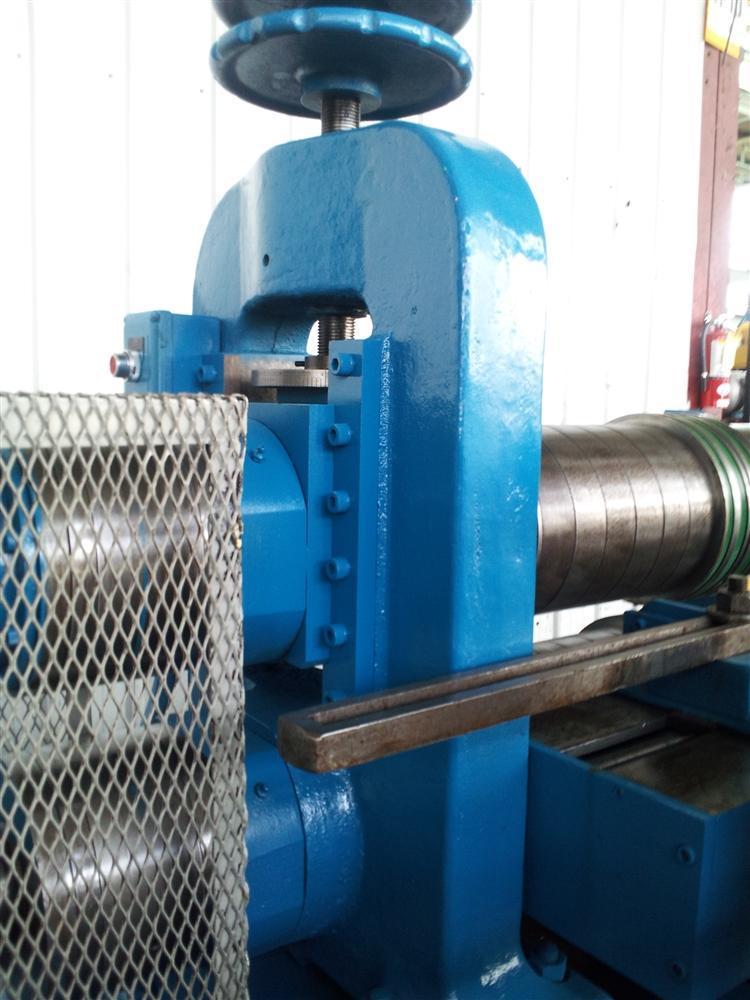

PULL THRU TYPE SLITTING HEAD:
ARBOR DIA ............................ 6"
FACE ................................. 42"
THREAD UP DRIVE ...................... YES
(2) POWERED ENTRY ROLLS .............. 4" DIA
MANUAL ADJUSTMENT .................... YES
SPRING LOADED ........................ YES
MANUAL ADJUSTED EDGE GUIDES .......... YES
(2) MANUAL ADJUSTED EXIT PINCH ROLLS .. 4" DIA
INDUCTION MOTOR ...................... 1745 RPM
FOOTE BROS GEAR BOX WITH ............. 40.7 - 20.9 RATIO
MOTOR ................................ 25 HP / 220/440 / 3 / 60 HZ

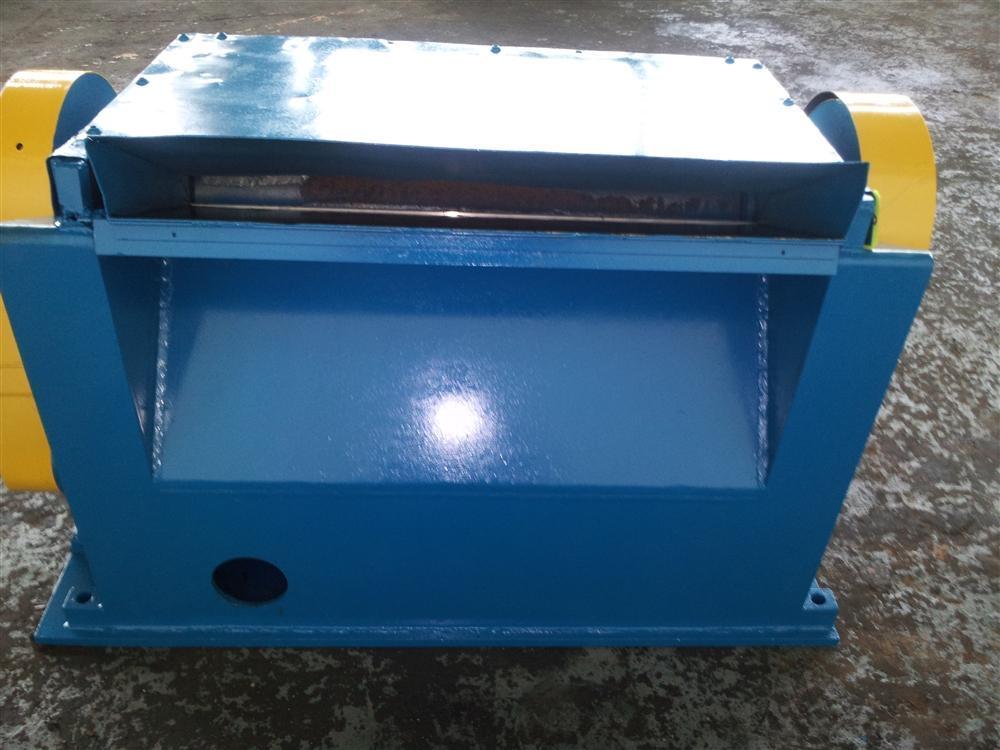

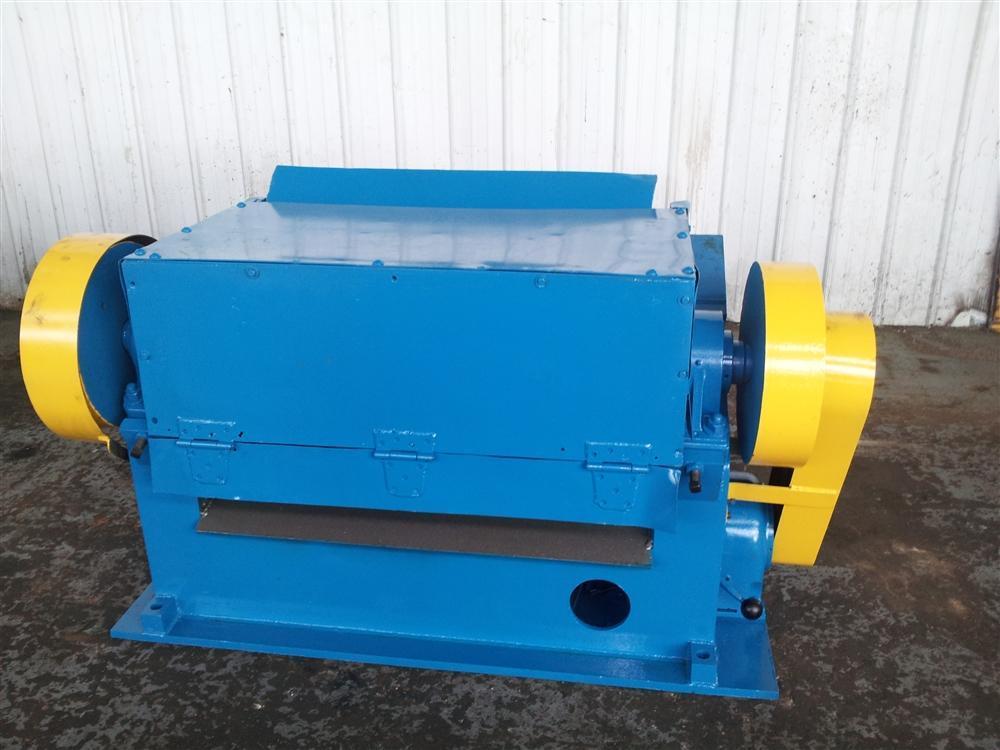

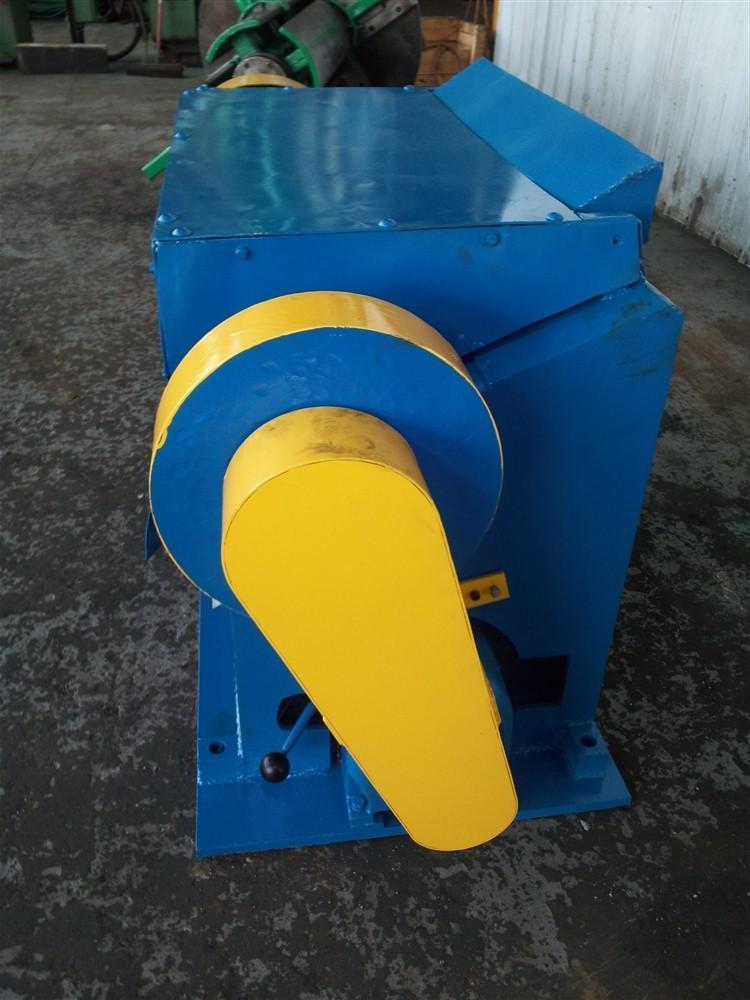

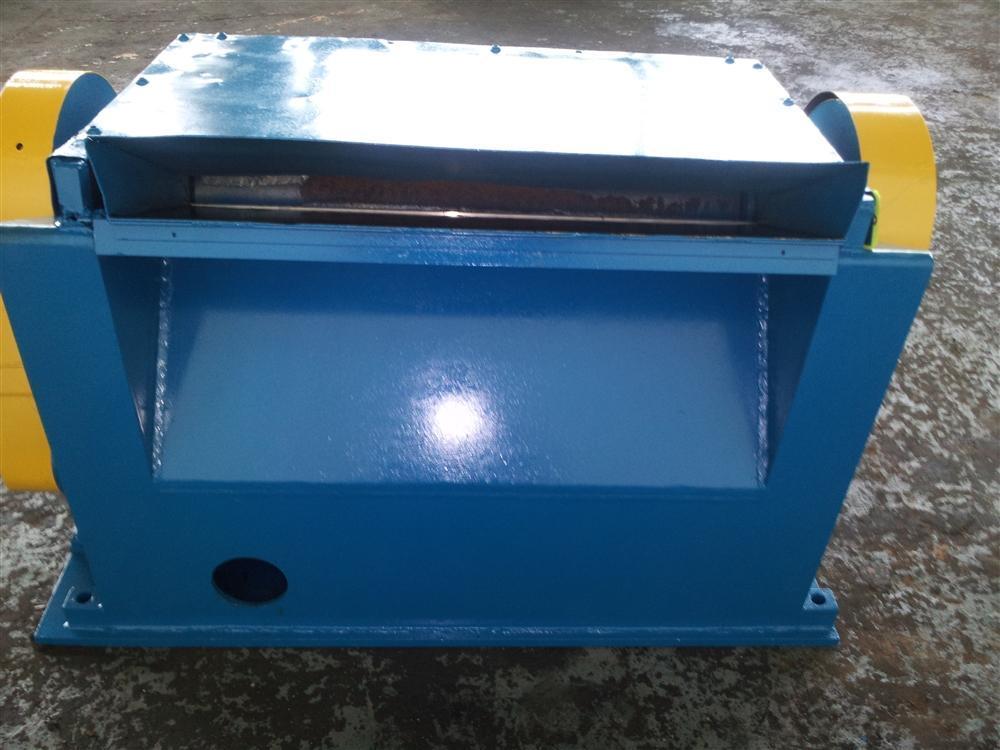

ROTARY SCRAP CHOPPER ................. YES

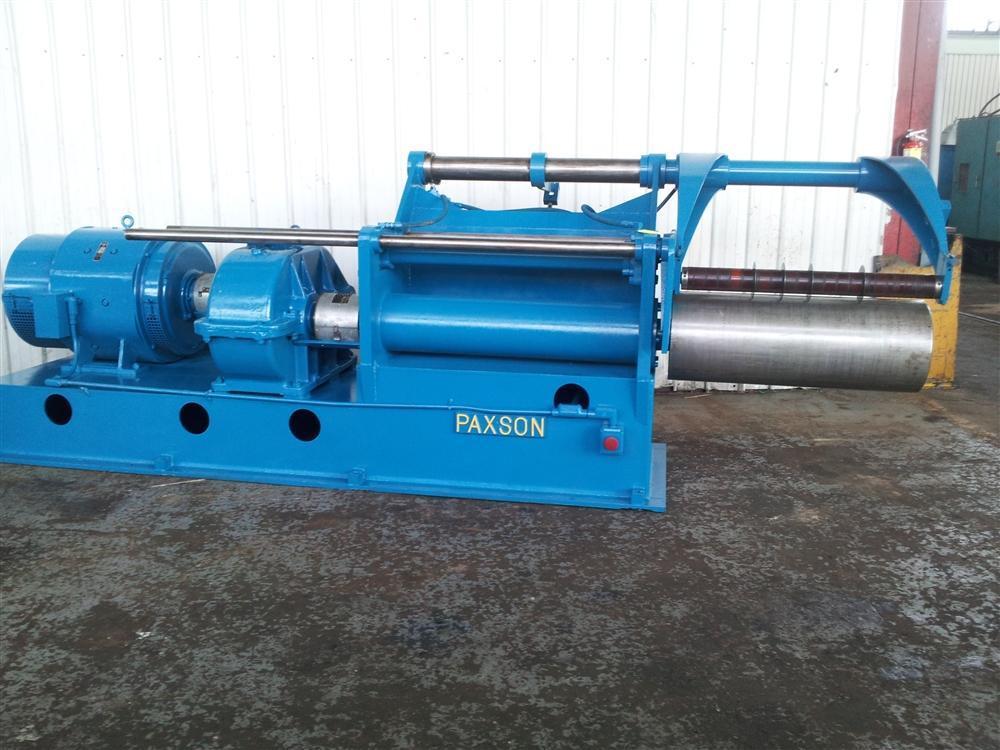

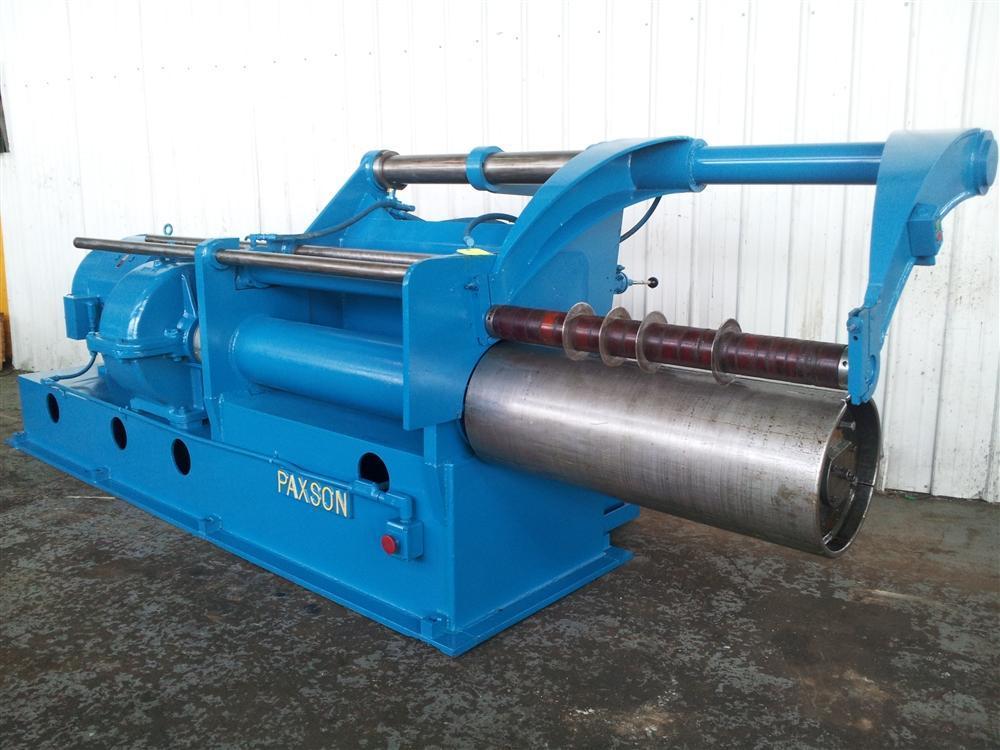

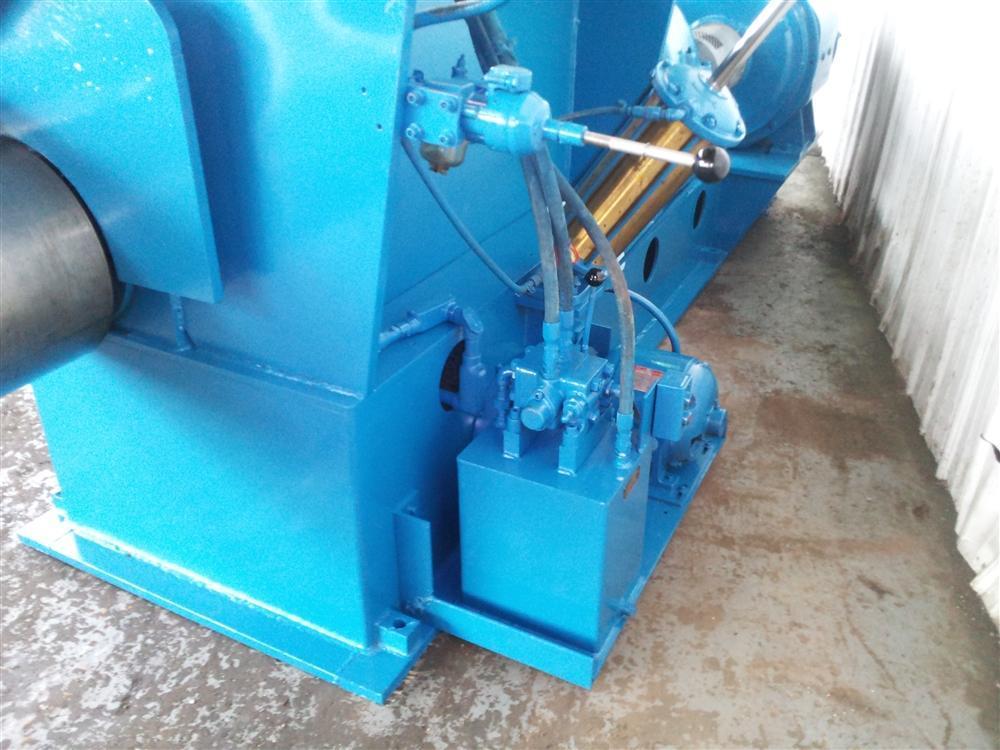

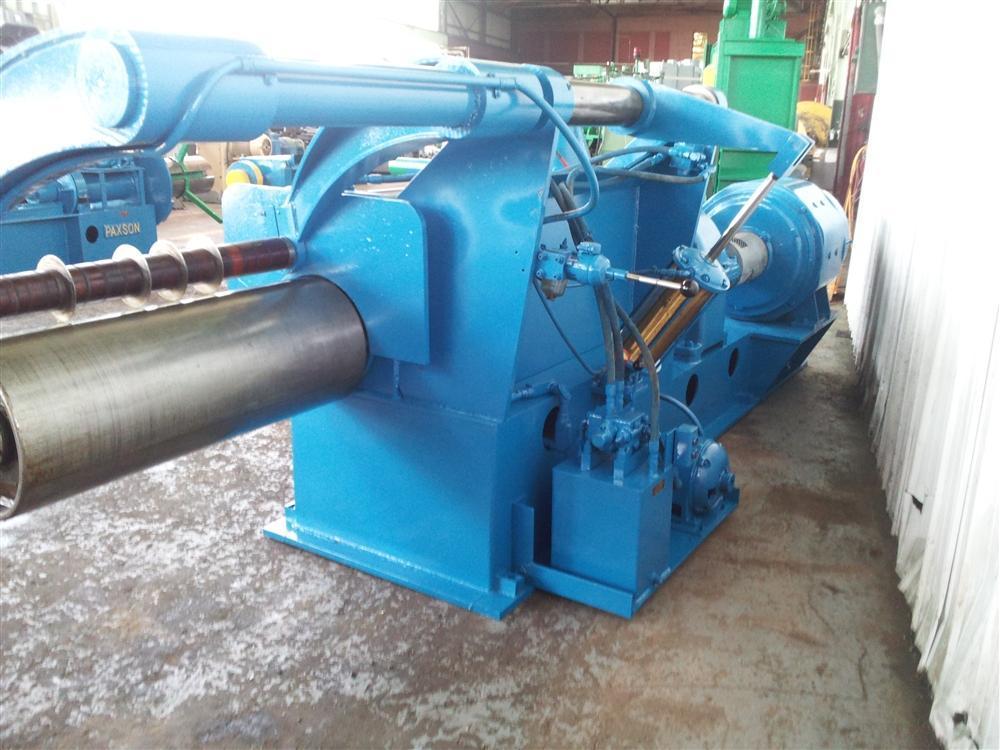

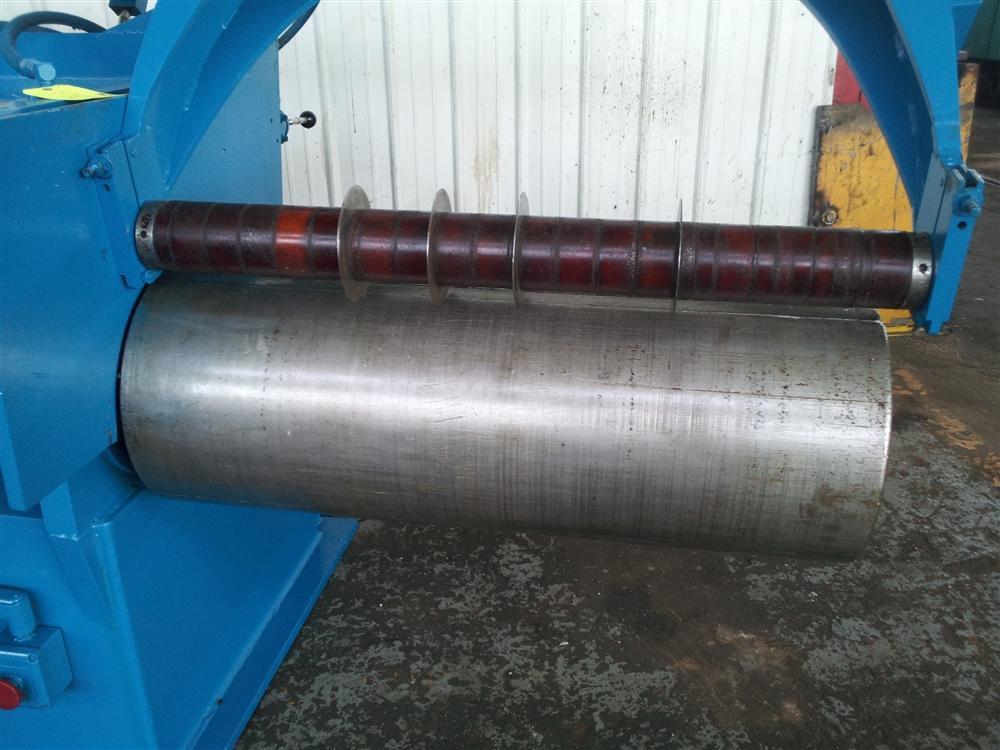

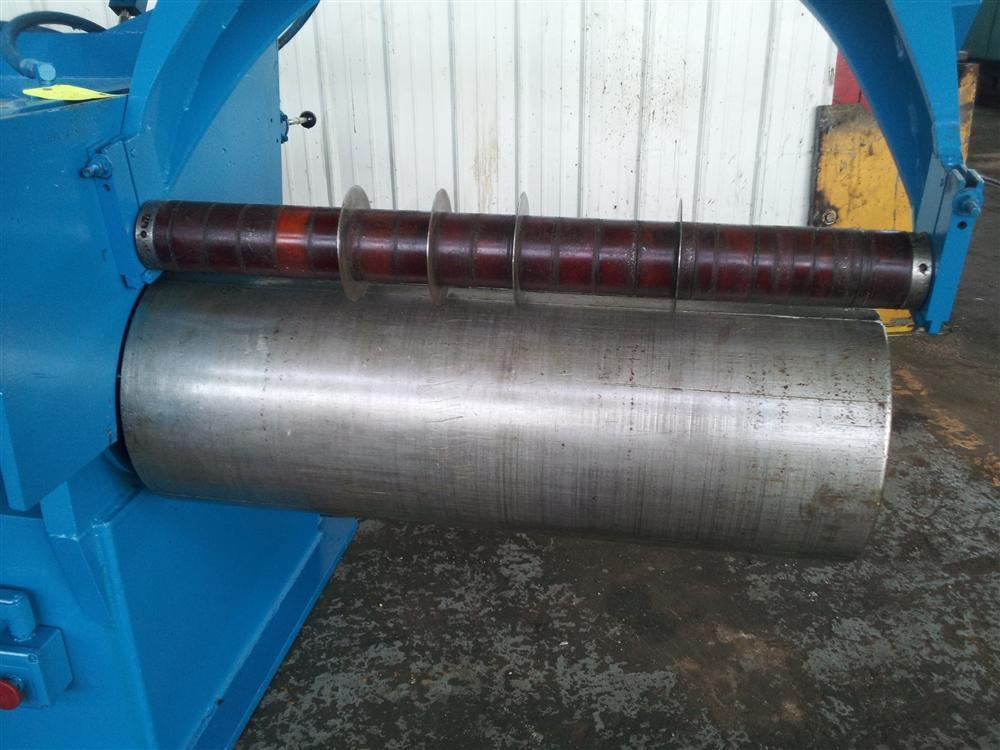

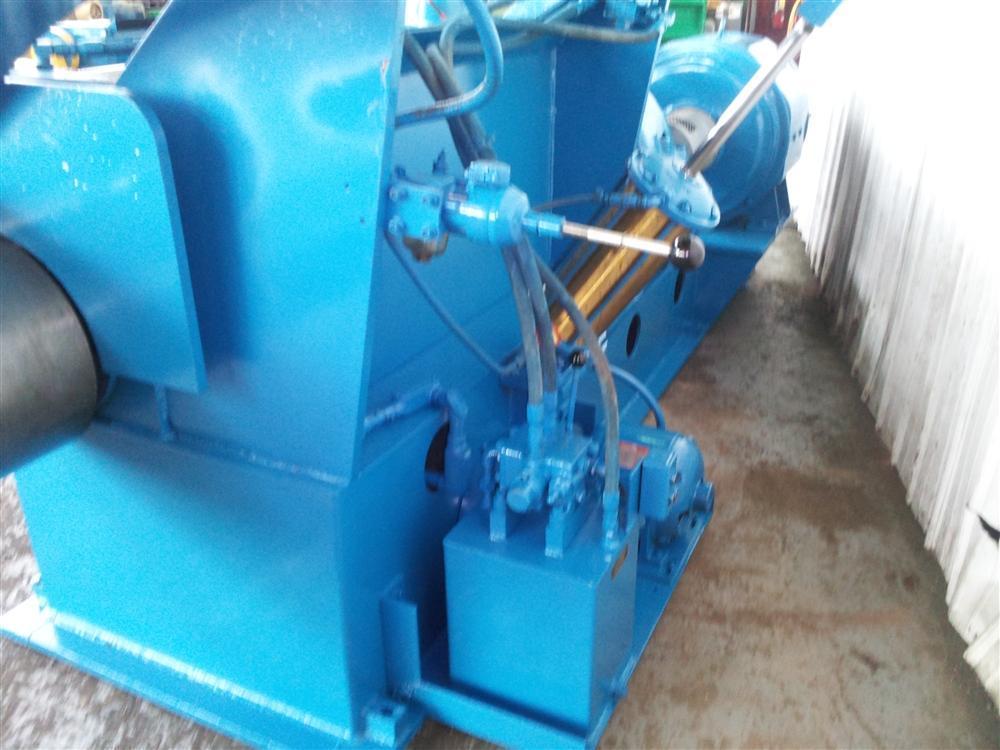

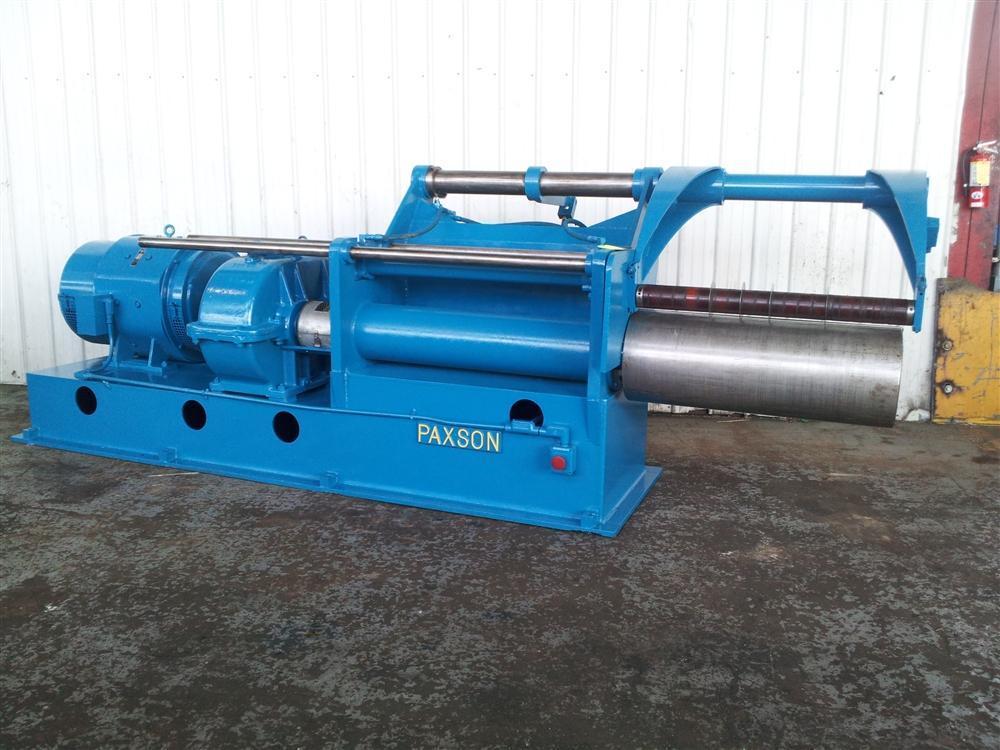

RECOILER:
MANDREL FACE ......................... 42"
MANUAL GRIP WITH HYD PUSH OFF ........ YES
MOTOR ................................ 3 HP / 220/440 / 6 / 60 HZ
AIR DROP OVERARM SEPARATOR ........... YES

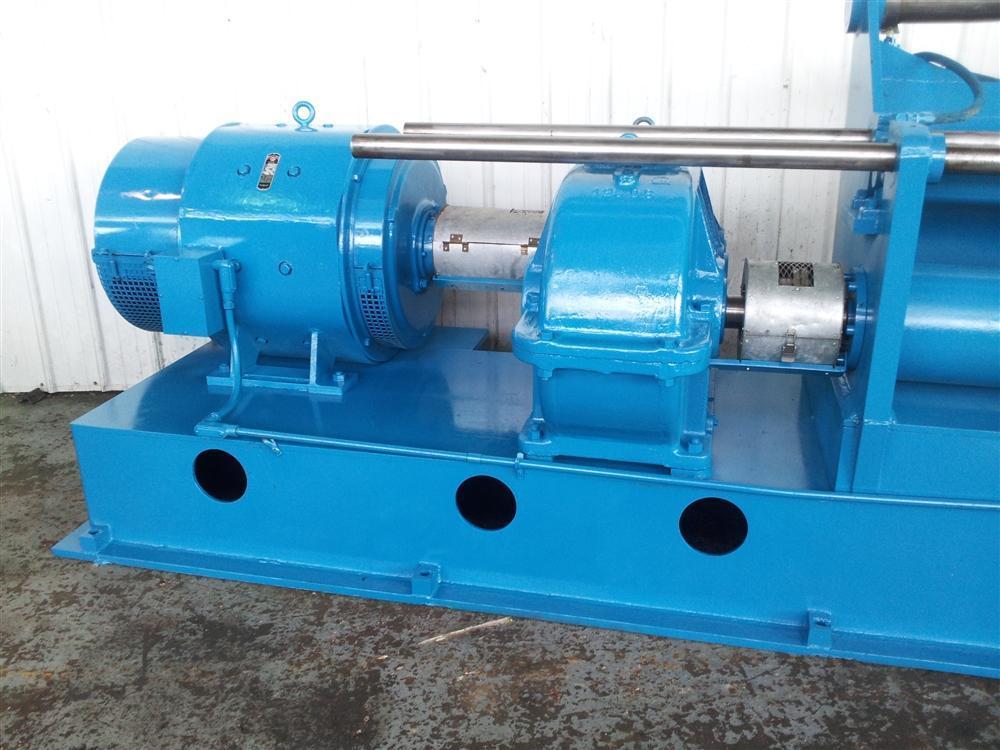

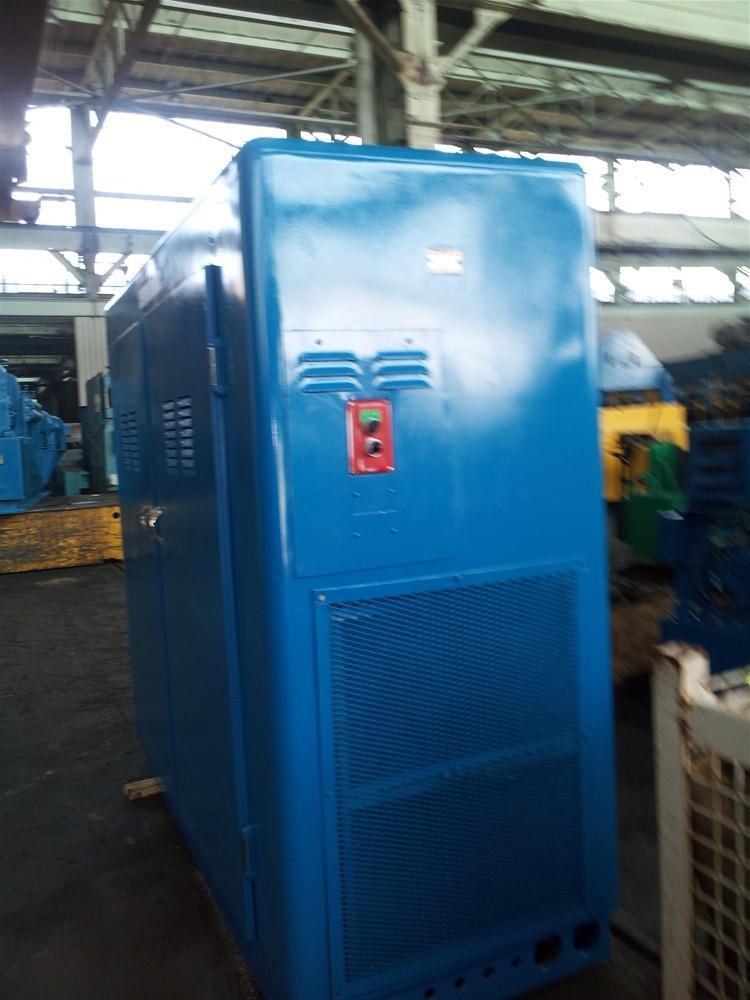

DC DRIVE ............................. 60 / 75 HP

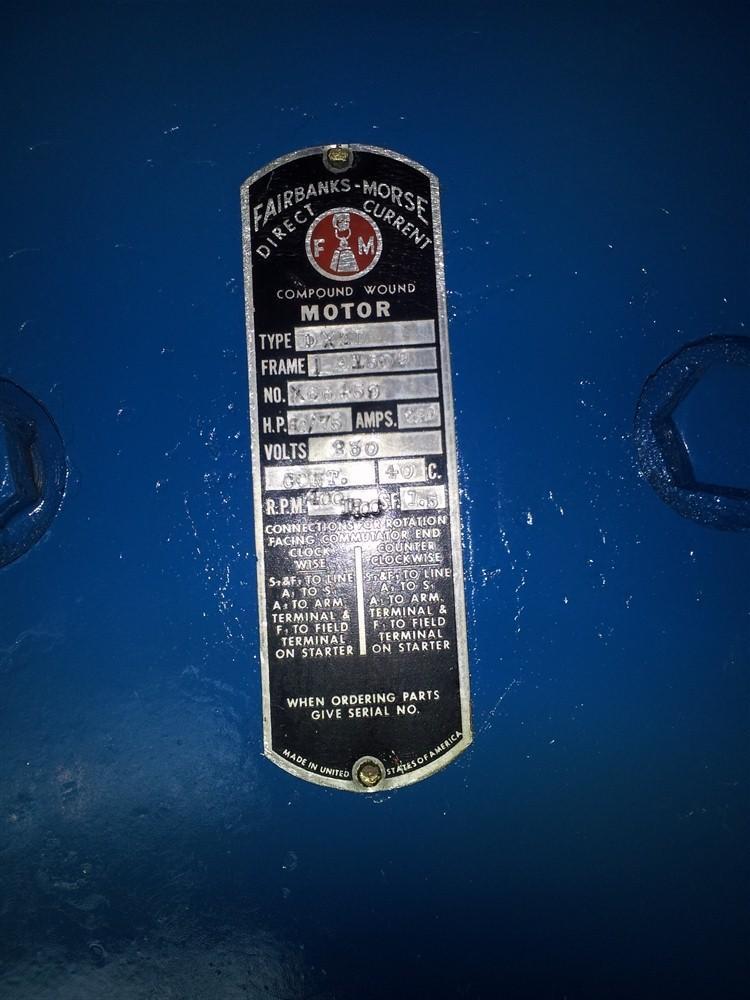

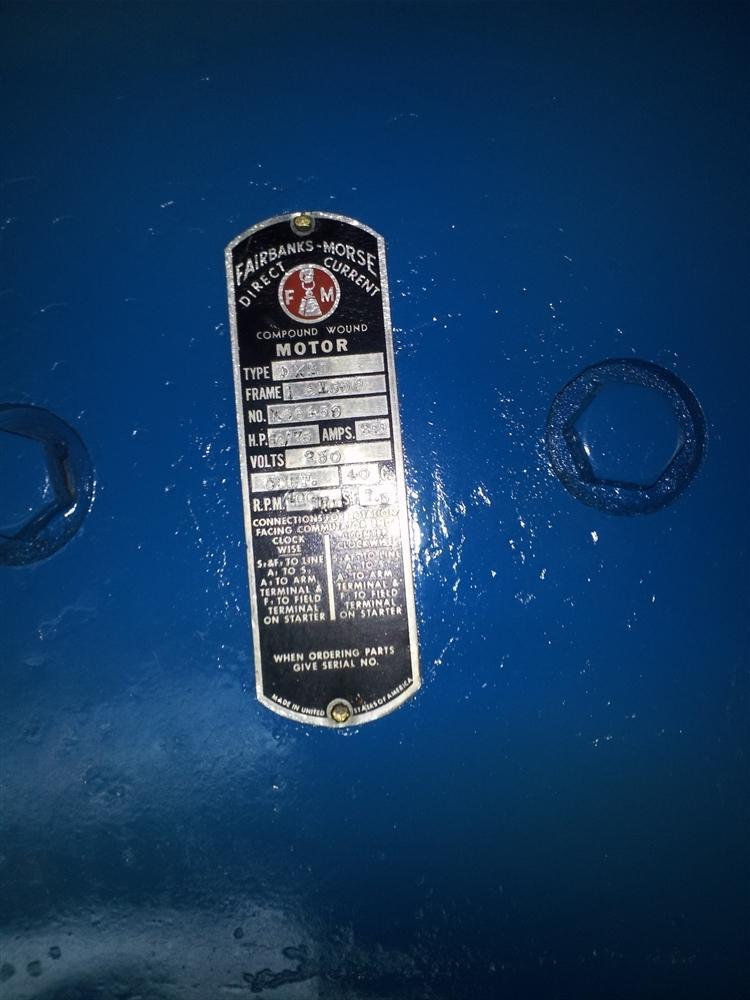

FAIRBANKS DXZD TYPE MOTOR THRU A FOOTE BROS GEAR BOX
VARIABLE SPEED MOTOR.................. 400 / 1600 RPM

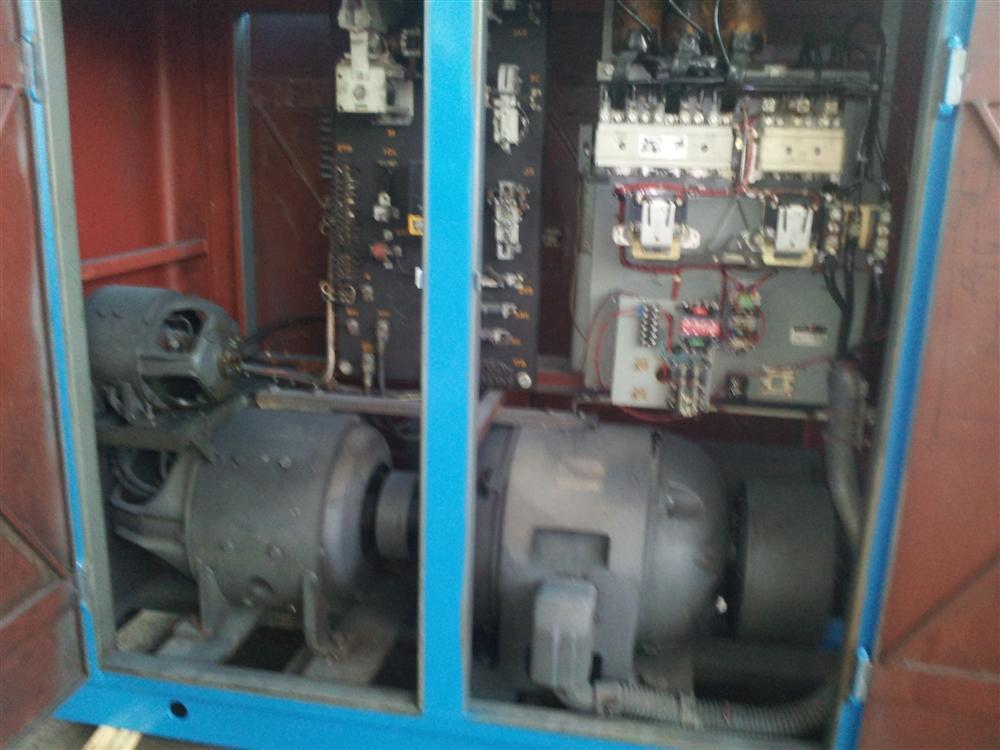

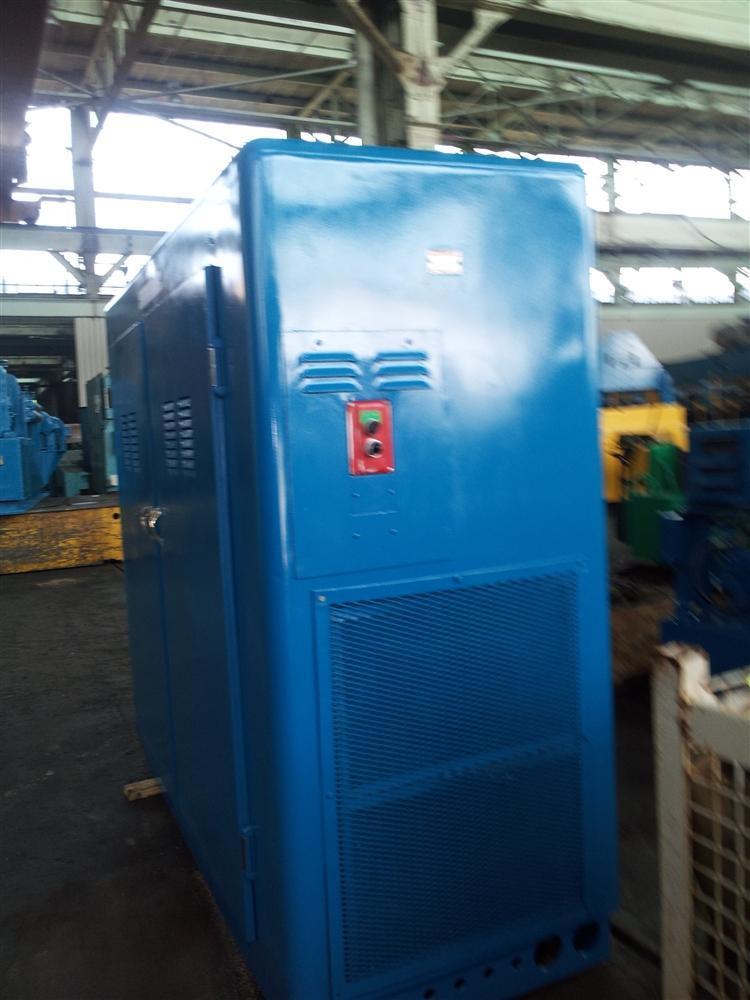

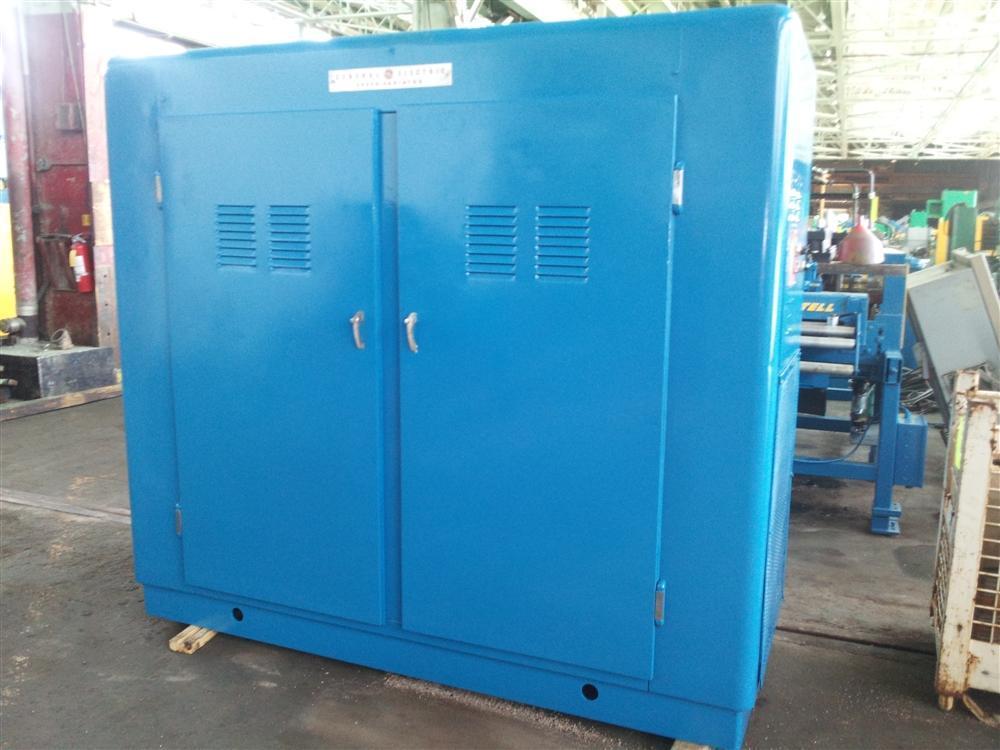

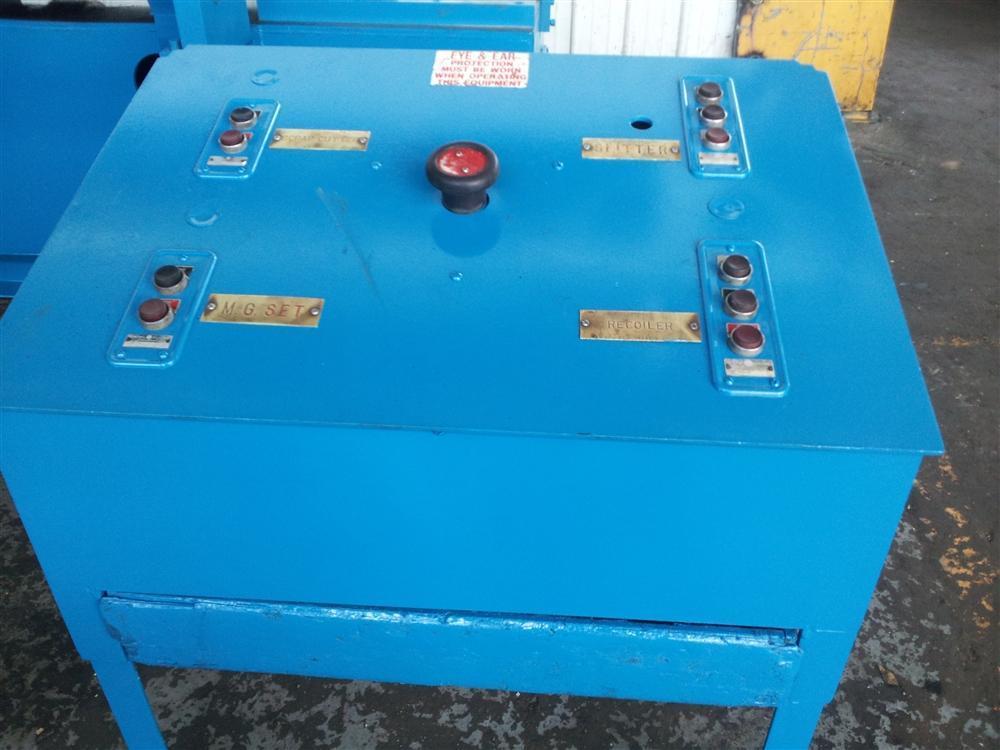

MG SET MOTOR CONTROLLER .............. YES
AC RECTIFIED TO DC ................... YES

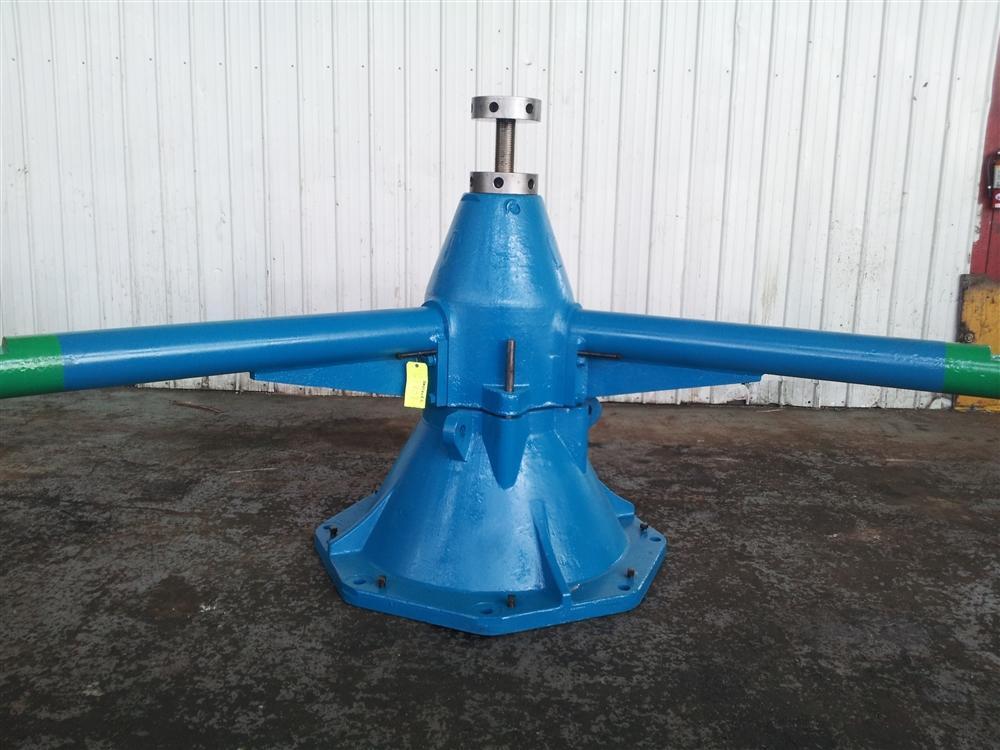

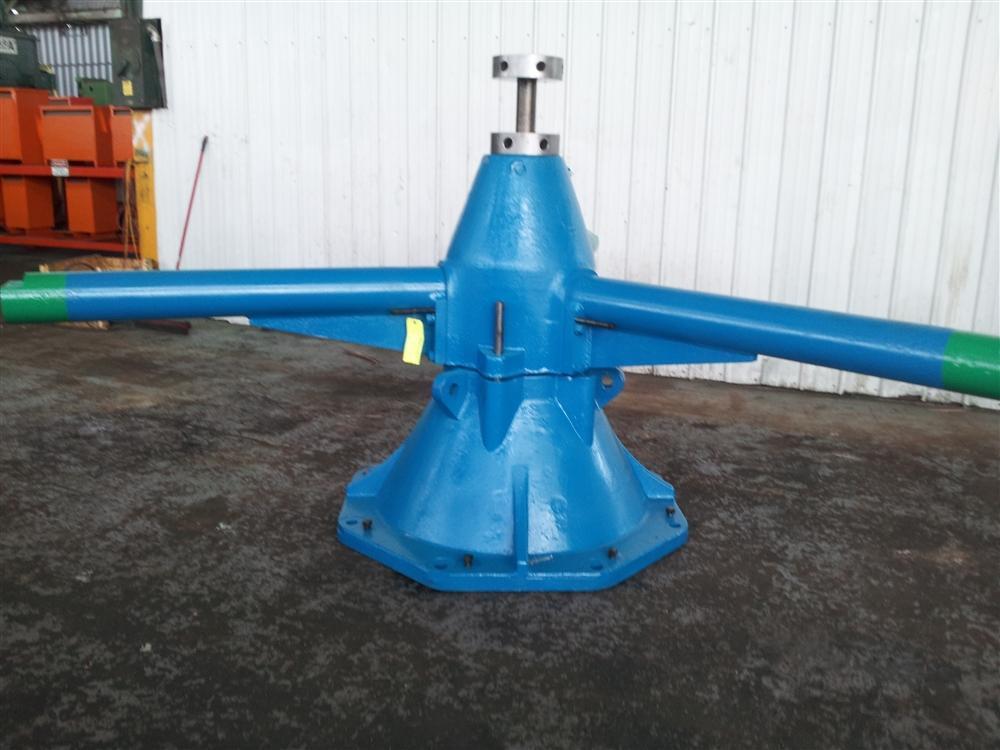

TURNSTILE:
(3) ARM MANUALLY OPERATED ............ YES
ARM LENGTH ........................... 54"

TOOLING:
KNIVES ............................... YES
SPACERS .............................. YES
RUBBERS .............................. YES
