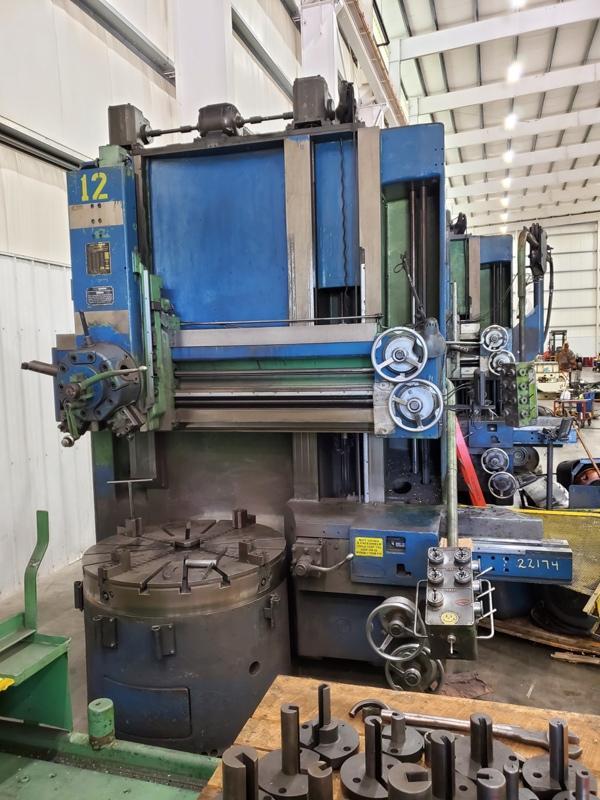

46" BULLARD CUTMASTER 75 VERTICAL TURRET LATHE

Manufacturer

BULLARD

Stock

22174

Model

CUTMASTER 75

Dealer Location

Pennsylvania

Price

$39,500.00

Spec Sheet



46" BULLARD CUTMASTER HIGH COLUMN VERTICAL BORING MILL PRICE: Loaded on Truck, Our Warehouse, York, PA …… $39,500.00 HMC Stock # 22174 Machine Serial No.: 29570 Machine Model No.: 75 Cutmaster New Date: 1954 Table Size: 46" Diameter, 4 Jaw Chuck Maximum Swing Side Head Up: 50", Side Head Down: 58" Maximum Under Rail: 62" Turret Head Travel Left to Right: 30" Each Side of Center Vertical Stroke of Turret Head: 30" Vertical Travel of Side Head: 38-3/4" Horizontal Travel of Side Head Ram: 26" (20) Table Speeds: 6.8 to 250 RPM Feeds To Each Axis: .0006 to .125 TPR EQUIPPED WITH: (1) Manual 5 Sided Turret Type Rail Head (1) Side Head with 4 Sided Turret Type Tool Holder (4) Table with Bolt On Hard Reversible Top Jaws, Independently Adjustable (1) Chuck Wrench (2) Bullard 3 Sided Tool Holders (3) Round Bar Type Tool Holders Satin Chrome Dials and Inch Scales with Set Clips on Each Axis 2 Axis Newall DP700 Digital Readout on Rail Head Full Pendant Control of Feeds, Speeds and Rapid Traverse and Table Start Stop Flush floor Design Custom Removeable Table Area Guards Soft Rail and Vertical Column Ways in Very Good Condition Side Head Goes Below Table Top Level Bijur One Shot Manual Lubrication Systems on Each Axis 30 Hp Main Motor, Wired for 3 Phase 60 Hz 220 / 440 Volts, Presently 440 Volts Assorted OEM Schematics and Drawings Overall Machine Height with Pendant Bracket Removed: 150" (12.5') (can't go lower) Shipping Dimensions: 124" LR x 114" FB x 150" High x 50,450 Lbs. (motor & accessories not included) Skid Motor, Guards and Other Misc: 86" x 55" x 37" H x ?? Lbs.
