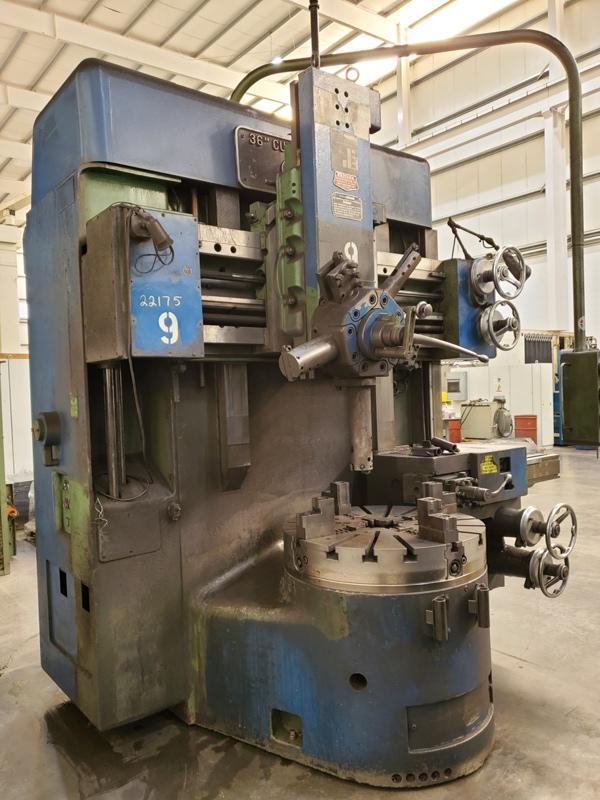

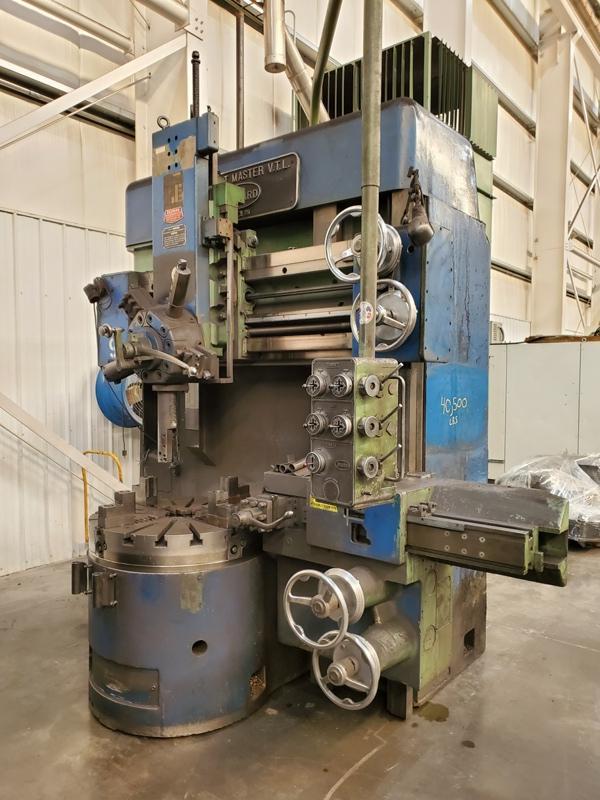

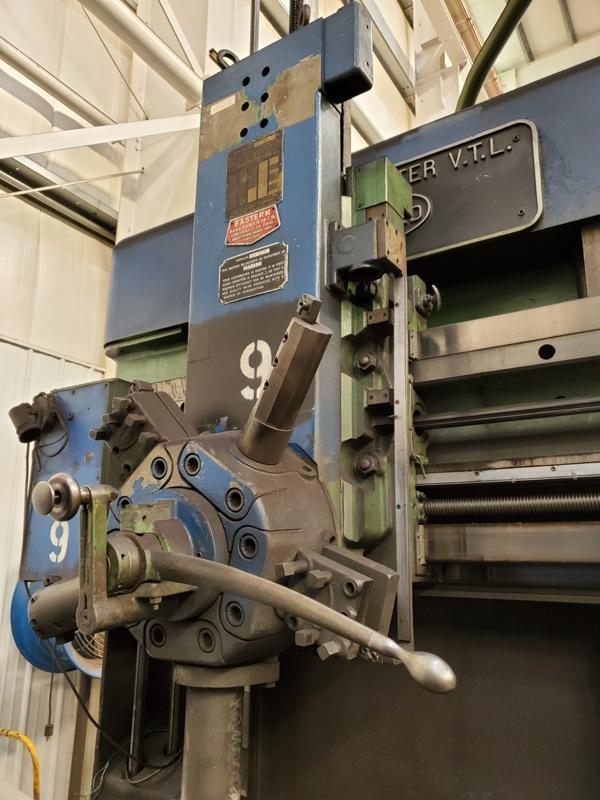

BULLARD CUTMASTER 75 VERTICAL TURRET LATHE

Manufacturer

BULLARD

Stock

22175

Model

CUTMASTER 75

Dealer Location

Pennsylvania

Price

$29,500.00

Spec Sheet

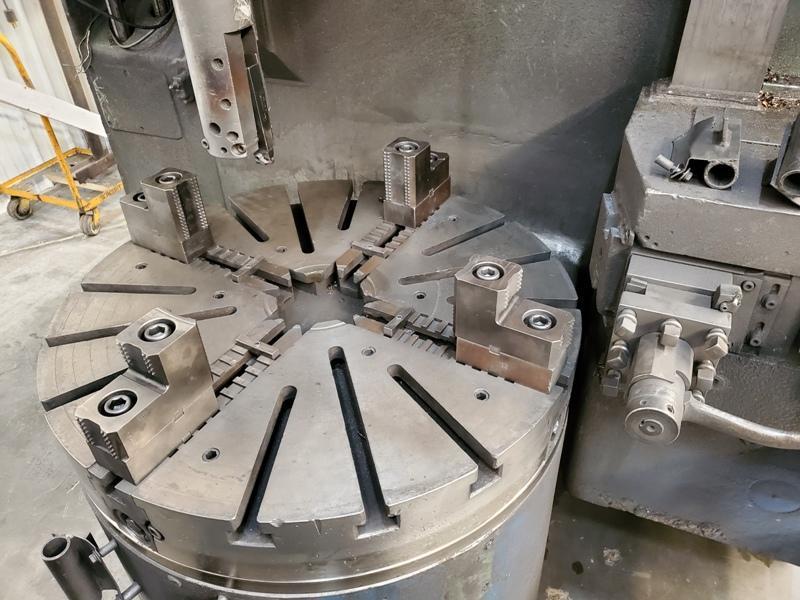

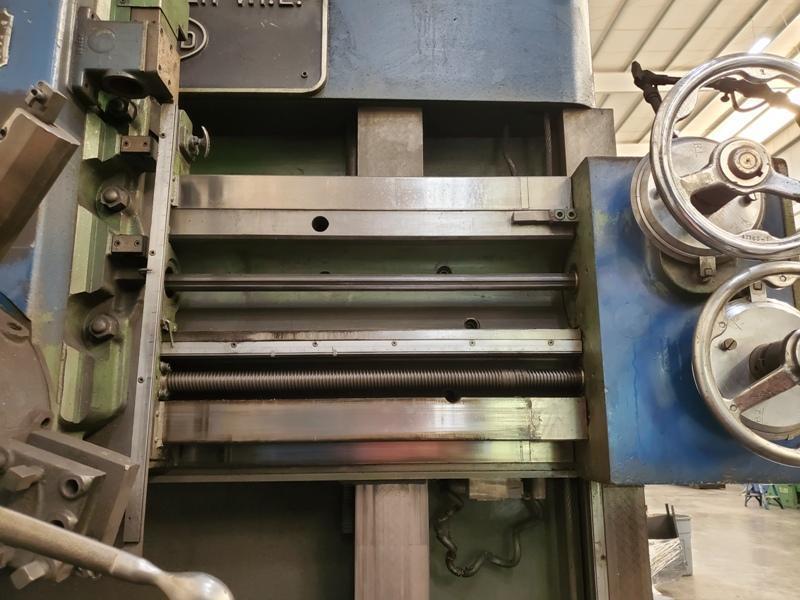

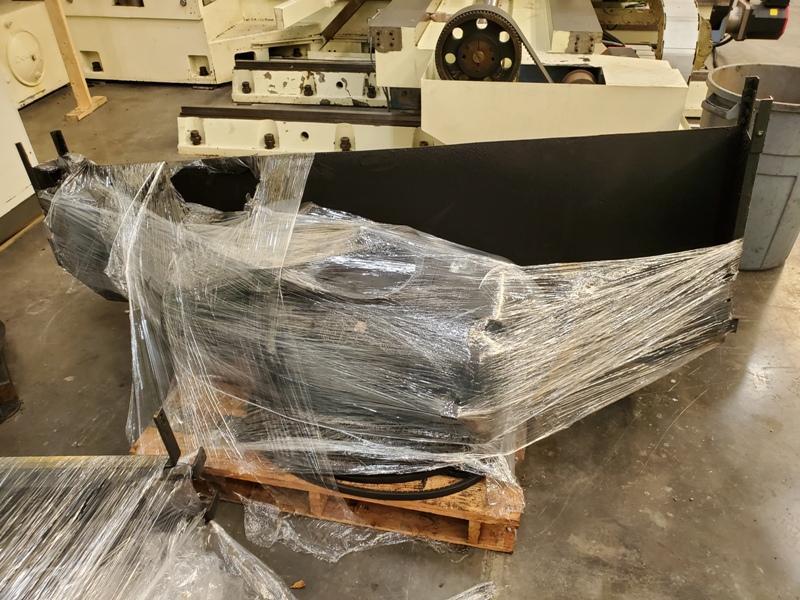

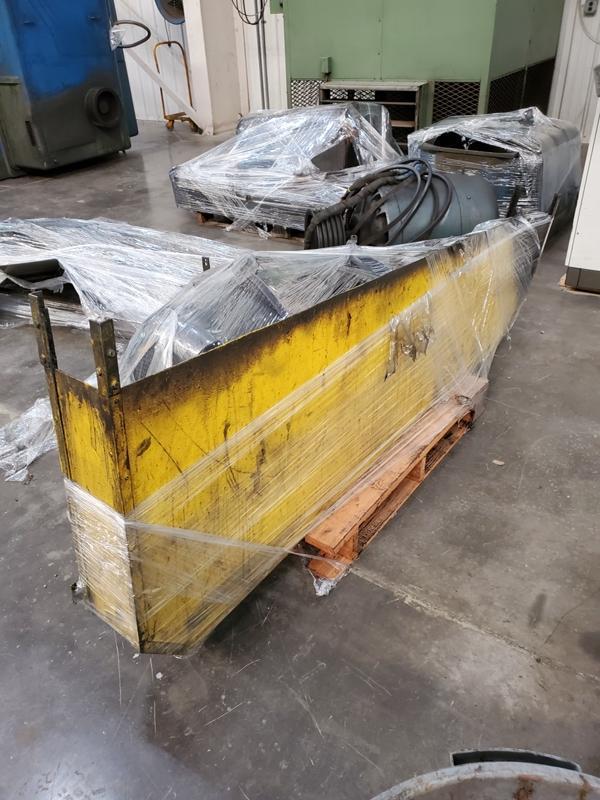

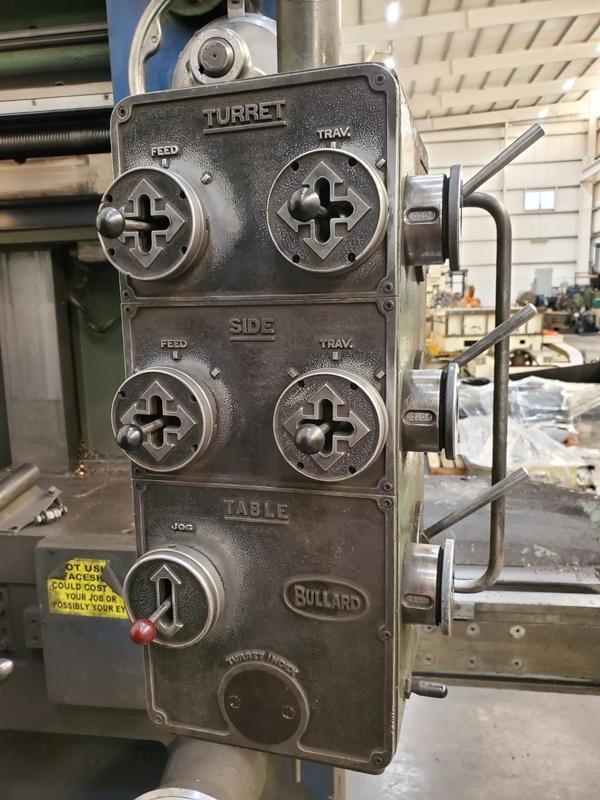

36" BULLARD CUTMASTER 75 VERTICAL TURRET LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA …… $29,500.00 HMC Stock # 22175 Machine Serial No.: 29539 Machine Model No.: Cutmaster 75 New Date: 1954 Table Speeds: 8.2 to 300 RPM Max. Swing Side Head Below Table: 45" Max. Swing Side Head Working Position: 39" Turret Head Swivels: 30 Degrees Left & Right Manual 4-Jaw Chuck: 36" Diameter Max. Distance Table to Rail: 30" Max. Distance Table to Face of Turret: 41-1/4" Travel of Head on Rail: 42" Left & Right Tool Turret Tool Holes: 2-3/4" Diameter Max. Turret Head Vertical Stroke: 26" Side Head Horizontal Travel: 19" Side Head Vertical Travel: 30-1/4" Feeds: .0006" to .125"IPR EQUIPPED WITH: 5-Position Manual Indexing Tool Turret 4-Sided Turret Tool Post on Side Head Ram Manual 4-Jaw Chuck with 4 Hard Reversible Top Jaws, NO Chuck Wrench Flush Floor Design - No Pit Required Hard Rail Ways in Excellent Condition (2) Bullard 3-Sided Tool Holders (3) 2-3/4" Diameter Boring Bar Tool Holders Full Pendant Operational Control Rapid Traverse to All Axes Bijur One Shot Lubrication Systems to Each Axis Floor Mounted Motor with Belt Adjustment Frame and Belt Guard Satin Chrome Graduated Dials and Scales on Each Axis 40 HP Main Drive Motor, Wired for 3 Phase, 60 Hz, 220/440 Volts Overall Machine Size: 120" L-R x 109" F-B x 138" High (pendant attached) x 41,500 Lbs. Skid with Motor, Frame and Belt Guard: 52" x 81" x 33" High
