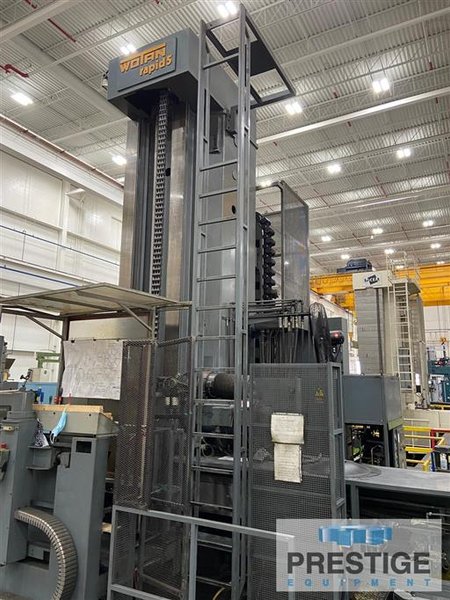

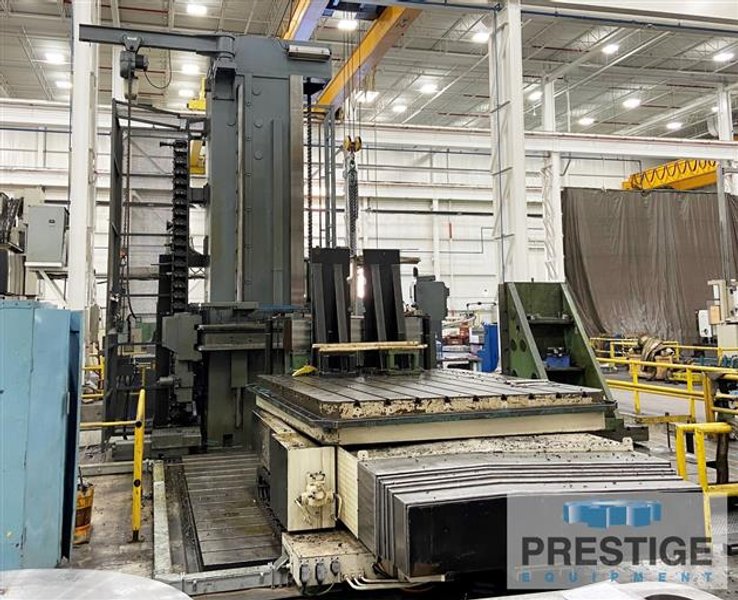

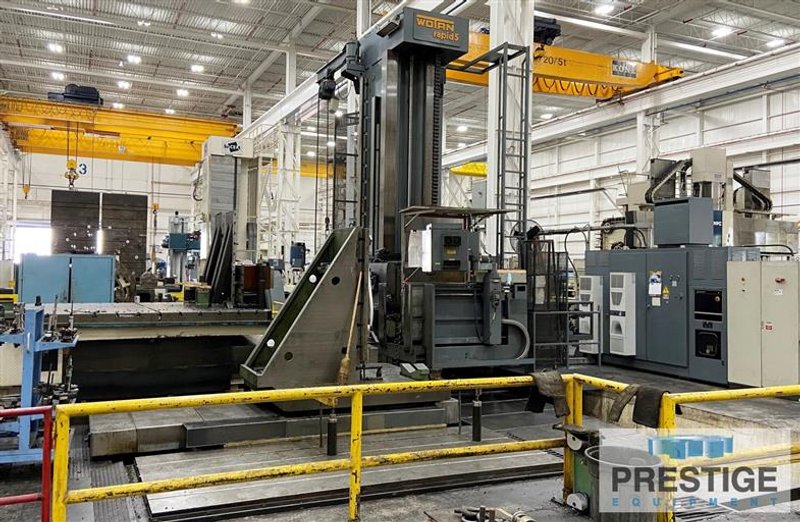

6.3" Wotan Rapid 5 CNC Ram Type, 60 ATC, X-236", Y-138", Z-40" (Spindle), Z-1- 27" (Ram), Infeed CNC Rot.Tbl, #31959

Manufacturer

Wotan

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

31959

Model

Rapid 5

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31959

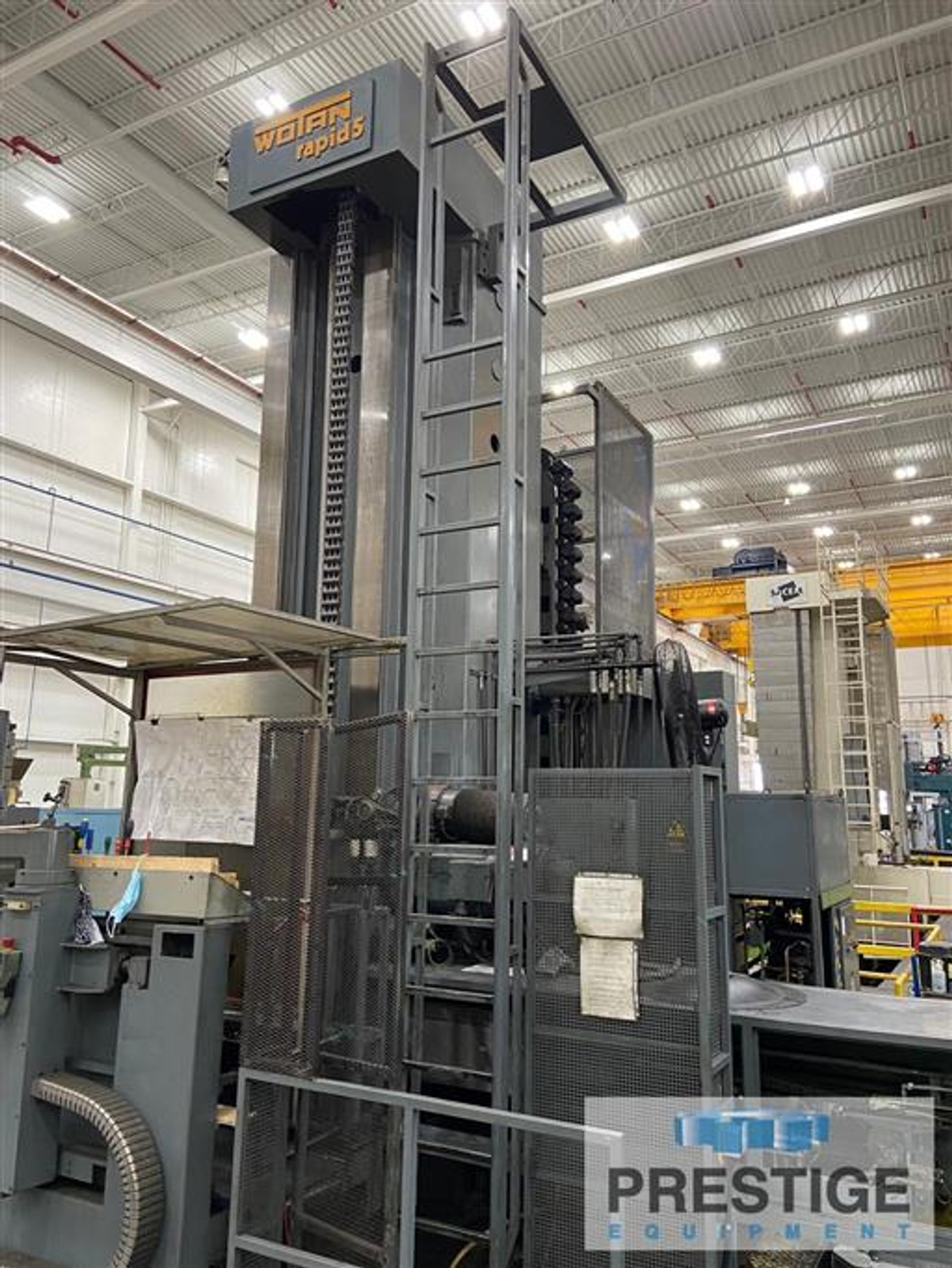

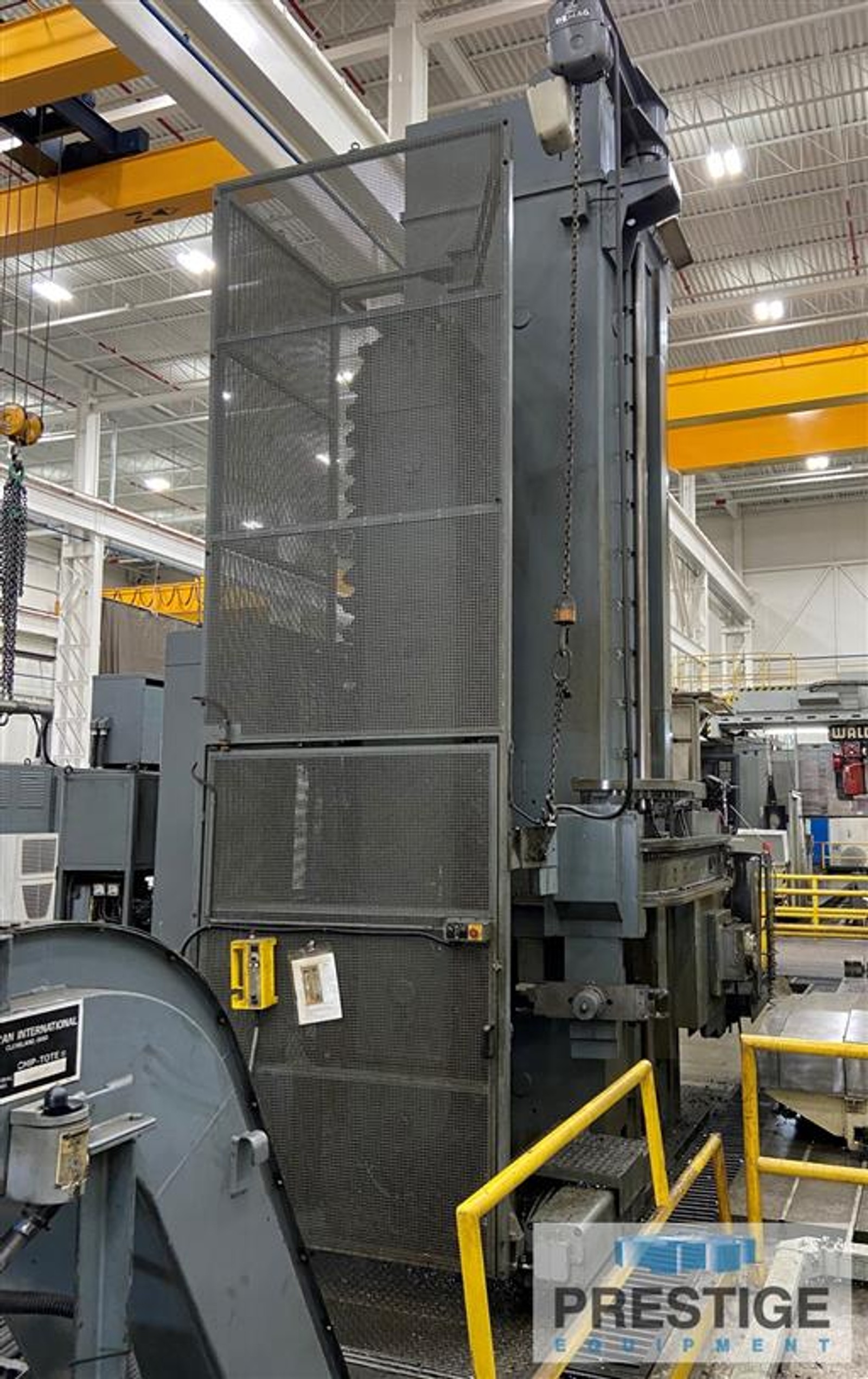

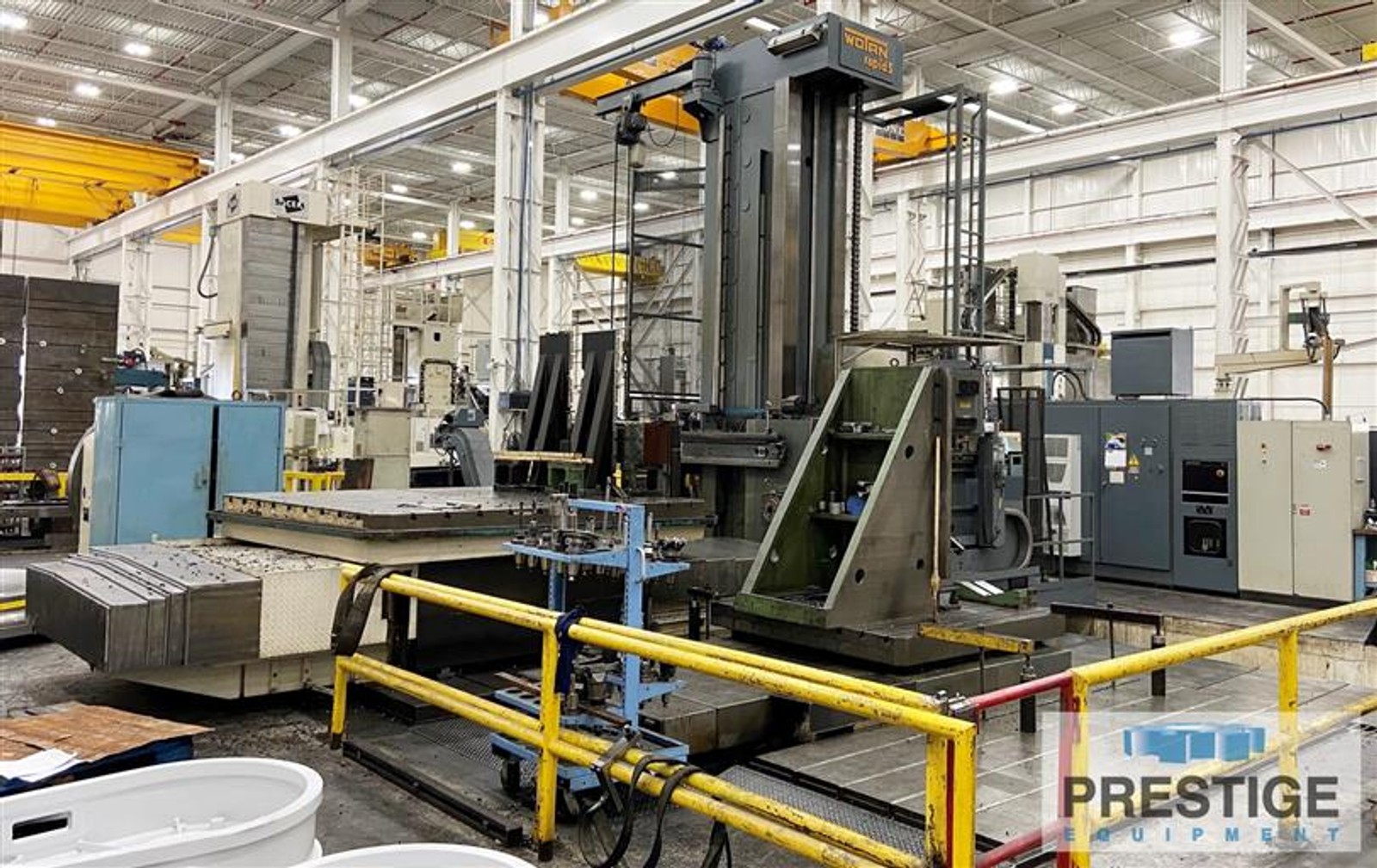

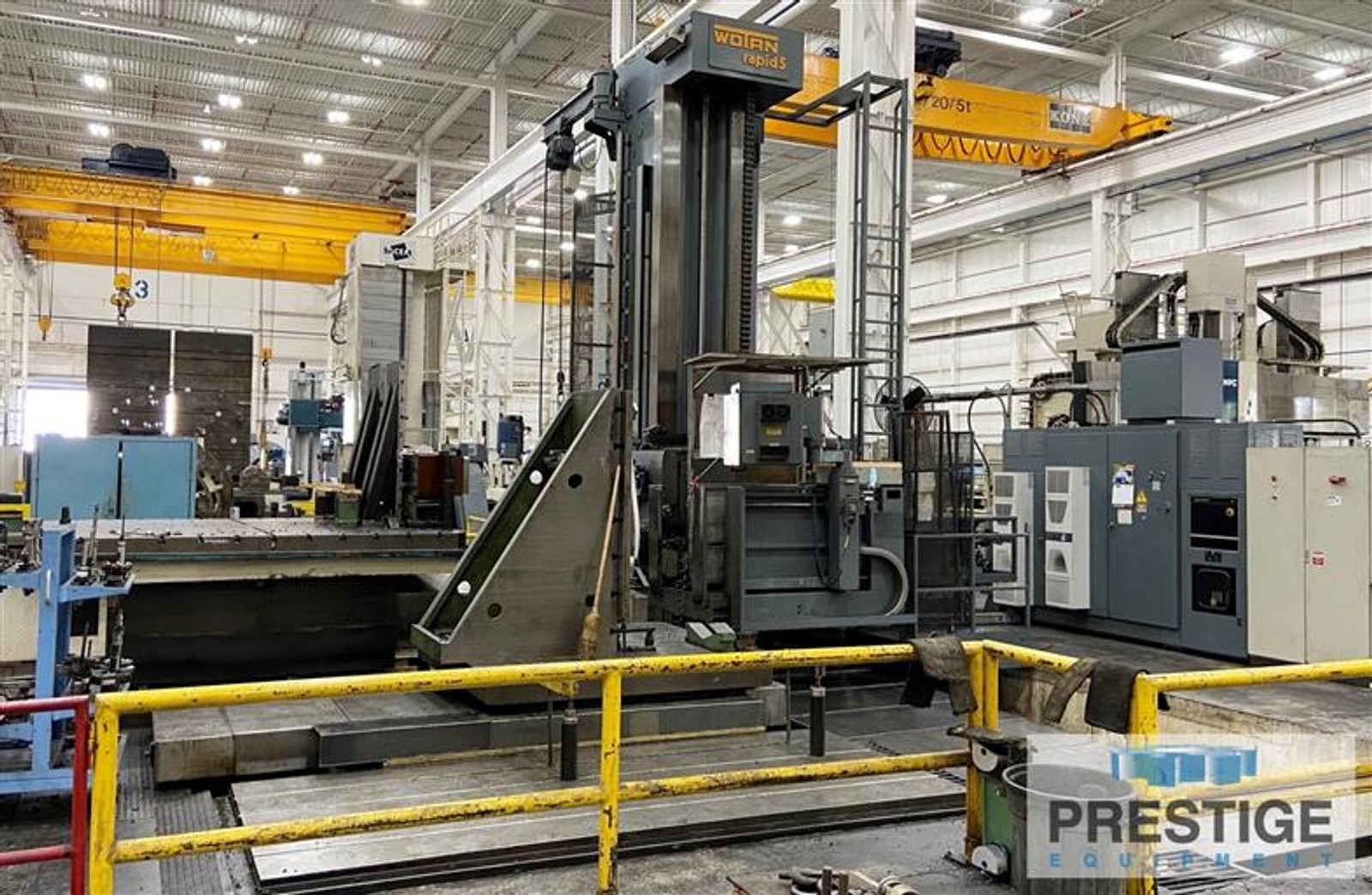

Wotan 6.3" CNC Floor Type Horizontal Boring Mill

FEATURES:

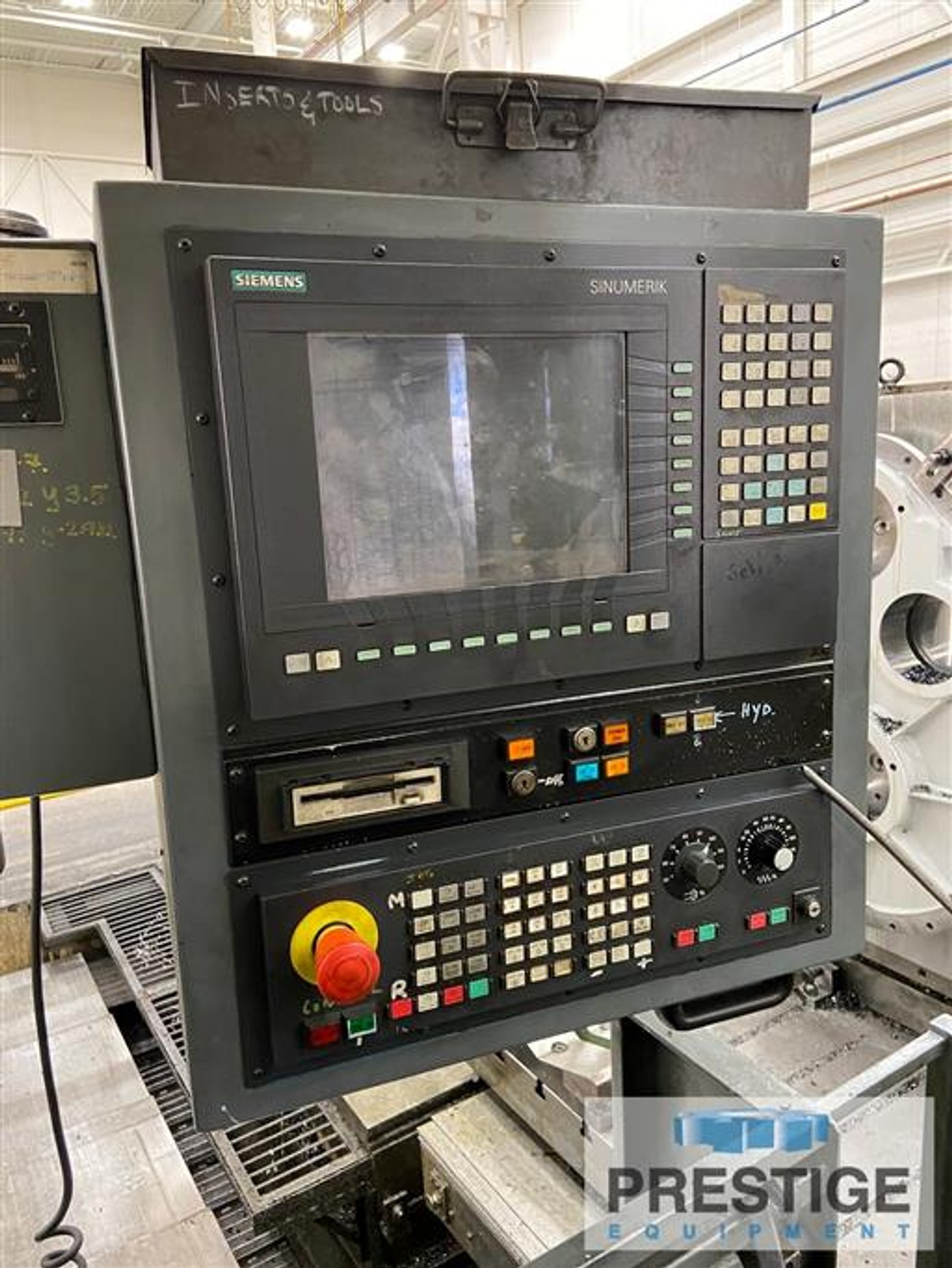

Siemens 840D CNC Control
60-Station Automatic Tool Changer
78.74" x 72.83" Infeeding B-Axis CNC Rotary Table


CAPACITY:
Spindle Diameter ...................... 6.29"
Milling Quill Diameter ................ 9.44"
Ram Cross Section .................... 13.38" x 13.38"
Vertical Head Travel, Y ............... 137.79"
Horizontal Column Travel, X ........... 236.22"
Spindle Travel, Z1 .................... 39.37"
Ram Travel, Z2 ........................ 27.55"
Spindle Speeds ........................ 2-1250 RPM
Spindle Taper ......................... #50

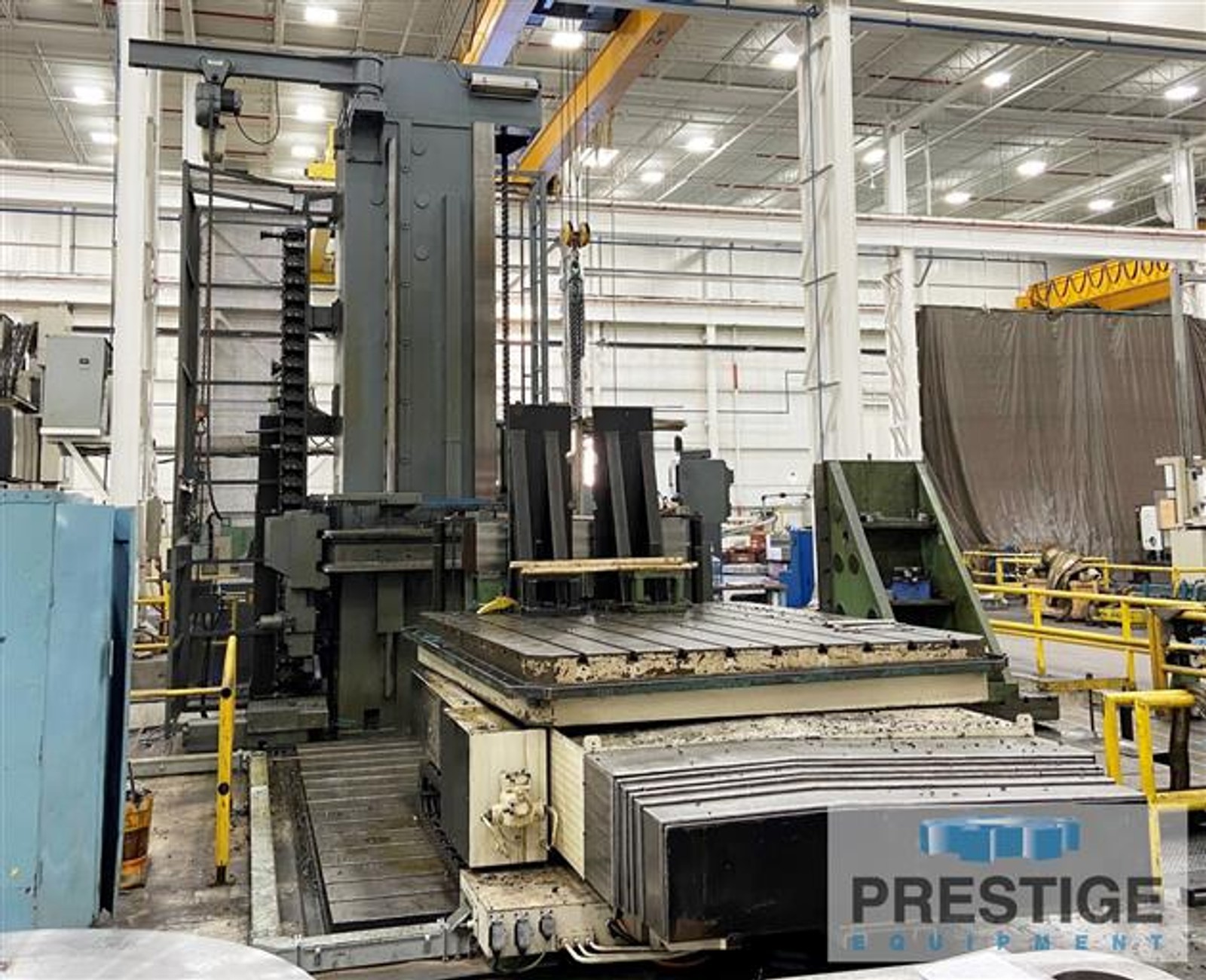

Rotary Table, Infeeding:
Table Size ........................... 78.74" x 72.83"
Table Capacity ........................ 35,000 lbs.
Table Indexing ....................... .001 Degrees
Table Infeed ......................... 49.21"

EQUIPPED WITH:
Siemens 840D CNC Control
60-Station Automatic Tool Changer
78.74" x 72.83" Infeeding B-Axis CNC Rotary Table

Note:
Inspect In Plant Under Power
