Union BFP130, 5.12", X-220", Y-119" Heidenahin CNC, 86" x 86" Tos Table, Facing Head, Spindle Support, #31978

Manufacturer

UNION

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

31978

Model

BFP130

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31980

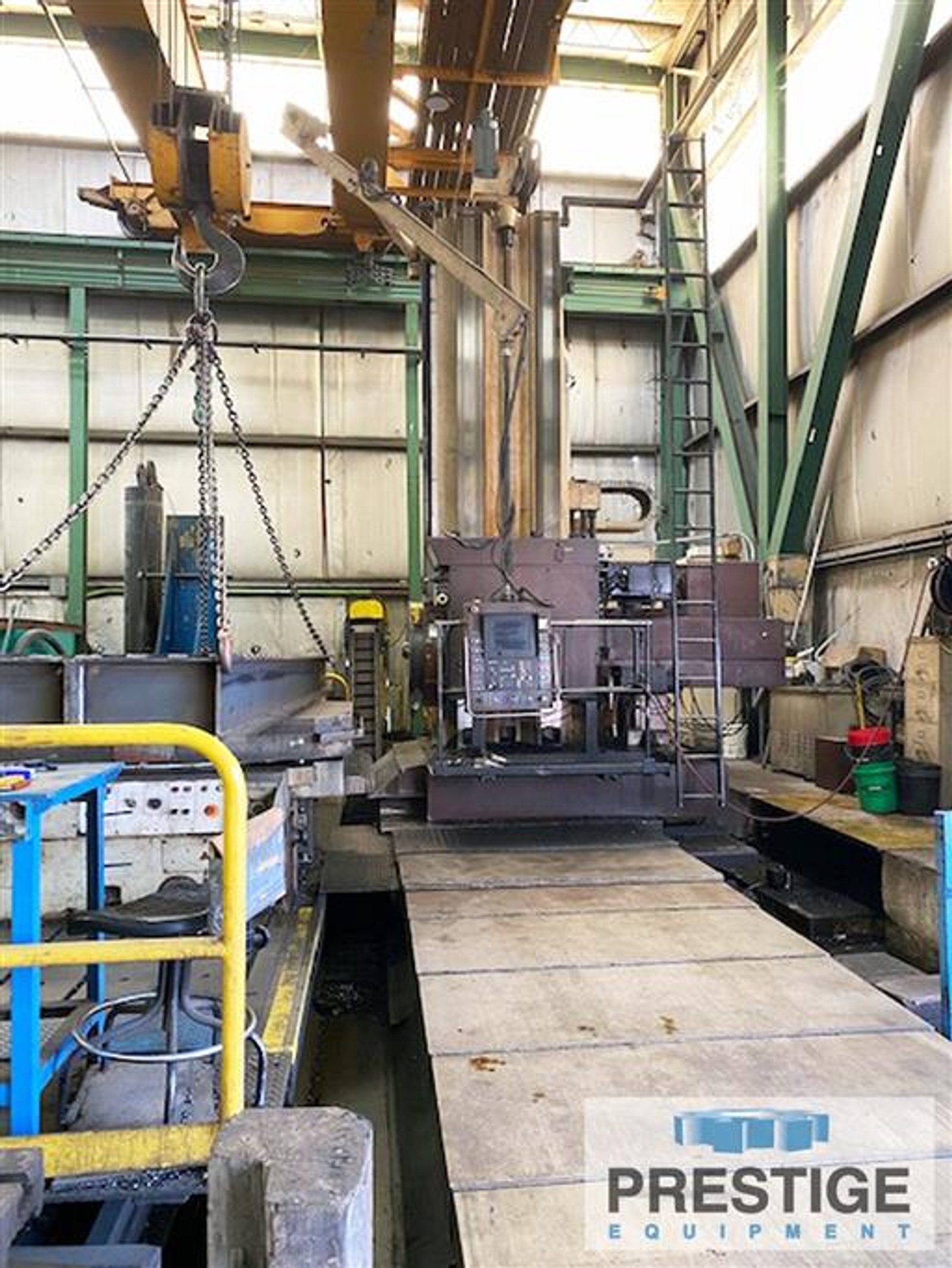

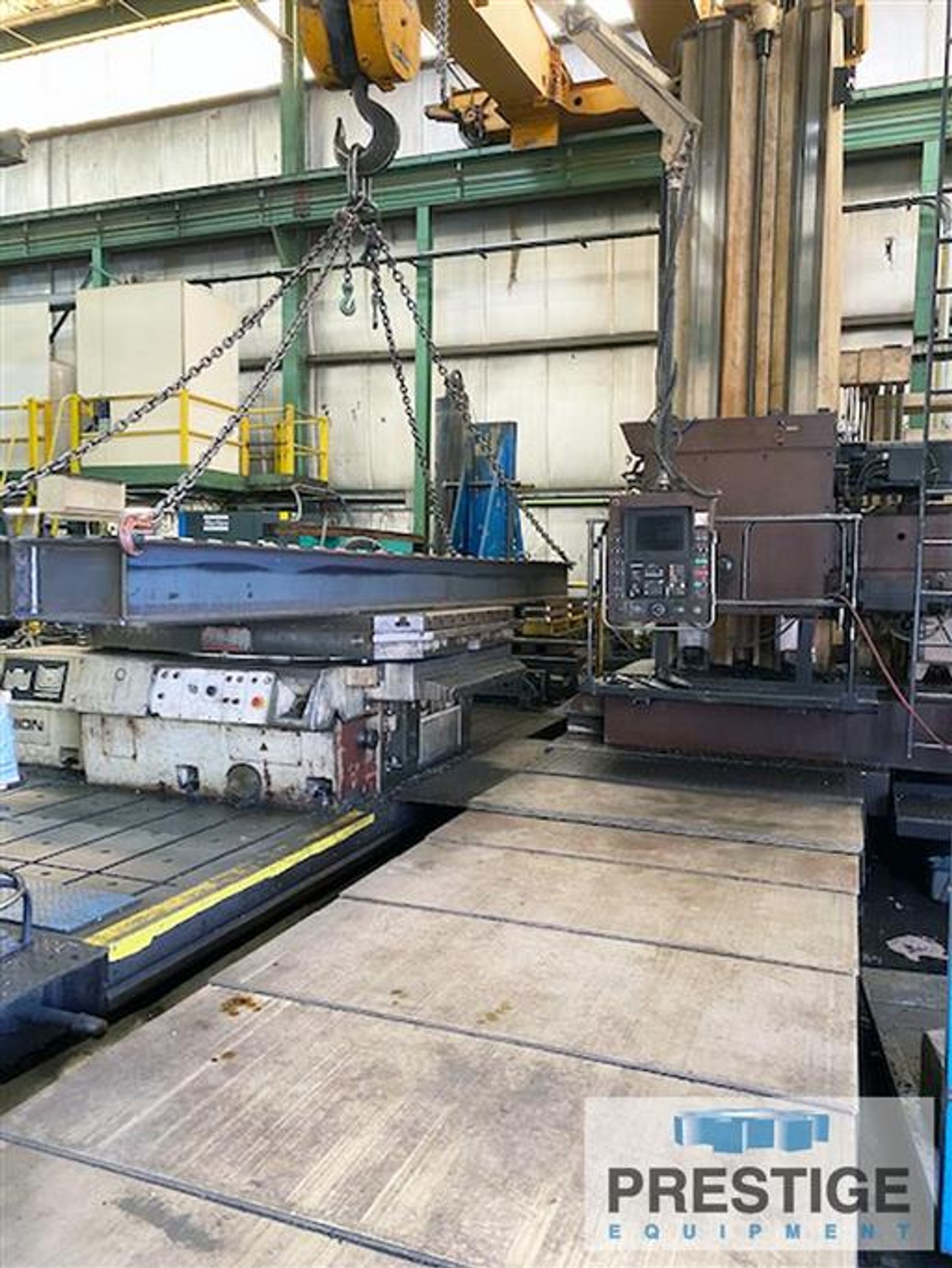

Union BFP130 5.12" CNC Floor Type Horizontal Boring Mill

FEATURES:
Heidenhain TNC 355 CNC Control
Infeeding Column
Built-In CNC Programmable Facing Head

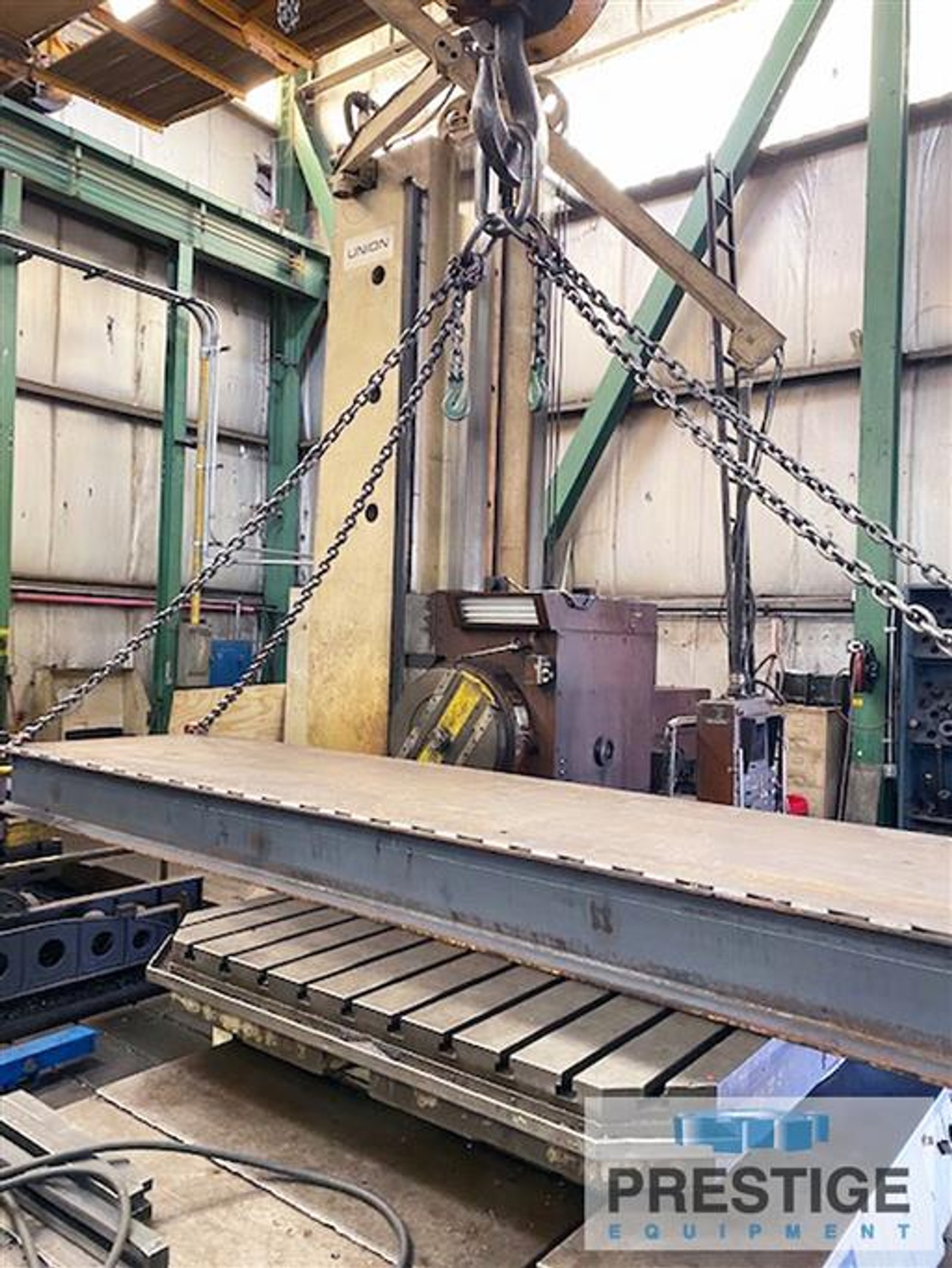

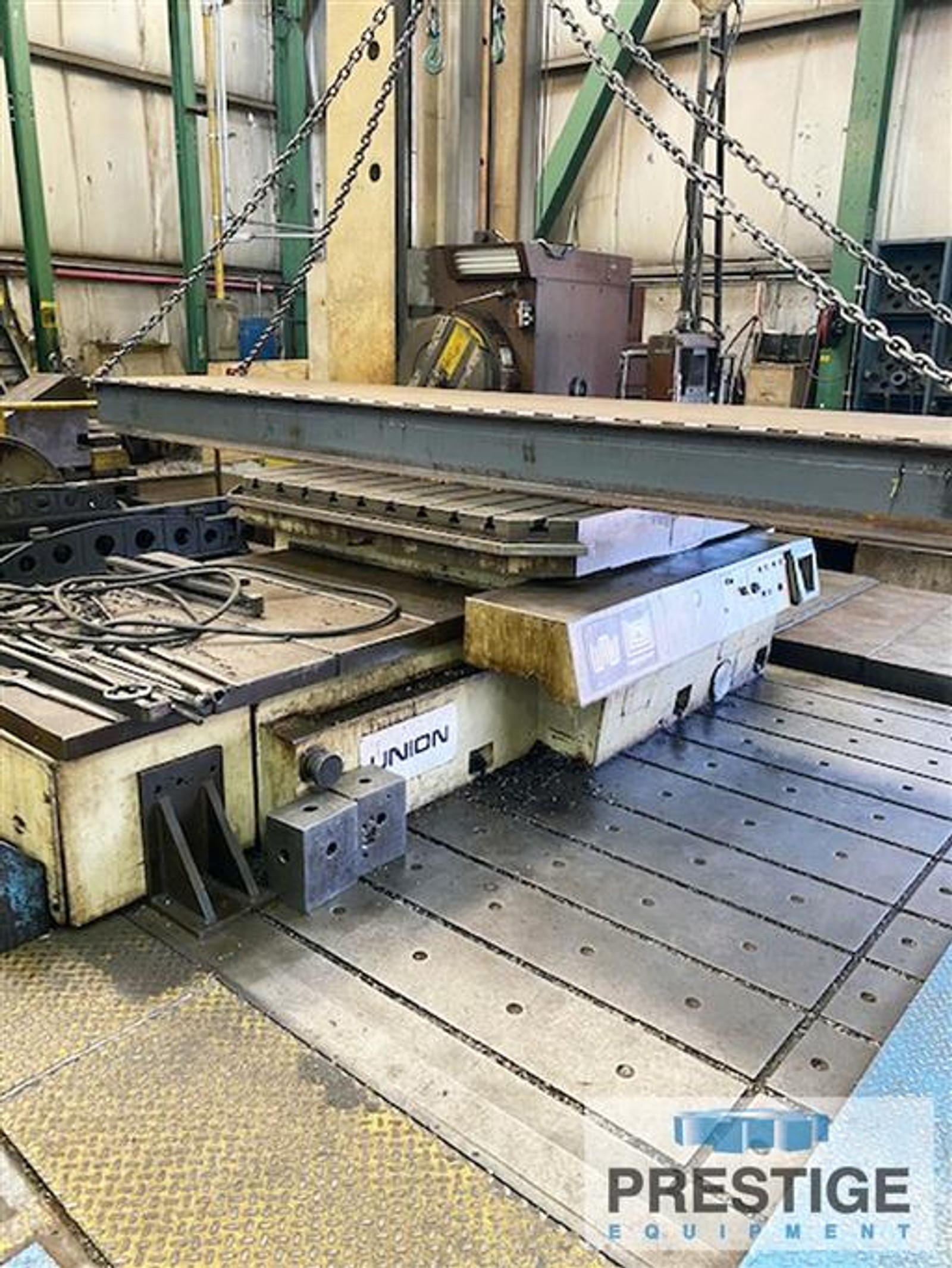

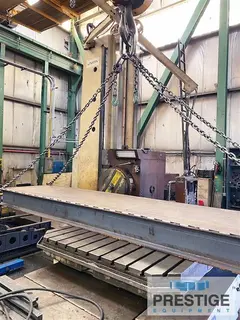

86" x 86" Tos Infeeding Table

CAPACITIES:
Spindle Diameter ...................... 5.12"
Spindle Taper ......................... ISO 50
Vertical Travel of Head, Y-Axis ....... 119"
Horizontal Column Travel, X-Axis ...... 220.50"
Column Infeed, Z-Axis ................. 16.55"
Spindle Travel, W-Axis ................ 35.43"
Spindle Speeds, 4-Ranges .............. 5-1000 RPM
Rapid Traverse, X & Y Axes ............ 196.85 IPM
Rapid Traverse, Z & W Axes ............ 118.11 IPM
Feeds, All Axes ....................... 98.42 IPM
Approximate Overall Machine Weight .... 90,500 Lbs

EQUIPPED WITH:
HEIDENHAIN TNC 355 CNC Control
86" x 86" Tos Infeeding Table
31.5" CNC Programmable Facing Head

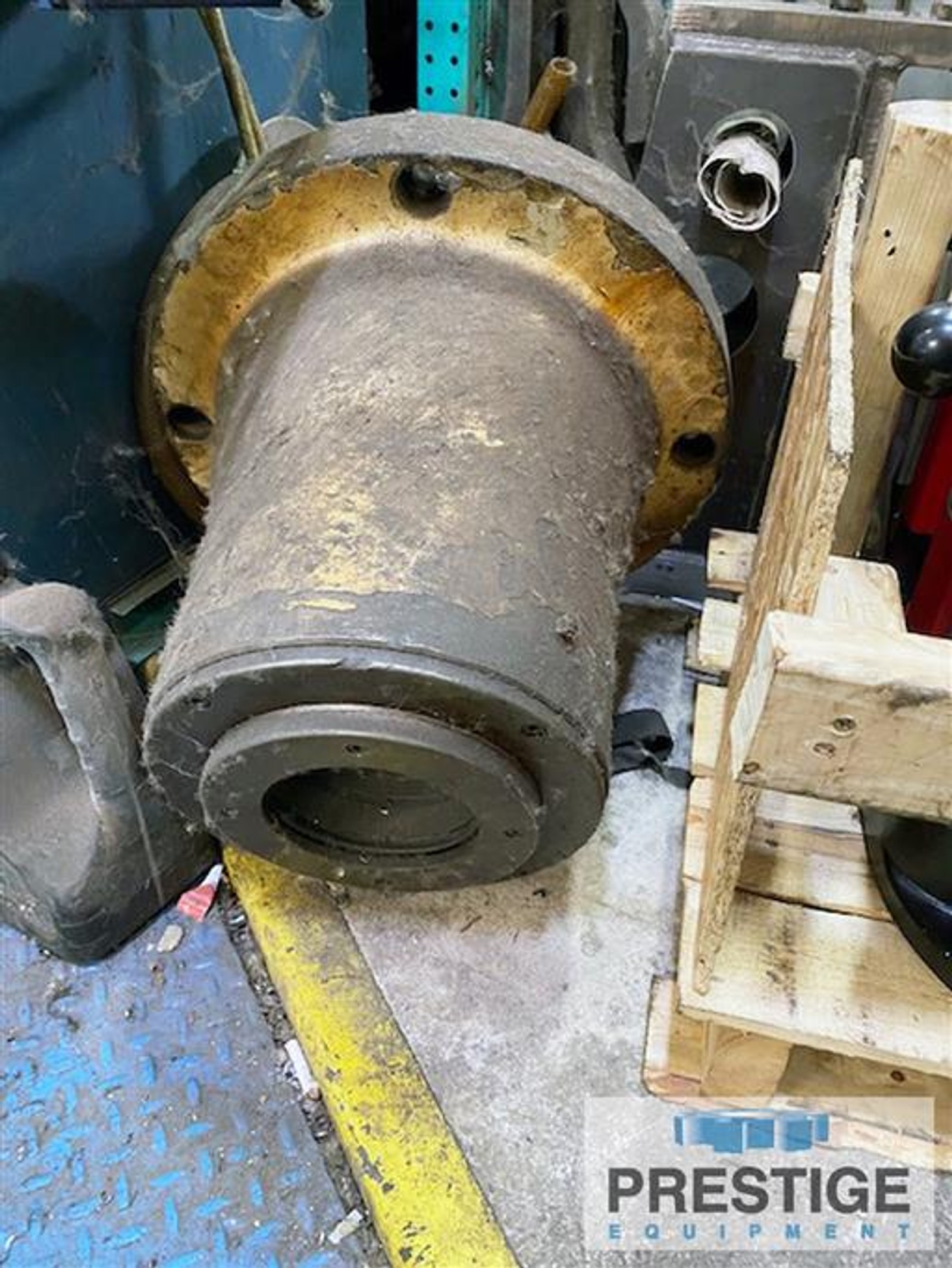

Spindle Support
Telescoping Steel Way Covers on X-Axis
Independant Servo Motor Drives
Hardened & Ground Ways
Steel Sliding Way Covers
67 HP Spindle Drive Motor

NOTE:
Inspect In Plant Under Power, NEW SPINDLE DRIVE 2020

No Video Available
