VIPER 20/25M, 78" Table, 99" Swing, Live Milling, Fanuc OiTD CNC, 18 Sta. ATC, Tooling, Low Hours, New 2015, #31980

Manufacturer

MIGHTY VIPER

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

31980

Model

VTL 20/25M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31980

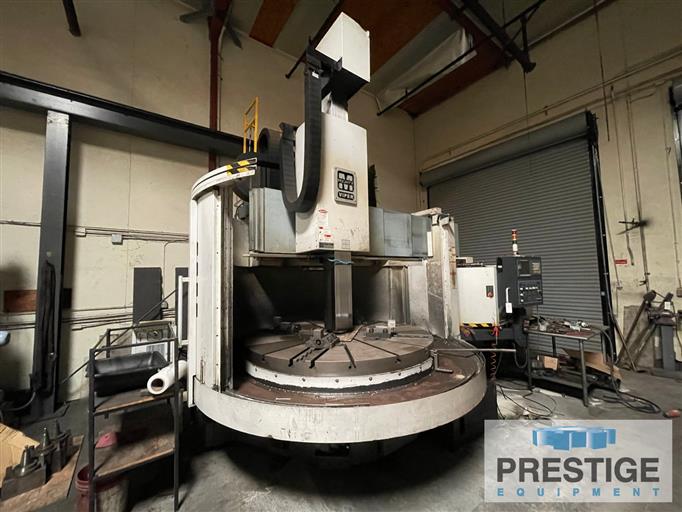

VIPER 20/25M Live Milling 78" CNC Vertical Boring Mill

FEATURES:

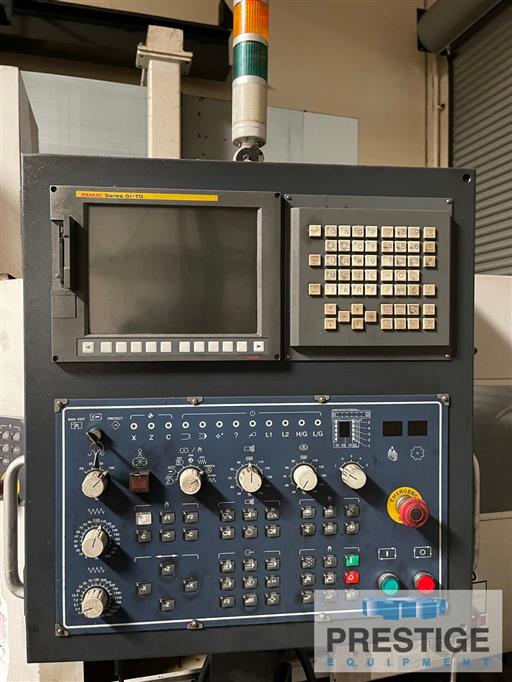

Fanuc OiTD CNC Control
C-Axis Table With Live Milling
18-Position Automatic Tool Changer (9 Turning & 9 Milling)
Prepped for High Pressure Coolant Thru-Spindle

CAPACITY:
Table Diameter ........................ 78.74"
Maximum Turning Diameter .............. 96"
Maximum Swing ......................... 99"
Maximum Turning Height ................ 59"
Table Weight Capacity ................. 44,000 Lbs.
X-Axis Stroke ......................... 70.27
Z-Axis Stroke ......................... 47.24"
Cross Rail Stroke ..................... 31.49"
Ram Size .............................. 9.06" x 9.06"
Table Speed ........................... 1-200 RPM
Table Motor ........................... 60 HP
Live Spindle Motor .................... 20 HP/15 HP
Tool Taper ............................ #50 (Big-Plus)
Rapid Traverse (X-Axis) ............... 472 IPM
Rapid Traverse (Z-Axis) ............... 393 IPM
Cutting Feed Rate ..................... 0.04-141 IPM
Approximate Dimensions ................ 209" x 168" x 225"
Approximate Weight .................... 69,000 Lbs.
Voltage ............................... 75 KVA, 208/3, 200 AMP

EQUIPPED WITH:
Fanuc OiTD CNC Control
78.74" Dia. T-Slotted Table with 4-Face Plate Jaws
C-Axis Table With Live Milling
18-Position Automatic Tool Changer (9 Turning & 9 Milling)
Prepped for High Pressure Coolant Thru-Spindle
Chip Conveyor

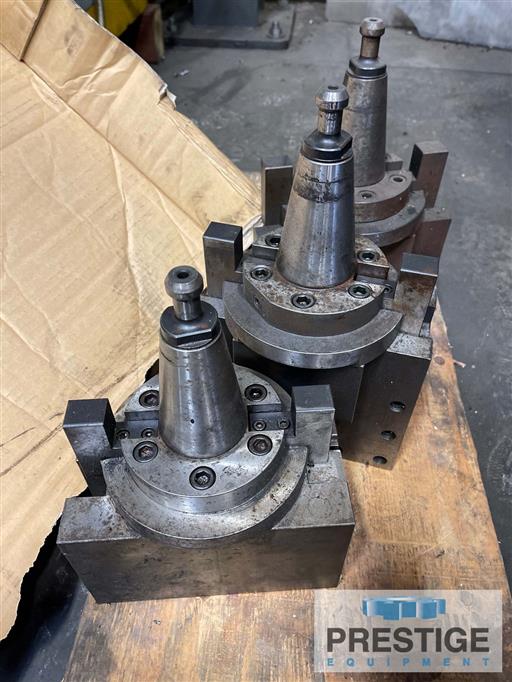

Misc. Tooling (3 Turning Holders)

NOTE:

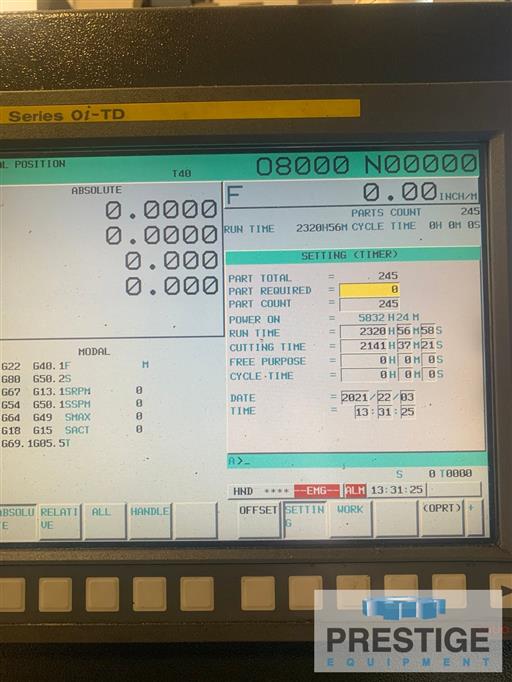

Low Hours, Inspect Under Power!
