Toshiba TMG-10750S, 314.96" Table, 425" Swing, Fanuc 18i, 171" U/R, 7-Axis, Milling, 100 HP, C-Axis, #32236

Manufacturer

Toshiba

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32236

Model

TMG-10750S

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32236

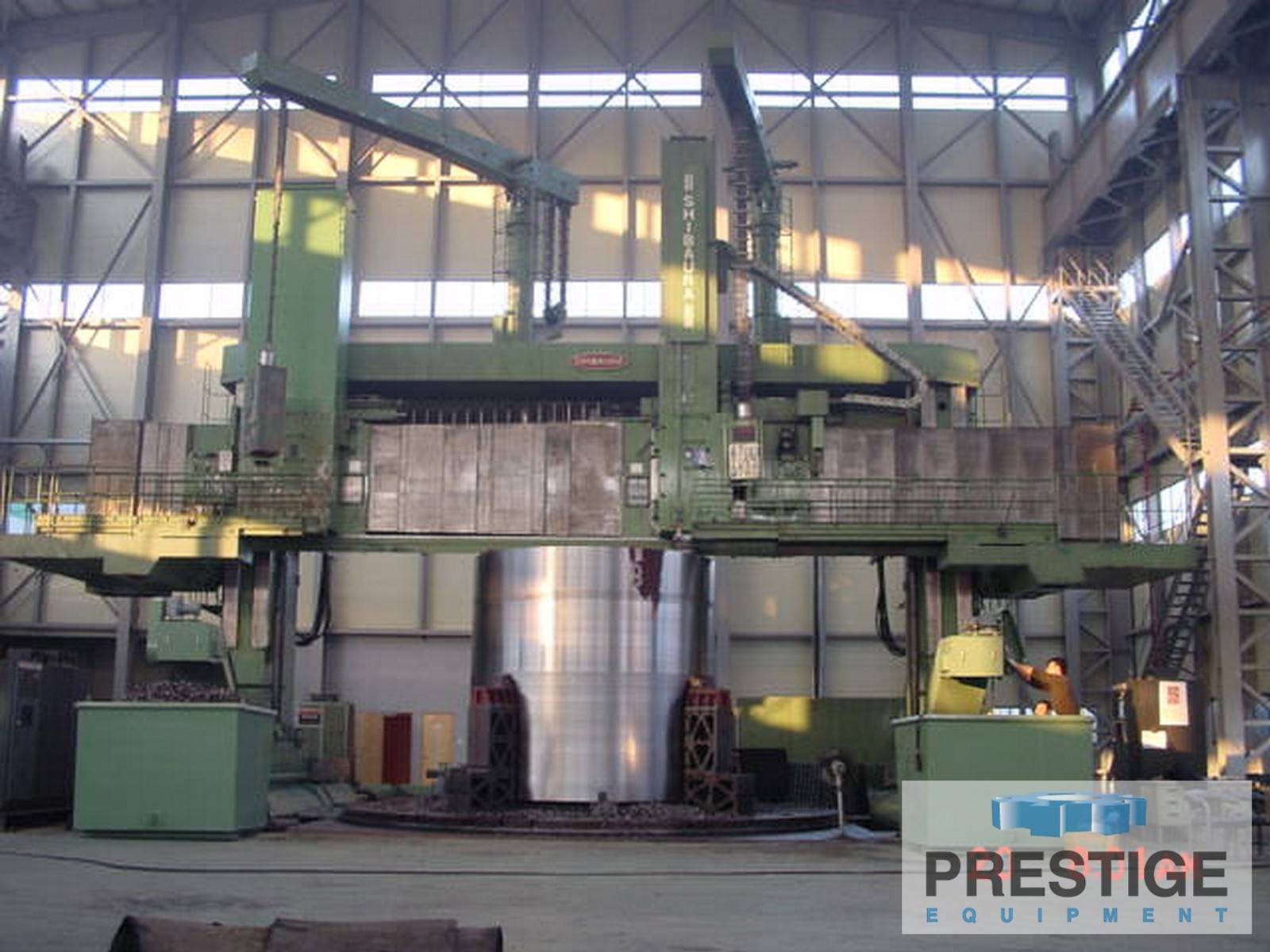

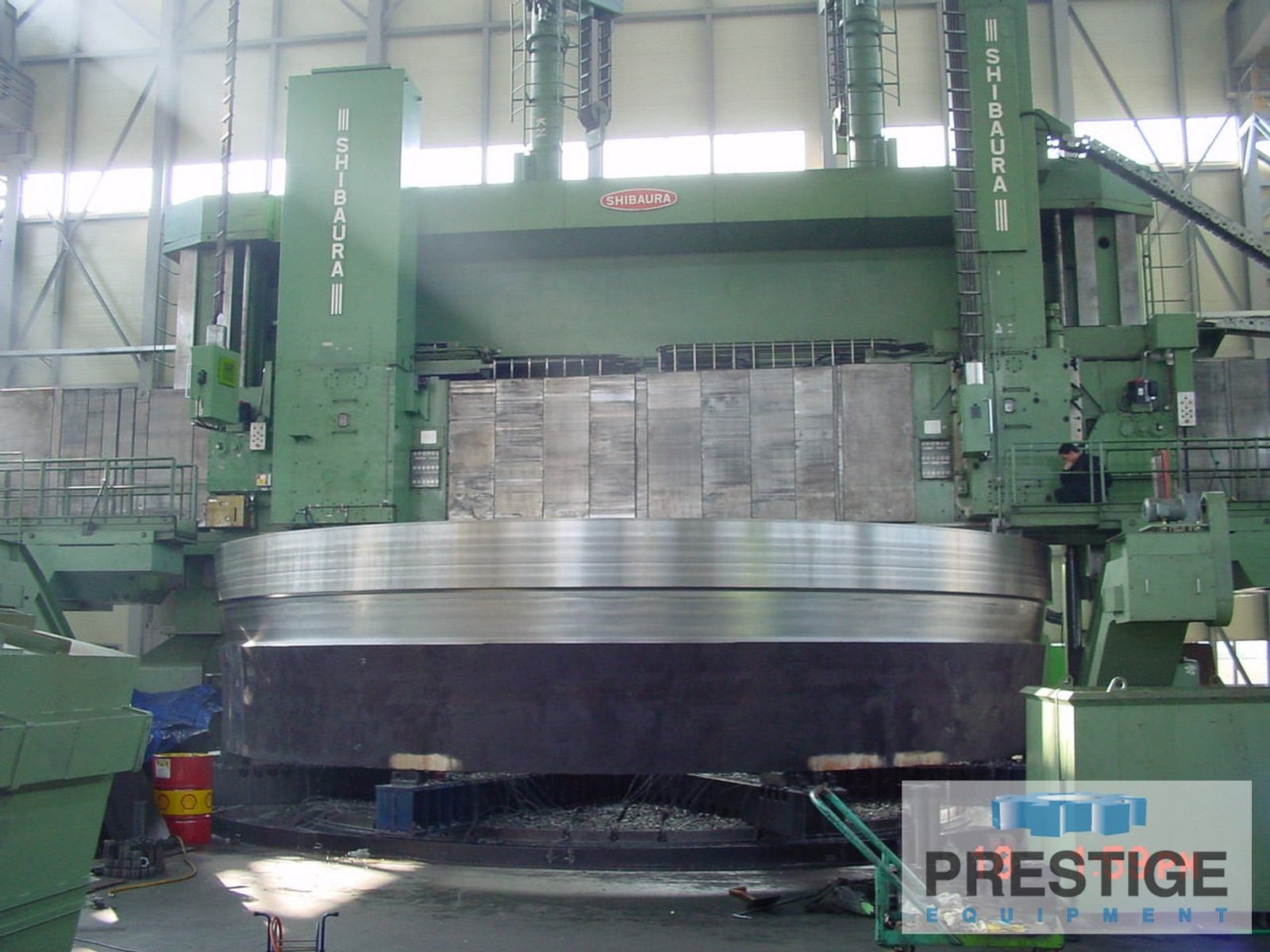

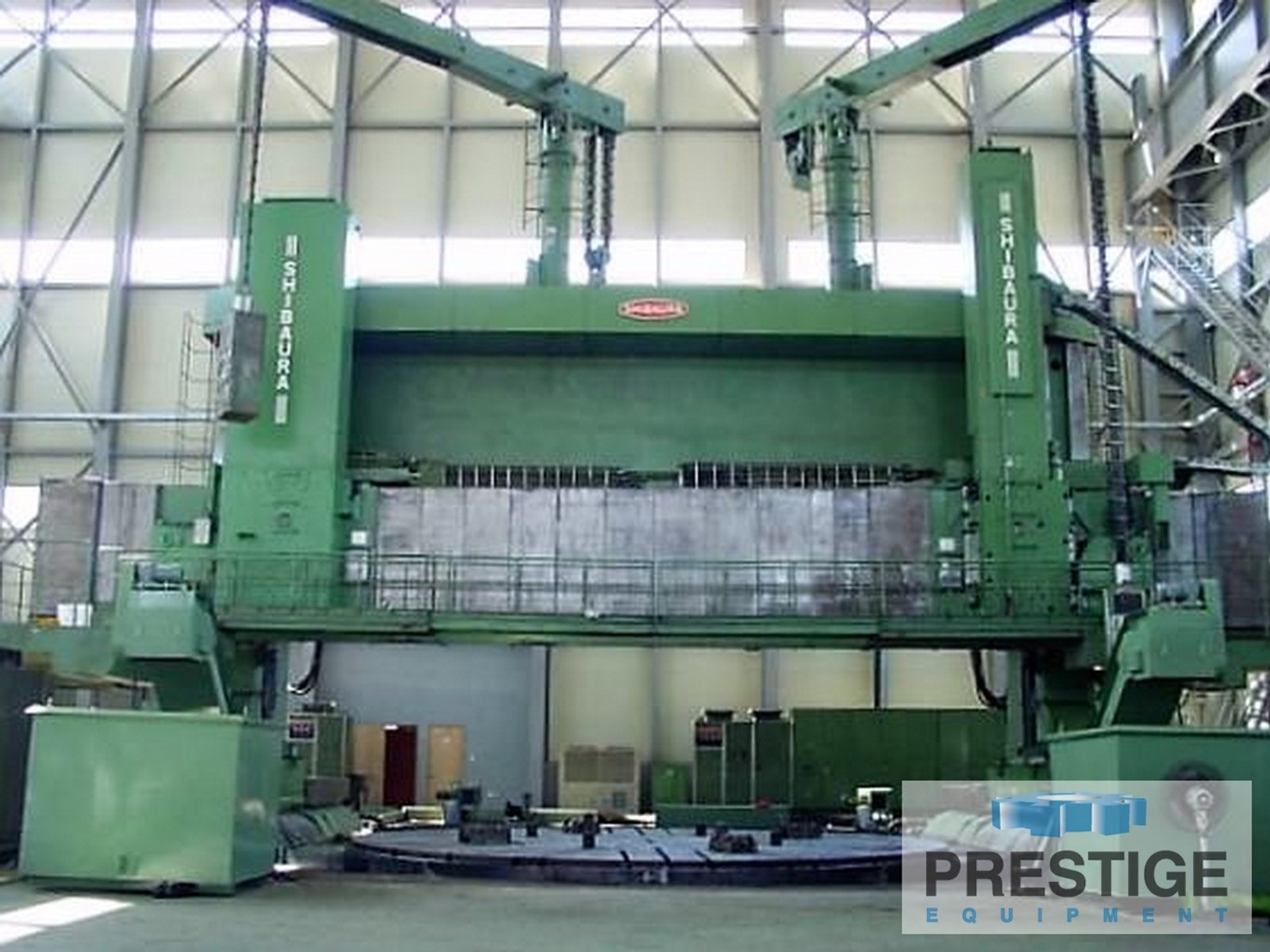

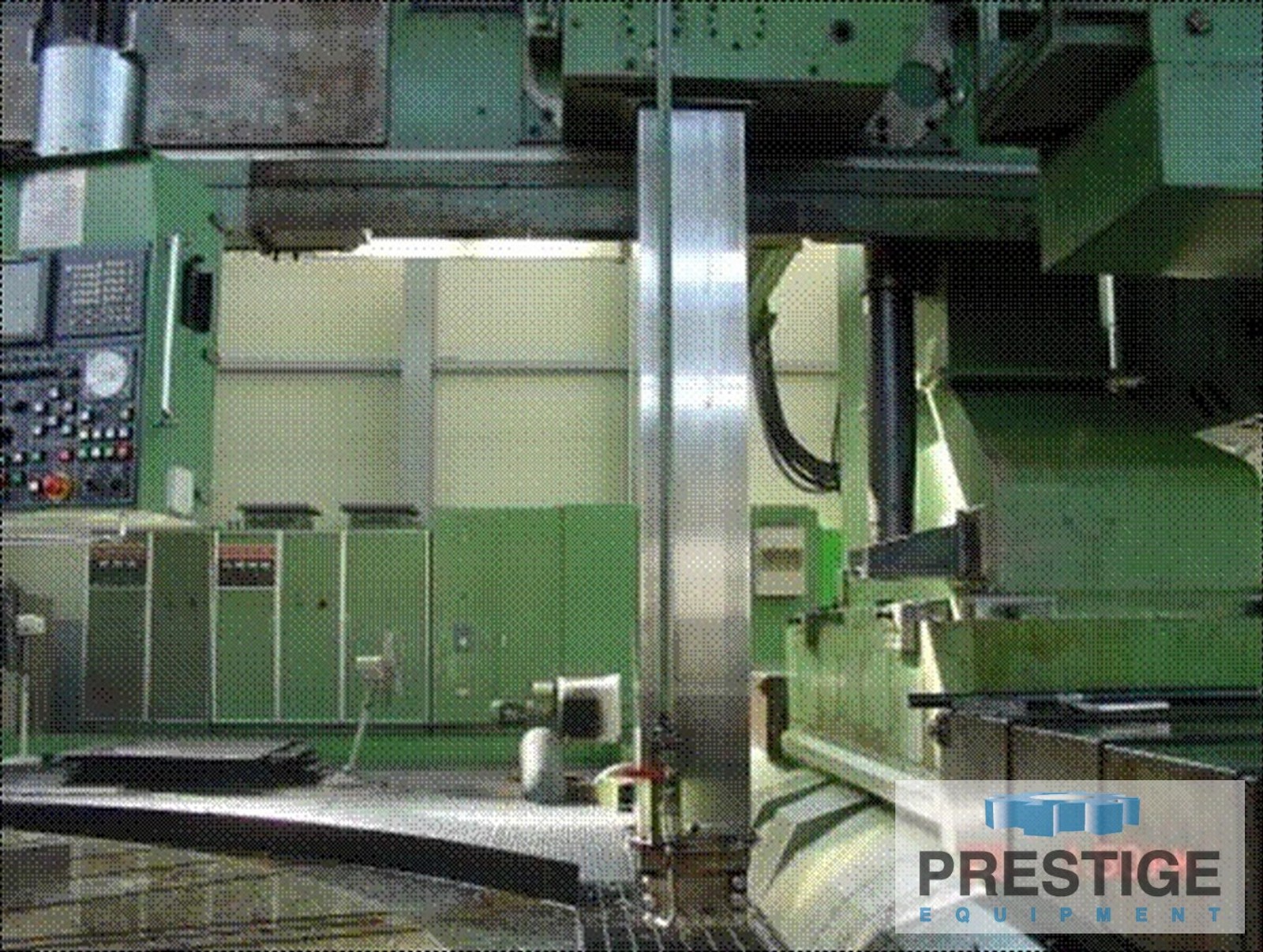

Toshiba TMG-10750S 314.96" CNC Vertical Turning & Boring Mill

FEATURES:
Fanuc 18i 7-Axis CNC Control(Retrofit 2001)
Right Hand Ram - Turning Head

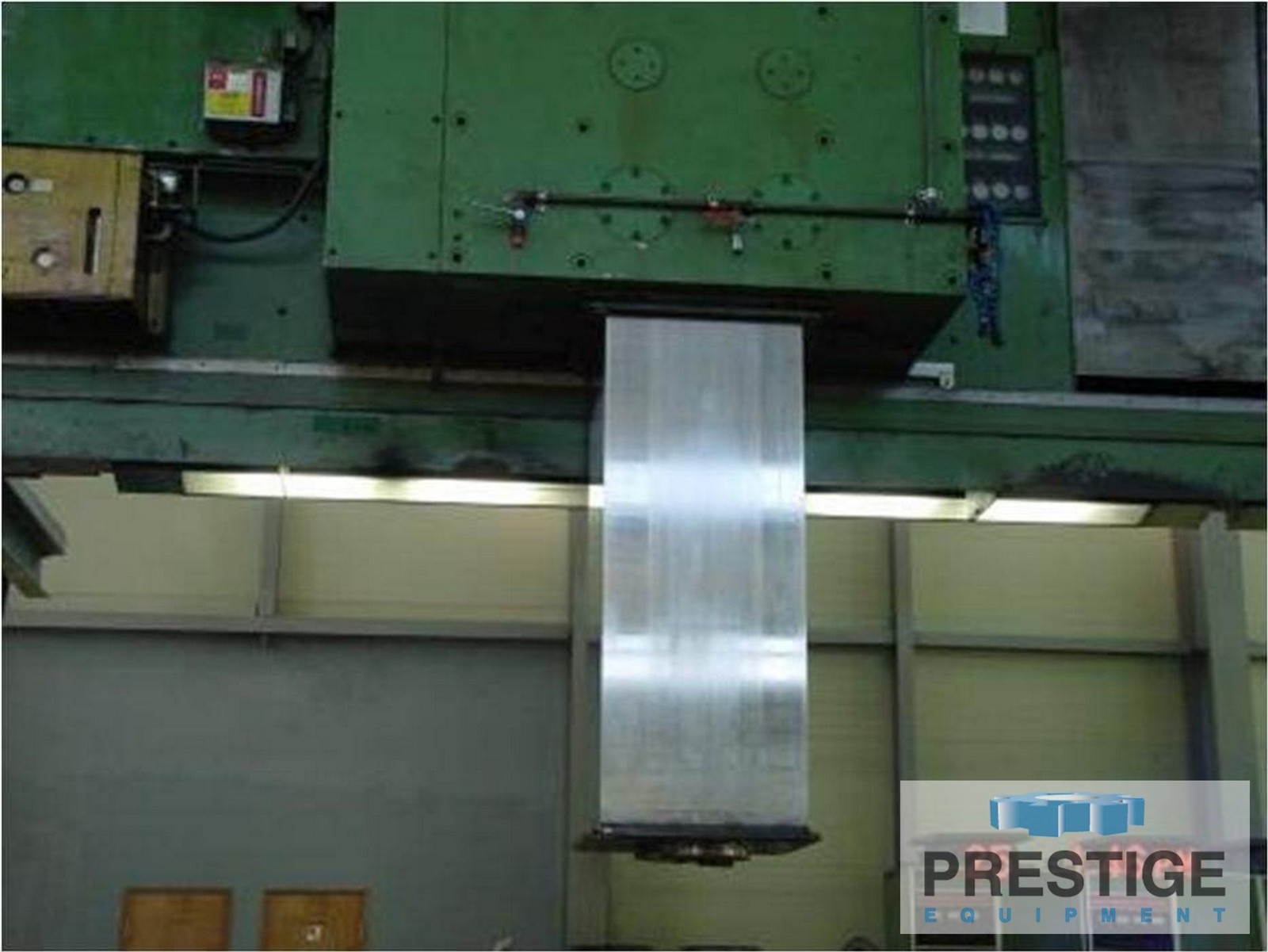

Left Hand Ram - Milling Head W/Live Spindle
Linear Inductosyn Scales
C-Axis Table W/Rotary Inductosyn Scales
Assorted Angular Milling Heads


SPECIFICATION:
Table Diameter ........................ 314.96"
Maximum Turning Diameter .............. 425.19"
Maximum Height ........................ 171.25"
Vertical Travel Of Right Ram .......... 102.36"
Vertical Travel Of Left Ram ........... 49.21"
Vertical Travel Of Cross Rail ......... 78.74"
Maximum Swivel of Right Ram ........... +/- 30 Degrees **
Diameter of Milling Spindle Nose ...... 11.41" **
Taper of Milling Spindle .............. ISO 50
Gantry Travel, Forward . .............. 98.42"
Gantry Travel, Backward ............... 98.42"
Approximate Floor Space ............... 761" L-R x 669" F-B x 420" High
Net Machine Weight .................... 486 Tons

OPERATING SPECIFICATION:
Maximum Load on Table ................. 250 Tons
Maximum Cutting Torque of Table ....... 138,600 LBS
SPEEDS and FEEDS:
Table Speeds, Stepless (3) ............ 0.16-16 RPM
Milling Speeds, Stepless (3) .......... 3.15-630 RPM
Cross Rail Elevating Speed ............ 11.81 IPM

ELECTRICAL EQUIPMENT:
Table Drive Motor ..................... 100.5 HP
Milling Spindle Motor ................. 73.75 HP
Rail Head Feed Motors, Each (4) ....... 7.1 HP
Table Feed Motor ...................... 20.11 HP
Gantry Feed Motors, Each (2) .......... 7.1 HP

EQUIPPED WITH:
Fanuc 18i CNC Controls (Retrofit 2001)

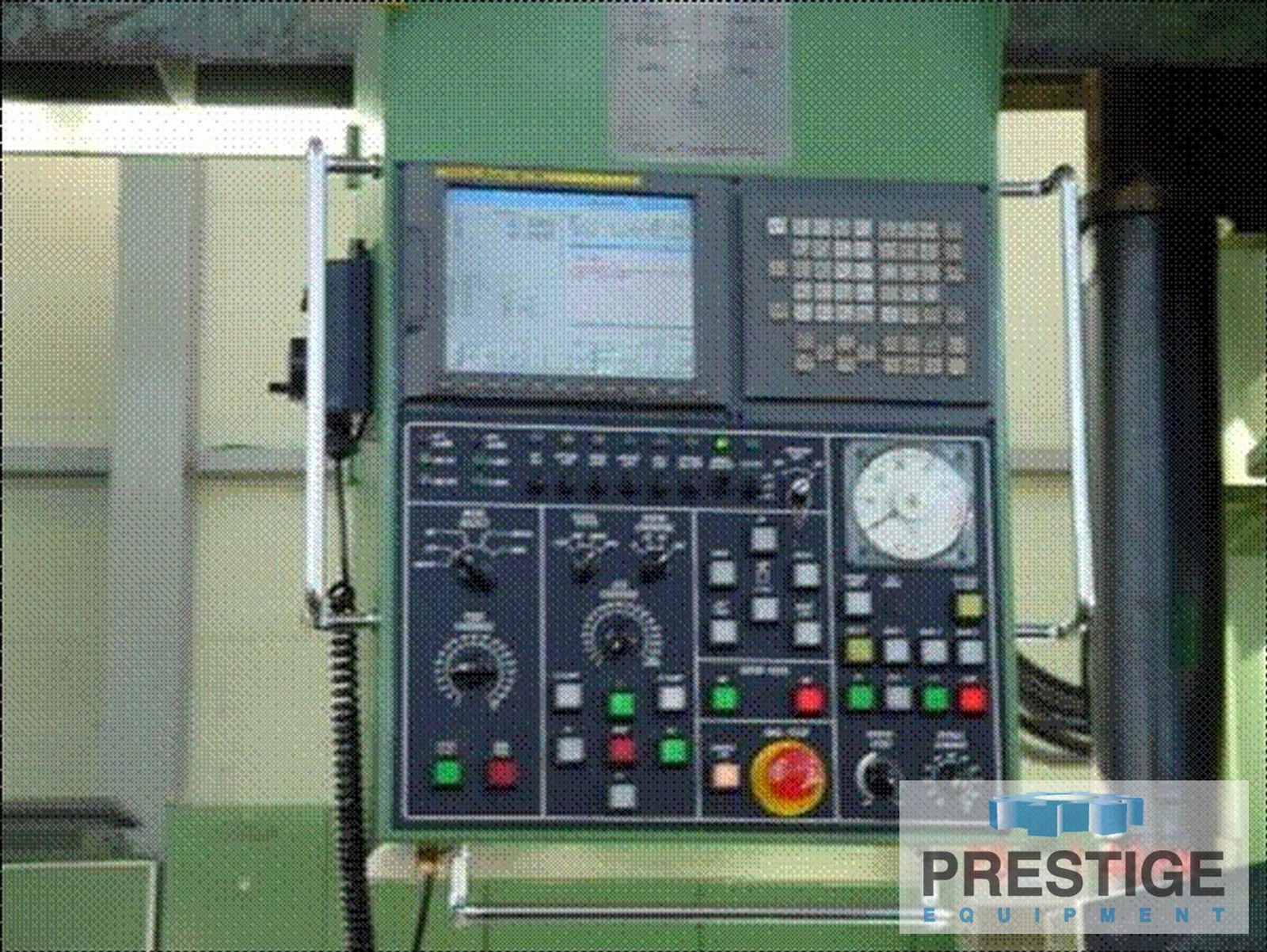

Dual Pendant Controls
Chip Conveyors
Linear Inductosyn Scales
C-Axis Table W/Rotary Inductosyn Scales
Assorted Angular Milling Heads
Telescoping Steel Way Covers
Operators Platforms
