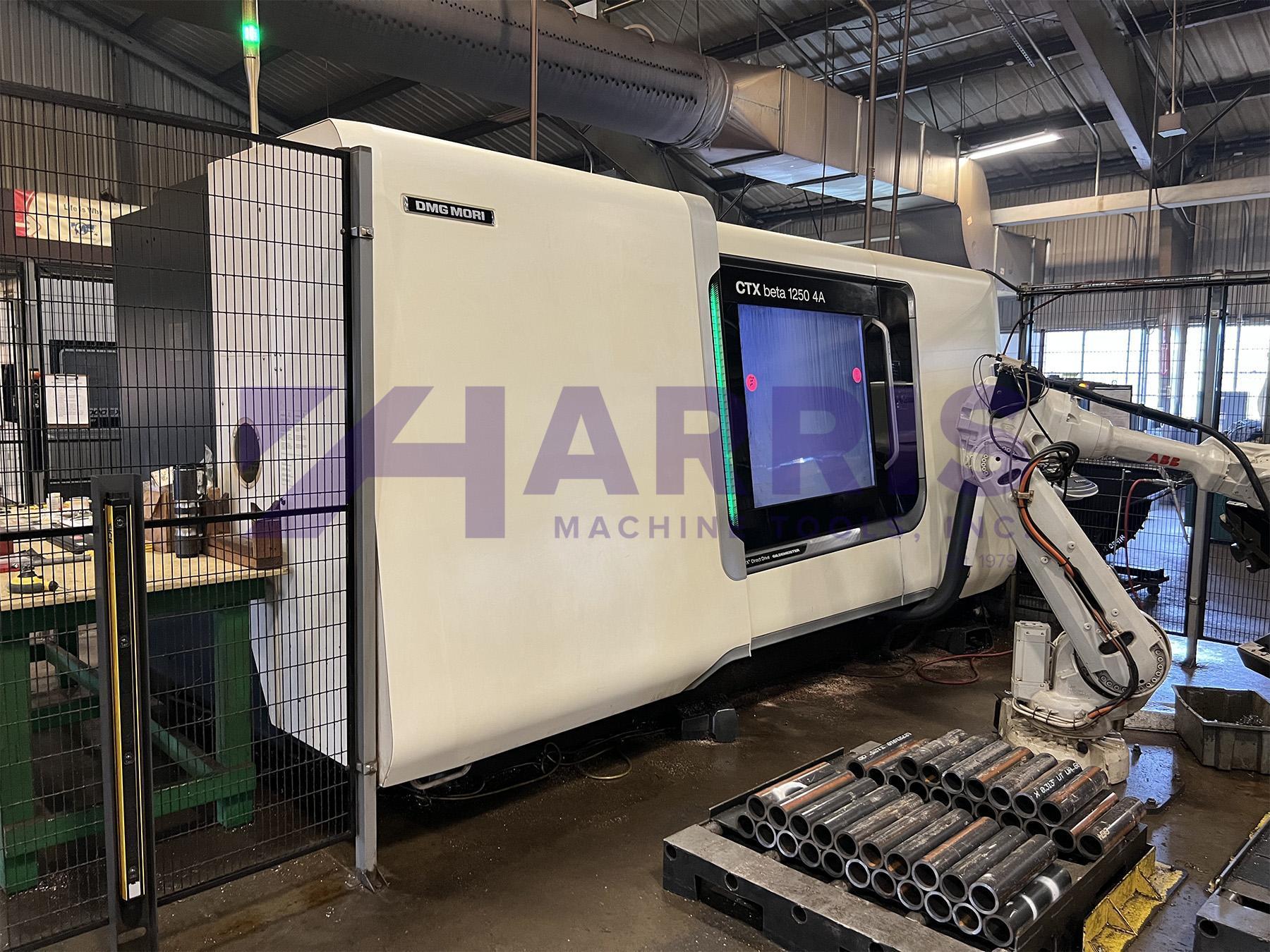

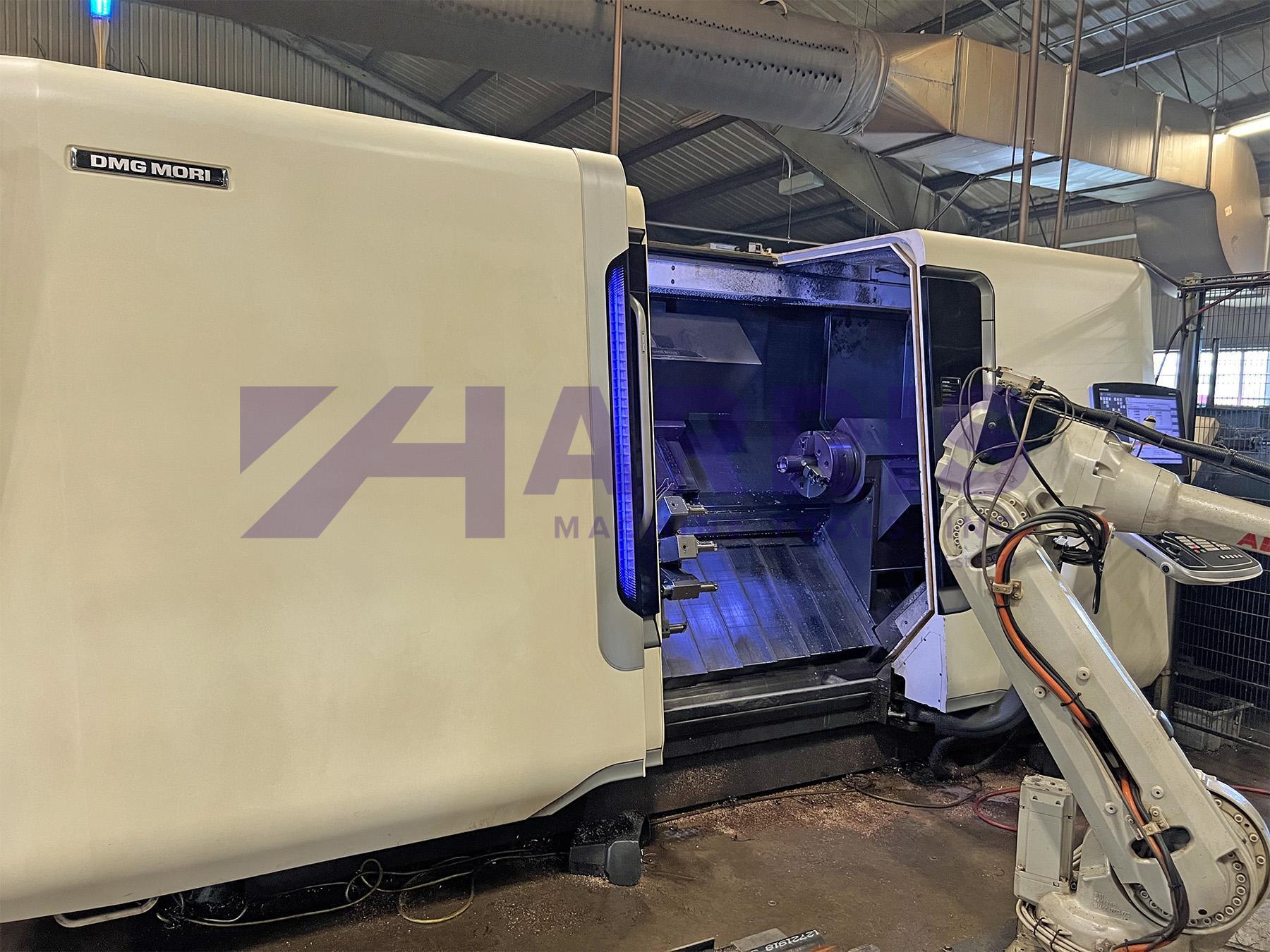

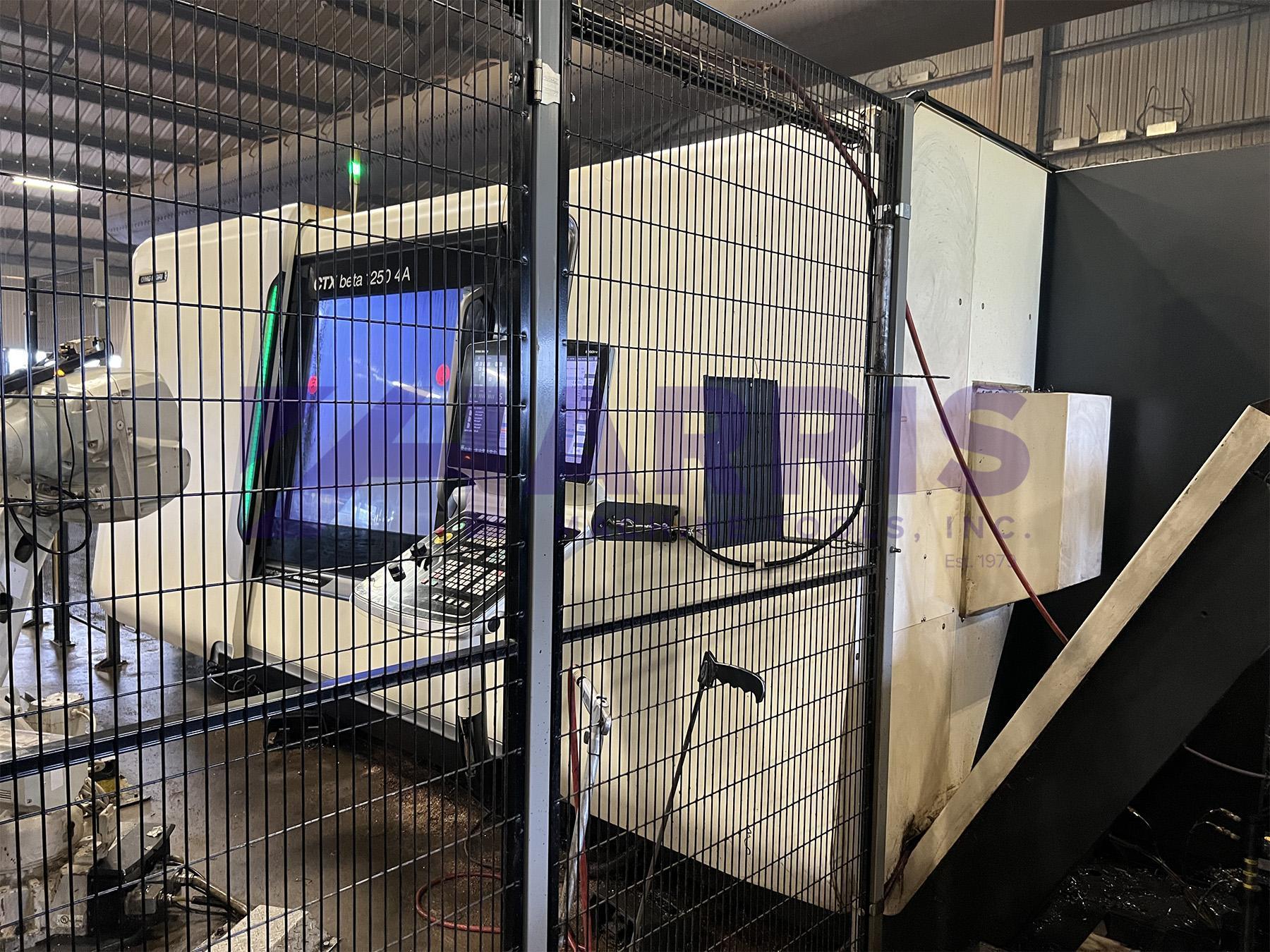

Used, DMG Mori CTX beta 1250 4A Compact High Productive CNC Turning Center with TWIN Concept Mac

Manufacturer

DMG MORI

Category

Lathes

Type

LATHES, CNC

Stock

19869

Model

CTX beta 4A

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

Swing - 21.26 inches
Turning Diameter - 44.7 inches
Max Cutting Length - 44.7 inches
Center Distance - 58 inches
Bar Capacity - 4 inches
Spindle Bore - 4.4 inches
X Axis Travel - 11.8 inches
Y-Axis Travel - 4.7 inches
Z Axis Travel - 46.1 inches
C-Axis - yes
Y-Axis - yes
Z-Axis - yes
Live Milling (Yes / No) - yes
Spindle Speed (RPM) - 5000
Main Motor - 64.4 HP
Sub Spindle - yes
Sub Spindle Speed (RPM) - 4000
Sub Spindle Motor - 64.4
Turret Capacity - 12
Live Milling Speed (RPM) - 4000
Weight - 31900 pounds


Equipped With:

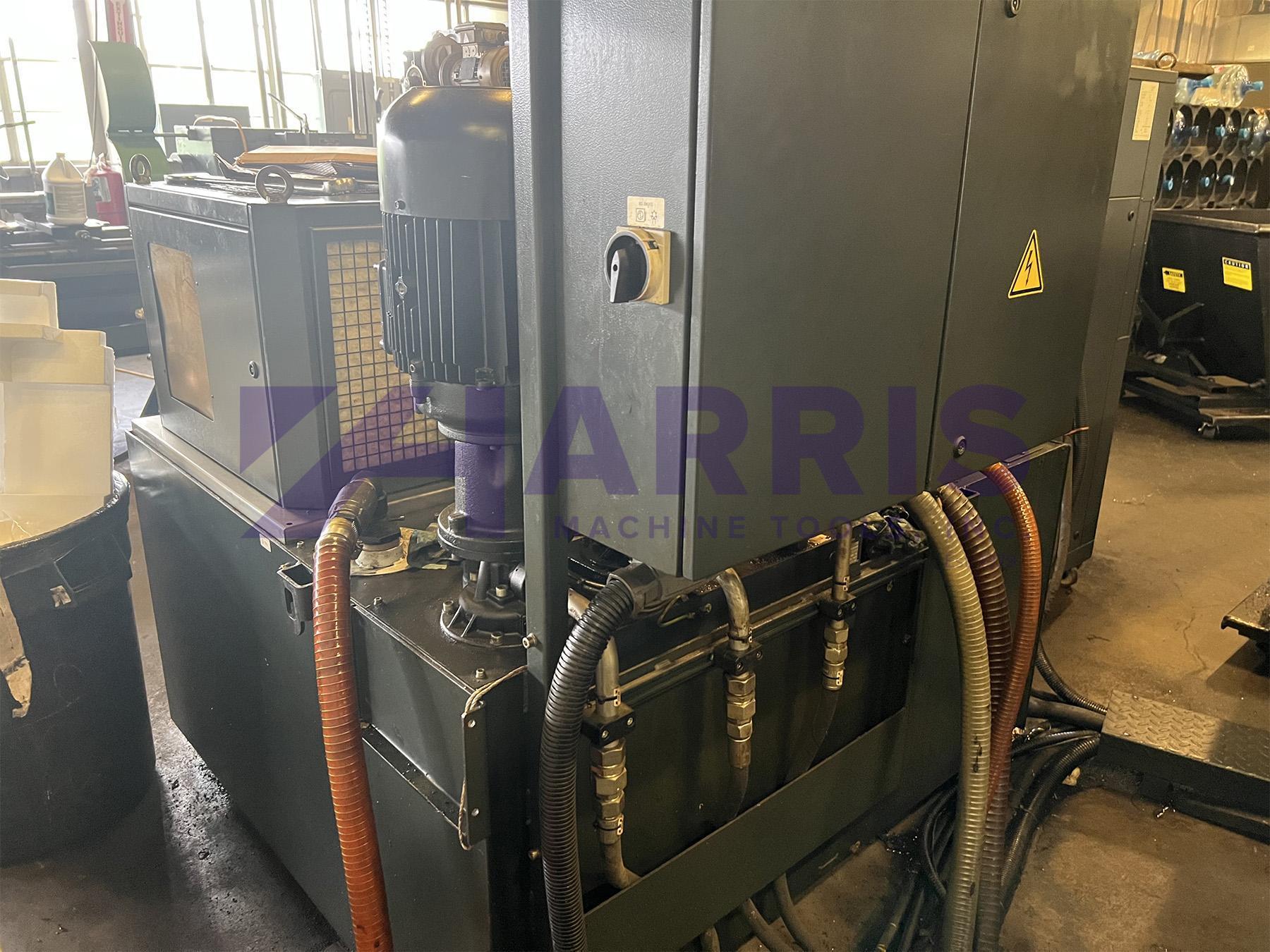

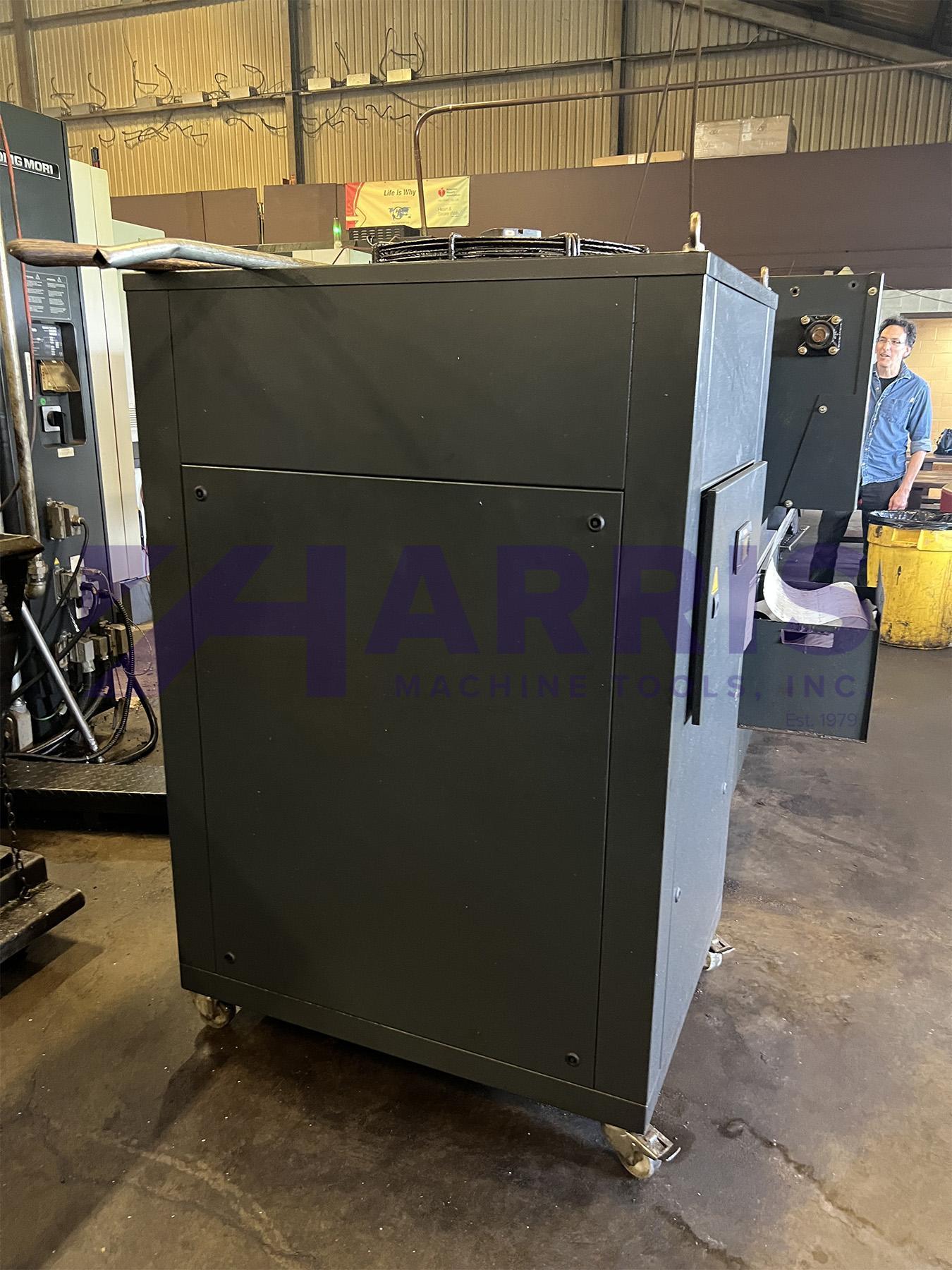

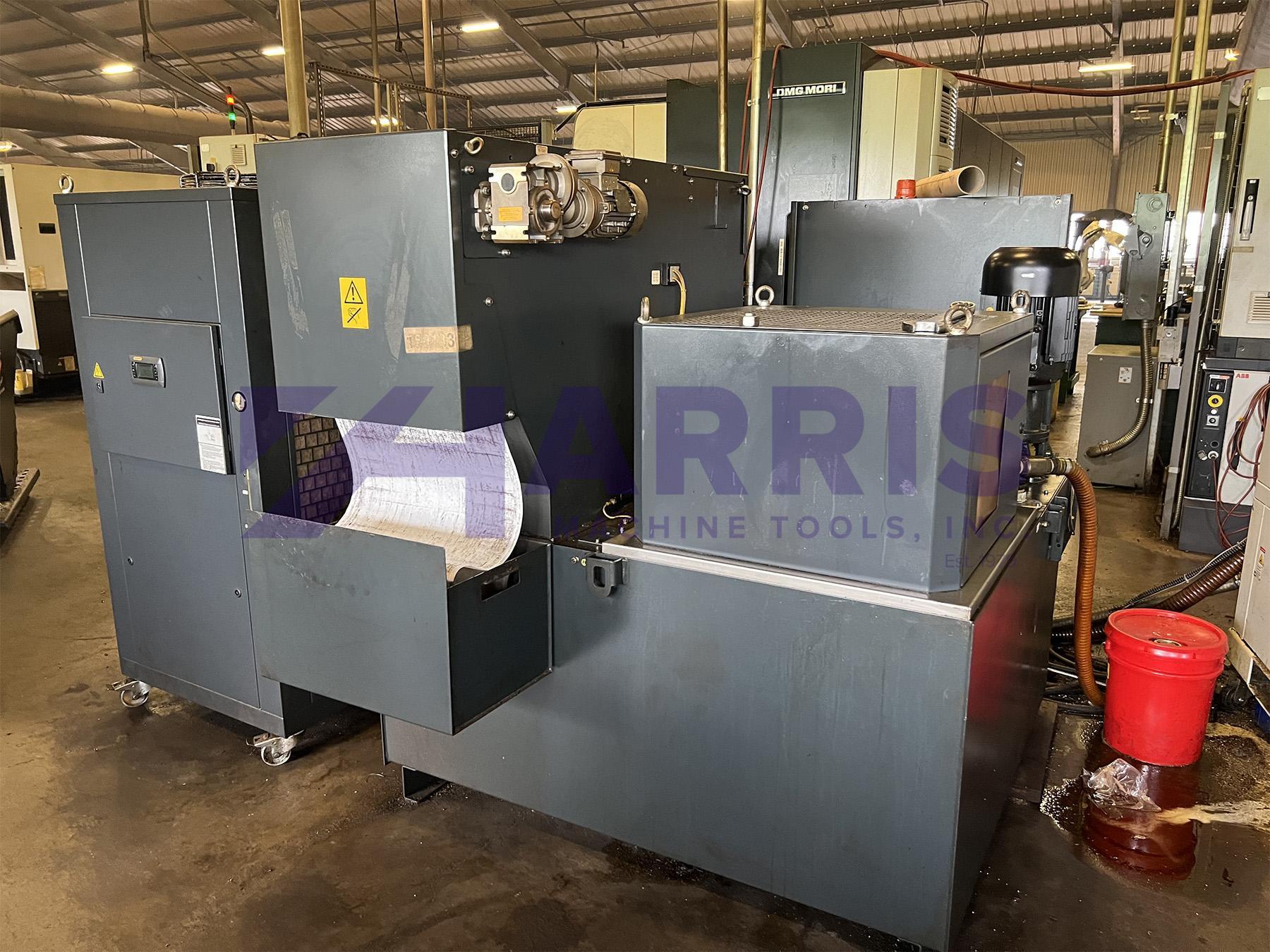

• Multiple High Pressure Coolant units with chillers to service the turrets as well as through both headstocks for chip breakage and “stringer” removal

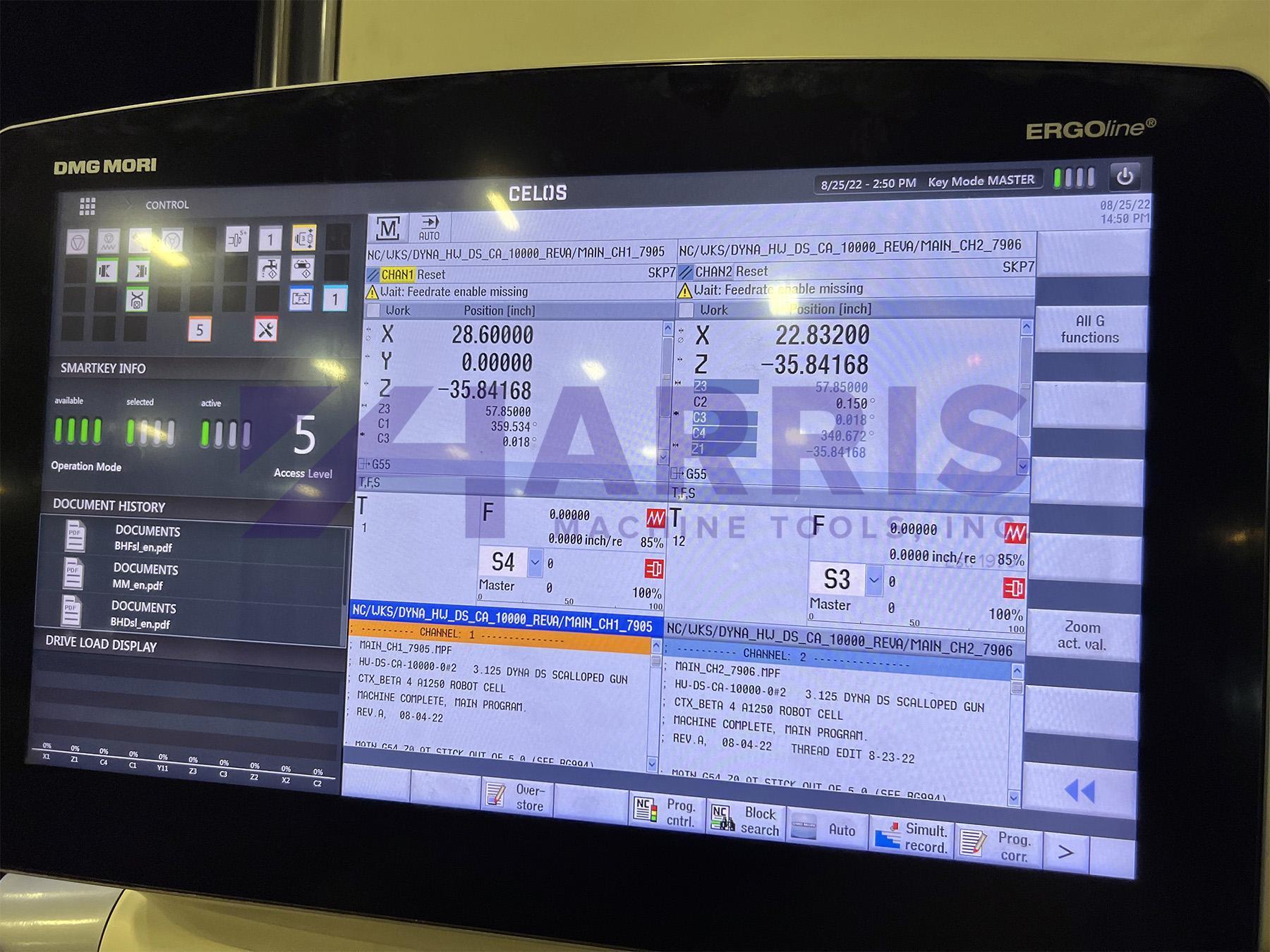

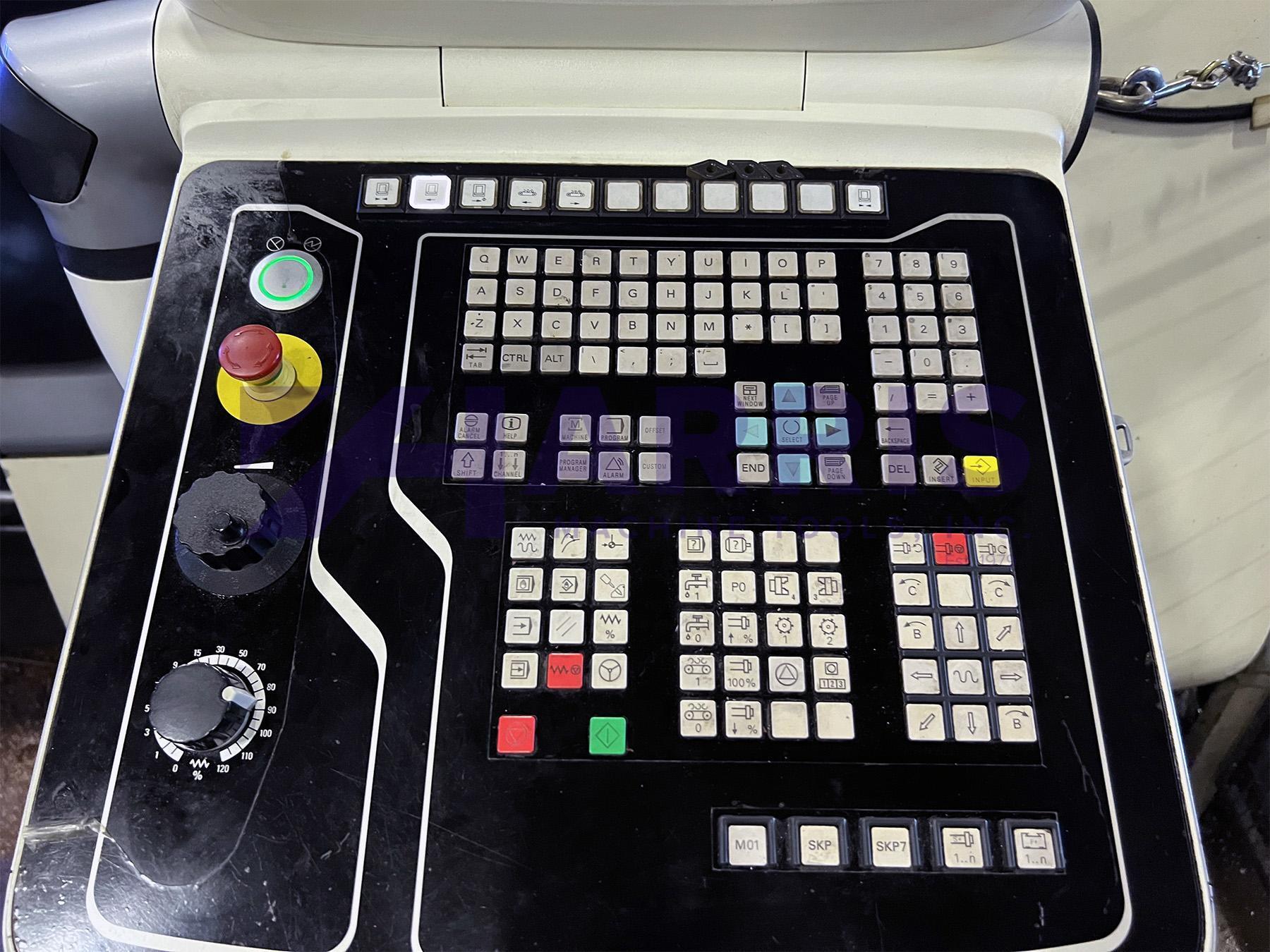

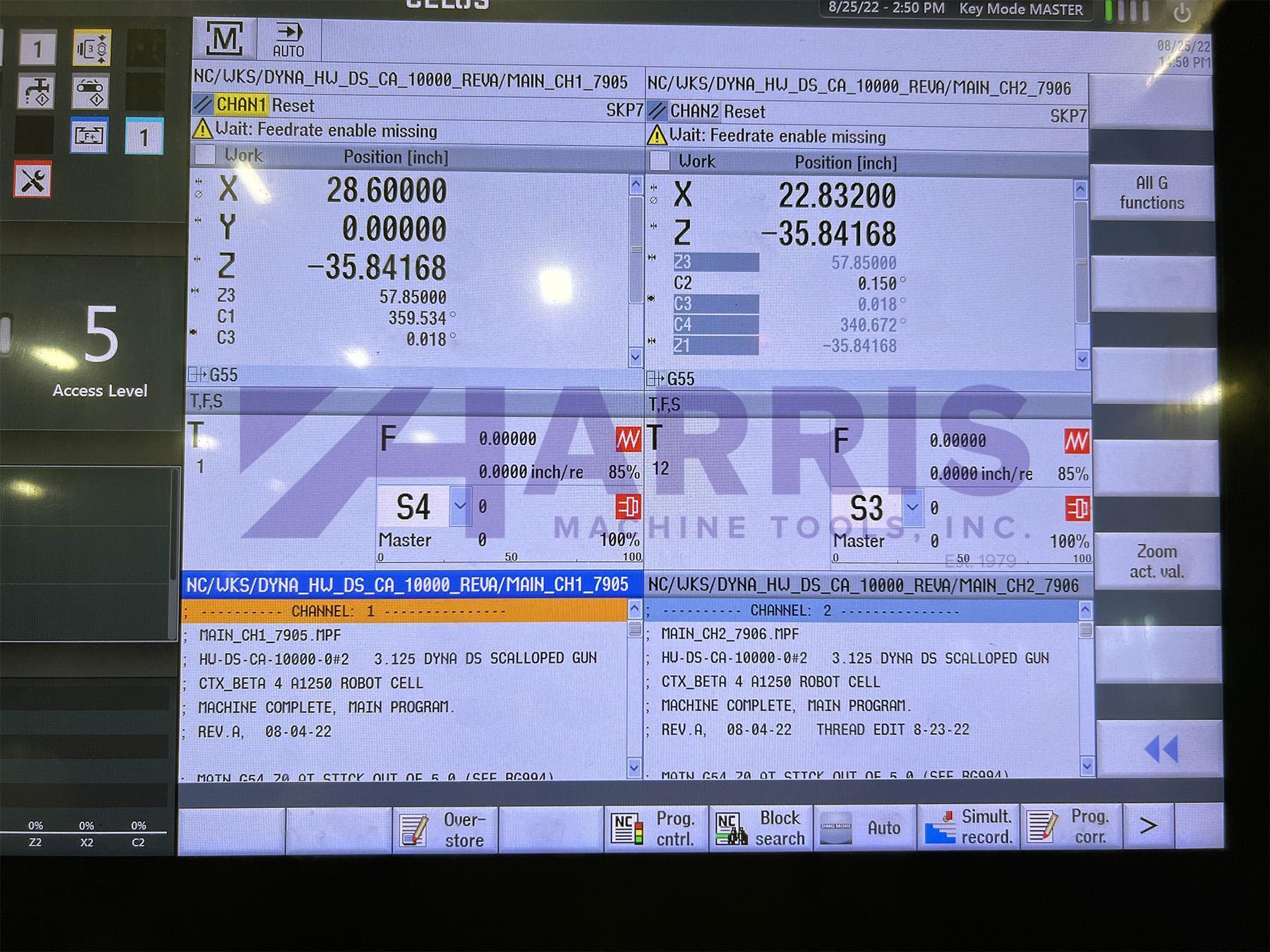

• DMG MORI ERGOline Control
• 8 total programmable axes
• 4 and 5 axis Machining via Y axis on upper turret

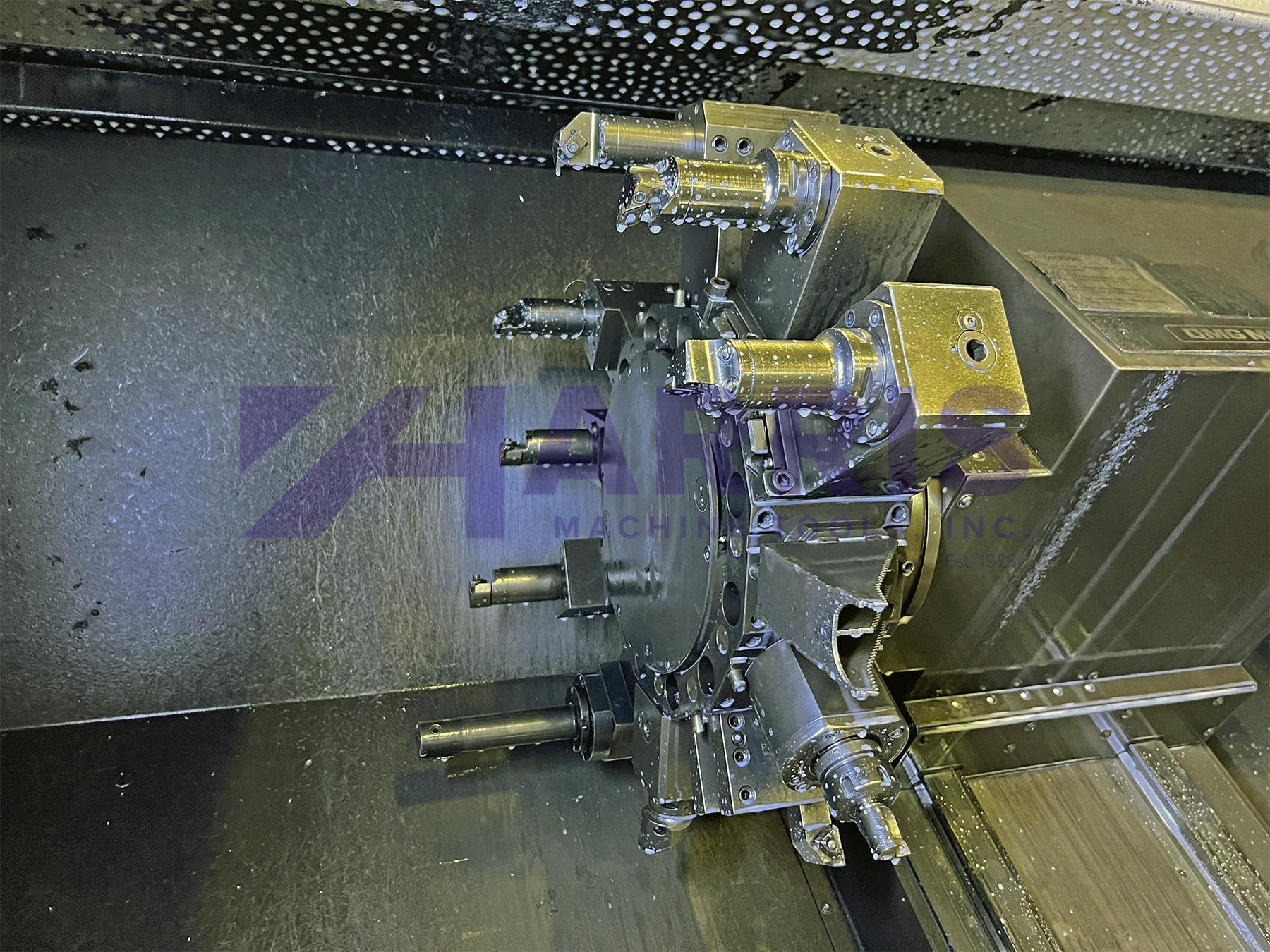

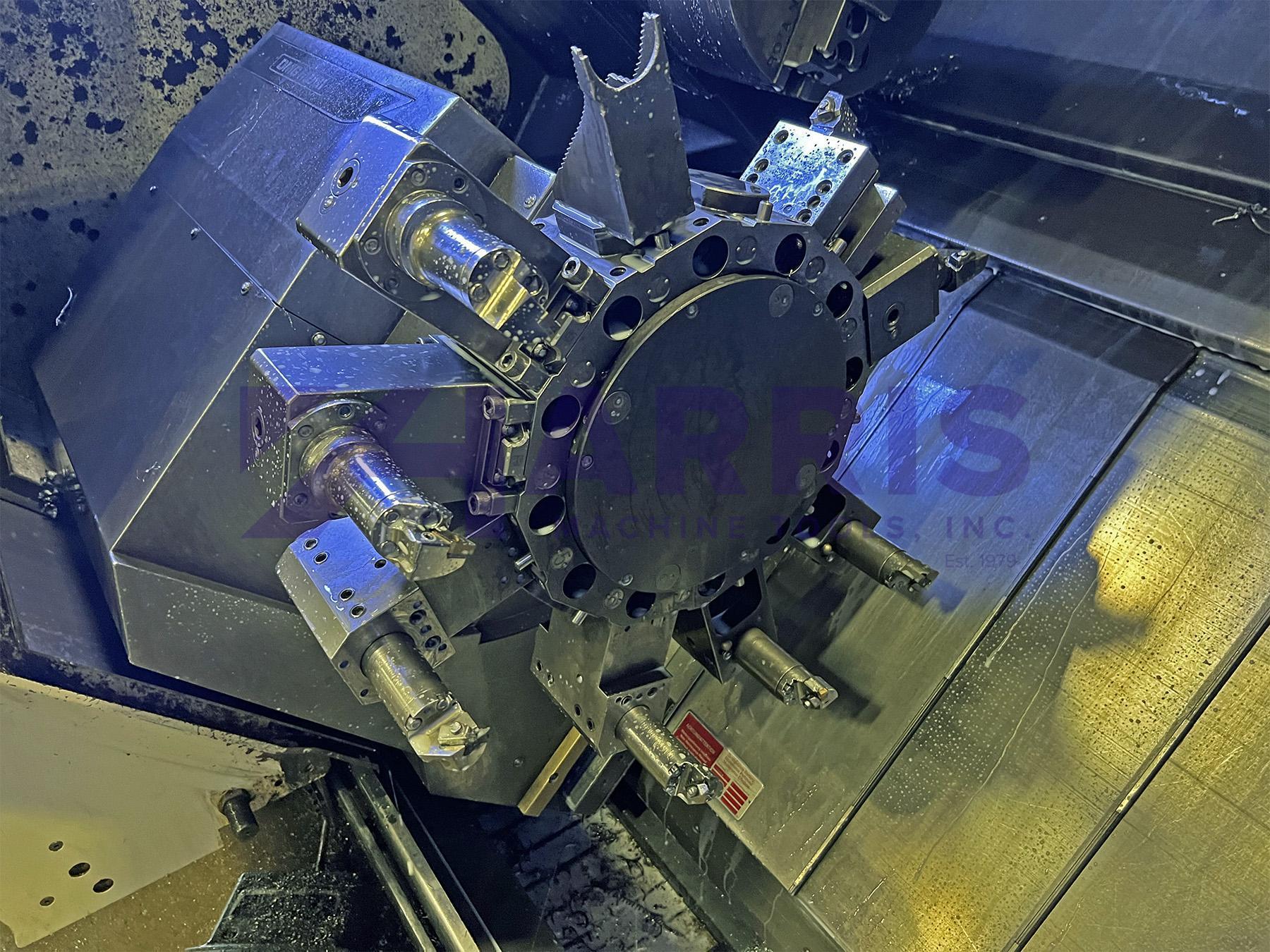

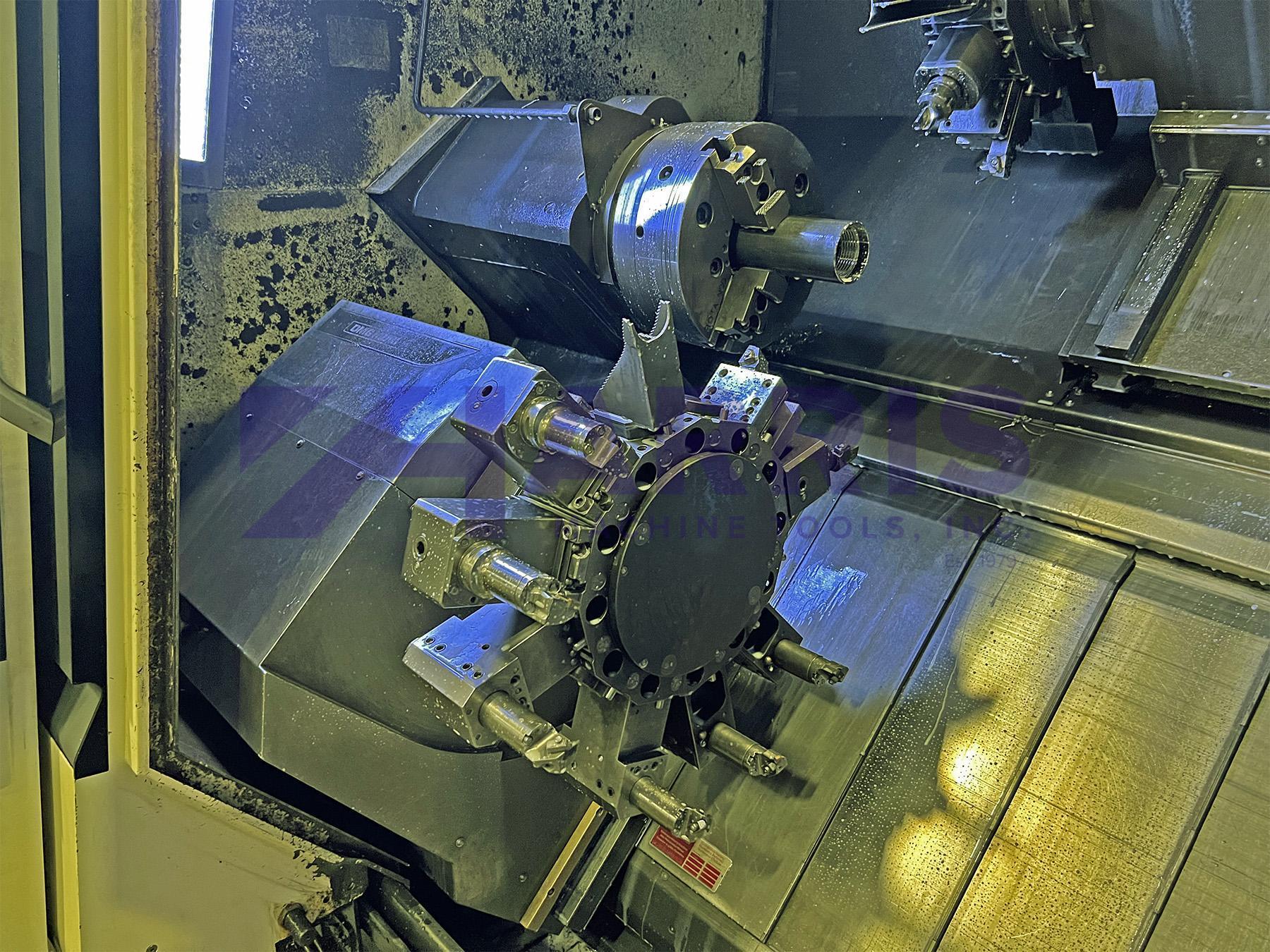

• (2) 12 position VDI 40 Star Turrets (4000 rpm, 15.2 hp, 20.7 ft.-lbs. torque)
• Both Spindles (5000 rpm, 64.4 hp, 265.5 ft.-lbs. .torque)
• TWIN Concept for Parallel Processing (Run 2 parts or 2 ops at one time)

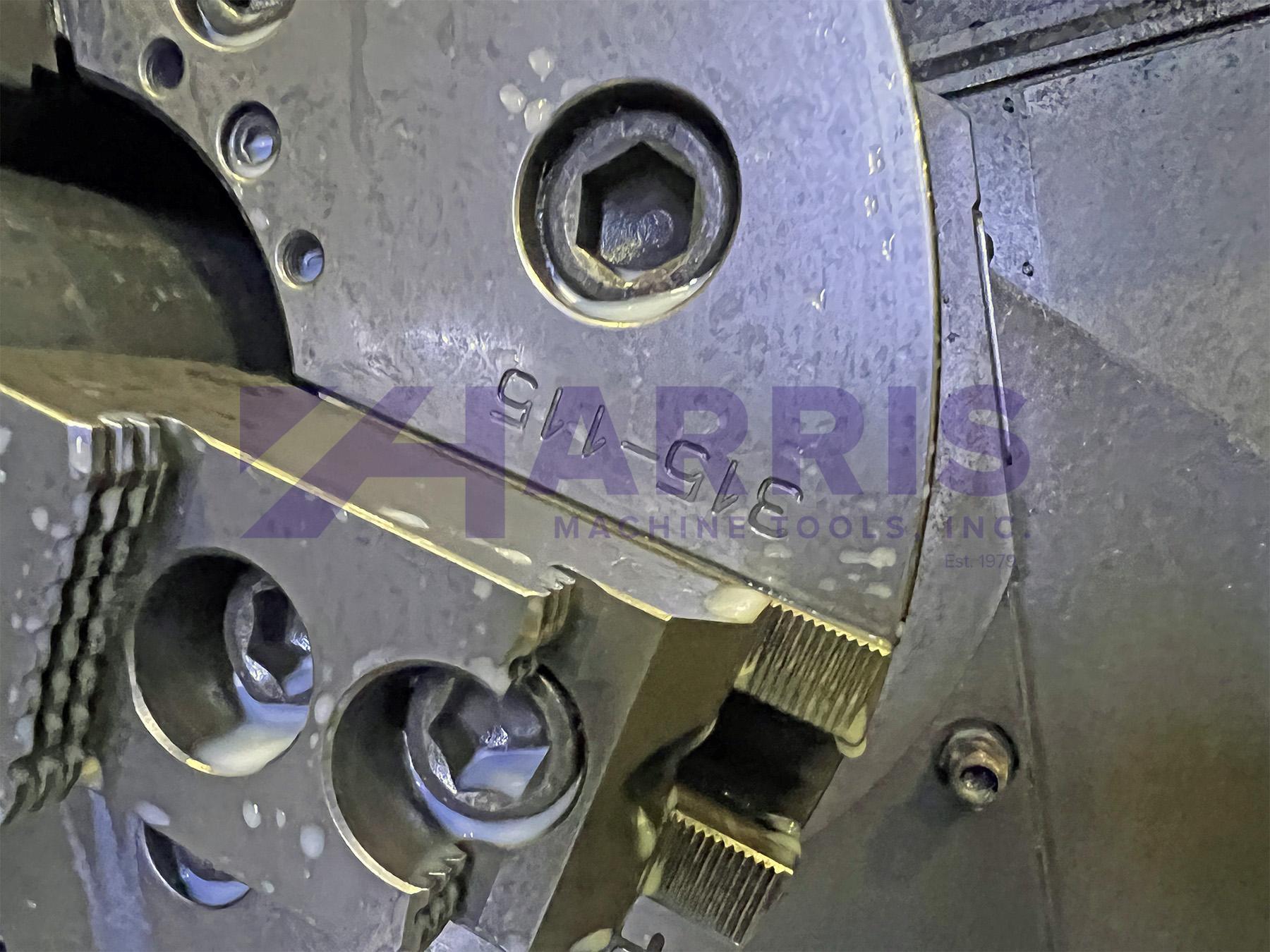

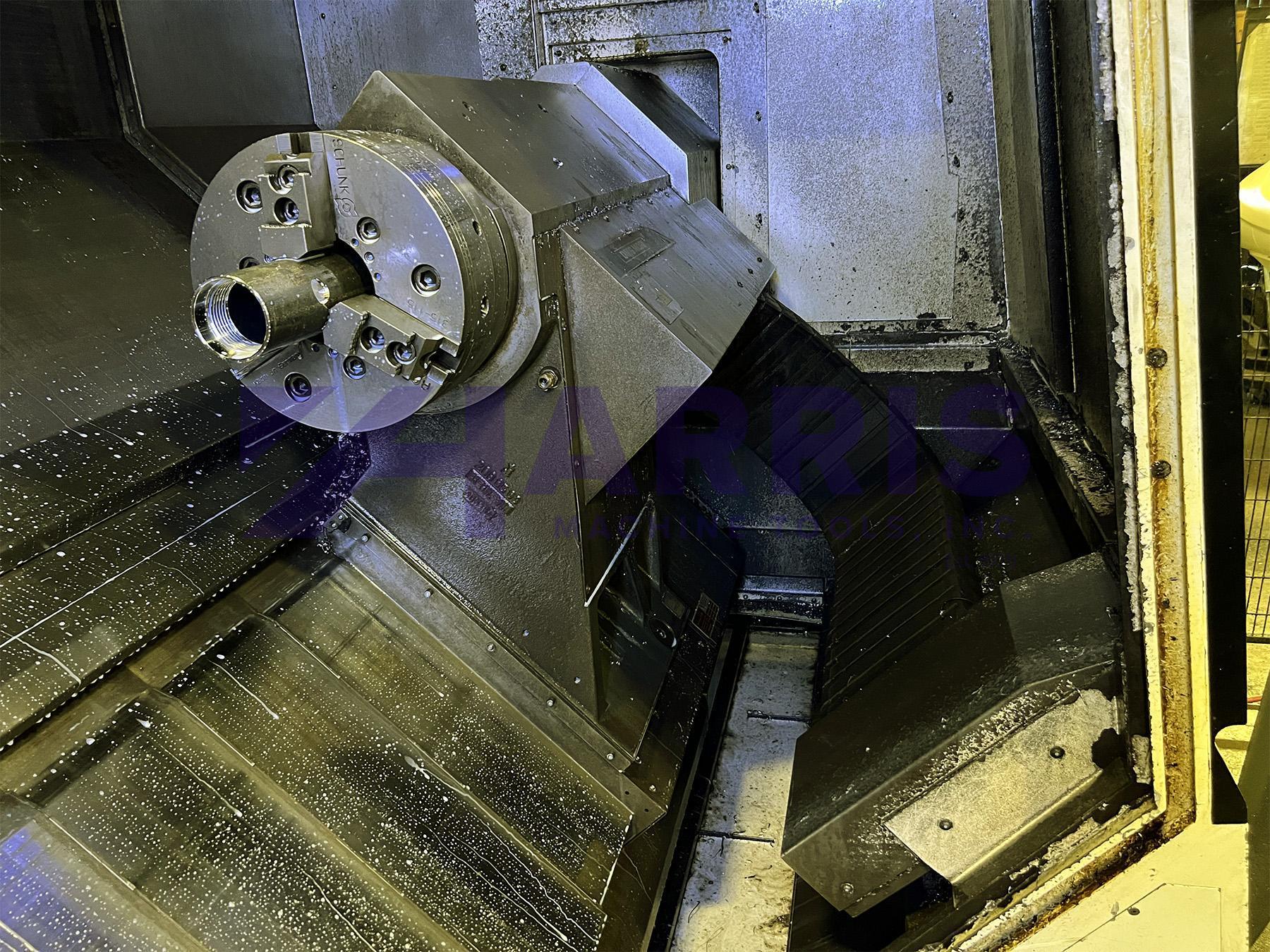

• Main Spindle with C Axis

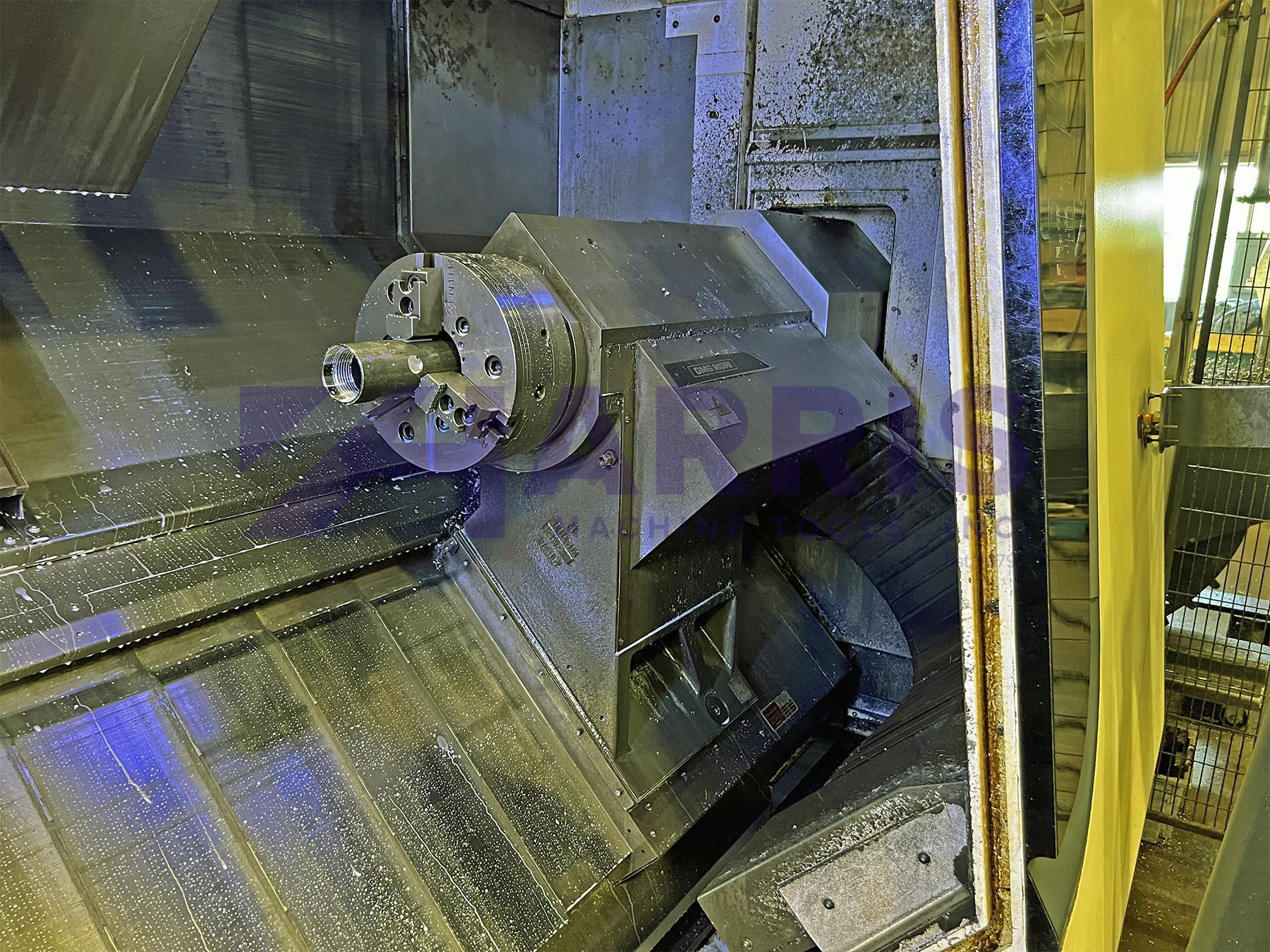

• Sub Spindle with C Axis and longitudinal coordination

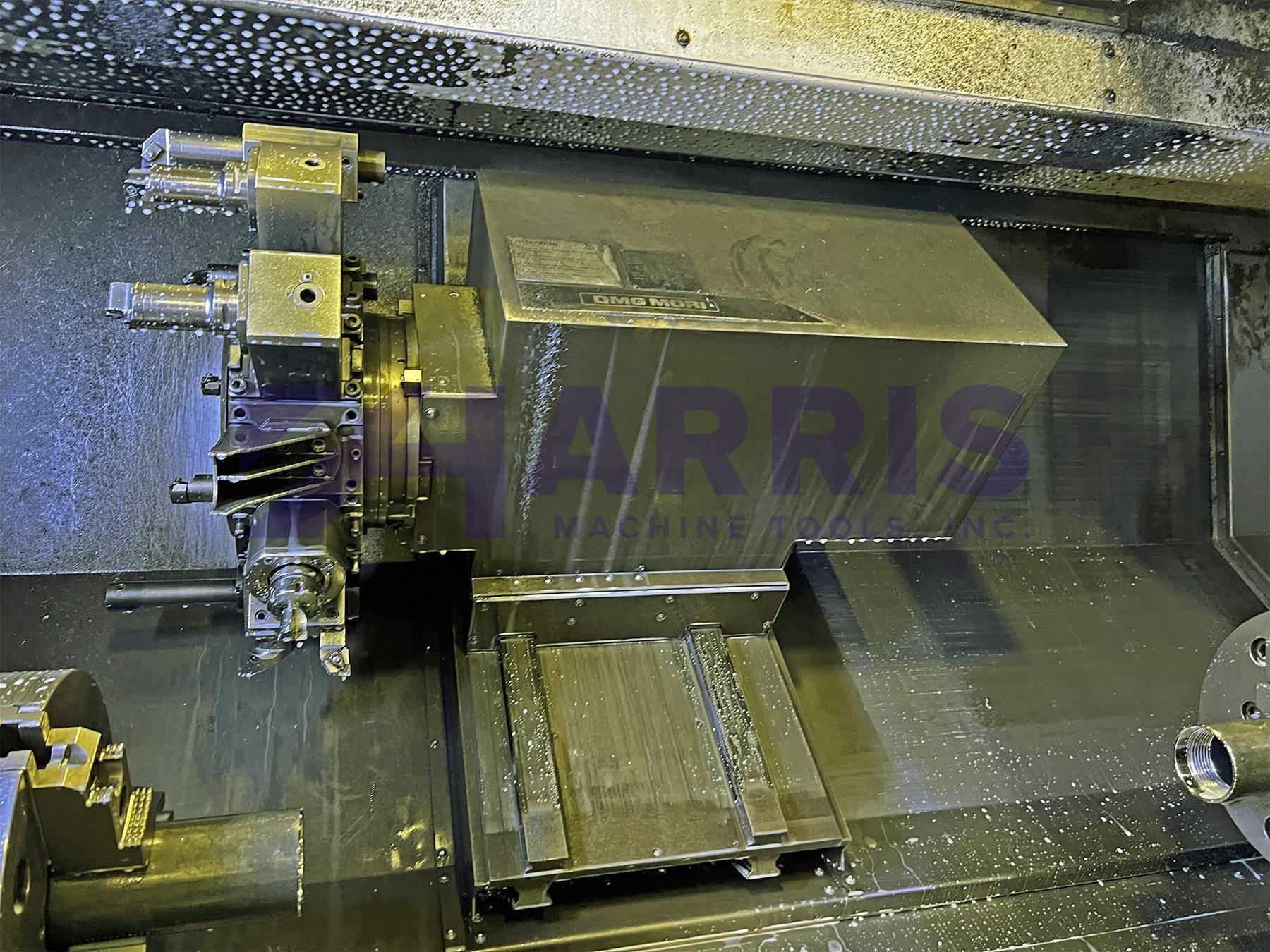

• Upper Turret with Y Axis and Live Tools
• Lower Turret with Live Tools
