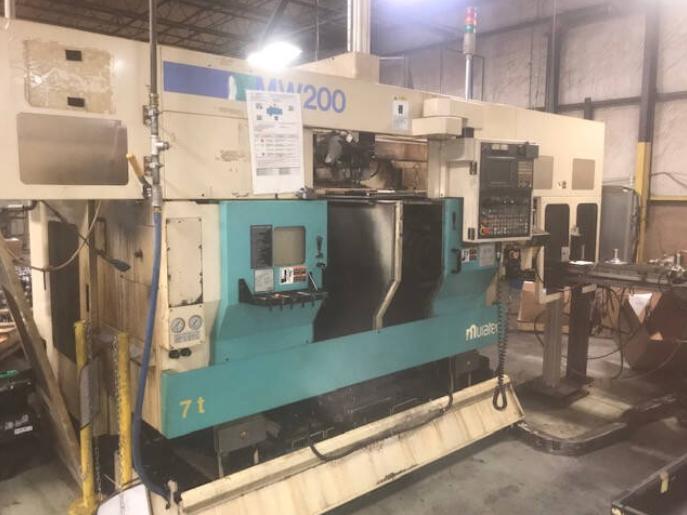

2005 Muratec MW200 CNC Turning Center (#4683)

Manufacturer

Category

Lathes

Type

LATHES, TURNING

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

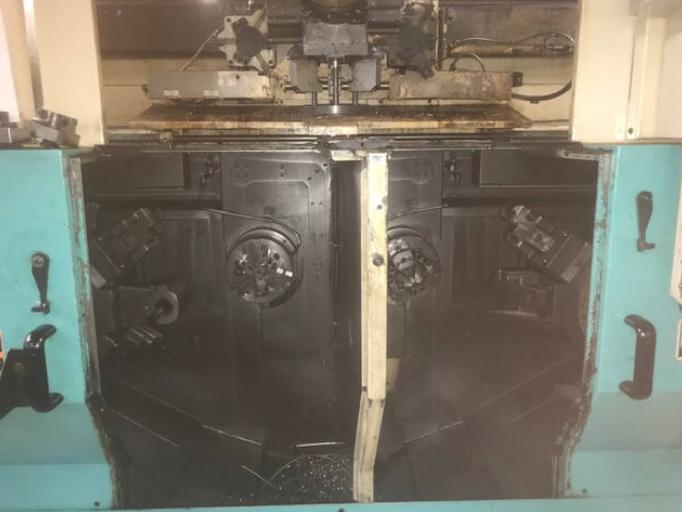

14.9” X 13.78” X 5.51” CNC Twin Spindle Turning Center with Program Select Switch, Coolant System, High Speed Gantry Loader, Rear Discharge Chip Conveyors and Work Clamp Confirmation – Both Sides (2 AVAILABLE)

GENERAL SPECIFICATIONS
Chuck Diameter x 2: 10”
Max. Work Diameter: 14.9”
Max. Turning Diameter: 13.78”
Max. Turning Length: 5.51”
Spindle RPM Range: 24 - 3500
Spindle Nose: A2-6
Spindle HP: 30 HP
Spindle Bore: 2.48”
Turret Positions x 2: 10
Tool Shank Sizes: 1.57” rd, 1.00” sq.
X1 & X2 Travels: 7.48”
Z1 & Z2 Travels: 7.48”
Machine L X W X H: 93” X 93” X 83”
Machine Weight: 15,400 LBS

INCLUDES: Program Select Switch, Coolant System, High Speed Gantry Loader, Rear Discharge Chip Conveyors and Work Clamp Confirmation – Both Sides


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
