Tarus TPEXHGD412, 1.5" Drill Dia, 2000 RPM, X-144", Y-65", Z-96", 60" x 144" Tbl, 7.5 HP, 2018 Retrofit #32108

Manufacturer

TARUS

Category

Drilling Machines

Type

DRILLS, GUN

Stock

32108

Model

TPEXHGD412

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32108

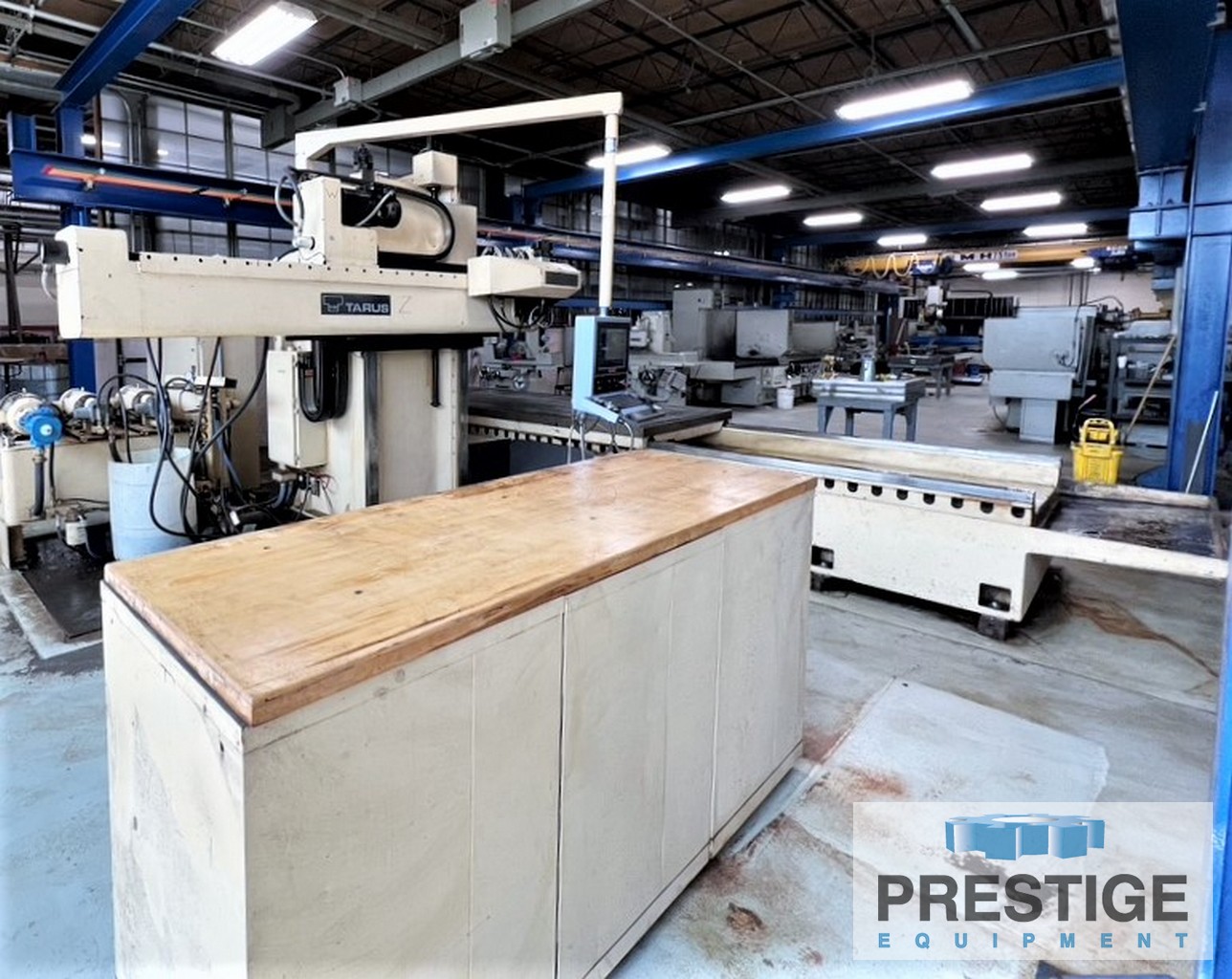

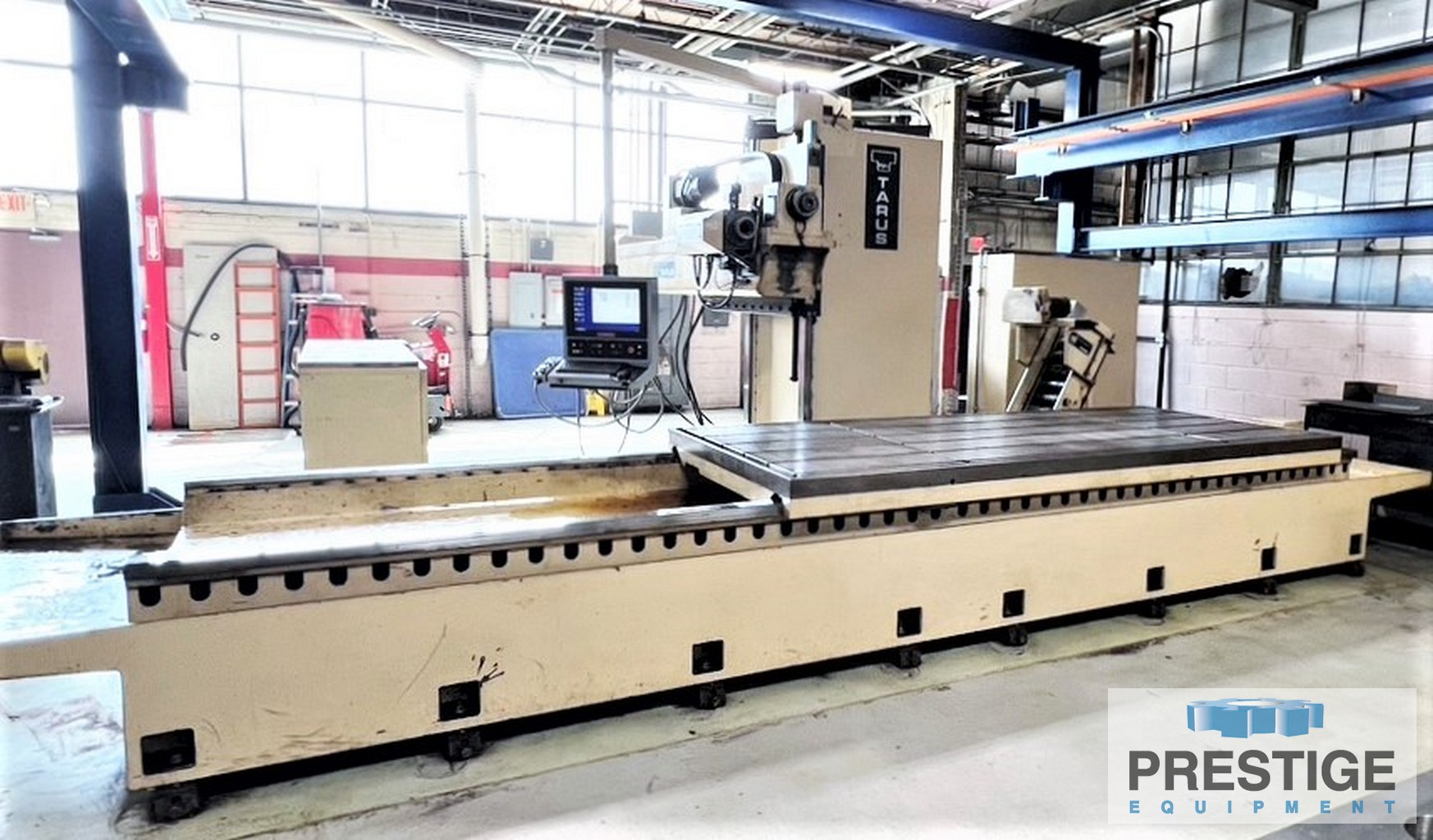

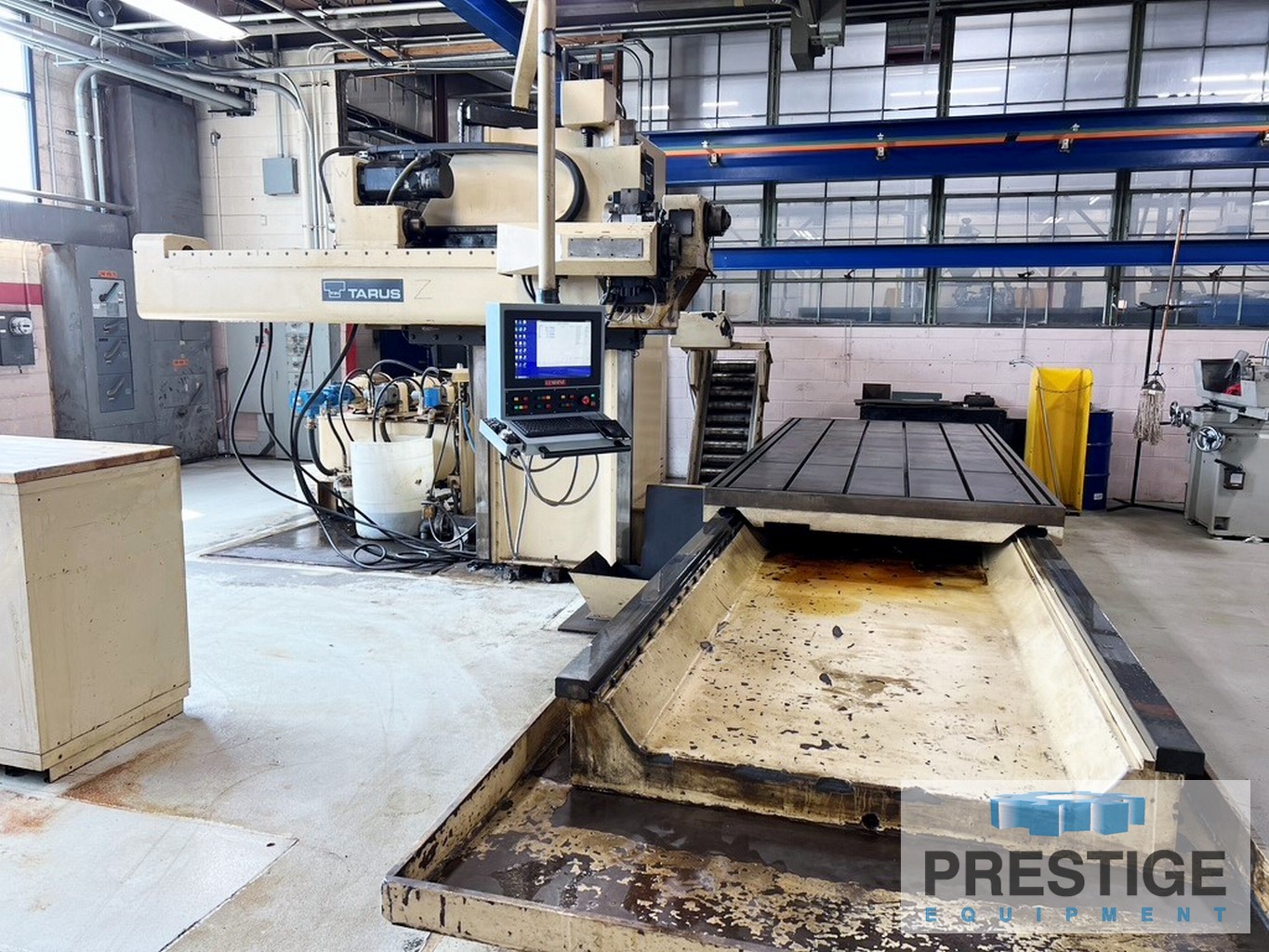

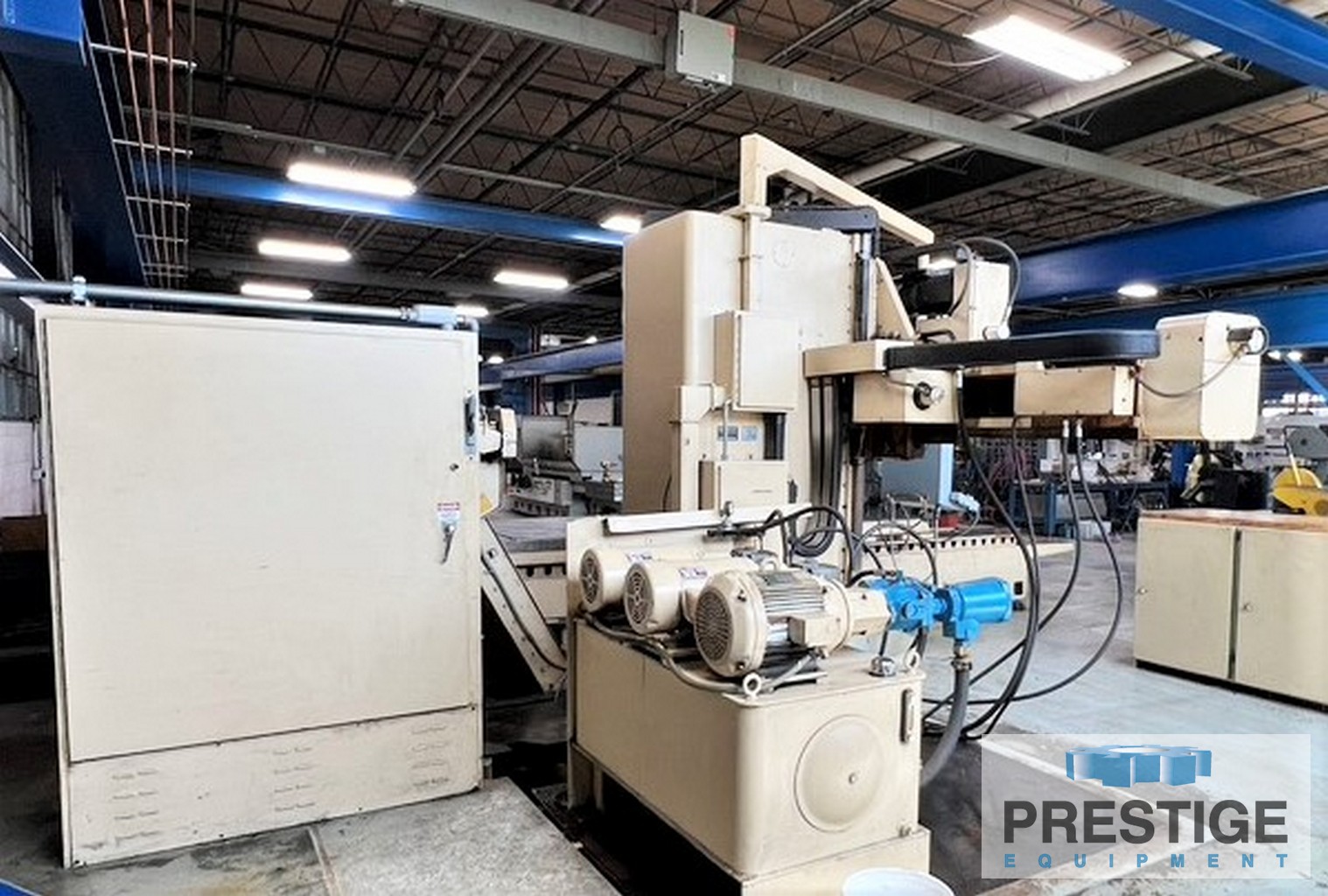

Tarus TPEXHGD412 Travelling Table Type CNC Gun Drill, Retrofit 2018

FEATURES:
Lemoine G6 CNC Control, Retrofit 2018

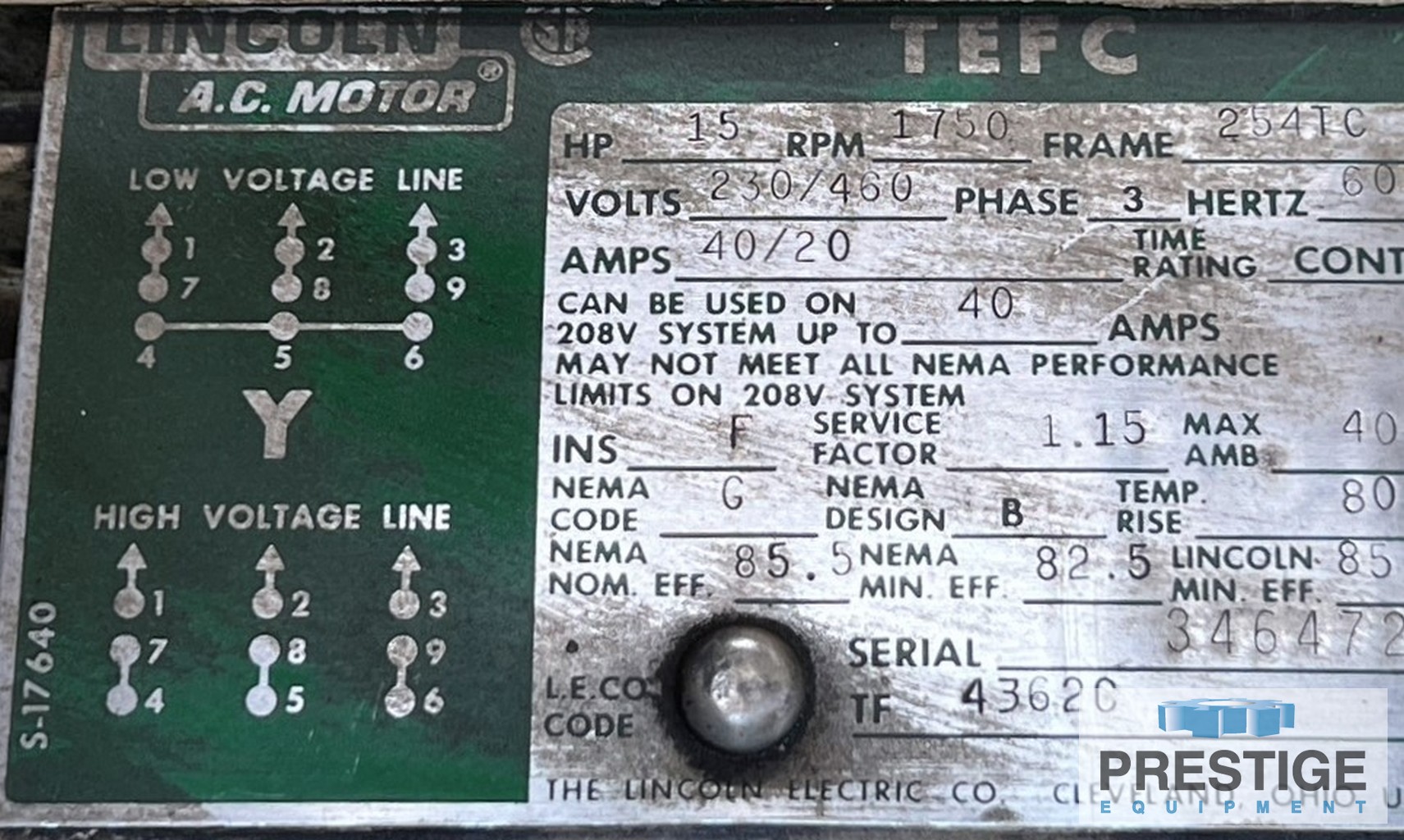

15 HP Spindle Drive
Chip Conveyor

CAPACITY:
Maximum Drilling Diameter ............. 1.5"
Minimum Drilling Diameter ............. .1875"
Table Size, T-Slotted ................. 60" x 144"
X-Axis, Table ......................... 87"
Y-Axis Travel, Vertical ............... 50"
W-Axis Travel, Spindle ................ 90”
Z-Axis Travel, Ram .................... 16”
Max. Spindle Speed .................... 2,000 RPM
Table Weight Capacity ................. 40,000 Lbs

EQUIPPED WITH:
Lemoine G6 CNC Control, Retrofit 2018
15 HP Spindle Drive
Chip Conveyor

NOTE:
Inspect in Plant Under Power
