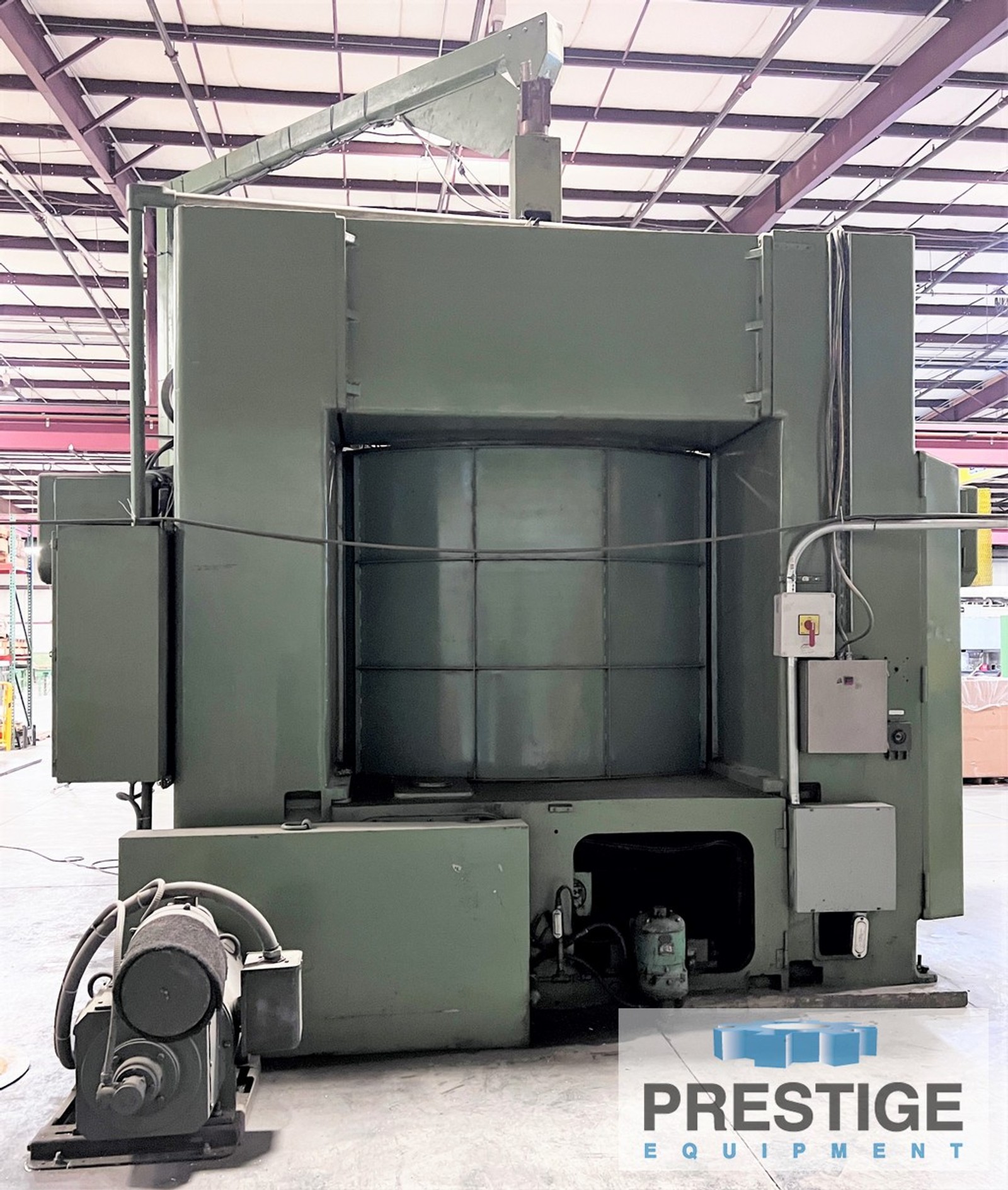

98" Dorries Vertical Boring Mill, Ram & Turret, 110" Swing, 70" Turning Height, Pendant Control, #32145

Manufacturer

DORRIES

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

32145

Model

SD250

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32145

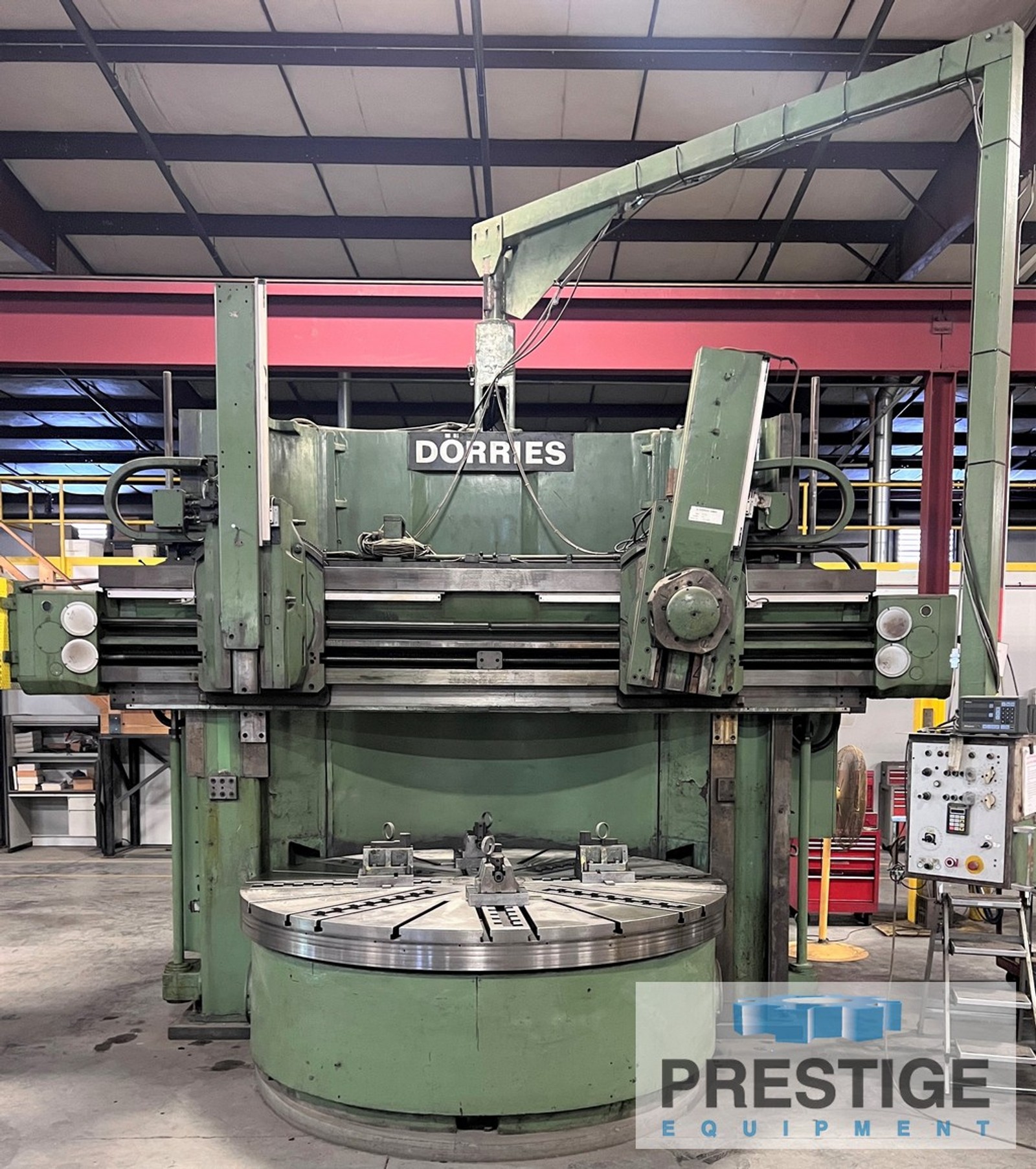

Dorries SD250 98" Vertical Boring Mill

FEATURES:
Pendant with digital readout

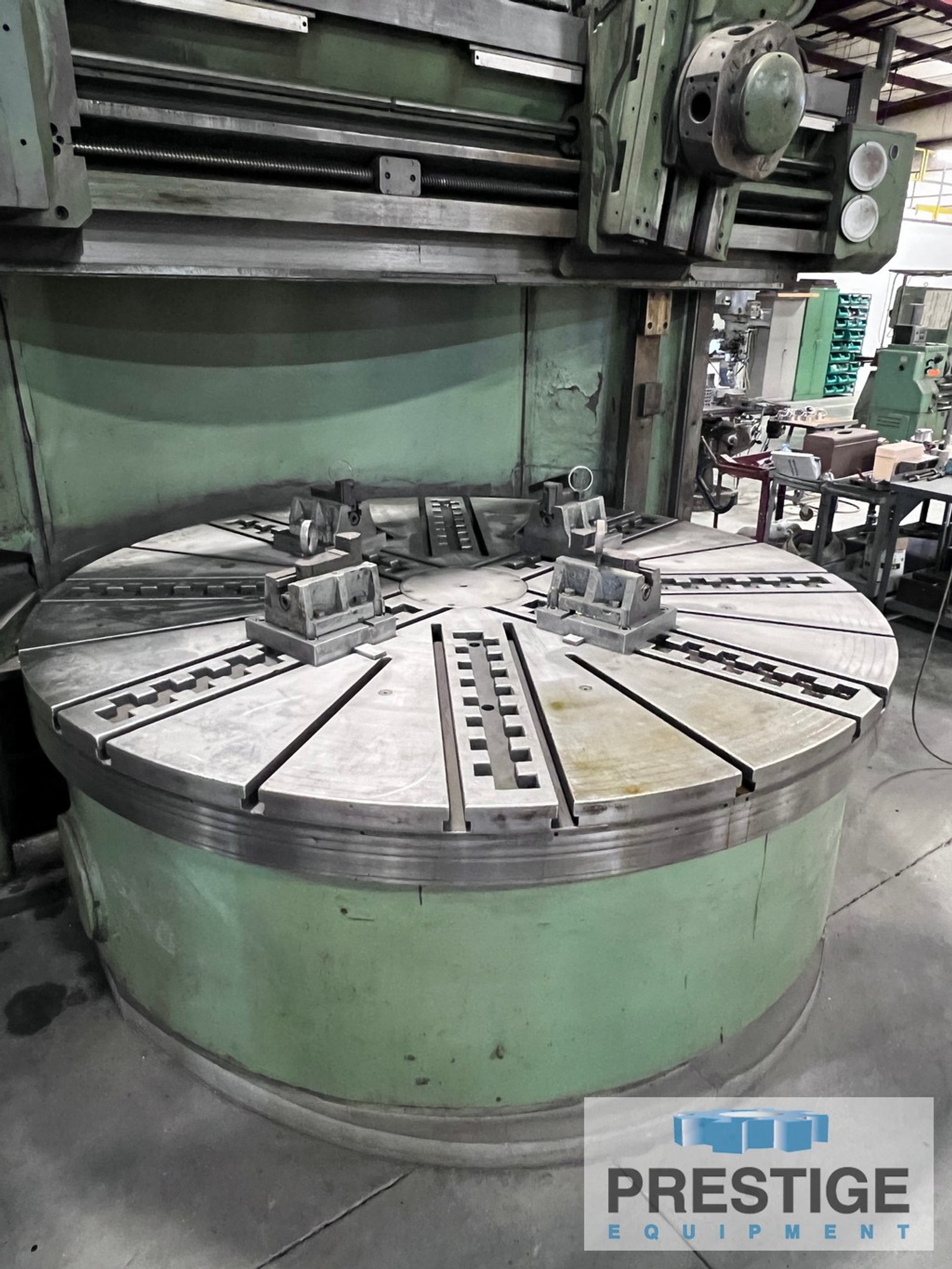

98" 4-Jaw Chuck

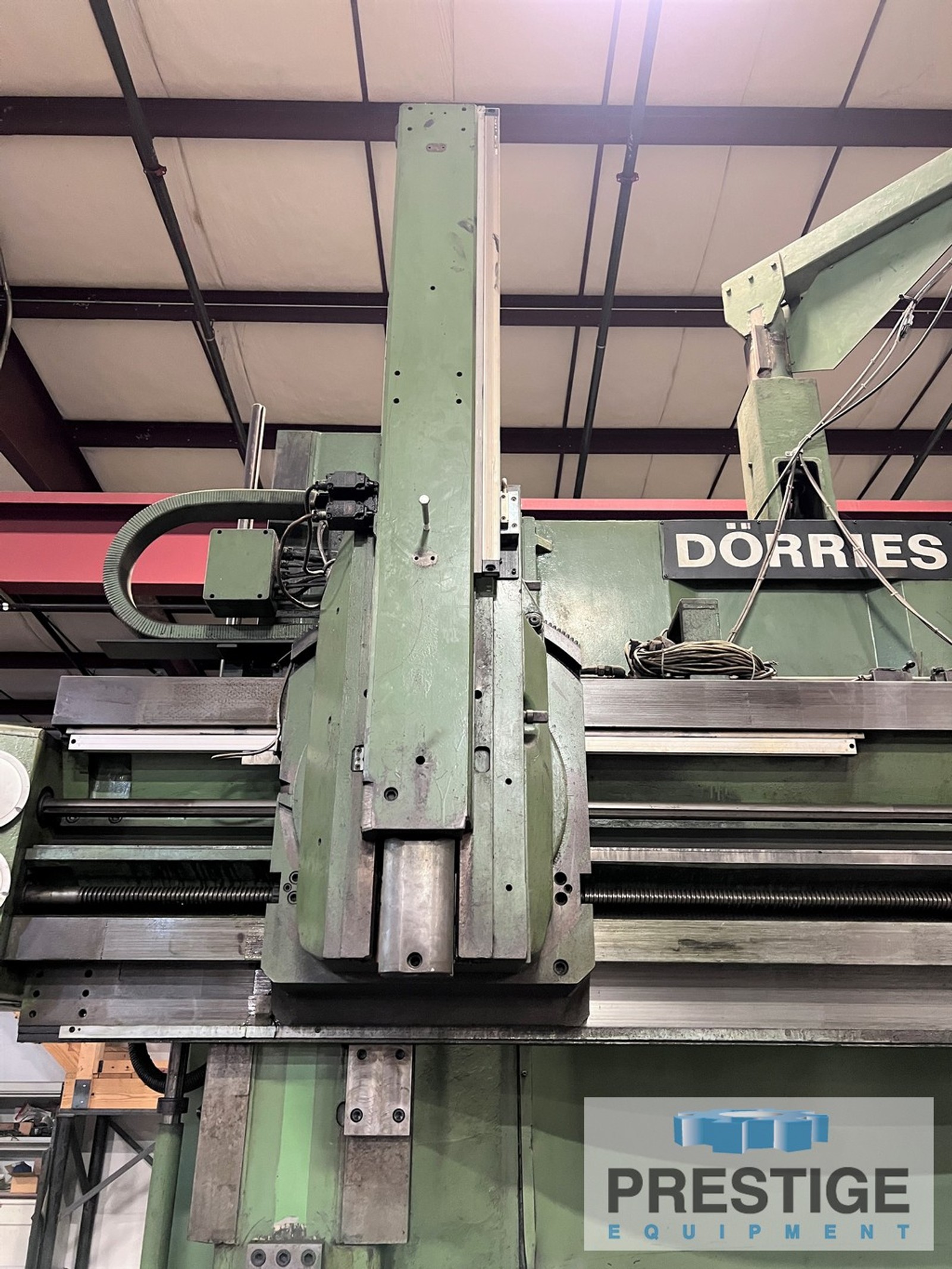

(1) Swiveling Ram Head

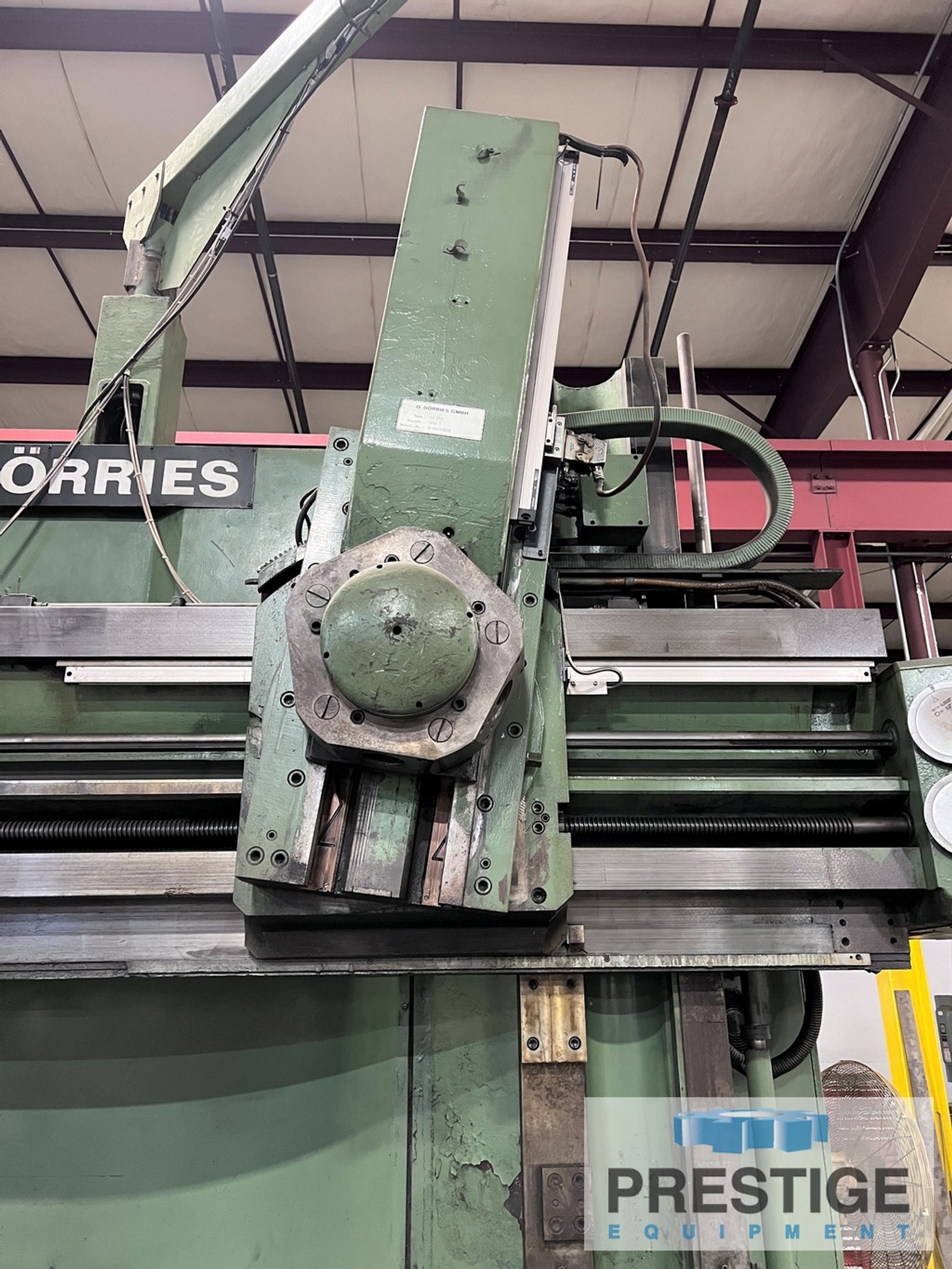

(1) 5 Position Swiveling Turret Head

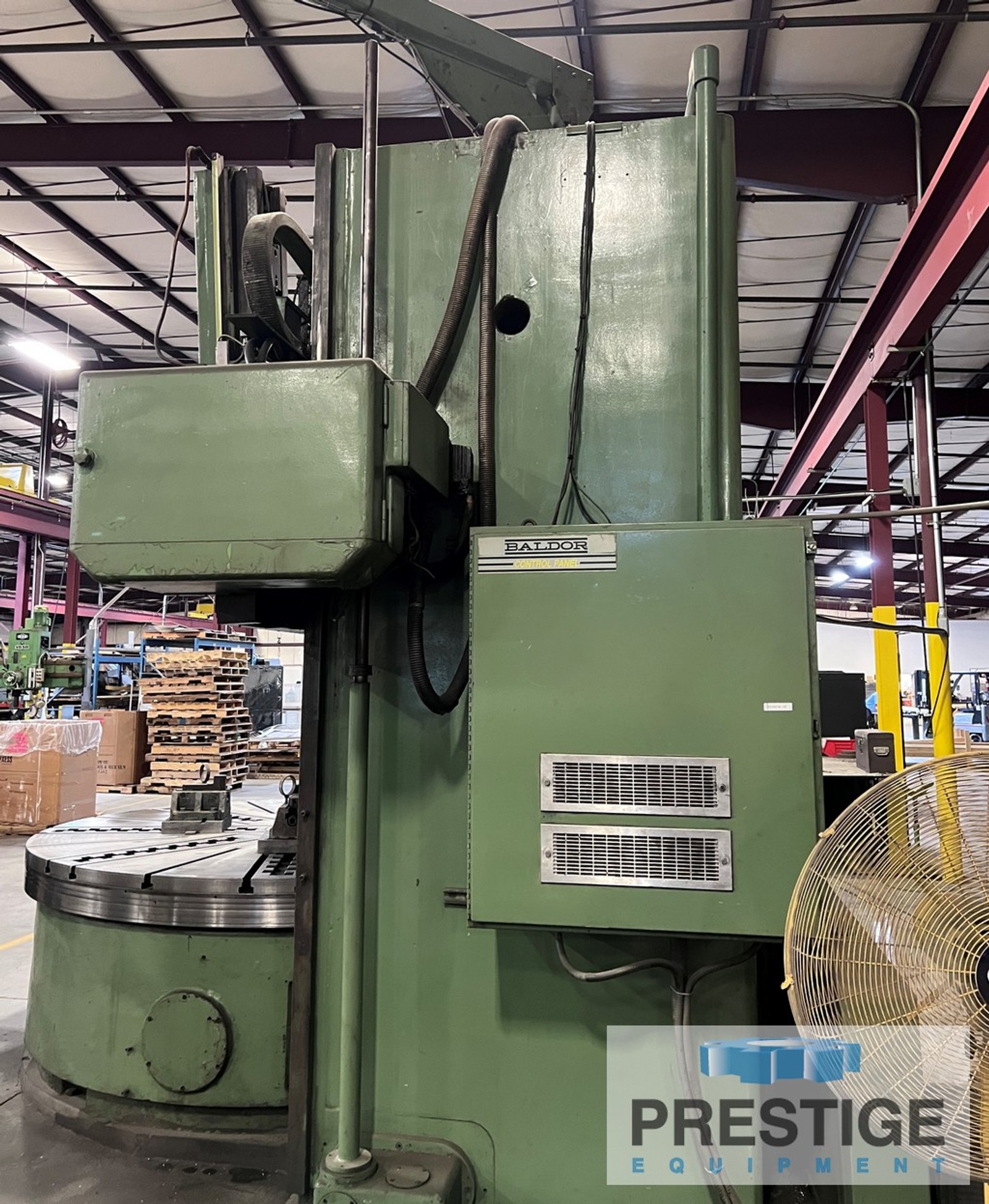

Baldor Variable Drive
Coolant Tank
Flush Floor
Threading

SPECIFICATIONS:
Diameter of 4-jaw chuck ............... 98.5"
Maximum swing, side head down ......... 110"
Height under rail ..................... 85"
Table Load Capacity ................... 110,000 Lbs
Cross travel of ram head .............. 61"
Vertical travel of ram head ........... 42"
Maximum Capacity Under Tool ........... 70"
Table speeds, Variable ................ 112 RPM
Main drive motor ...................... 75 HP
Current Electrical Arrangement ........ 480/3/60
Approximate Dimensions, W x D ......... 210" X 198"
Machine Height  ....................... 141"
Approximate Weight .................... 75,000 Lbs.

EQUIPPED WITH:
Pendant with digital readout
98" 4-Jaw Chuck
(1) Swiveling Ram Head
(1) 5 Position Swiveling Turret Head
Baldor Variable Drive
Coolant Tank
Flush Floor
Threading
