40" x 236" Microcut, Fanuc OiTD CNC, 8-Pos. Turret, (2) Steadies, New 2022 #24725

Manufacturer

MICROCUT

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

24725

Model

BNC 4000 x 6M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #24725

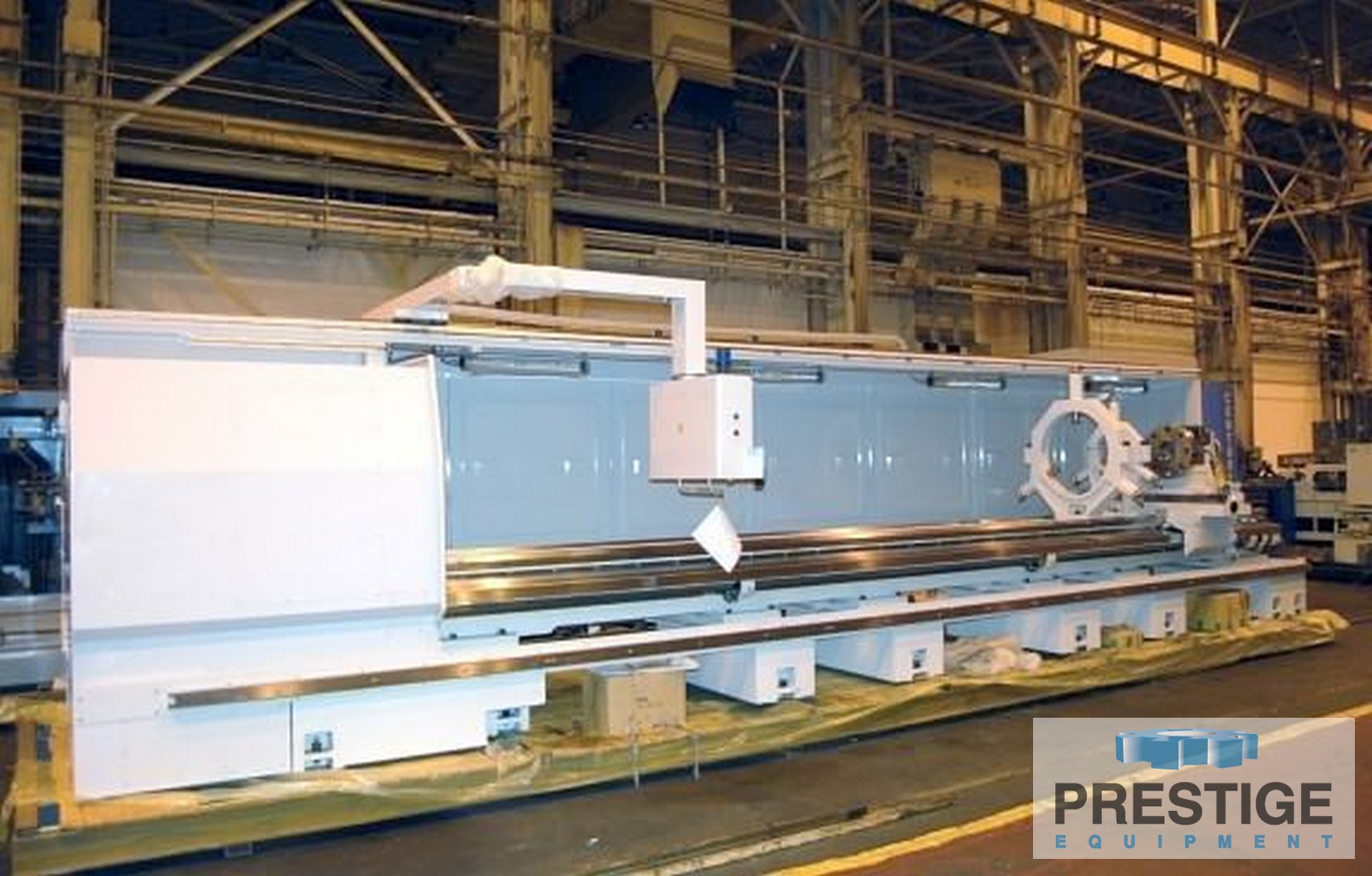

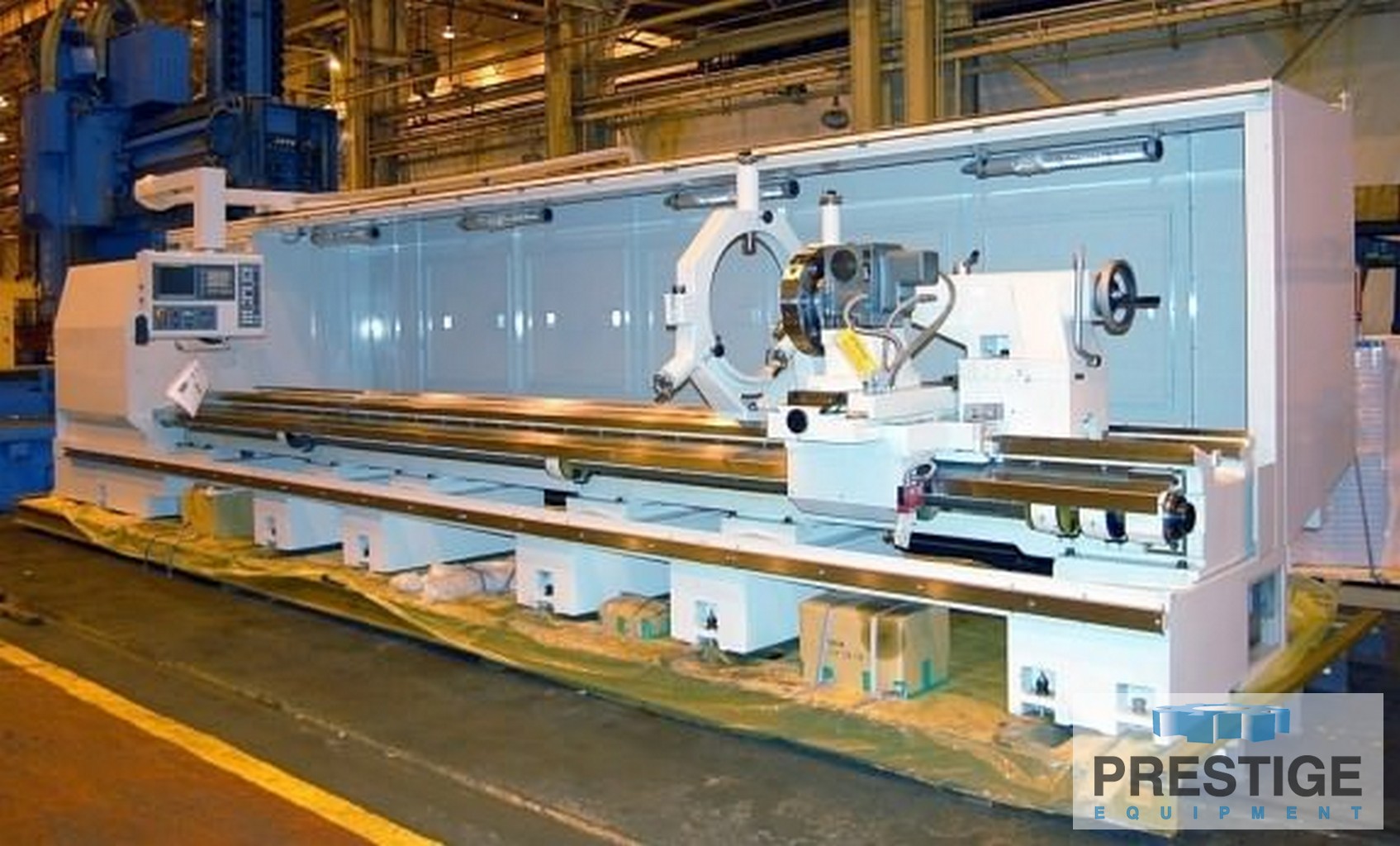

40.15" x 236.22" Microcut CNC Lathe

FEATURES:
Fanuc 0iTF CNC Control with 10.4" LCD and Manual Guide i
Baruffaldi TB-200 VDI50/8T 8 Pos. Front Mounted Turret
1.96" to 11.81" Capacity Roller Steady Rest
9.84" to 23.62" Capacity Roller Steady Rest
Full Length Chip Conveyor

CAPACITY:
Swing Over Bed ........................ 40.15"
Swing Over Cross Slide ................ 26.77"
Swing in Gap .......................... 50.39"
Width of Bed .......................... 22.5"
Maximum Turning Length ................ 236.22"
Max. Work Piece Weight w/ Tailstock ... 6,600 Lbs
Max. Work Piece Weight - 1-Steady ..... 8,800 Lbs
Max. Work Piece Weight - 2-Steadies ... 11,000 Lbs
Spindle Speeds, 2-Ranges .............. 15-1480 RPM
Spindle Hole Diameter ................. 4.17"

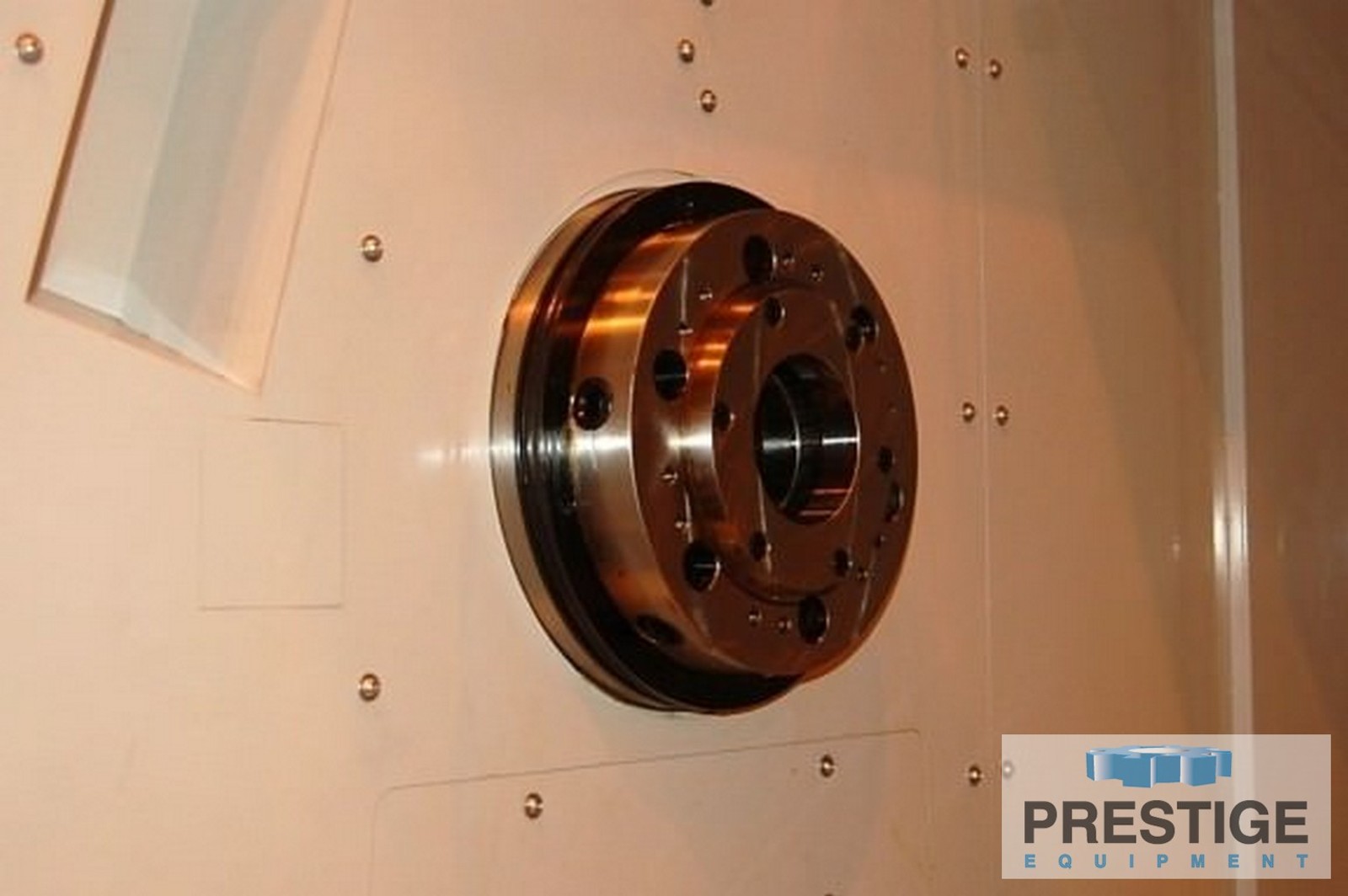

Spindle Nose Mount .................... A1-11
Quill Diameter ........................ 4.92"
Quill Stroke .......................... 9.055"
Quill Taper ........................... #6 MT
Overall Dimensions .................... 351" x 123" x 92"
Machine Weight ........................ 33,000 Lbs.
EQUIPPED WITH:

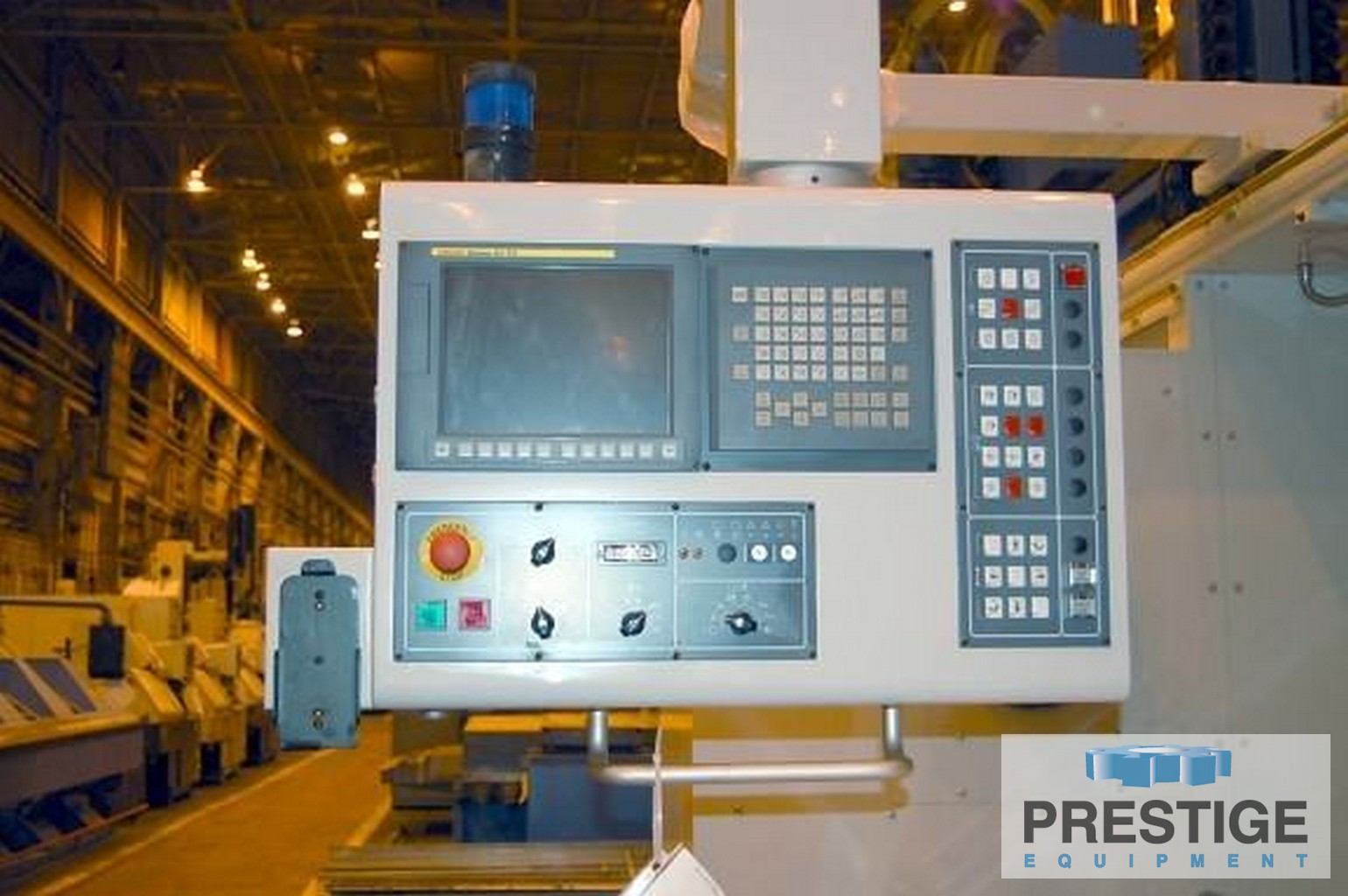

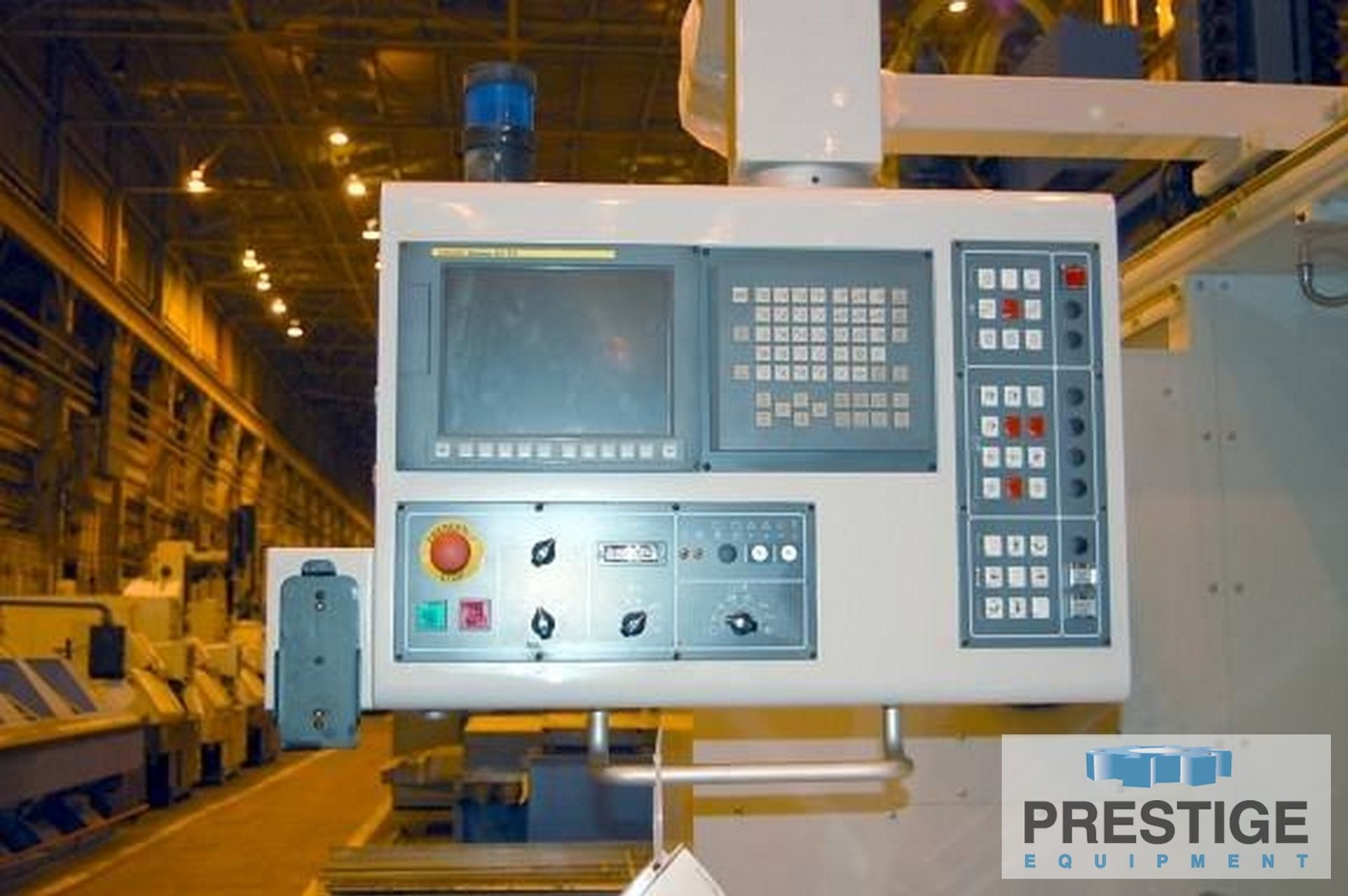

Fanuc 0iTF CNC Control with 10.4" LCD and Manual Guide i
RS 232 Communication Port
Fanuc Package Servo Motors
Thread Repair Function
Baruffaldi TB-200 VDI50/8T 8 Pos. Front Mounted Turret

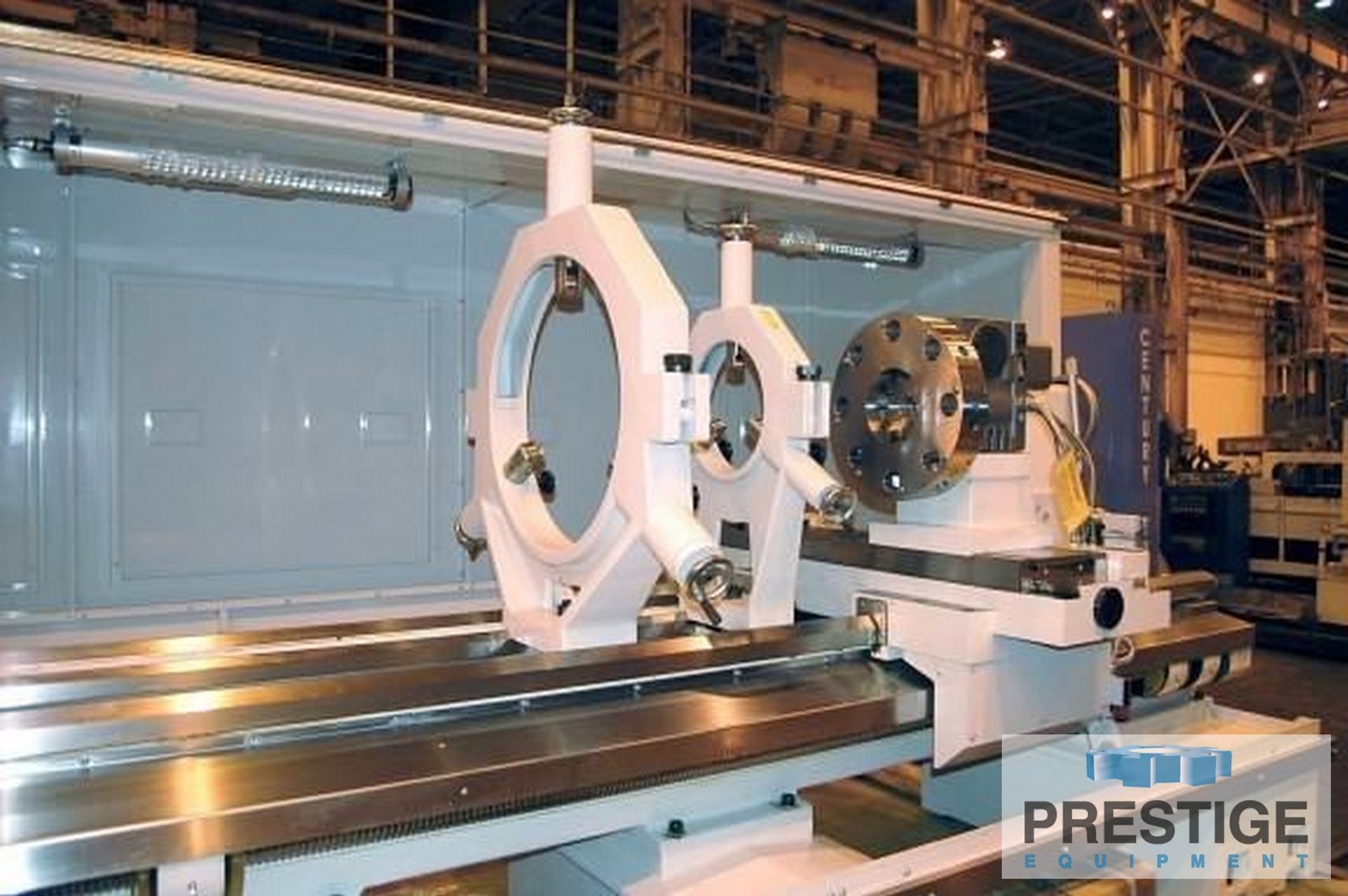

1.96" to 11.81" Capacity Roller Steady Rest
9.84" to 23.62" Capacity Roller Steady Rest
2-Step Variable Speed with Auto Spindle Step Change
Gap Bed
Automatic Lubrication System

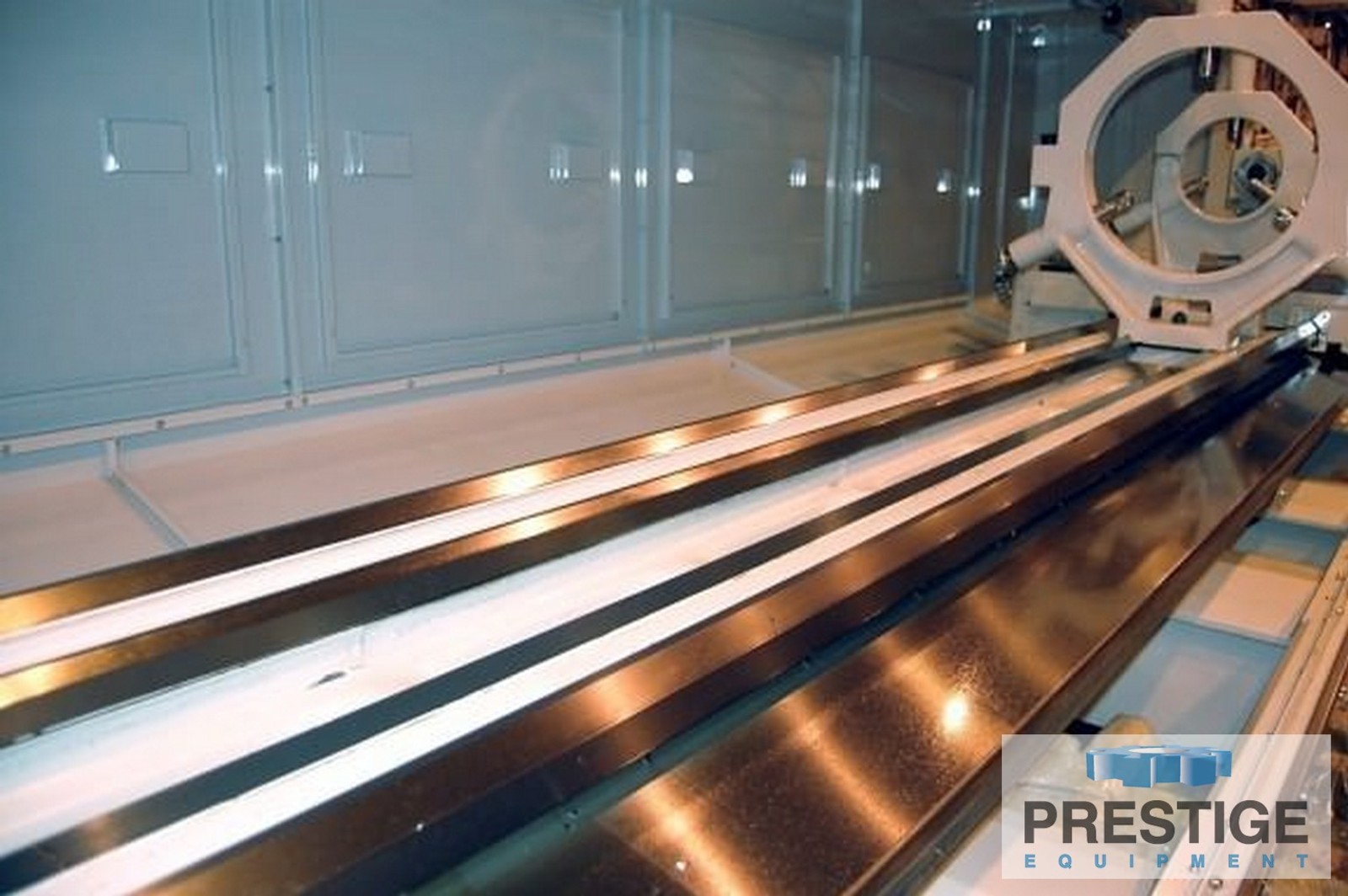

V-Type Bed Ways
Halogen Work Light
Full Length Chip Conveyor
Travelling Front Door
Hardened Ways
Leveling Pads and Bolts
29 HP/44 HP Spindle Drive Motor 220/3/60 Cycle
Full 1-Year Parts and Labor Warranty on Machine
Full 2-Year Parts and Labor Warranty on CNC Control

NOTE:
Delivery Time Approximately 10 months from order
