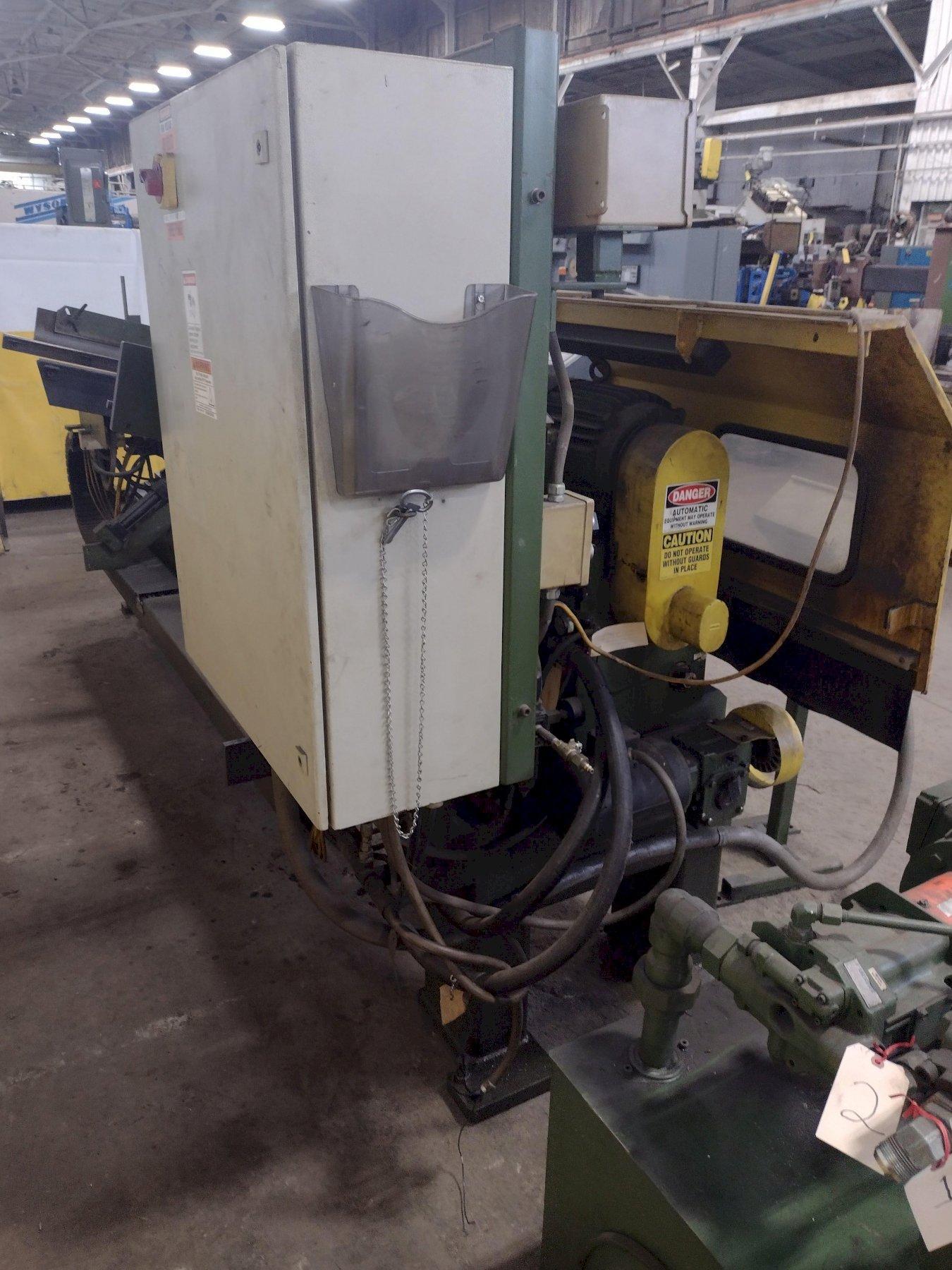

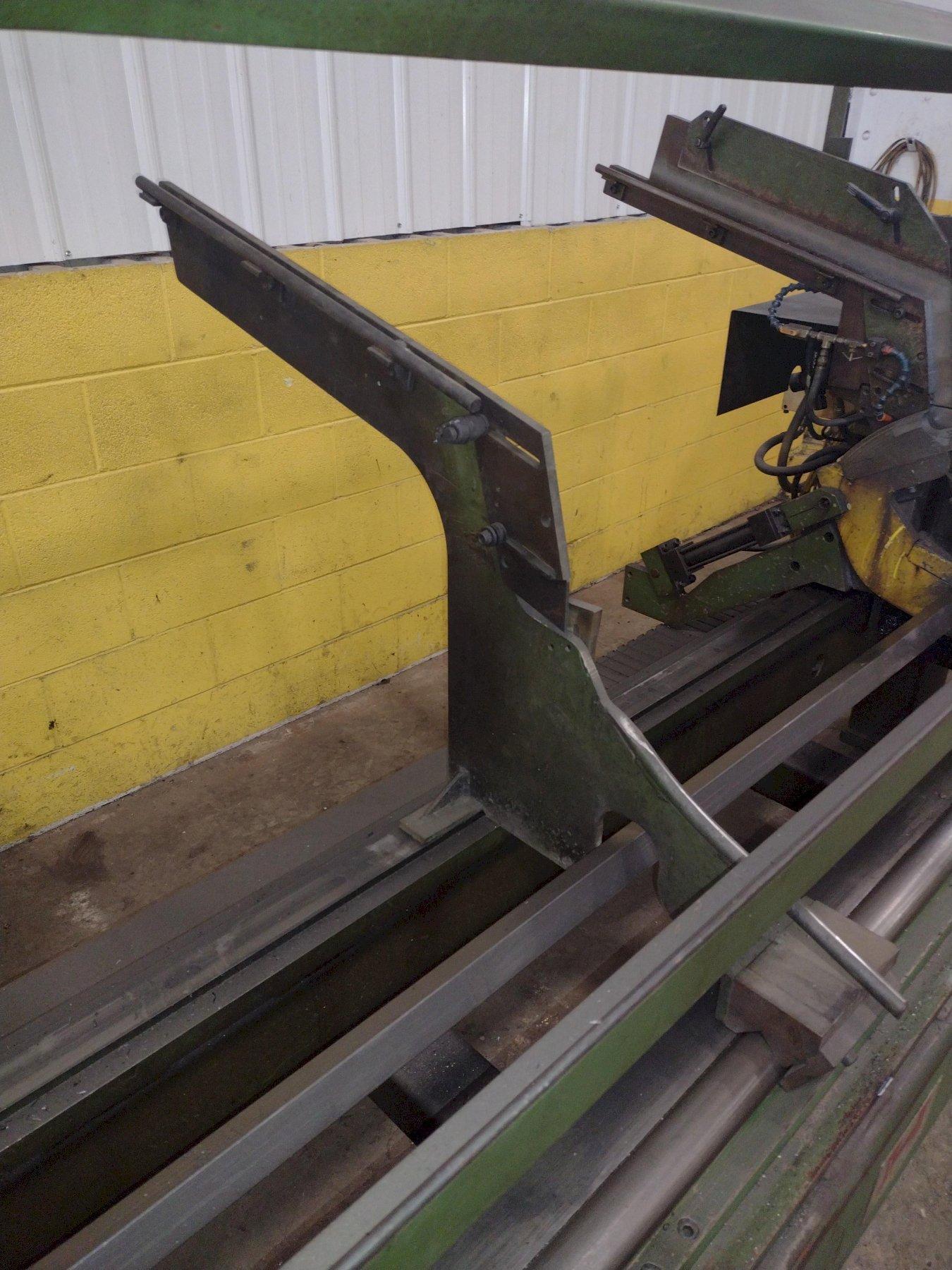

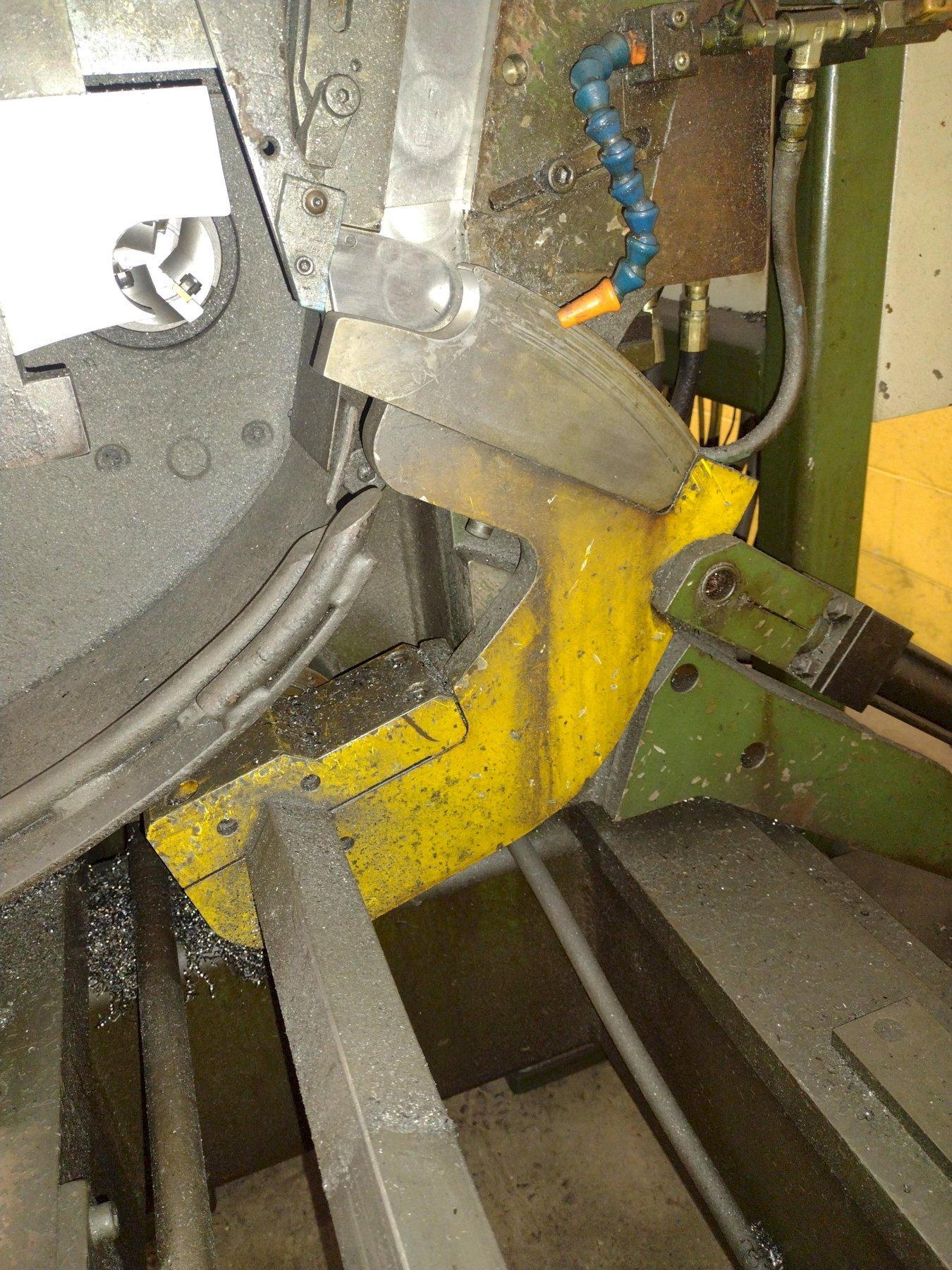

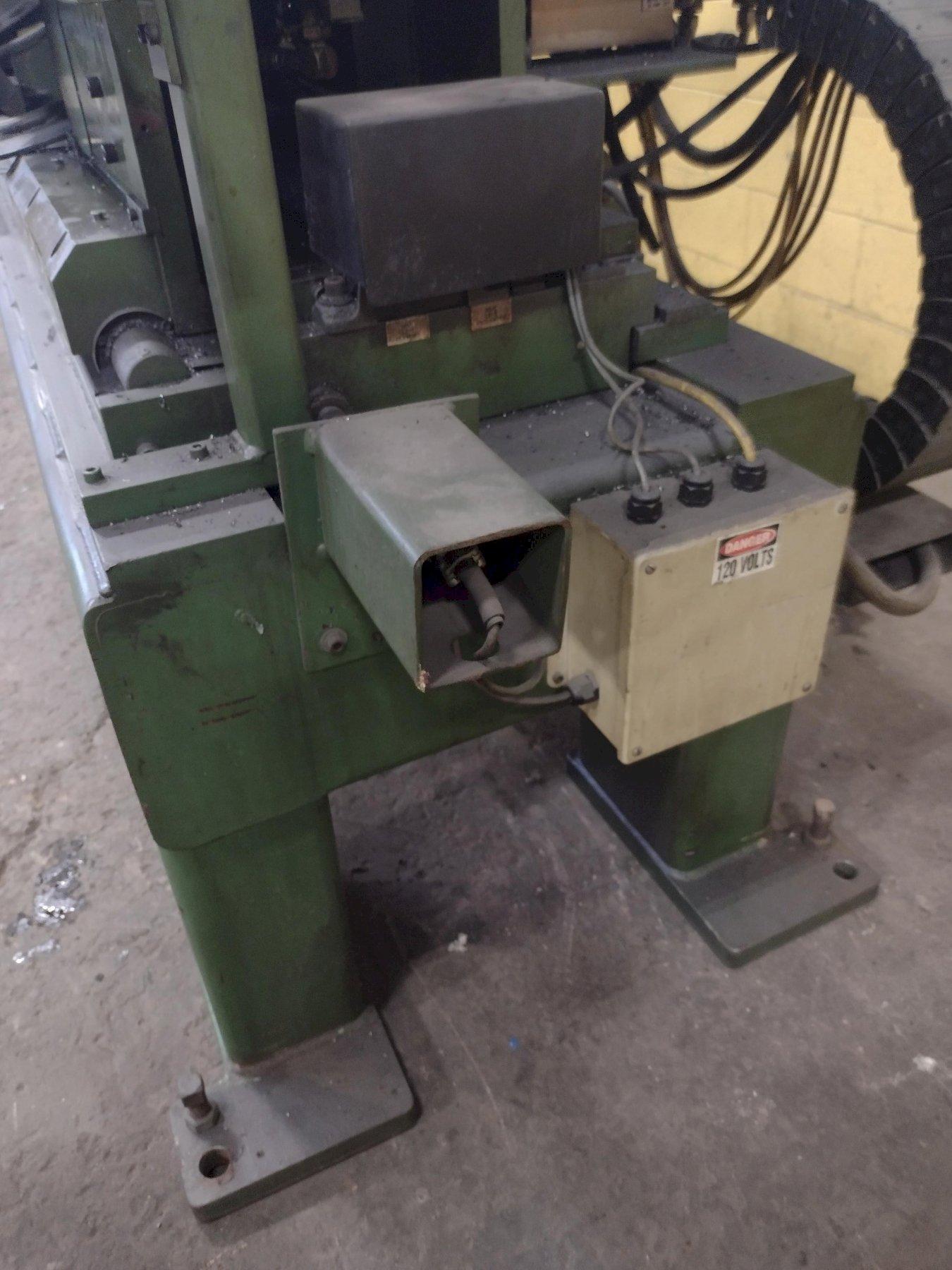

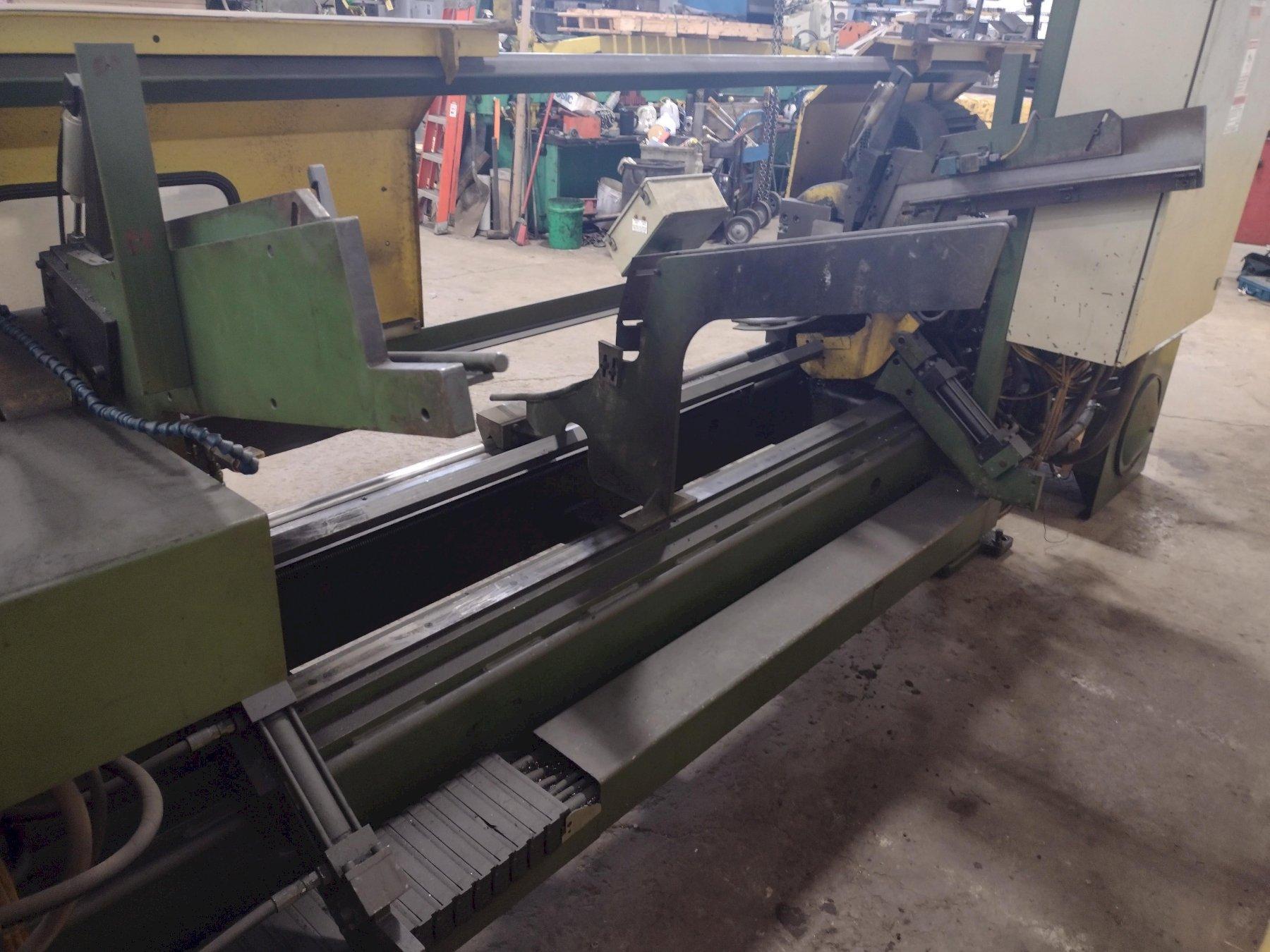

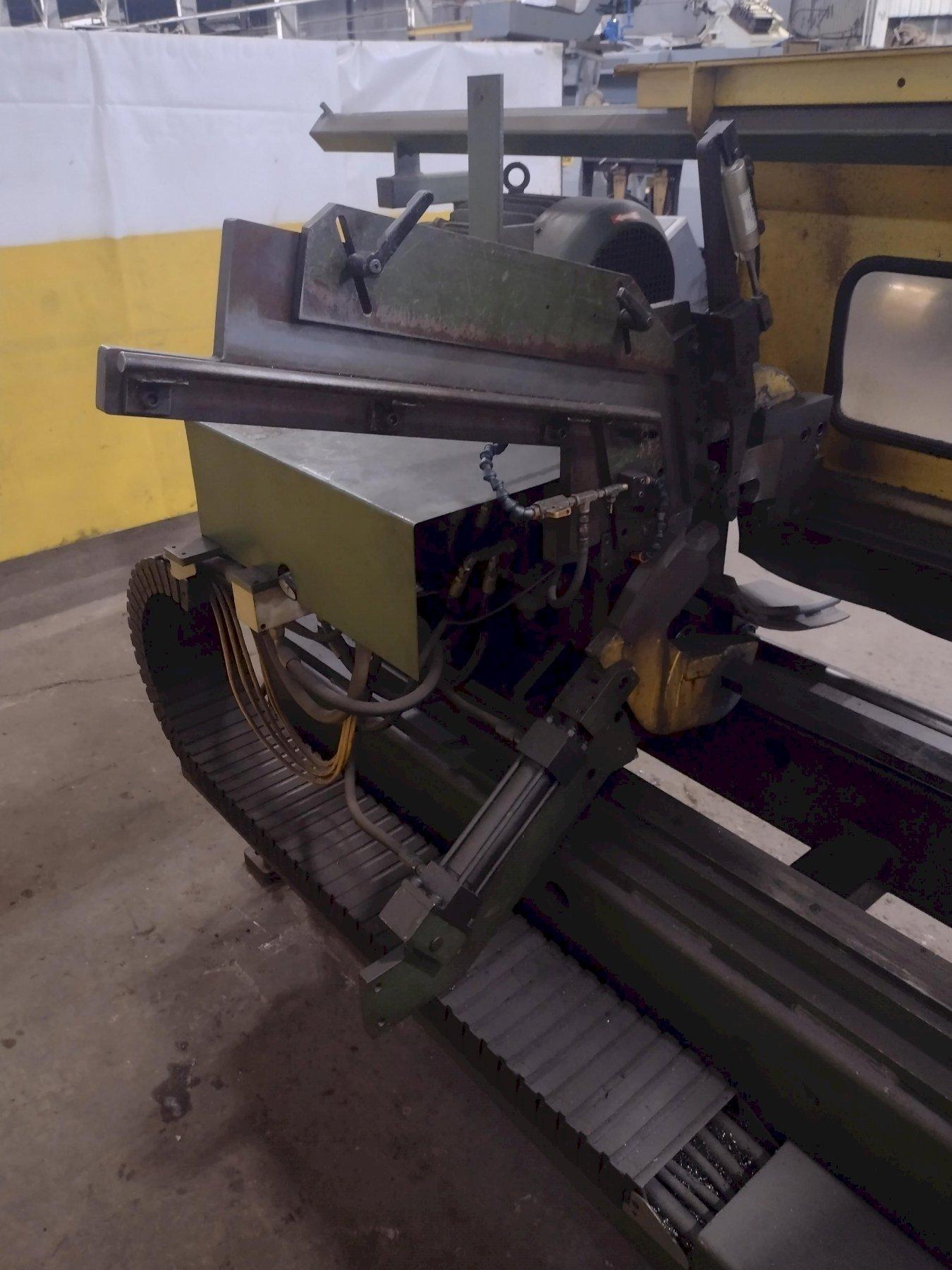

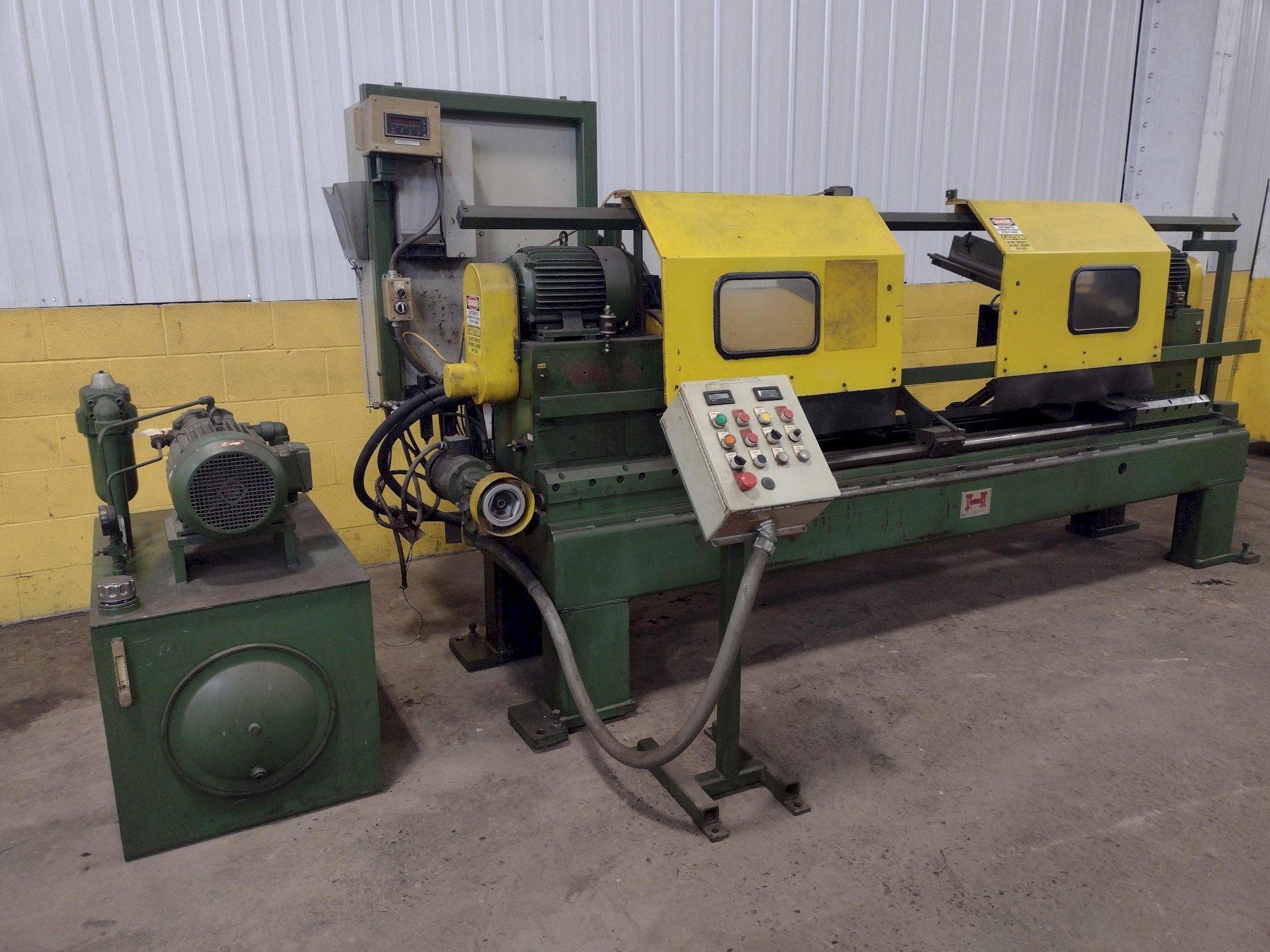

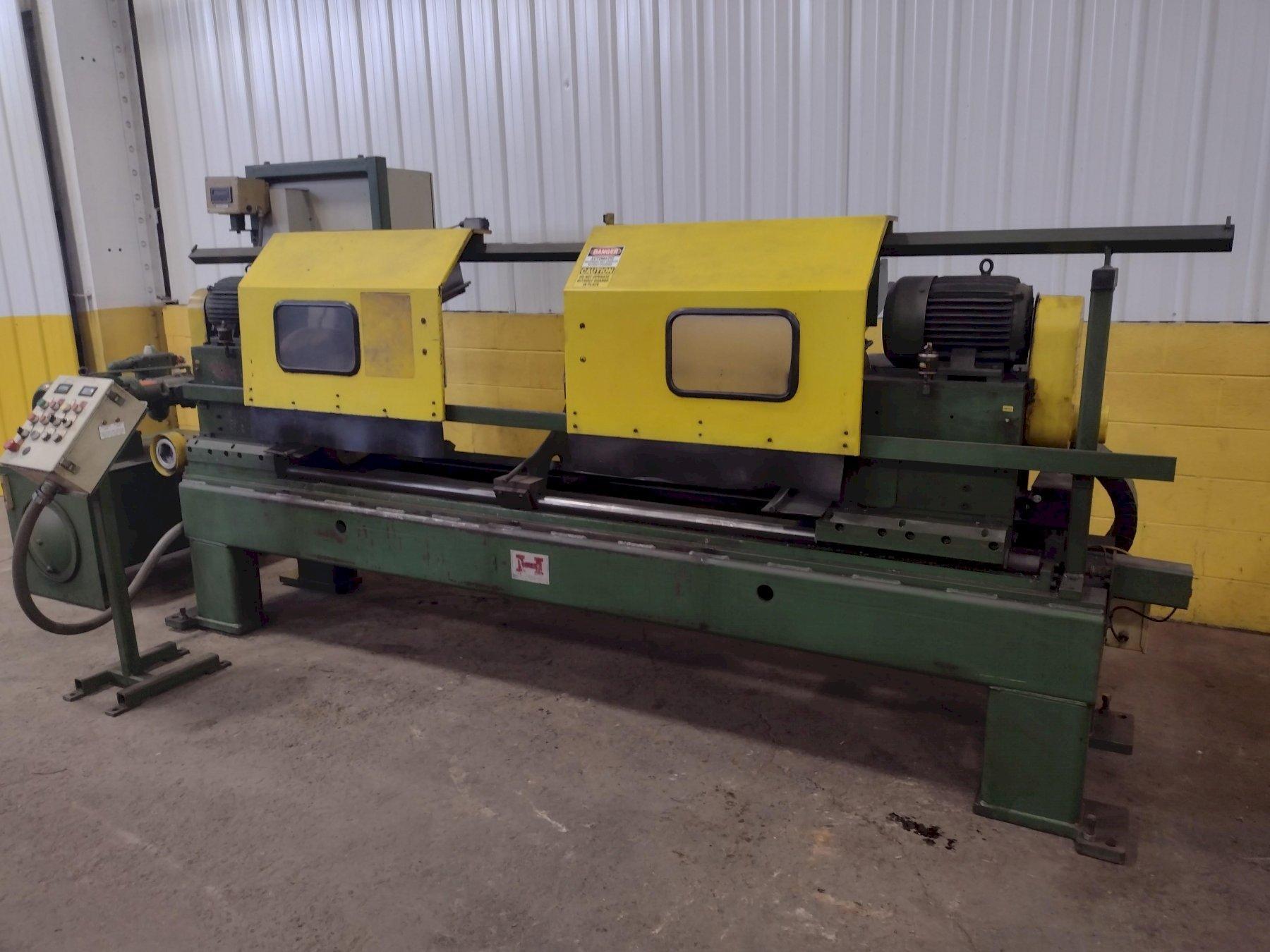

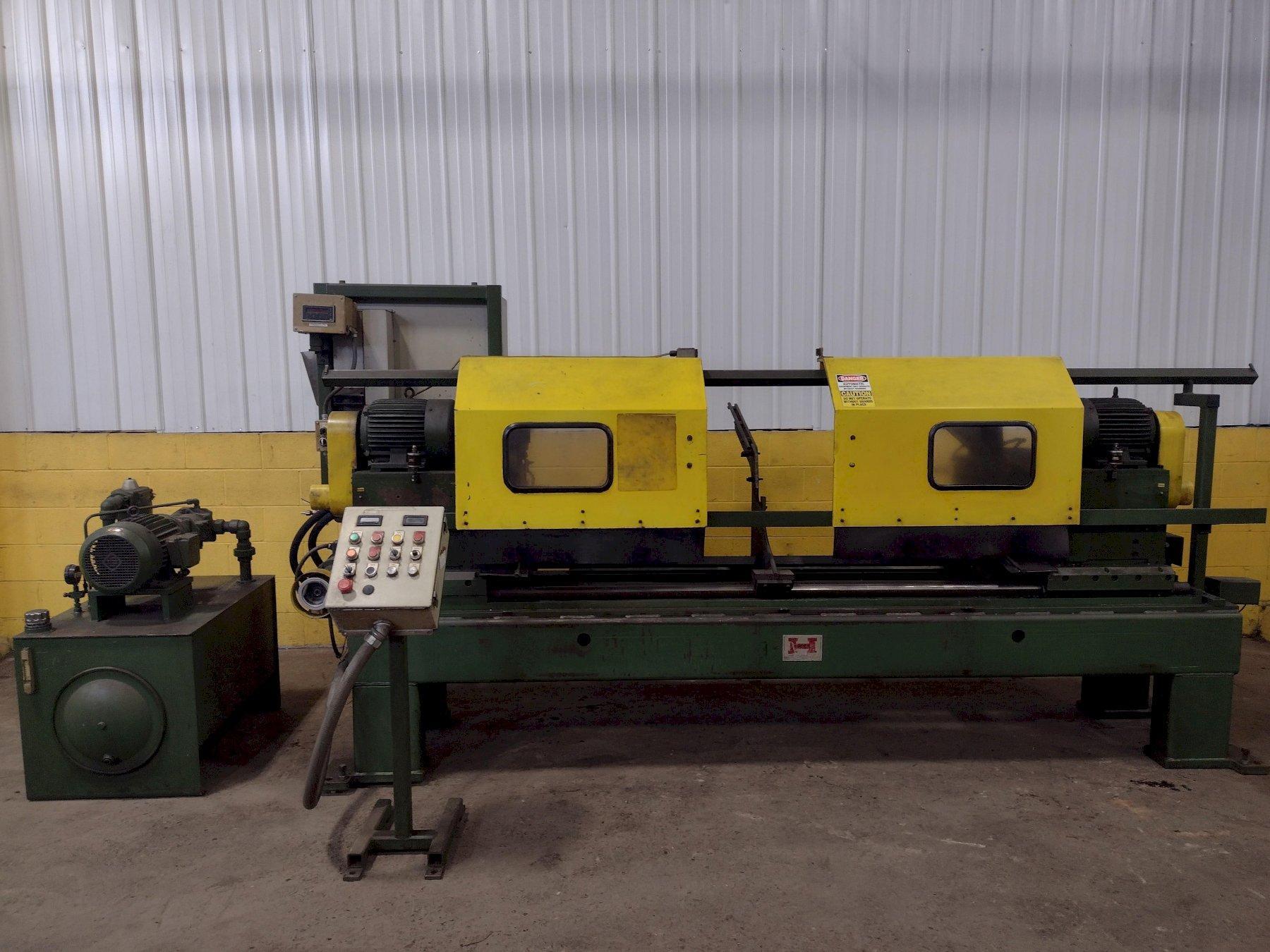

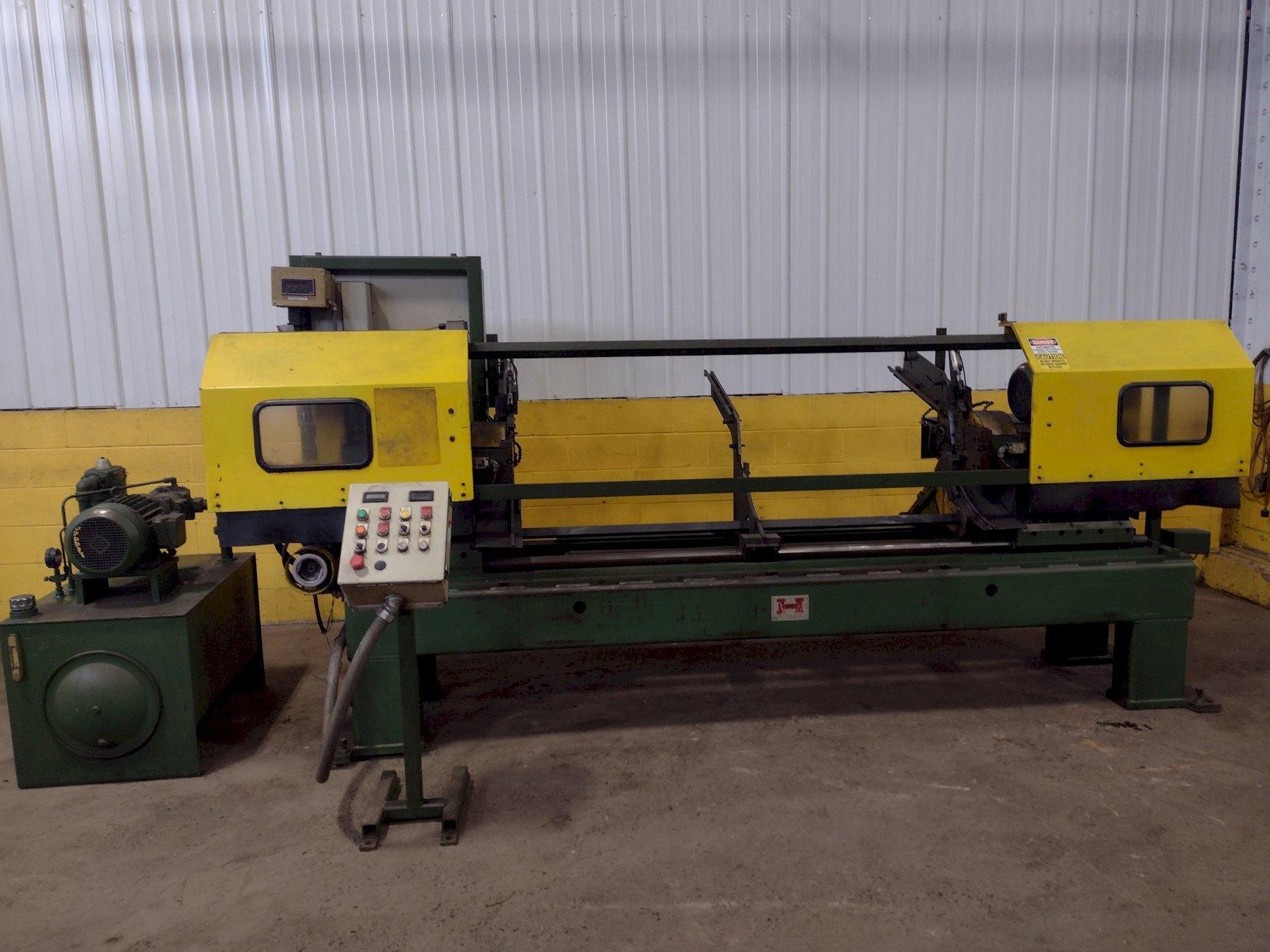

3″ X .120″ HAVEN 912 DOUBLE END CHAMFERING MACHINE: STOCK #15806

Manufacturer

HAVEN

Stock

15806

Model

912

Dealer Location

Ohio

Spec Sheet

Dimensions - 20′ x 7′ x 6.5′
Weight - 6000 pounds

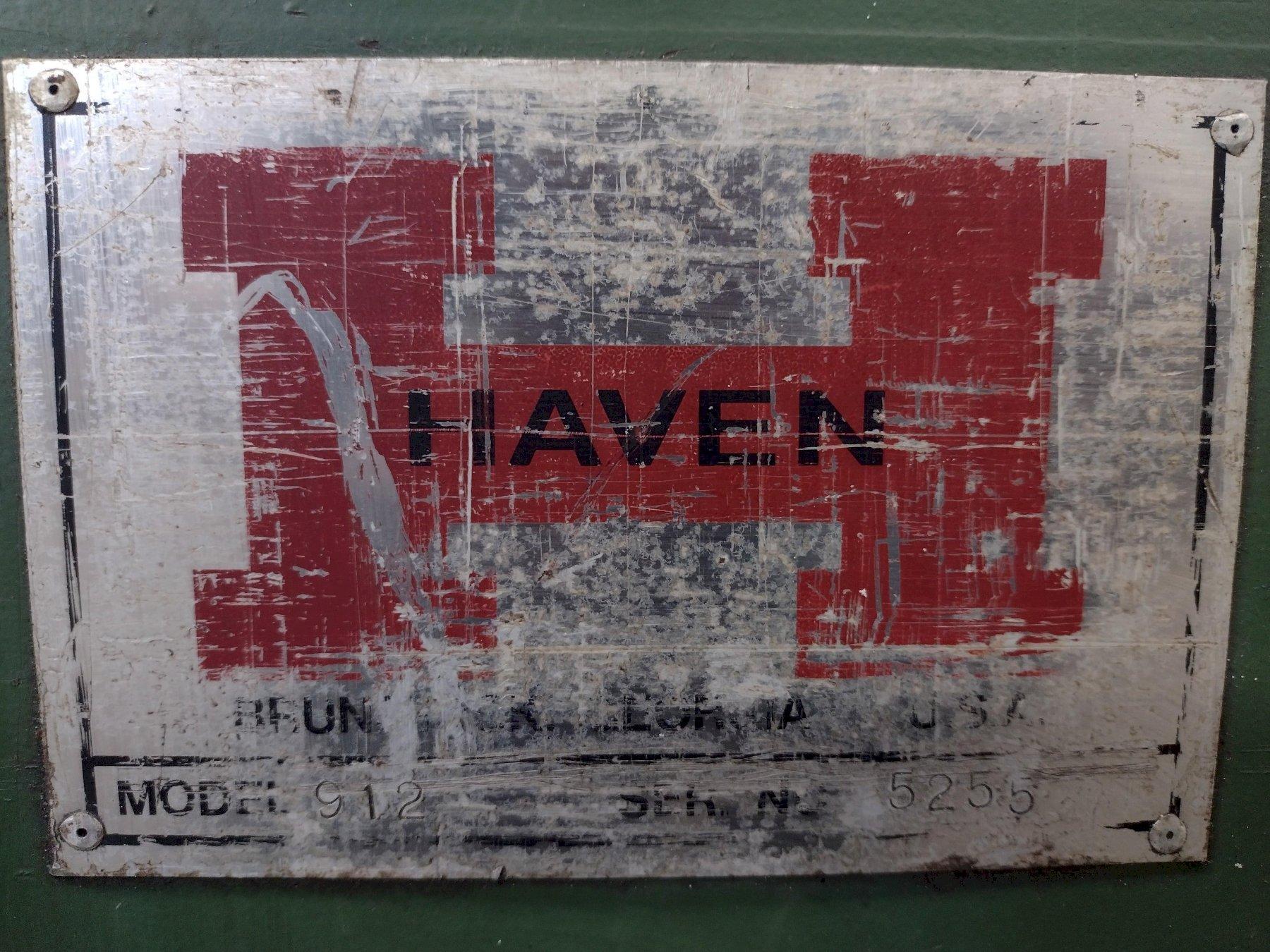

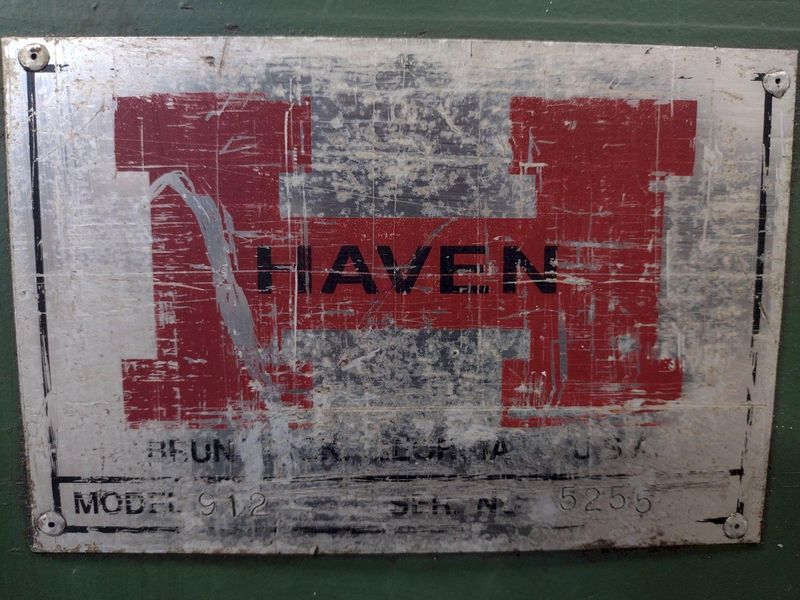

SERIAL ....................... 5255
MODEL ........................ 912
MAX TUBE DIAMETER ............ 3"
MIN TUBE DIAMETER ............ 1/2"
MAX WALL THICKNESS ........... 0.120"
MIN WALL THICKNESS ........... 0.28"
LENGTH ....................... 6" - 78"
FEED ......................... ADJUSTABLE, ELECTRIC

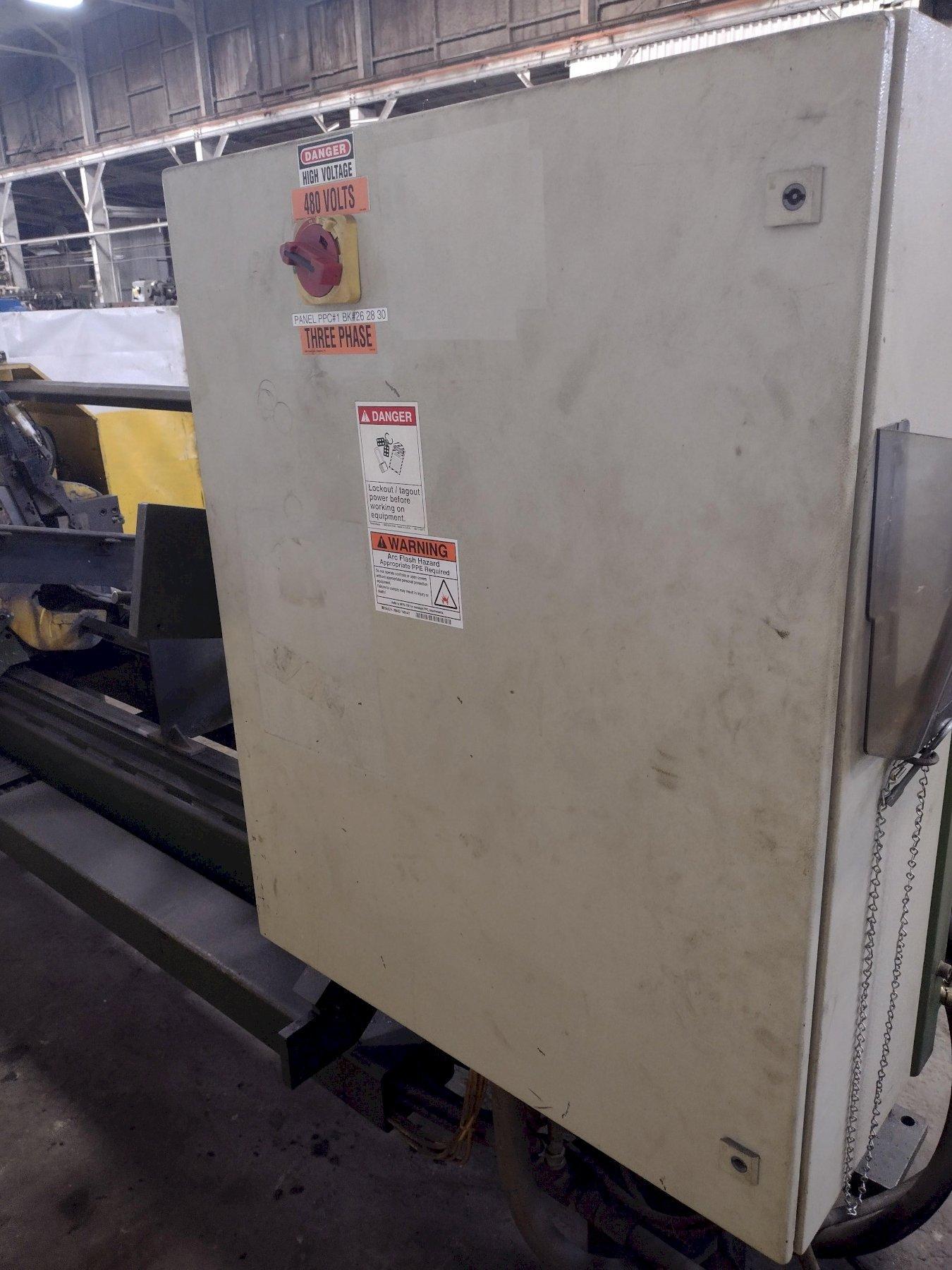

POWER ........................ 440-460 VAC/60 HZ/ 40 AMP

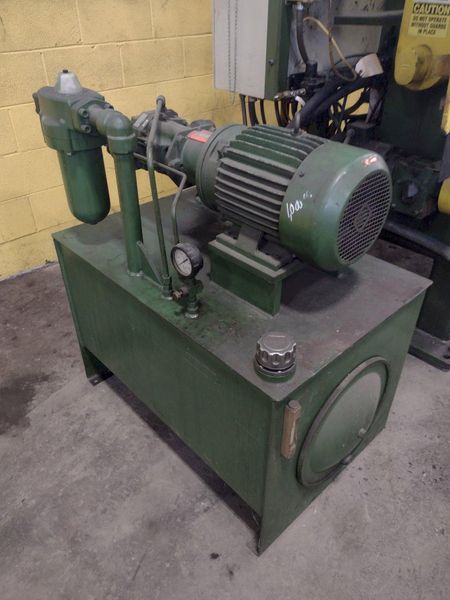

PNEUMATIC .................... 80 PSI-4 BAR
PRODUCTION RATE .............. 500-3,000 PARTS PER HOUR
LENGTH TOLERANCE ............. +/- .005"

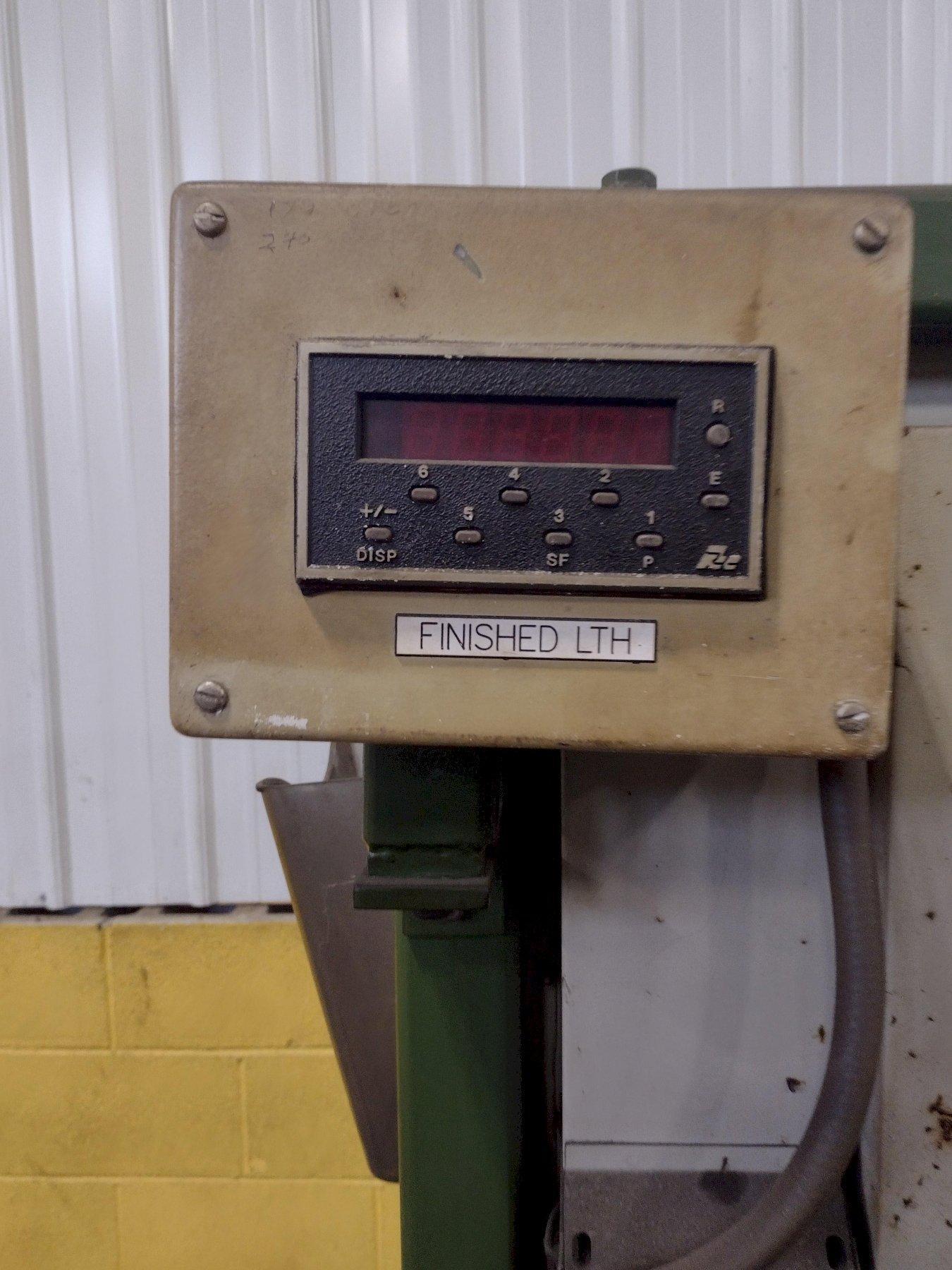

LENGTH READOUT ............... DIGITAL IN INCHES & MM

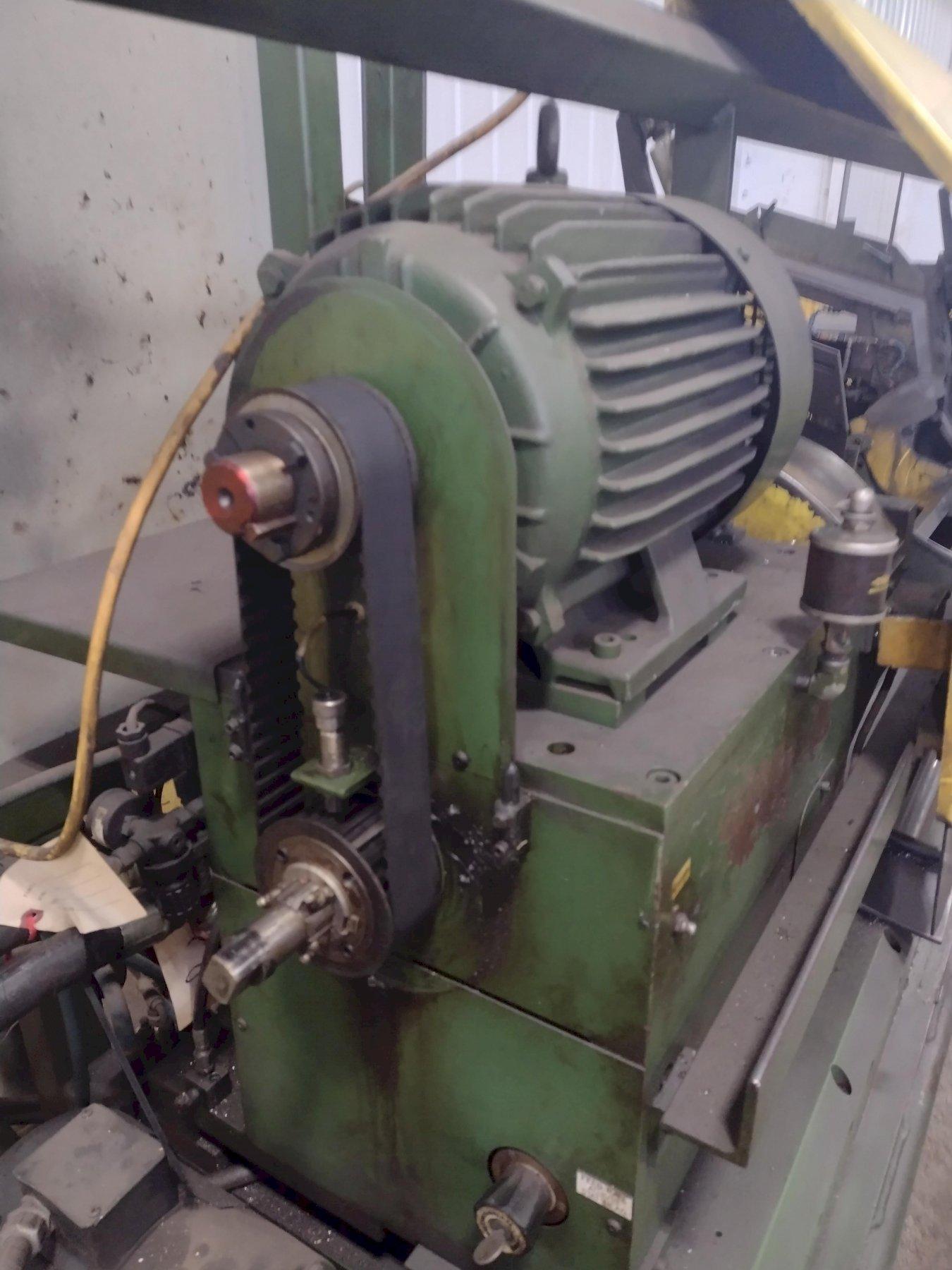

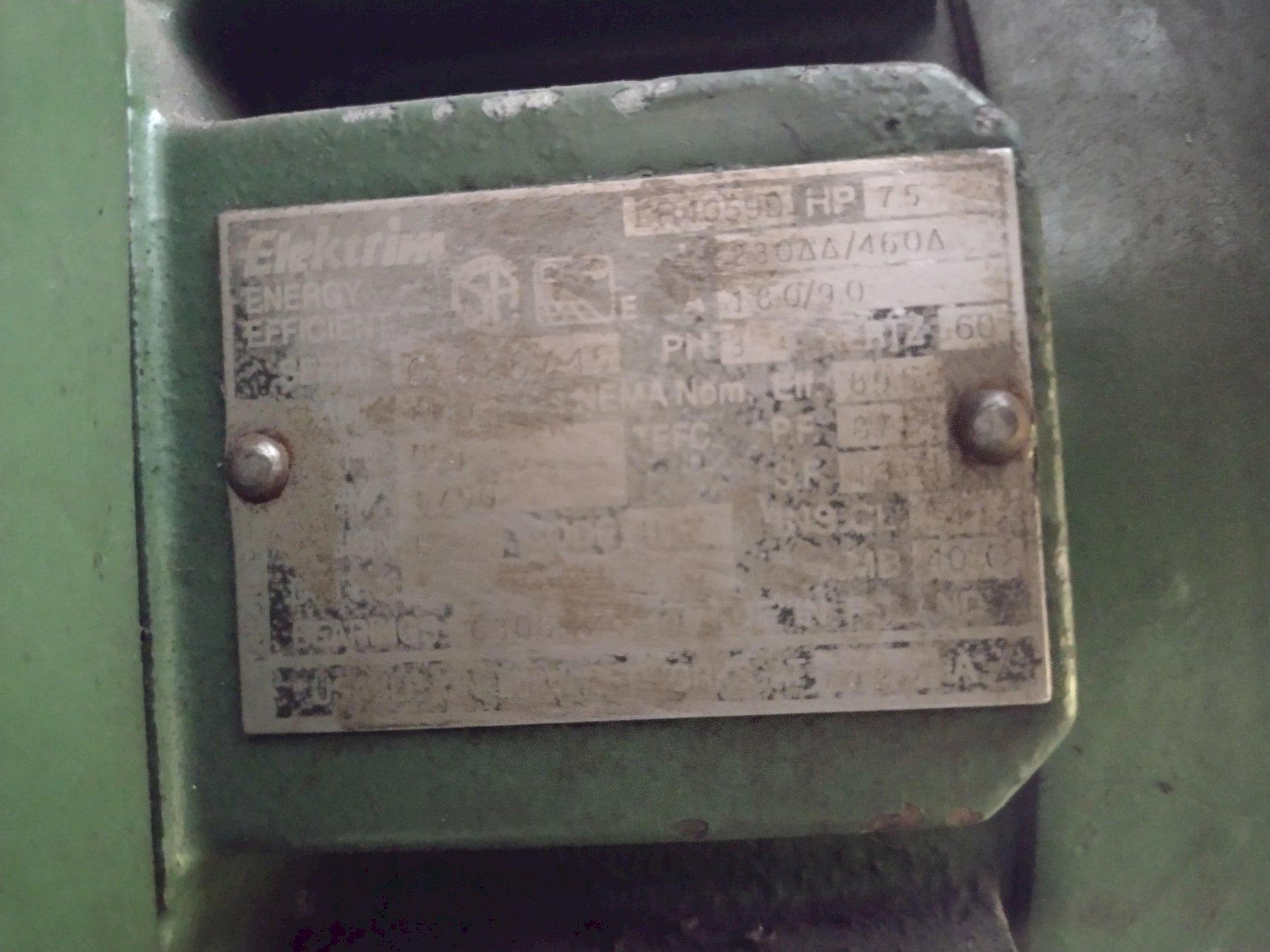

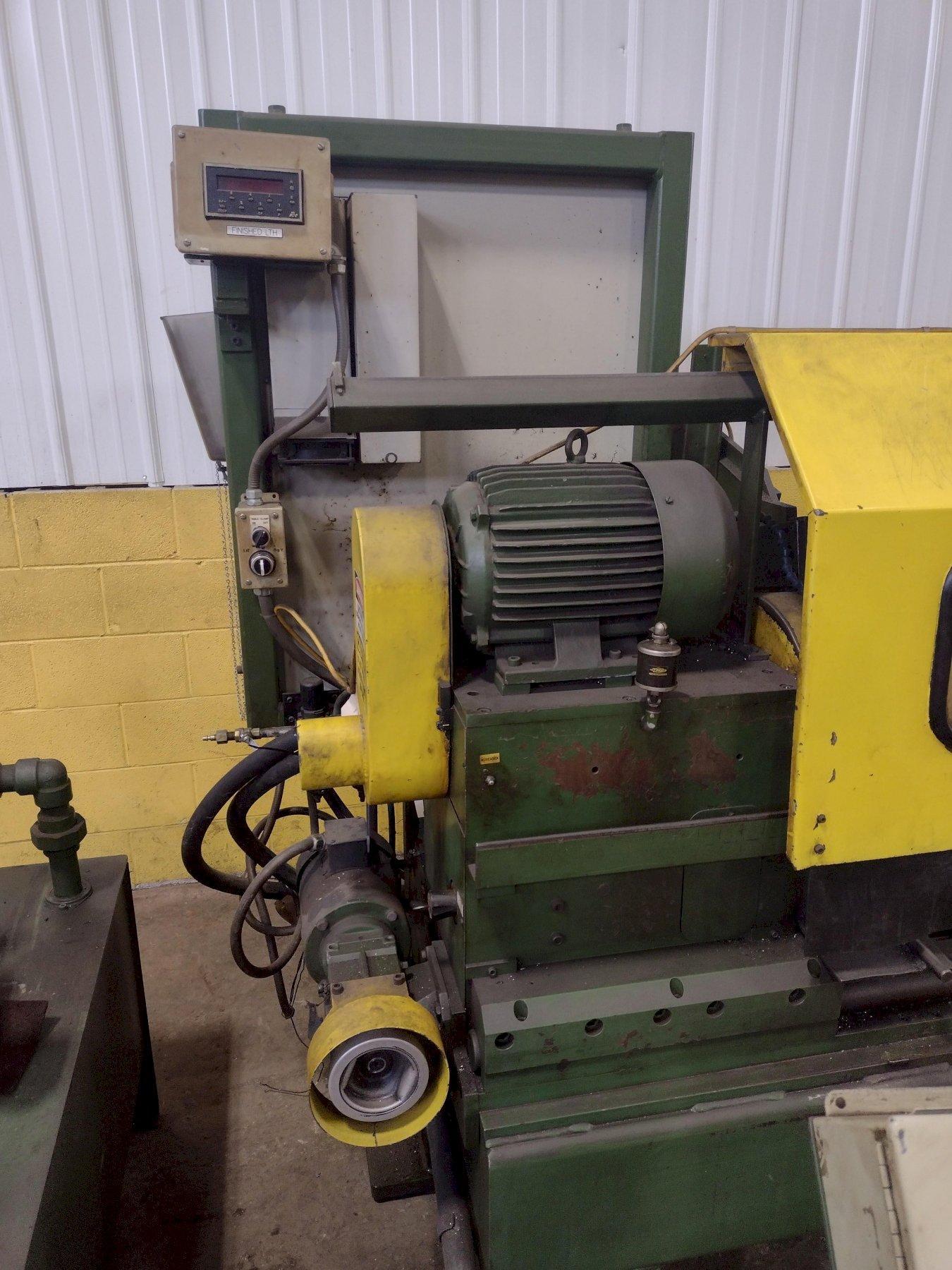

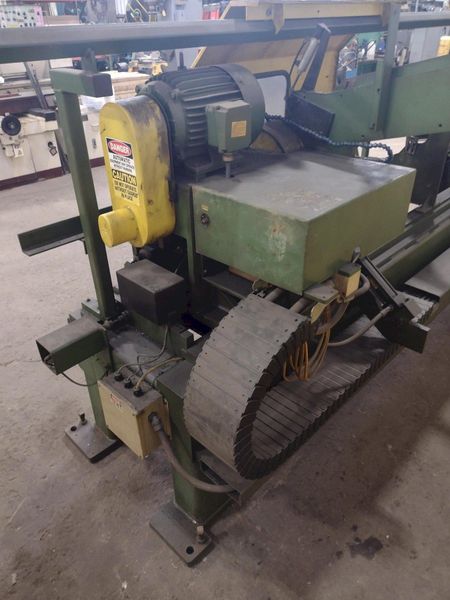

SPINDLE DRIVES ............... (2)MOTORS @ 7.5 HP
TUBE FINISH I.D. CHAMFER ..... 30 DEGREES
TUBE FINISH O.D. CHAMFER ..... 30 DEGREES

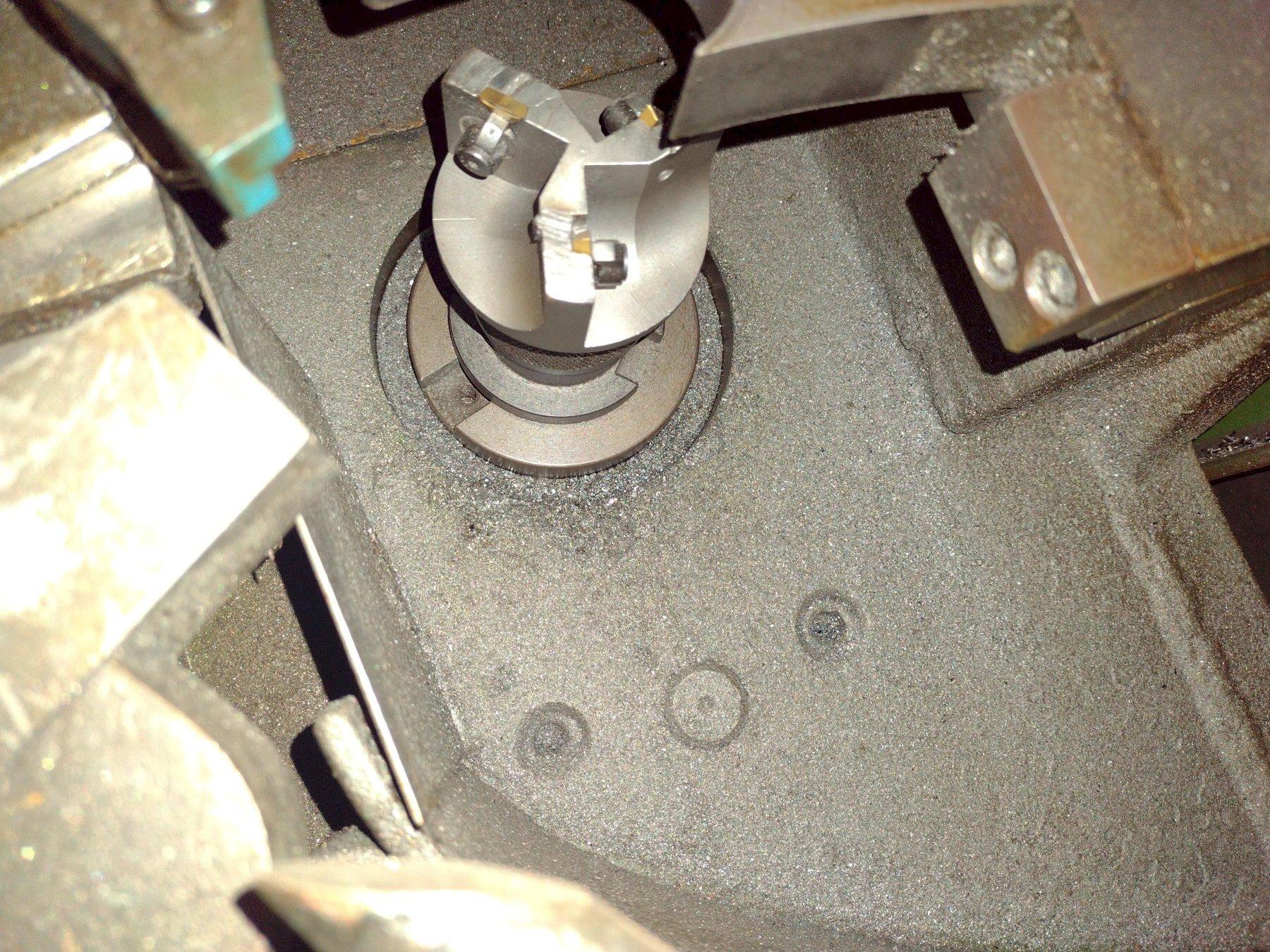

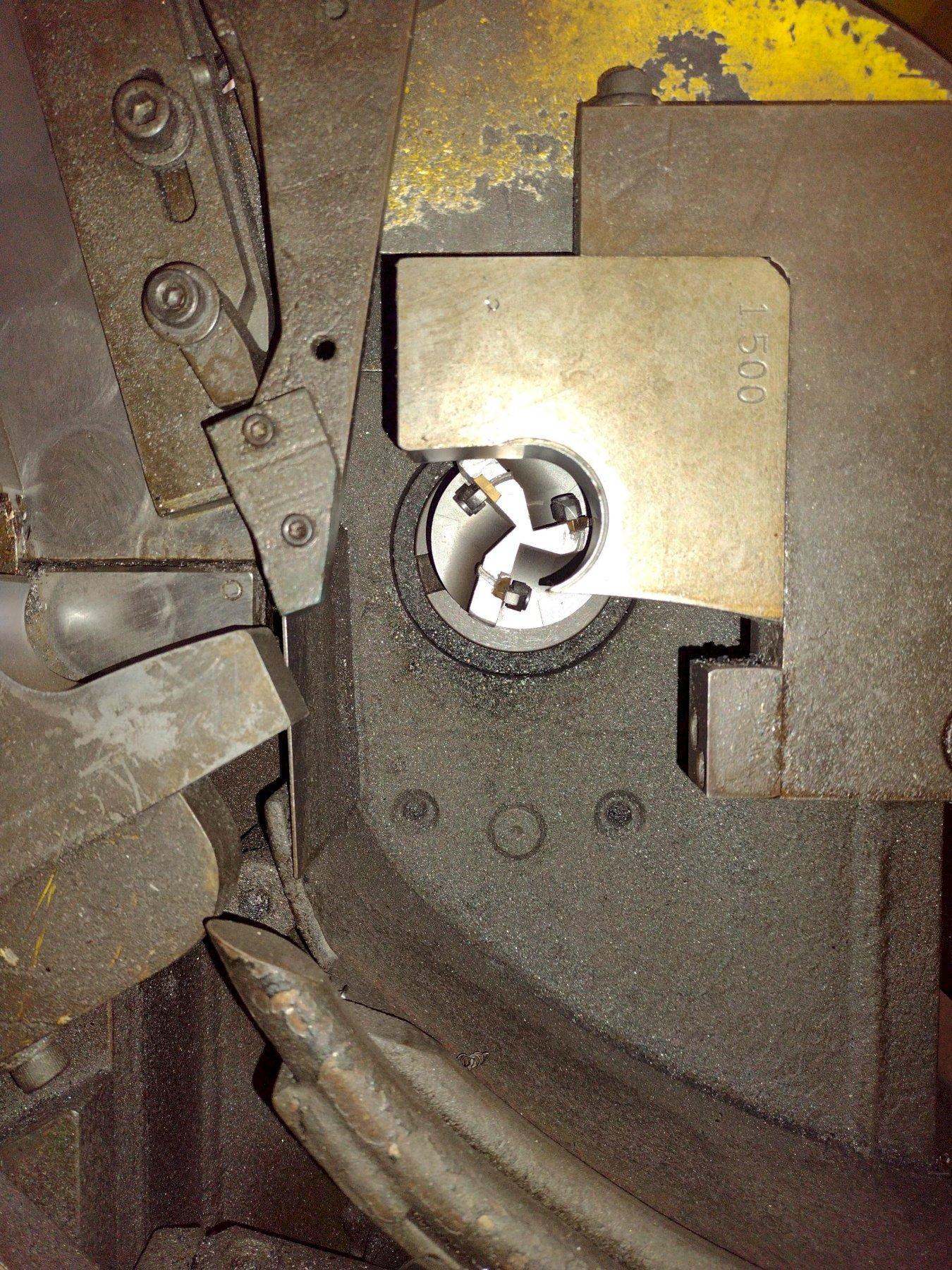

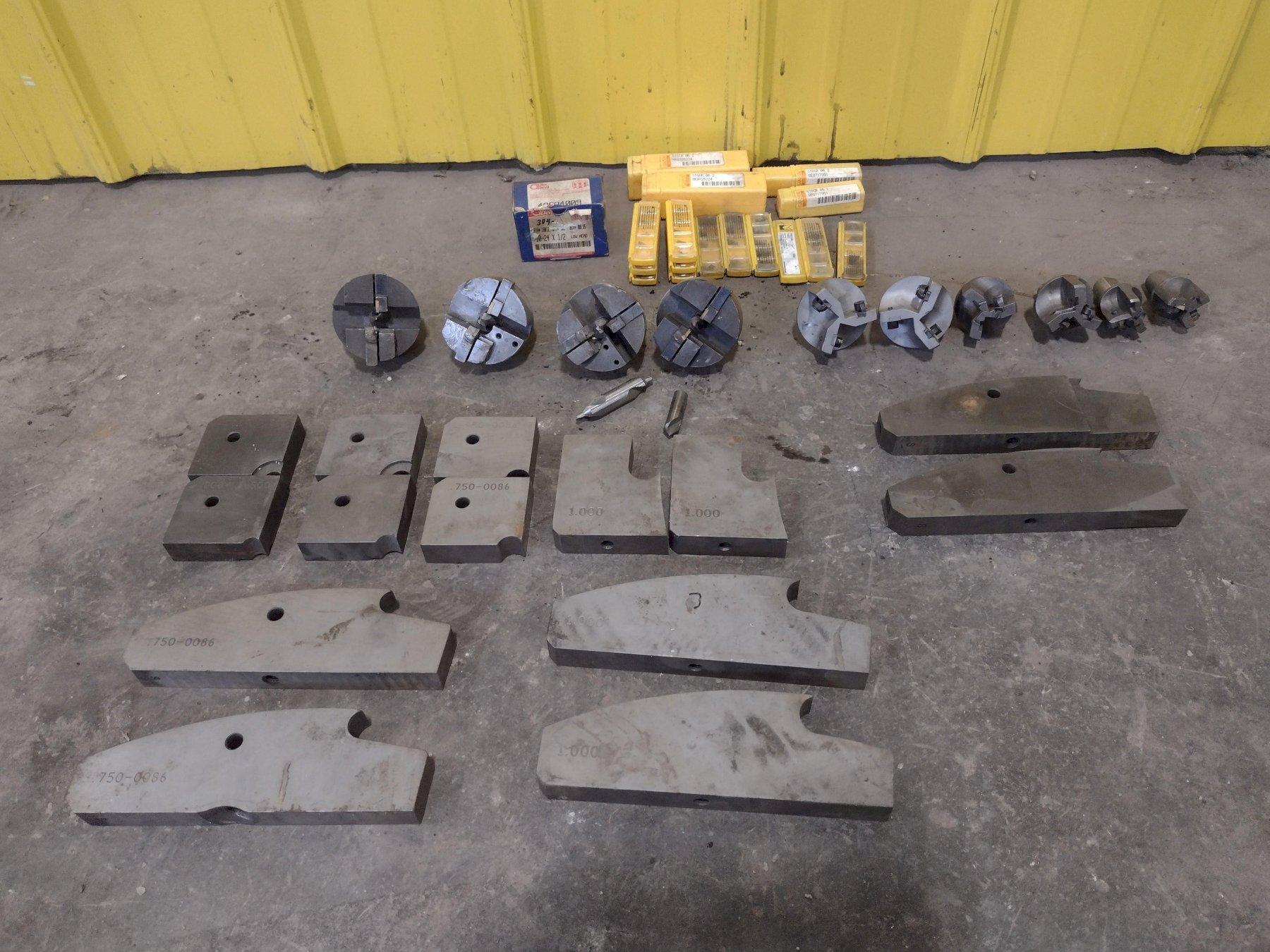

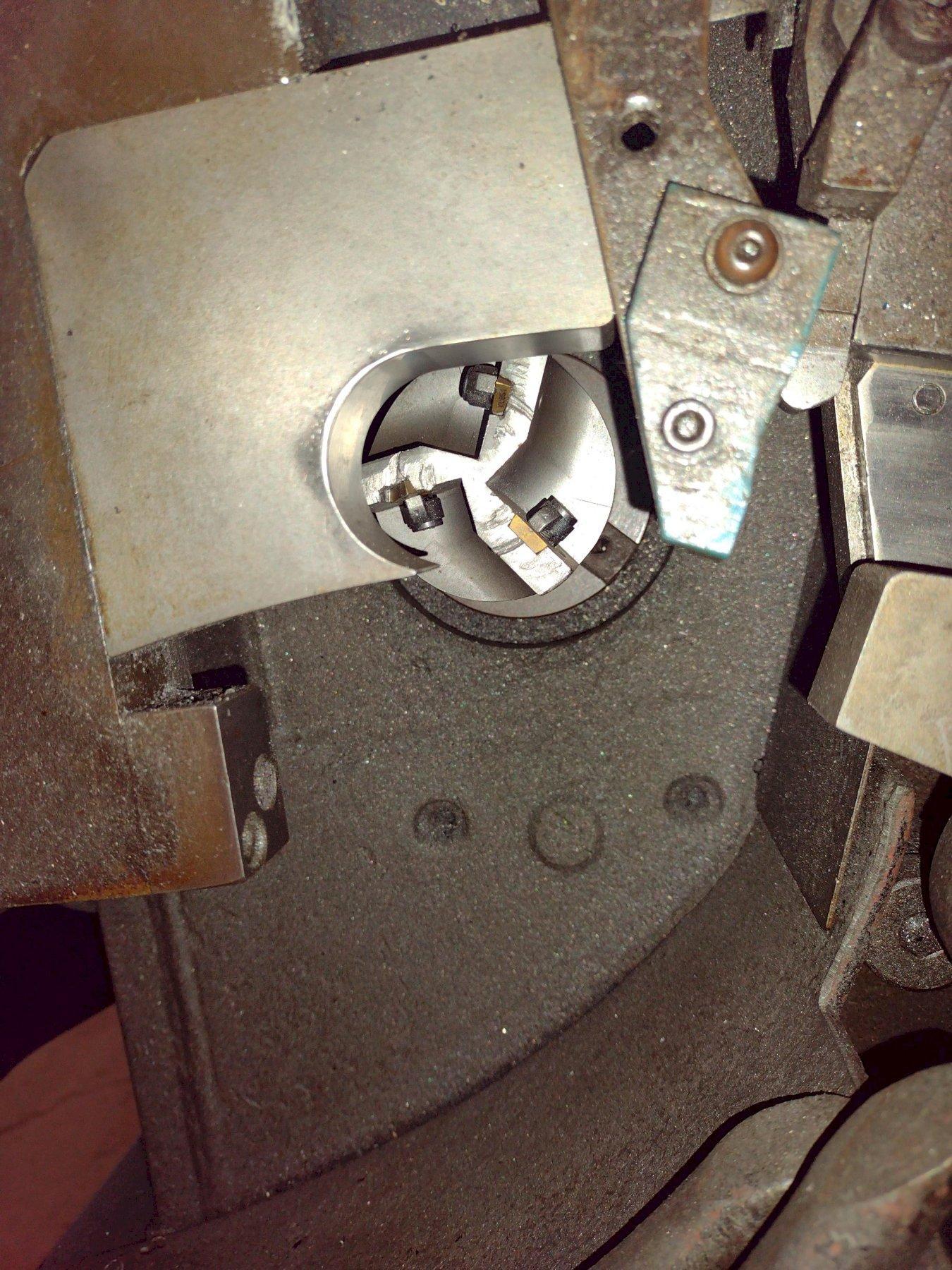

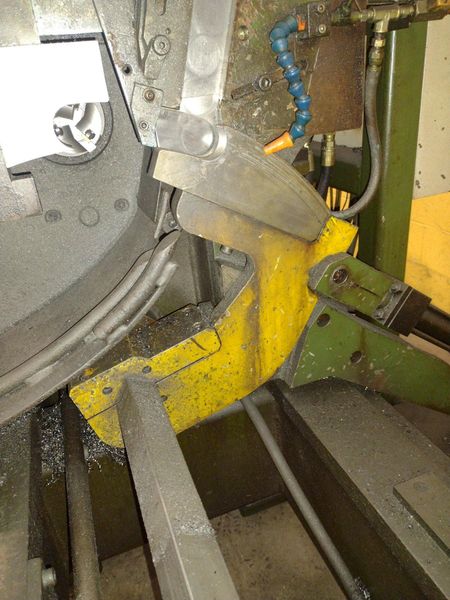

CUTTERS:
DEDICATED CARBIDE INSERTED NC TYPE CUTTERS
QUICK CHANGE TOOLING
ADJUSTABLE CARBIDE INSERTED CUTTER

END FACE FLAT & SQUARE TO CENTER LINE OF TUBE
