Mitsubishi MAF 280/210, 8.27" Spdl, X-492", Y-236", Z-90", 2800 RPM, Facing Head , 100 HP, Siemens 840D, #32218

Manufacturer

MITSUBISHI

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

32218

Model

MAF 280/210 NC

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32218

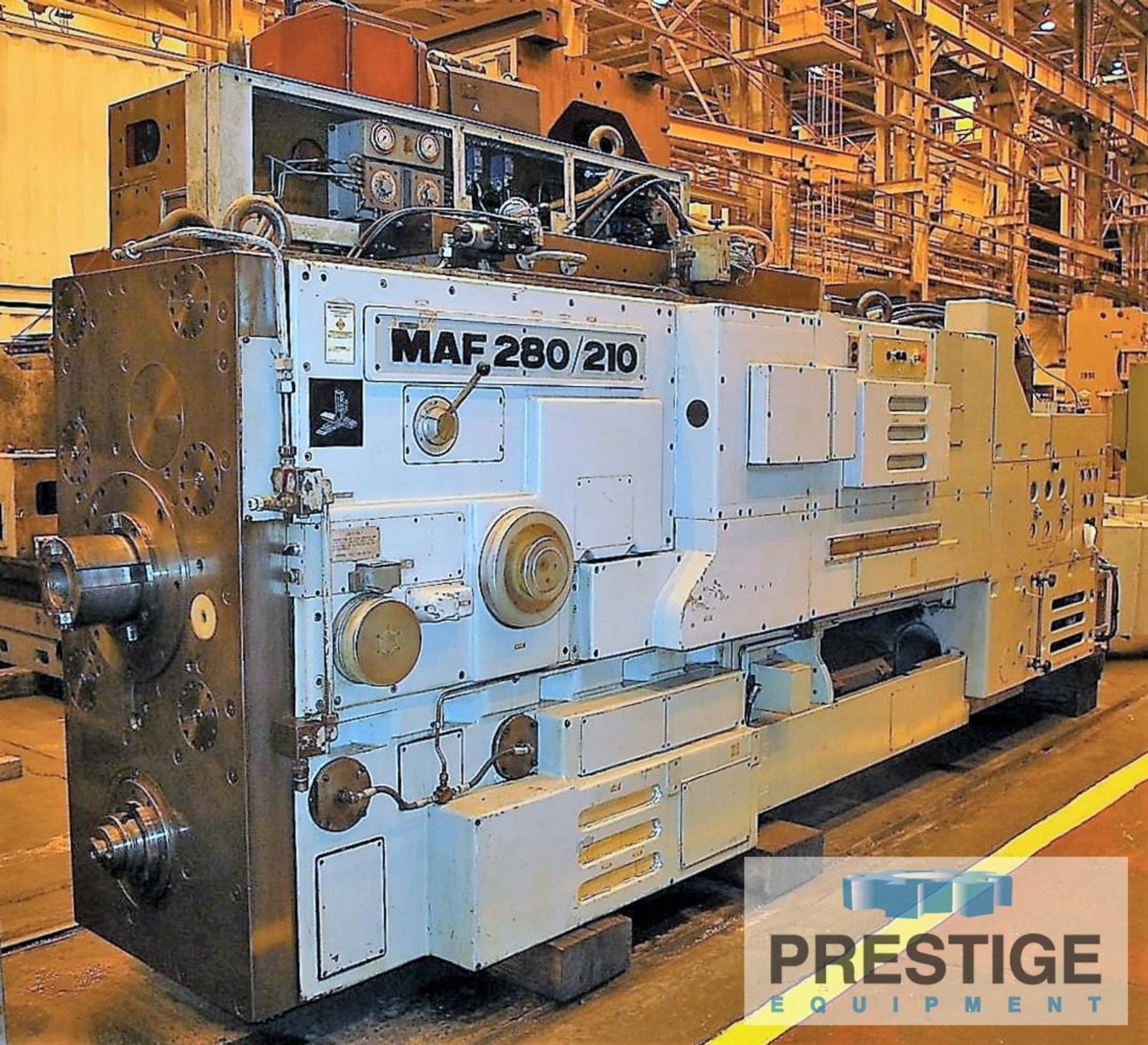

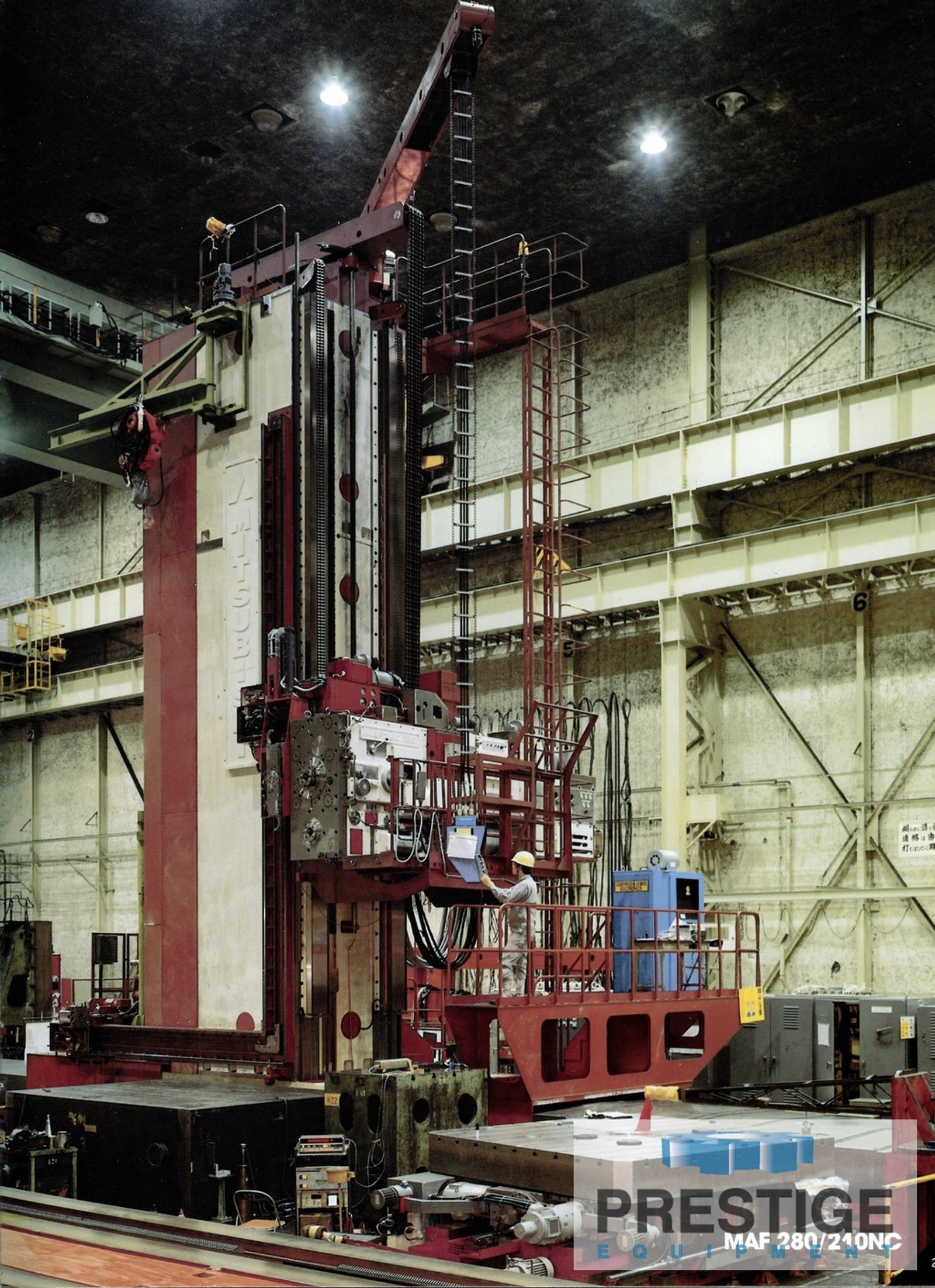

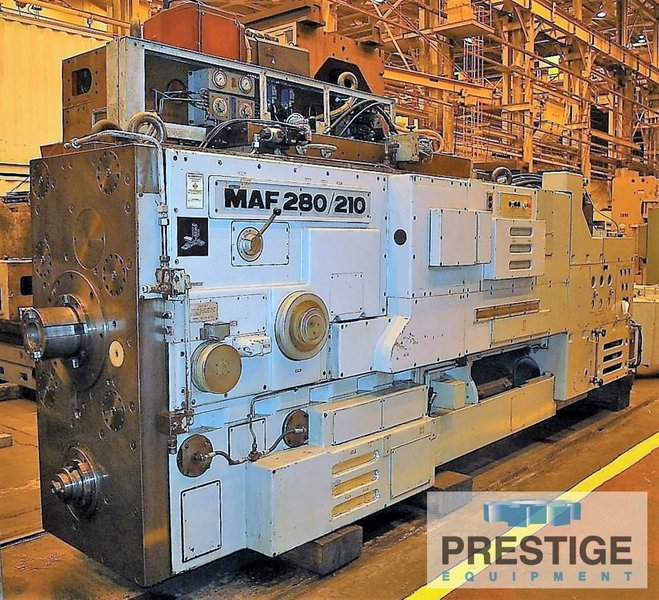

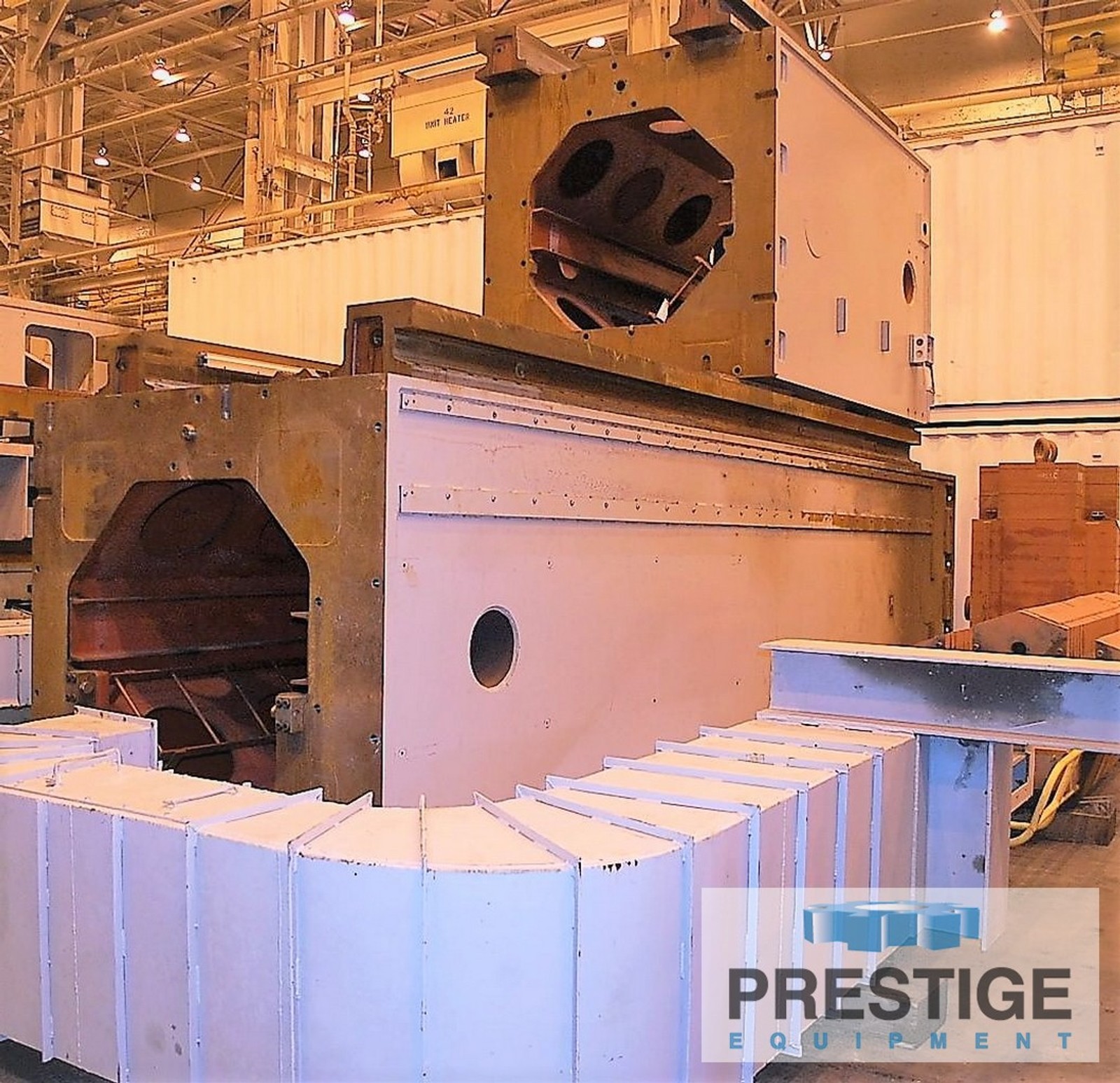

Mitsubishi MAF 280/210 8.26" Floor Type Horizontal Boring Mill

FEATURES:
Siemens 840D Solutionline CNC Control - Retrofit 2010
Universal Milling Head
Surface Facing Head, U-Axis
Long Reach Milling Attachment: #50 Taper, 1200 RPM
2800 RPM Auxiliary Spindle
Through Spindle Coolant

SPECIFICATIONS:
Spindle Diameter ..................... 8.27"
Column Travel, X-Axis ................ 492.12"
Headstock Vertical Travel, Y-Axis .... 236.22"
Main Spindle Horiz Travel, Z-Axis .... 51.18"
Ramstock, Travel, W-Axis ............. 39.37"
Combined Travel Z & W Axis ........... 90.45"
Auxillary Spindle, C-Axis ............ 19.68"
Ramstock, Travel, W-Axis ............. 39.37"
Combined Travel C & W Axis ........... 59.05"
Main Spindle Speeds, Z-Axis .......... 3-600 RPM
Auxillary Spindle Speeds, C-Axis ..... 75-2800 RPM
High Speed Shaft For Attachments ..... 7-2500 RPM
Front Plate Dimensions ............... 31.69" x 42.32"
Rapid Traverse X,Y,Z Axes ............ 196.85 IPM
Feed Rate ............................ 0.04-157.48 IPM

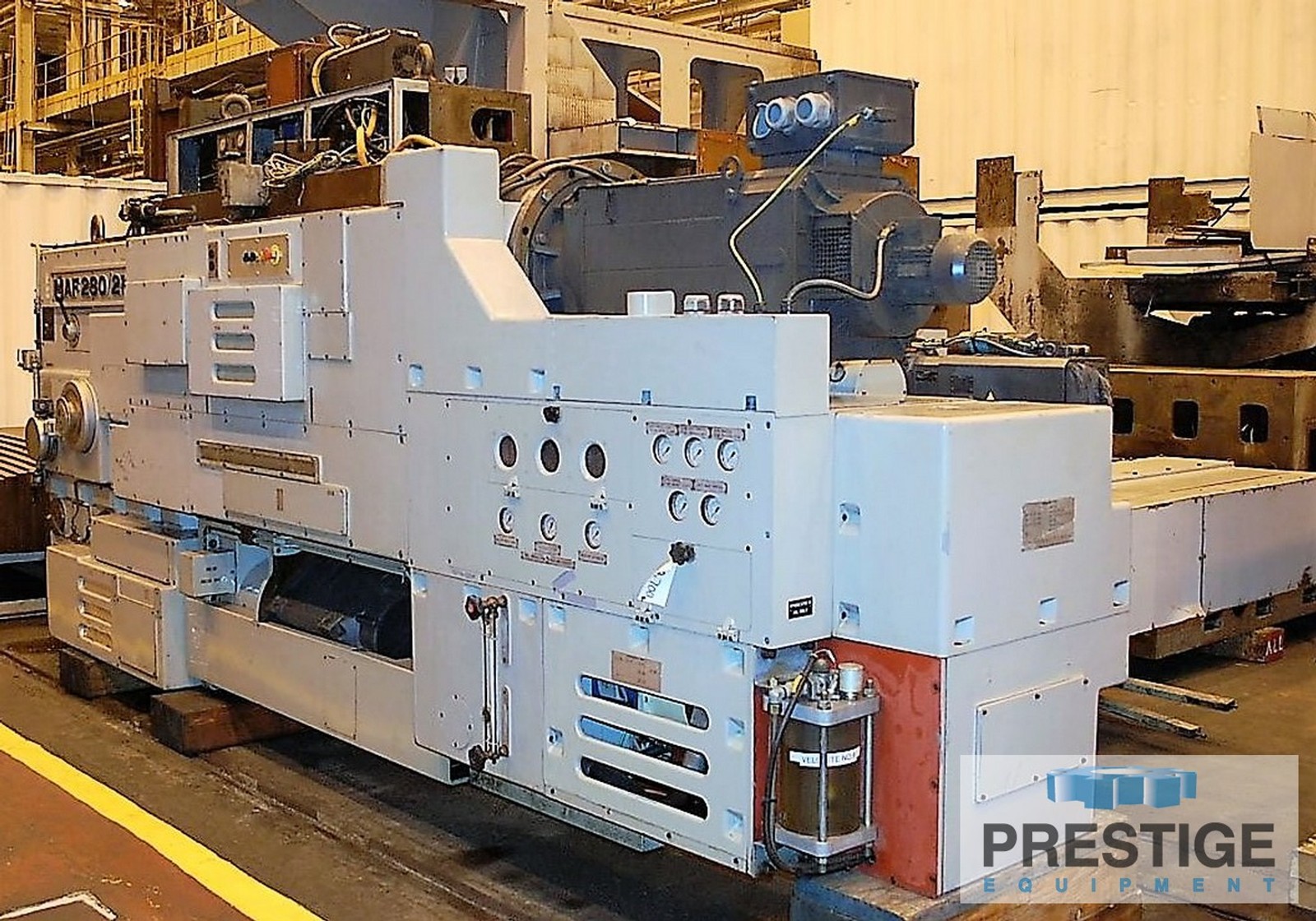

HEADSTOCK:
Main Spindle, Z-Axis:
Boring Spindle Diameter .............. 8.26"
Milling Spindle Diameter ............. 12.20"
Spindle Taper ........................ #60 ANSI
Spindle Travel, Z-Axis ............... 51.18"
Speeds ............................... 3-600 RPM
Spindle Motor ........................ 100 HP/ 120 HP

Auxillary Spindle, C-Axis:
Spindle Diameter ..................... 11.02"
Spindle Taper ........................ #60 ANSI
Spindle Travel ....................... 19.68"
Spindle Speeds ....................... 75-2800 RPM
Maximum Thrust ....................... 6,600 Lbs
Spindle Motor ........................ 20 HP
Coolant Thru Spindle ................. Yes
DESCRIPTION OF AXES:
Column Travel ........................ X-Axis
Spindle Vertical ..................... Y-Axis
Main Spindle In & Out ................ Z-Axis
Auxilliary Spindle In & Out .......... C-Axis
Surfacing Slide ...................... U-Axis
Headstock In & Out ................... W-Axis

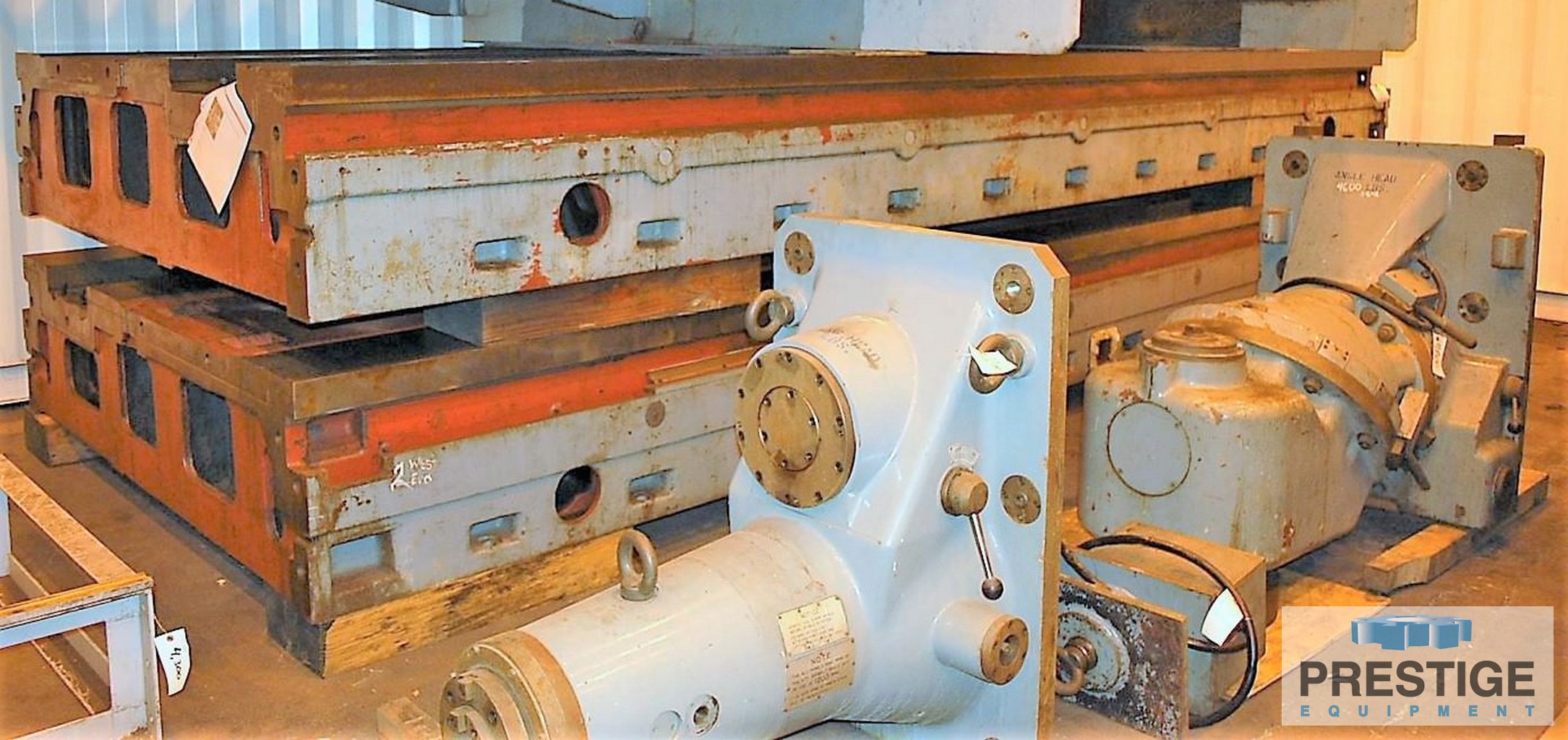

EQUIPPED WITH:
Siemens 840D Solution Line CNC Control (Retrofit 2010)
2800 RPM Auxillary Spindle
Through Spindle Coolant

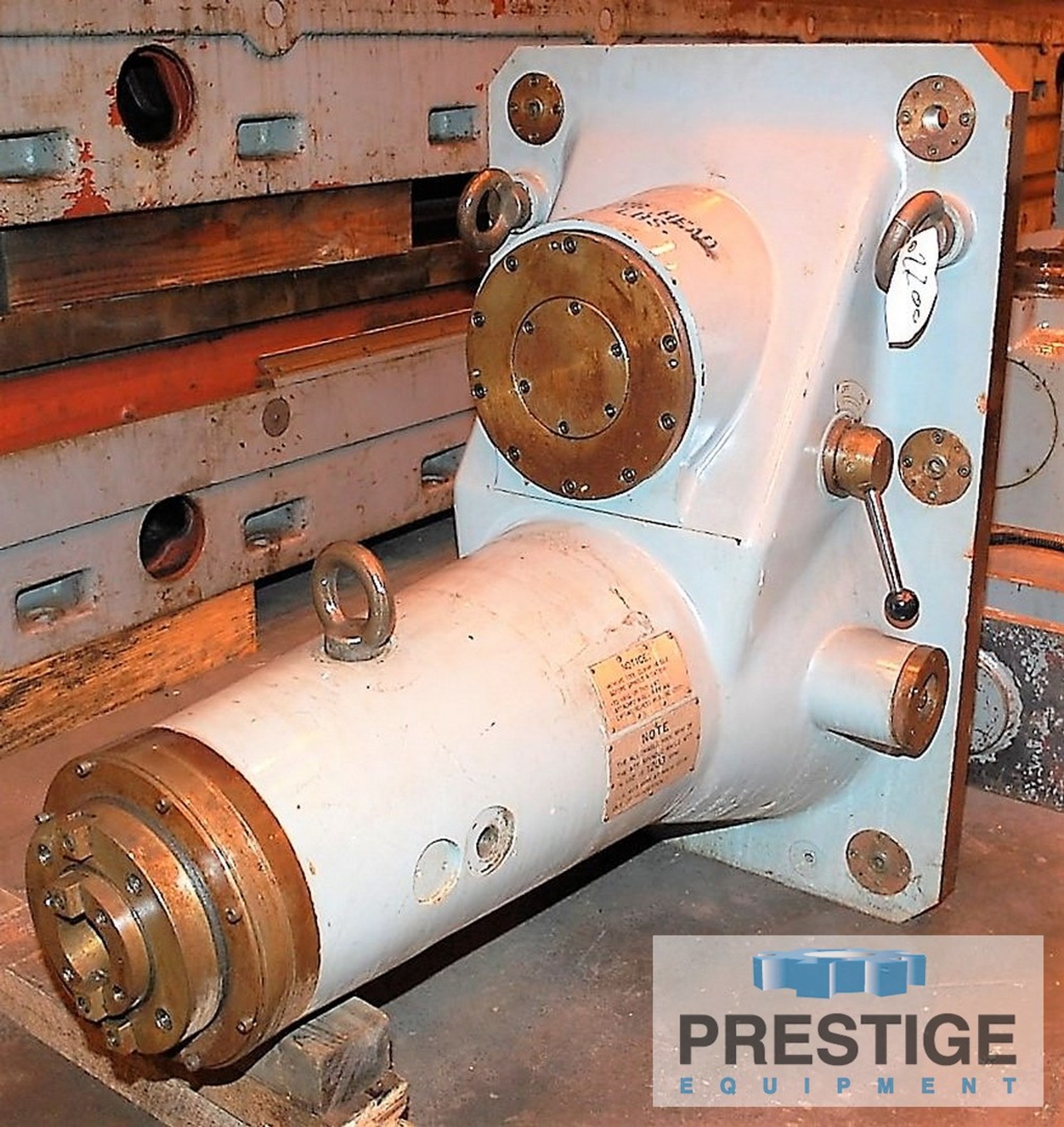

Long Reach Milling Attachment: #50 Taper, 1200 RPM

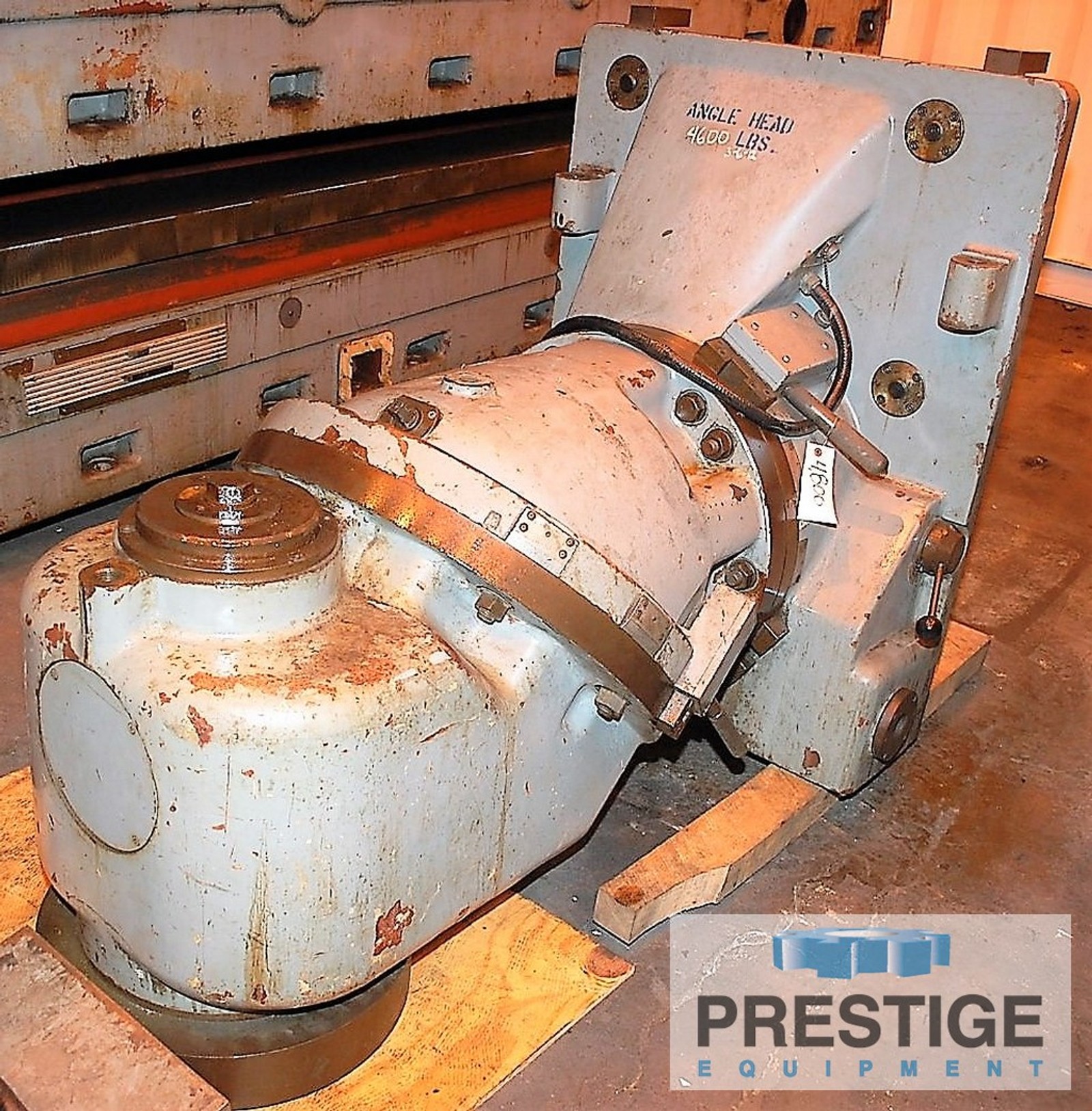

Universal Milling Head, Model UHM-40, 42" Reach

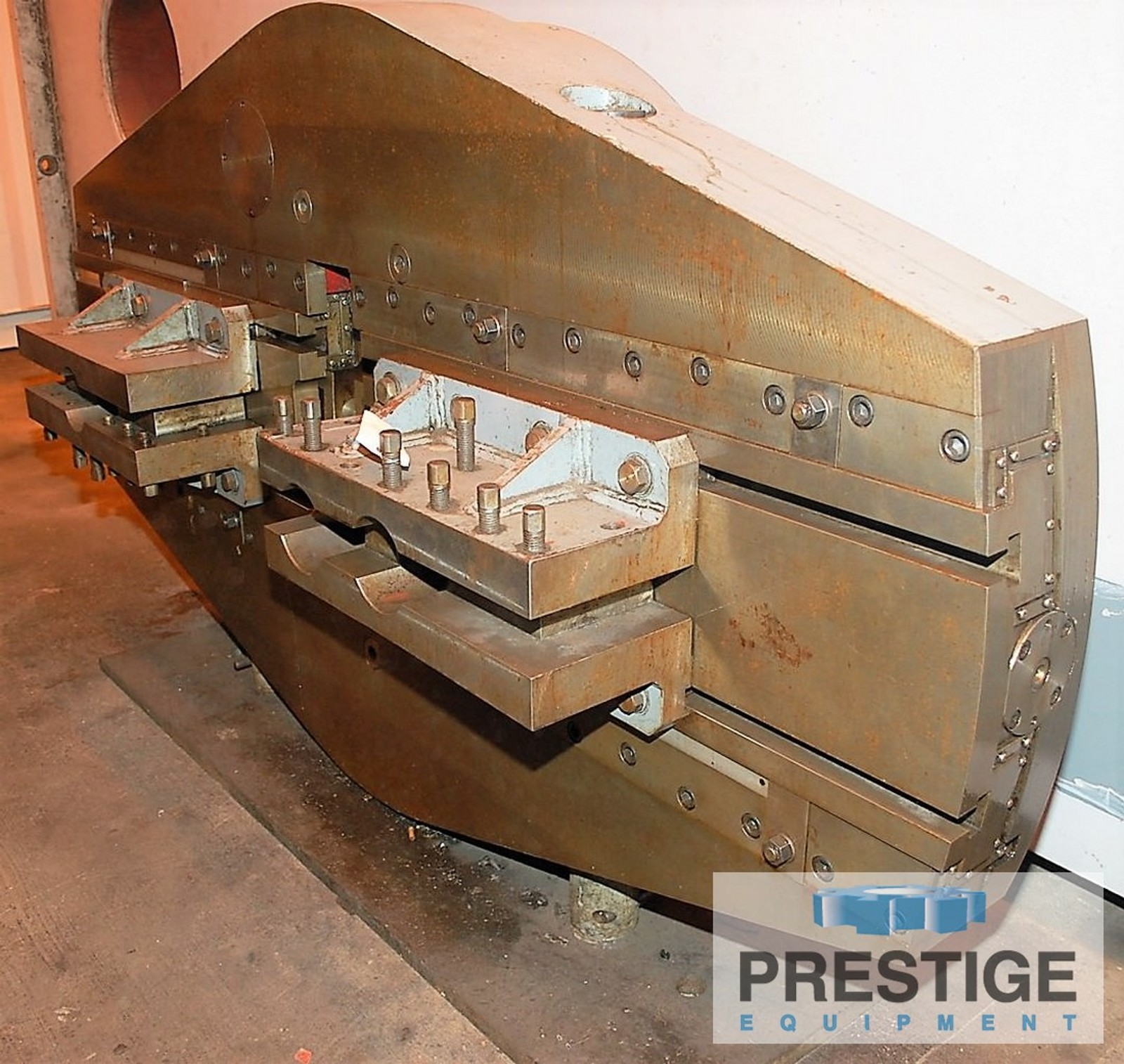

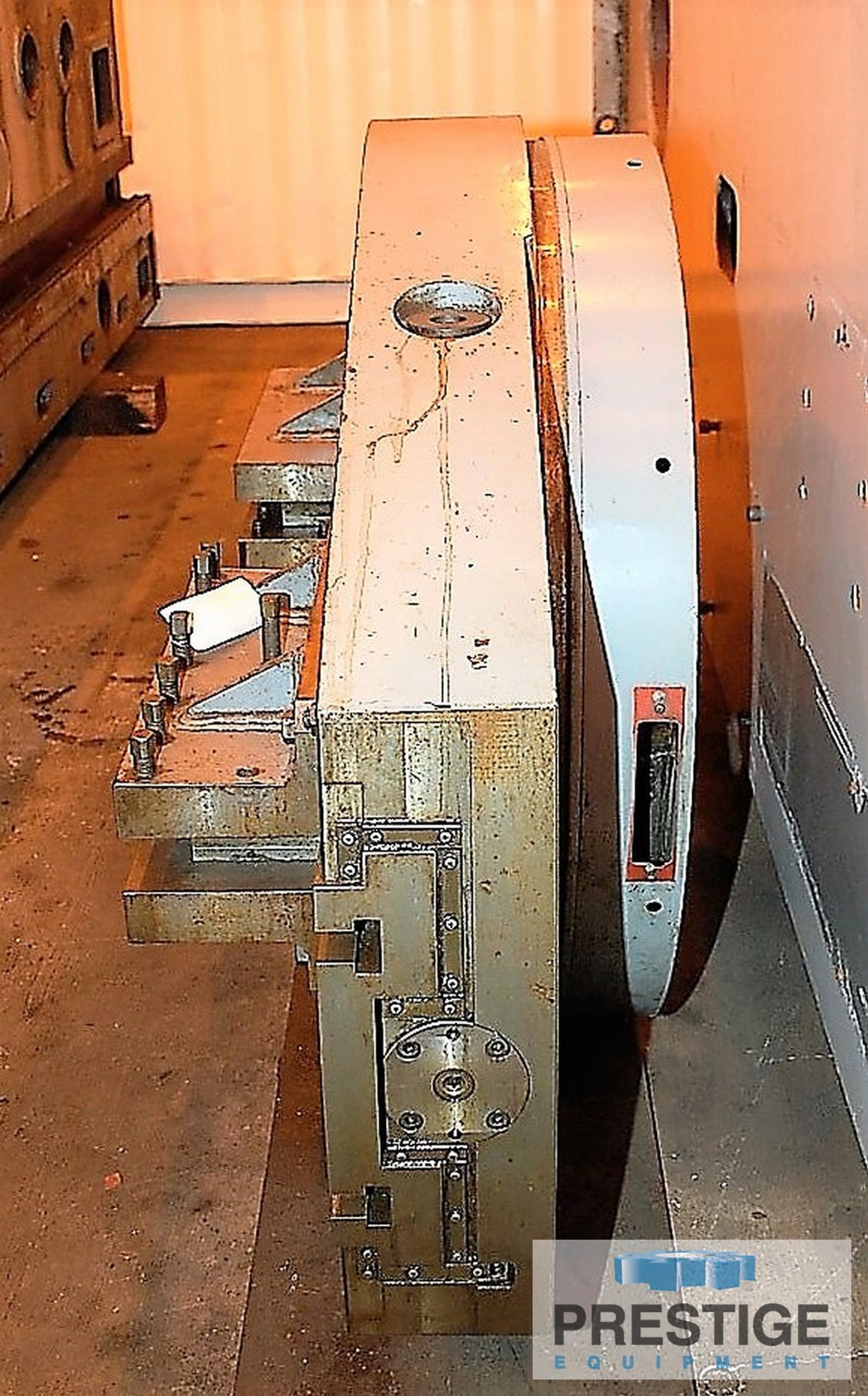

Facing Head, Surfacing Slide, Model SHM-2000 U-Axis
Full Length Chip Conveyor
New Spare Spindle & Bearings Available
2-Ton Jib Crane For Loading Attachments
100 HP / 120 HP Main Spindle Motor

NOTE:
Machine Was Built New in 1980's and Installed In USA Government Facility. Partially Rebuilt and Retrofit with New Siemens 840D CNC Controls in 2010. Inspect In Our Philadelphia PA Warehouse

No Video Available
