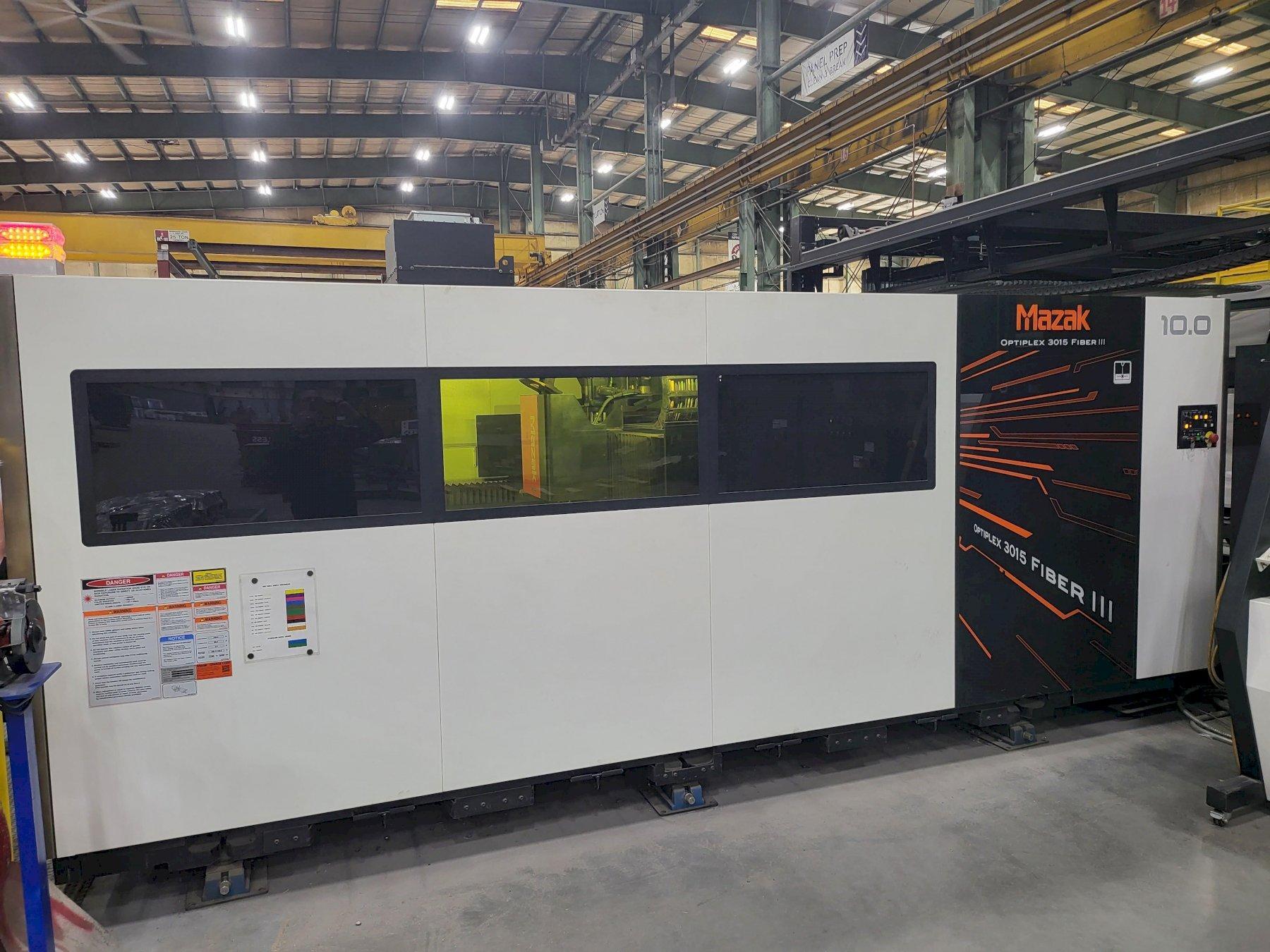

2021 Mazak Optiplex 3015 Fiber III 10KW Laser Cutting Cell (#4668)

Manufacturer

Category

Laser Cutting

Type

LASERS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

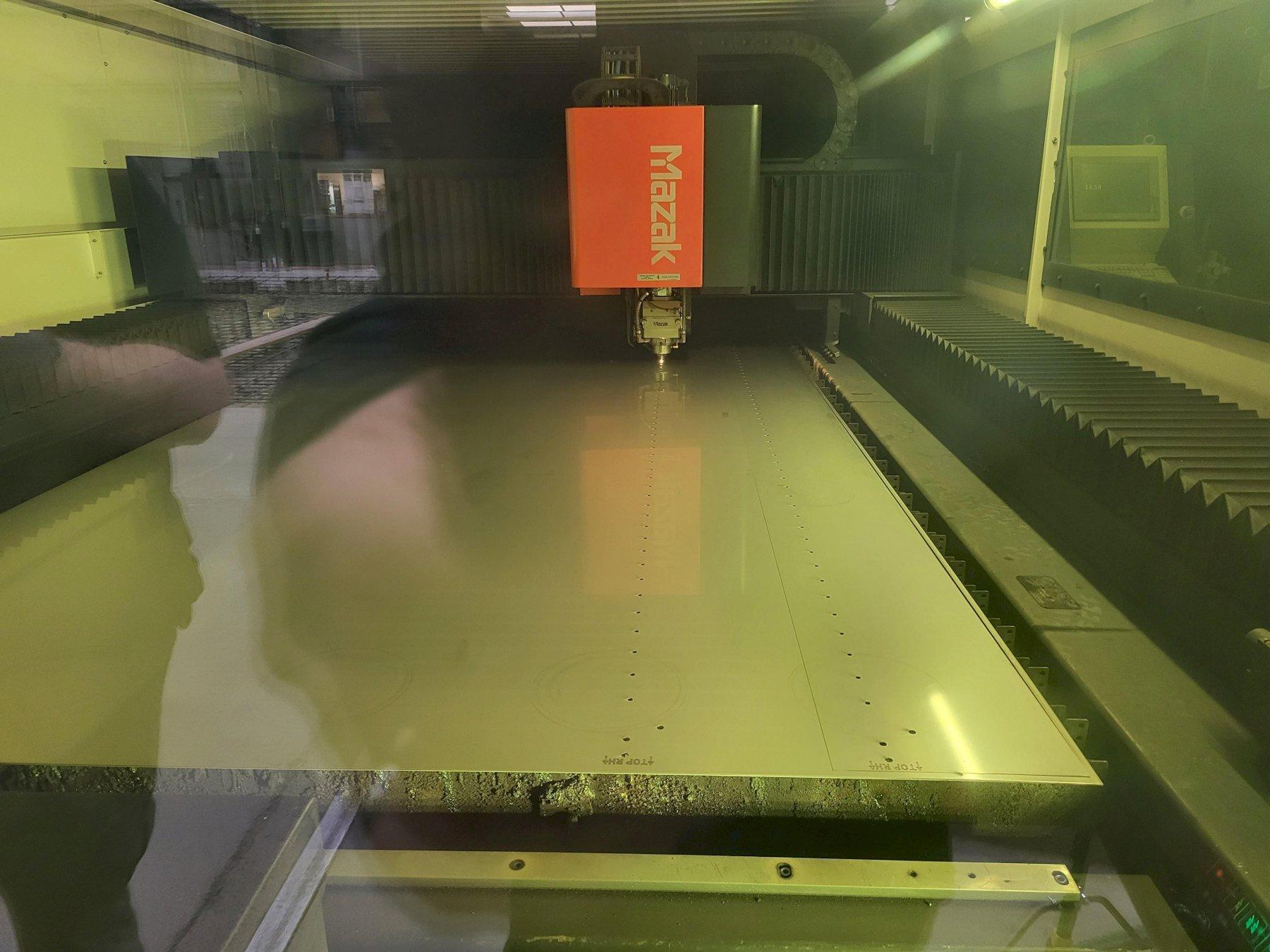

5’ X 10’ 10KW Fiber Laser Cutting System with Mazak Mazatrol Preview G 19” Touch Screen CNC Controller, IPG YLS 10000 Fiber Laser Source, IPG Chiller, 10 Shelf FMS Tower (complete Auto Loading/Unloading) w/Complete Safety Guarding & Liberty Systems Nitrogen Generator, Still Under Factory Warranty!

GENERAL SPECIFICATIONS
Capacity
Maximum Cutting Size Right/Left 3050 mm / 120.08 in
Maximum Cutting Size Longitudinal 1525 mm / 60.04 in

Feed Axes
Travel (X axis) 3110 mm / 122.44 in
Travel (Y axis) 1595 mm / 62.8 in
Travel (Z axis) 110 mm / 3.94 in

Maximum Workpiece Weight: 4,233 LBS
Maximum Material Thickness: 1.25” (SS & AL), 1.0” (NMS)
Motion Drive System: X, Y Axis/Rack and Pinion Drive Z Axis/Ball Screw Drive
Number of Control Axes: 3
Rapid Travel Speed X, Y axis 4,724 ipm
Electrical Requirement: 104KVA
Installation Dimensions: W x D 394 in x 240 in (Machine Only)
Machine Unit Dimensions: W x D x H 334.21 in x 137.2 in x 79.13 in (Machine Only)
Machine Weight: 34,436lbs

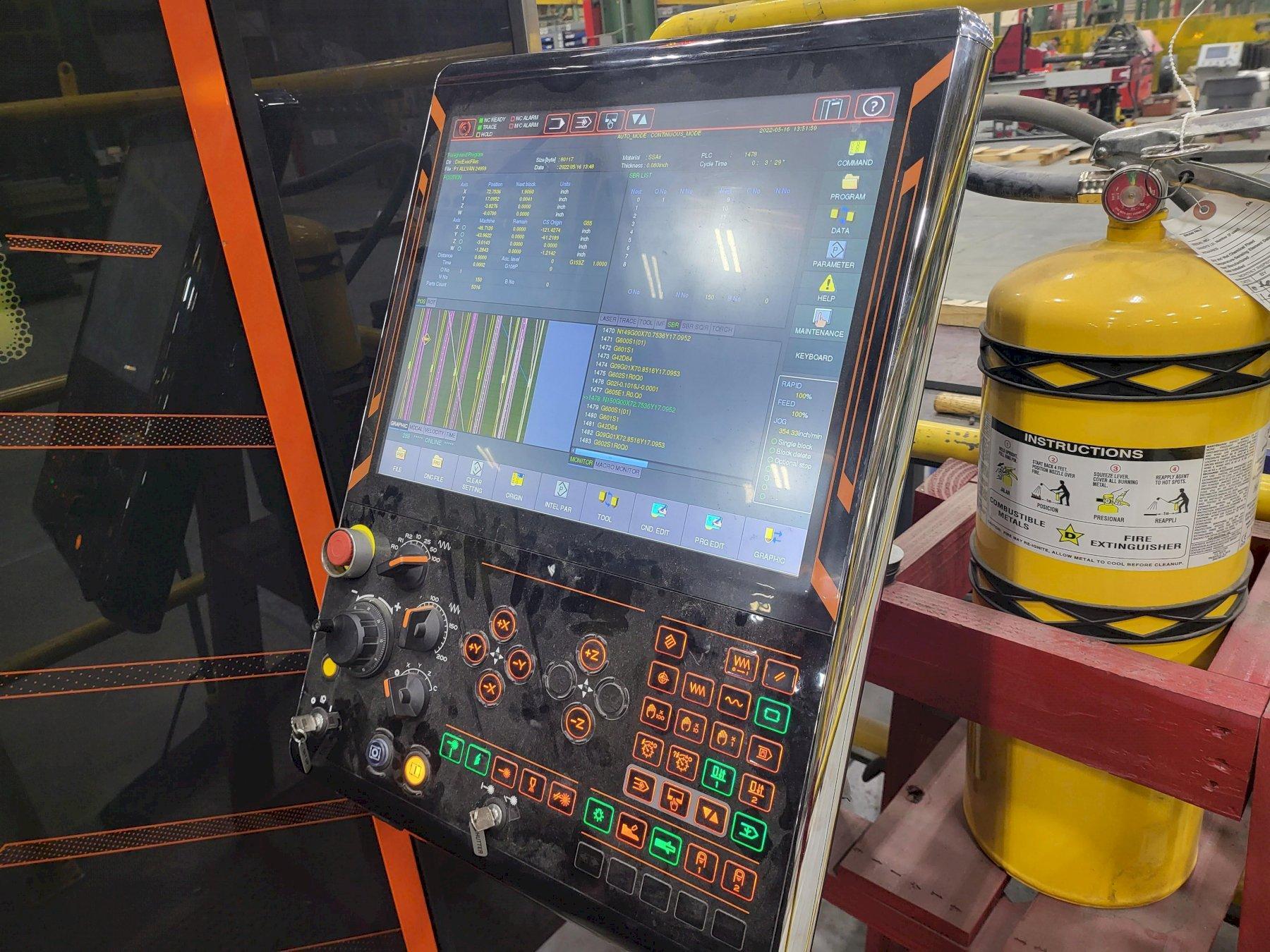

CNC Controller: MAZATROL PreviewG w/64 bit CPU
Display Screen: 19 in SXGA Color TFT Touch Screen
Memory Capacity: 16 GB (program storage capacity: 1 GB)
Position Detection System: Encoder
Minimum Command Unit: 0.0001 in
Program Input System: EIA/ISO

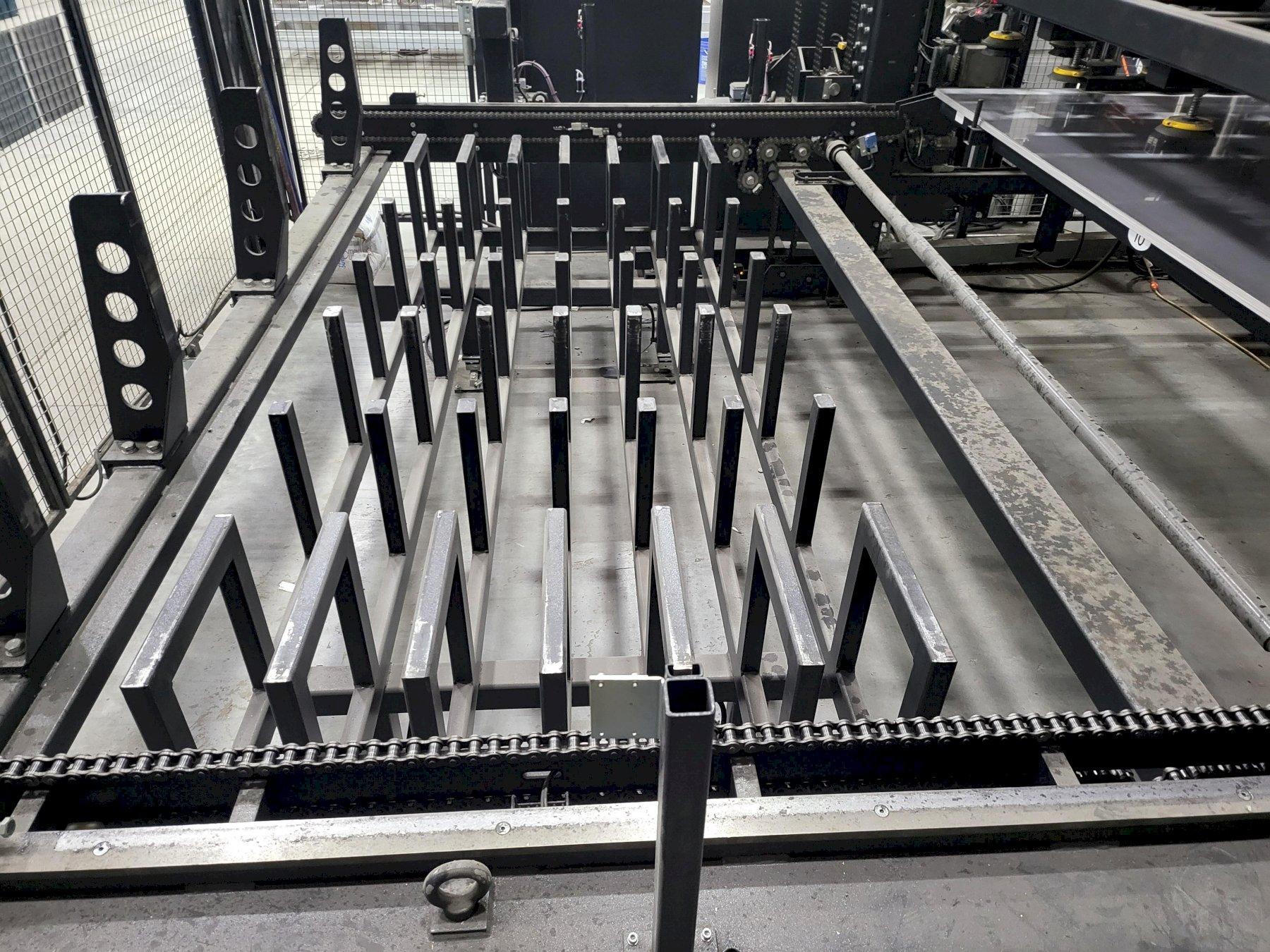

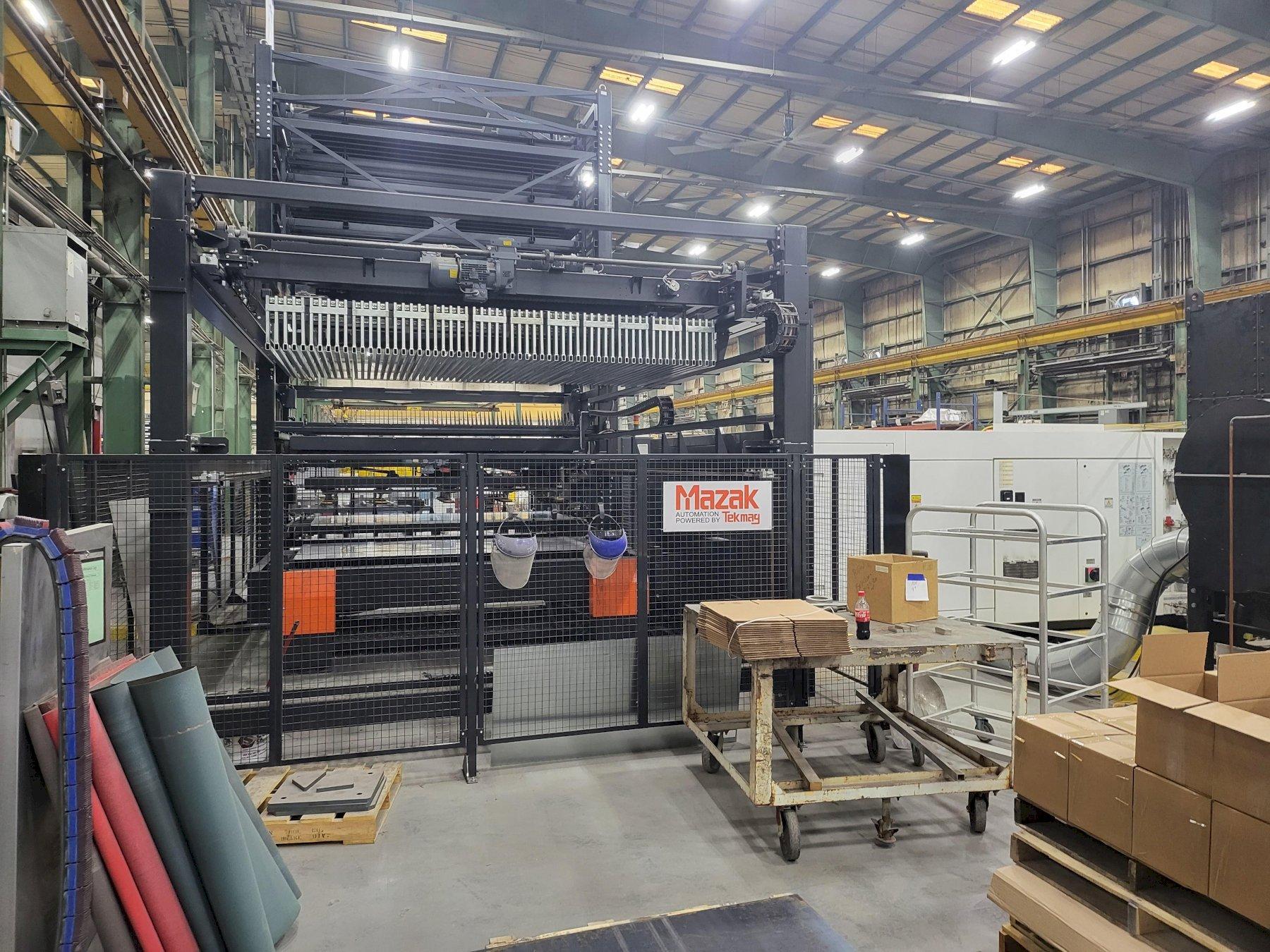

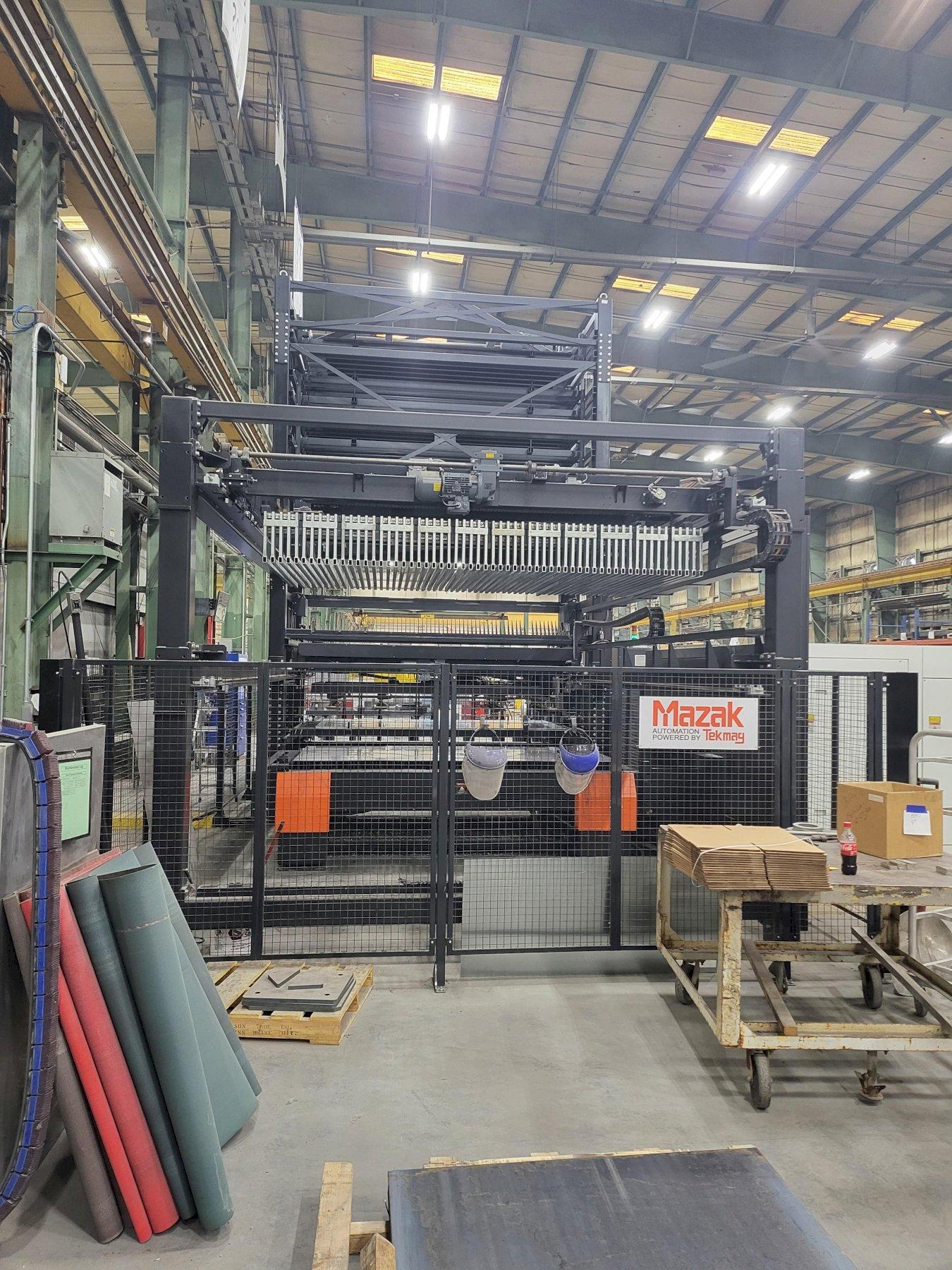

FMS Loading/Unloading System: 10 Shelf Quick Cell 3015

INCLUDES: Mazak Mazatrol Preview G 19” Touch Screen CNC Controller, IPG YLS 10000 Fiber Laser Source, IPG Chiller, 10 Shelf FMS Tower (complete Auto Loading/Unloading) w/Complete Safety Guarding & Liberty Systems Nitrogen Generator, Still Under Factory Warranty!


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
