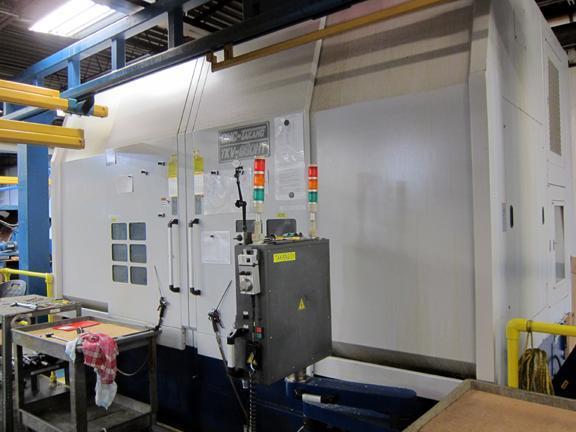

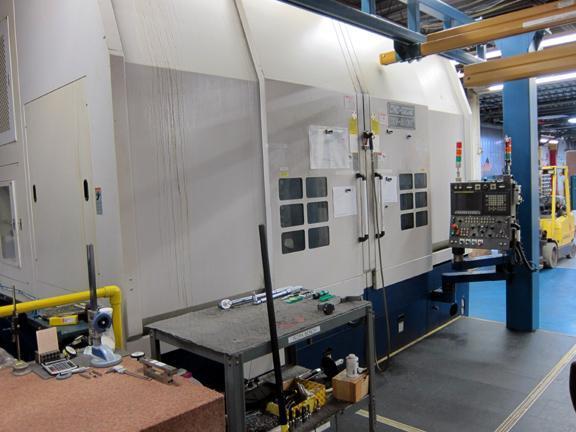

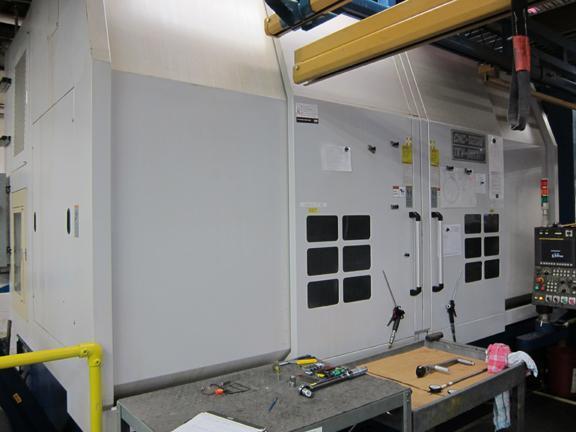

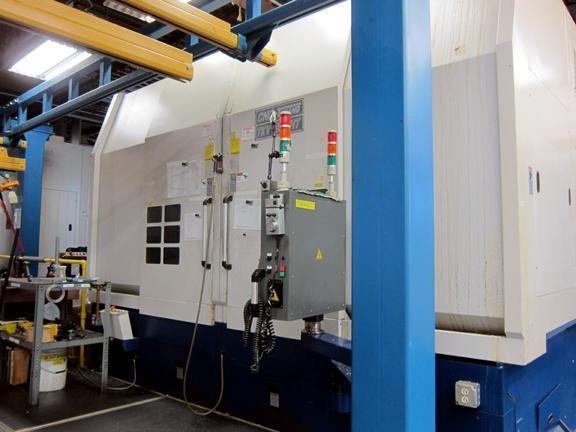

2015 Takang TKV-860-HT CNC Twin Spindle Vertical Turning Center (#4661)

Manufacturer

Category

Lathes

Type

LATHES, TURNING

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

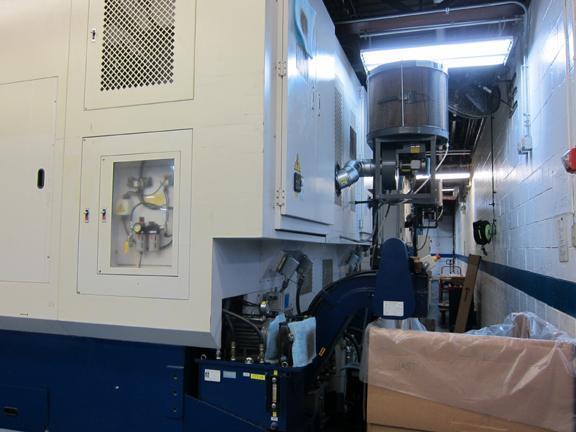

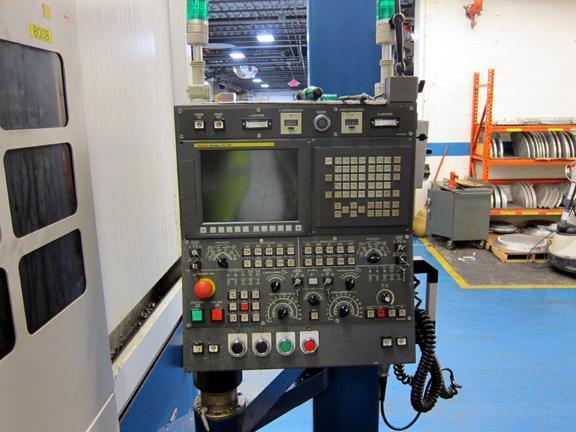

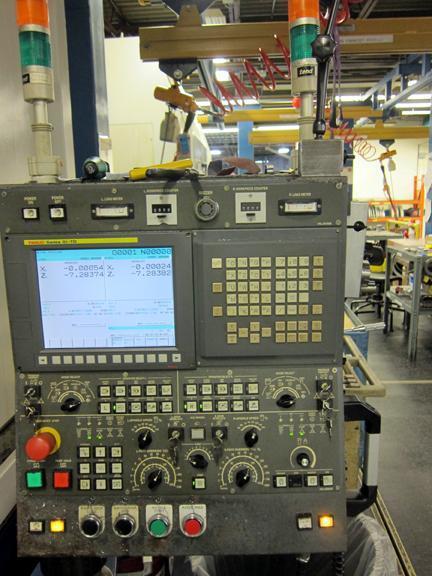

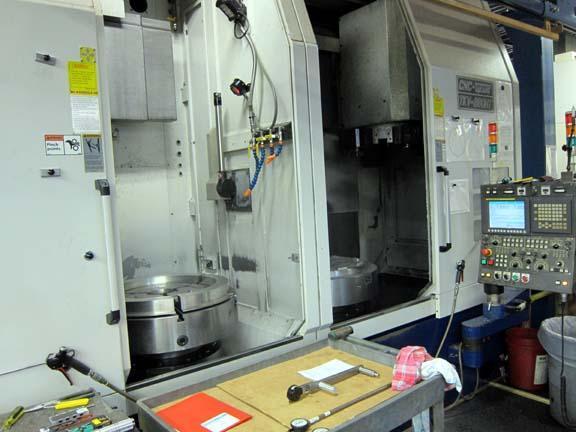

31.50” X 39.90” Capacity Dual Spindle Vertical CNC Turning Center with Fanuc CNC Controller, 2- 31.5" 50HP Driven 3-Jaw Chucks (1-1500 RPM), Rear Discharge Lift-Up Chip Conveyors, 2-Automatic Power Doors, Chip Blaster Ultra High Pressure Coolant @ 2000 PSI, 2-Speed ZF-Gear Box Motors. @ Available. Inspect in NE Plant

GENERAL SPECIFICATIONS
Max. Cutting Diameter: 31.50" to 39.90"
Max. Swing Diameter: 39.37"
Max. Cutting Length: 33.85" (860mm)
Spindle Motor (FANUC aP40): (2) 50 HP Alpha P40 2-Speed Gearbox Motors
Spindle Speed Range: 10 - 1,500 RPM
Spindle Nose: A2-11
Spindle:
Spindle Motor (FANUC aP40): (2) 50hp Alpha P40 2-Speed Gearbox Motors
Spindle Speed Range: 10 - 1,500rpm

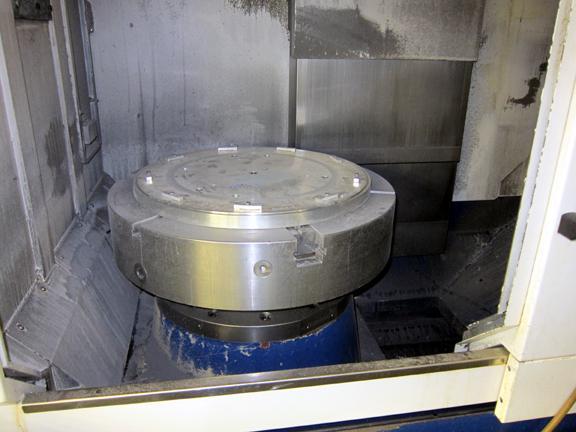

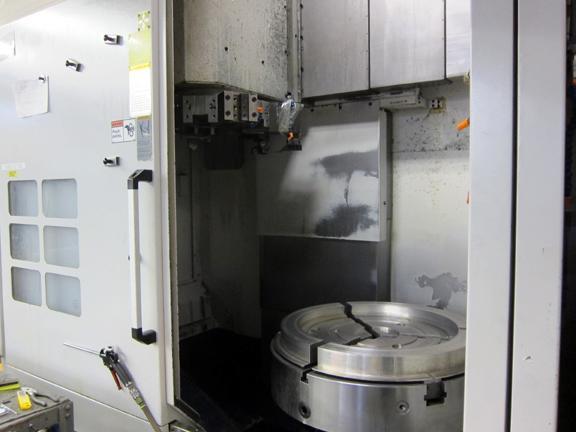

Max Chuck Diameter: Installed 31.5" 3- Jaw Hydraulic Chucks
Spindle Nose: A2-11
Front Bearing Diameter: 7.87"
Spindle Bearings: Double Row Cylindrical and Angular Contact
Spindle Speed Selection: Direct RPM Programming
Spindle Speed Override: 50% ~ 200%
Speed Range Shift: 2- Speed Gearbox Programmable High-Low Range
Axis Drives:
X Axis Travel (FANUC a22/3000i AC 4.0 HP): 18.31"
Z Axis Travel (FANUC a22/3000iB AC 5.0 HP): 33.07"
X Axis Thrust Force: 2,950 lbs
Z Axis Thrust Force: 3,170 lbs
X Axis Ball Screw Diameter/Pitch: 1.57" / 0.47"
Z Axis Ball Screw Diameter/Pitch: 1.97" / 0/47"
X & Z Axis Rapid Traverse Rate: 630 IPM
Feed Rates: 0.00001 ~ 18.18 IPR
Feed Rate Override: 0 ~ 200%
Cooling System for Ball Screws (to minimize expansion): Forced Oil Turret

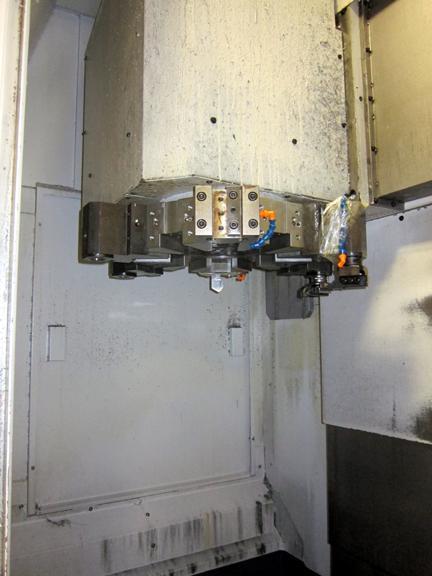

Turret Type: V12
Max Number of Tools: 12 per spindle
Curvic Coupling Diameter: 11.42"
Clamping Force: 12,590 lbs
Indexing Time (station to station): 0.7 sec
Standard Turning Tool Size: 50mm / 1.25" x 1.25"
Max. Boring Bar Size: 2.0" & 2.5"
Machine Electric: 85 KVA Transformer
Hydraulic Motor: AC 1.5 kW
Slide way Lubrication Pump Motor: AC 20w
Coolant Pump Motor: Turret (SPK2-8/8; 57 psi/ 8 gpm): AC 550w
Coolant Pump Motor: Wash (CHK4-60/2; 14 psi/31.5 gpm): AC 620w
Machine Light: AC 100v - 20w
Reservoirs:
Hydraulic Tank: 10.6 gal
Slideway Lubrication Tank: 1.59 gal
Coolant Tank: 118 gal


Dimensions: 96.0" X 108.0" X 160”
Weight: 63,934 LBS
Hydraulic Tank: 10.6 Gallon
Slideway Lubrication Tank: 1.59 Gallon
Coolant Tank: 118 Gallon

INCLUDES: Fanuc CNC Controller, 2- 31.5" 50HP Driven 3-Jaw Chucks (1-1500 RPM), Rear Discharge Lift-Up Chip Conveyors, 2-Automatic Power Doors, Chip Blaster Ultra High Pressure Coolant @ 2000 PSI, 2-Speed ZF-Gear Box Motors. Auto Open/Close Splash Guard: Chip Conveyor (Rear Discharge, Chuck Cylinders, Chuck Open/Close Direction Change (Key Switch), Chuck Open/Close Confirmation (Prox. Switches), Memory Protect Key Switch, One Color Signal Tower, Chuck Open/Close (Push Button),
Cycle Completion Alarm & Light: Door Interlock, High Pressure Coolant (57 PSI), Mounting Plates and Leveling Screws, Multi-tap Transformer, Tool/Work Counter on Screen, Spindle Orientation: High Pressure Coolant 120 PSI, Preparation for Quick Tool Setter, Halogen Light


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
