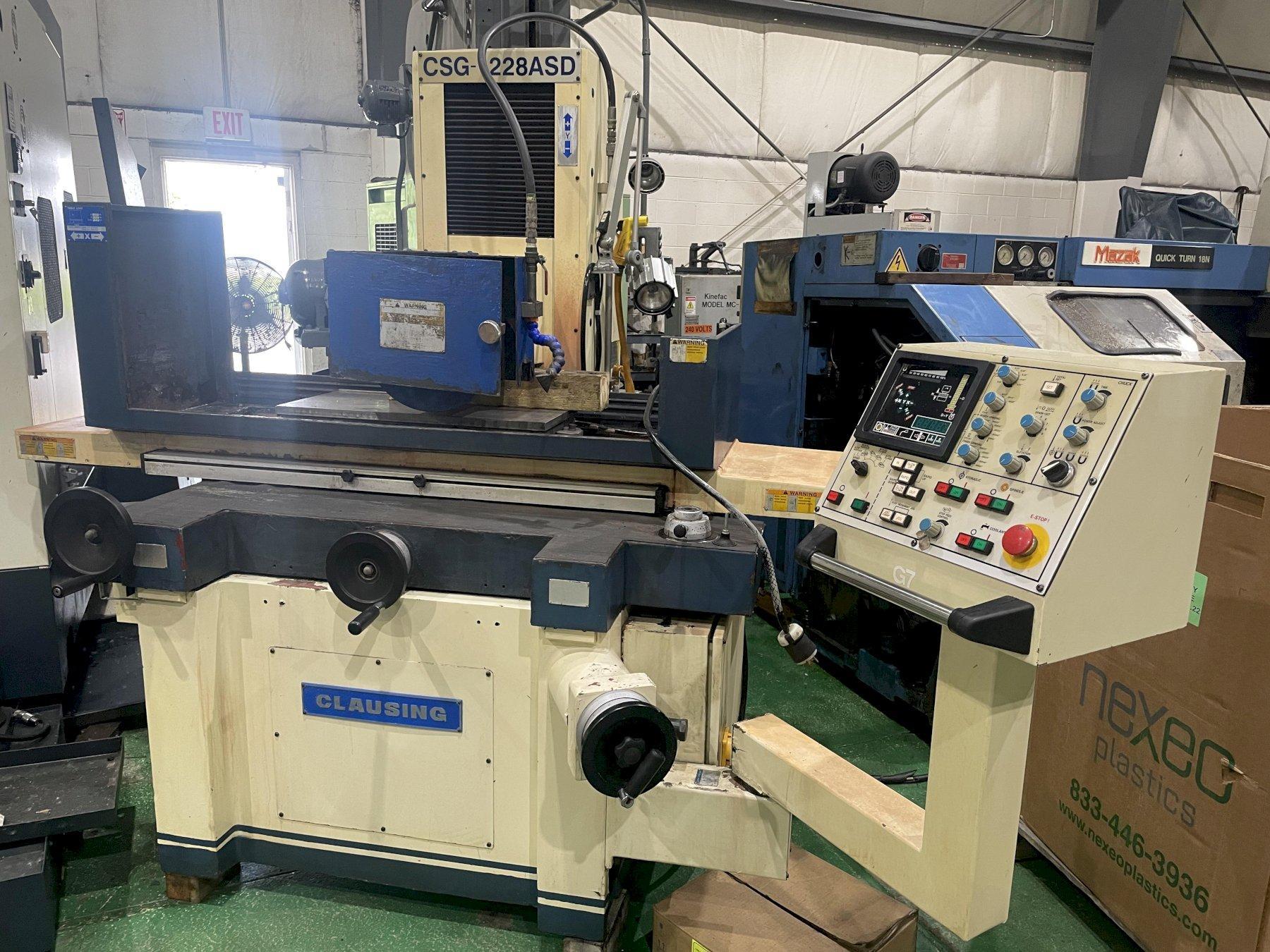

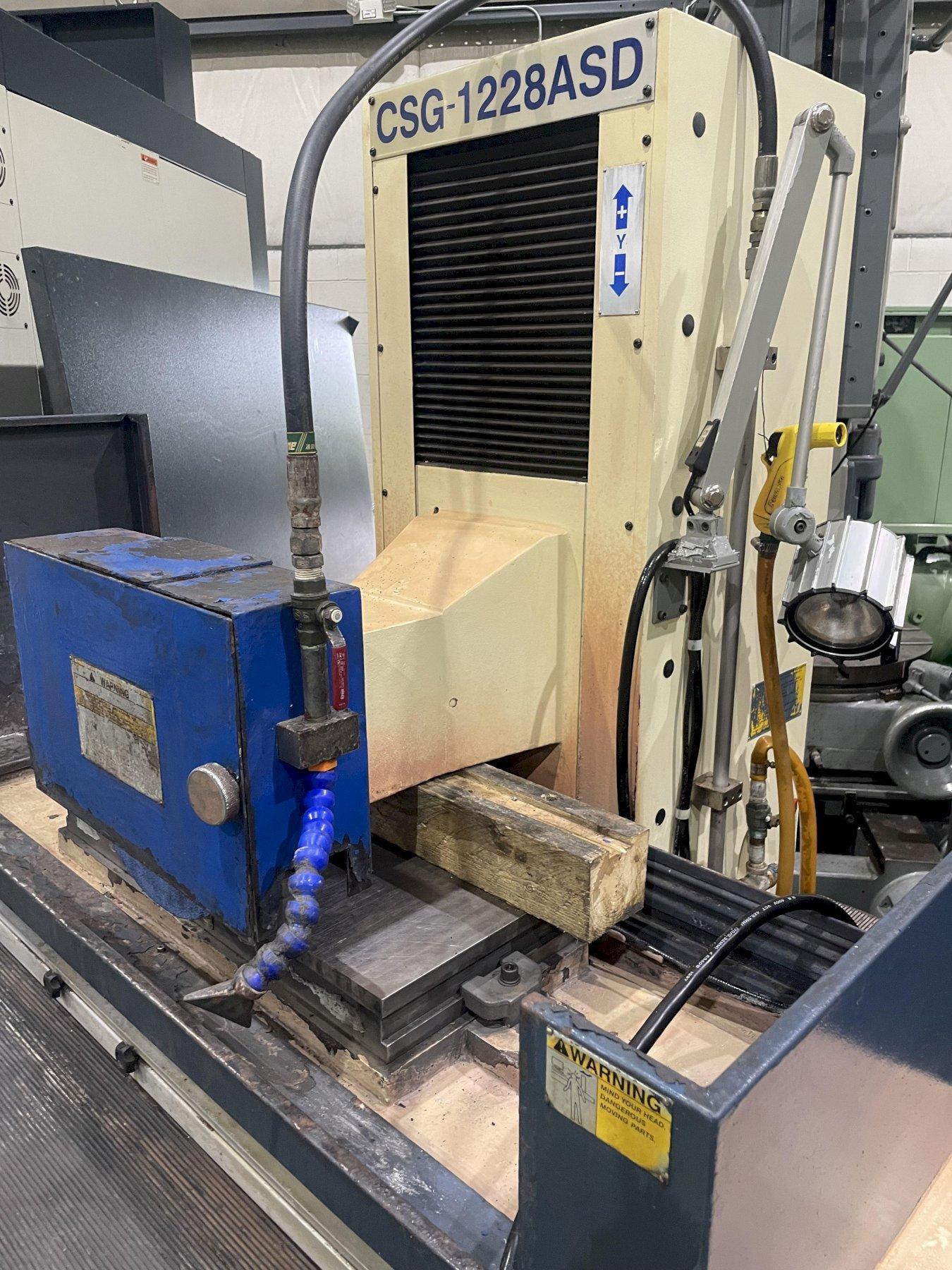

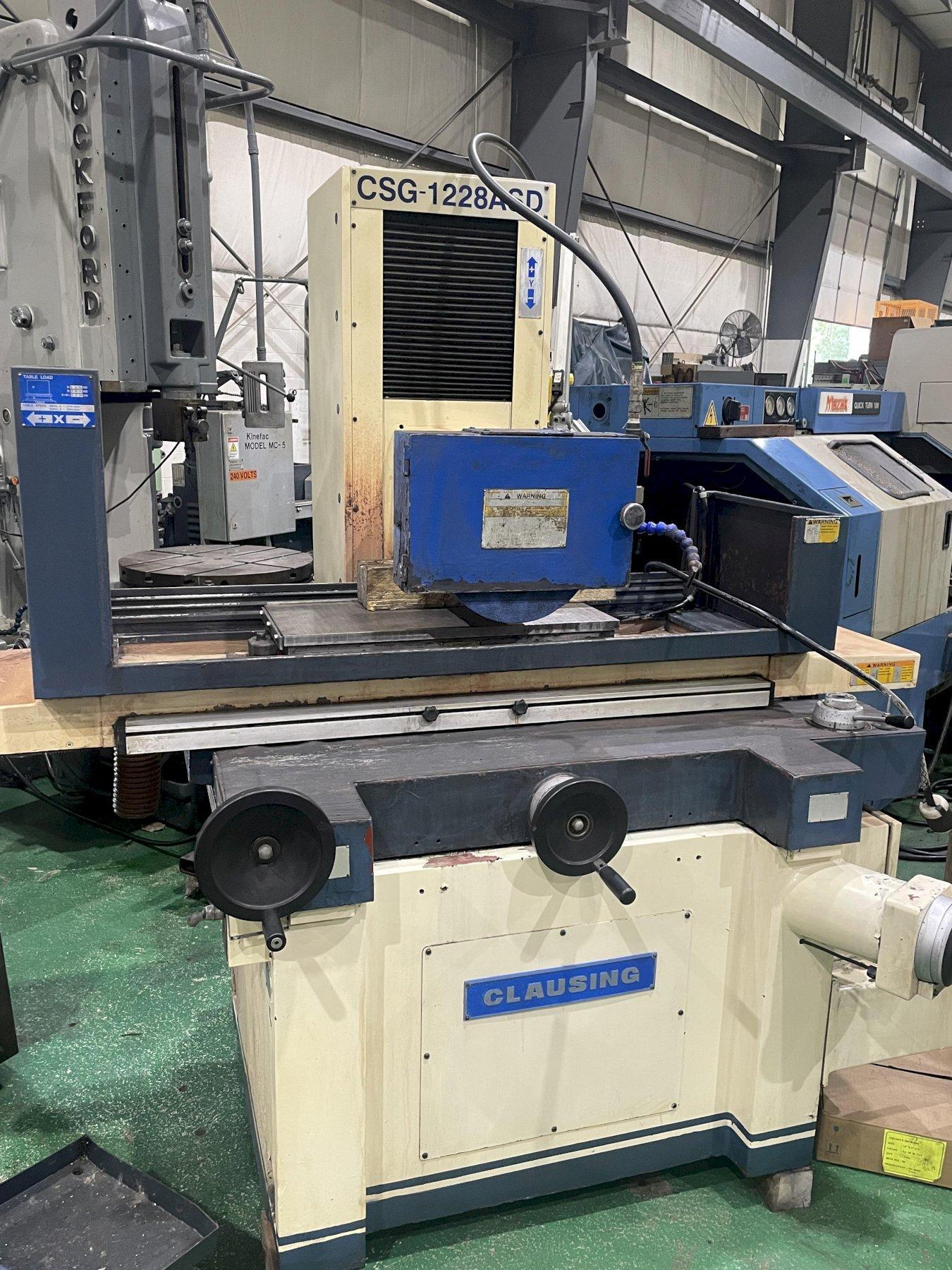

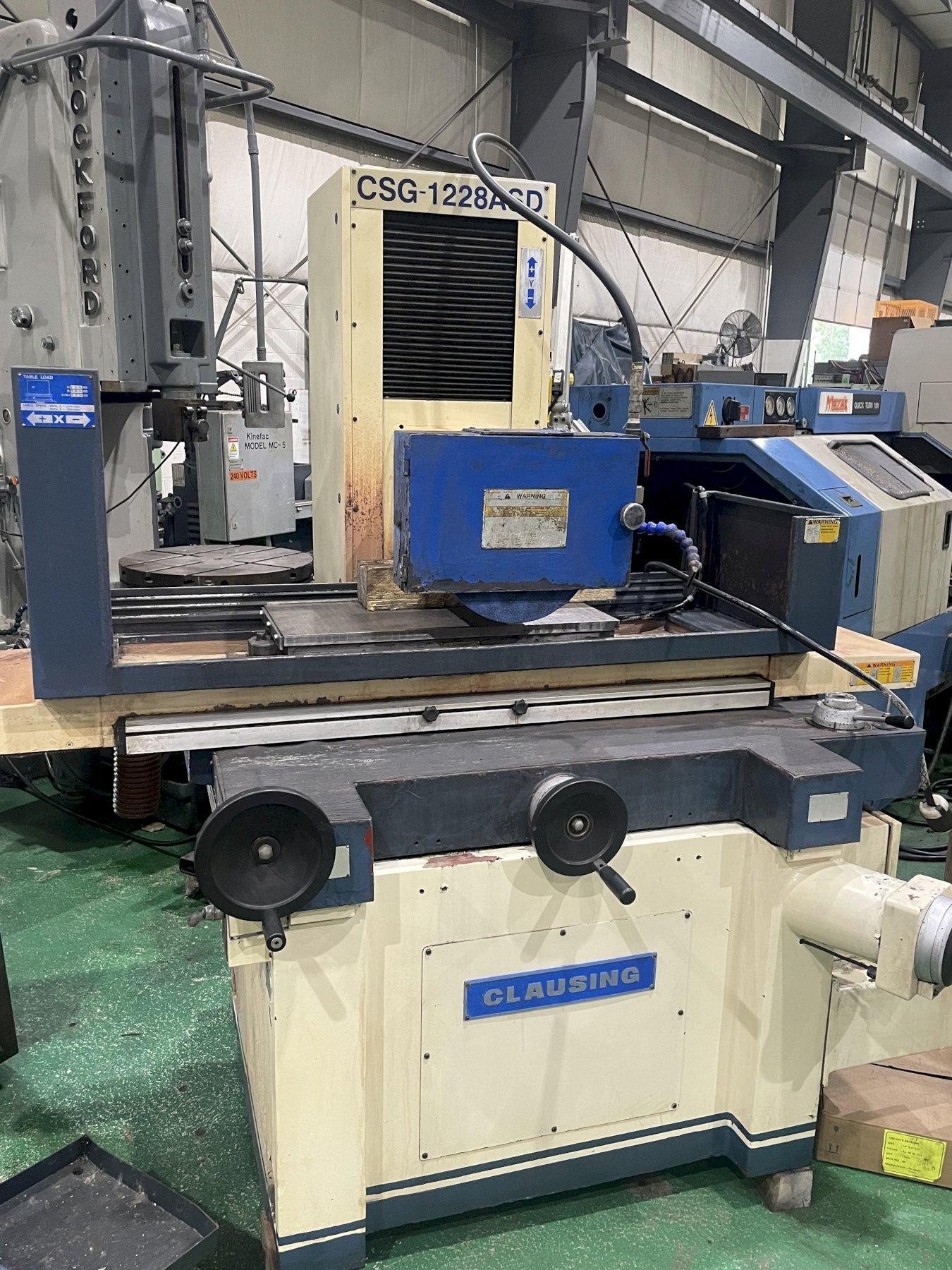

USED CLAUSING MODEL CSG-1228 ASD 12" x 28" AUTOMATIC SURFACE GRINDER, Stock# 10967, Year: 1998

Manufacturer

CLAUSING

Category

Grinding Machines

Type

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Stock

10967

Model

CSG-1228 ASD

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet



Brand: Clausing
Model: CSG-1228 ASD

Specifications:
Machine style: Automatic / Hydraulic
Drive type: Direct coupled
Table size: 12" x 28"
Longitudinal maximum travel hyd: 30"
Longitudinal maximum travel man: 32.68"
Table speed: 196 - 984 IPM (infinitely variable)
Maximum cross auto traverse travel: 13.78"
Maximum cross travel man: 15"
Auto traverse increment: 0.04" - 1"
Crossfeed handwheel revolution: 0.2"
Crossfeed handwheel graduation: 0.0005"
Vertical automatic infeed: 0.00005" - 0.0025"
Step feed jog: 0.00004"

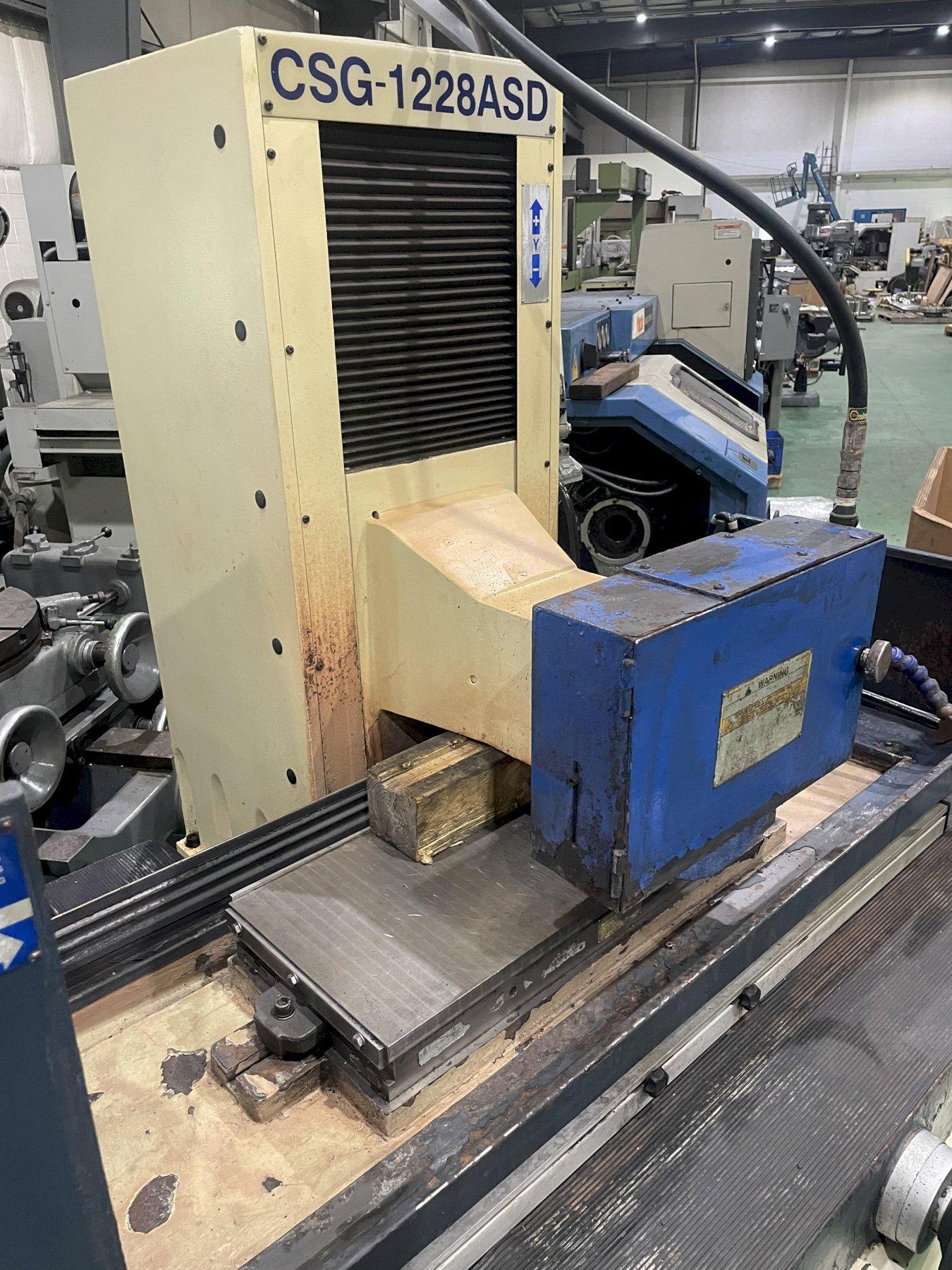

Magnetic chuck size: 12" x 28"
Grinding speed spindle: 1,750 RPM

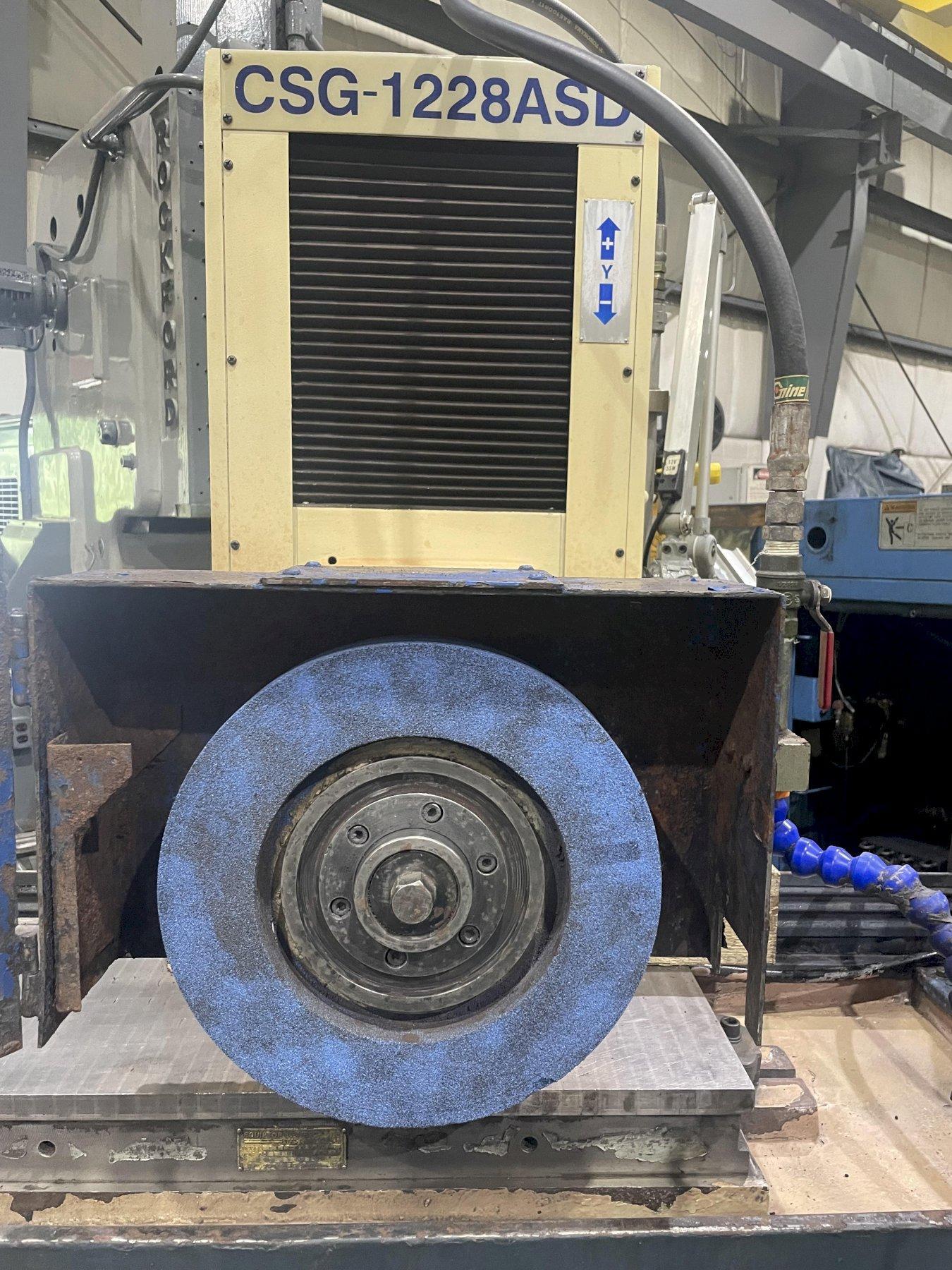

Standard grinding wheel diameter: 14"
Standard grinding wheel width: 2"
Spindle motor: 7.5 H.P.
Hydraulic motor: 3 H.P.
Crossfeed motor: 1 H.P.
Elevating motor: 1/4 H.P.

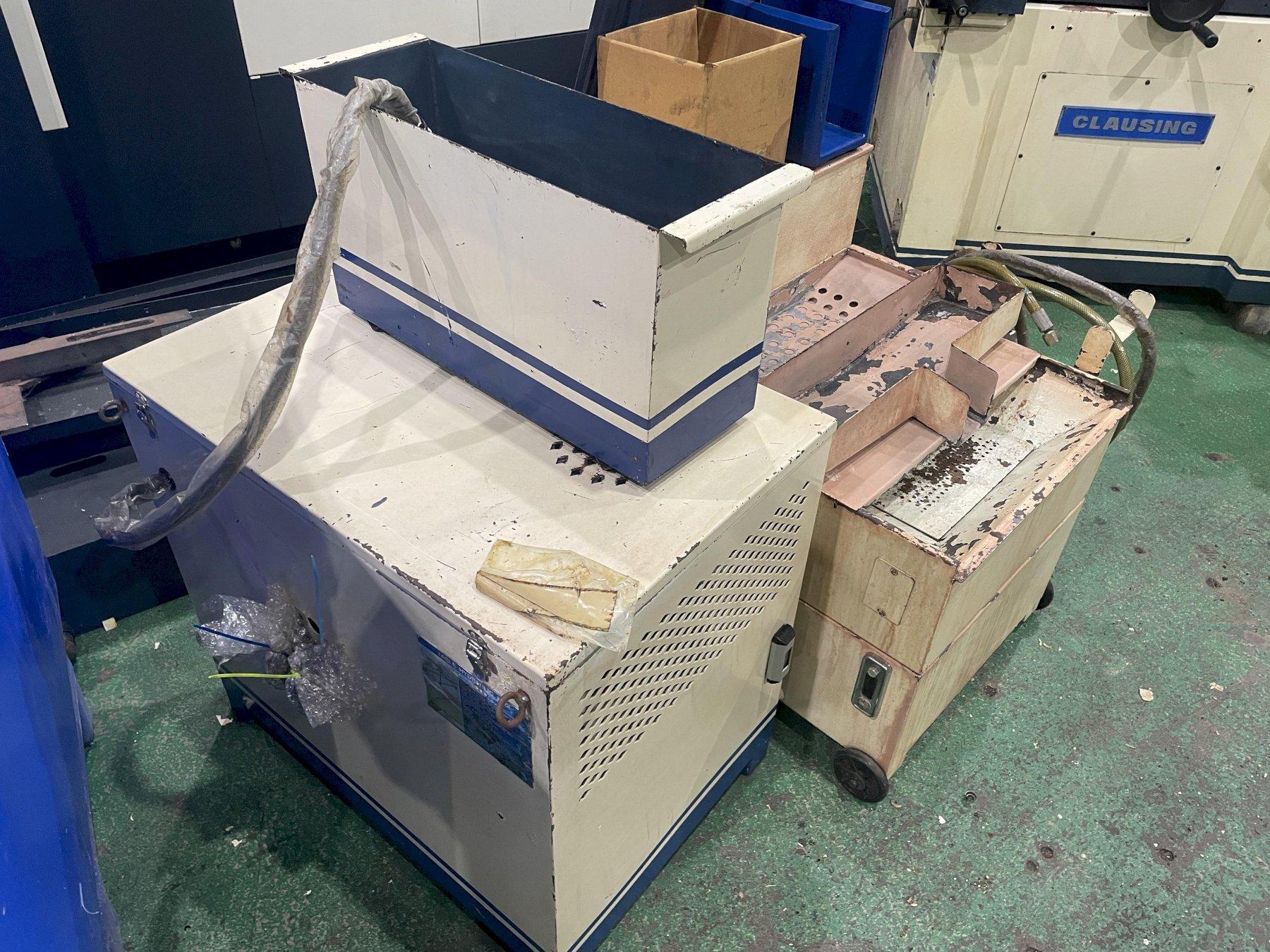

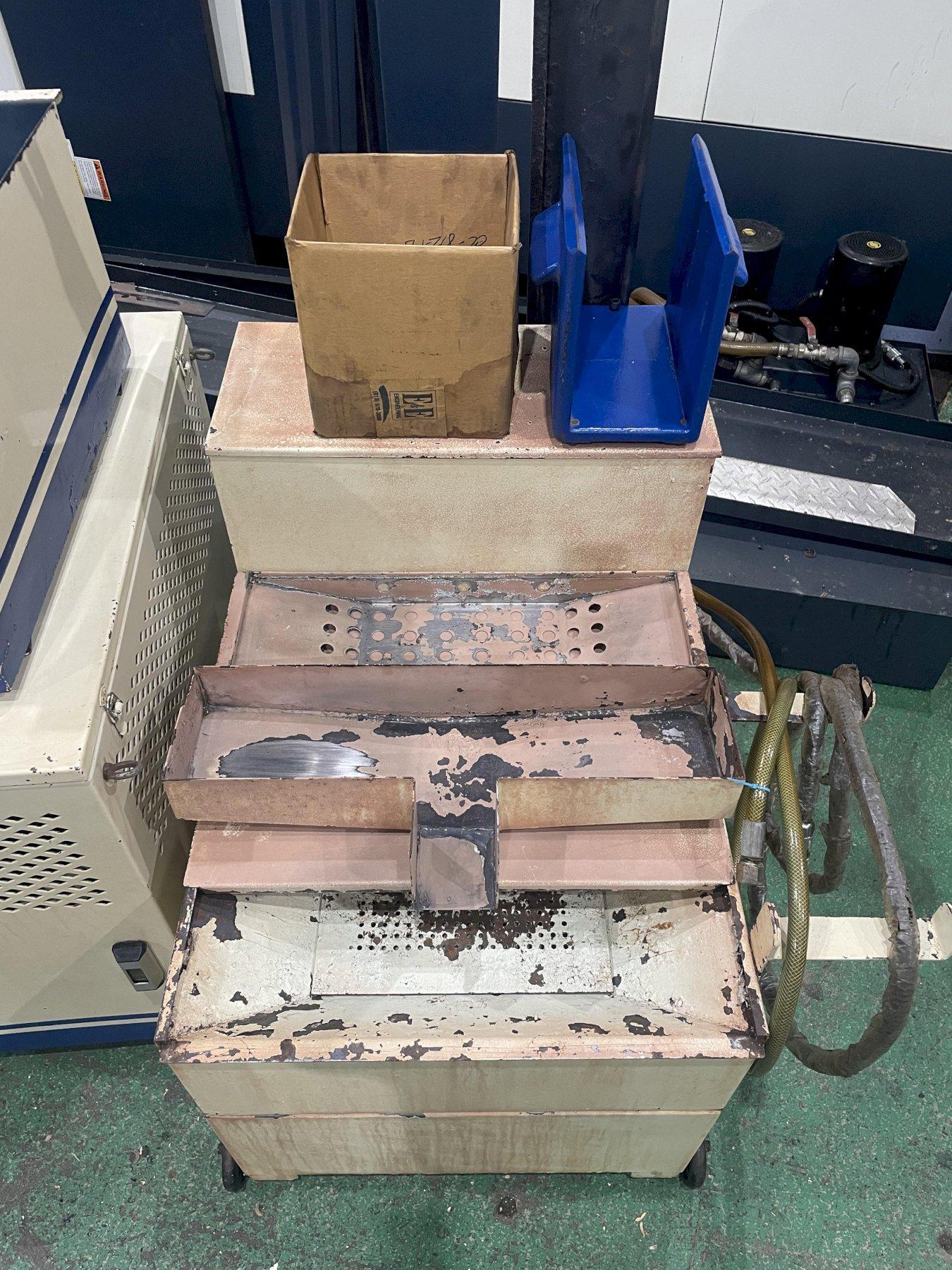

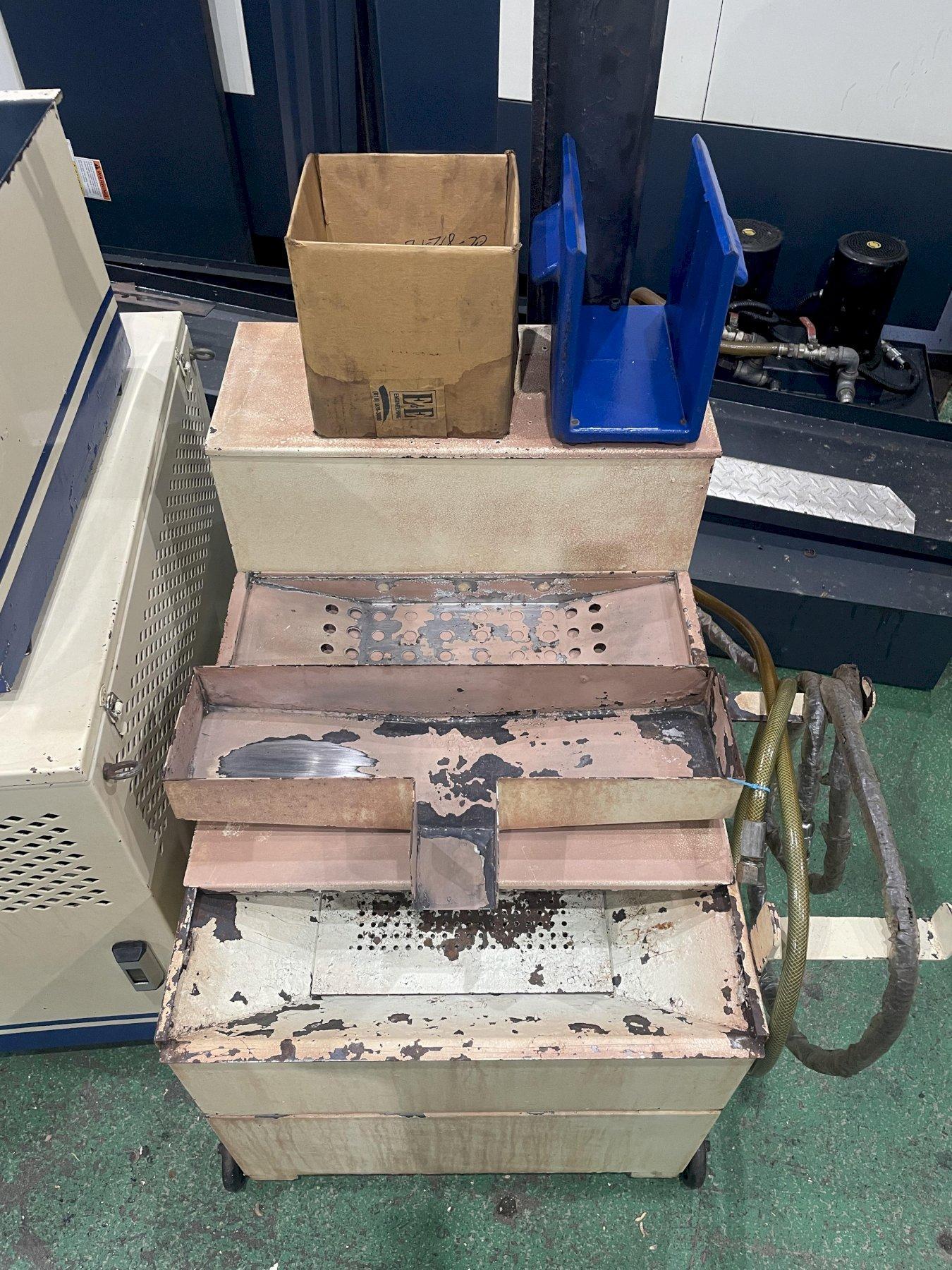

Coolant system: Flood / paper filter
Dimensions: 116" x 78" x 81"
Voltage: 220 / 440 volt 3 phase

Machine features:

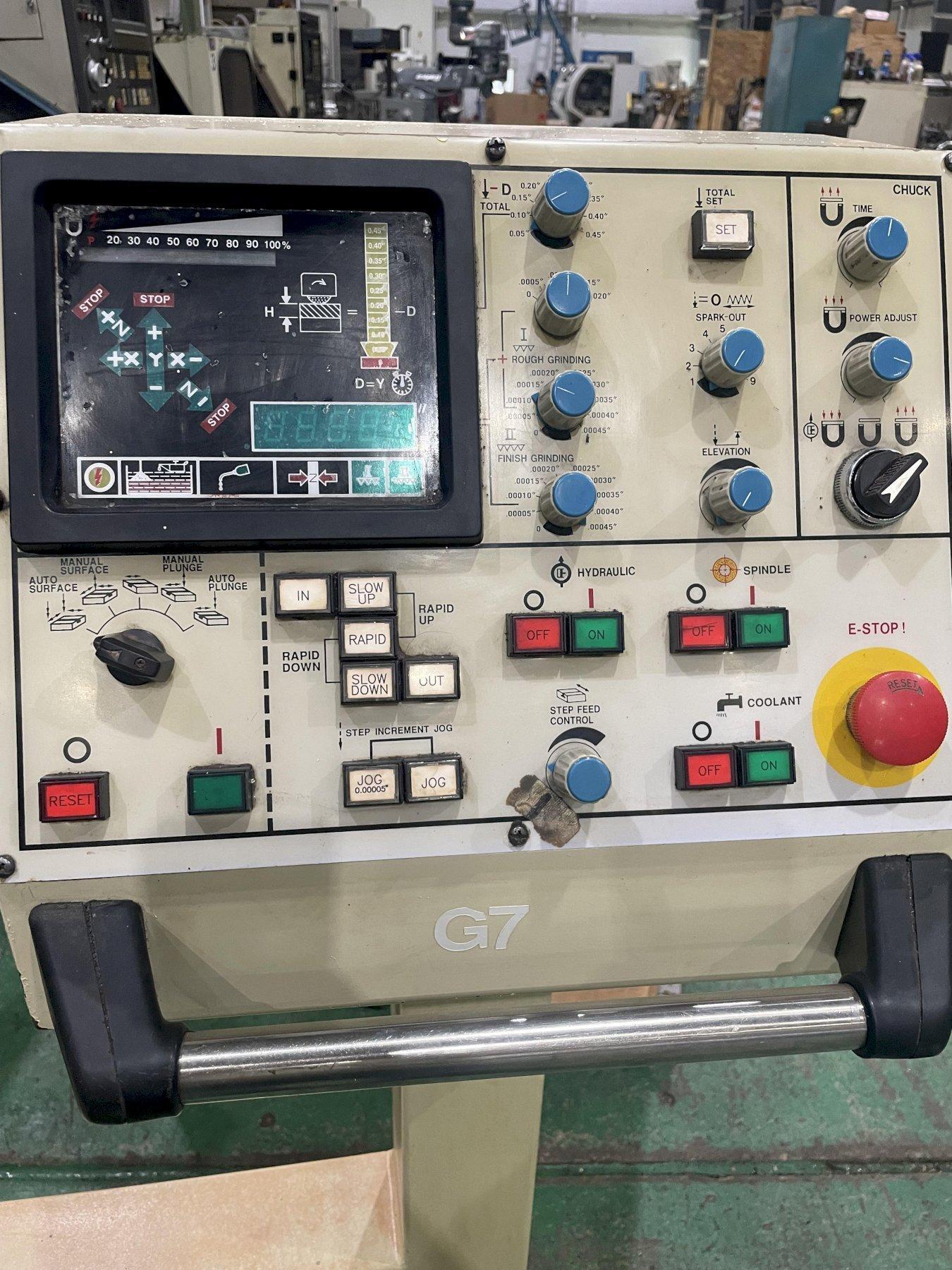

Delta PLC with 7.2" color touch screen equipped with conversational program language.
Pre-setting hydraulic longitudinal table speed control allows operator to pre-set speed rate, allowing for same speed each time you engage the hydraulic feed, dual throttle valve for 25mm to 25m speeds.
DC motorized cross feed with ballscrew.
Programmable up/down head positioning.
Built-in proximity switch for easy operation.
Wheel extraction screw and nut.
Balancing stand with arbor.
Leveling screws with blocks.
Grinding wheel.
Wheel flange.
Automatic lubrication system.
Table mounted diamond dresser.
Micro down feed.
Chuck controller with de-mag.
Splash guard.
