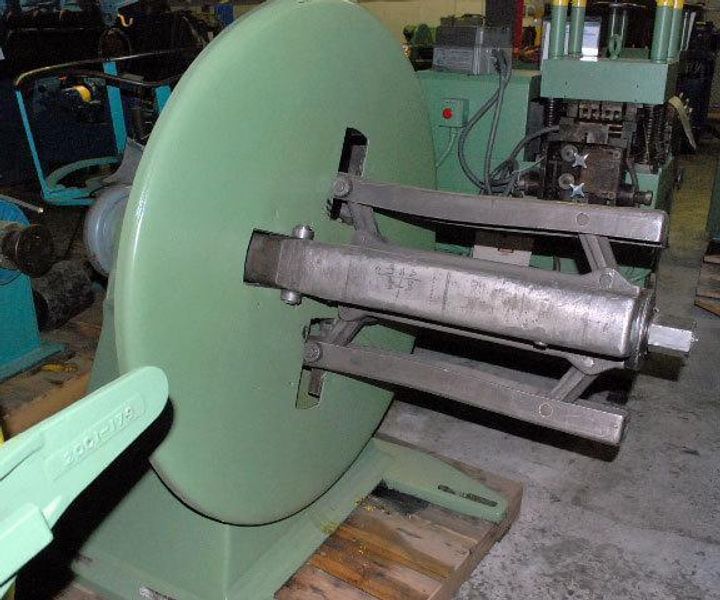

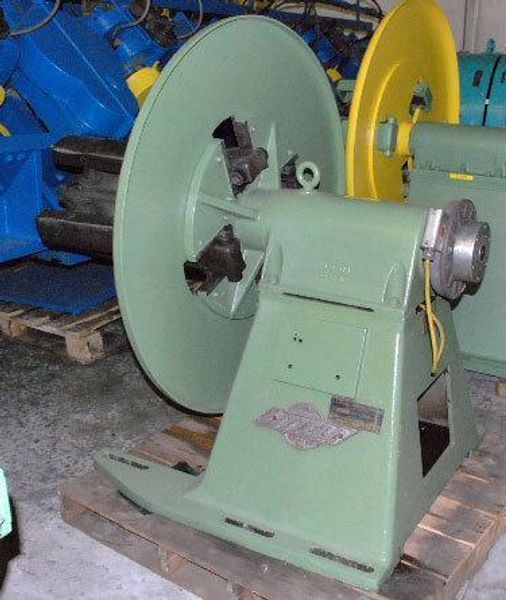

4,000 LB (1814 KG) Model 40-24 Littell Payoff

Manufacturer

LITTELL

Category

Wire Machines

Stock

8148

Model

Non Driven Payoff Reel

Dealer Location

Pennsylvania

Spec Sheet



SPECIFICATIONS:

MANUFACTURER:  LITTELL MACHINE CO. (U.S.A.)
TYPE:  NON DRIVEN PAYOFF REEL
MODEL No.:  40-24
CAPACITY:  4,000 LBS. (1815 KG)
EXPANSION RANGE:  14"/18" I.D. (355mm/457mm)
TYPE EXPANSION:  MANUAL
MAXIMUM COIL WIDTH:  24" (610mm)
MAXIMUM COIL O.D.:  40" (1016mm)
PASSLINE HEIGHT: 32" (812mm)

EQUIPPED WITH WARNER ELECTRIC BRAKE FOR BACK TENSION
