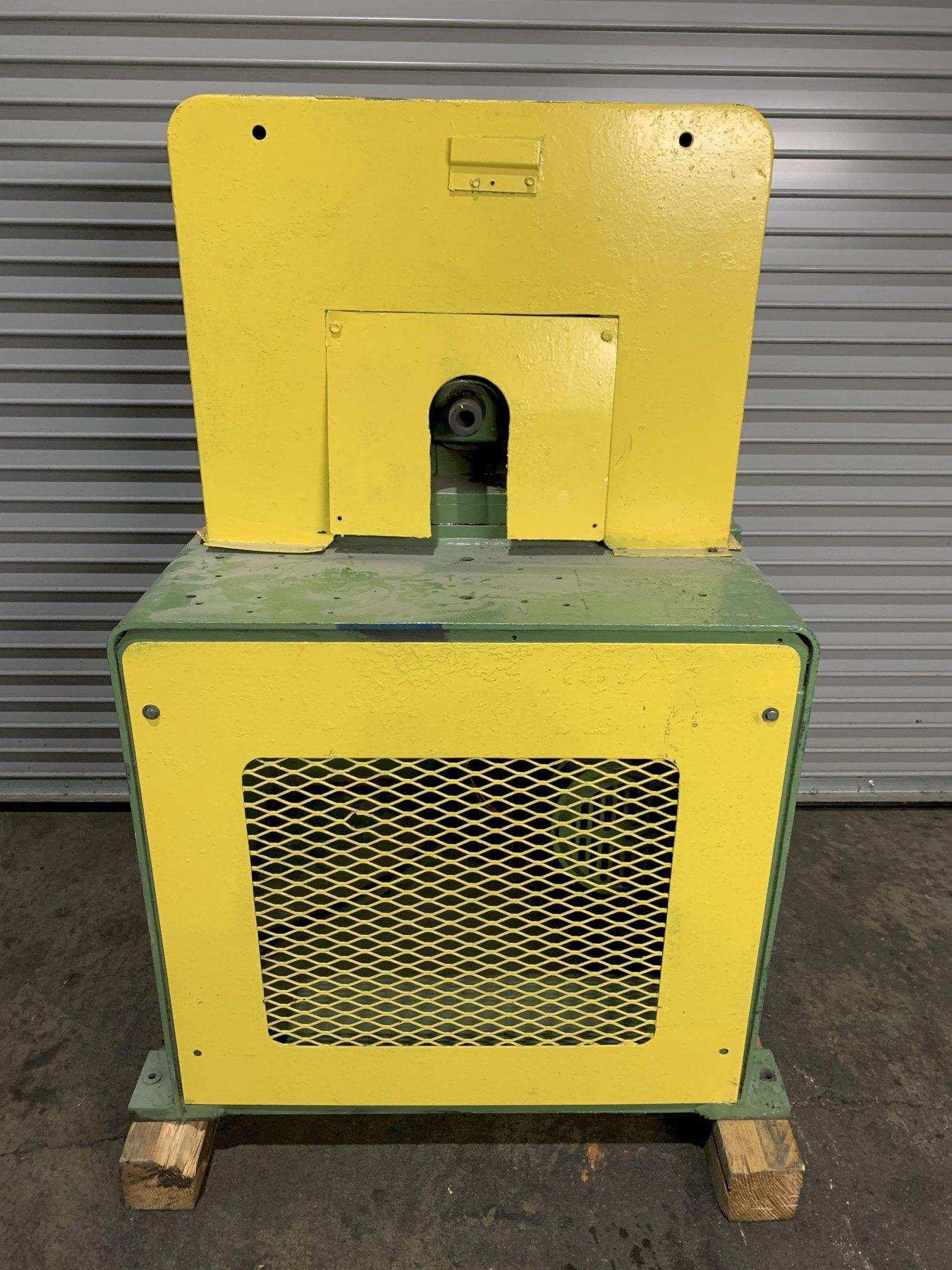

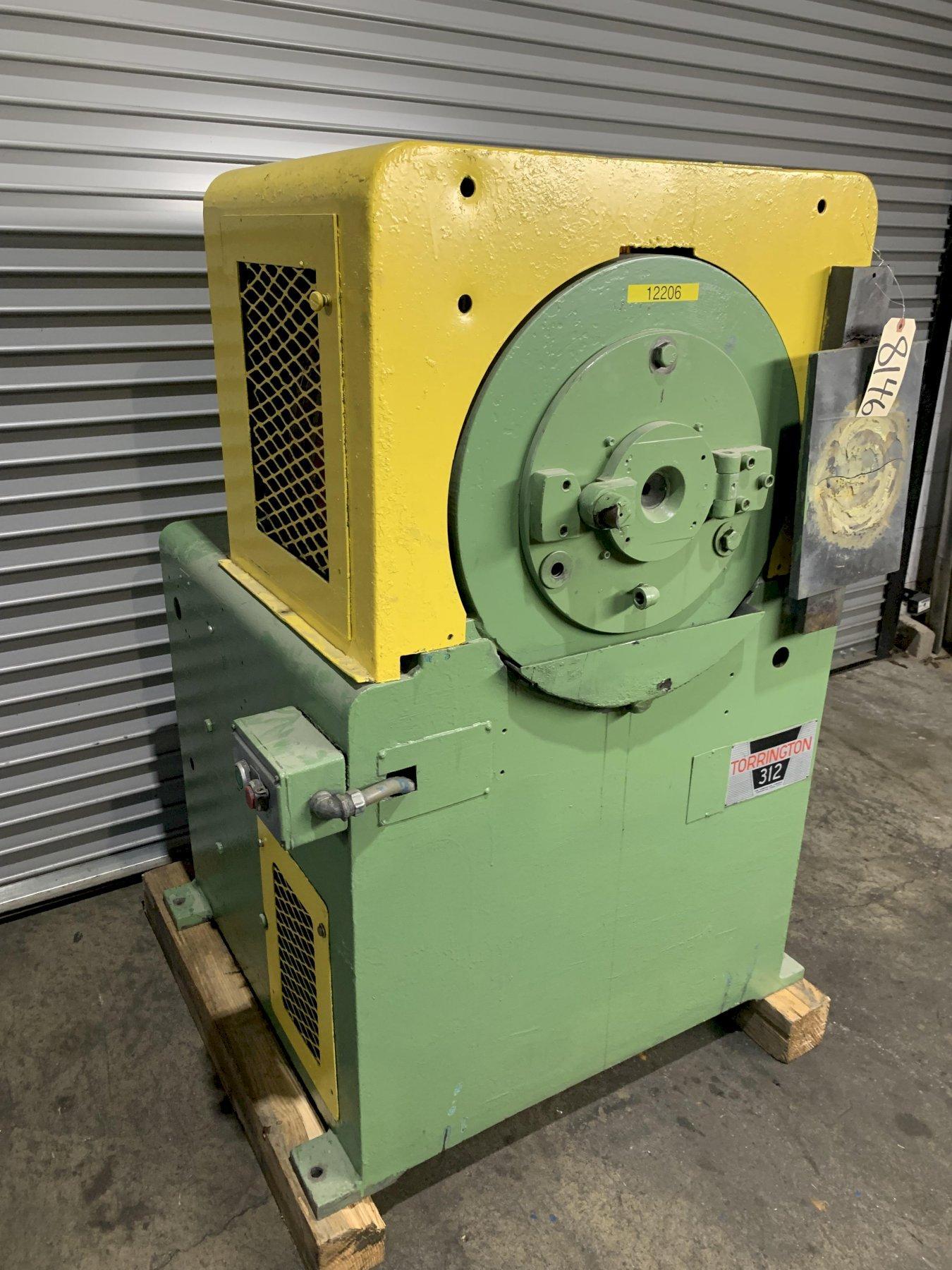

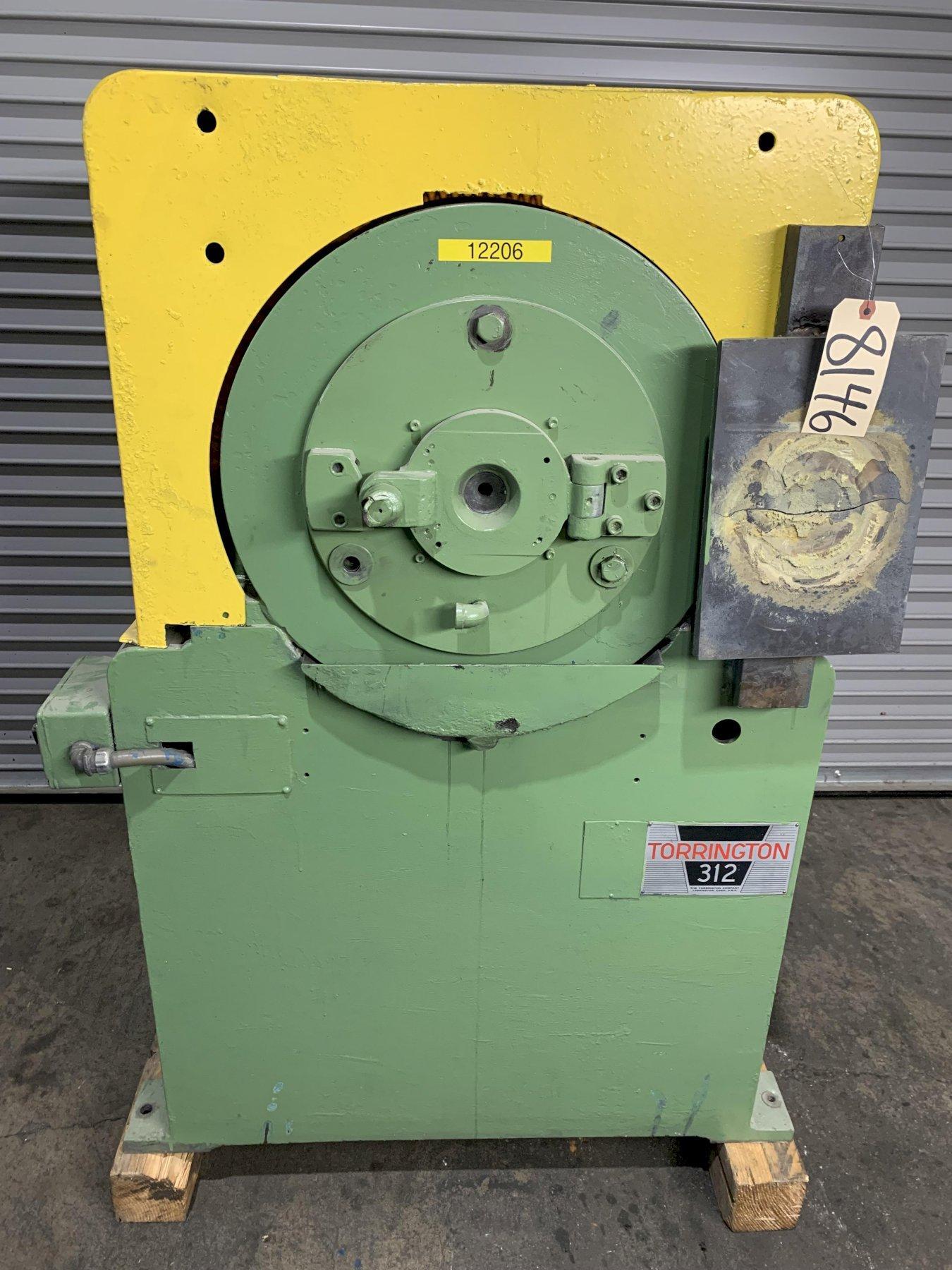

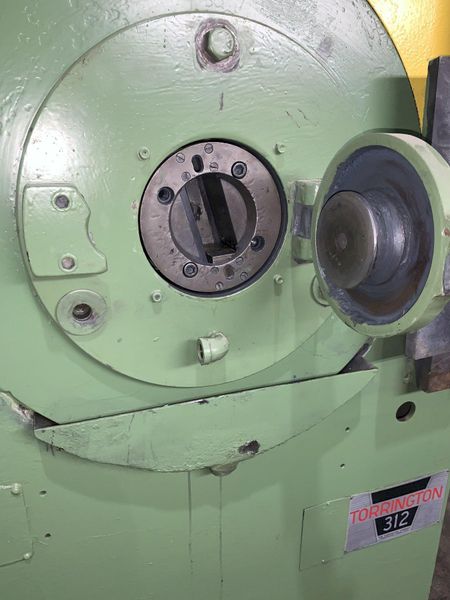

7/8" (22mm) Torrington Model 312 Rotary 2 Die Swaging Machine

Manufacturer

TORRINGTON

Type

SWAGERS

Stock

8146

Model

312

Dealer Location

Pennsylvania

Spec Sheet

Capacity - Tubing - 7/8" (22.2mm)
Capacity Solids - 3/8" (9.5mm)
Die Size - Width - 1.187" (30.1mm)
Die Size - height - 1.175" (29.8mm)
Die Size - Length - 2.500" (63.5mm)
Motor - 460 Volts
Approx. Weight - 2500 lbs
Approx. Floor Size - 30 5/8" (777.9mm) W x 34 7/8" (885.8mm) L

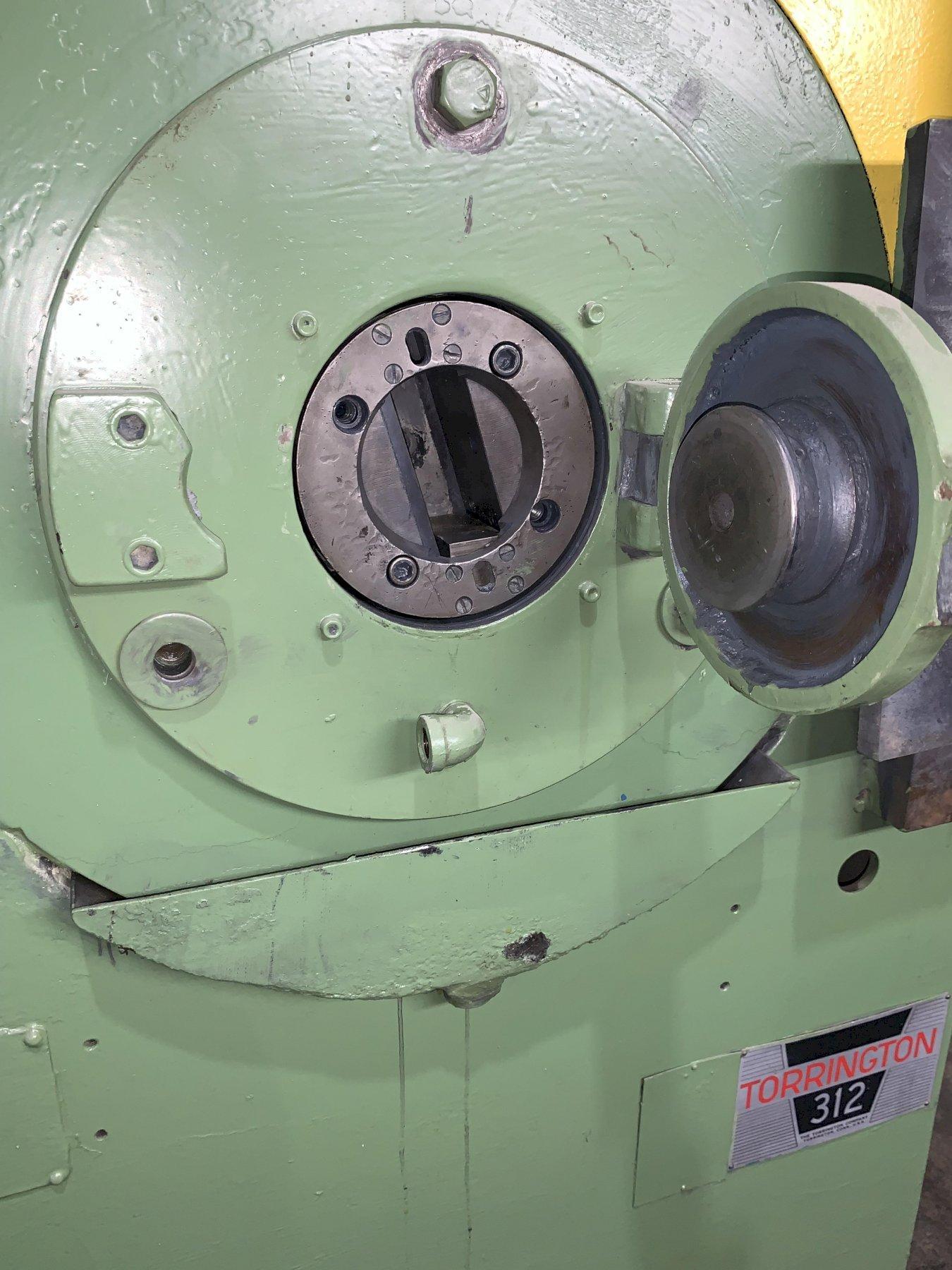

Machine is equipped with a water cooled head.

Machine used T-Type side plates.  Can only use special slotted hammers.
Machine uses narrower than standard dies and hammer.
Can easily be converted to standard dies and hammer,
