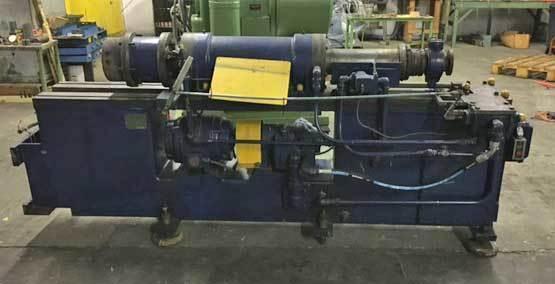

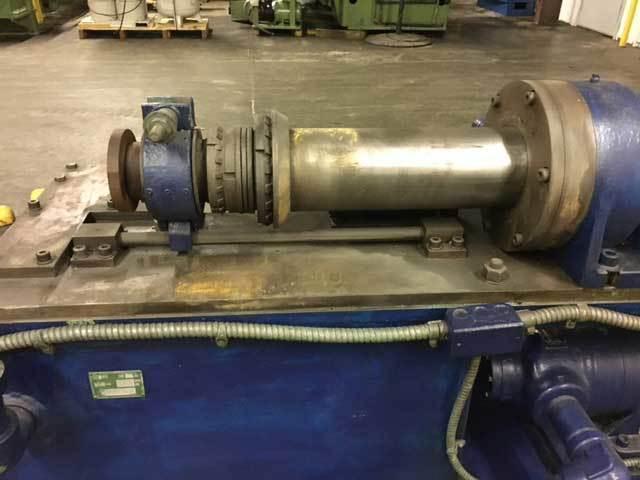

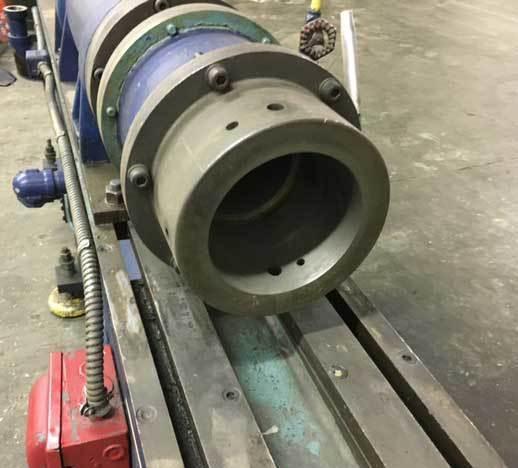

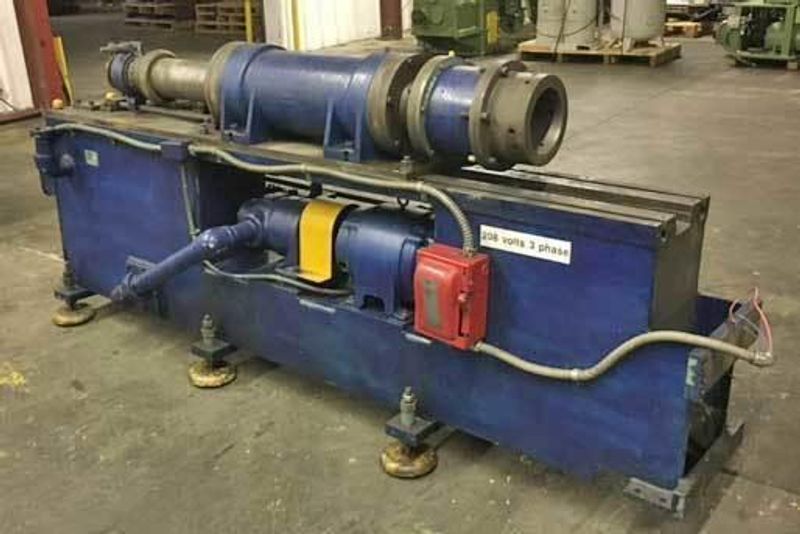

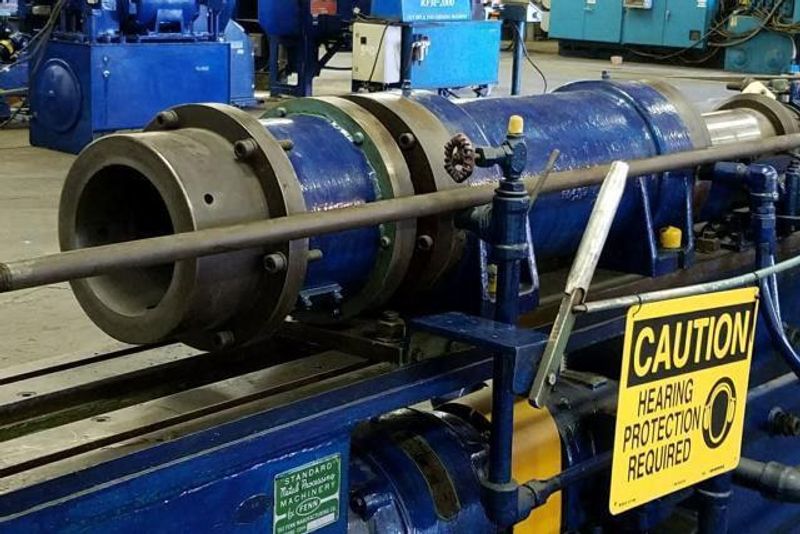

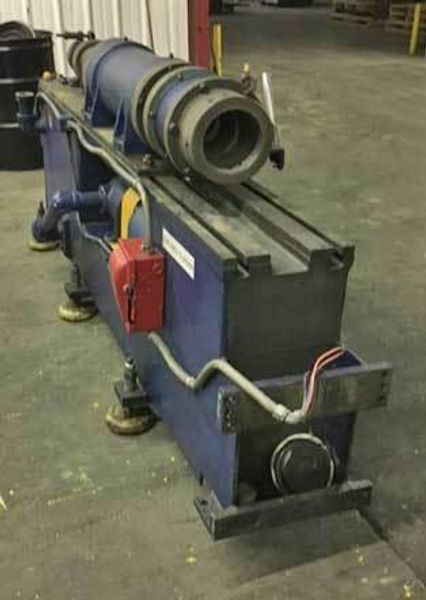

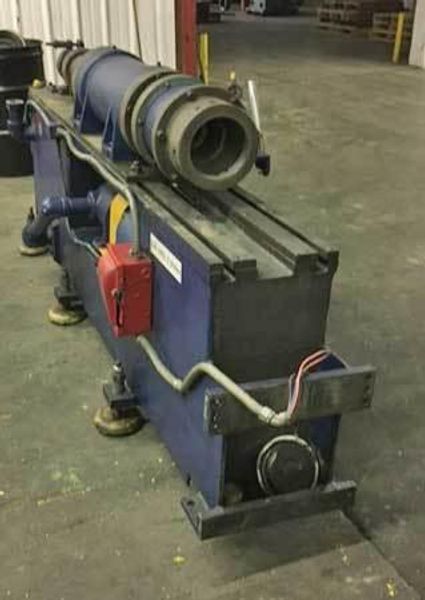

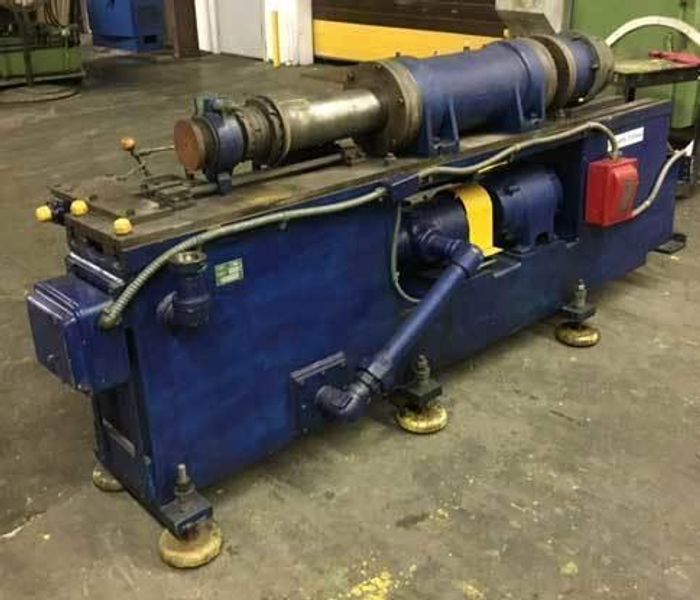

Fenn/Standard Hydraulic Swager Feed

Manufacturer

STANDARD/FENN

Type

SWAGERS

Stock

8144

Model

Hydraulic Feed for Tube or Bar

Dealer Location

Pennsylvania

Spec Sheet



Size Range:  Was Feeding 2-1/2" (63.5mm) but can go Higher
Length of Stroke:  Up to 8" (203mm)

Hydraulic Pmp:
Mfg:  Vickers
Min. Capacity:  75 PSI
Max. Capacity:  250 PSI
Self-Contained Oil Reservoir

Pump Motor:  2 HP 220/440 Volts, 6.4/3.2 AMPS, 1150 RPM, 3 PH, 60 HZ
Dimensions:  96" (2438mm) L x 24" (610mm) W x 48" (1220mm) H
Approx. Weight:  1900 lbs (862 kg)
