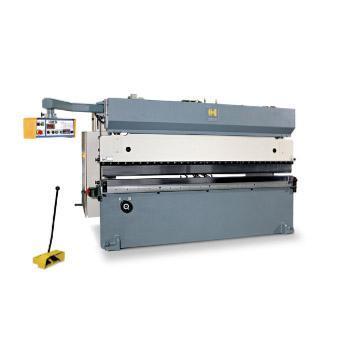

Haco HDE 165 10 8 CNC Press Brake (#4642)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



165 Ton X 10' CNC Press Brake with Pendant Mounted Control for 40" Power Back Gauge, Manual Anti-Deflection Table, Die Riser and Electric Foot Pedal

GENERAL SPECIFICATIONS
Working Length (Bending Length) : 122"
Capacity: 165 US Short Tons
Distance Between Side Frames: 102"
Standard Gap: 9.84"
Daylight Opening (Open Height): 12.80"
Ram Stroke: 4.72"
Table Height: 36.02"
Fast Approach Speed: 165 IPM
Max. Working Speed: 16.5 IPM
Fast Return Speed: 141" IPM
Motor Power: 16.5 HP
Total Length (Approximate): 137.80"
Total Width (Approximate): 66.93"
Total Height (Approximate): 108.27"
Approximate Weight: 18,020 LBS

INCLUDES: Pendant Mounted Control for 40" Power Back Gauge, Manual Anti-Deflection Table, Die Riser and Electric Foot Pedal


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
