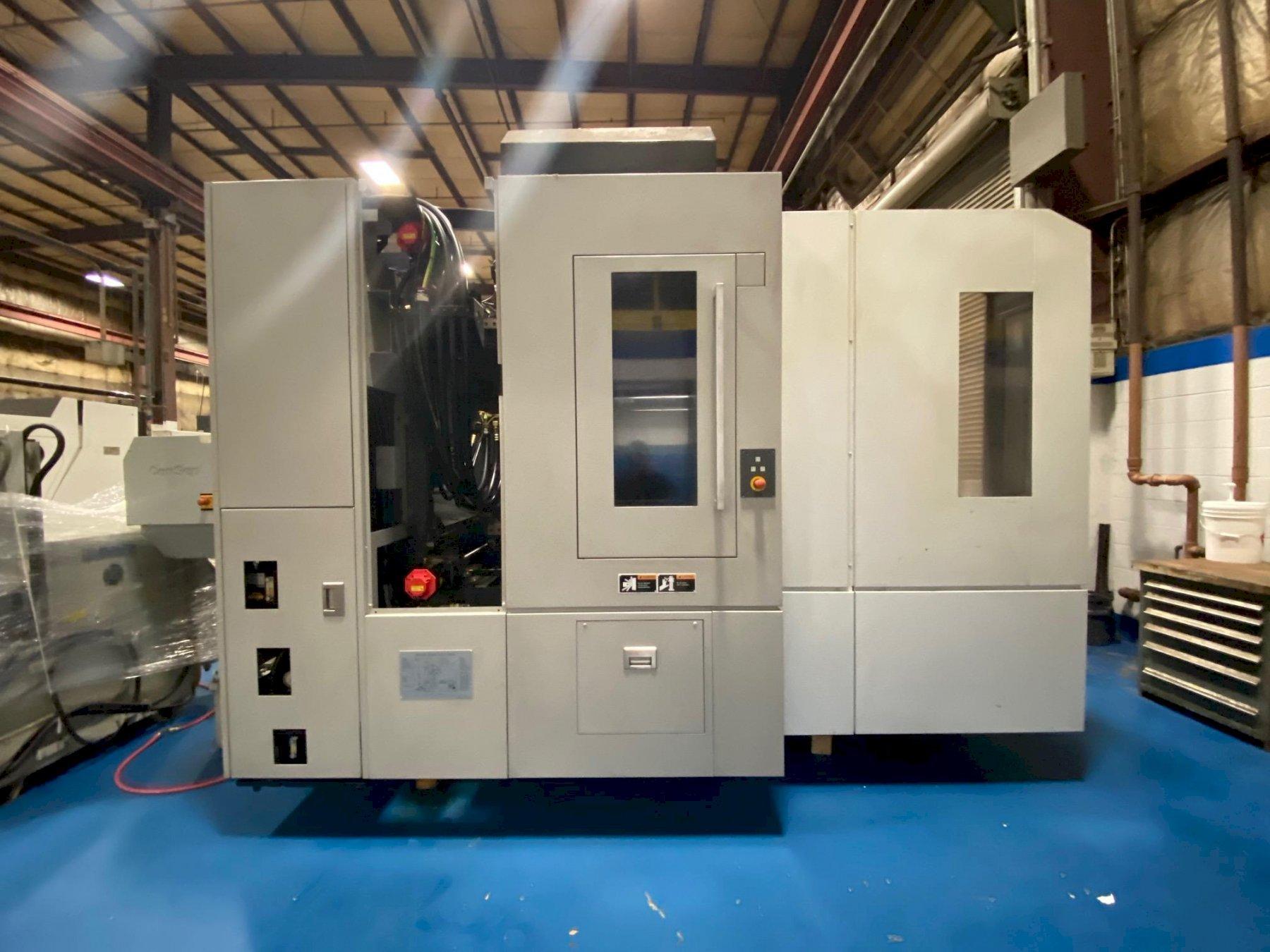

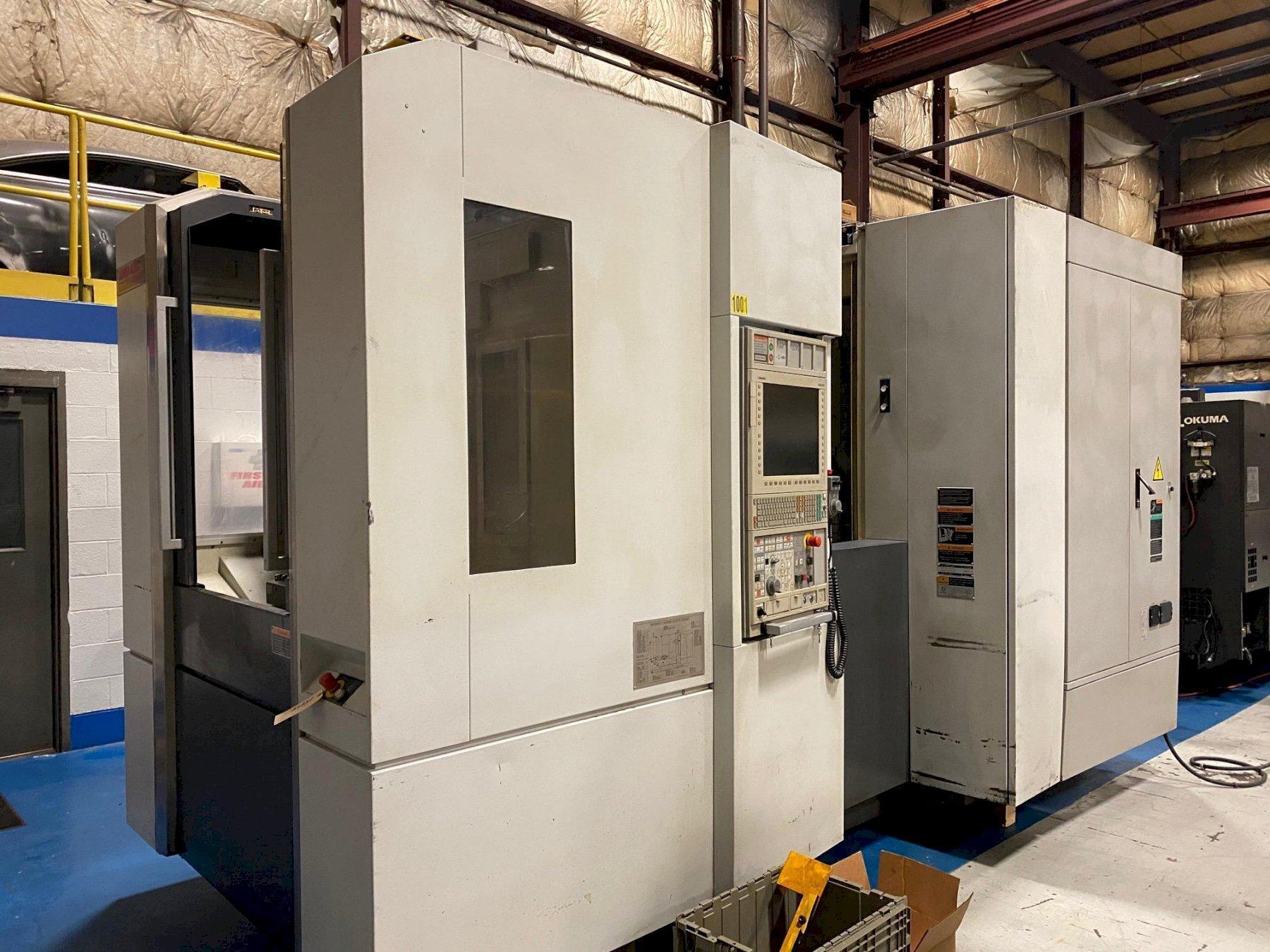

2010 Mori Seiki NH5000DCG/40 CNC Horizontal Machining Center (#4647)

Manufacturer

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



28.7" X 28.7" X 33.5" CNC 4-Axis Horizontal Machining Center with MSX-701IV Control, Hi Pressure Coolant Thru Spindle and 60 Station ATC

GENERAL SPECIFICATIONS

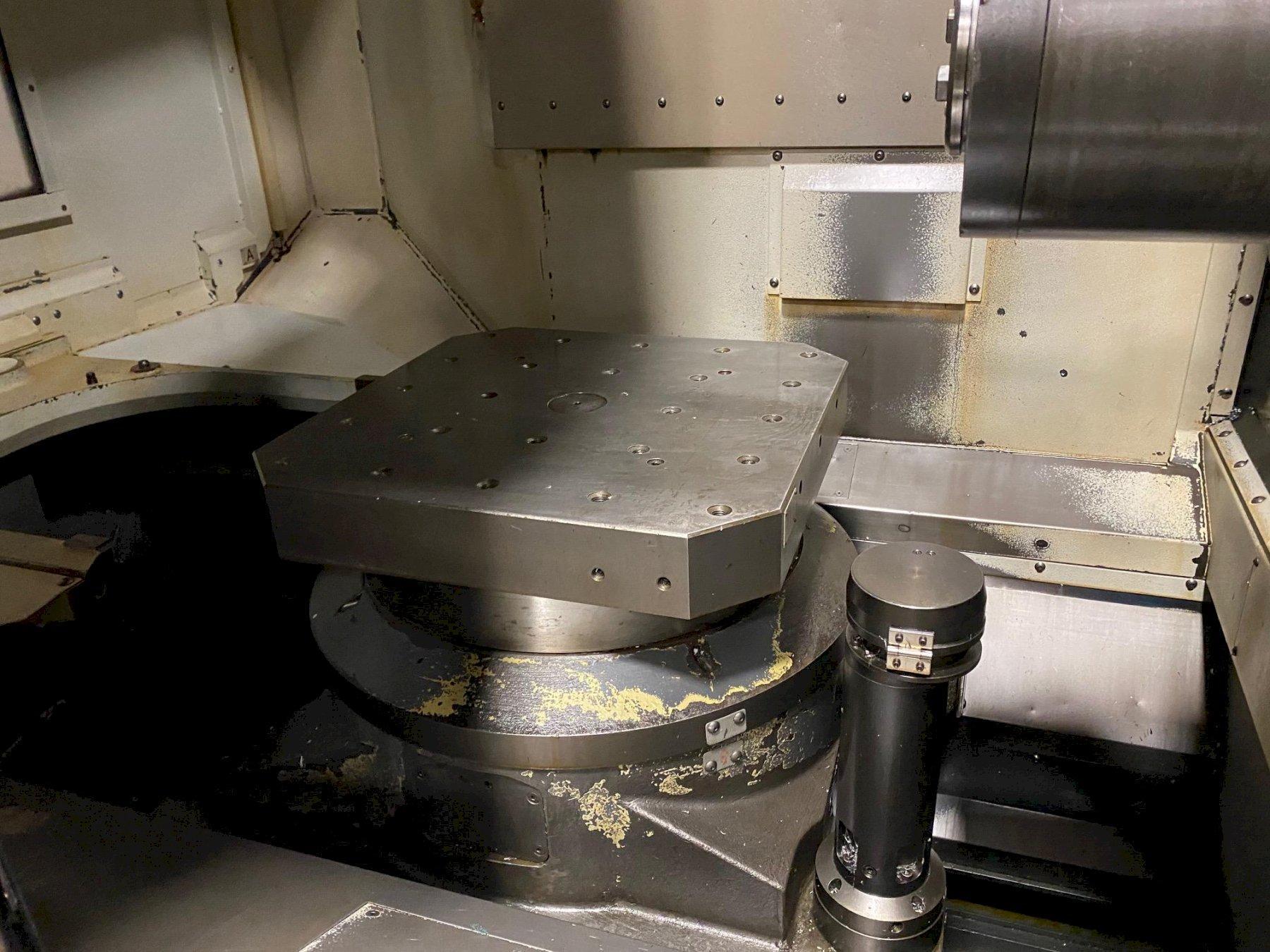

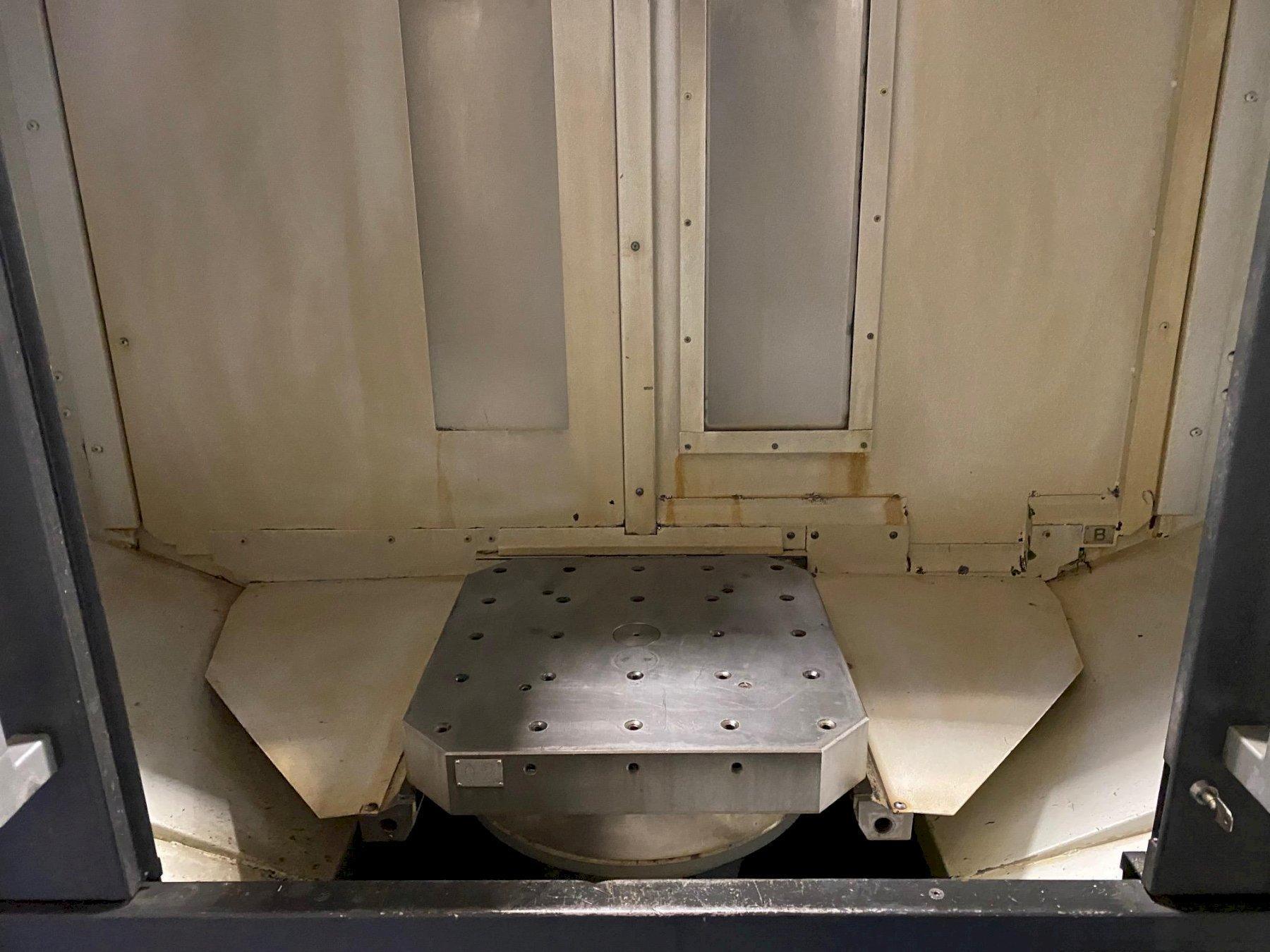

Pallet Size: 19.7" X 19.7"
Max Load: 1100 LBS
Travels (X/Y/Z): 28.7" X 28.7" X 33.5"
Pallet Indexing: 1°

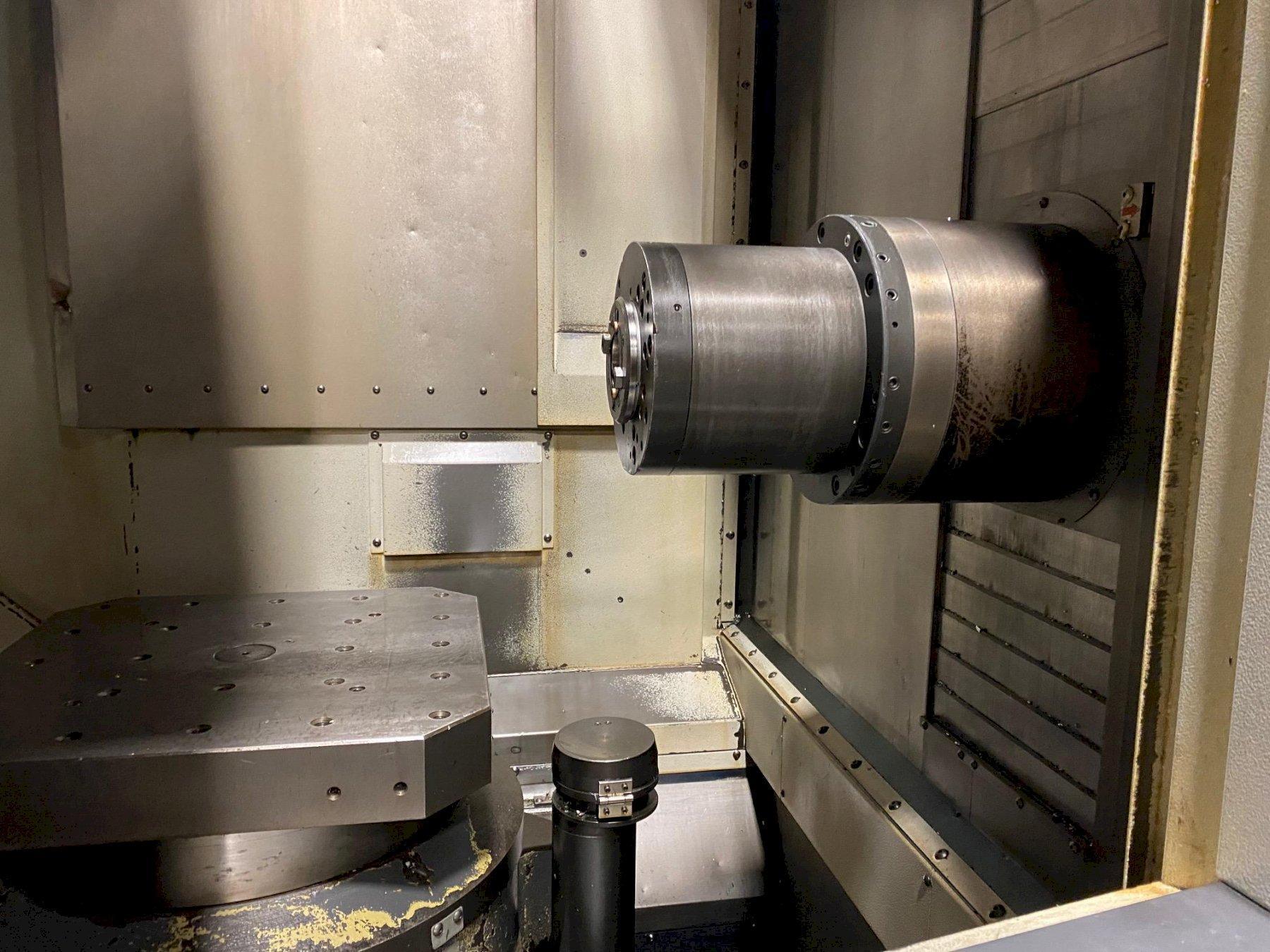

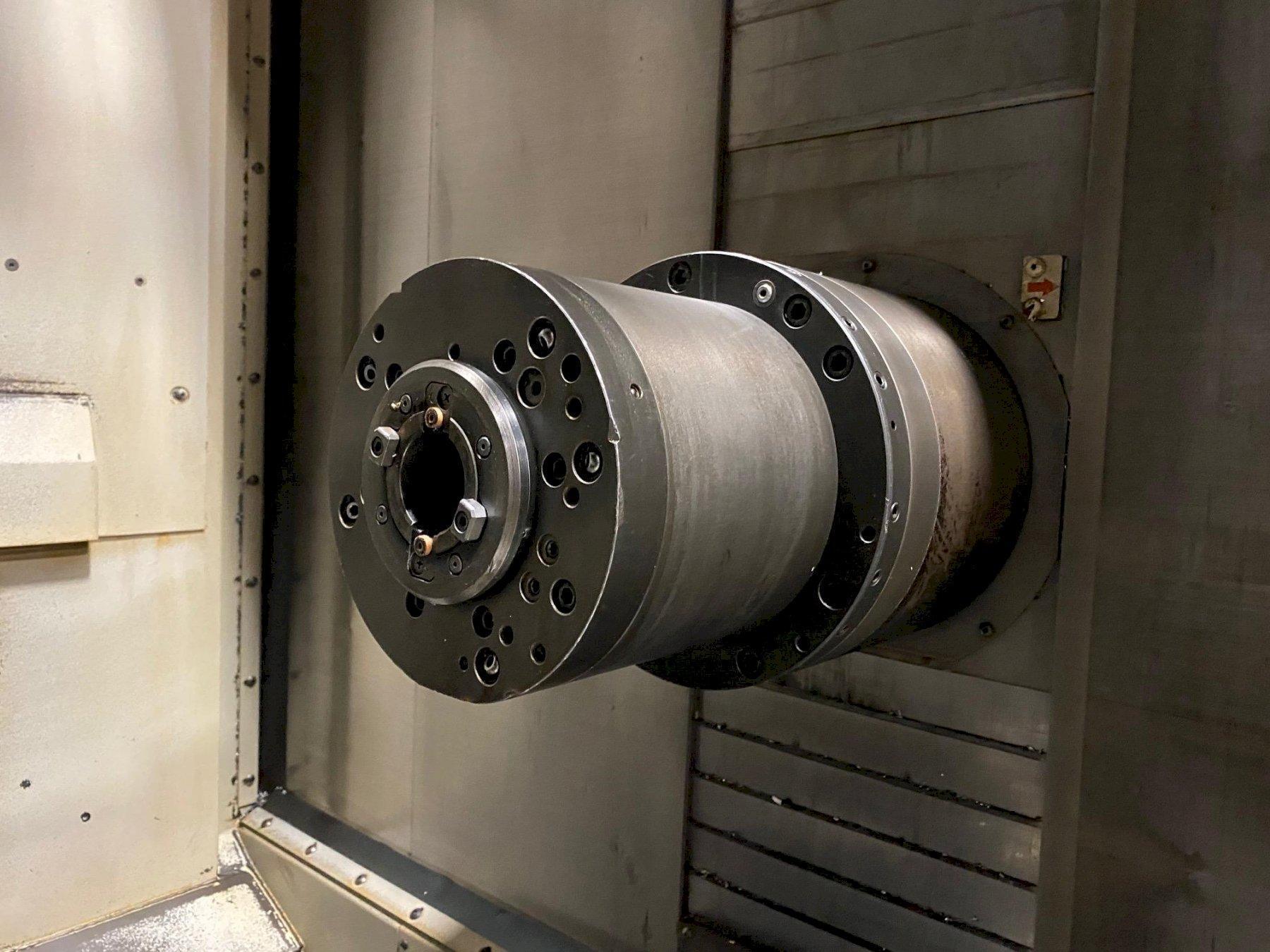

Spindle Speed: 14,000 RPM
Spindle Taper: Cat 40
Main Motor: 30 HP
Rapid Traverse Rate: (X/Y/Z): 1969 IPM
Machine Dimensions: 182" X 108" X 124"
Machine Weight: 28,500 LBS

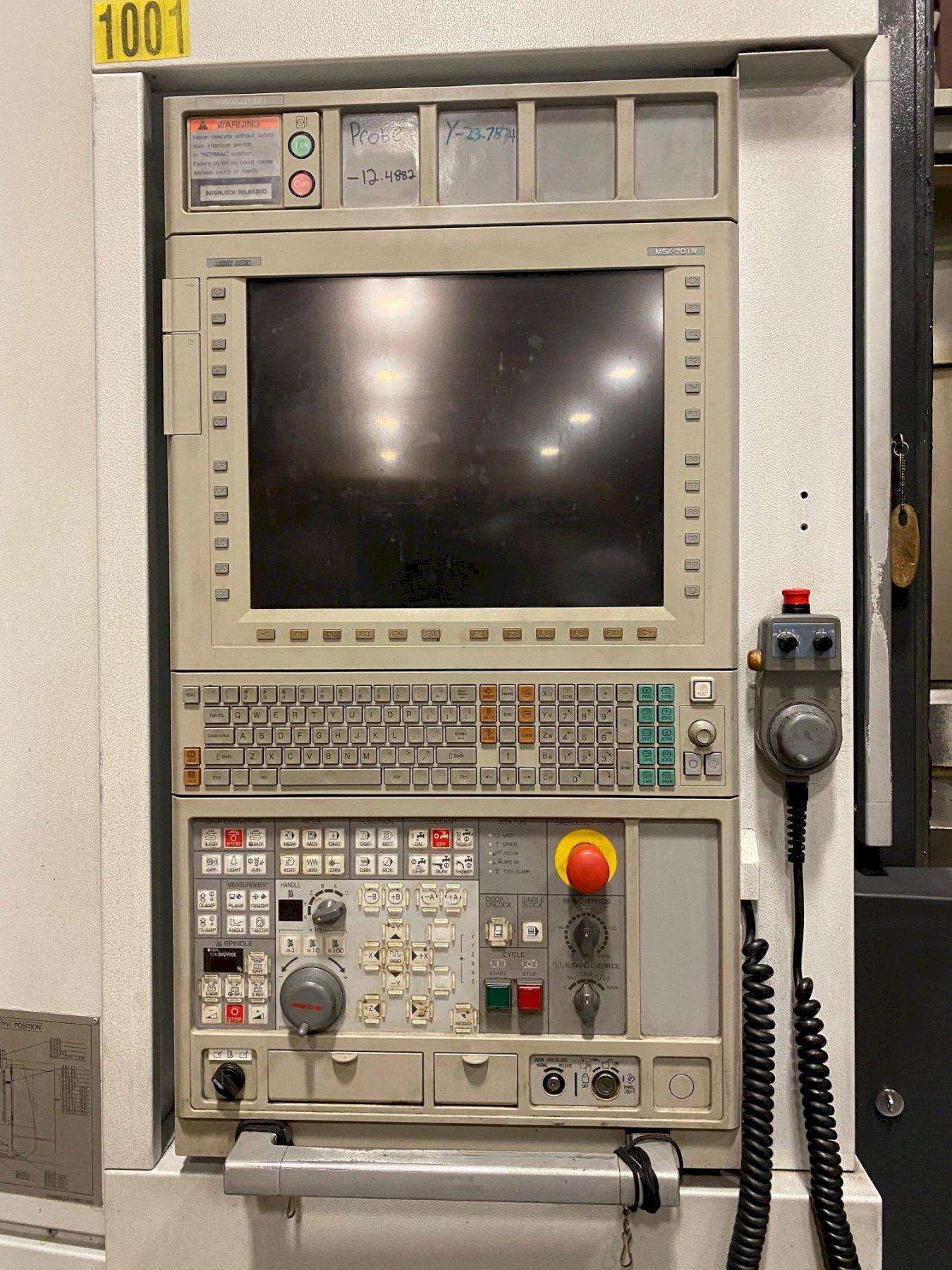

INCLUDES: MSX-701IV Control, Hi Pressure Coolant Thru Spindle and 60 Station ATC


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
