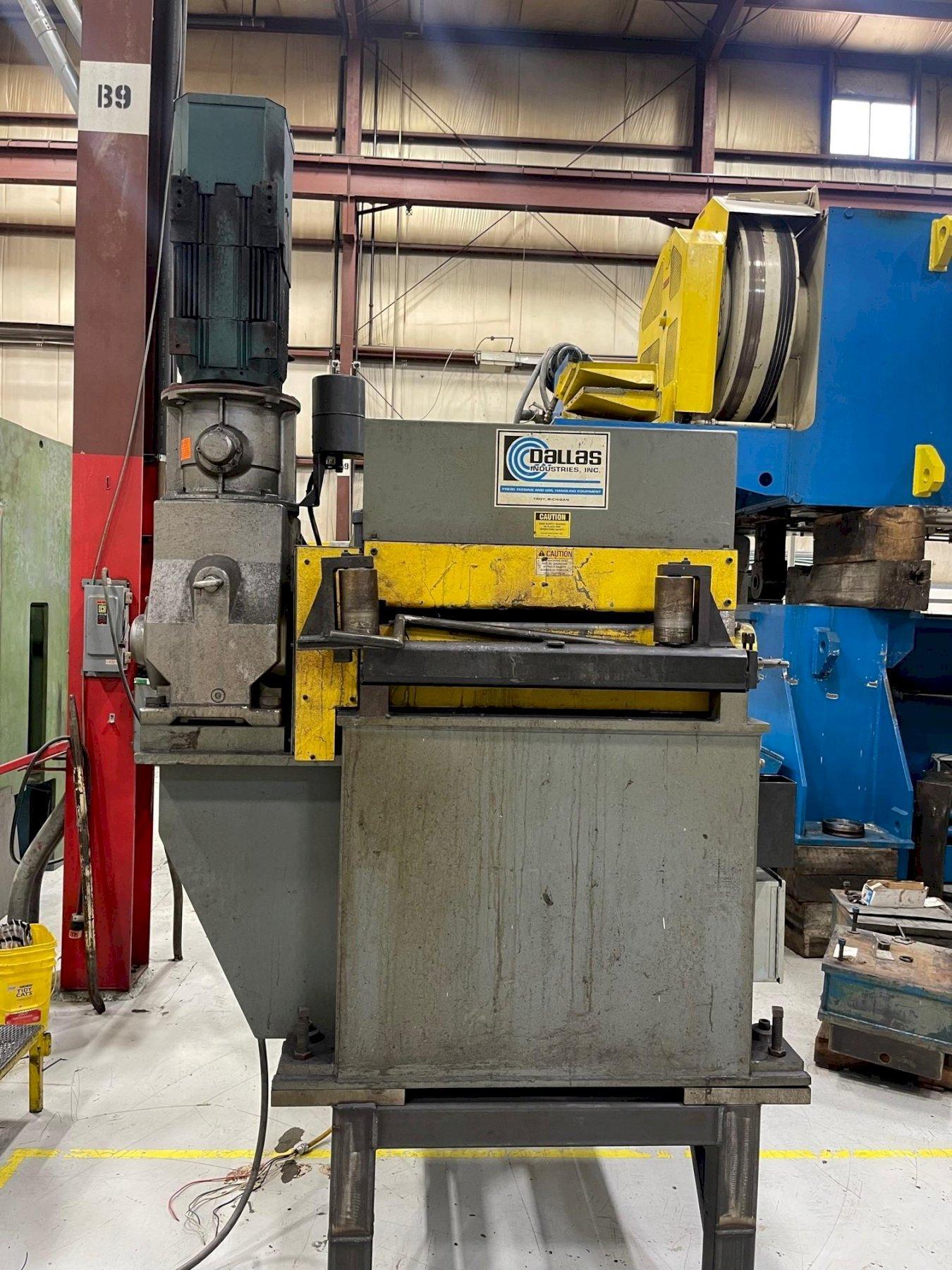

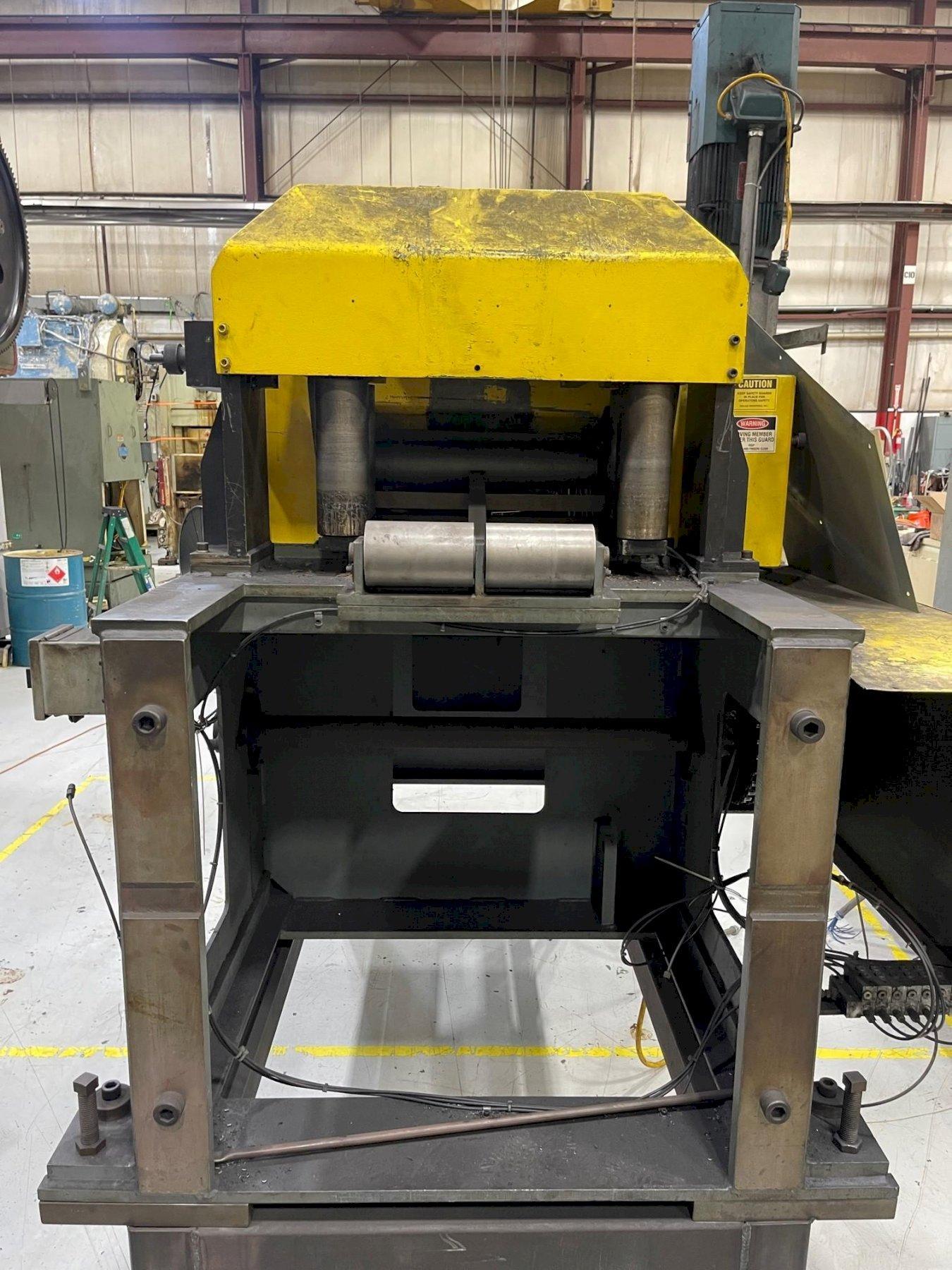

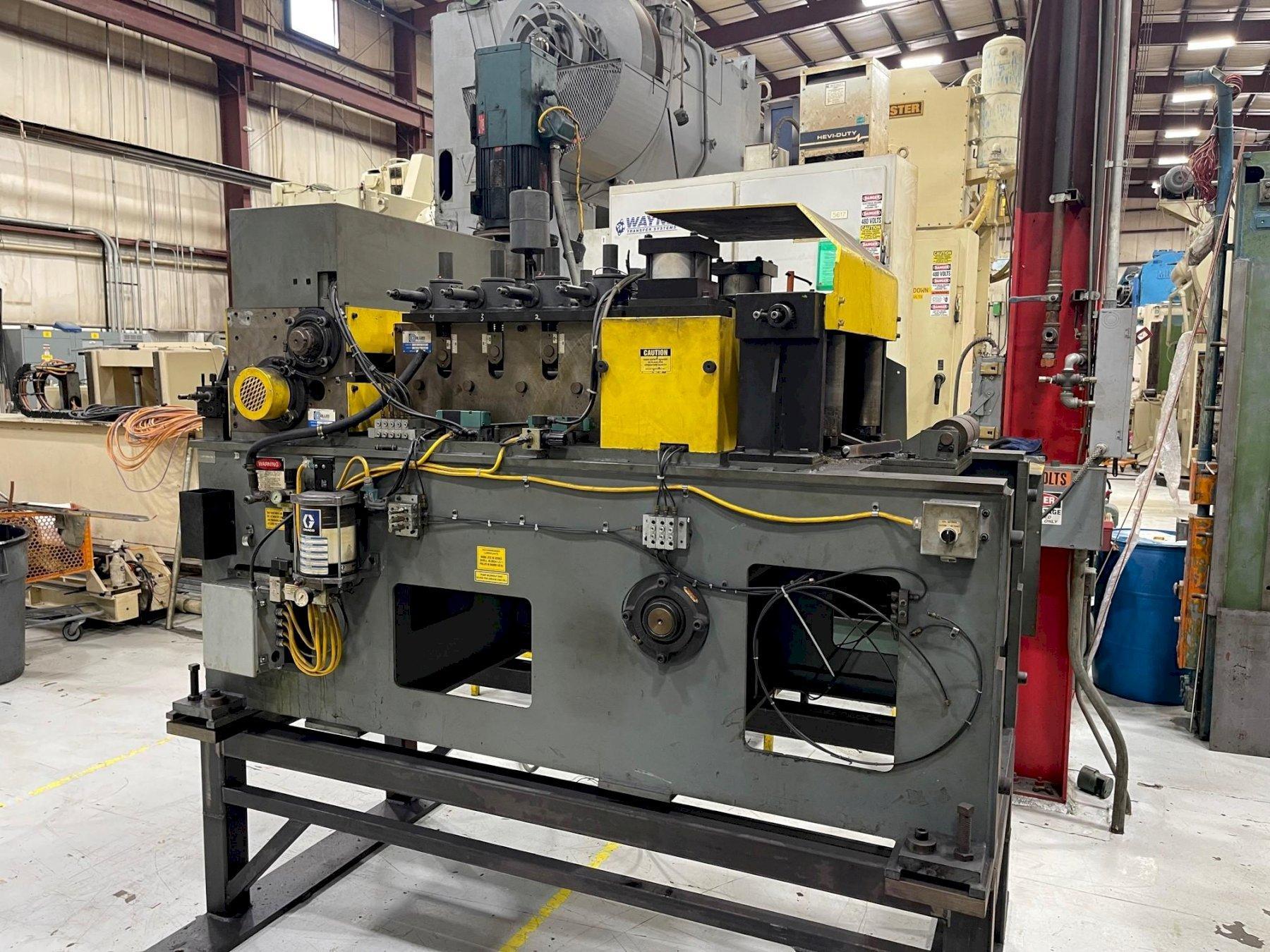

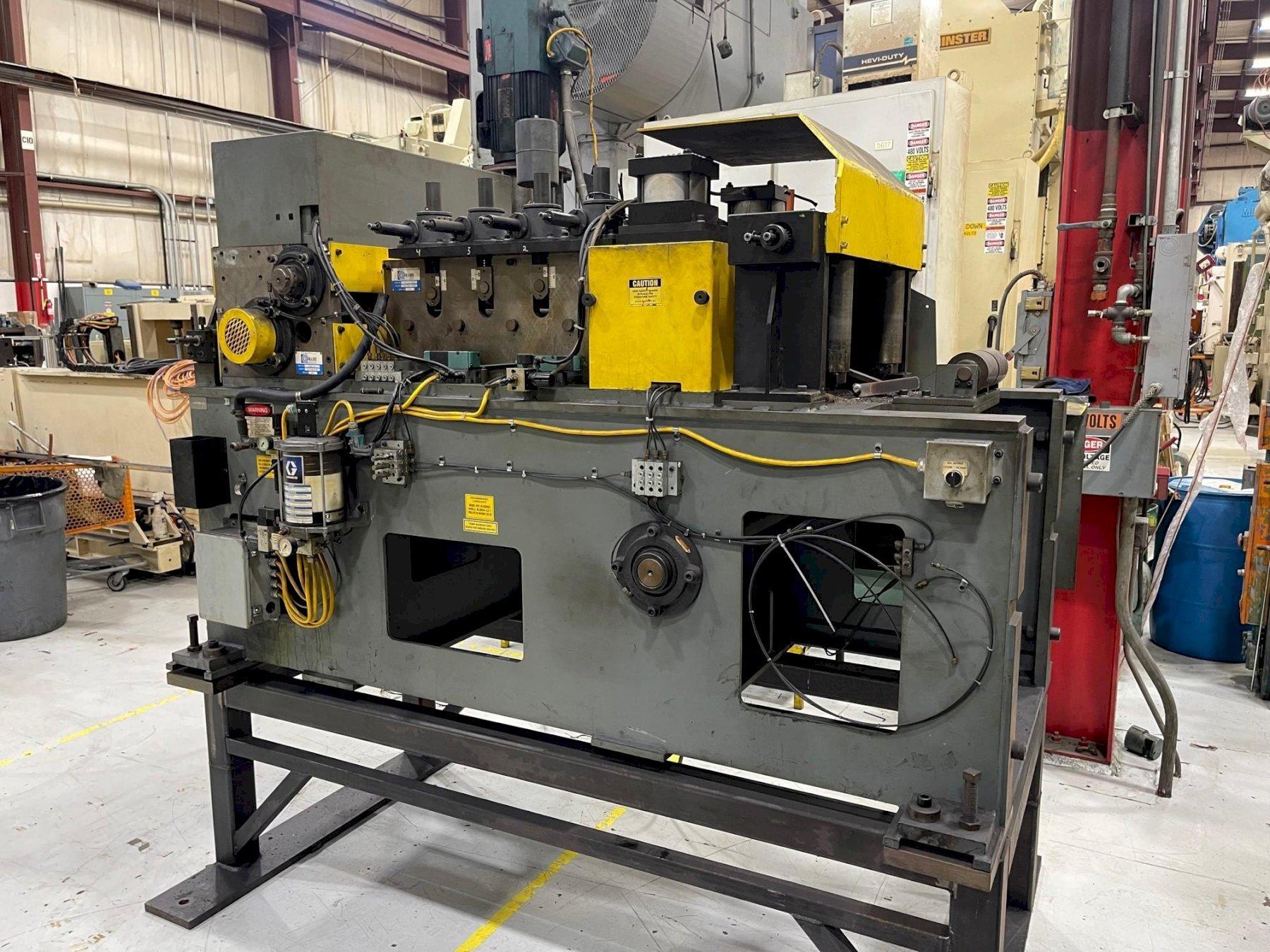

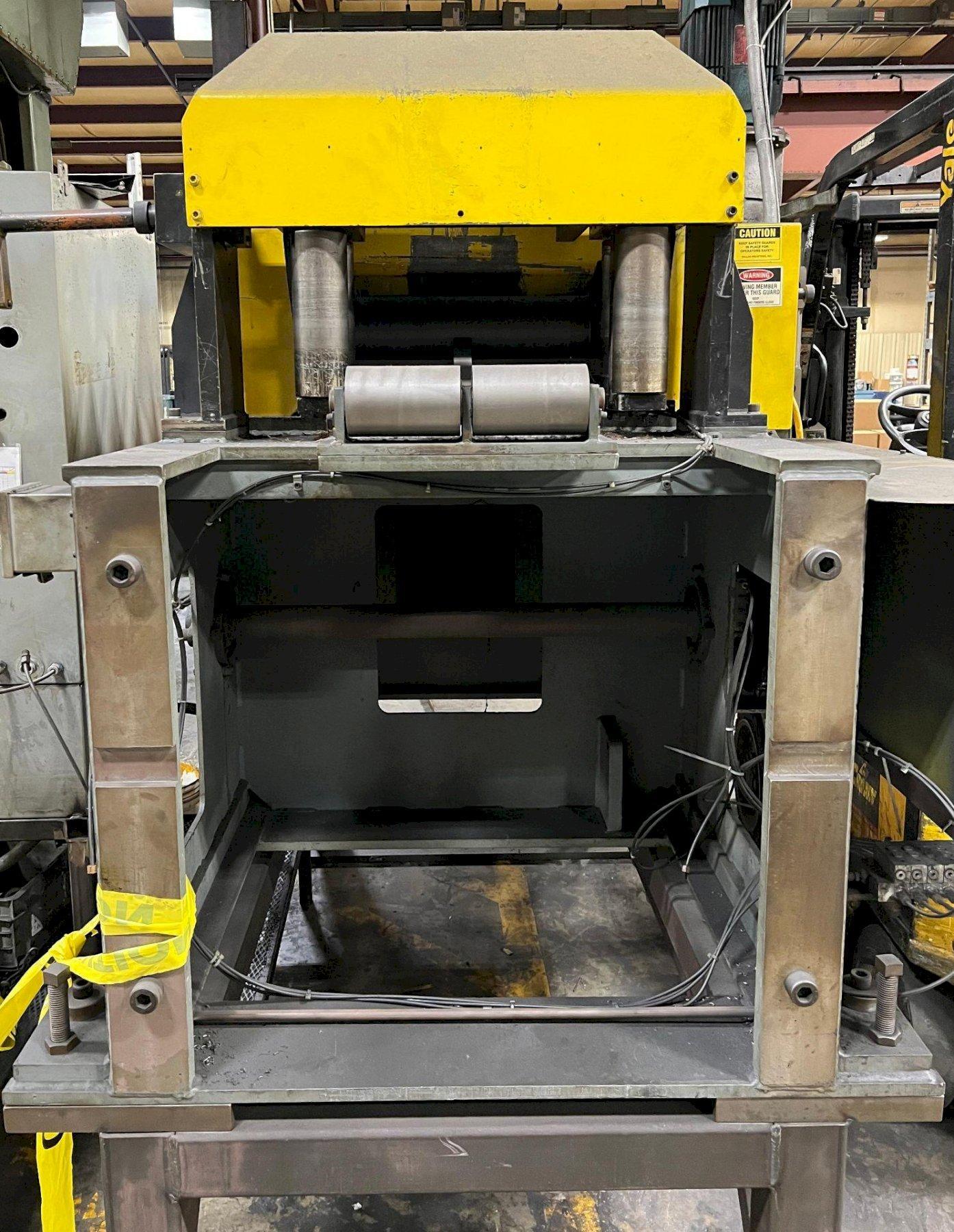

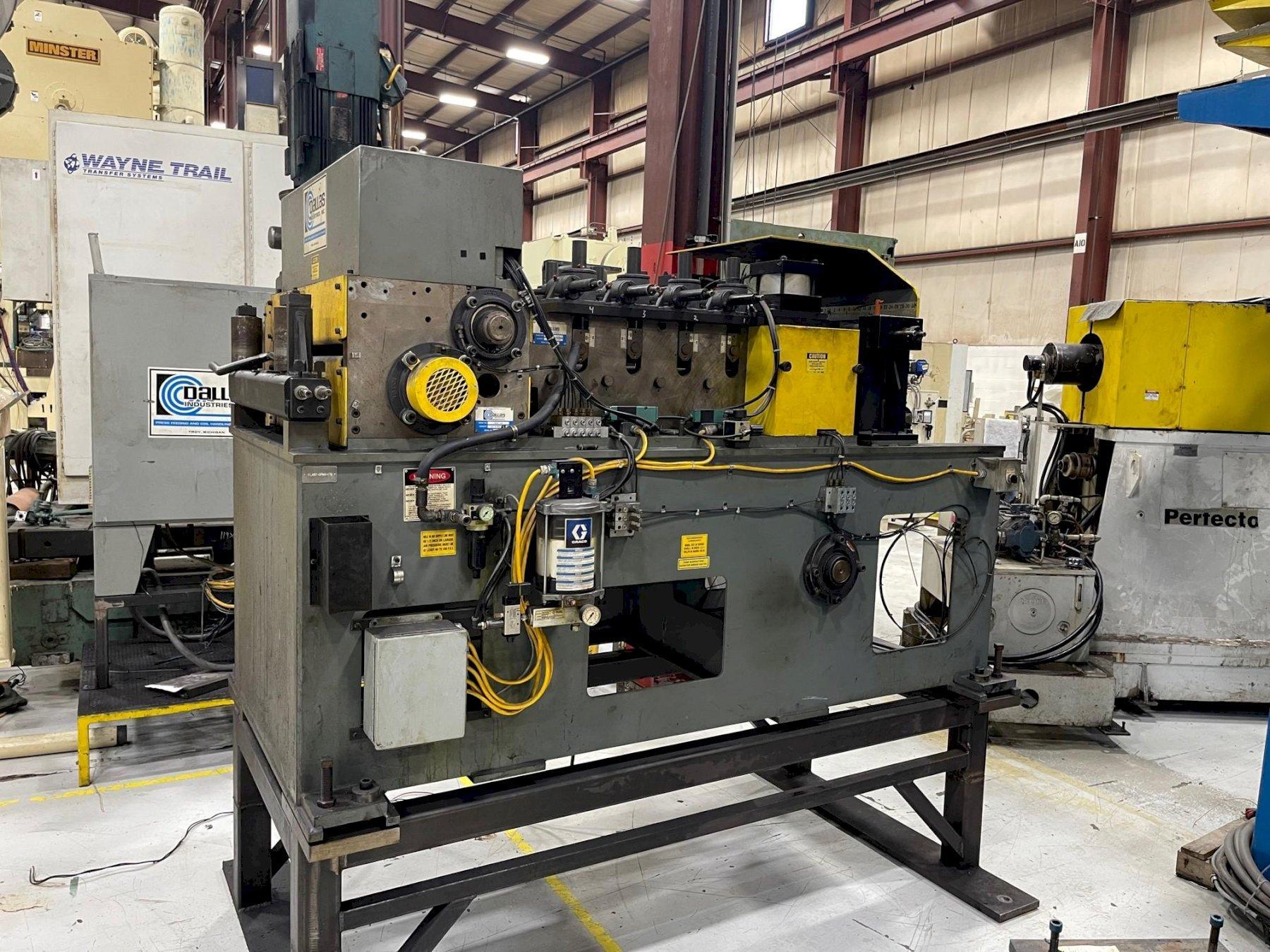

18" Dallas Servo Feed Straightener (High Strength Material) Model #DRFXS-618

Manufacturer

DALLAS

Category

Feeders & Straighteners

Type

FEEDING & STRAIGHTENING MACHINES

Stock

2772

Model

DRFXS-618

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Width - 18 inches
Coil Thickness - .156 inches


Standard Specifications:

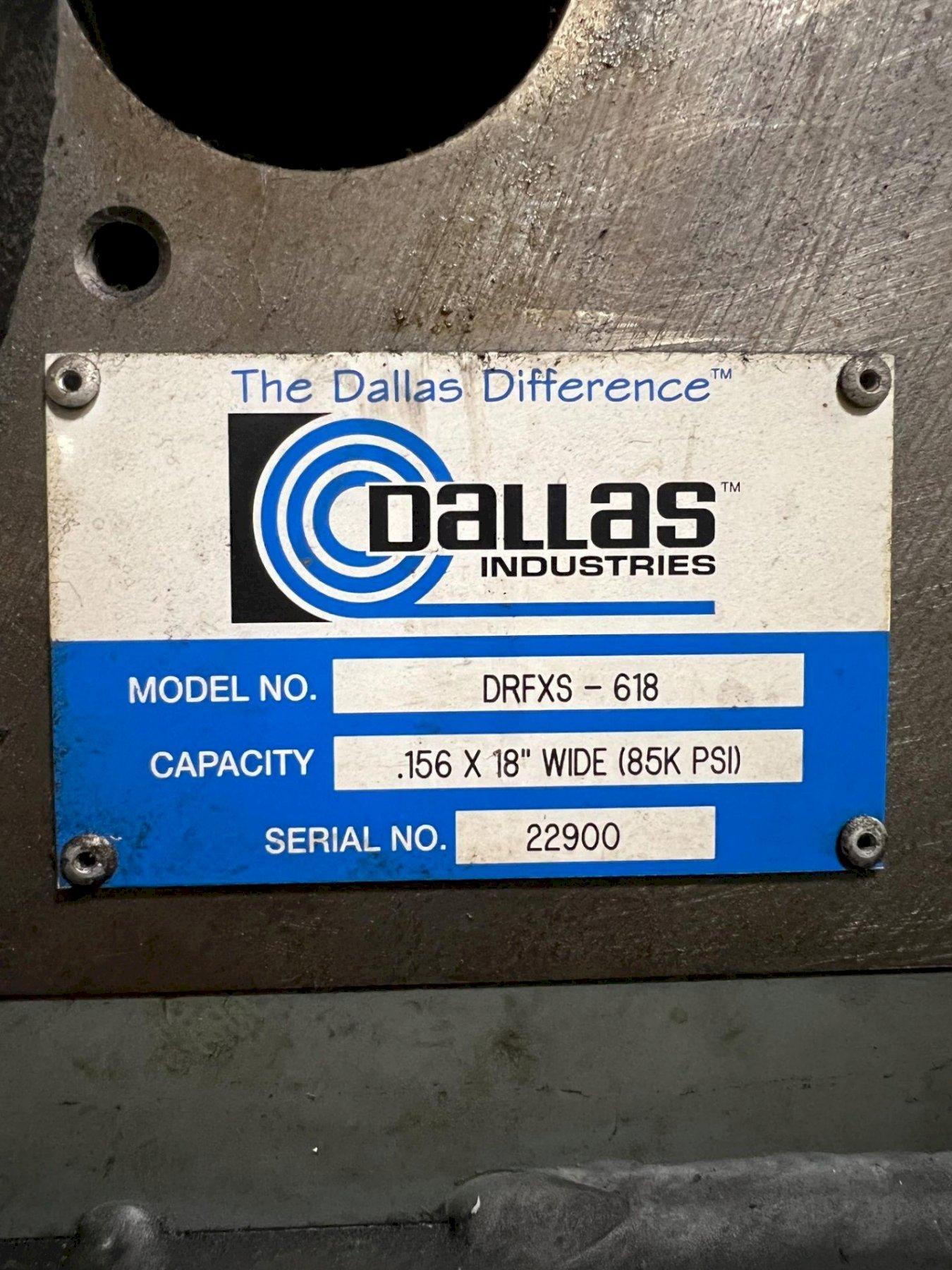

Dallas Servo Feed Model # DRFXS-618
18" Max Coil Capacity
18" @ .156" Thickness Capacity (@ 85k PSI)
.375" Maximum Material Thickness
.065" Minimum Material Thickness
sn/ 22899 / 22900

Equipment and Features

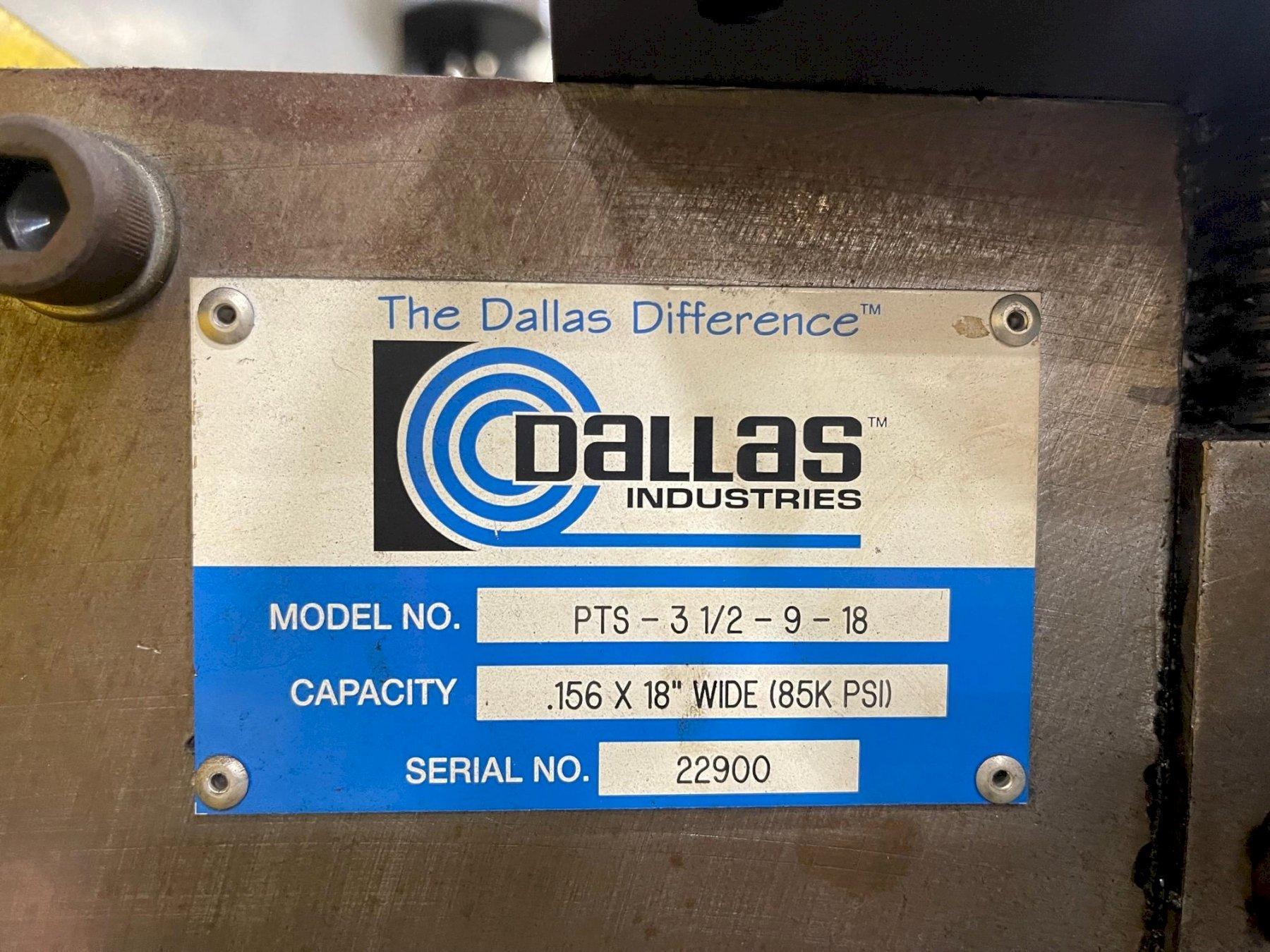

Dallas Pull Thru Straightener Model # PTS 3.5-9-18
9 Roll Pull Thru Straightener
Right To Left Feed Direction
Cabinet Base Mounted
Heavy Duty Pass Line Adjustment
Six inch diameter full width upper and lower feed rolls

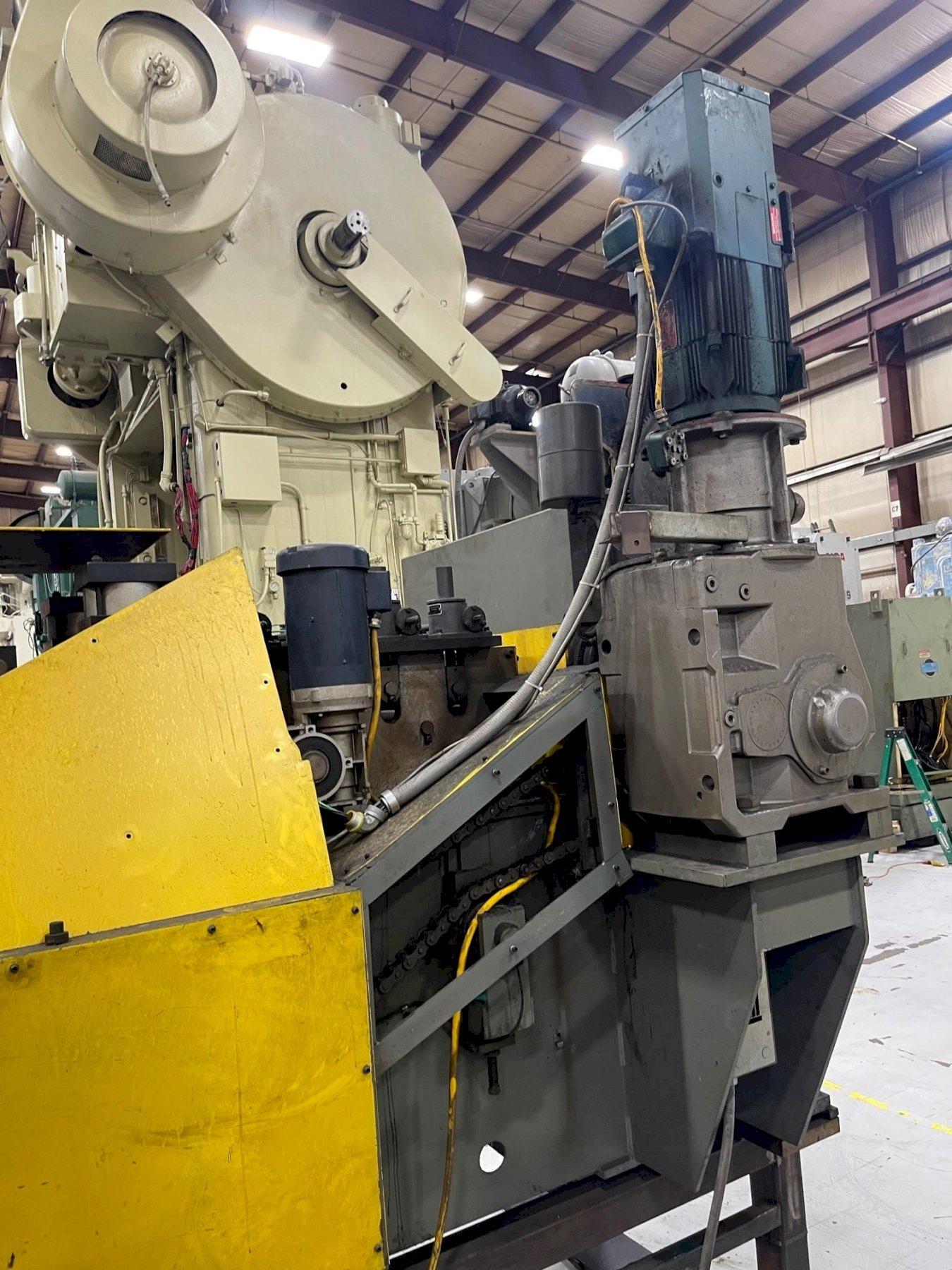

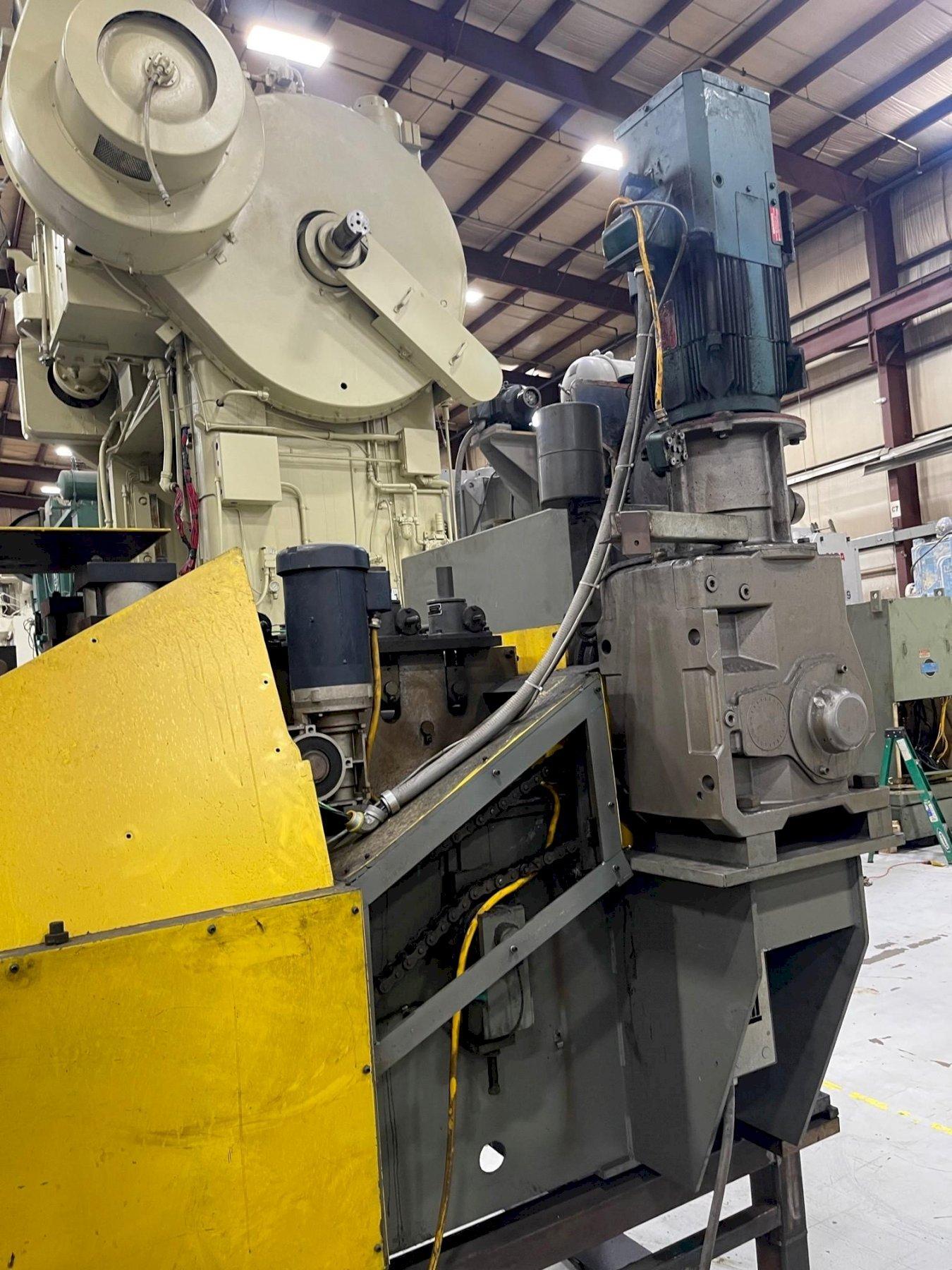

Outboard Drive for Feed Rolls
30 HP AC Drive Assembly @ 1750 RPM
Matte chrome finish on upper  and lower feed rolls
Heavy duty hand crank stock width edge guides

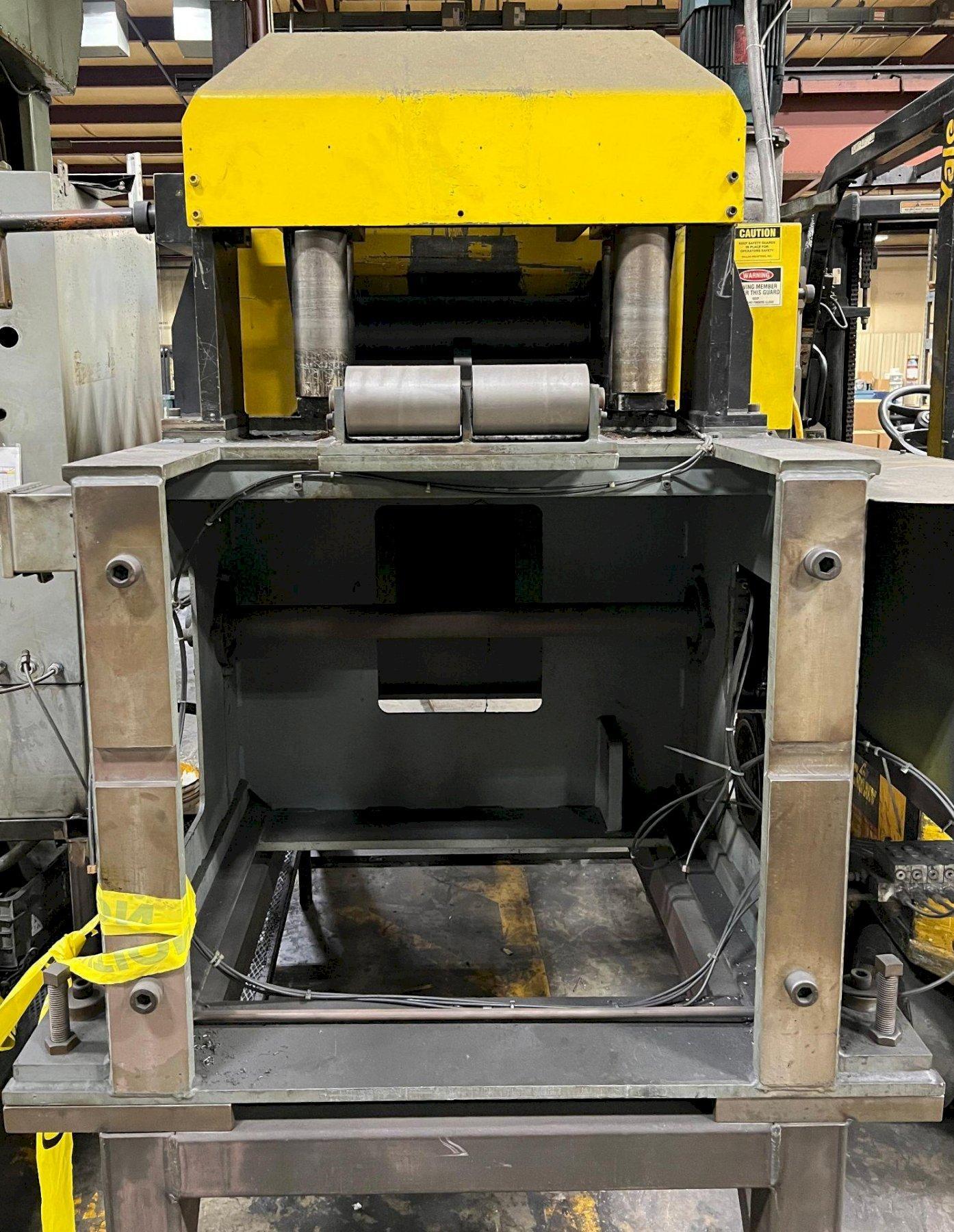

Nine straightening rolls x 3.5 inch diameter with screw jack adjustments
7” Centerdistance
Air operated upper pinch roll adjustment
Air clutch pinch roll engagement

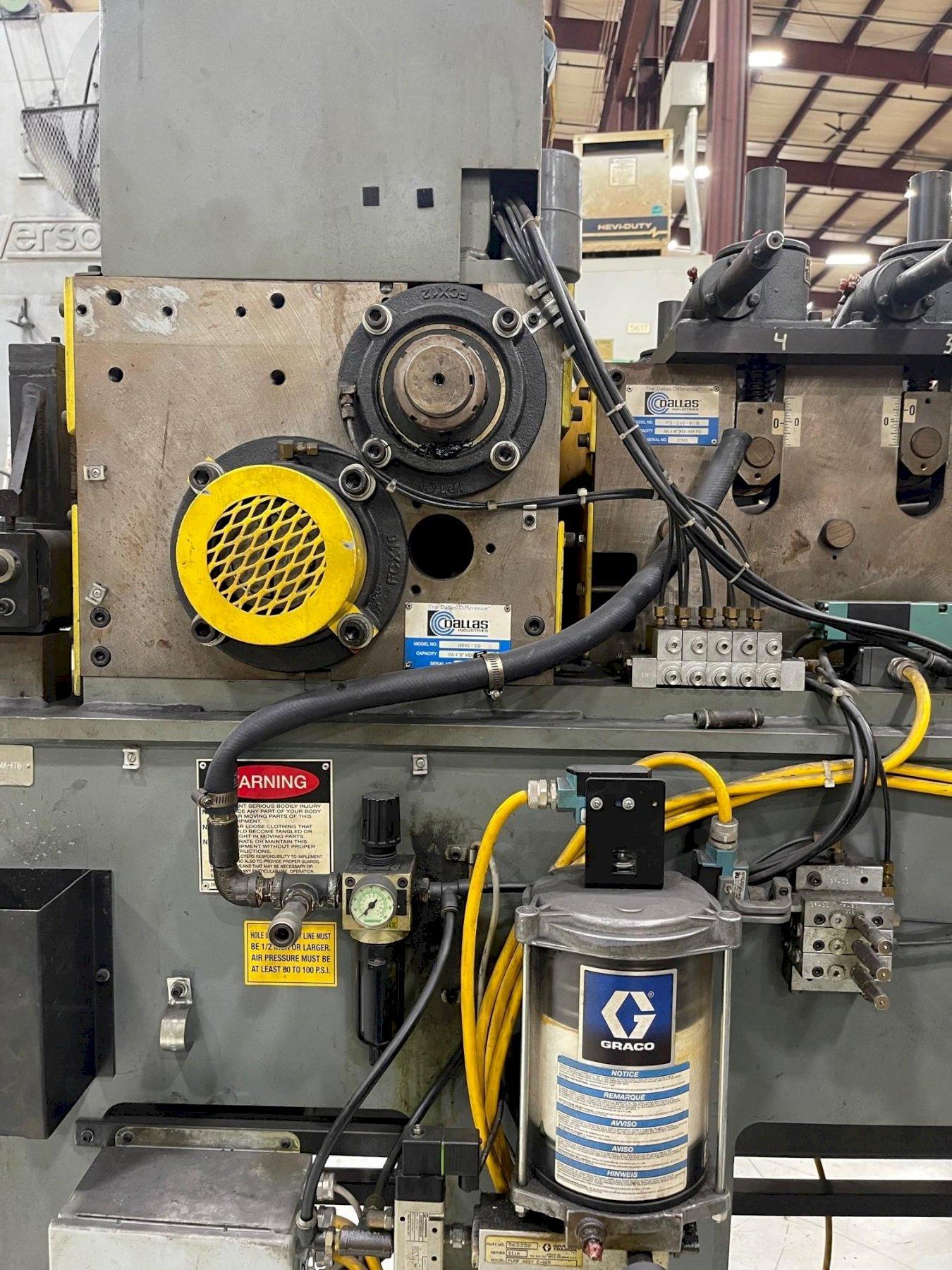

Out board lubrication points

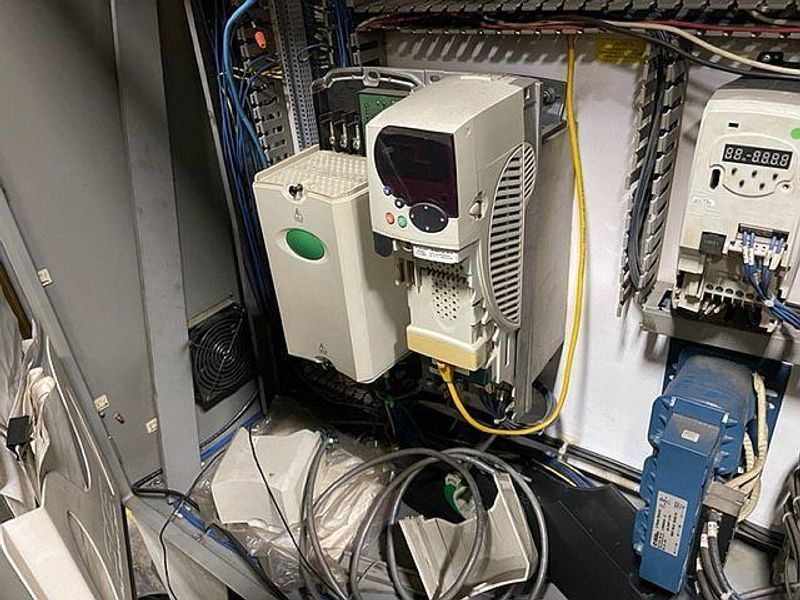

Motors and Controls
Remote pendant control for jog forward and reverse
Emergency Stop
