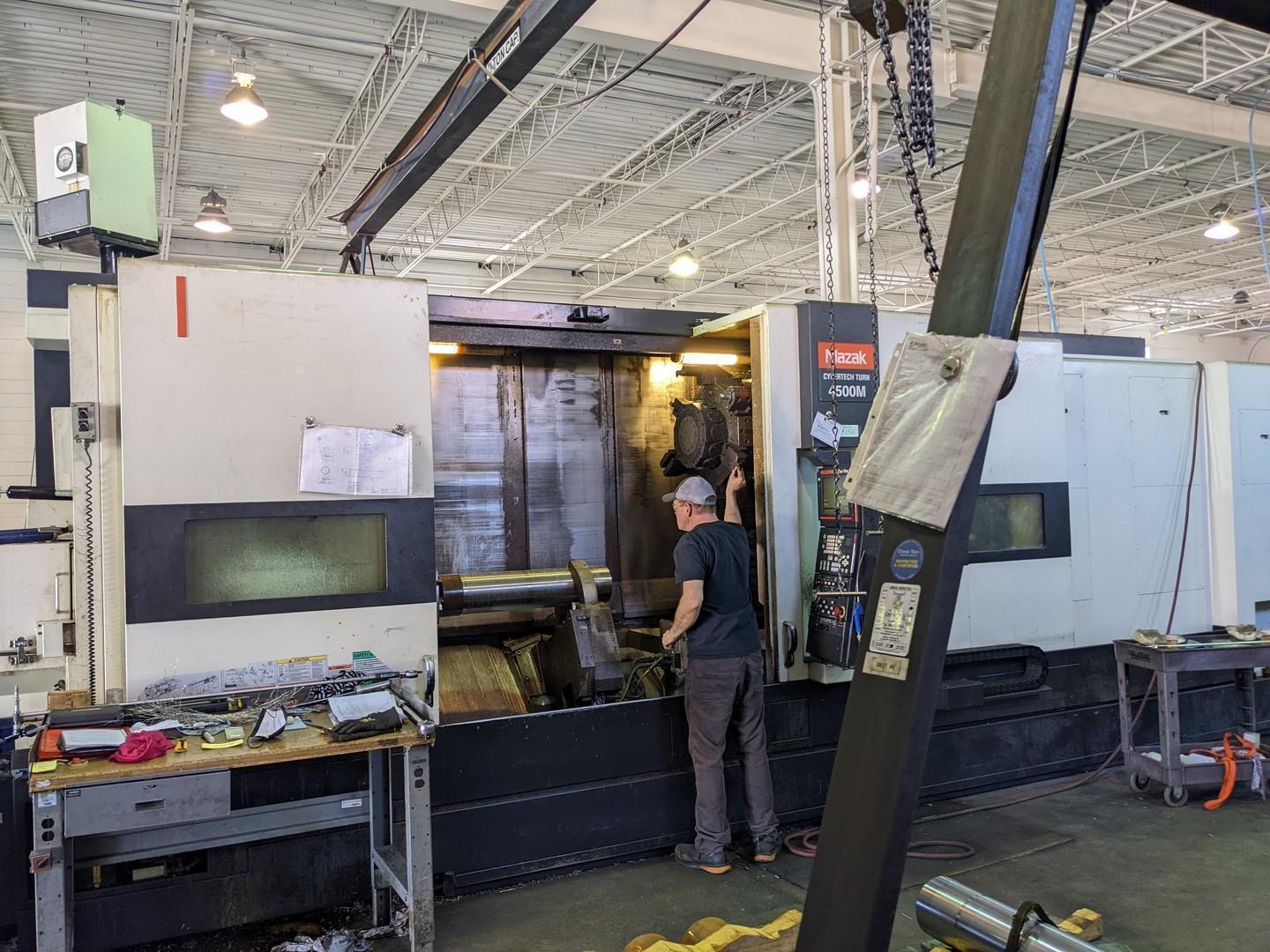

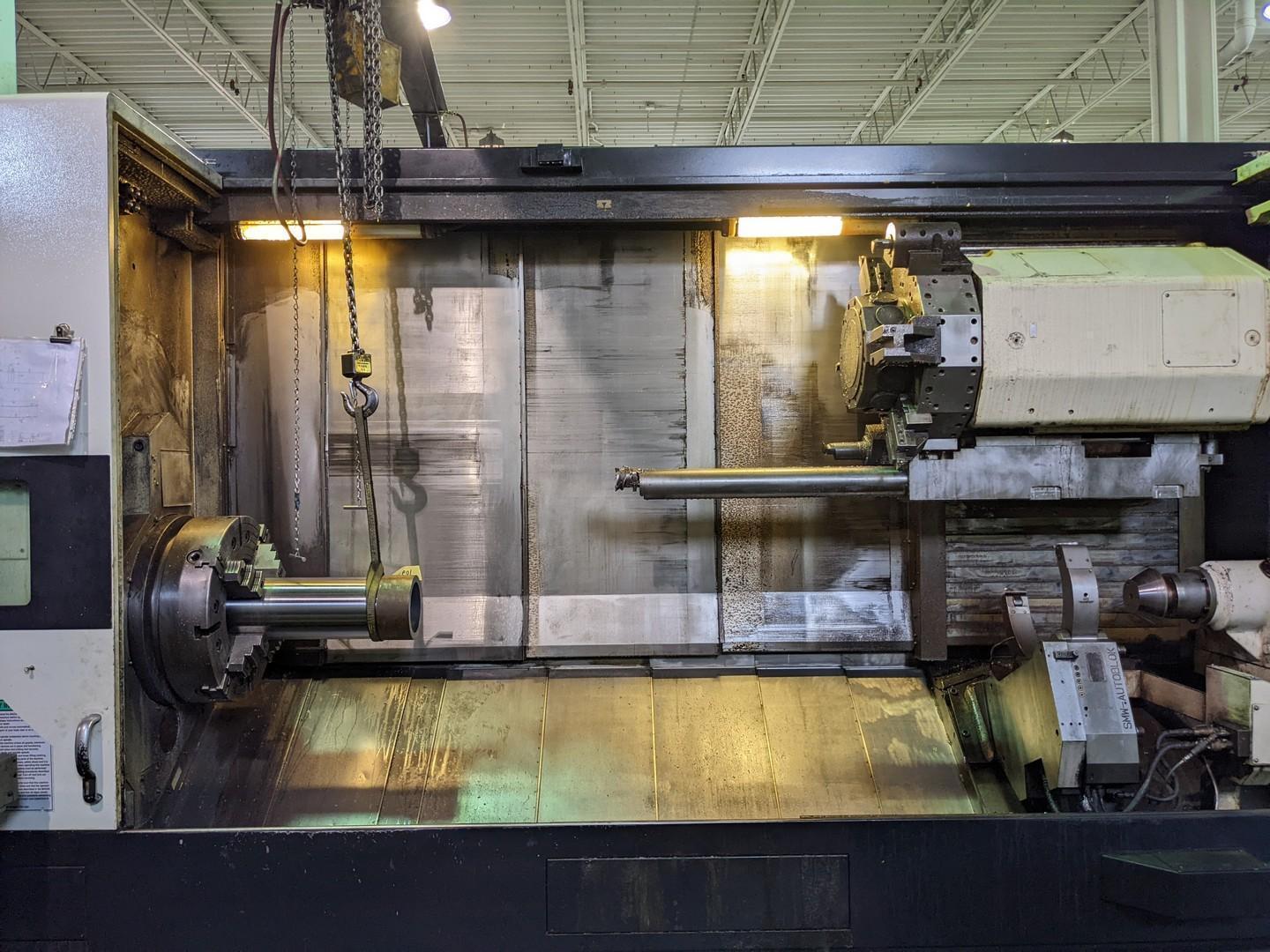

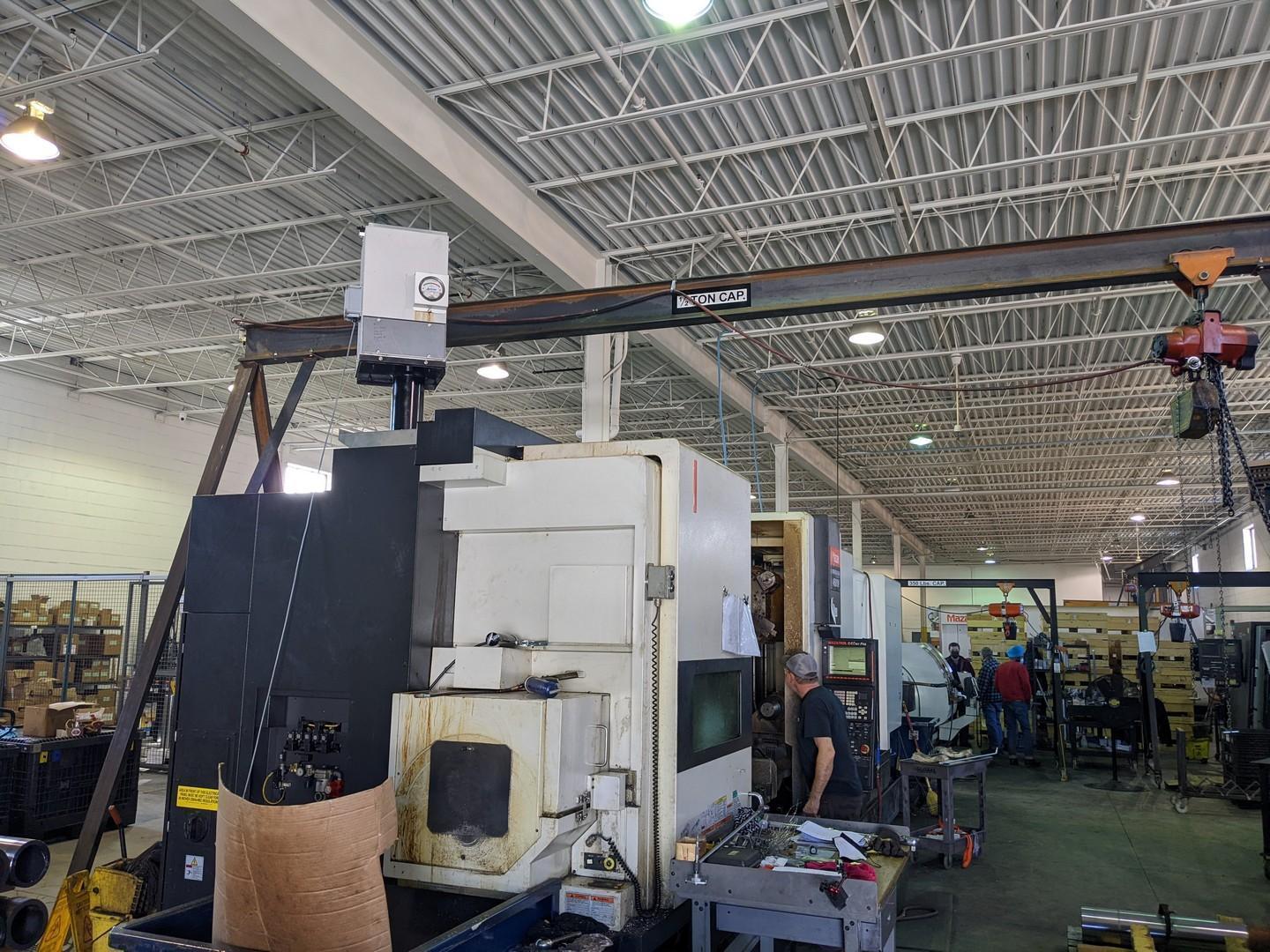

2006 Mazak Cybertech Turn 4500M/3000 CNC Turning Center (#4623)

Manufacturer

Category

Lathes

Type

LATHES, TURNING

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



33.88" X 27.5” CNC Turning Center with Mazatrol PC-Fusion-CNC 640HT Pro Control, 12 Position Drum Turret, Programmable Tailstock, Auto Lube System, Multitap Transformer and Chip Conveyor Side Disposal

GENERAL SPECIFICATIONS

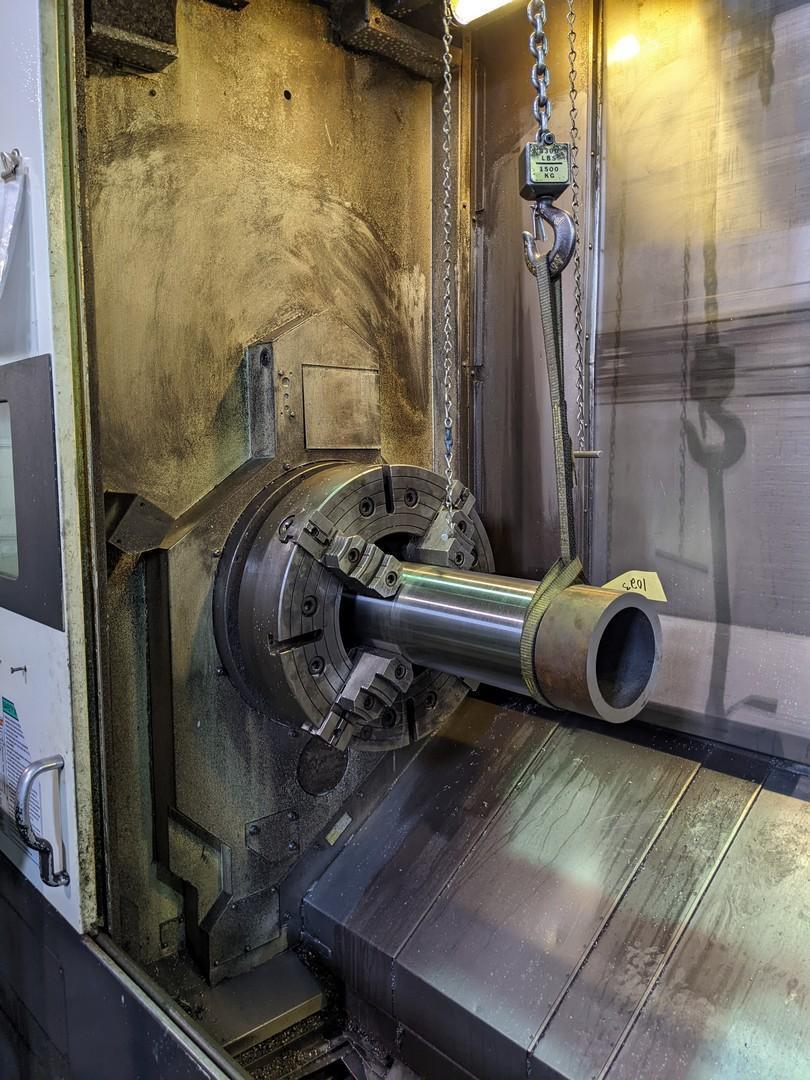

Chuck Size: 24"
Maximum Swing / Over Carriage: 33.88" / 27.5”
Maximum Cutting Diameter: 31.88"
Maximum Cutting Length: 120"
X Axis Travel: 21.375"
Z Axis Travel: 123.25"
C Axis Incremental Movement: .001 Degrees

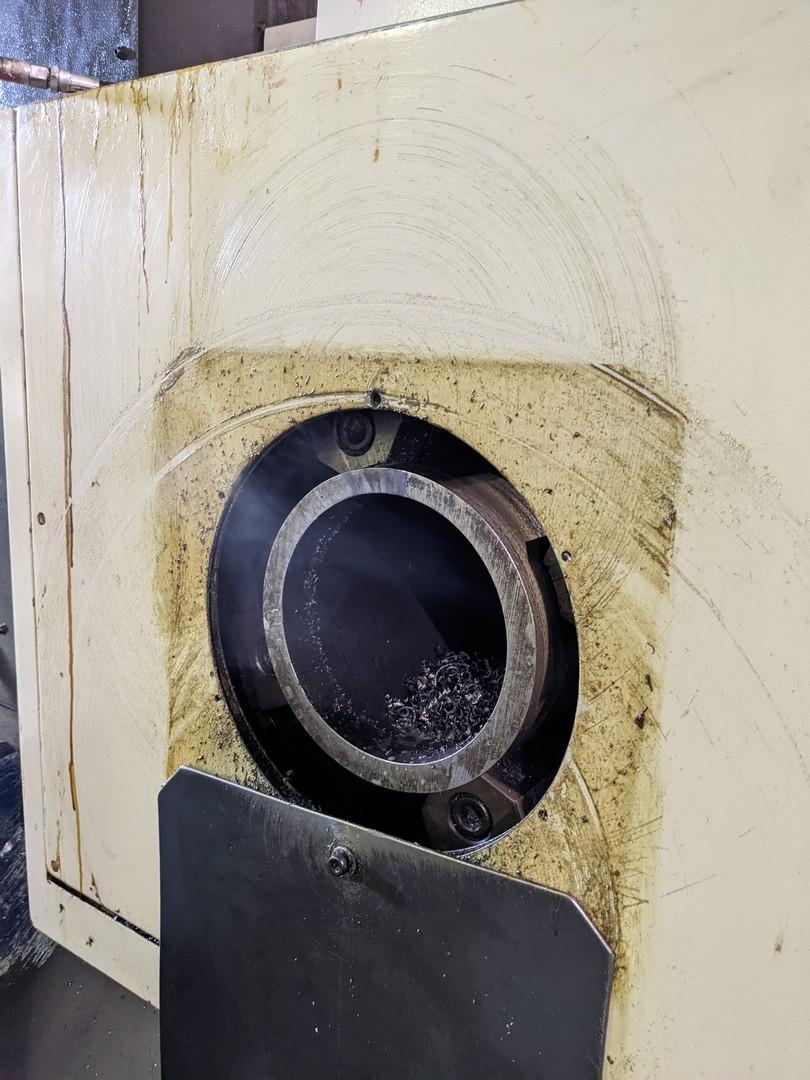

Spindle Nose / Spindle Bore: A2 - 15" / 7.28"
Spindle Speeds: 2 Ranges 1,600 RPM (800 RPM with Current Chuck)
Spindle Motor: 50 HP
Rotary Tool Speed: 3,000 RPM
Rotary Tool HP / Spindle Torque: 15 HP / 103 Ft / LBS

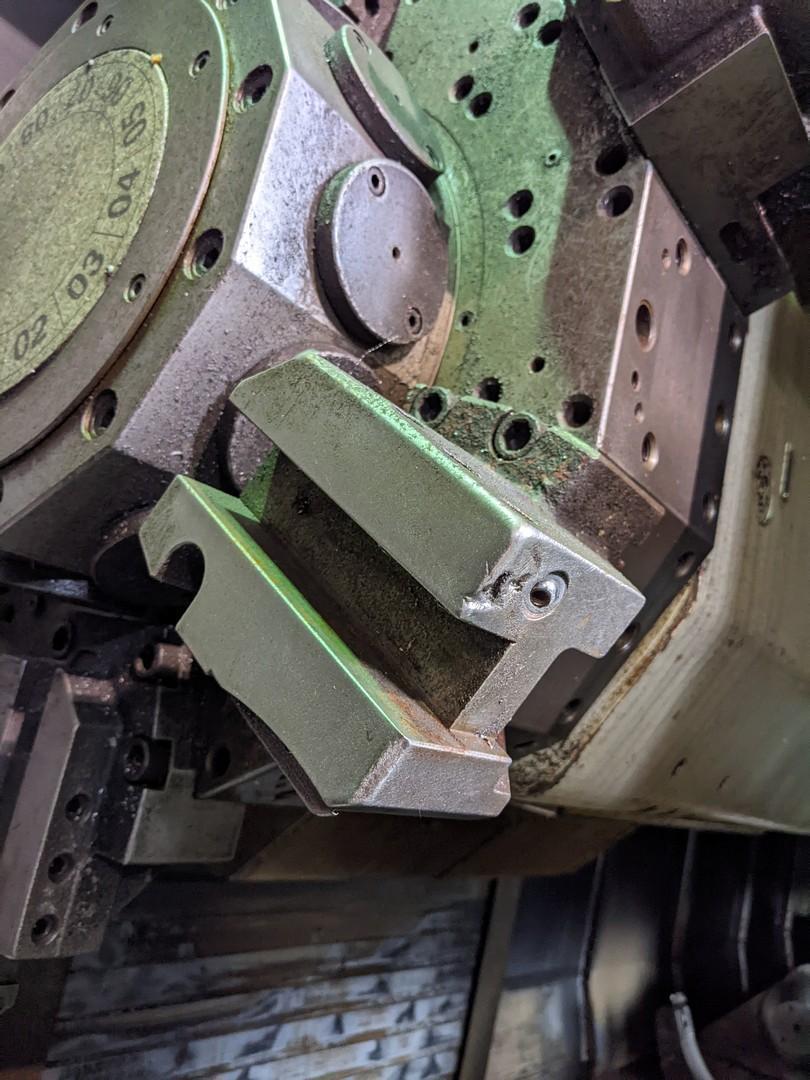

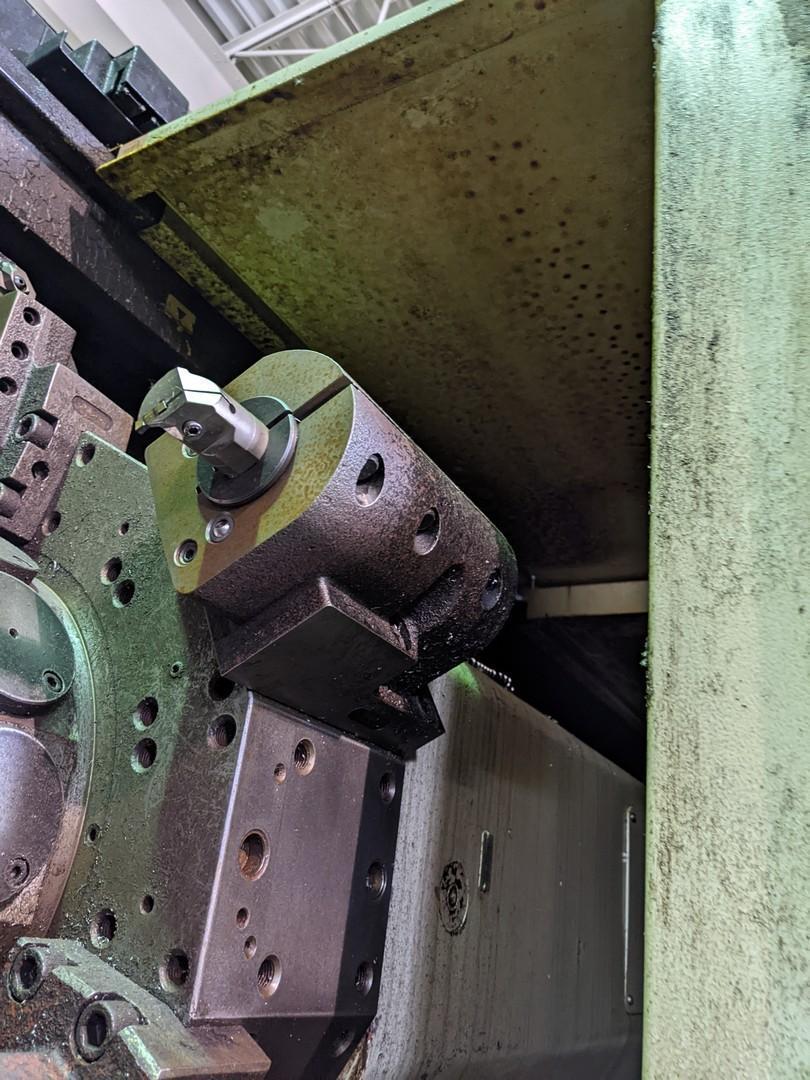

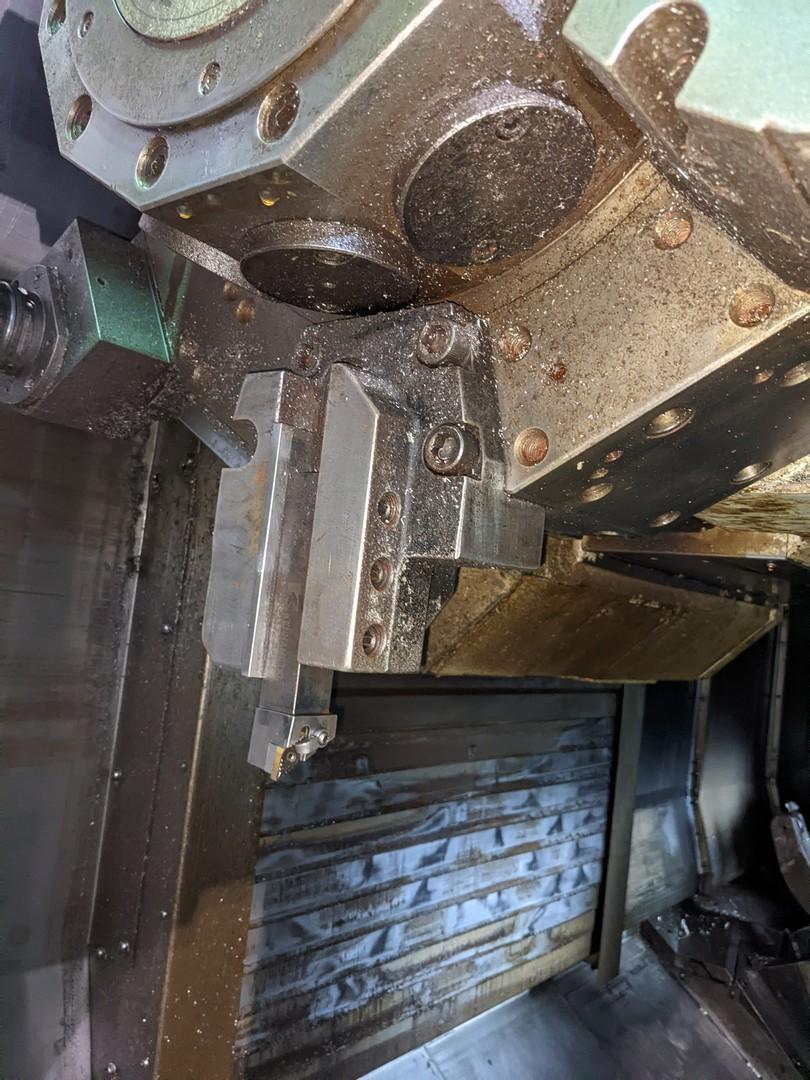

Number Of Turret Positions-All Live: 12 Position Turret
Rapid Traverse Rates: X / Z 945/ 1181 IPM

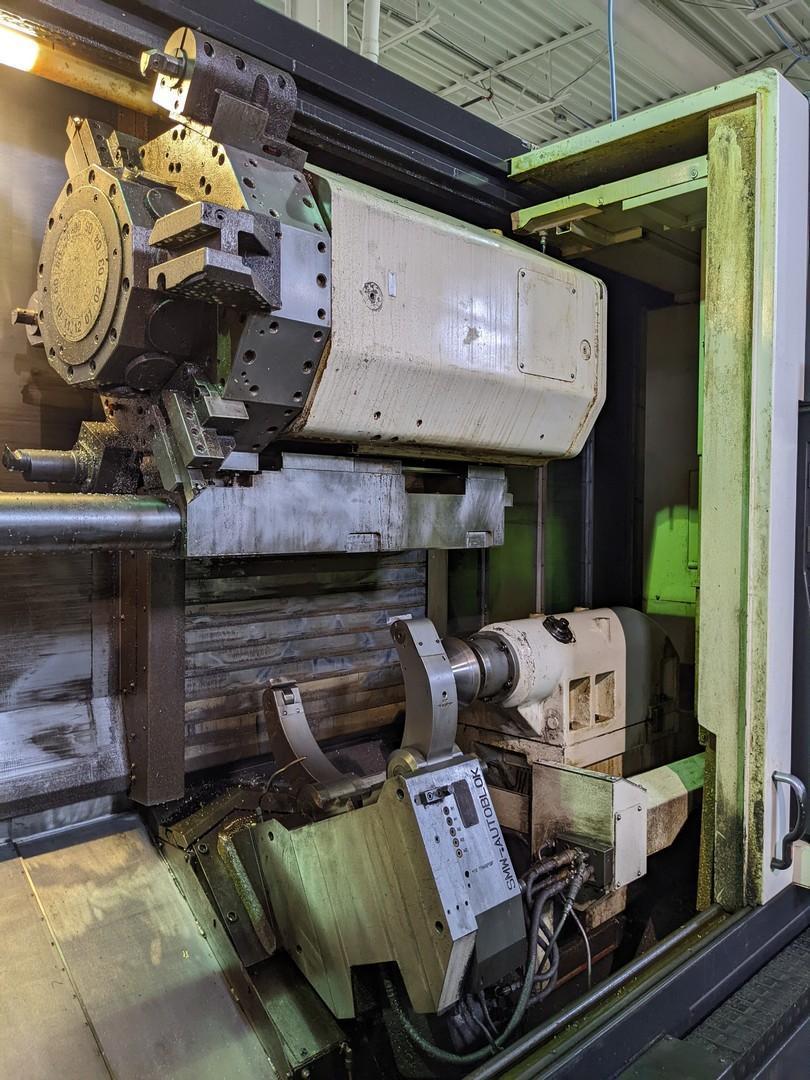

Tailstock Taper / Max. Body Travel: MT #5 / 100.4"
Machine Dimensions: 284" X 98" X 111"
Machine Weight: 35,715 LBS

INCLUDES: Mazatrol PC-Fusion-CNC 640HT Pro Control, 12 Position Drum Turret, Programmable Tailstock, Auto Lube System, Multitap Transformer and Chip Conveyor Side Disposal


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
