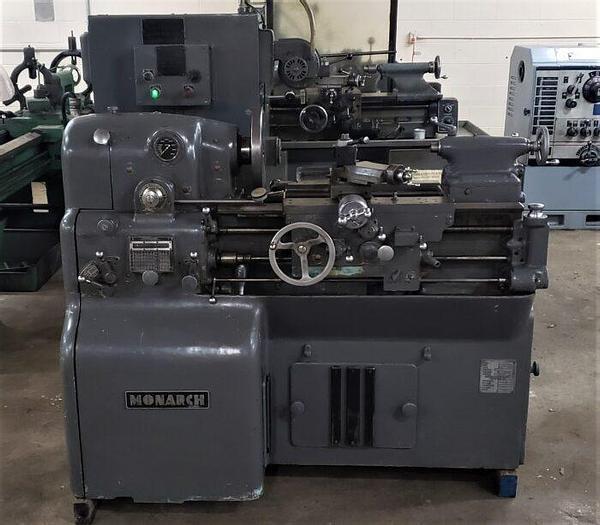

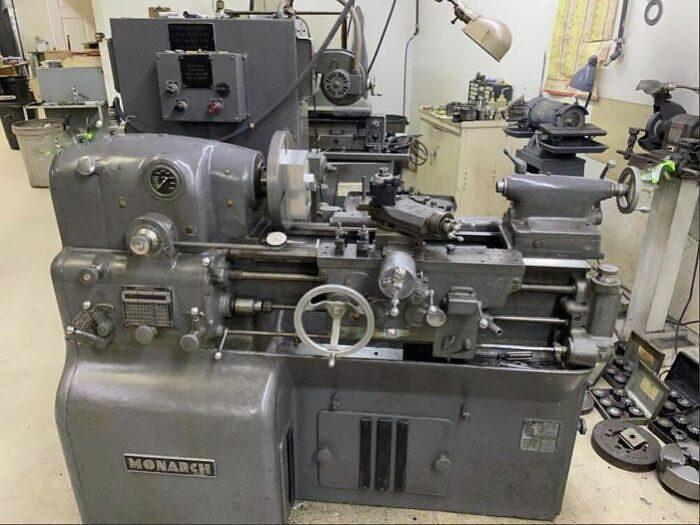

Monarch EE Precision Toolroom Lathe (#4622)

Manufacturer

Category

Lathes

Type

LATHES, TOOLROOM

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



10" X 20" Precision Toolroom Lathe with Center Morse Taper #2 and 4,000 RPM Spindle

GENERAL SPECIFICATIONS
Swing Over Bed: 12.5"
Swing Over Cross Slide: 7.25"
Distance Between Centers: 20" / 30"
Bed Width: 10.5"
Bed Depth: 10.25"
Lead Screw Diameter & Threads Per Inch: 1" - 8” TPI
Range of Threads: 3 - 184
Hole Thru Spindle: 1.40625
Spindle Speed Range: 40 - 4000 RPM
Spindle Speed Range - Low (with Back Gear): 8 - 800
Tailstock Spindle Diameter: 1.75"
Spindle Travel: 3.5"

INCLUDES: Center Morse Taper #2 and 4,000 RPM Spindle


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
