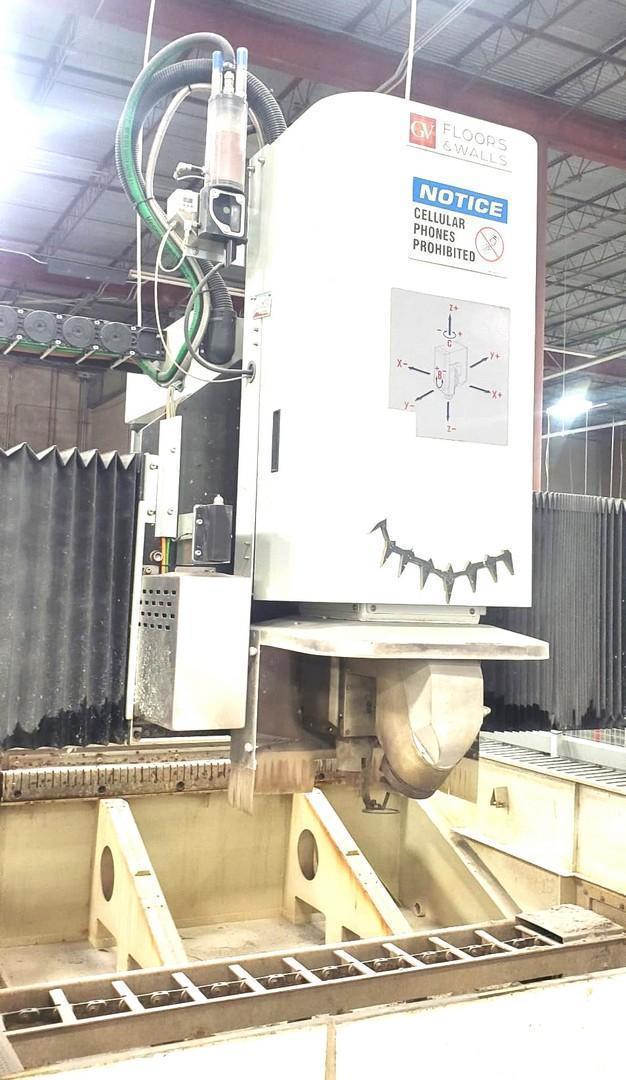

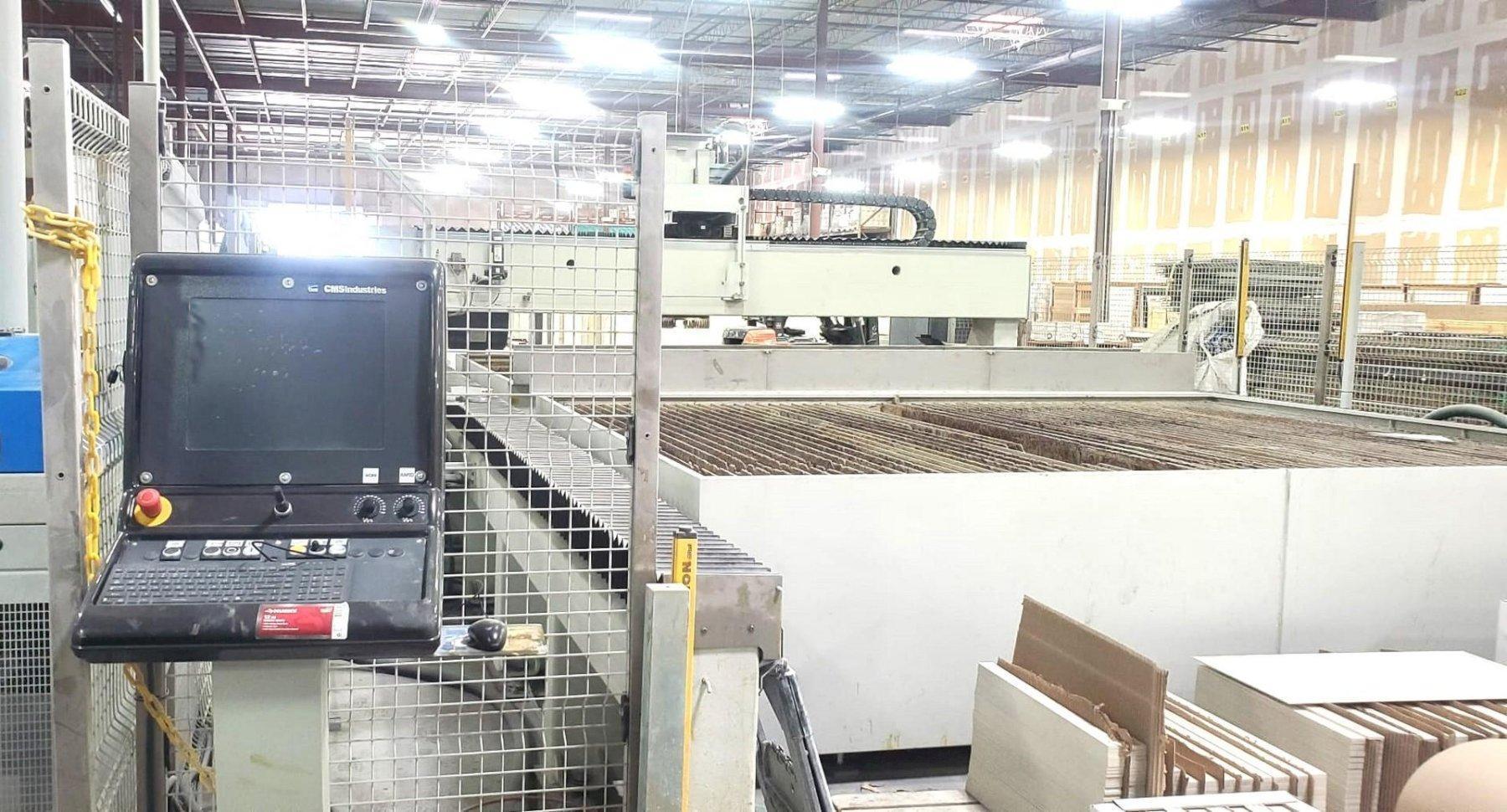

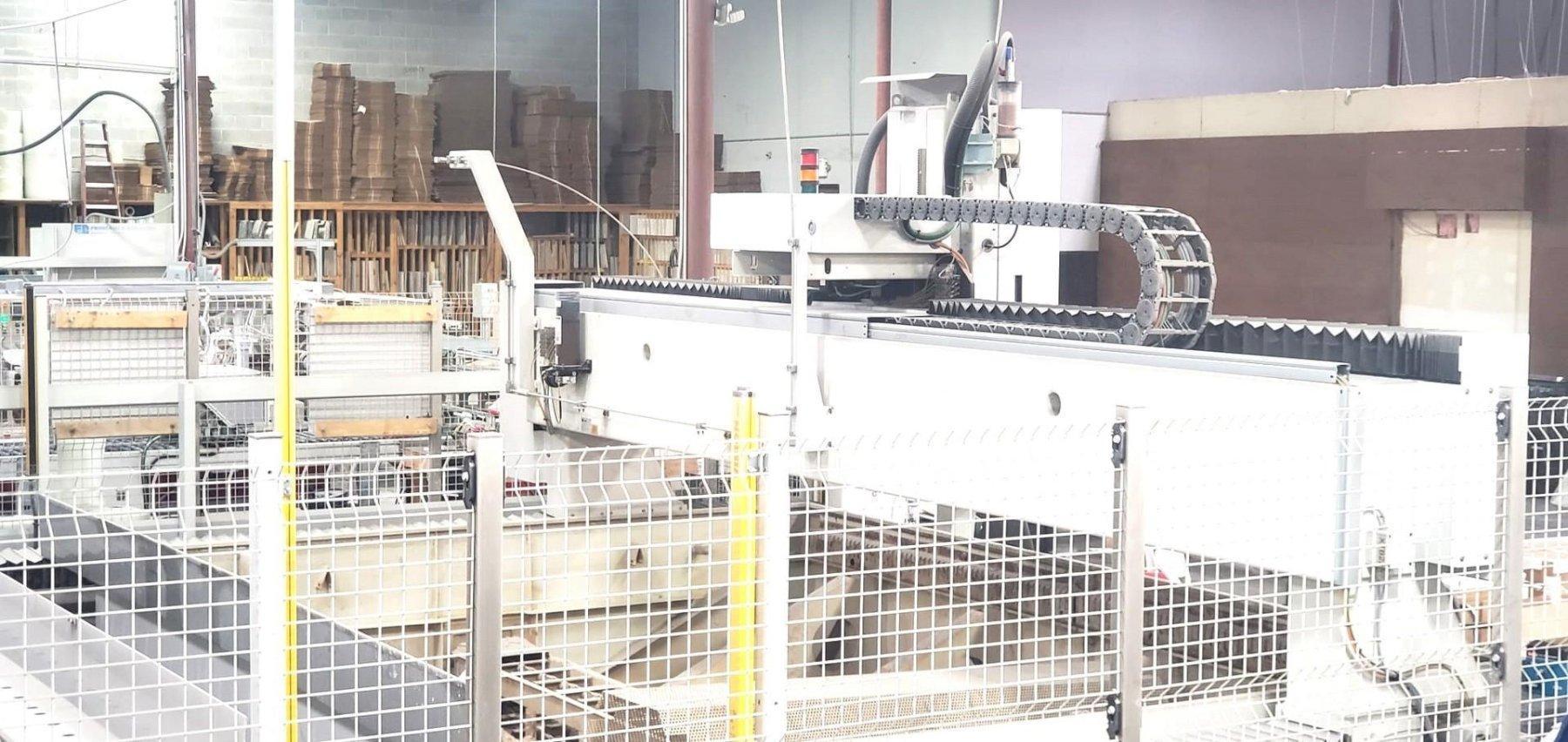

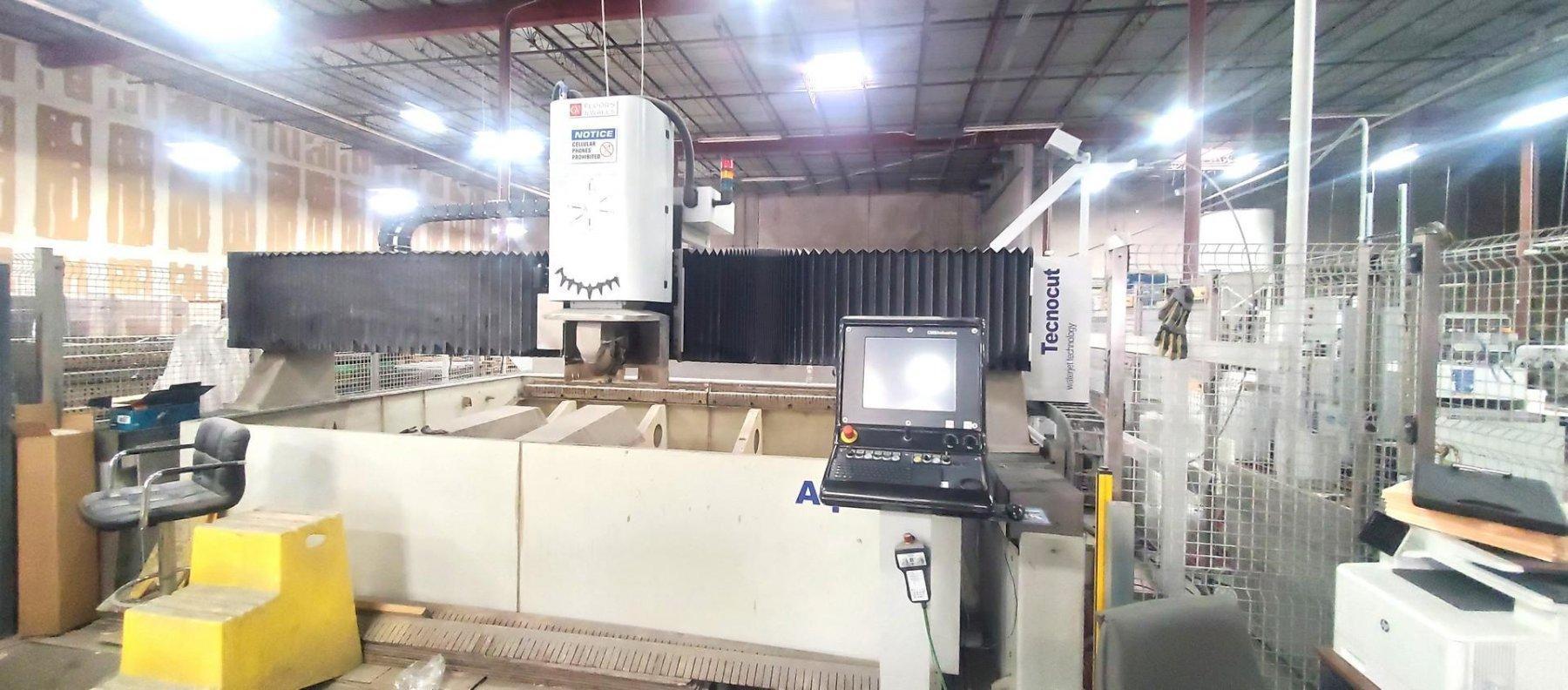

2017 CMS Aquatec 3400 + 3400 5-Axis Twin Table CNC Waterjet System (#4617)

Manufacturer

Category

Water Jet Cutting

Type

WATER JET CUTTING, CNC

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

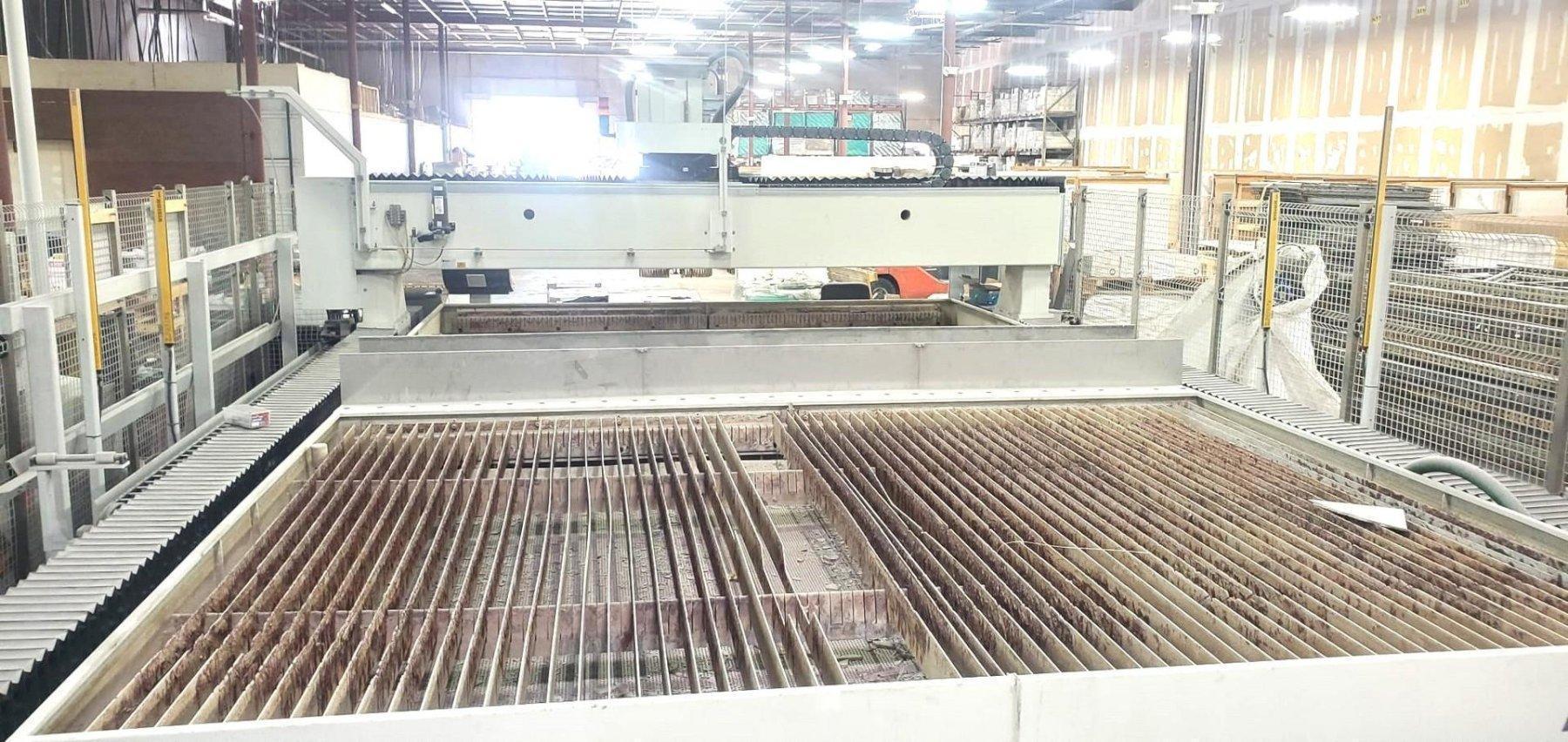

13' X 22' 5 Axis Twin Table Waterjet System with Portable Control Unit with Remote Commands up to 6 Axes, Power 60 (45) HP (kW) and Pressurized Abrasive Conveying System

GENERAL SPECIFICATIONS
Voltage (Three-Phase): 400 ± 5% Volt 50 - 60 Hz
Max Water Pressure: 413 - 7 MPA (60.000 PSI)
Max Flow Rate: 5 (1.32) Liters/Minute (Gal/Min)
Water Consumption From 0 To 5: (1.32) Liters/Minute (Gal/Min)
Max Diameter Of The Orifice: 0 - 40 Millimeters
Oil Tank Capacity: 250 (39.6) Liters (Gal)
Cooling Requirements Oil / Water Heat Exchanger: 3.2 Gal/Min Water @ Max 70ºf
Dimensions: 36" (900) X 59" (1500) X 58" (1560) H Inch/Millimeters
Weight: 1350 KG

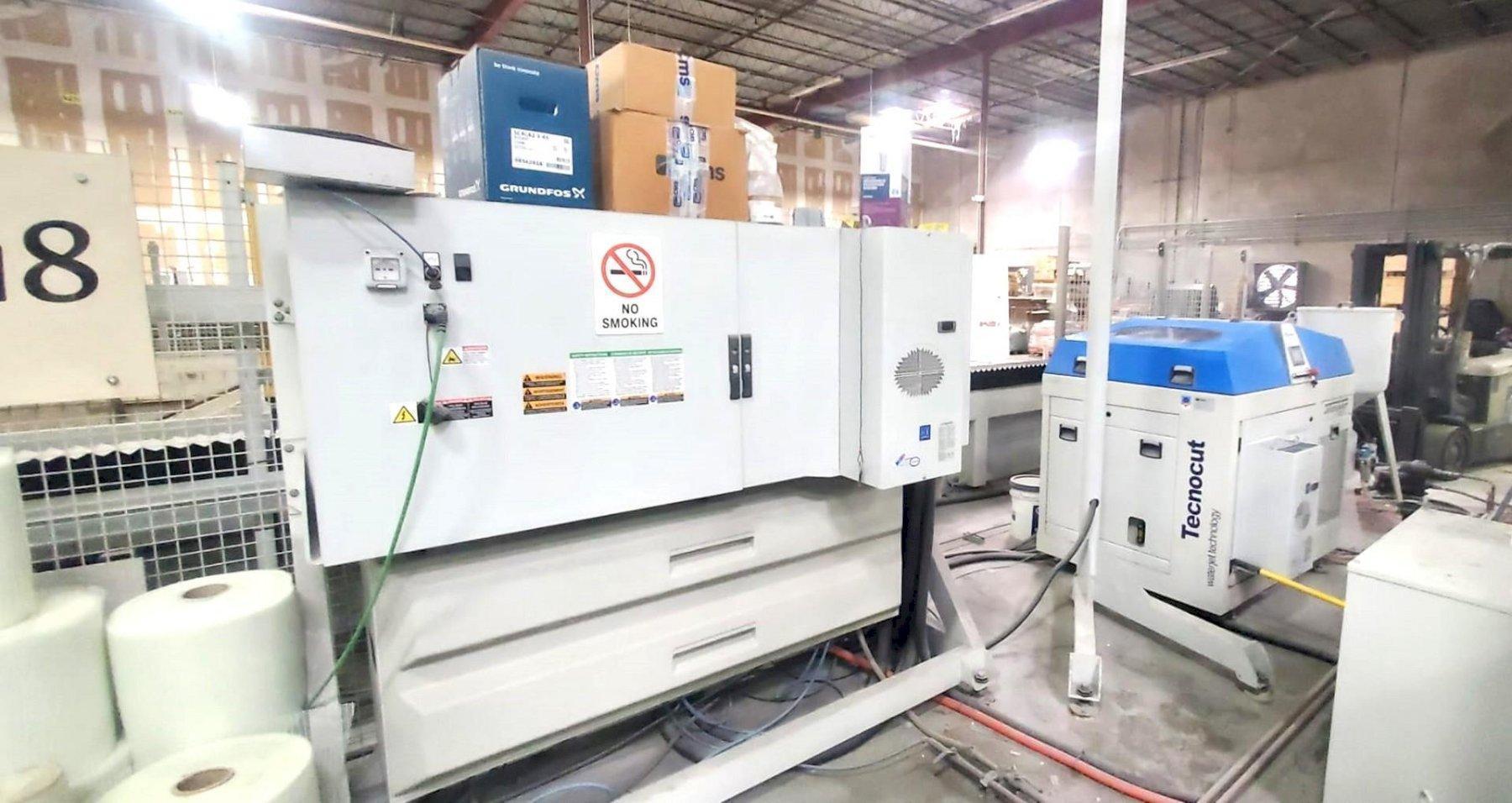

INCLUDES: Portable Control Unit with Remote Commands up to 6 Axes, Power 60 (45) HP (kW) and Pressurized Abrasive Conveying System


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
