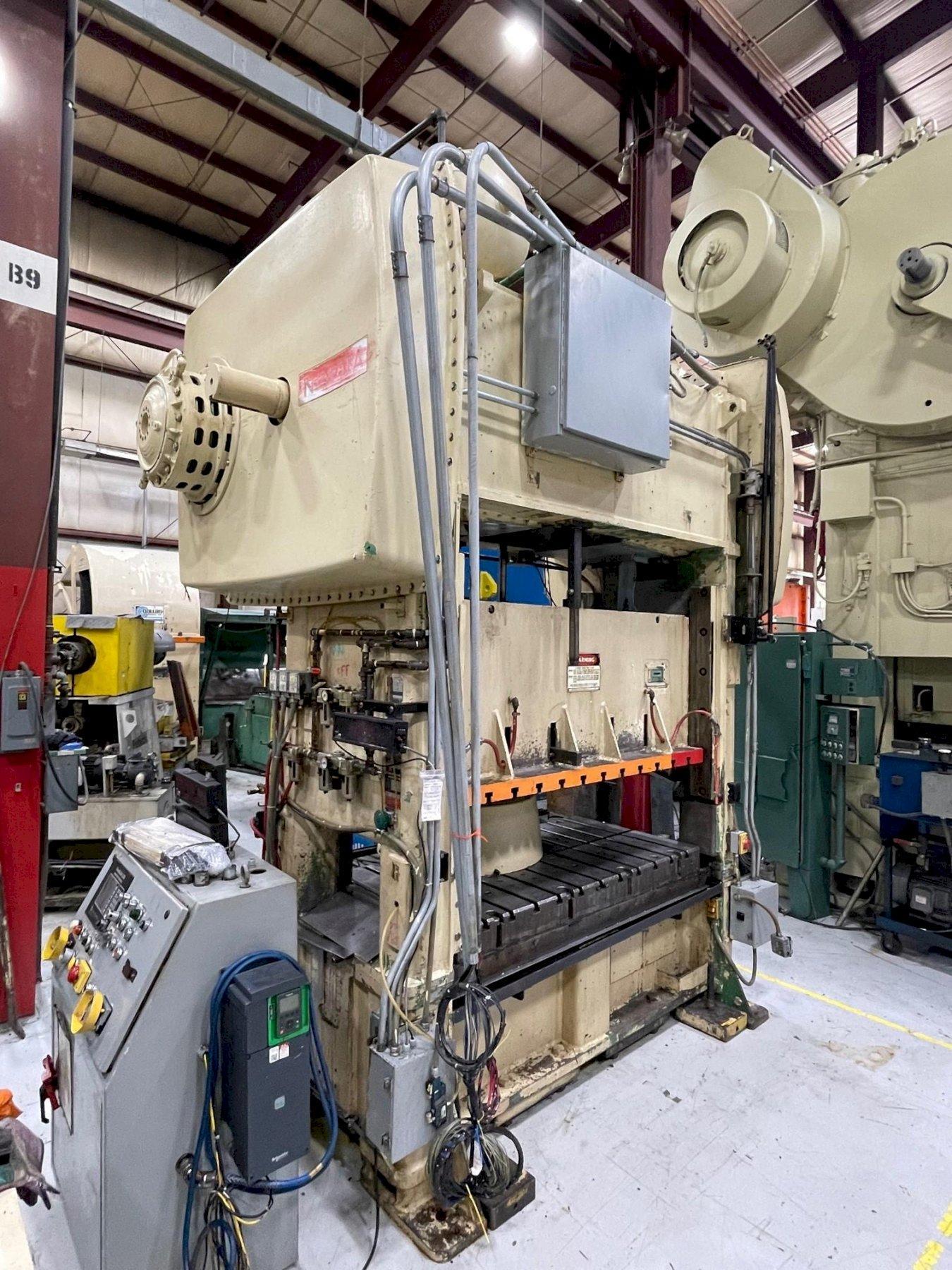

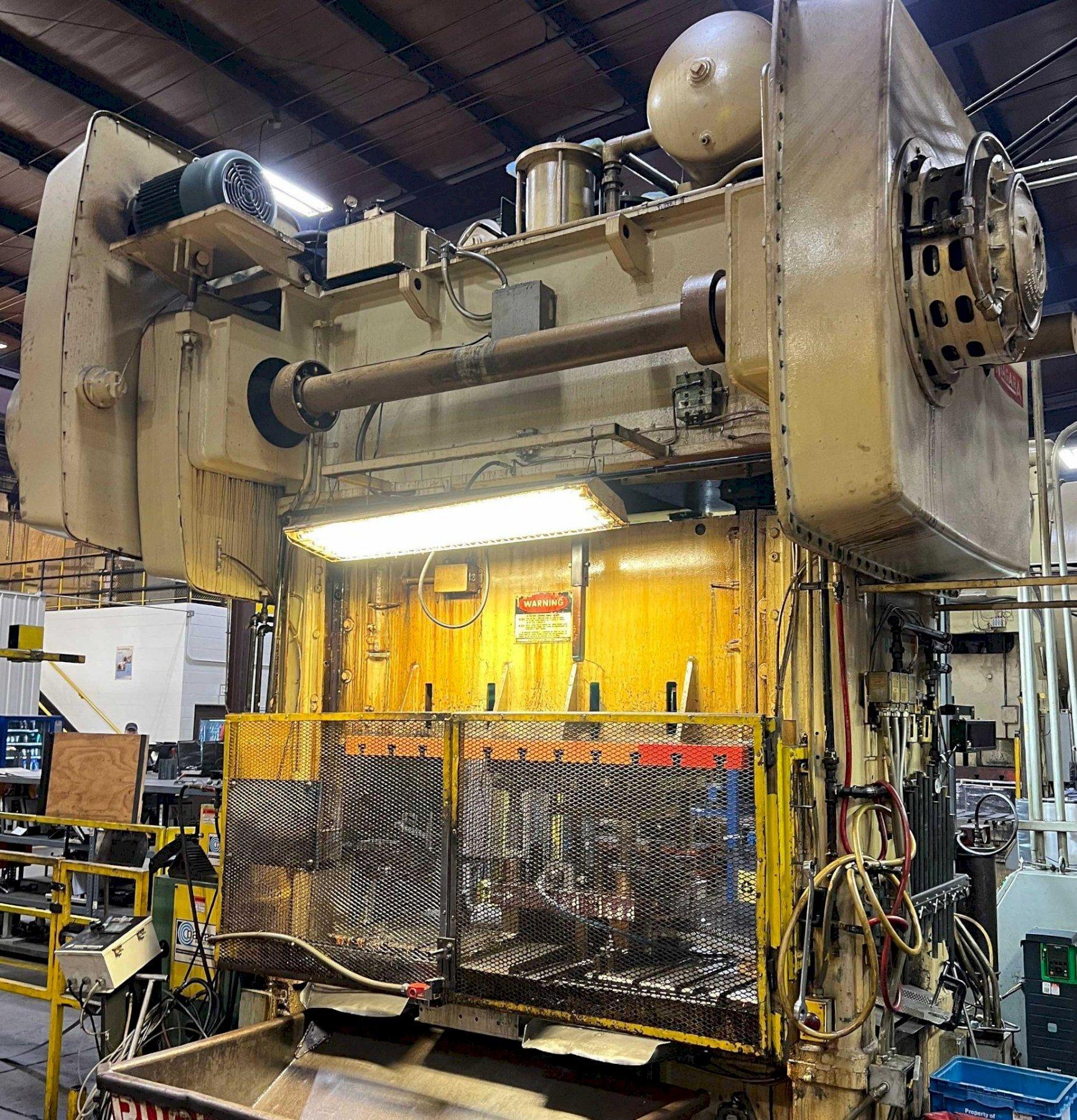

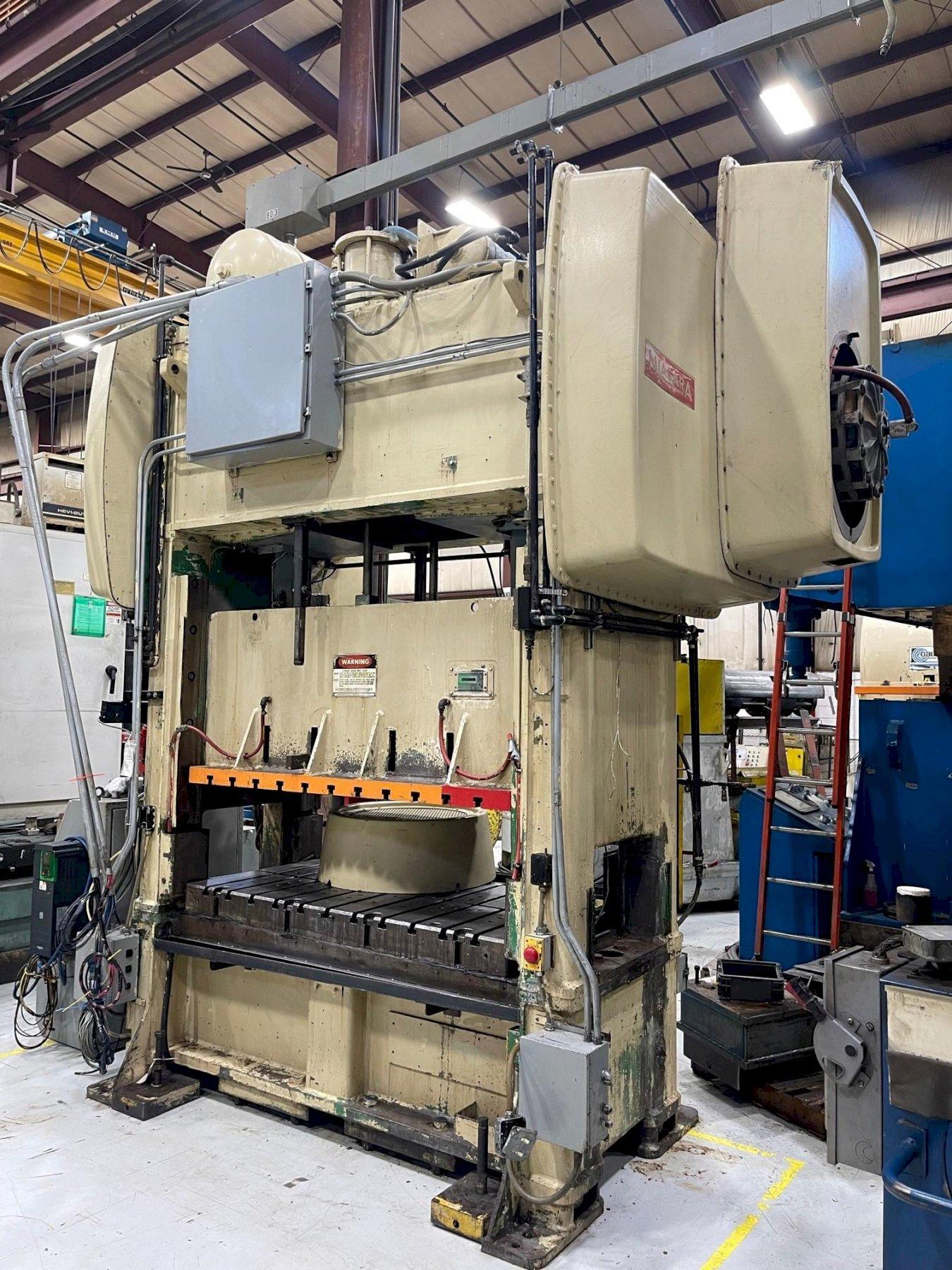

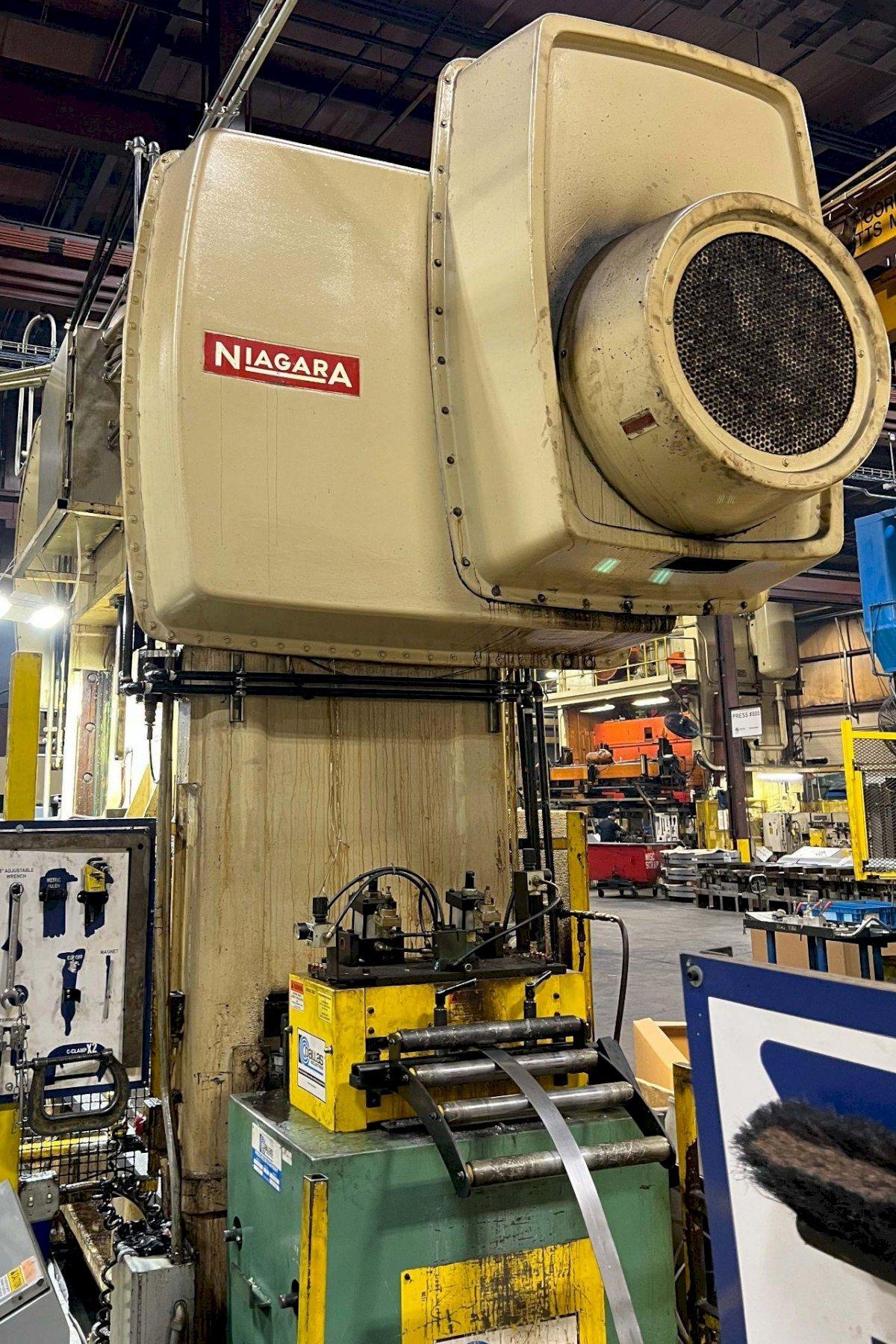

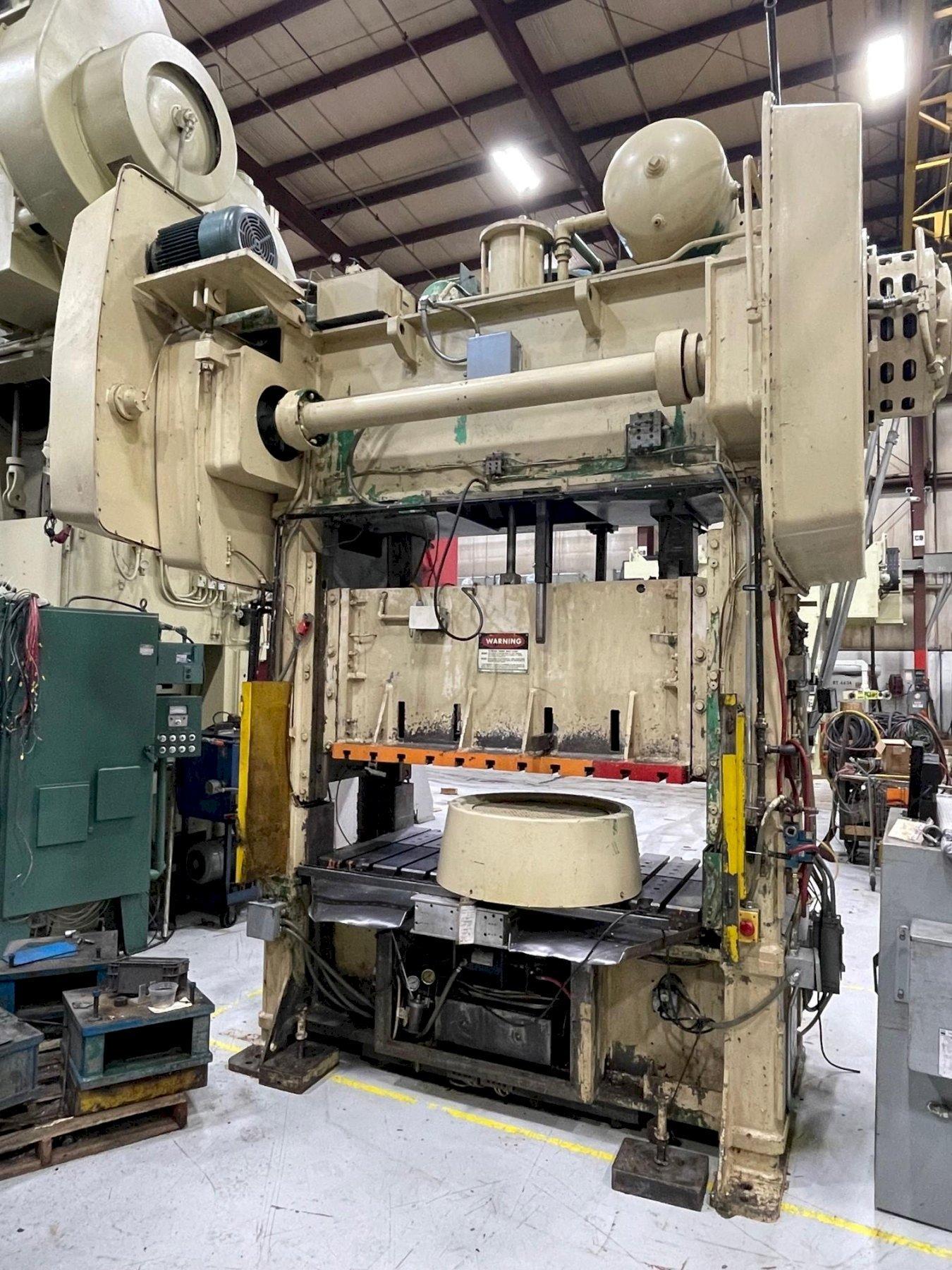

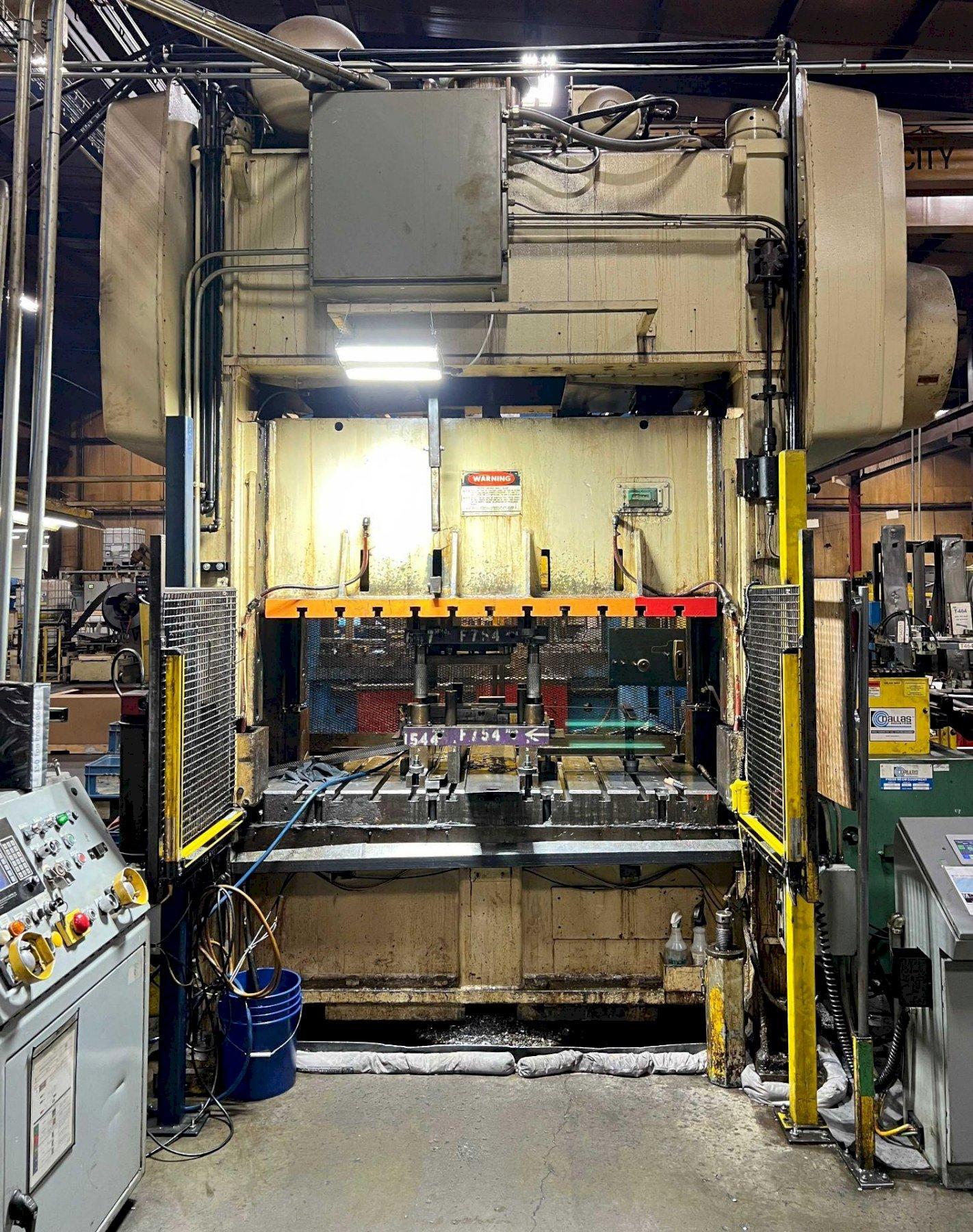

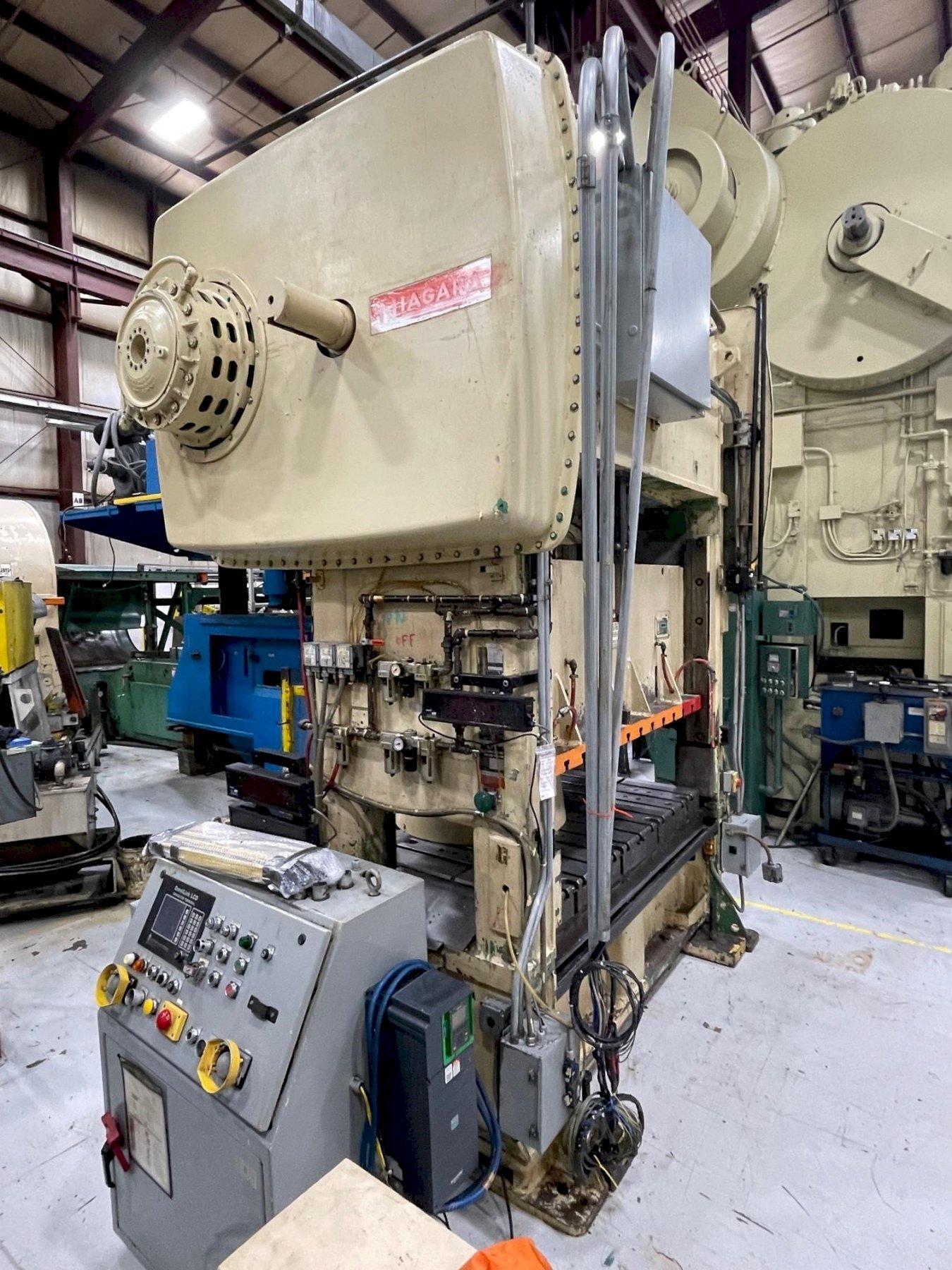

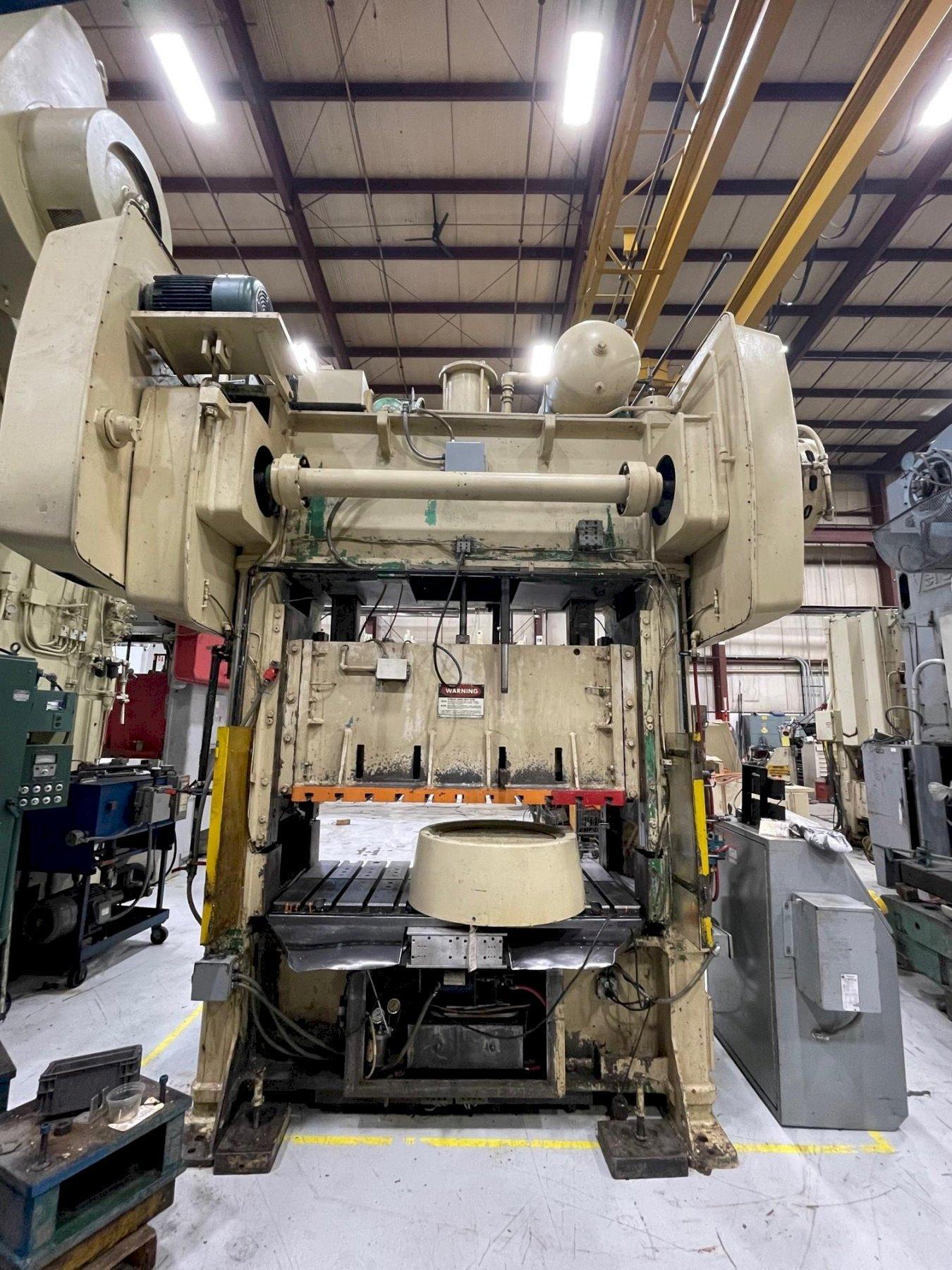

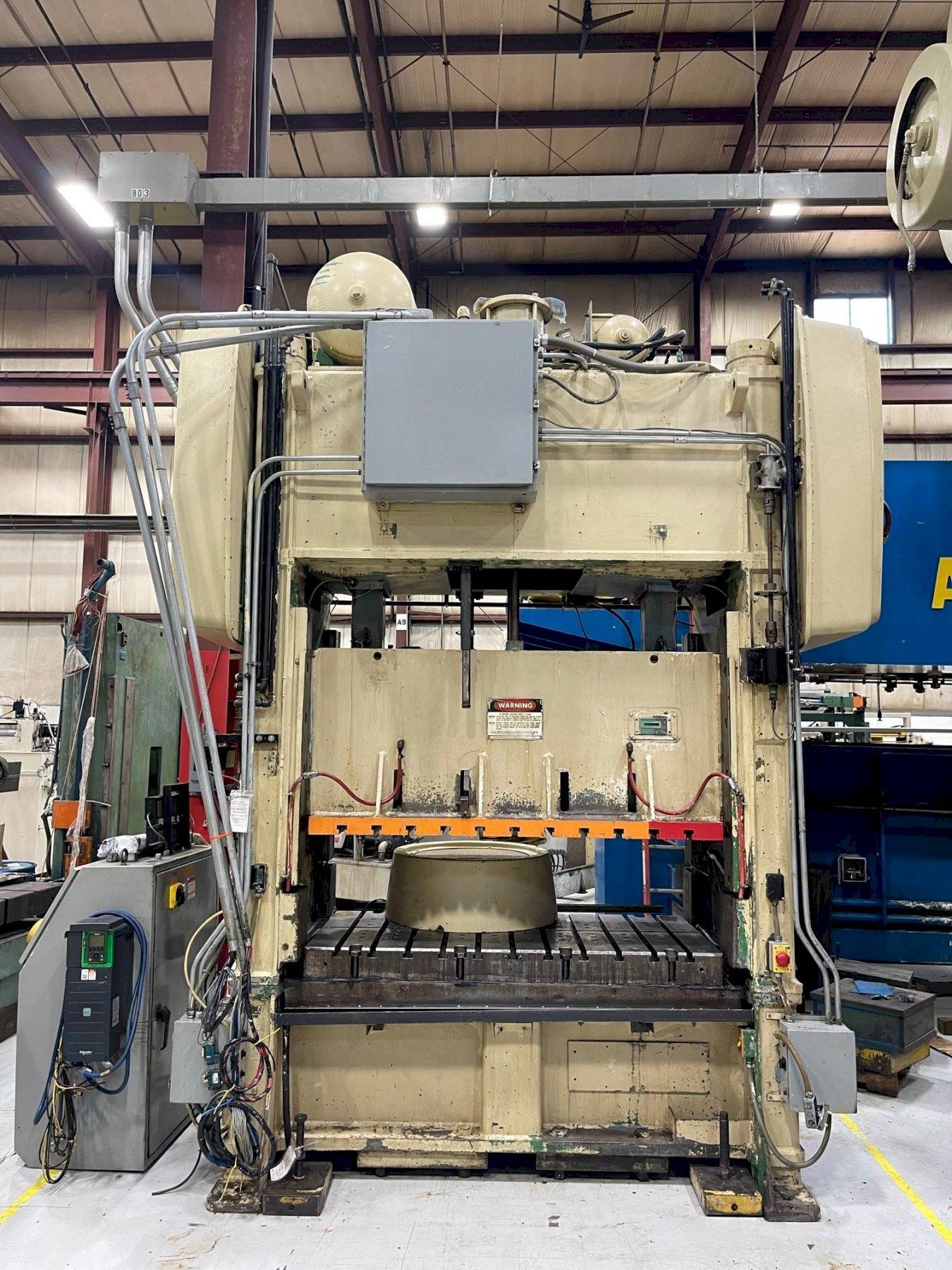

150 ton Niagara SC2-150-72-36 Straight Side Mechanical Metal Stamping Press, Year 1980

Stock

2765

Model

SC2-150-72-36

Dealer Location

Michigan

Spec Sheet

Tonnage - 150
Stroke - 8 inches
Shut Height - 19.5 inches
Adjustment - 9 inches
Bed Size - 72" LR x 36" FB
Ram Area - 72" LR x 36" FB
SPM - 35-70 VSPM


Standard Specifications
150 ton Capacity
8" Stroke
19.5" Shut Height On Bed
9" Motorized Adjustment
72" LR x 36" FB Bed Area
72" LR x 36" FB Slide Area
35-70 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Twin End, Back Shaft Driven
6" Thick Bolster
Set of Vibration Isolation Levelers

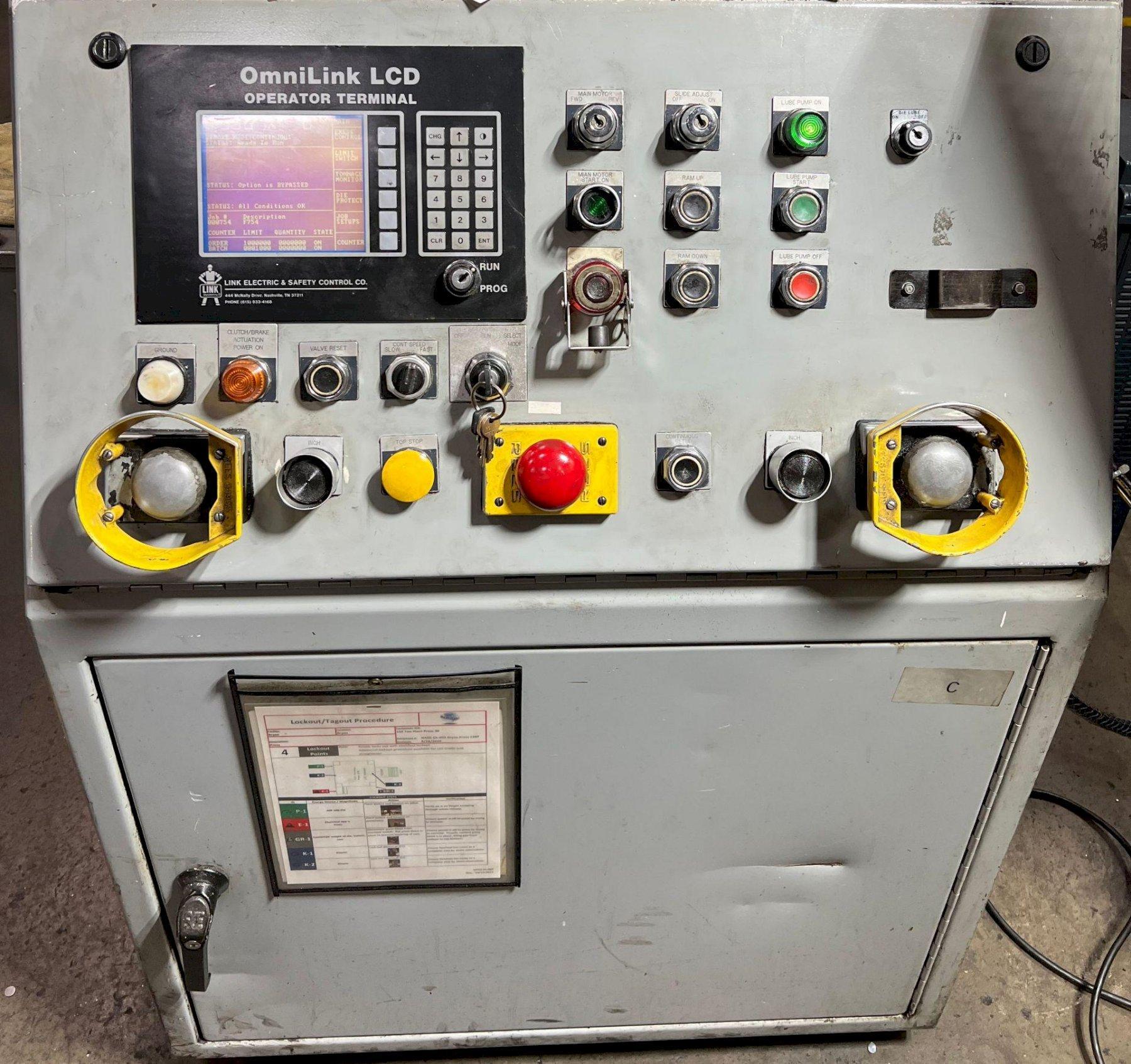

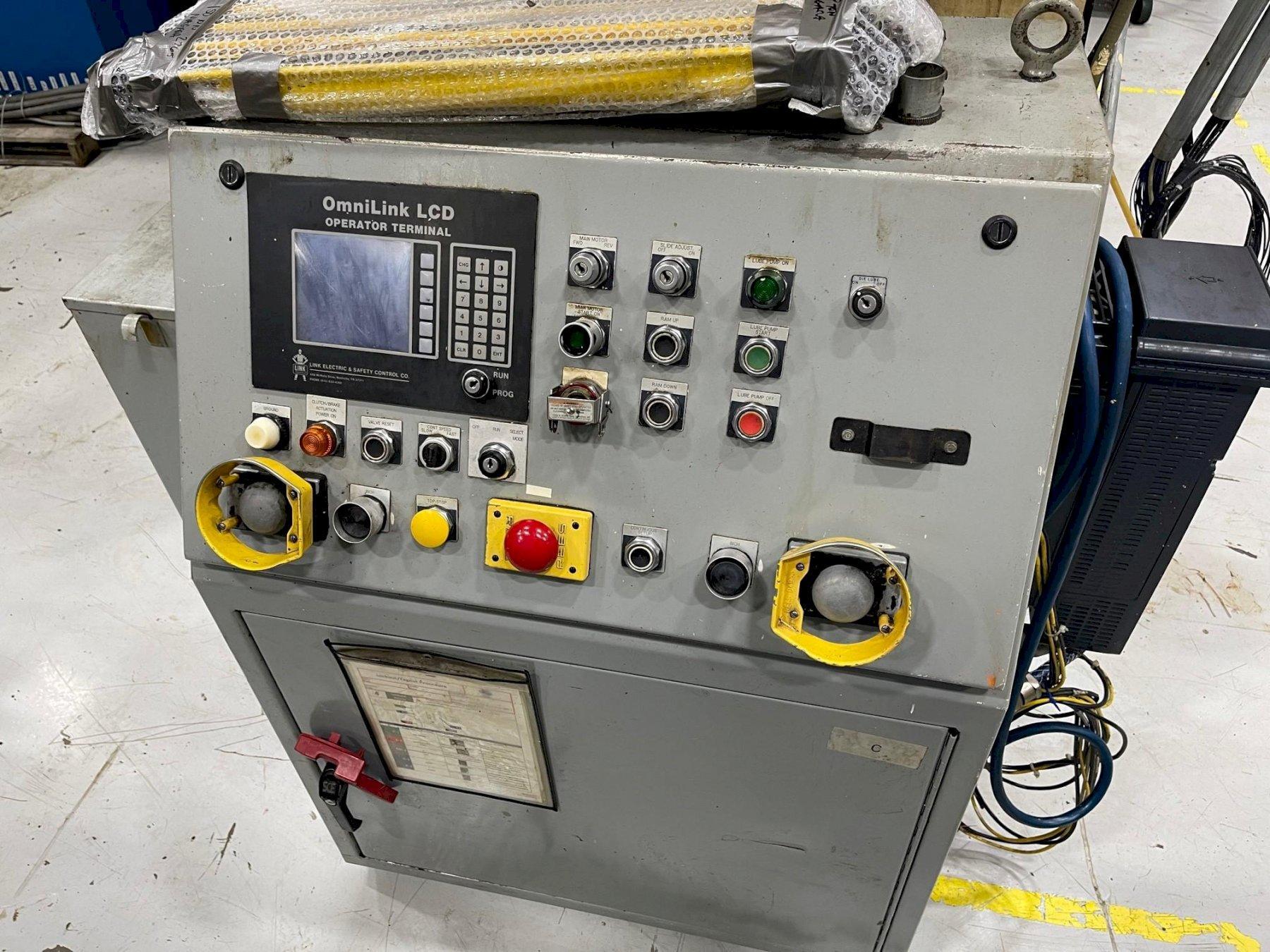

Omnilink 5000 LCD Press Control
Free Standing Console Control
Light Curtains
Air Cushions in Bed (2) 2.54 tons @ 10 PSI, 4" Stroke
Hydraulic Tie Rod Nuts
AC Variable Speed Drive
8 Point Gibbing
23" Wide Windows
Floor Standing

Can be seen under power in the S&G Press Livonia Warehouse!






No Video Available

Want to request a quote from the owner of this listing?

Request a Quote
