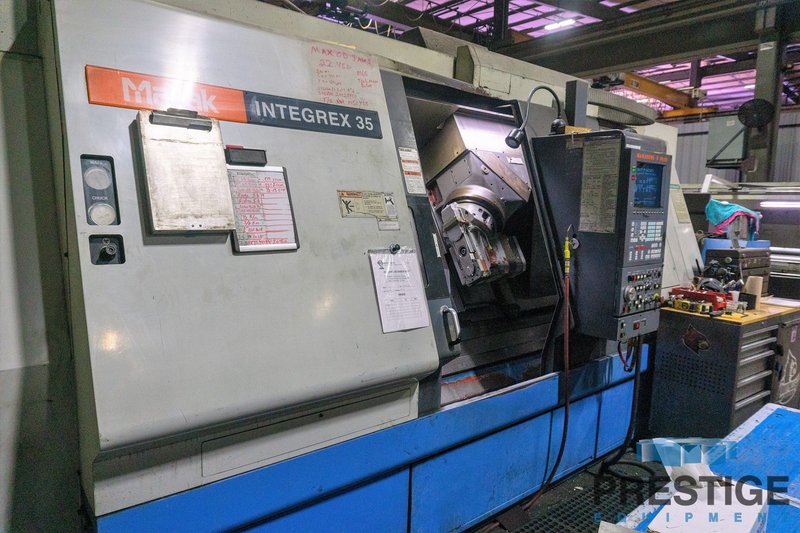

MAZAK Integrex 35Y CNC Turning/Milling Center, Coolant Thru Spindle, 20 Station ATC, 22.5" x 60", T-Plus Control, #31723

Manufacturer

Mazak

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

31723

Model

Integrex 35Y

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31723

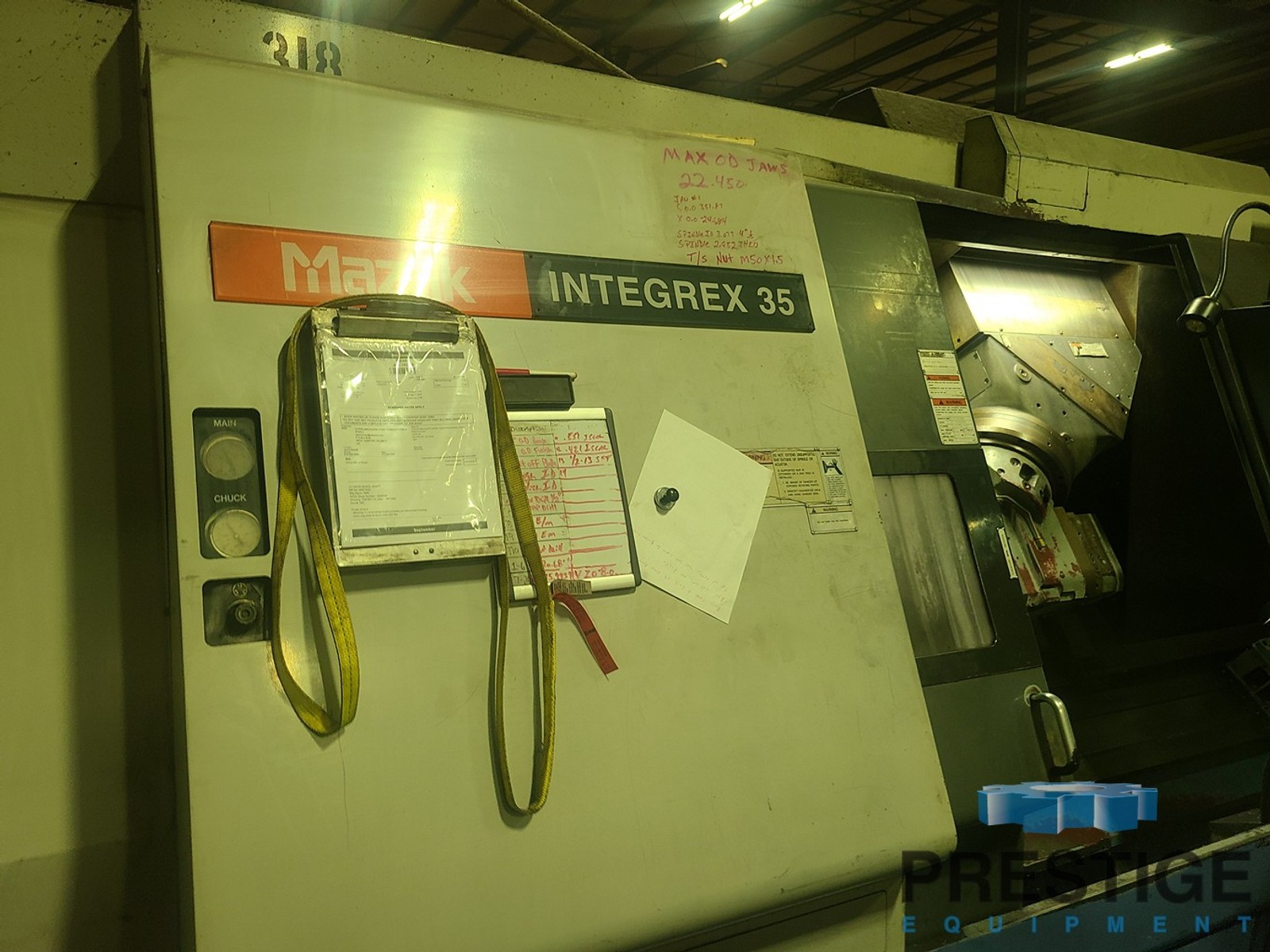

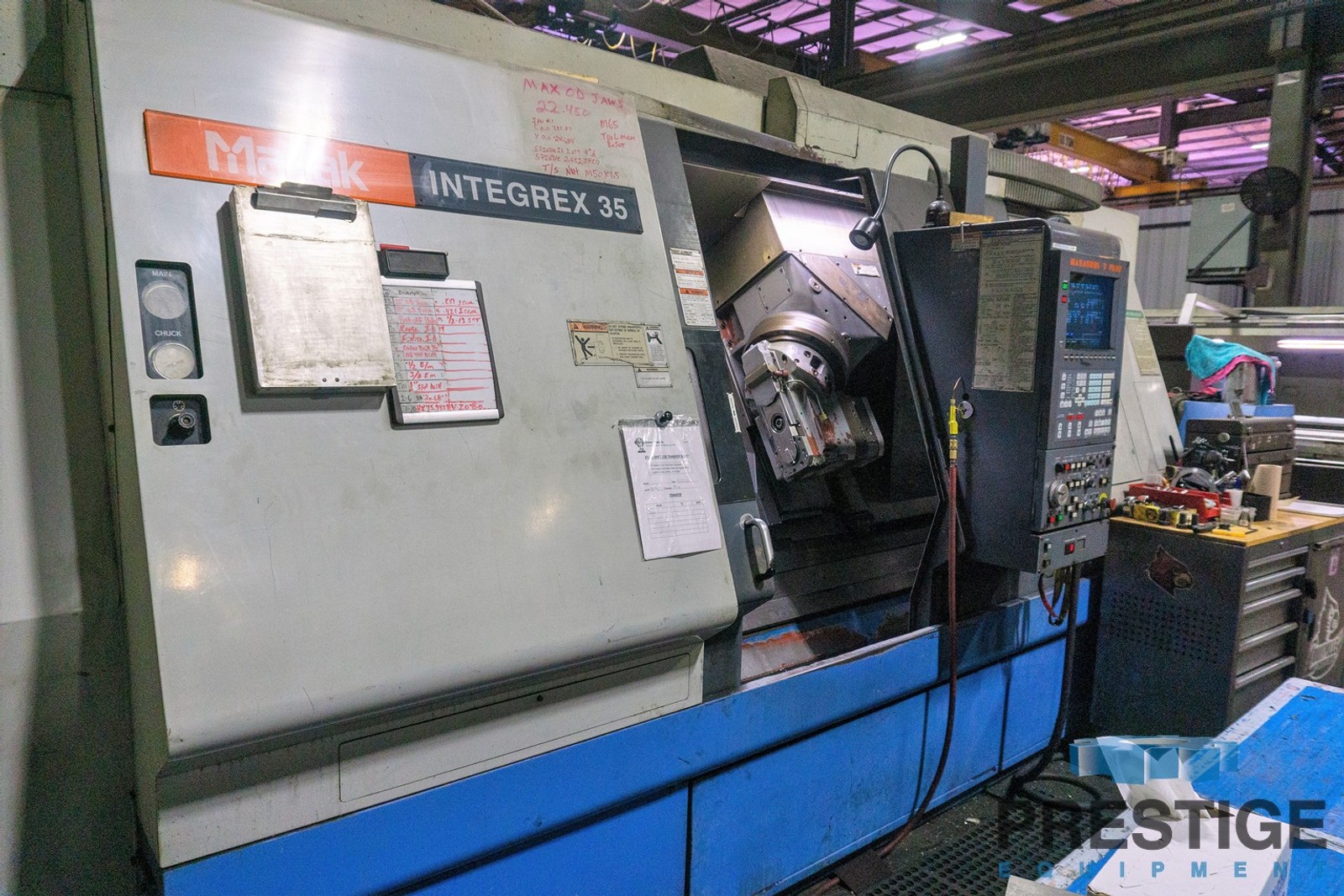

MAZAK Integrex 35Y CNC Turning/Milling Center

FEATURES:
Mazatrol T-Plus CNC Controls
Coolant Thru Spindle
20-Position Automatic Tool Changer

CAPACITY:
Max. Swing Over Bed .......... 22.50"
Max. Machining Diameter ...... 22.50"
Swing Over Carriage .......... 18.50"
Max. Machining Length ........ 60"
Main Spindle Speeds .......... 35-3500 RPM
Spindle Bore Diameter ........ 3.46"
Spindle Nose ................. A2-8
Spindle Drive Motor .......... 40 HP/ 30 HP
C-Axis Spindle Indexing ...... 0.001 Degree
Rotary Tool Speeds ........... 15-6000 RPM
Live Spindle Motor ........... 10 HP
X-Axis Stroke ................ 17.75"
Y-Axis Stroke ................ 3.54"
Z-Axis Stroke ................ 62"
Rapid Traverse (X/Y/Z Axes) .. 472 IPM/ 393 IPM/ 708 IPM
Rotary Tool Shank ............ CAT #40
Tailstock Diameter ........... 3.94"
Tailstock Quill Stroke ....... 5.12"
Tailstock Spindle Center ..... MT #5
Tailstock Travel ............. 55.51

EQUIPPED WITH:
Mazatrol T-Plus CNC Controls
12" 3-Jaw Hydraulic Chuck

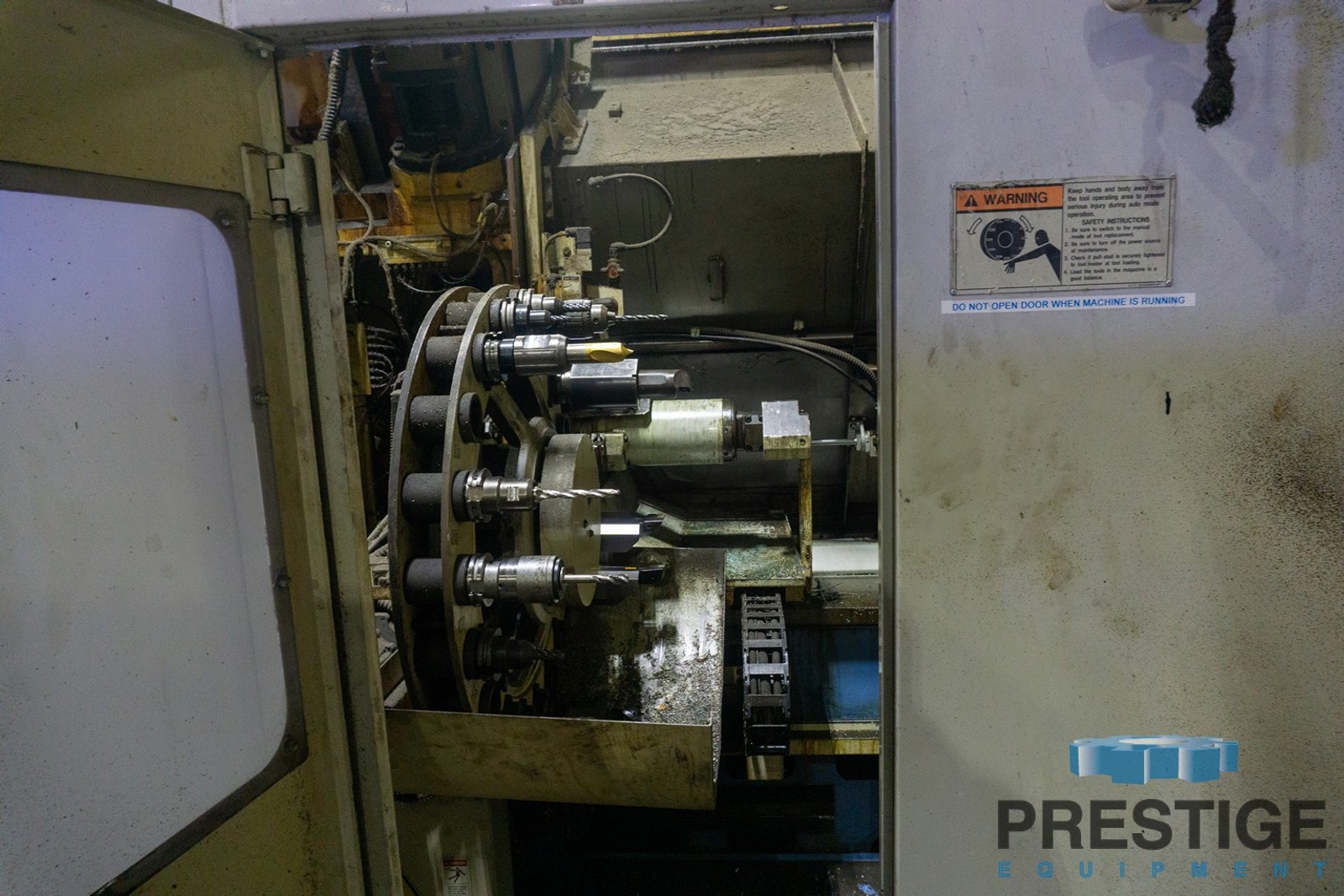

20-Position Automatic Tool Changer
Coolant thru Spindle
Chip Conveyor

NOTE:
Inspect In Plant Under Power
