Hwacheon HVT-4550M, 177" Table, 196" Swing, 98" U.R, 50 RPM, Milling, .001 Deg. C-Axis, Siemens 840D CNC, 2016 #31386

Manufacturer

HWACHEON

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

31386

Model

HVT-4550M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31386

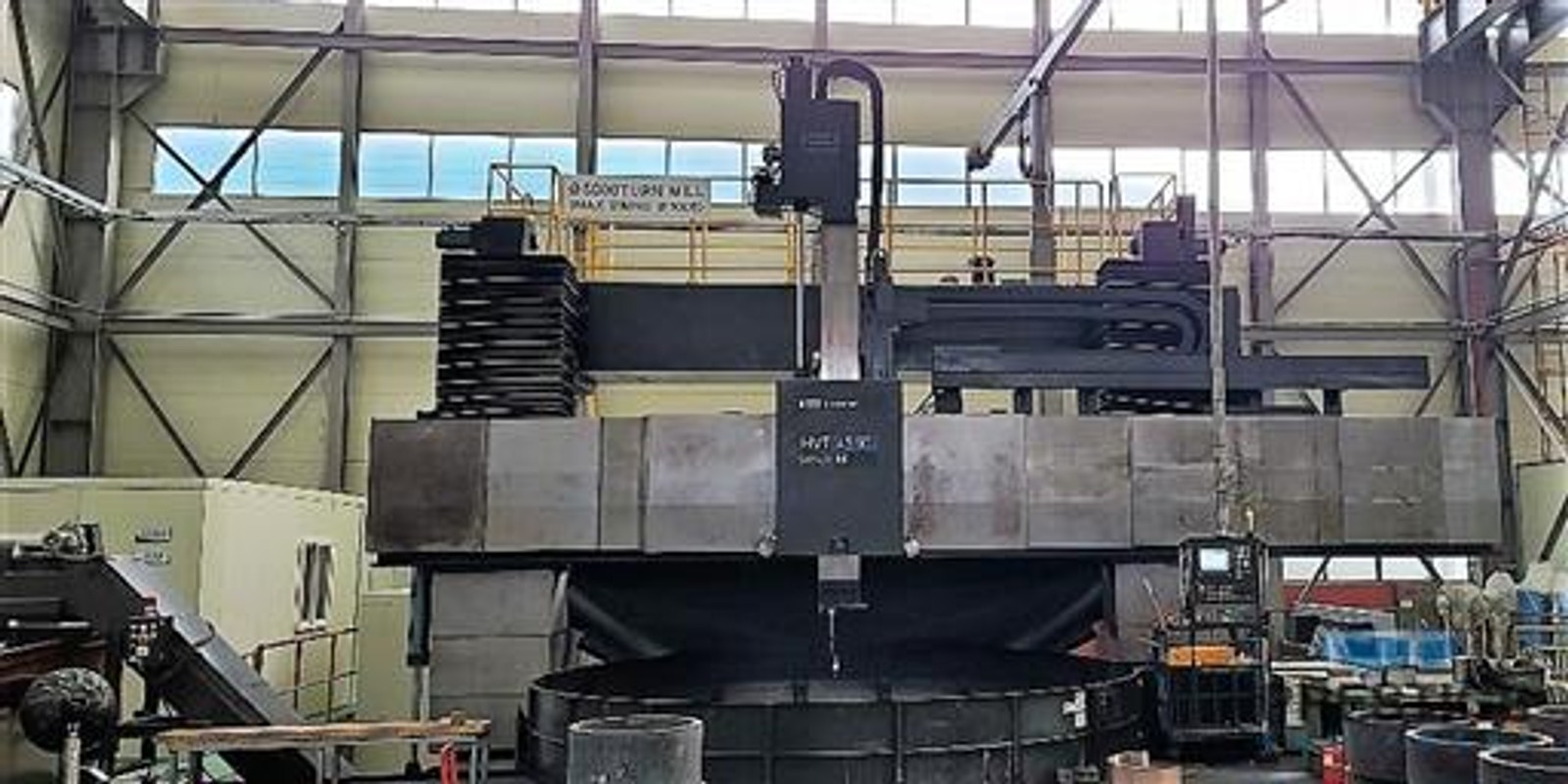

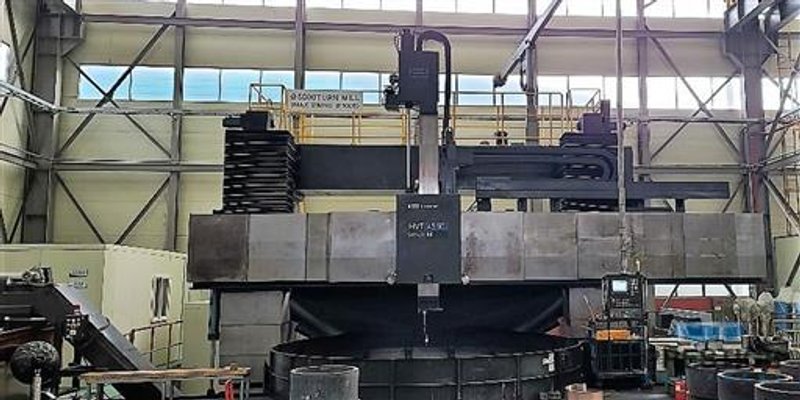

177"/196" Hwacheon HVT-4550M CNC Vertical Boring Mill W/ Milling

FEATURES:

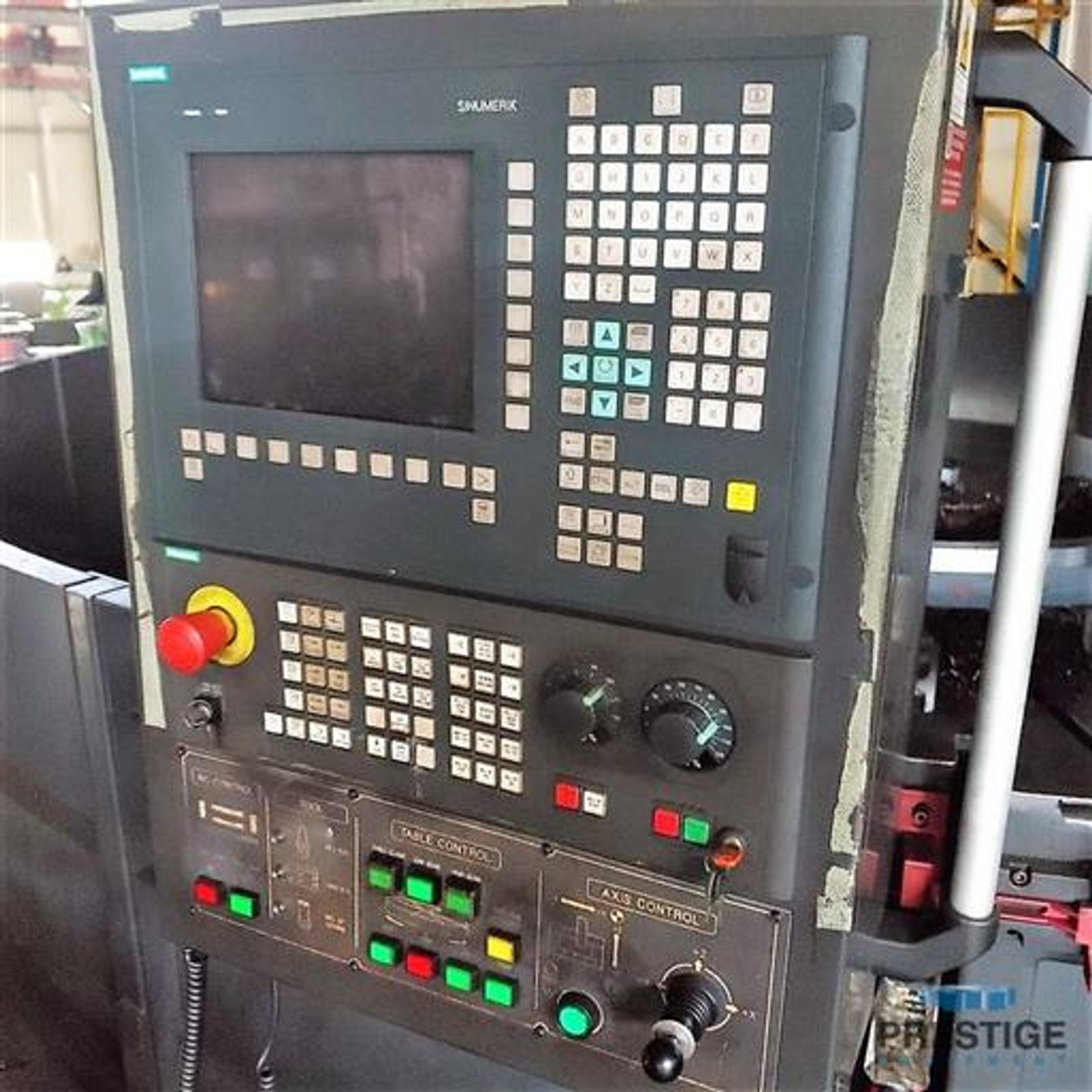

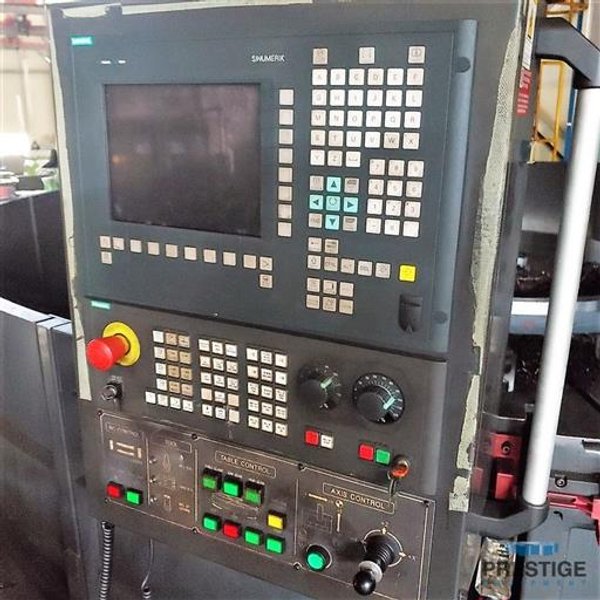

Siemens 840D CNC Control
C-Axis Table
Milling Spindle
12-Station Automatic Tool Changer

CAPACITY:

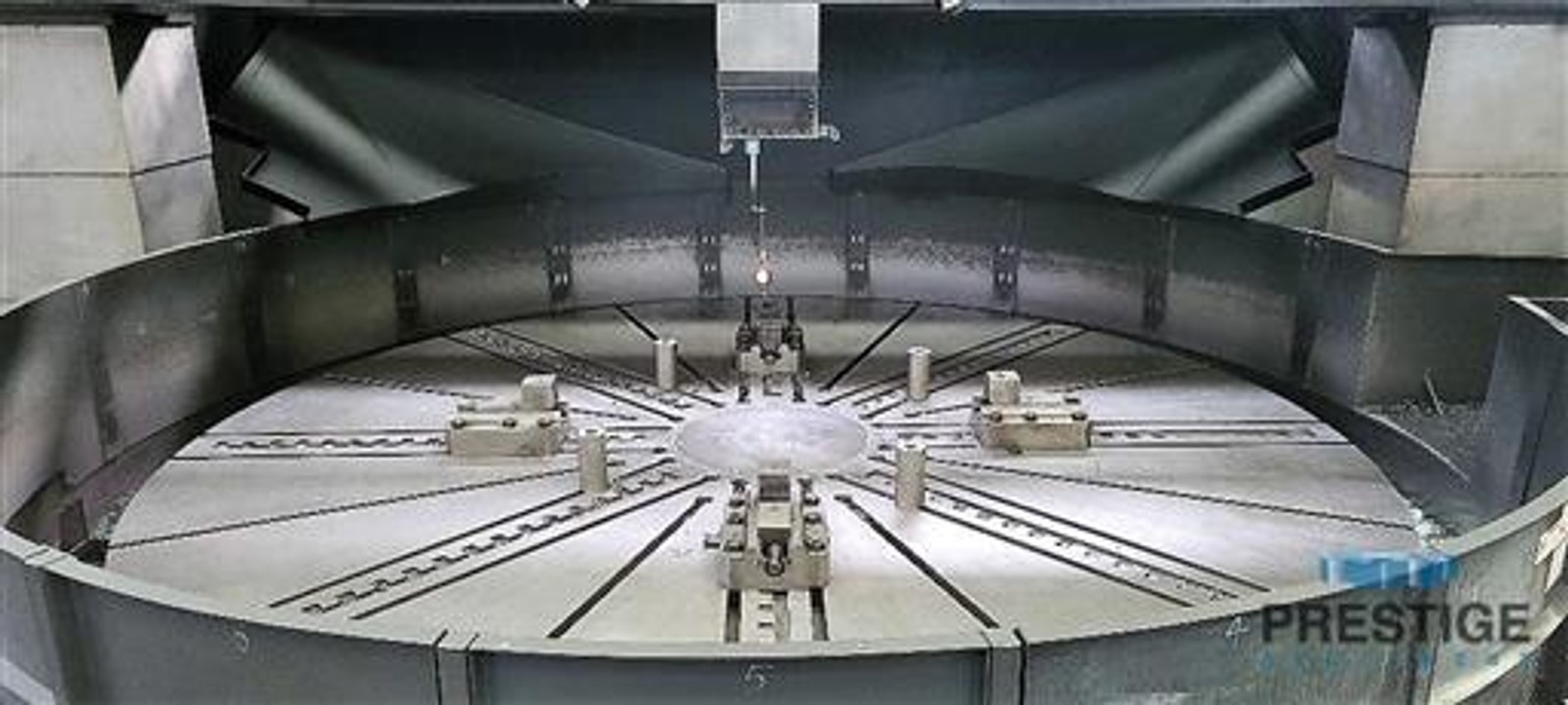

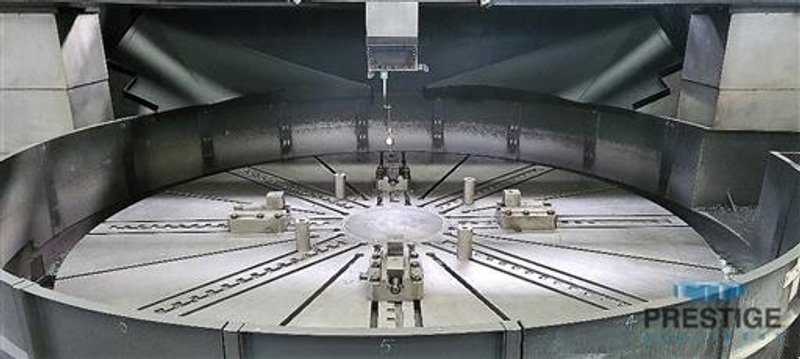

Table Diameter ........................ 177.16"
Ram Dimensions ........................ 13.77" x 13.77"
Maximum Cutting Diameter .............. 196.85"
Maximum Cutting Height ................ 98.42"
Table Speeds, 2-Step .................. 1 - 50 RPM
Table Weight Capacity ................. 88,000 Lbs
X-Axis Travel ......................... 161.41"
Z-Axis Travel ......................... 59.05"
W-Axis Travel ......................... 78.74"
C-Axis ................................ .001 Deg.
Taper in Ram .......................... BT-50
Rapid Traverse, X/Z-Axes .............. 236.22 IPM
Rapid Traverse, W-Axis ................ 19.68 IPM
Cutting Feed Rate, X/Z-Axes ........... .039 - 78.74 IPM
Cutting Feed Rate, C-Axis ............. 0 - 180 Deg/Min
Milling Spindle Speed ................. 1500 RPM
Milling Spindle Motor ................. 40 HP
Table Motor ........................... 194 HP
Approximate Machine Footprint ......... 453" x 296"
Approximate Machine Height ............ 386"
Approximate Machine Weight ............ 308,000 Lbs

EQUIPPED WITH:
Siemens 840D CNC Control
C-Axis Table
Milling Spindle
12-Station Automatic Tool Changer
177.16" 4-Jaw Face Plate Type Chuck
