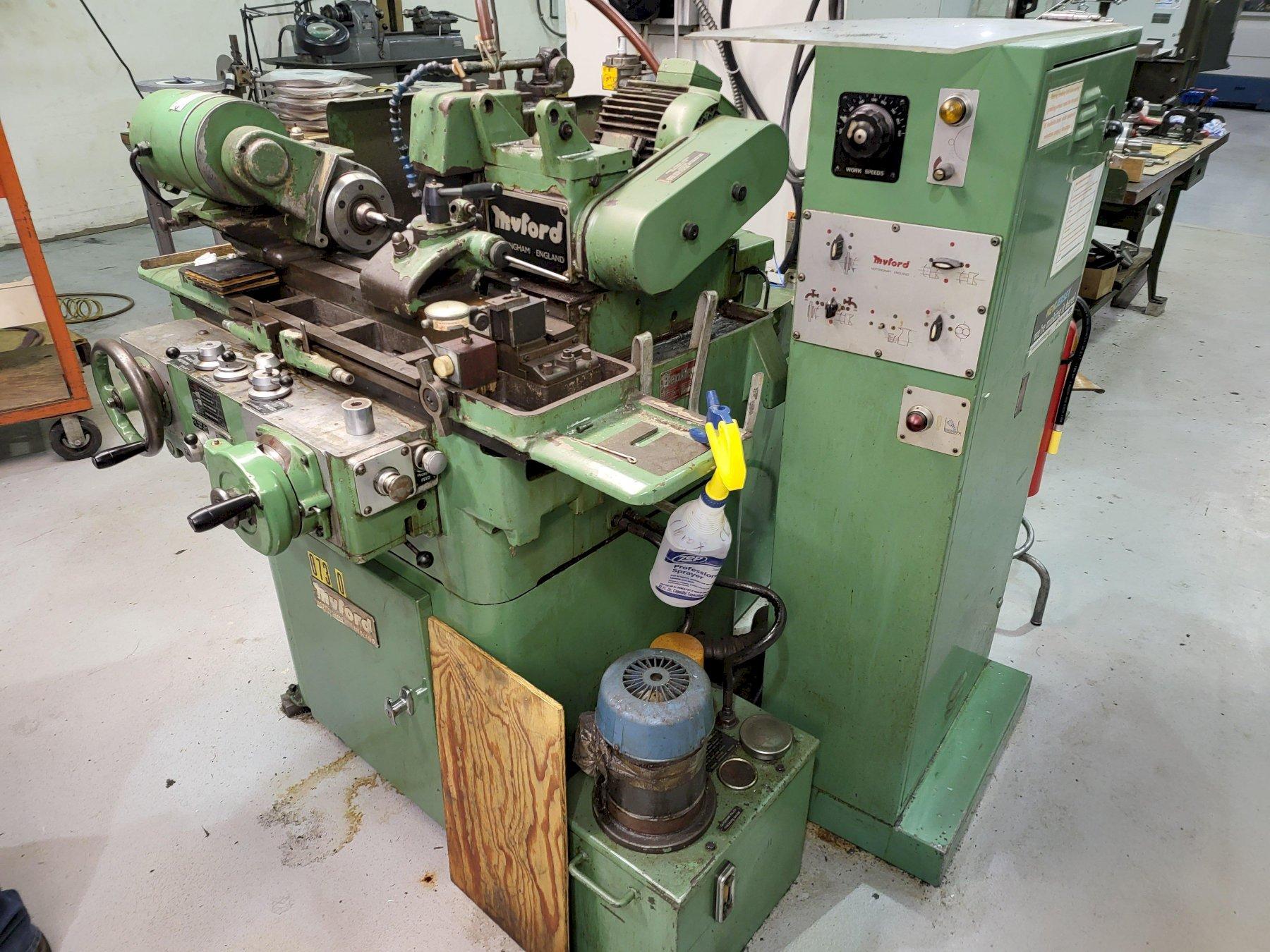

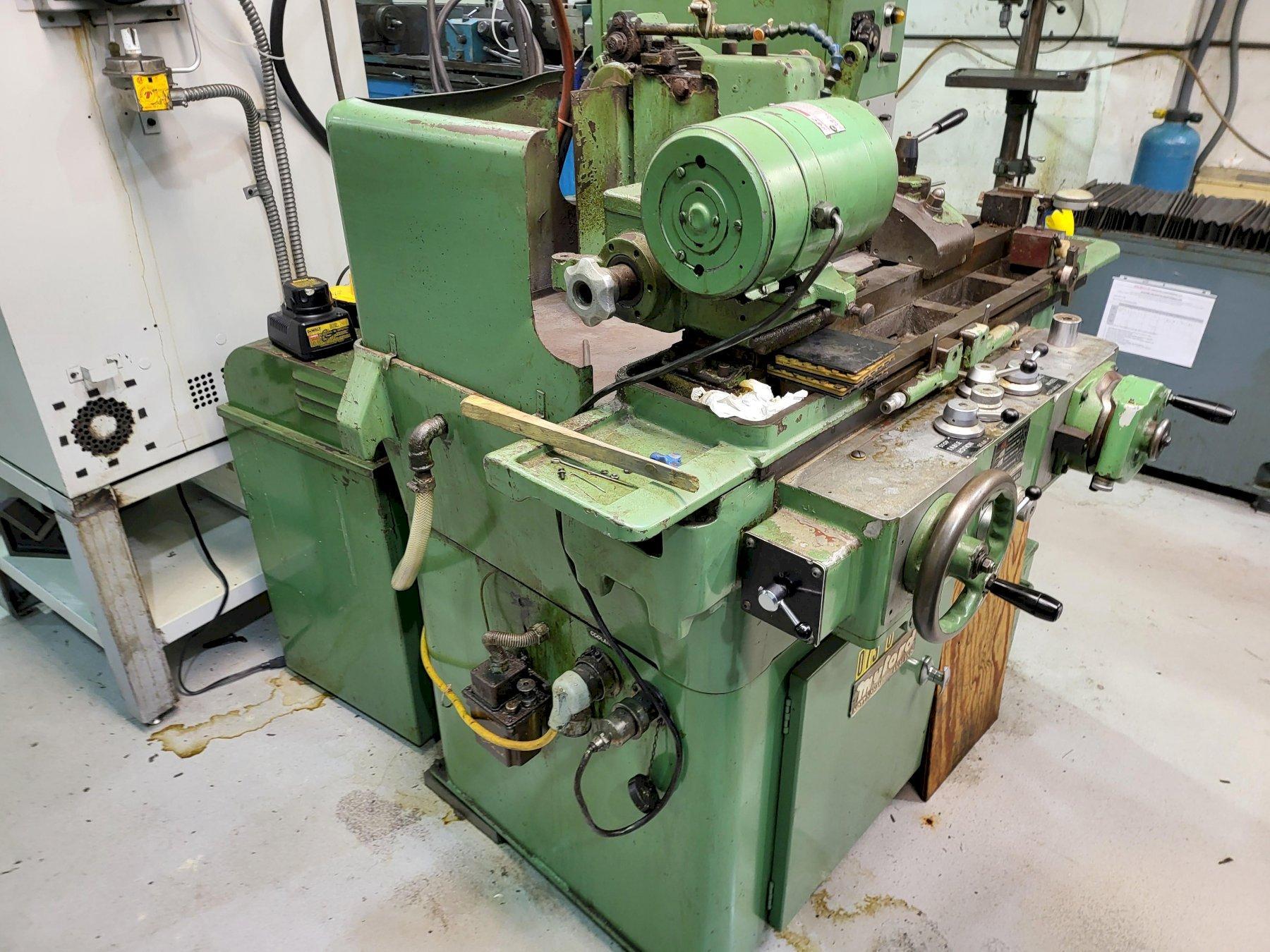

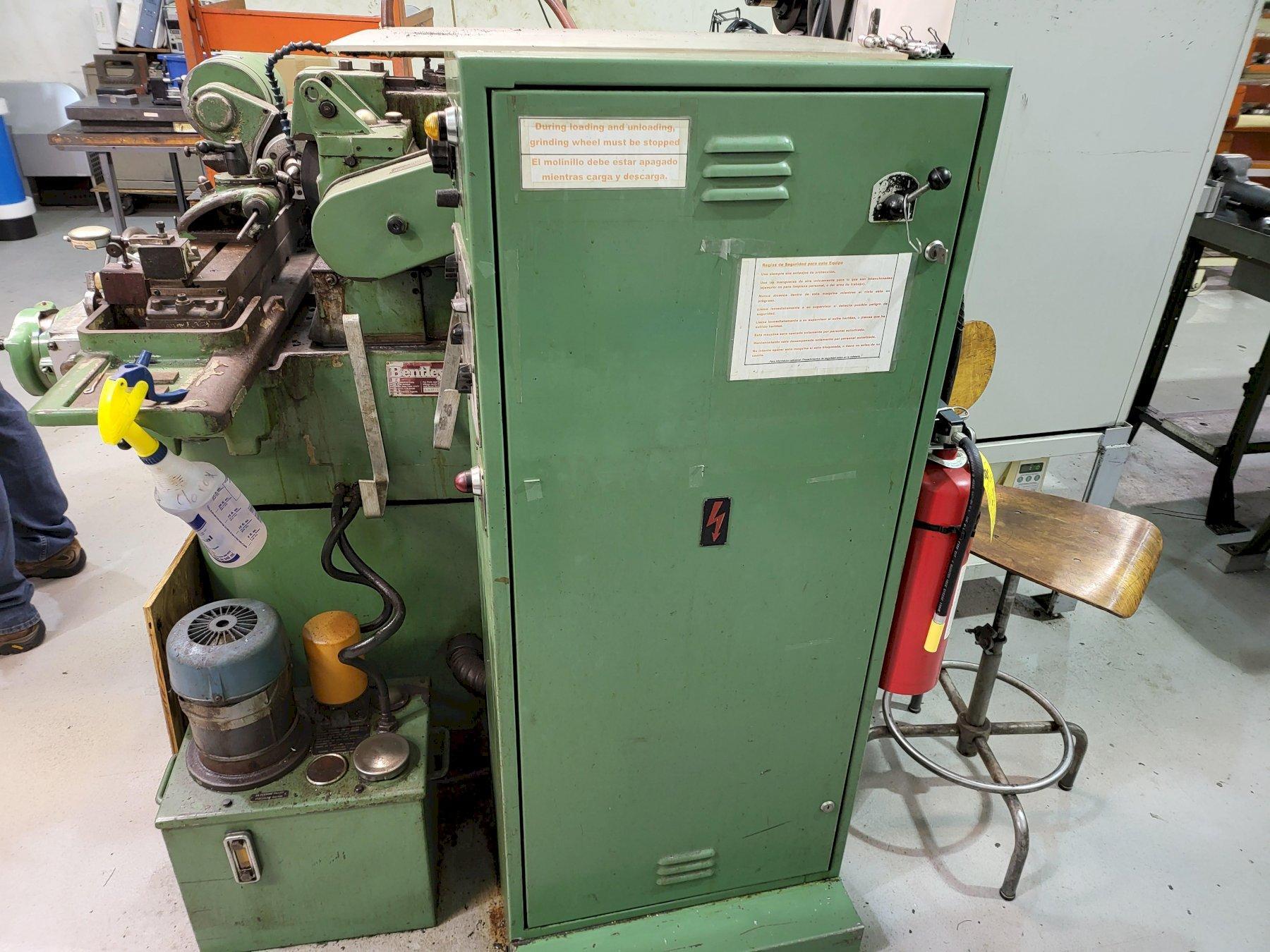

Myford MG-12-HAR OD Grinder (#4603)

Manufacturer

Category

Grinding Machines

Type

GRINDERS, WORM

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



5" X 12" Grinder with Electrical Console Control, Automatic Lubrication for Wheel Head and Carriage Ways, Infinitely Variable Work Head Spindle Speeds, Automatic Cycle / Manual Operation Selector, Sparkout Timer, Automatic Hydraulic Rapid Advance Retraction of Grinding Wheel Head, Variable Dwell at Each End of Table Movement, Automatic Infeed and Hydraulic Table Traverse

GENERAL SPECIFICATIONS
Max Grinding Diameter: 3"
Swing Over Table: 5"
Capacity Between Centers: 12"
Max Table Travels: 13-3/4"
Table Swivels: 10°
Table Travel Per Rev. of Handwheel: 0.44"
Hydraulic Table Traverse: 0 - 120 IPM
Total Travels By Feed Screw: 3-7/8"
Hydraulic Rapid Retraction: 1-1/8"
Infeed Per Rev. of Handwheel: 0.04"
Max. Intermittent Infeed, Coarse: 0.002”
Min. Intermittent Infeed, Fine: 0.00005"
Sparkout: 0 - 50 Seconds
RPM Wheel Speeds (2): 1830 / 1988 RPM
Grinding Wheel: 12" X 1-1/2" X 5"
Minimum Wheel Diameter For Zero Work Diameter: 10"
Infinitely Variable Spindle Speeds: 50 - 900 RPM
Capacity Through Standard Draw Tube: 3/4"
Max. Collet Capacity: 3/4"
Machine Weight: 2,226 LBS

INCLUDES: Electrical Console Control, Automatic Lubrication for Wheel Head and Carriage Ways, Infinitely Variable Work Head Spindle Speeds, Automatic Cycle / Manual Operation Selector, Sparkout Timer, Automatic Hydraulic Rapid Advance Retraction of Grinding Wheel Head, Variable Dwell at Each End of Table Movement, Automatic Infeed and Hydraulic Table Traverse


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
