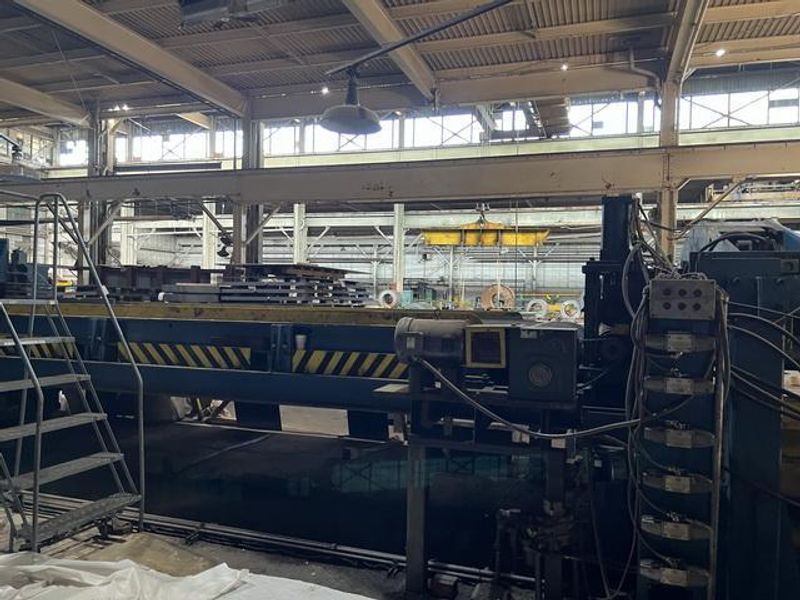

72" x .200" x 50,000# Voss cut to length line, Stock# 10962

Manufacturer

Voss

Stock

10962

Model

None listed

Dealer Location

Michigan

Spec Sheet



Brand: Voss

Specifications:

Max Coil Width: 72"
Max Coil Weight: 50,000#
Thickness Range: .047"-.200"
Line Speed: 50-150FPM
Coil ID Range: 20"-28"
Max Coil OD: 72"
Max Stack Length: 252"

Complete with the Following Components:

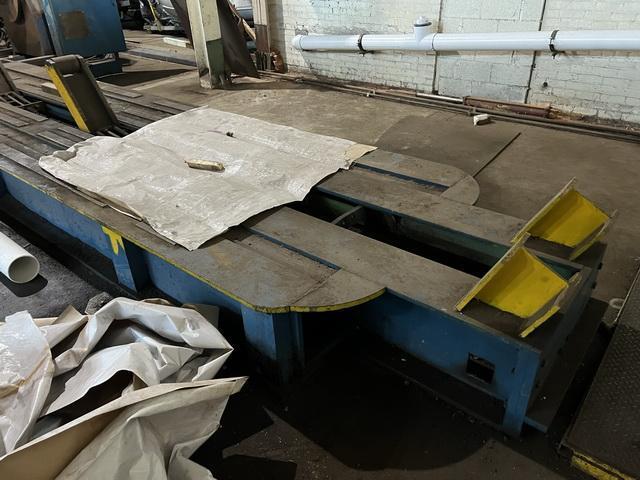

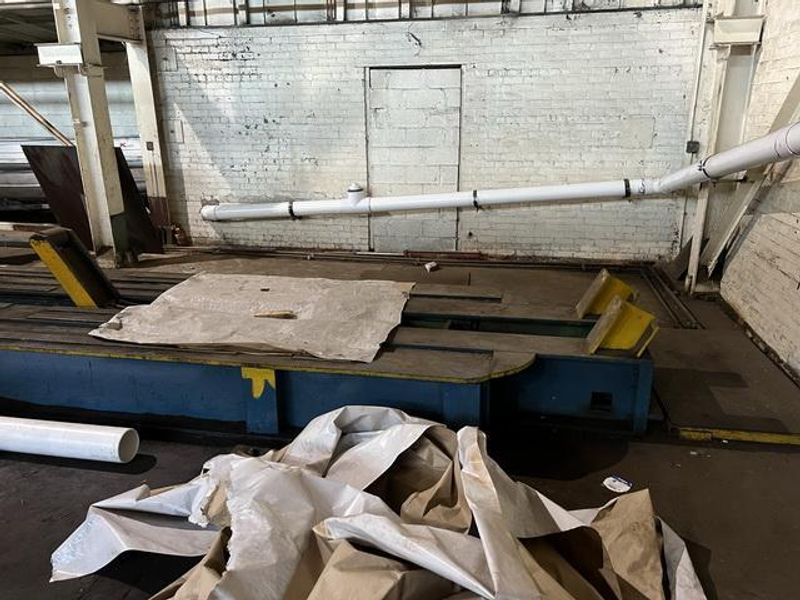

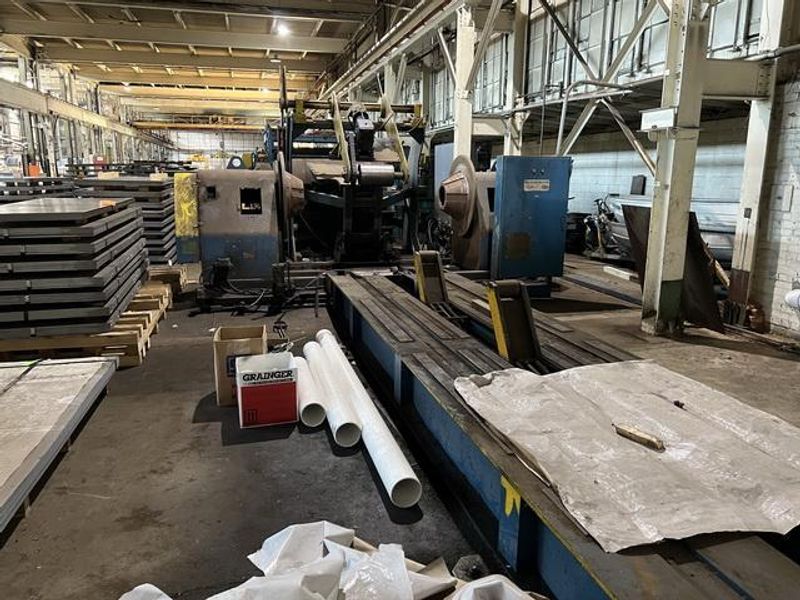

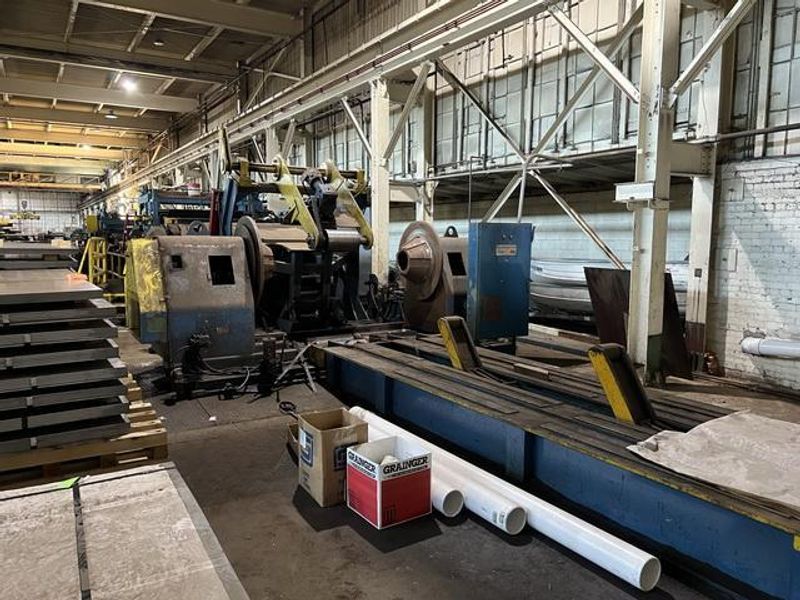

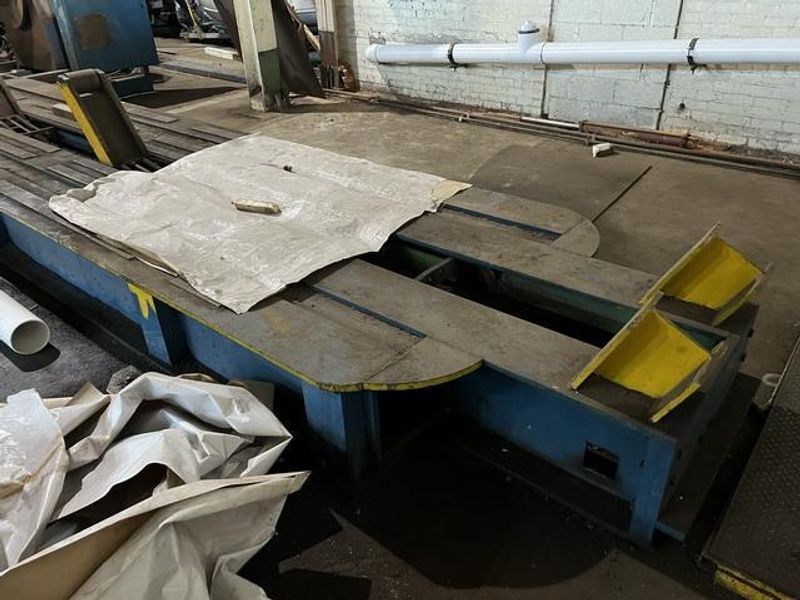

Entry Coil Staging Ramp
Coil Lift

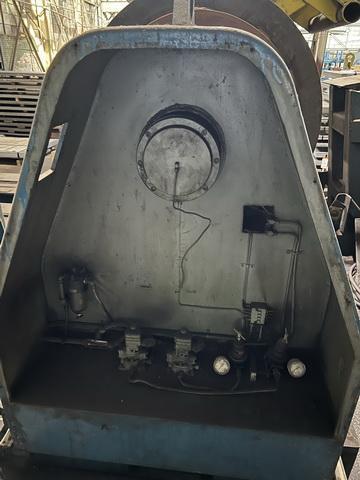

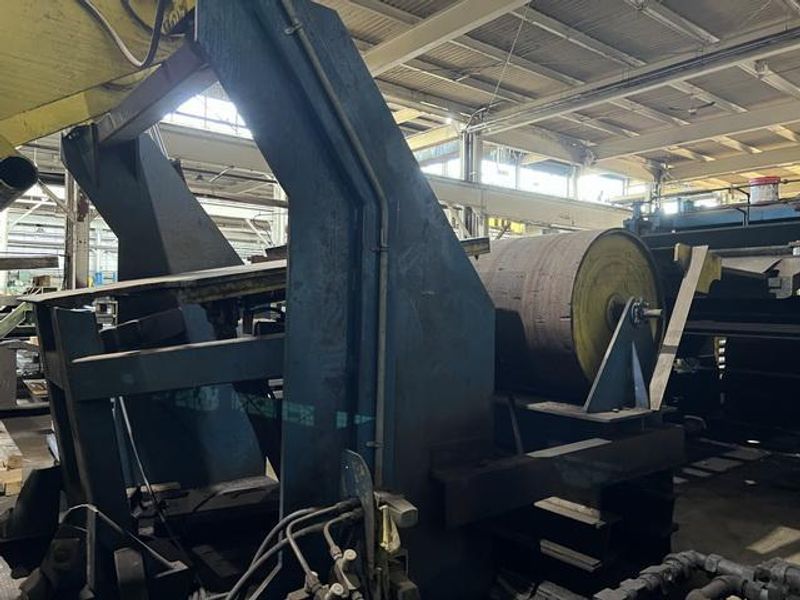

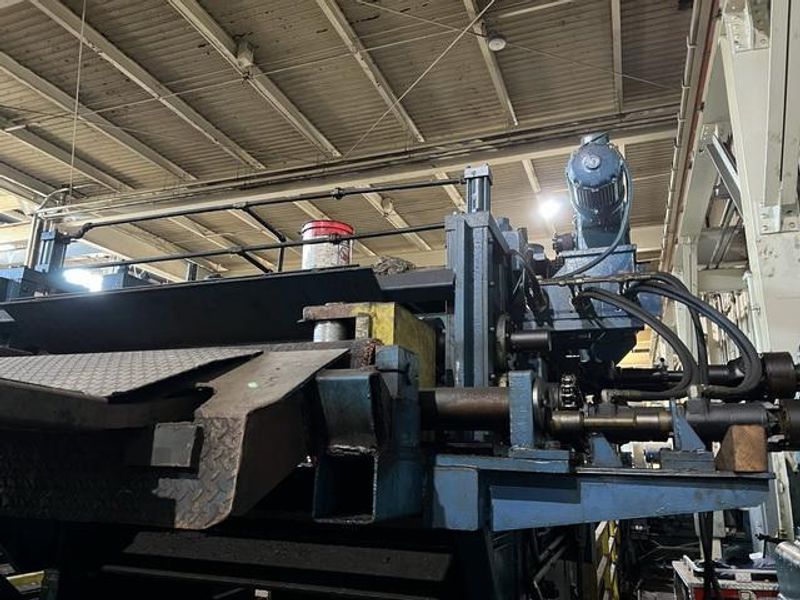

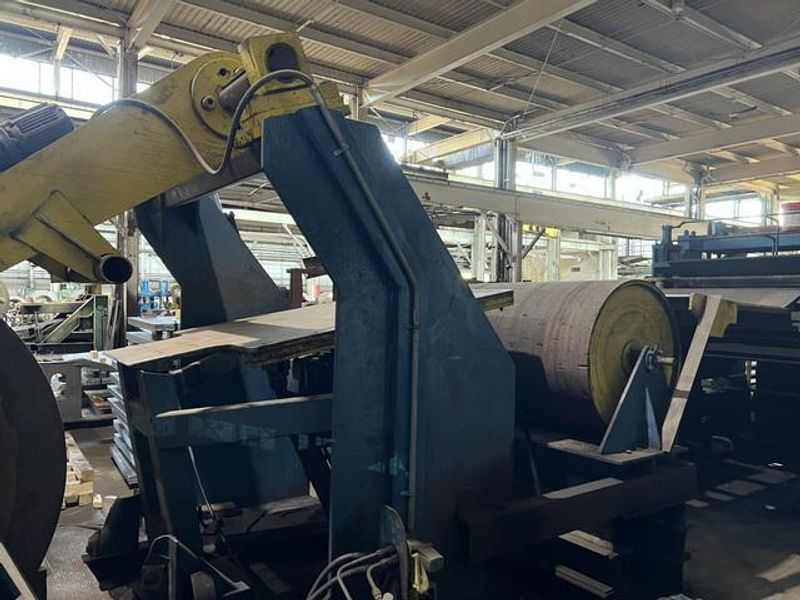

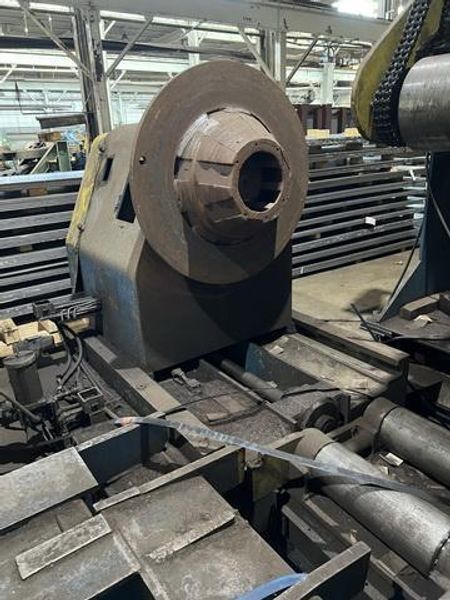

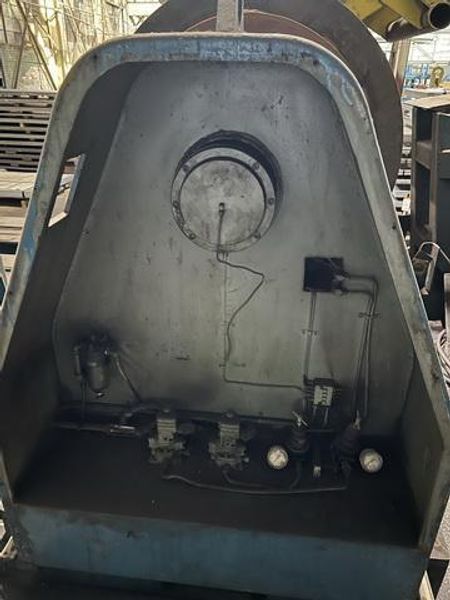

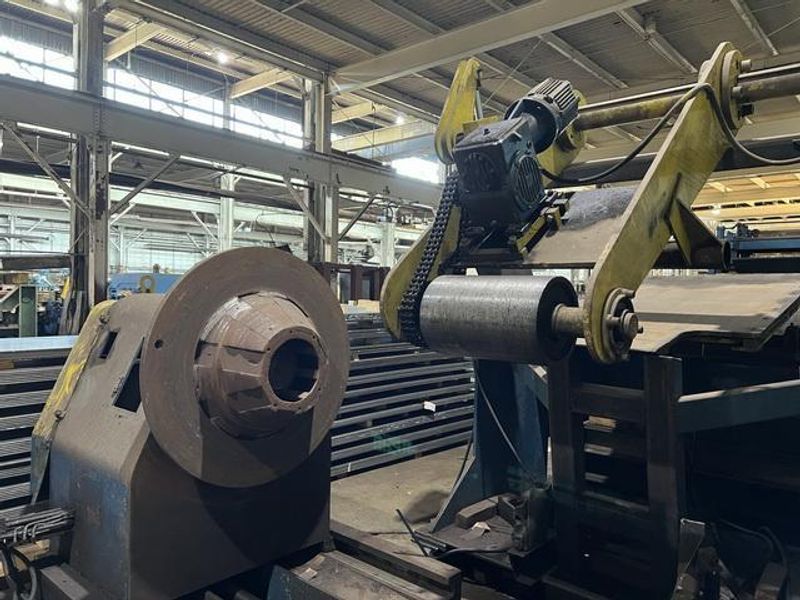

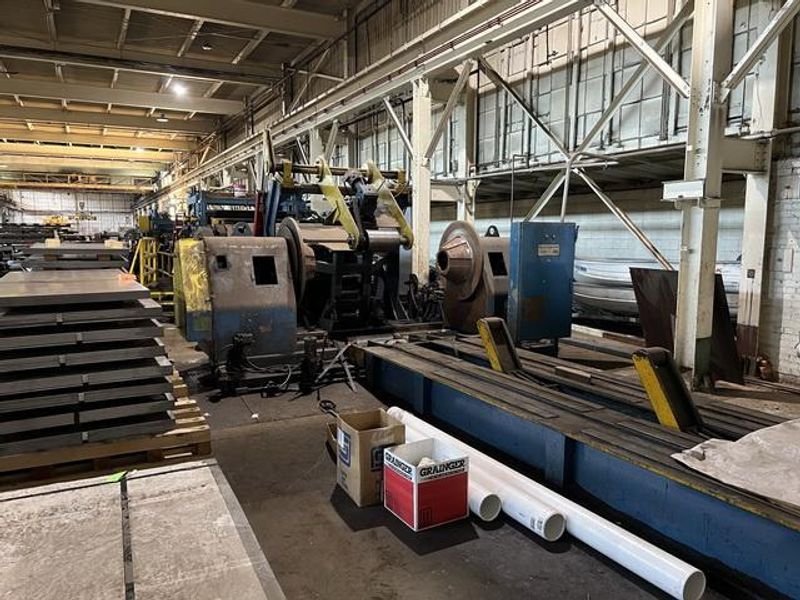

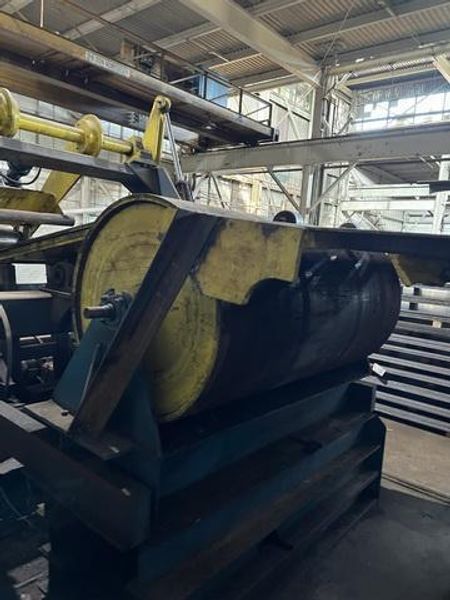

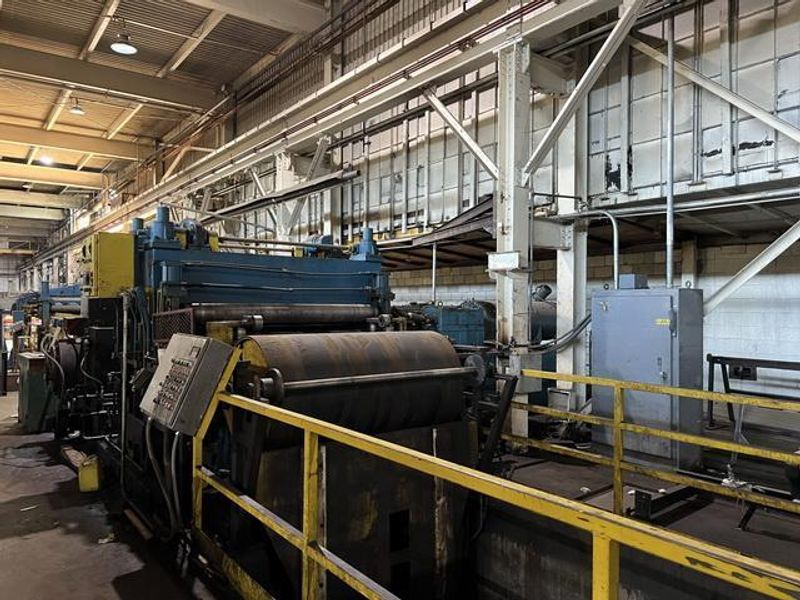

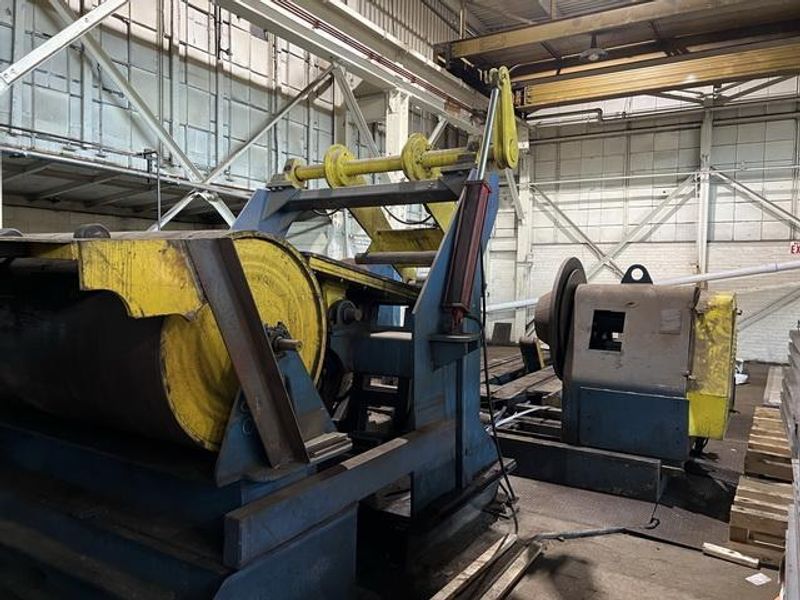

Double Cone Uncoiler
Sliding Bases

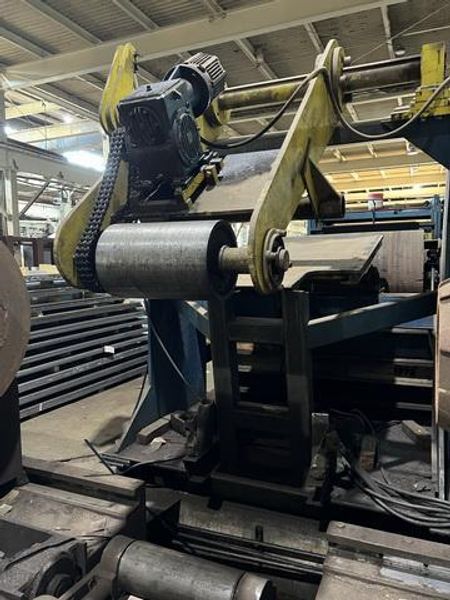

Peeler and Hold Down Roll
Powered Hold Down Roll

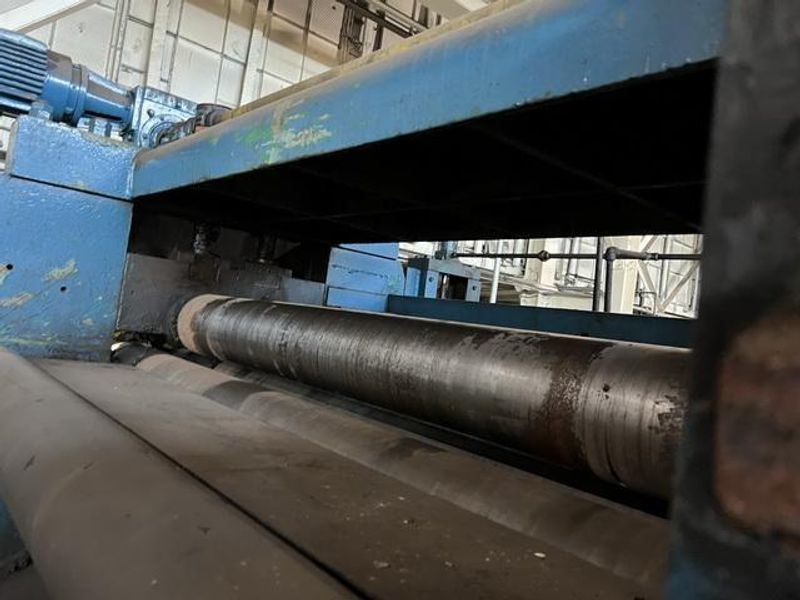

Pass Line Roll
Edge Guides
Pinch Rolls

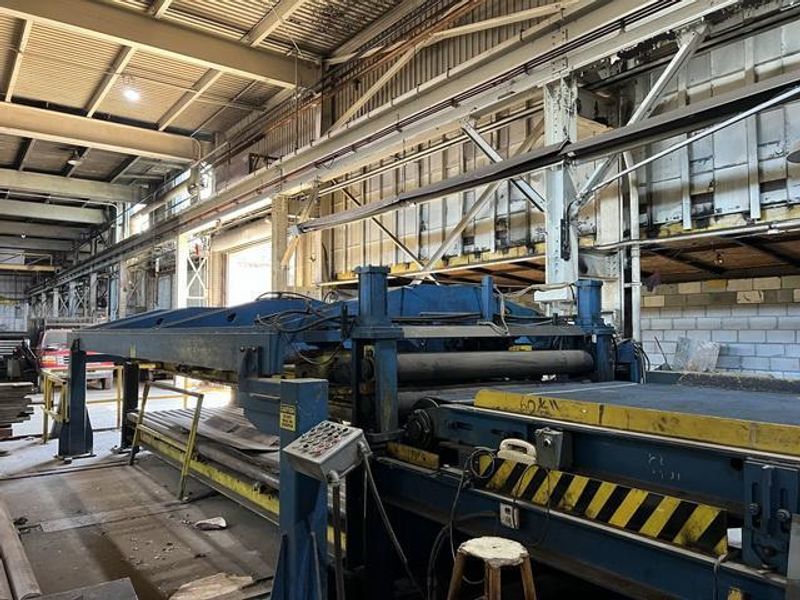

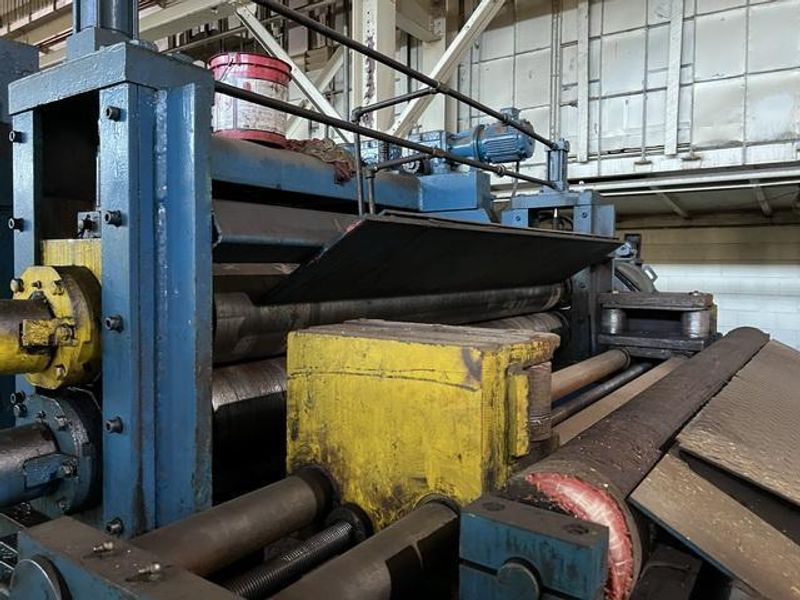

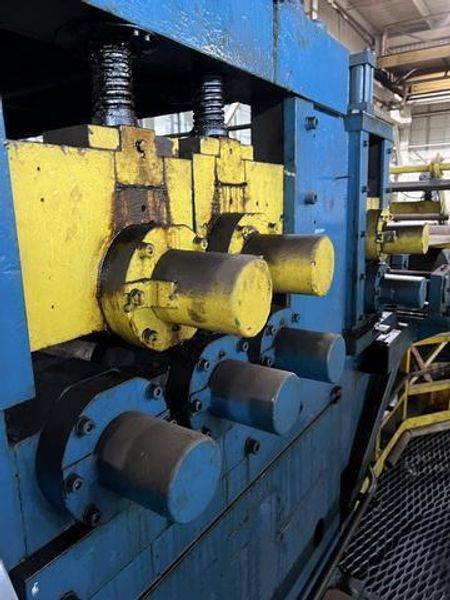

Flattener
Five Powered Rolls

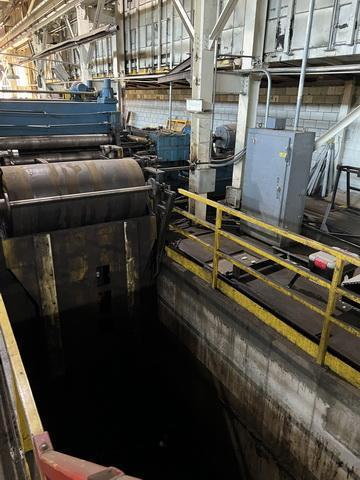

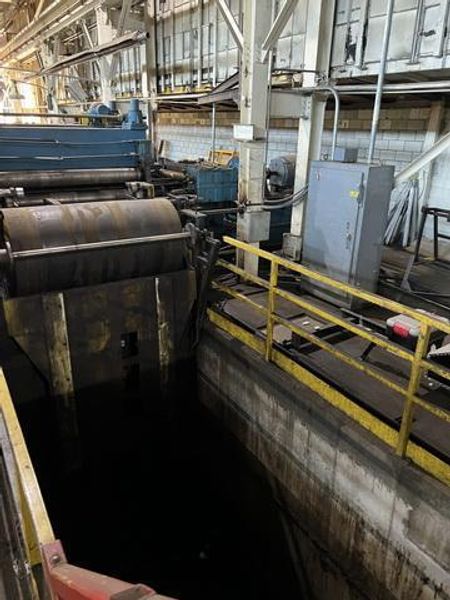

Pit
Pass Line Roll
Edge Guides
Pinch Rolls

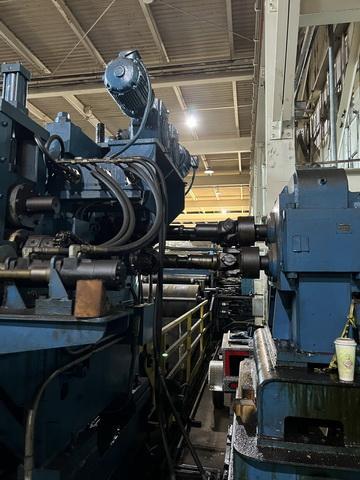

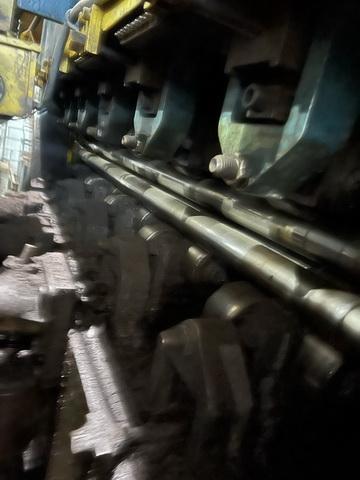

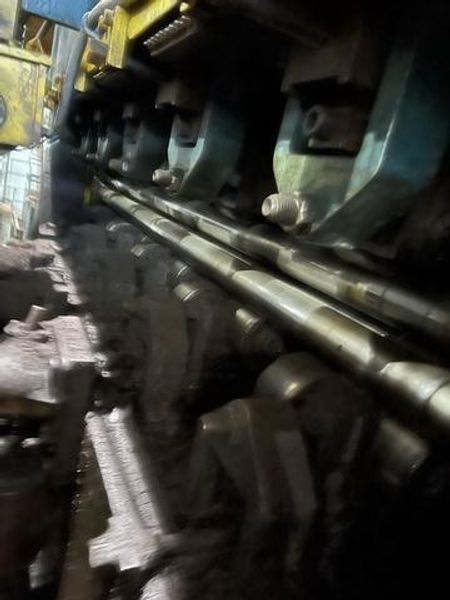

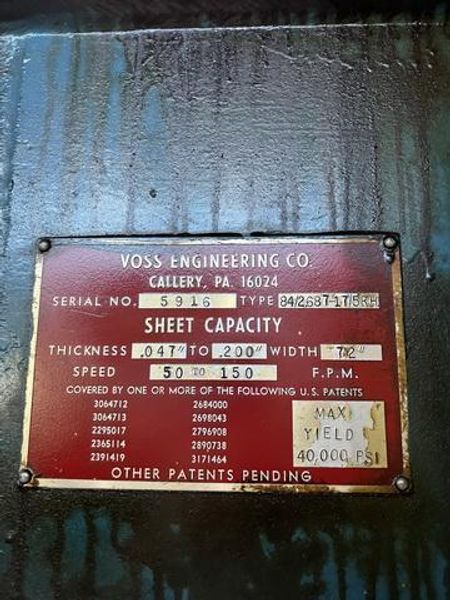

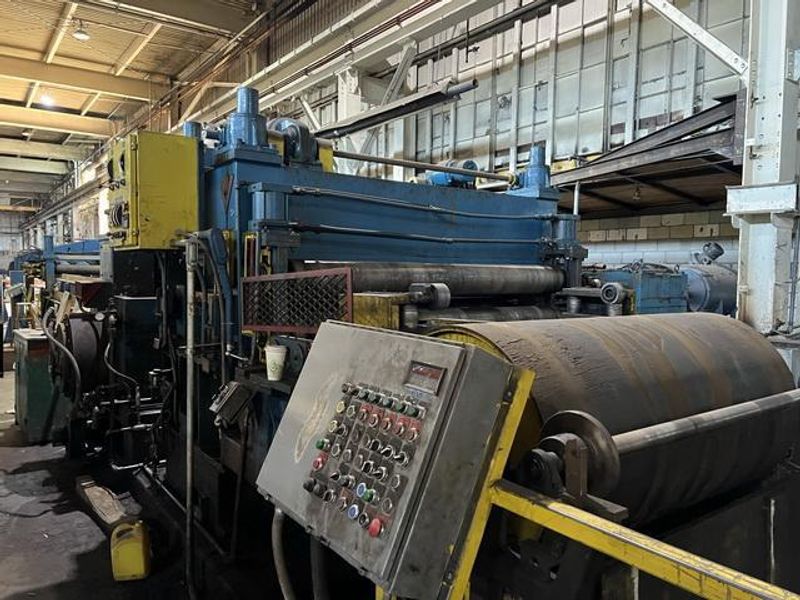

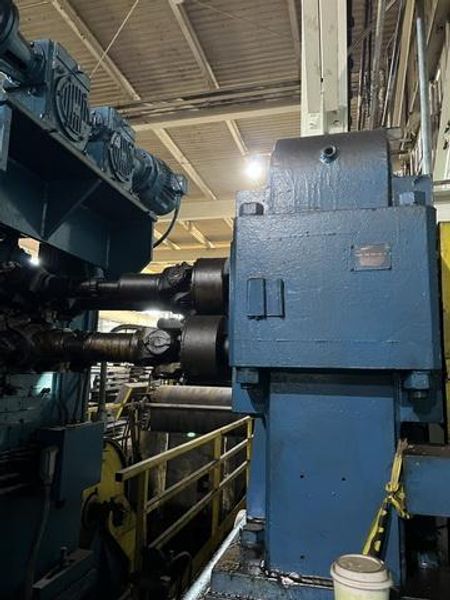

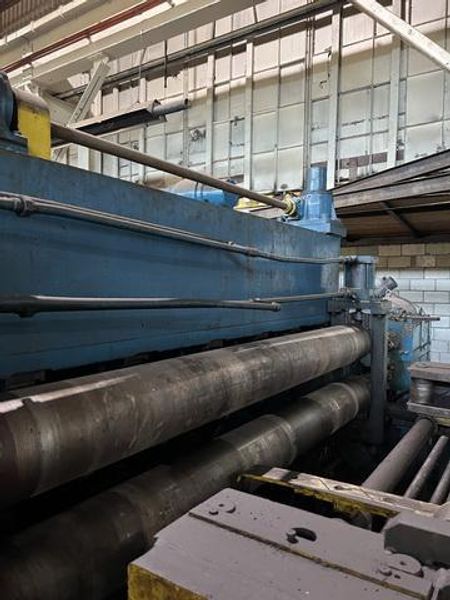

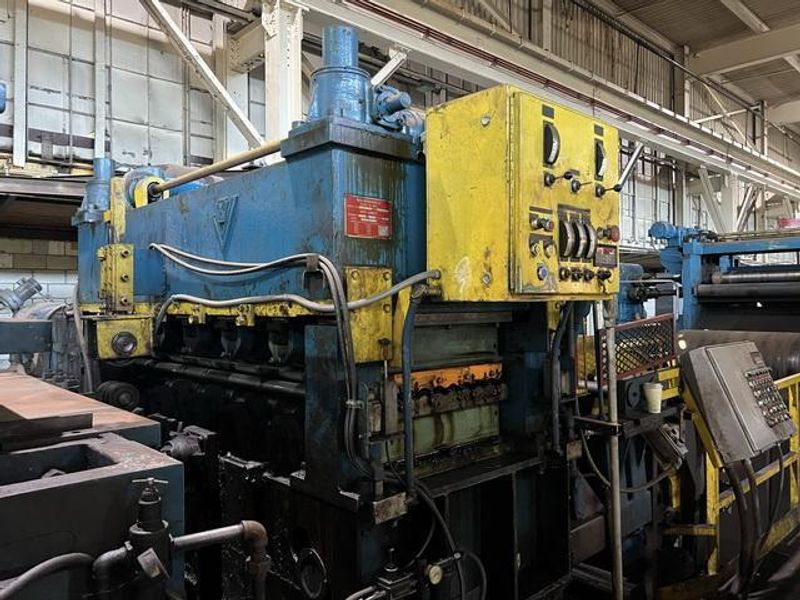

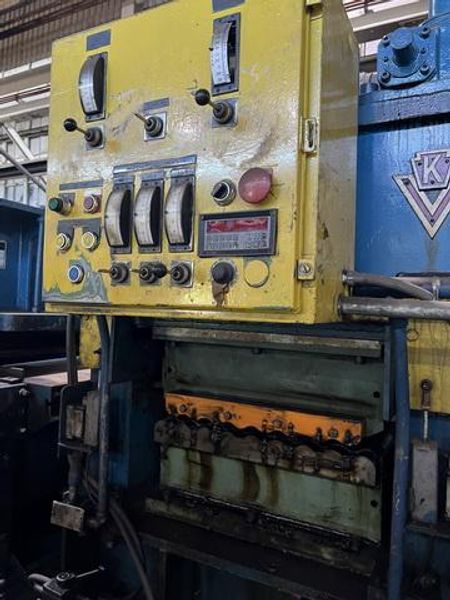

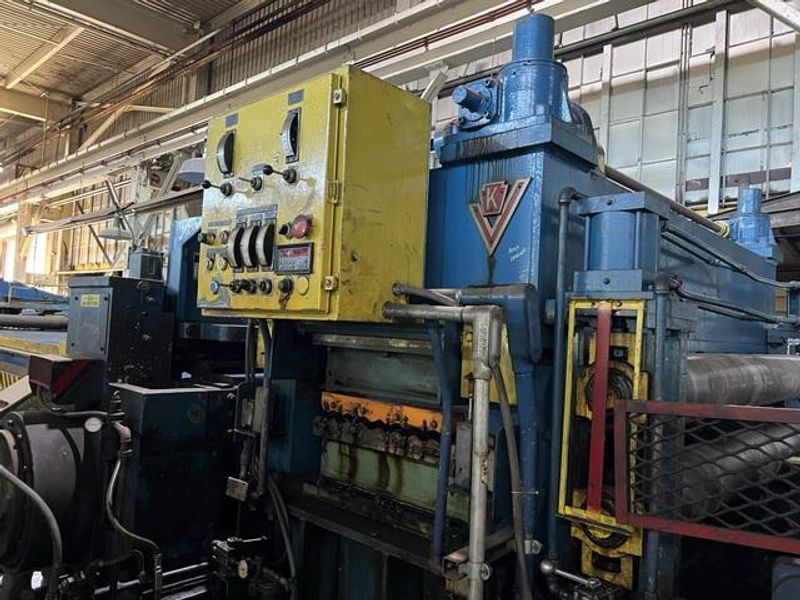

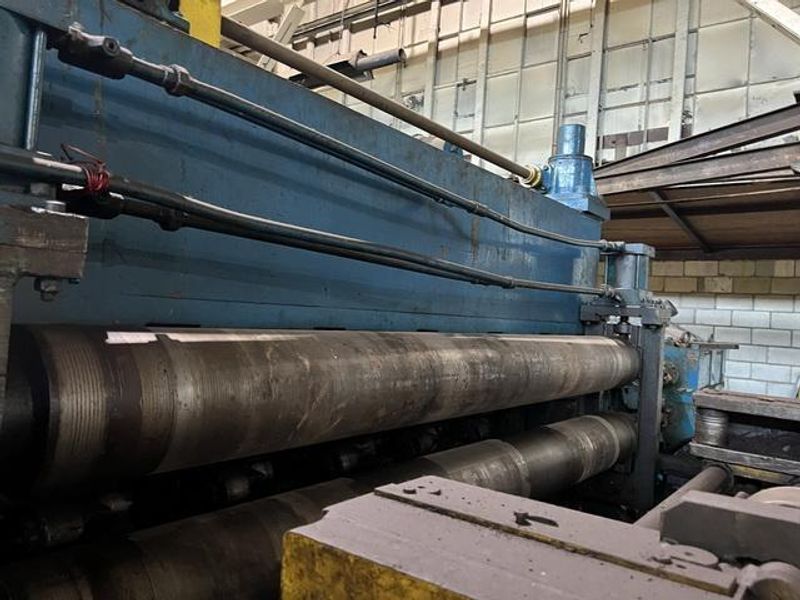

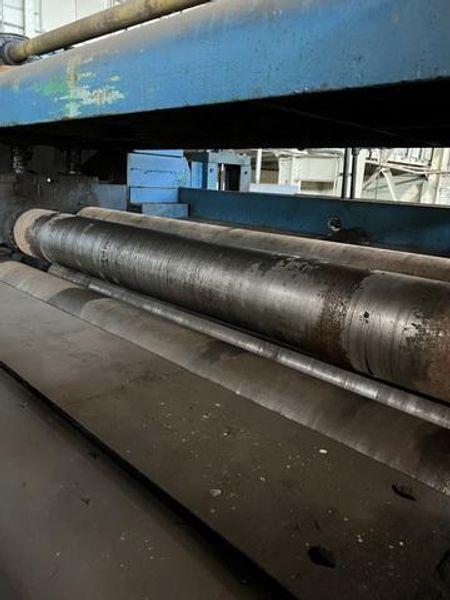

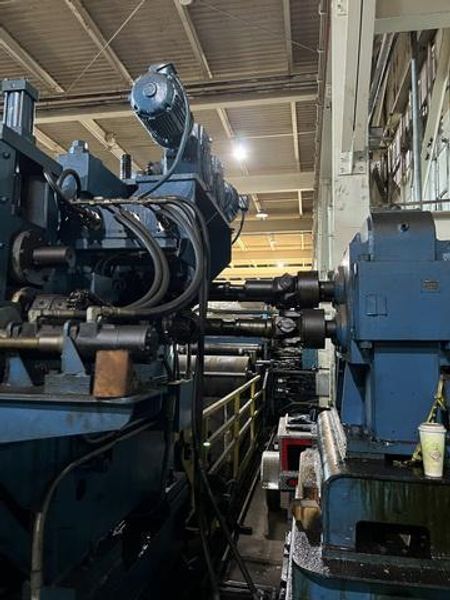

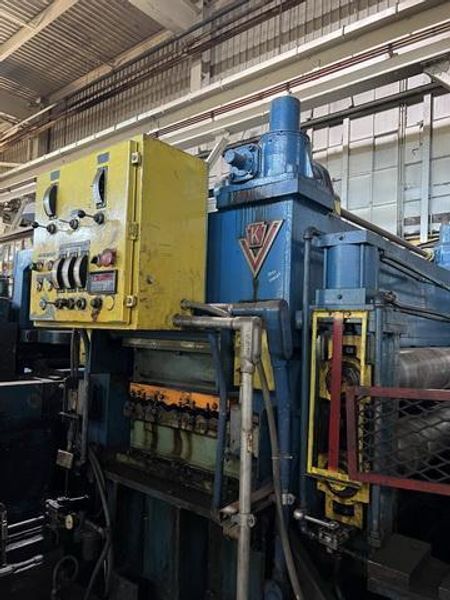

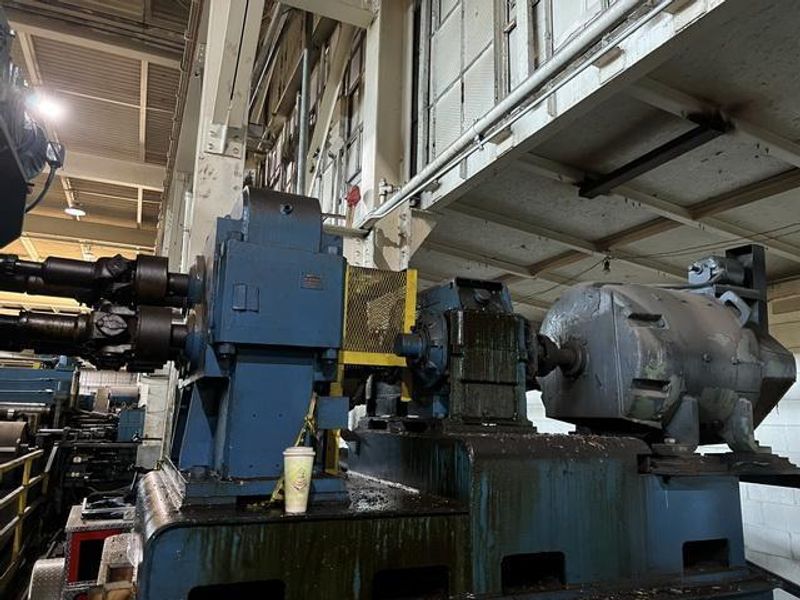

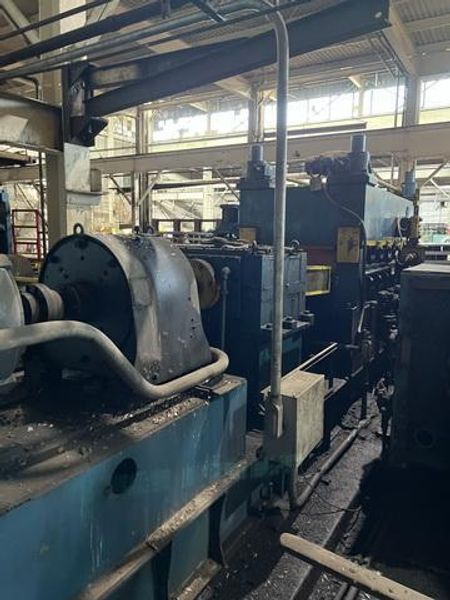

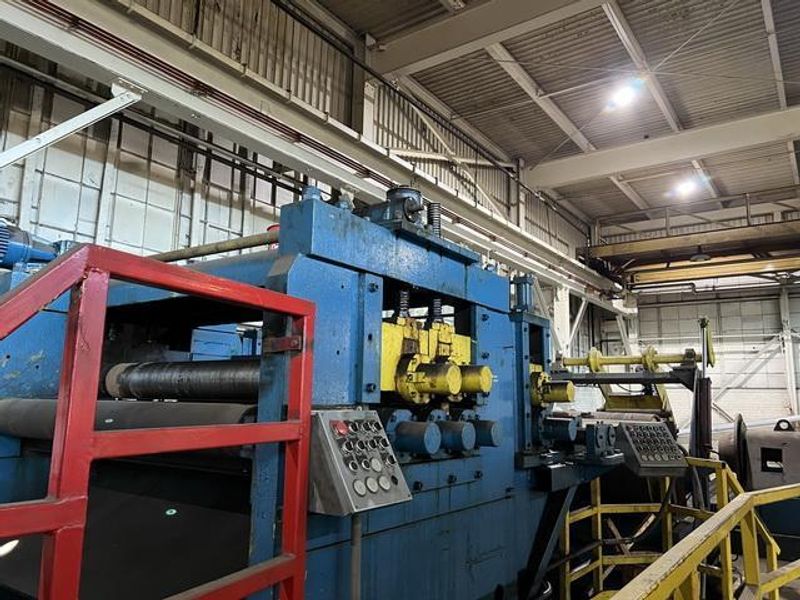

Voss Leveler
Model: 84/2.687-17/5RH
4HI Leveler
17 Rolls
Roll Diameter: 2.687"
Roll Face: 84"
5 Flights of Back Ups
3 Flights of Back Ups with Independent Adjustments
Motorized Tilt

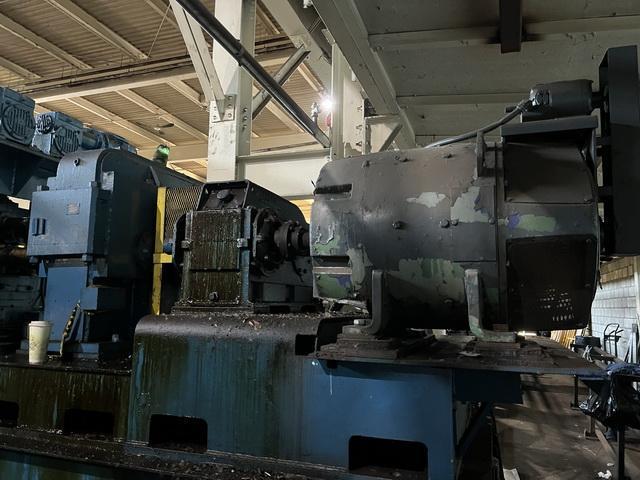

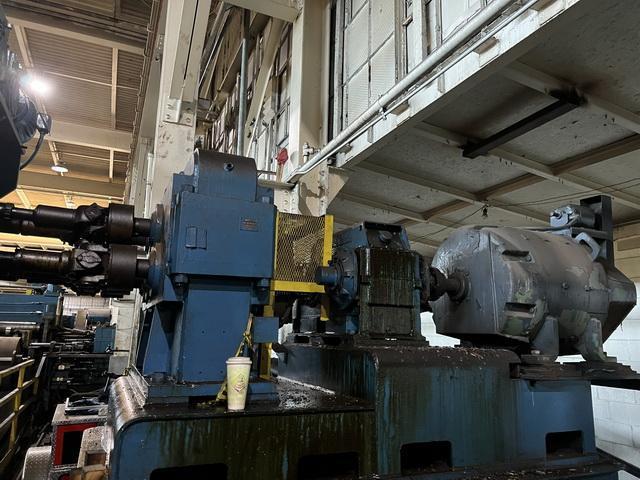

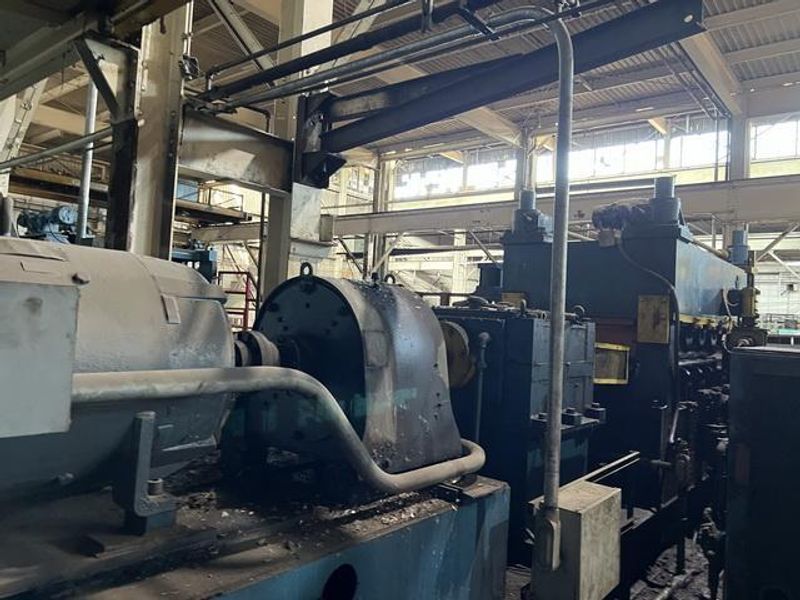

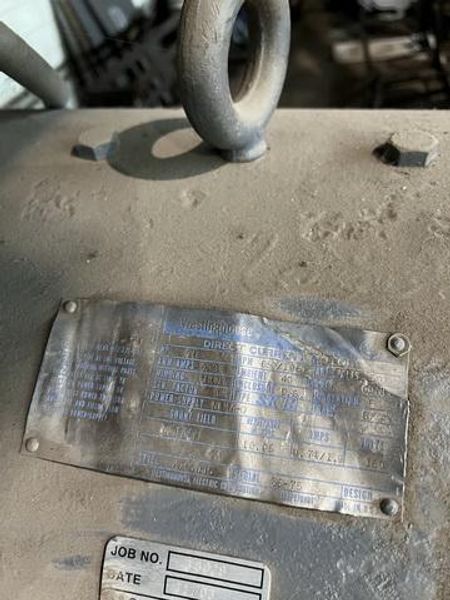

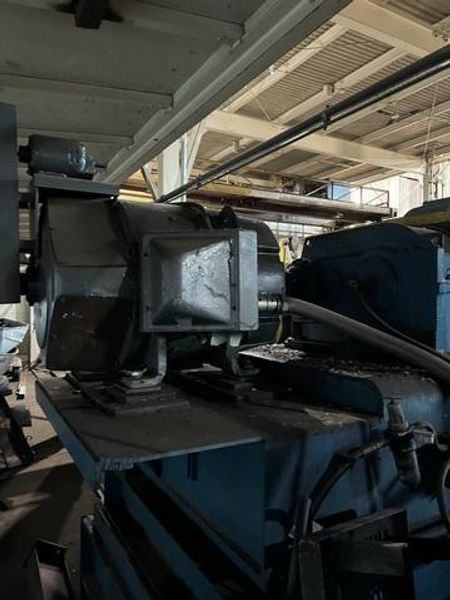

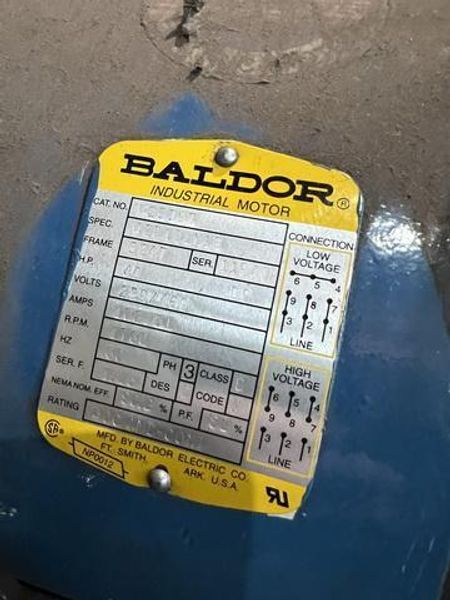

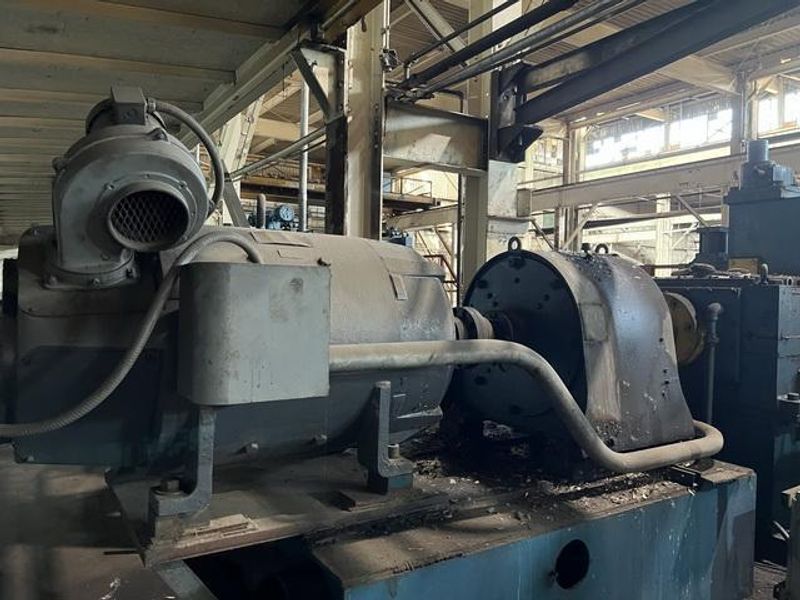

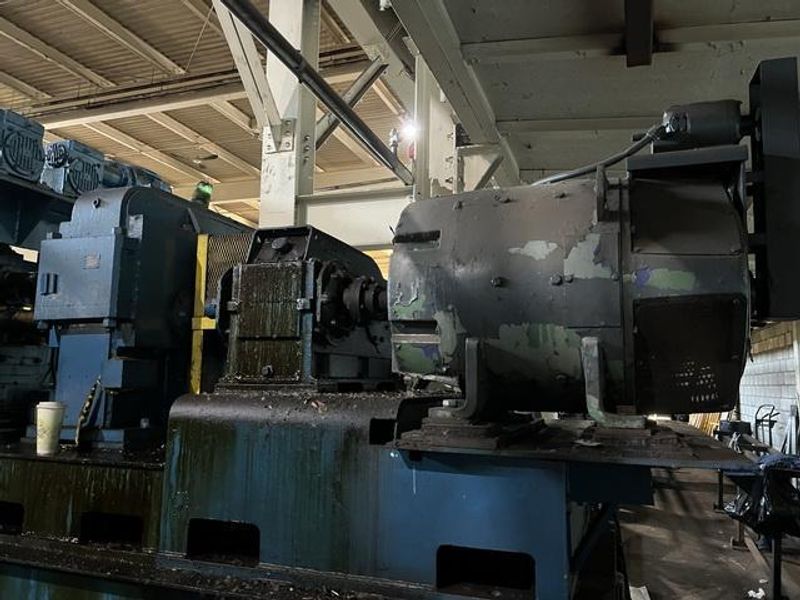

75HP DC Motor
Encoder

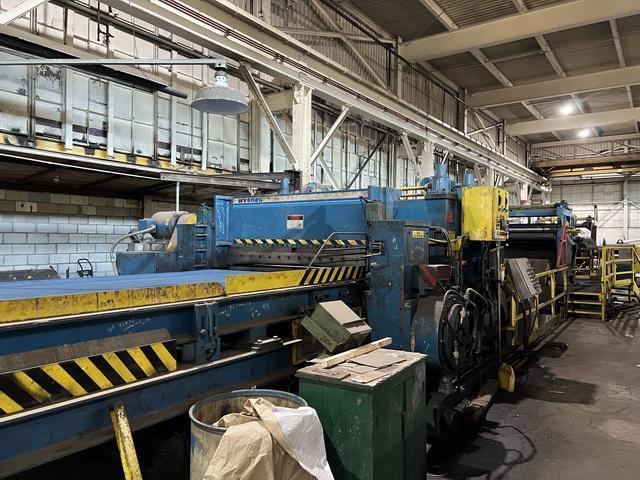

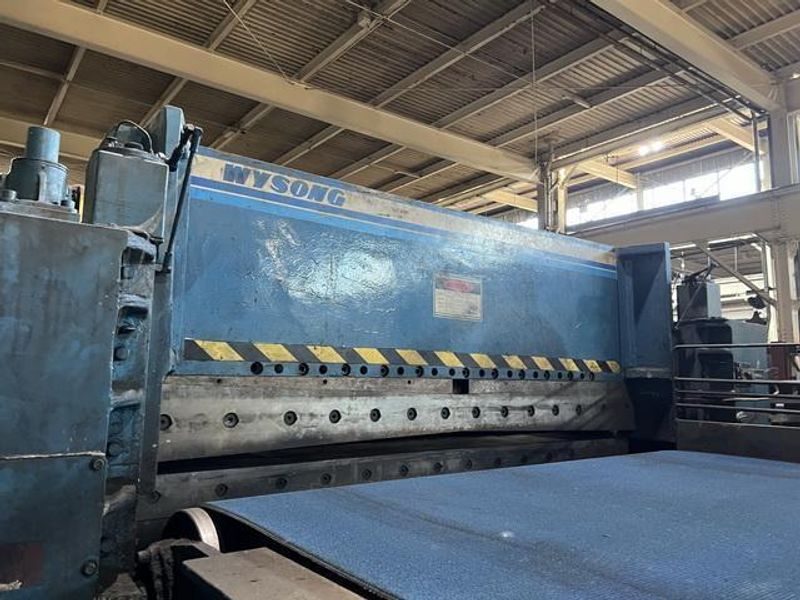

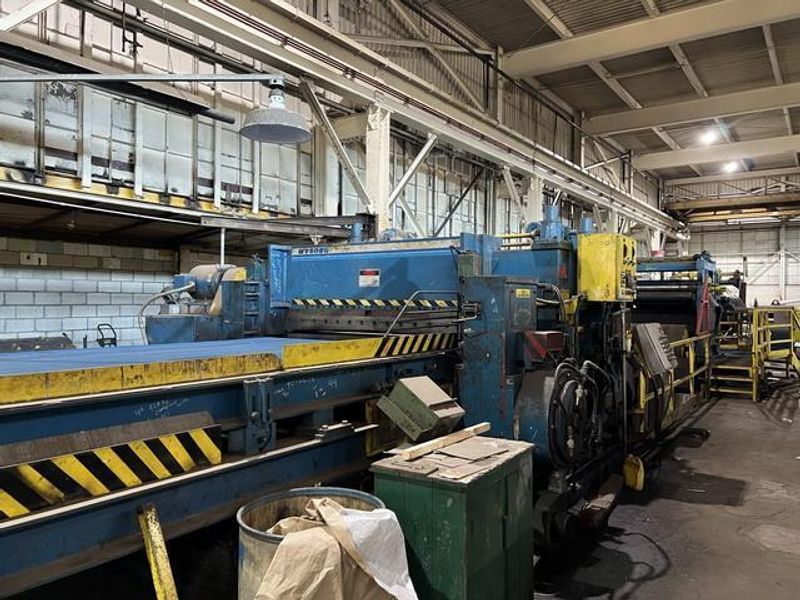

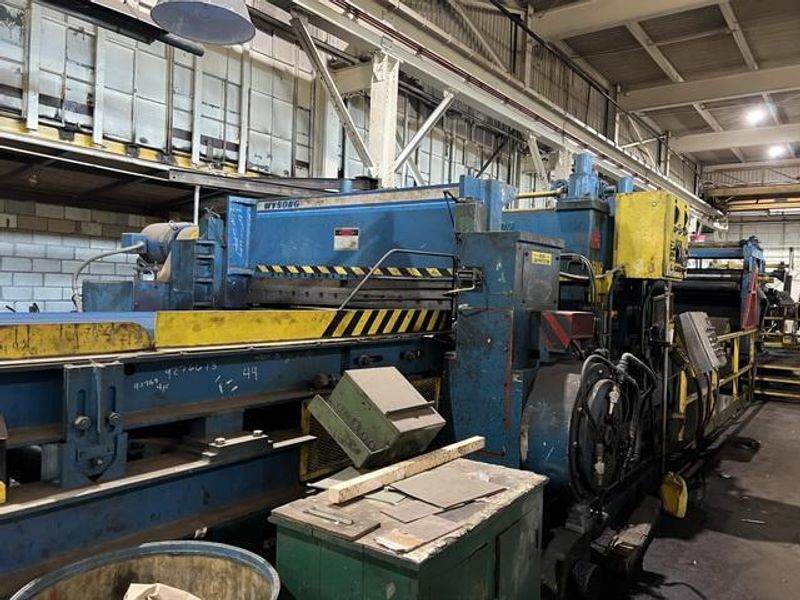

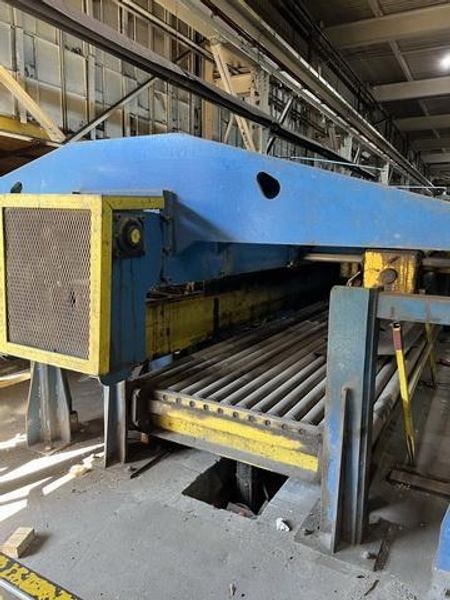

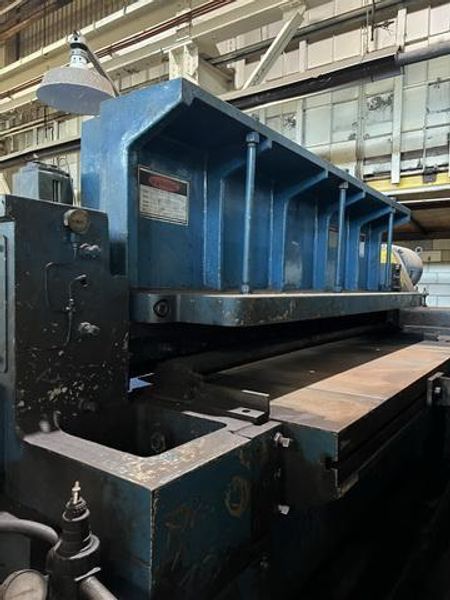

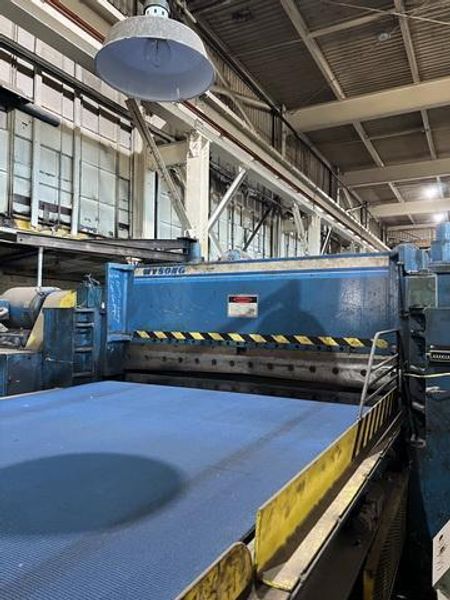

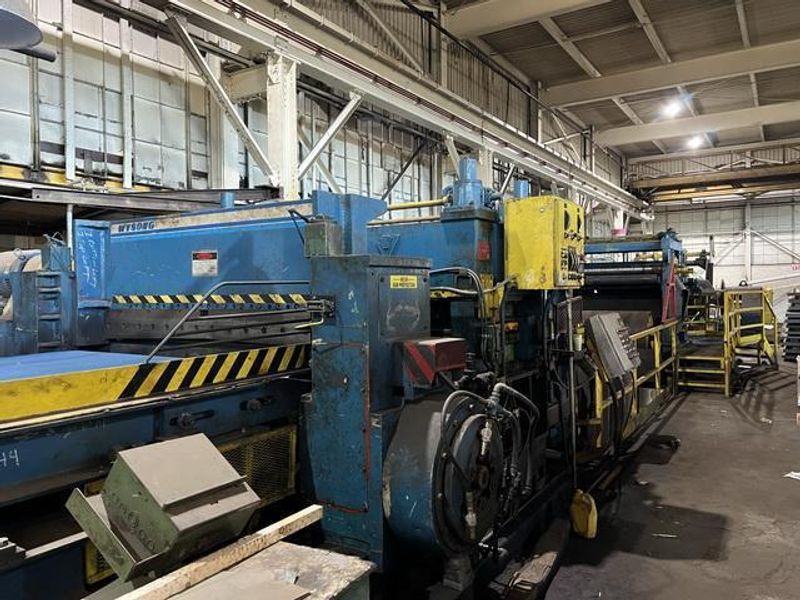

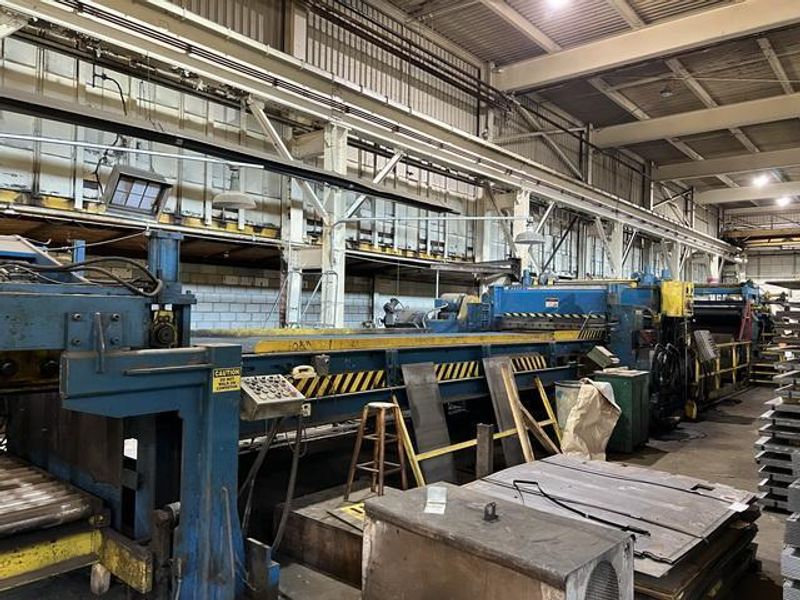

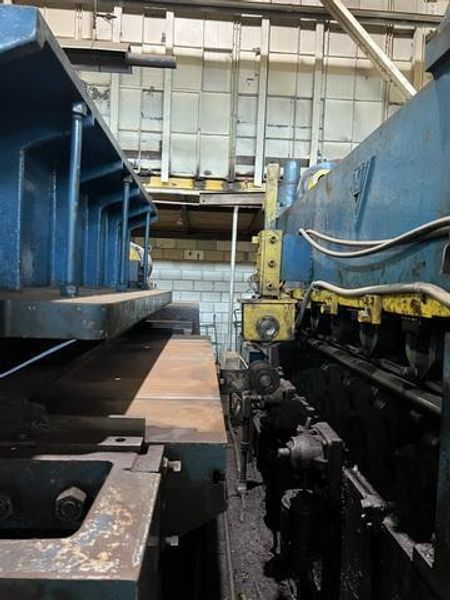

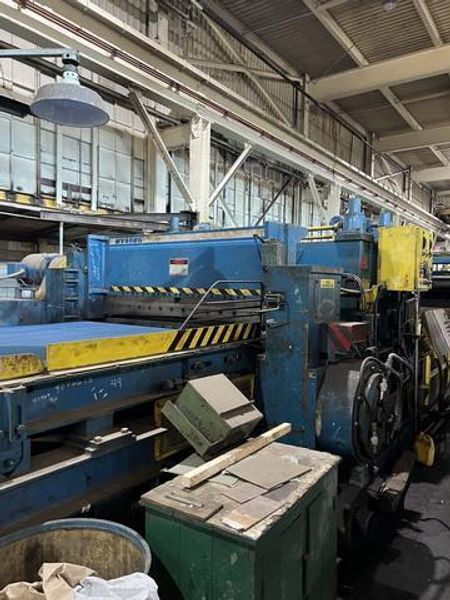

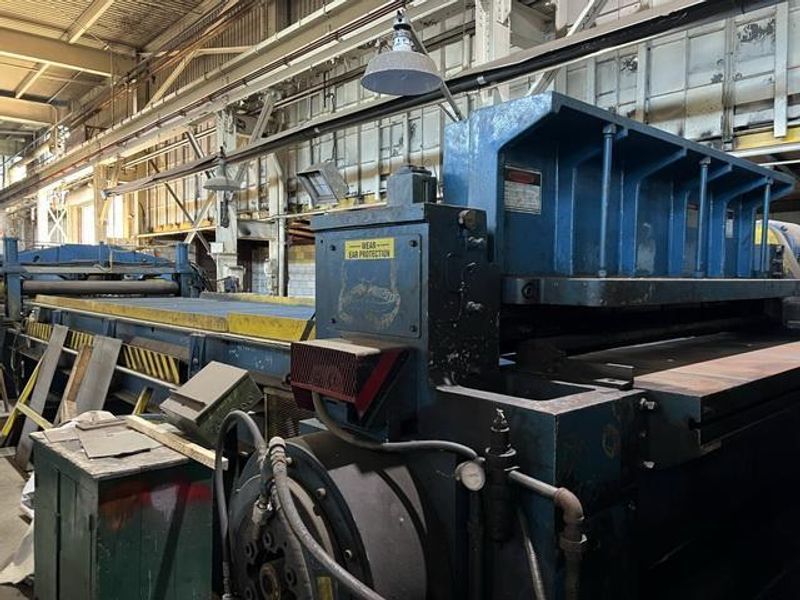

Wysong High Speed Shear
Bow Tie Blade

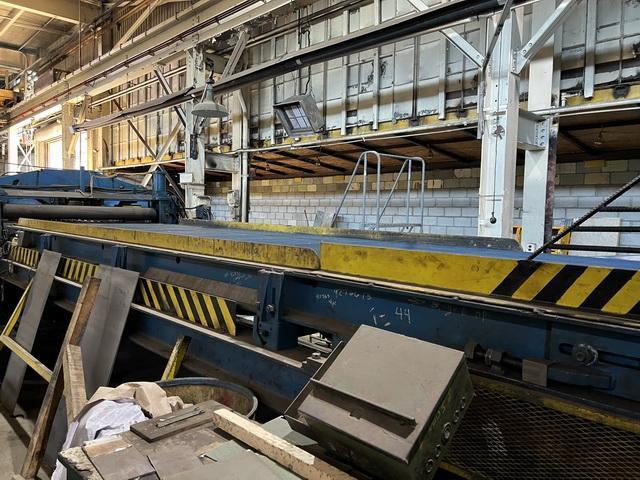

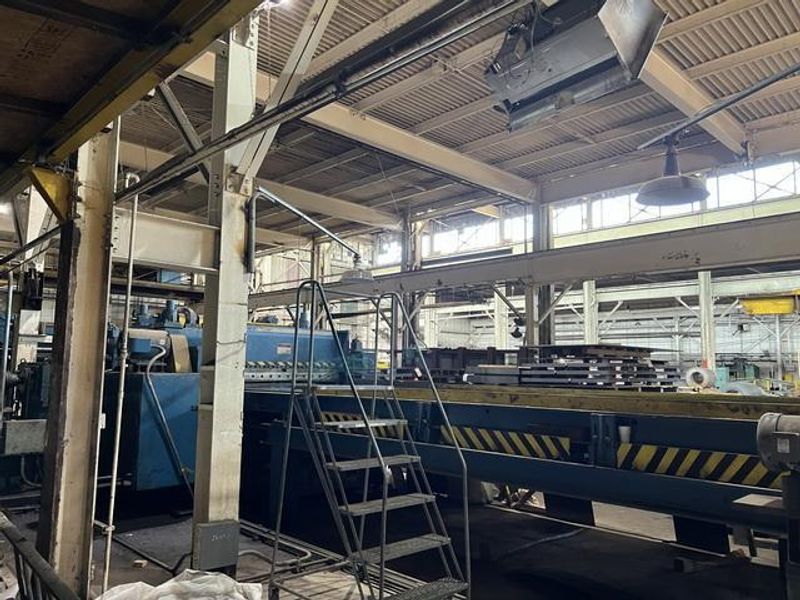

Conveyor

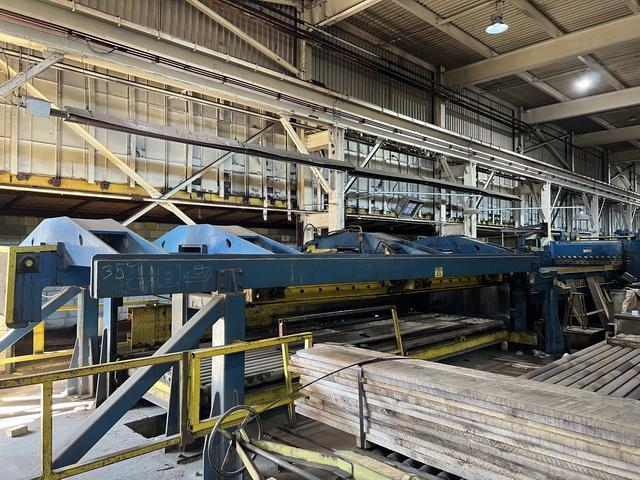

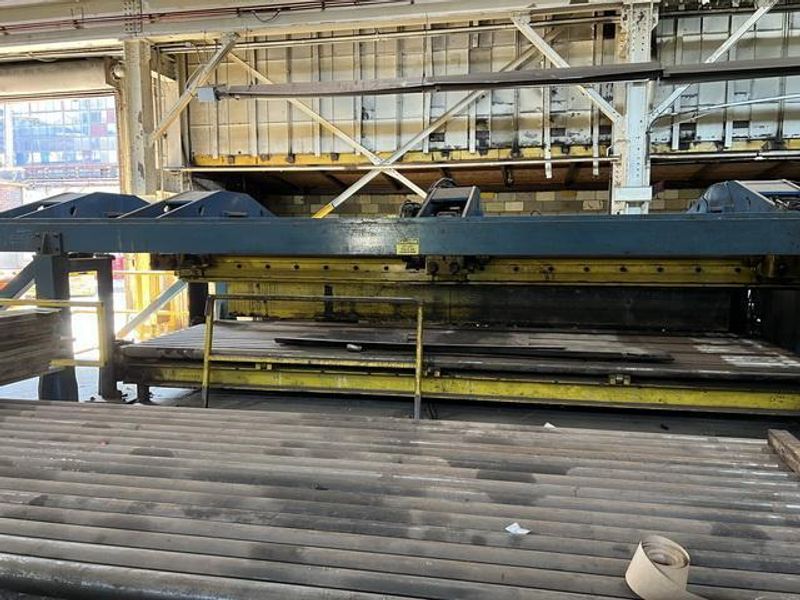

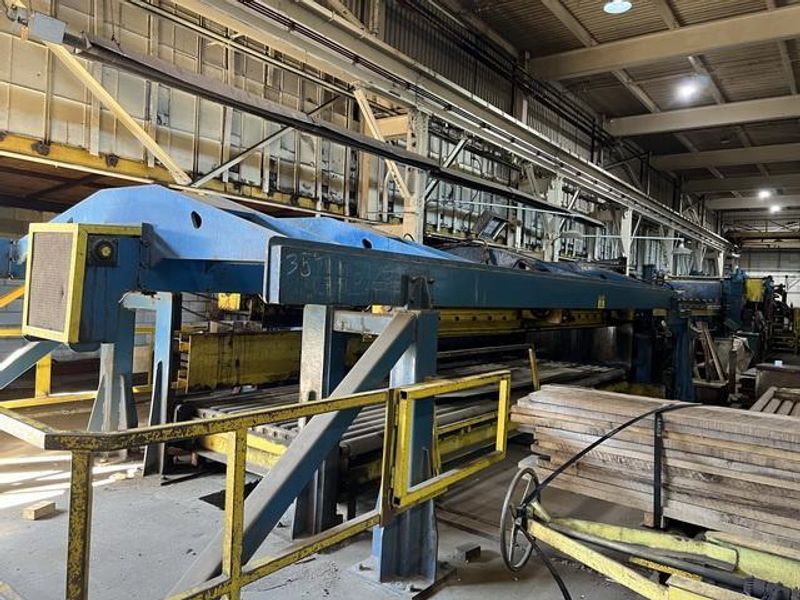

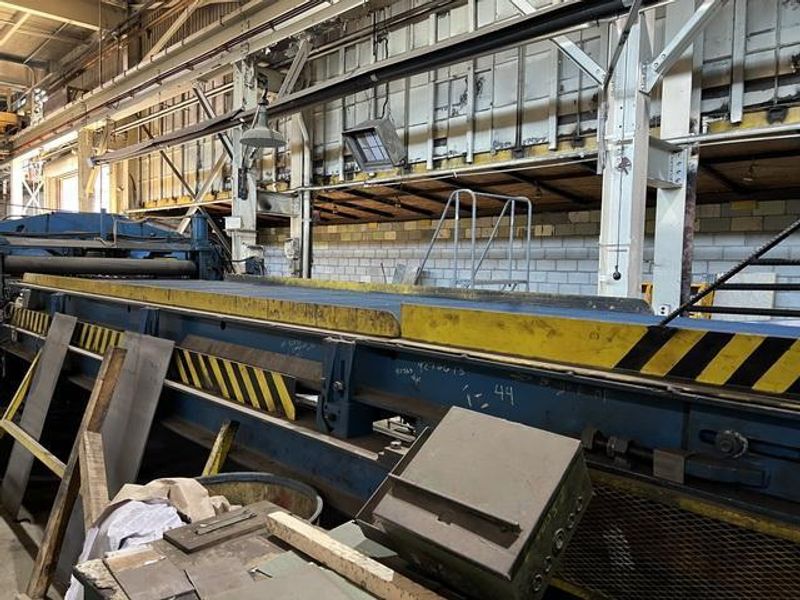

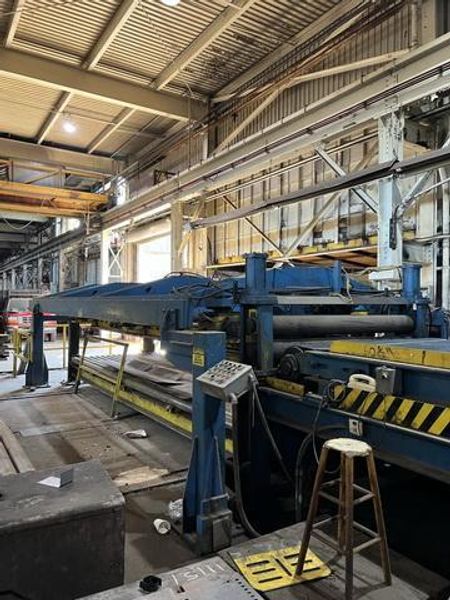

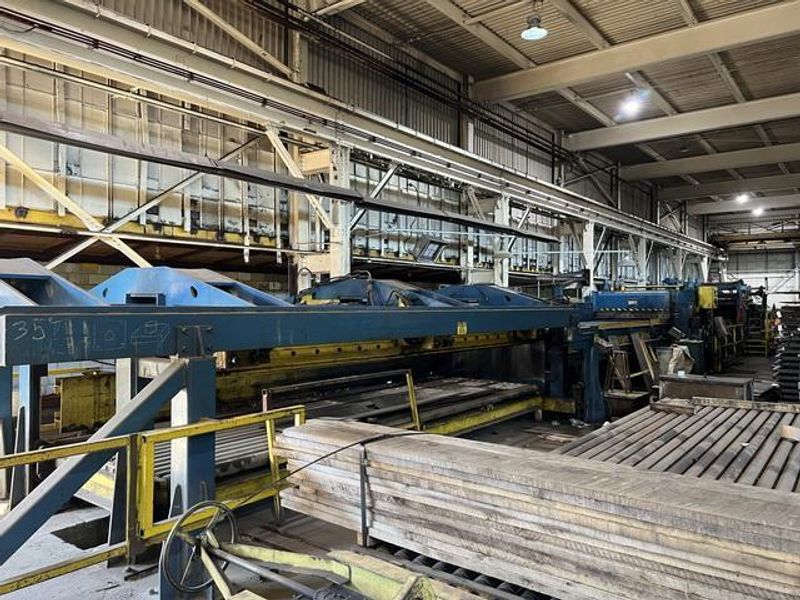

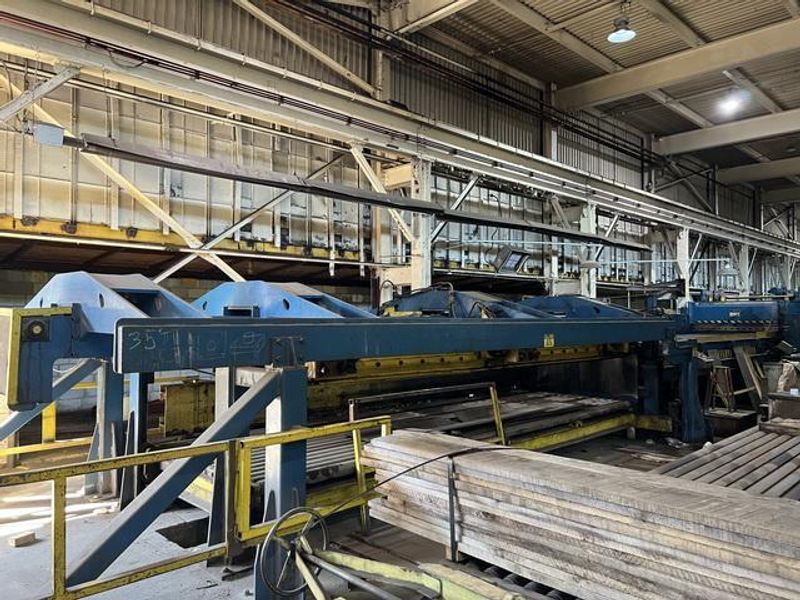

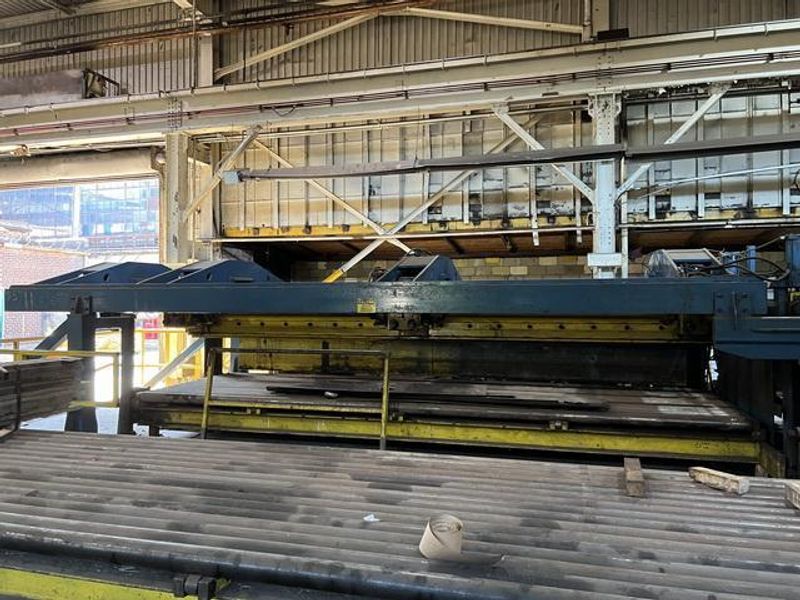

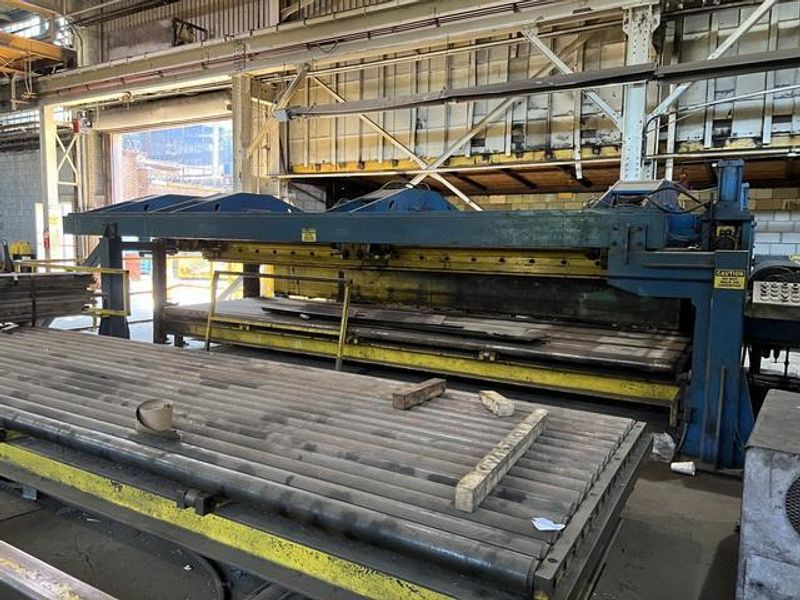

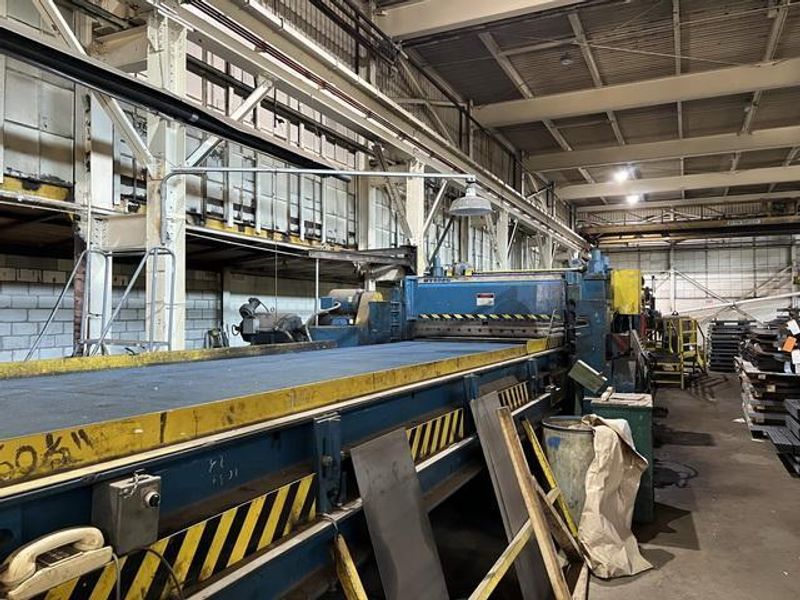

Drop Type Stacker
Side Discharge

Currently Installed
