Producto 0140, 42" Dia., .001 Degree Rotation, 32,000 Lbs Weight Cap, Fanuc Red Cap Servos, 2013, #32077

Manufacturer

PRODUCTO

Category

Tables

Type

TABLES, CNC

Stock

32077

Model

0140

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32077

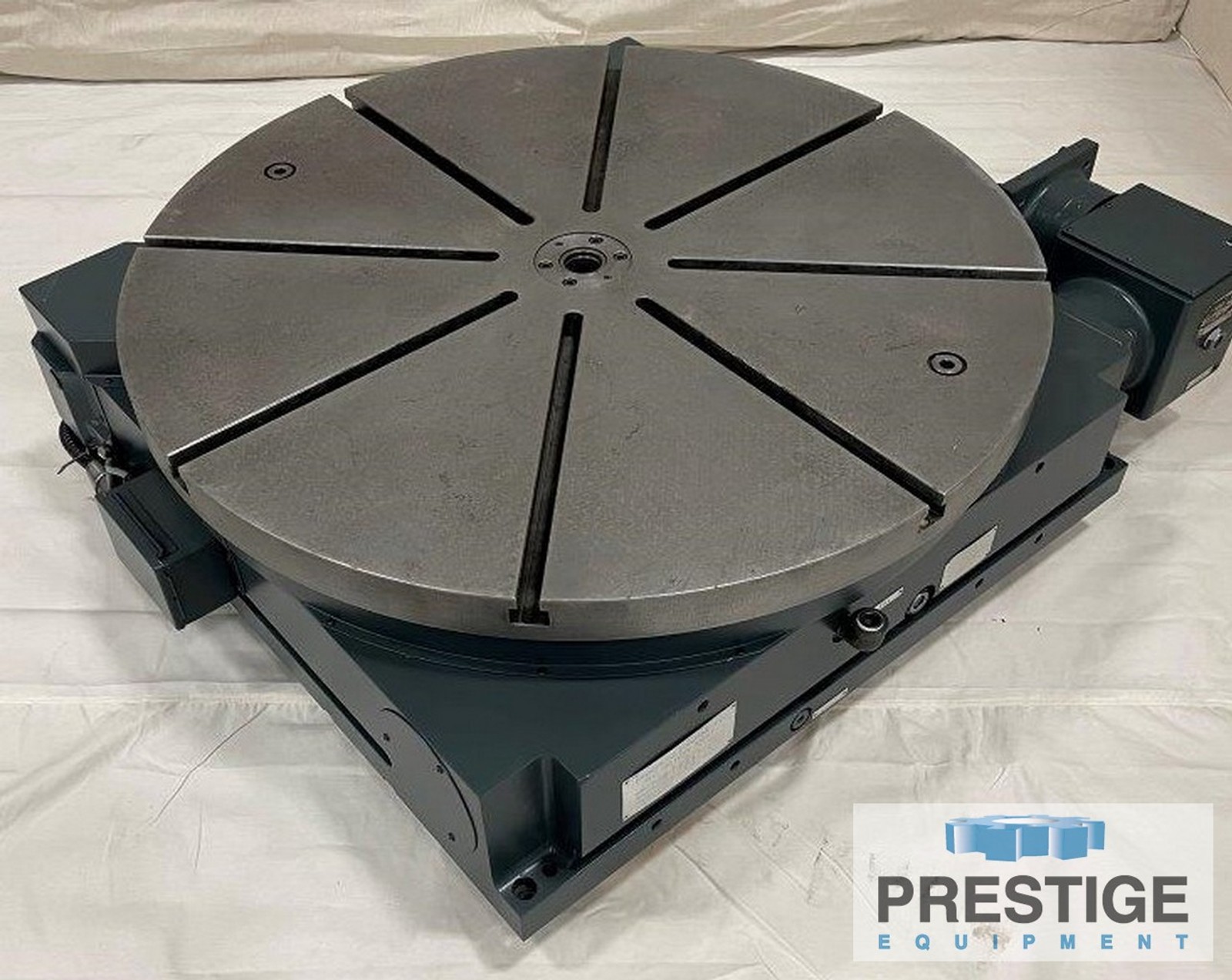

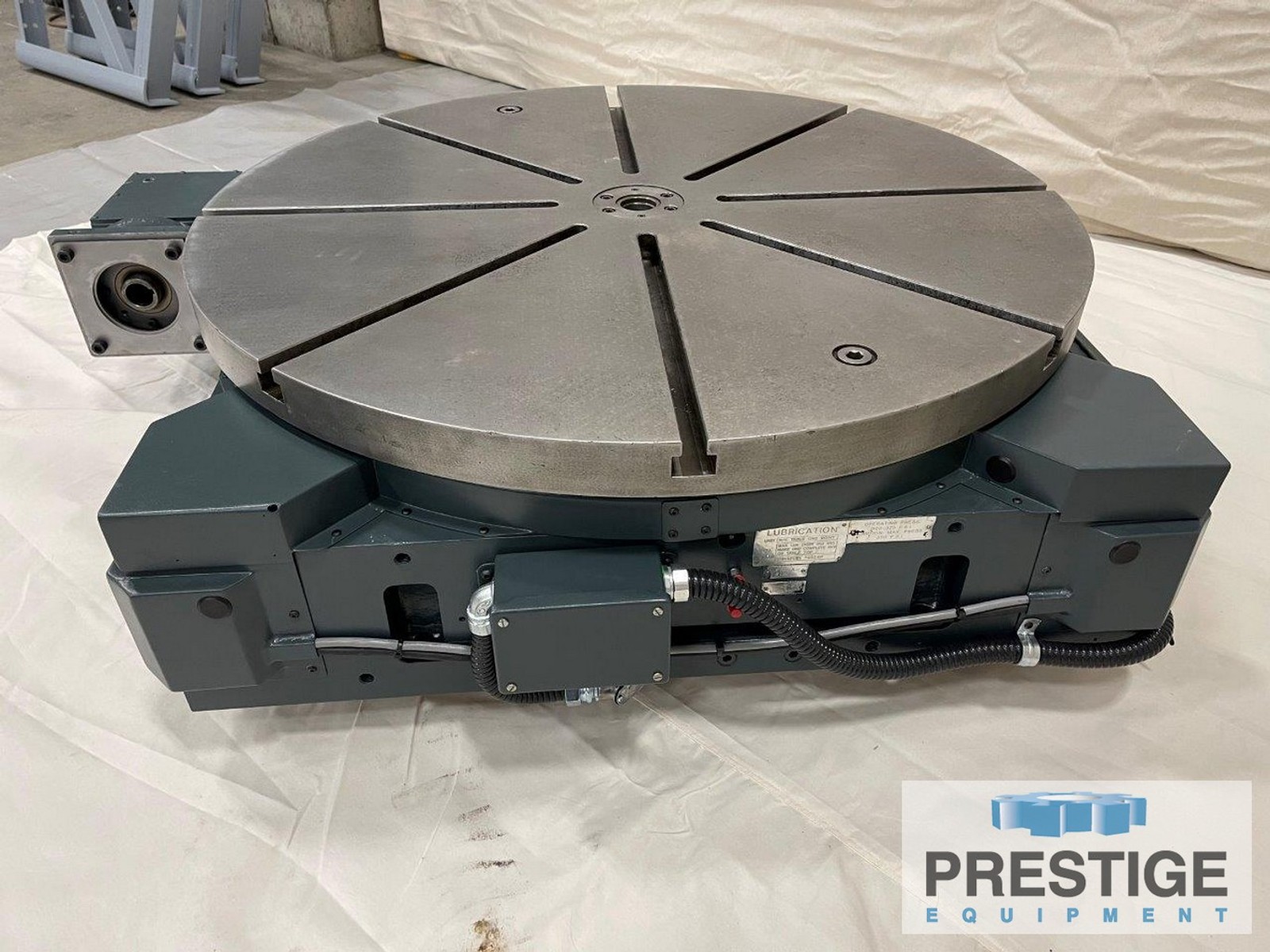

42" Producto CNC Table

Features:
Fanuc Red Cap Motor

CATALOG SPECS:
Table Diameter ........................ 42"
Table Height .......................... 13"
Parallelism (top to bottom) ........... .0004"
Table Top Flatness .................... .0005"
Table Top Axial Runout ................ .0004"
Angular Resolution .................... .001 Degrees
Drive Ratio ........................... 534:1
Cont. drive torque .................... 15 ft lbs.
Cont. torque .......................... 2,400 ft lbs.
Table Load Rating, Axial .............. 32,000 lbs.
Table Load Rating, Moment ............ 19,800 ft lbs.
Table Speed ........................... 2.3 RPM
Table Weight .......................... 3,700 lbs.

EQUIPPED WITH:
Fanuc Red Cap Motor

NOTE:
Inspect In East Coast Plant
