West Michigan Spline, Inc Model: 32E Face & Center, New 2018, WITH ROBOT

Manufacturer

West Michigan Spline

Category

Centering/Facing Machines

Type

FACING & CENTERING MACHINES

Stock

None

Model

32E

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

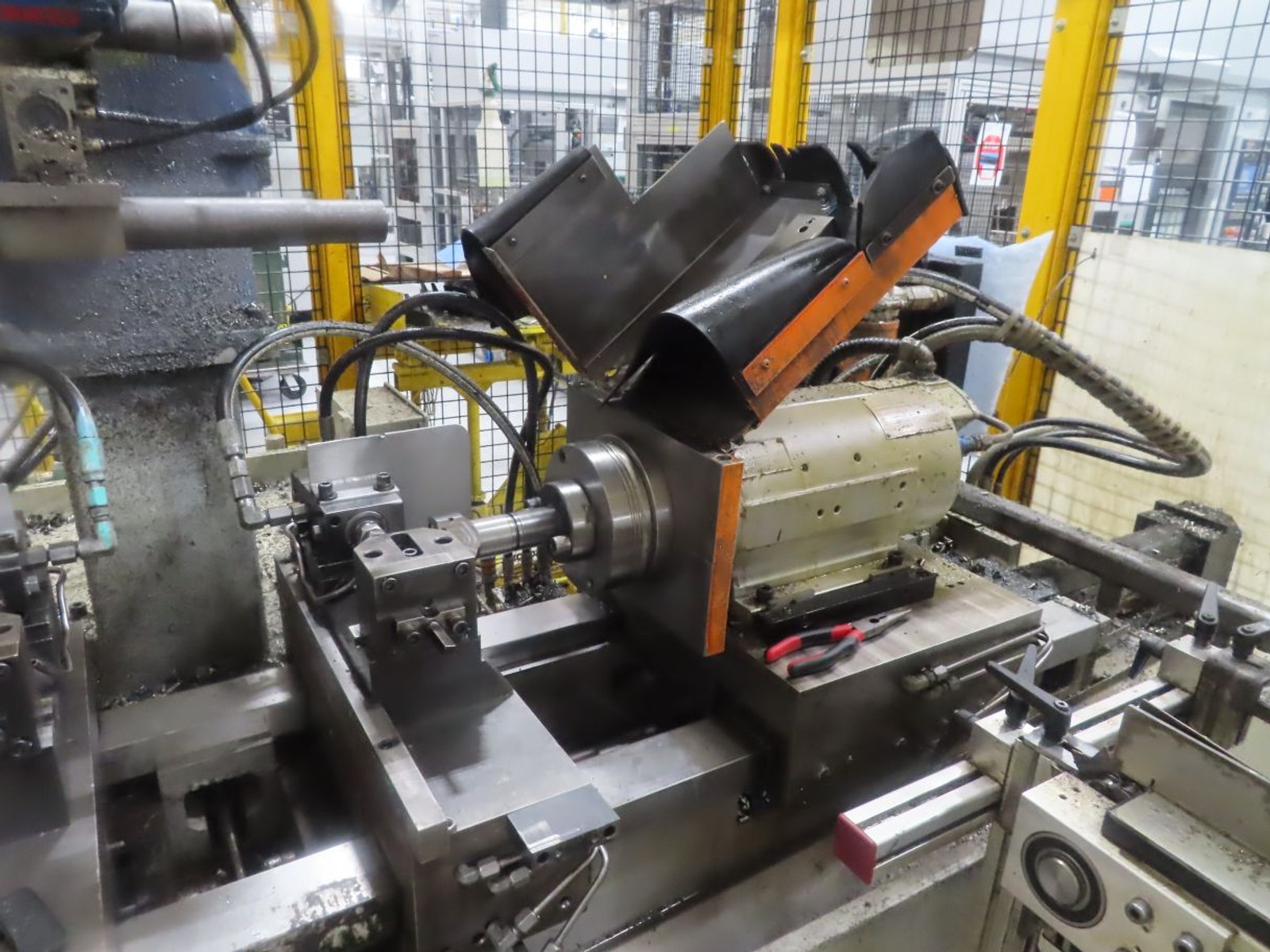

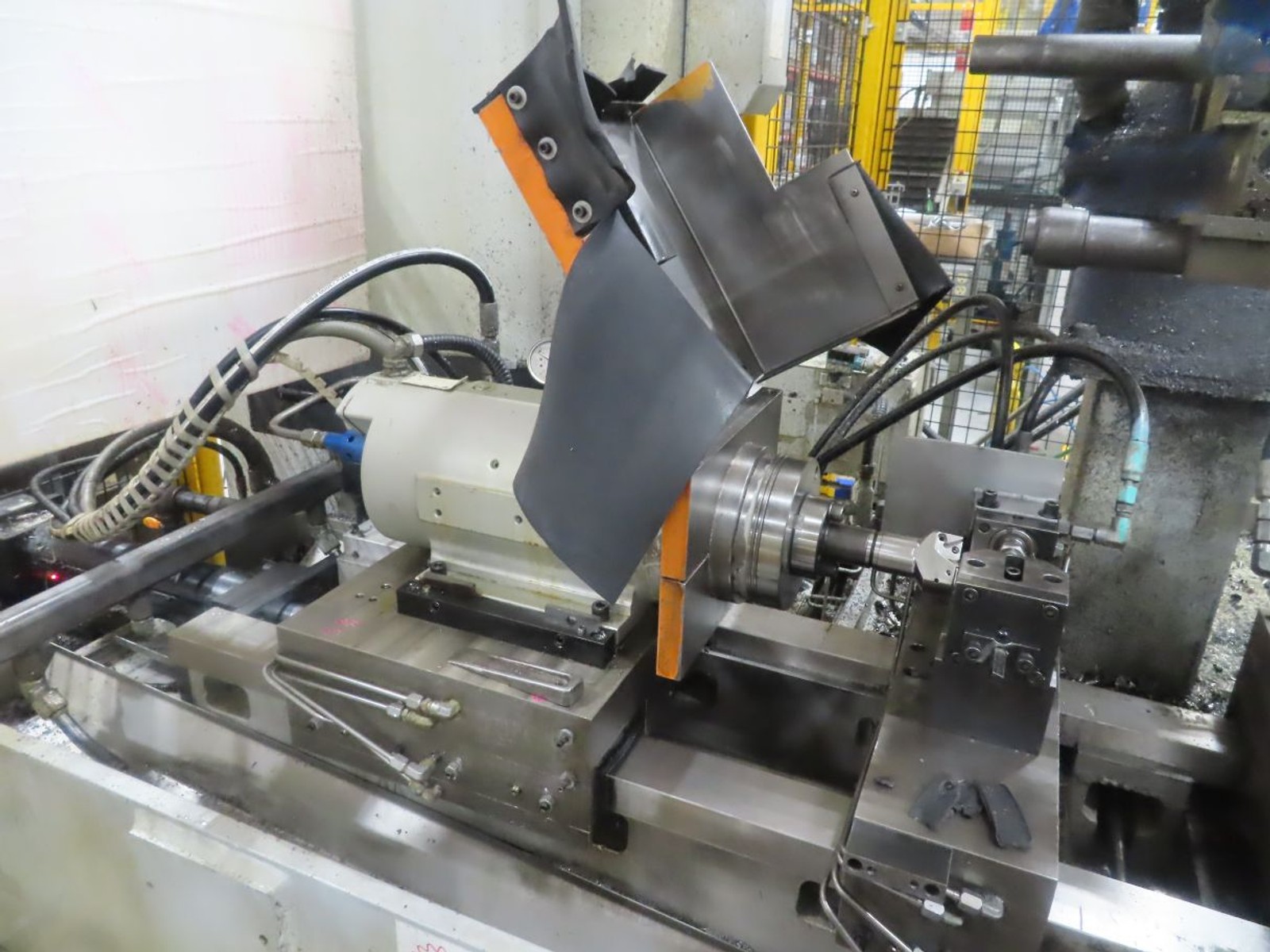

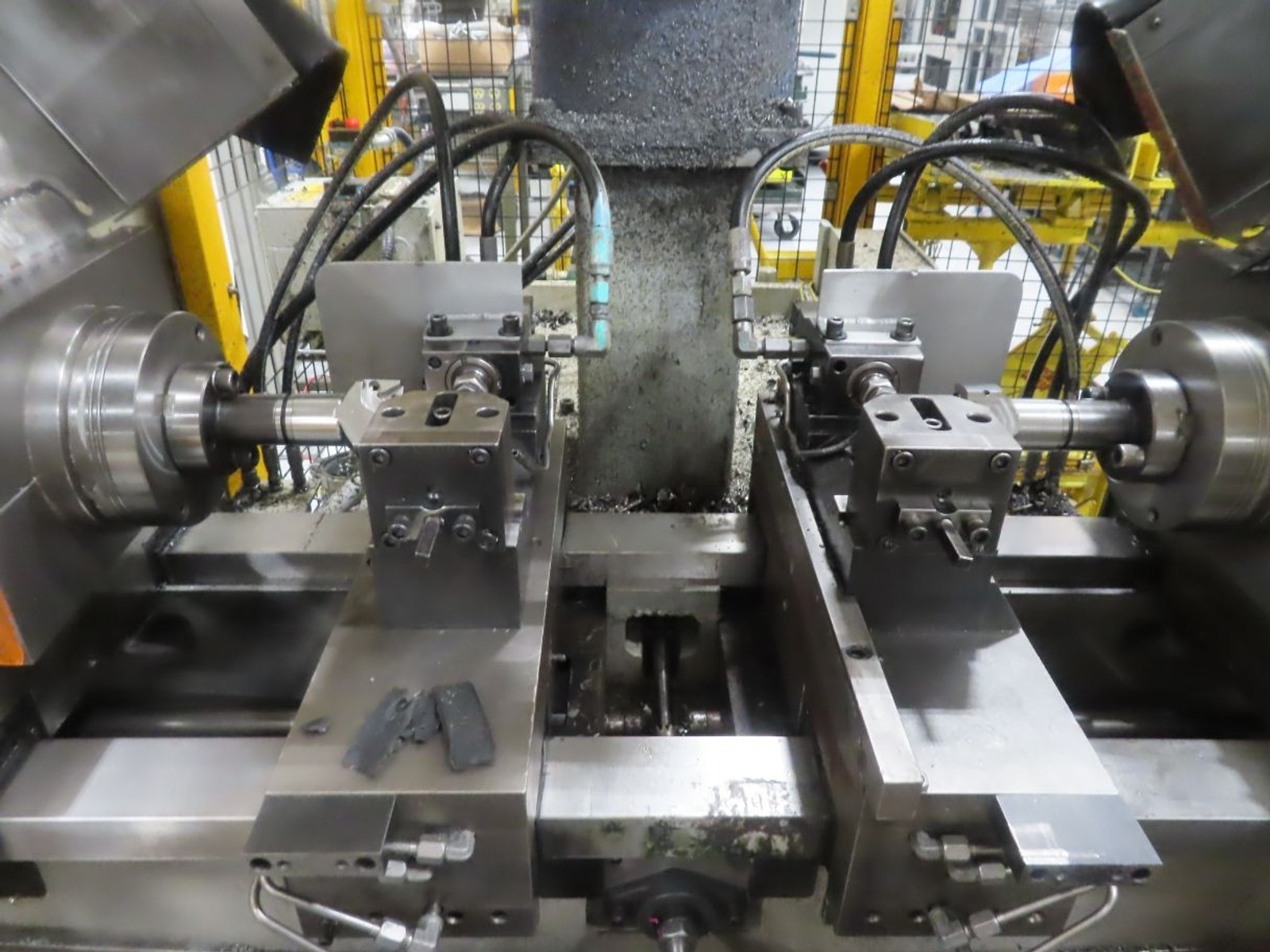

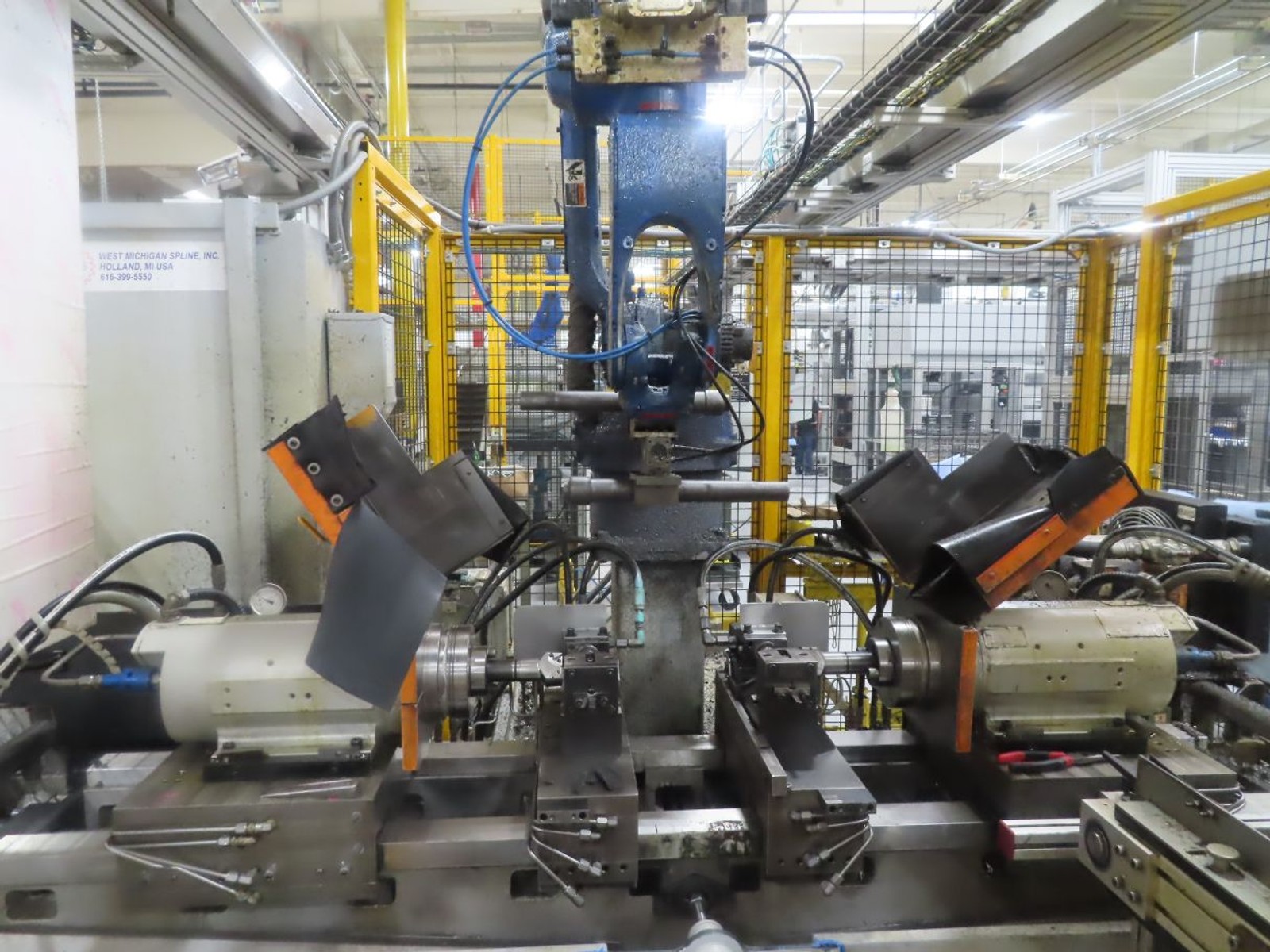

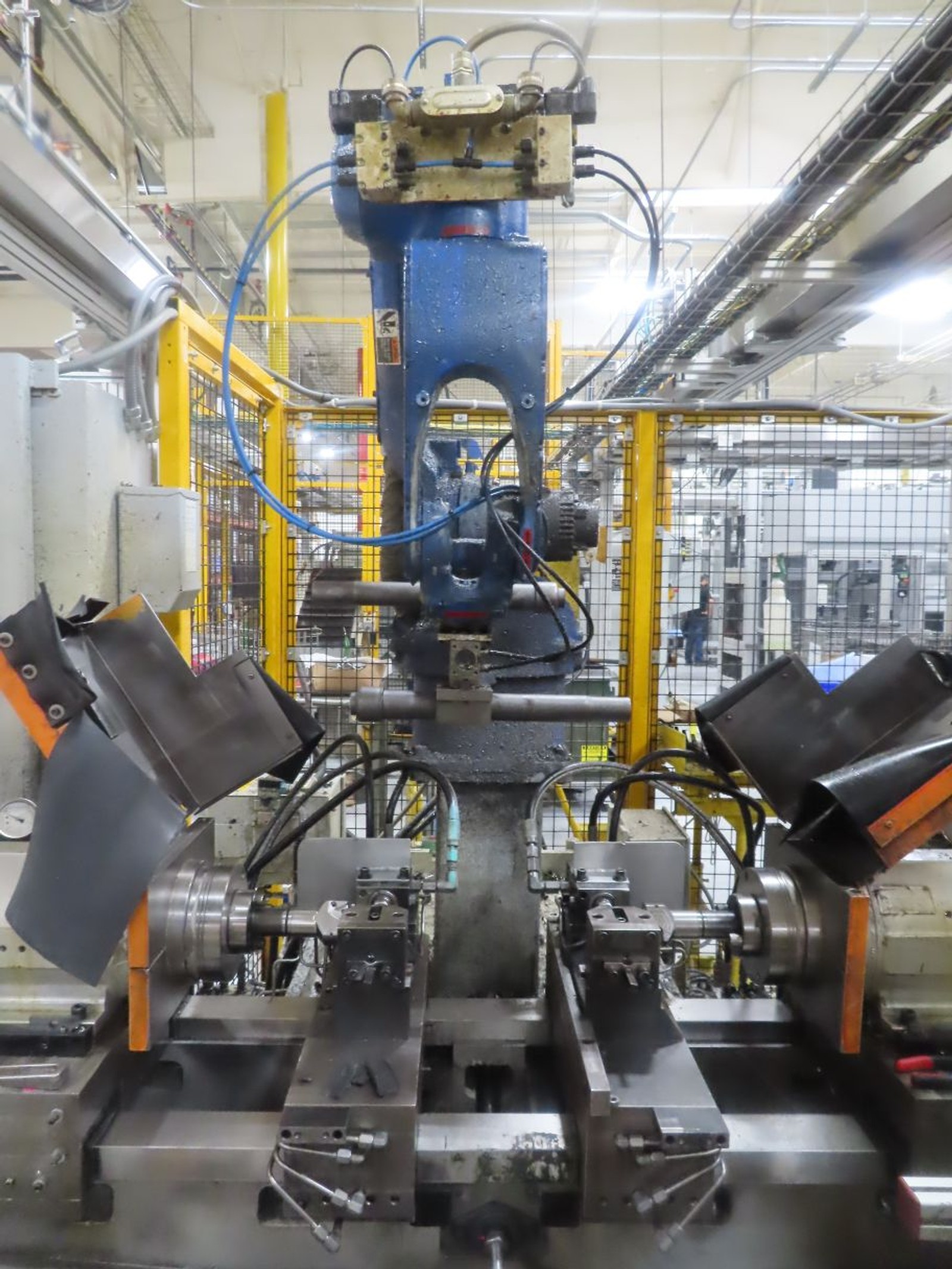

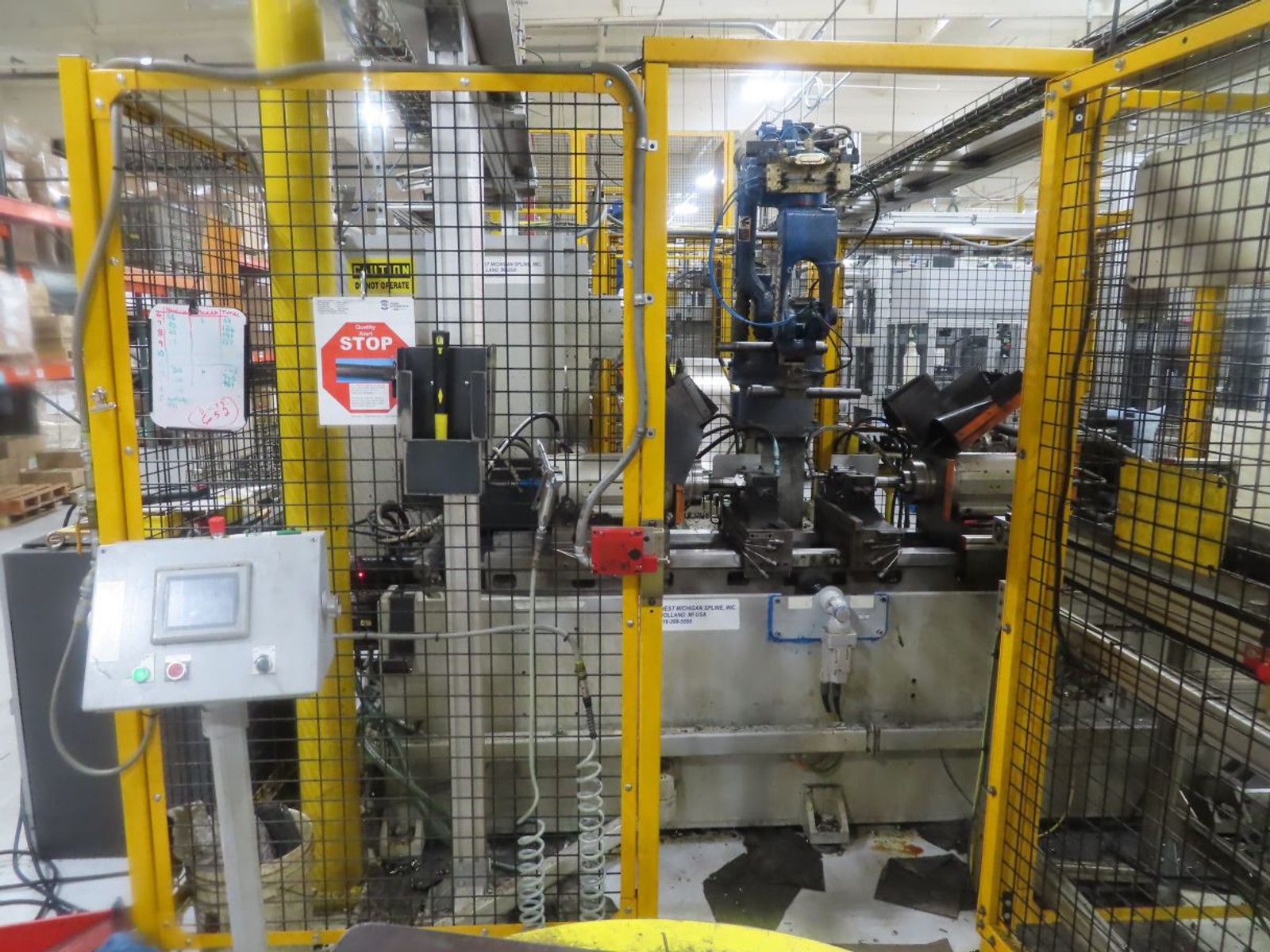

West Michigan Spline, Inc Model: 32E Face & Center, new 2018, WITH ROBOT

Features and Specifications:
…Length Capacity (range): 6” – 32”
…Diameter Capacity (range): 0.5” – 4.0”
…Cycle Time: 14 – 20 Seconds
…Spindle HP: 5 HP @ 3600 RPM
…PLC Based Servo Controls
…Auto Length Adjustment
…Hydraulic Power Unit: 5 Gallons
…Power, Main Motor: 5 HP / 1750 RPM
… Electrics: 230-460 Volt / 3 Phase / 60 Cycle / FLA: 12.4-6.18

Overall Machine Dimensions (approx.): 136” x 72” x 60” Tall
System Weights (approx.):
…Machine & Robot Weight: 18,515 lbs.
…Hydraulic Power Unit: 80 lbs.
…Chip Conveyor, Coolant Tank: 700 lbs.
… Unload Chutes: 1,850 lbs.

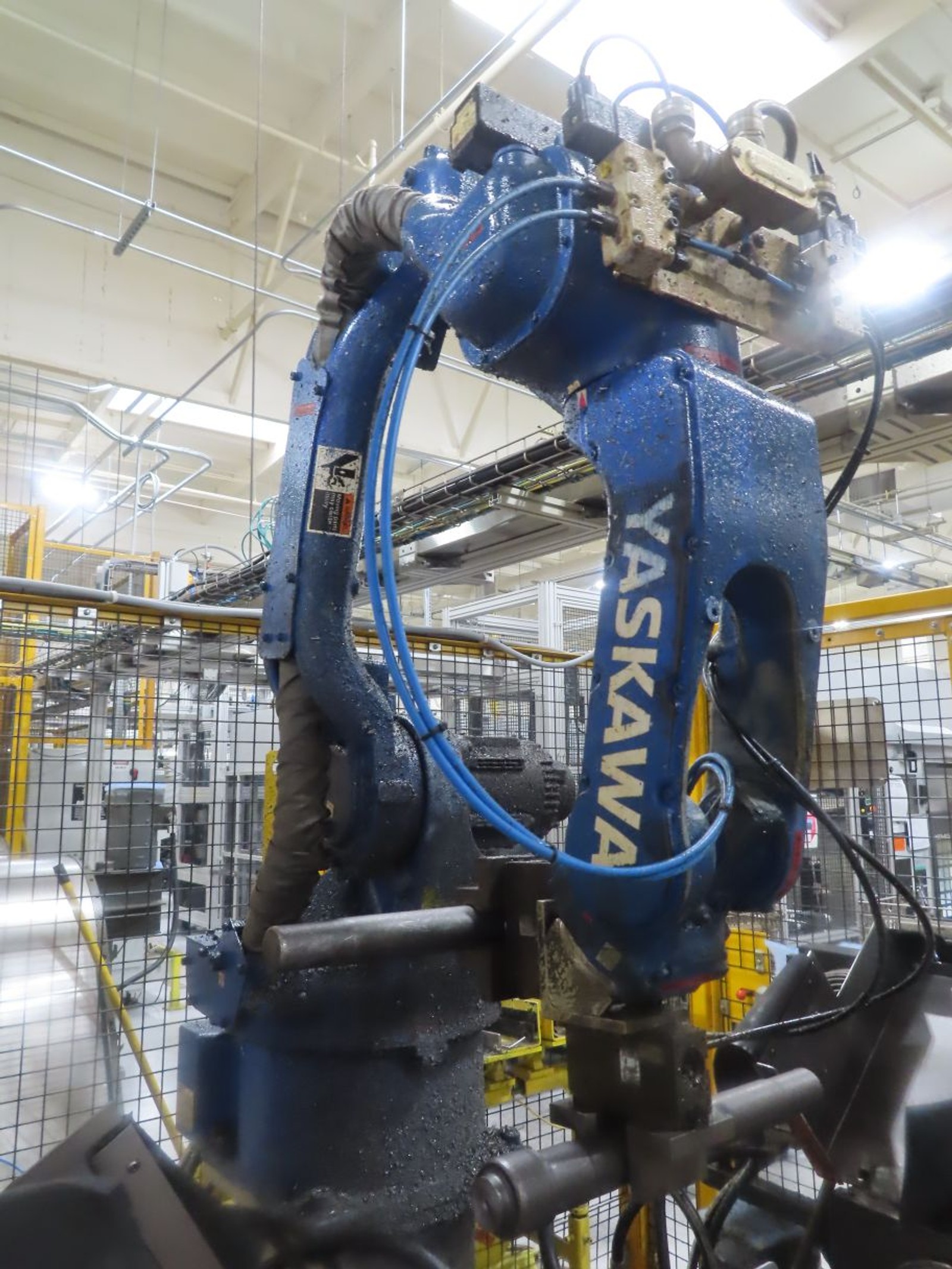

ROBOT INCLUDED

CATALOG LINK: http://westmichiganspline.com/products/

VIDEO LINK OF THE MACHINE RUNNING: https://www.youtube.com/watch?v=mUh5O0Y2PJo
