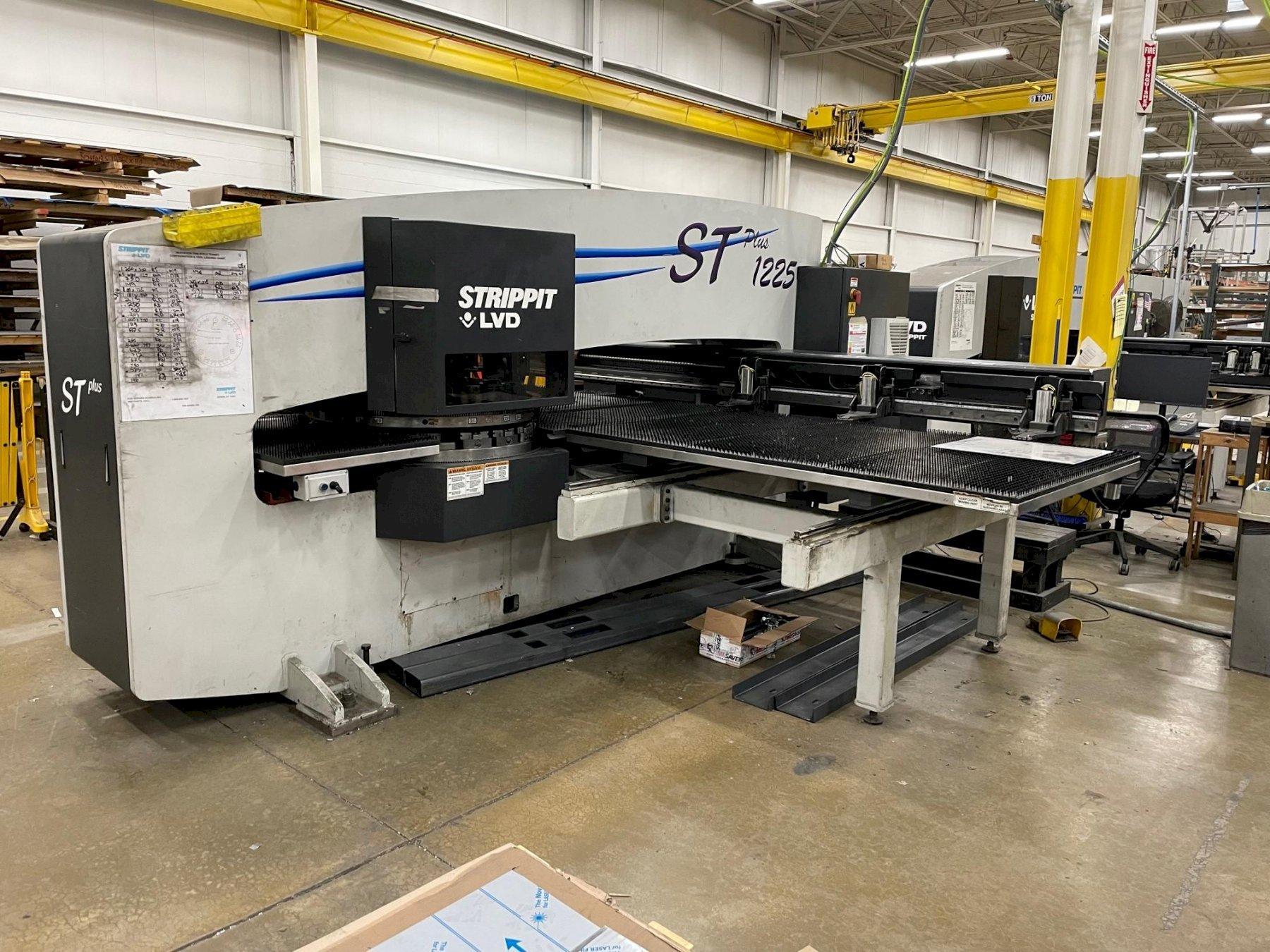

2007 Strippit LVD ST Plus1225 CNC Turret Punch (#4363)

Manufacturer

Category

Punches

Type

PUNCHES, TURRET

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

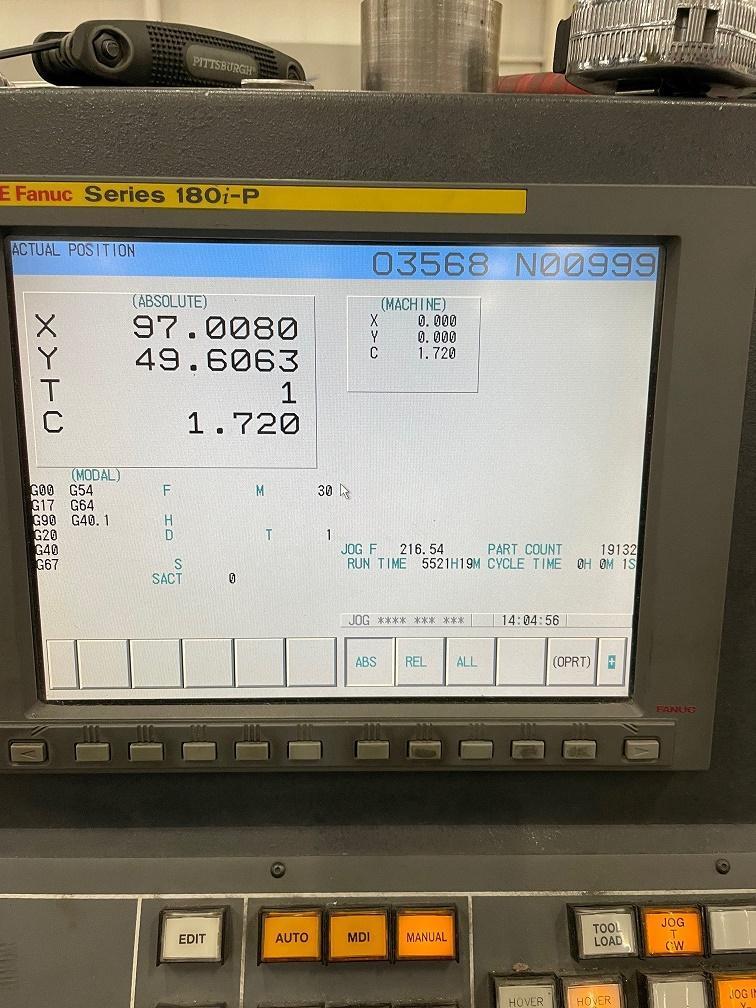

49.21” X 98.4” X 22 Ton 1/4” Material Capacity CNC Turret Punching System with Fanuc 18P CNC Controller, 29 Station Thick Style Turret with 3 AI (Auto-Index) Stations and Brush Type Table

GENERAL SPECIFICATIONS
Table Type Capacities-: Up to 136 lbs. at 100% speed
Floating Clamps: 2 manual lock, 1 optional
Maximum Clamp Spread: 74.67"
One Turret Station Change Time: 1.1 sec.
Maximum Turret Station Change Time: 2.6 sec.
Turret Configuration (29 stations): 24 ‘B’ Size (1.25") 2 ‘C’ Size (2.0") 3 ‘D’ Size (3.5")
Auto-Index Stations: (Standard) 3 ‘D’ Size (3.5")
Axis Speed: Up to 3780 IPM combined
Max. Hit Rate at .08 & 779 Working Stroke: Up to 840 HPM

INCLUDES: Fanuc 18P CNC Controller, 29 Station Thick Style Turret with 3 AI (Auto-Index) Stations and Brush Type Table


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
