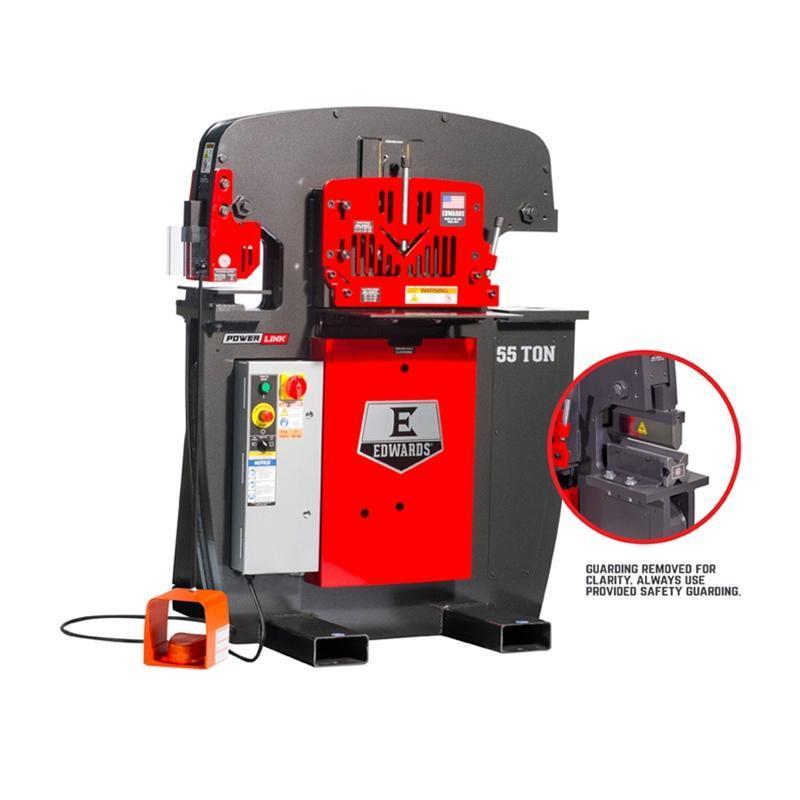

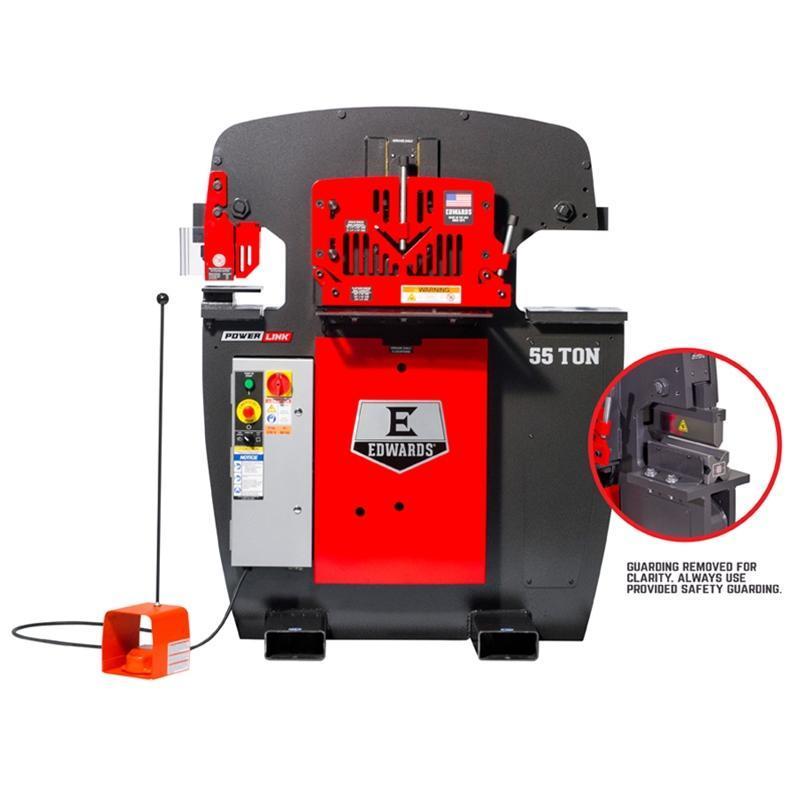

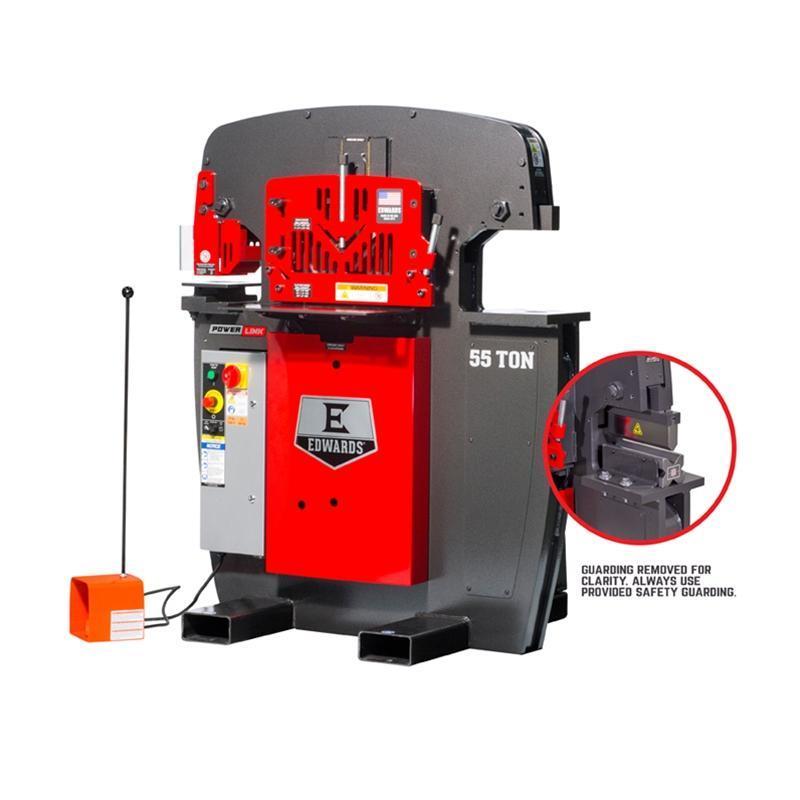

Edwards 55 Ton Ironworker (#4366)

Manufacturer

Category

Punches

Stock

None

Model

None listed

Dealer Location

Florida

Spec Sheet



55 Ton Ironworker with 4 Workstations (Punch, Flat Bar Shear, Angle Shear, 10" Brake), 4 - Way Die Allowing 1/16", 1/8", 3/16" and 1/4" To Be Formed to a 90° Angle, Oversized Punch Assembly, 10" Brake and Powerlink

GENERAL SPECIFICATIONS

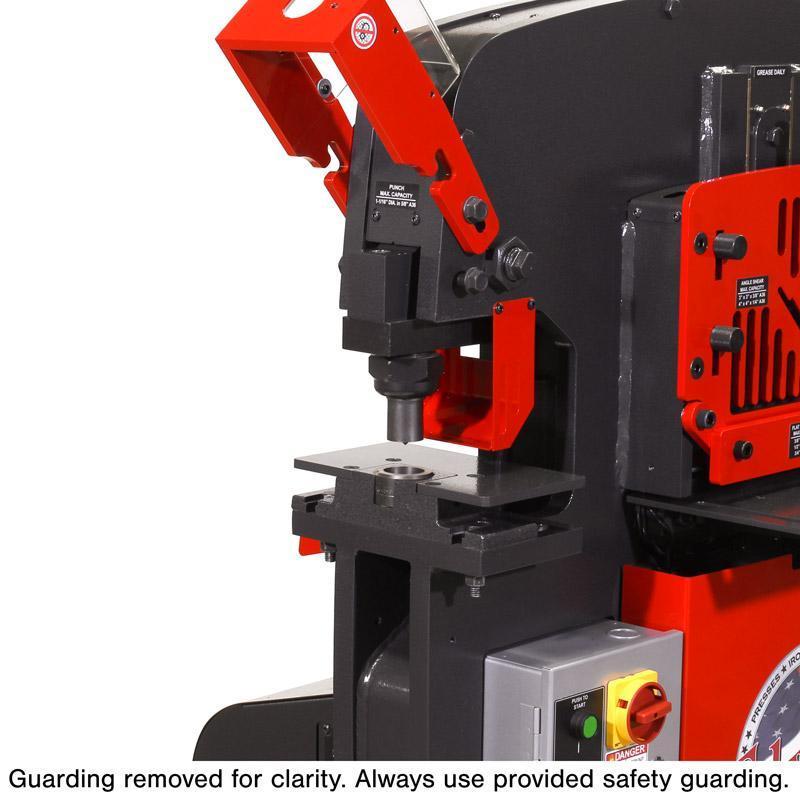

Punch:
Rating: 55 Tons
Max Capacity: 1-9/16" Di. in 5/8" A36
Stroke: 1-1/4"
Throat Depth: 7-1/2"
Open Height: 8-1/8"
Shut Height: 6-7/8"
Work Height: 36-9/16"
Flat Bar Shear:
Max Capacities: 3/8" X 14" | 1/2" X 12" | 3/4" X 1/4"
Max. Round: 7/8"
Max. Square: 7/8"
Work Height: 34-1/2"
Angle Shear:
Max Capacities 3" X 3" X 3/8" | 4" X 4" X 1/4"
Work Height: 34-1/2"
Capacities: 1/16", 1/8", 3/16" and 1/4"
Power: 1 Ph, 230 V
Dimensions: 44-3/8" X 36-1/8" X 55-1/4"
Weight: 2,480 Lbs

INCLUDES: 4 Workstations (Punch, Flat Bar Shear, Angle Shear, 10" Brake), 4 - Way Die Allowing 1/16", 1/8", 3/16" and 1/4" To Be Formed to a 90° Angle, Oversized Punch Assembly and Powerlink


***All Price, Location and Specifications Subject to Change without Notice***
