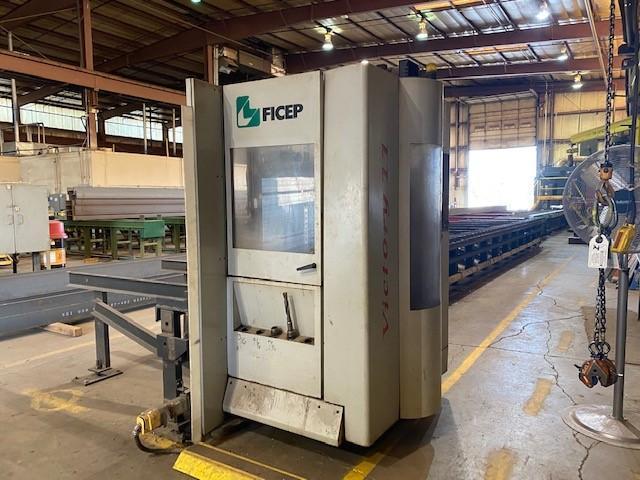

2007 FICEP Victory 1101DX Beam Drill (#4229)

Manufacturer

Category

Fabricating Machines

Type

FABRICATING EQUIPMENT

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



40’ L X 44” H Drilling Capacity, Table Length 60’, Beam Length 50’,
1 Spindle, PC Based CNC Controls.

GENERAL FEATURES:


  • Drilling Capacity: 40’ L X 44” H

  • Max Weight of Beam: 771 Lbs

  • Table Length: 60’

  • Beam Length: 50’

  • Number of Spindles: 1

  • Spindle Taper: No. 4 MT

  • Spindle Motor: 7.5 HP

  • Spindle Speed: 170-1000 RPM

  • Drilling Feeds: Infinitely Variable

  • Max Hole Diameter: 1-11/16”

  • Max Feed Rate: 850”/ Min

  • Positioning Speed:

  • X-Axis (Portal): 65’/ Min

  • Y-Axis (Drill Head): 16’/ Min

  • Hydraulic Power unit: 5 HP

  • CNC Controls: PC-Based

  • Tooling Pallet: Quick Change

  • Cooling System: Internal and External



INCLUDES: 40’ L X 44” H Drilling Capacity, Table Length 60’, Beam Length 50’, 1 Spindle, PC Based CNC Controls. Quick Change Cooling Pallet, Remote Pendant Control with Battery and Charger.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
