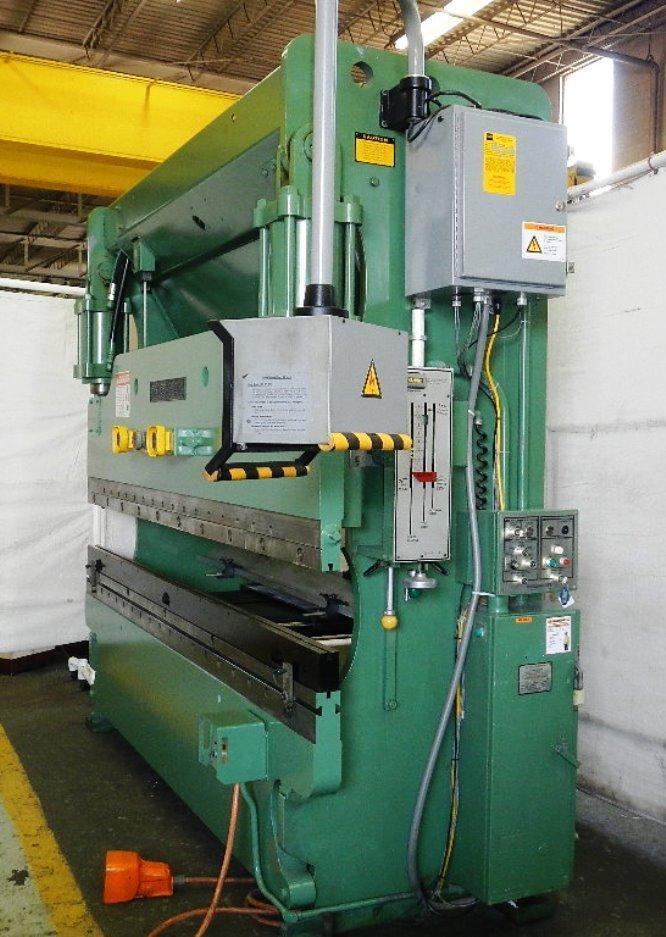

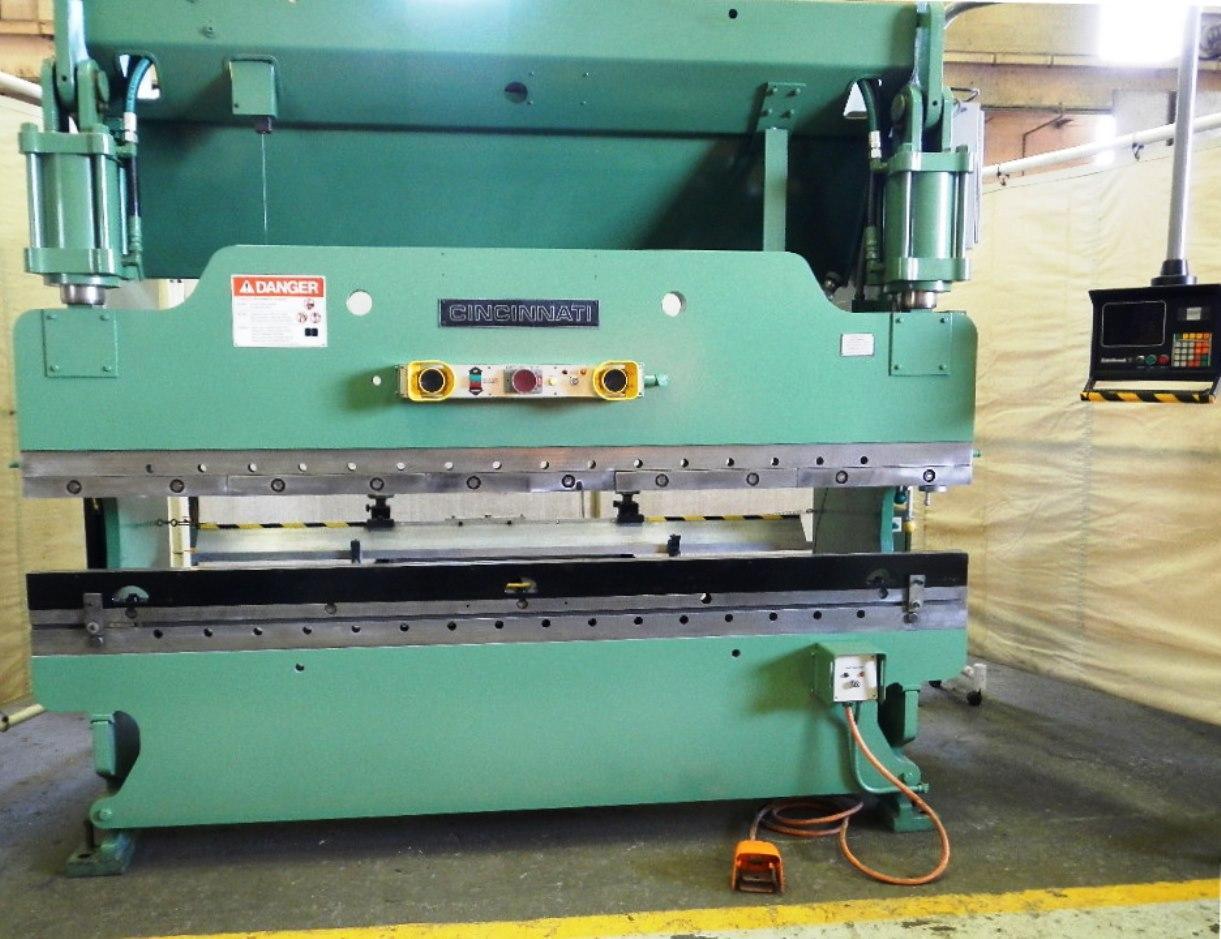

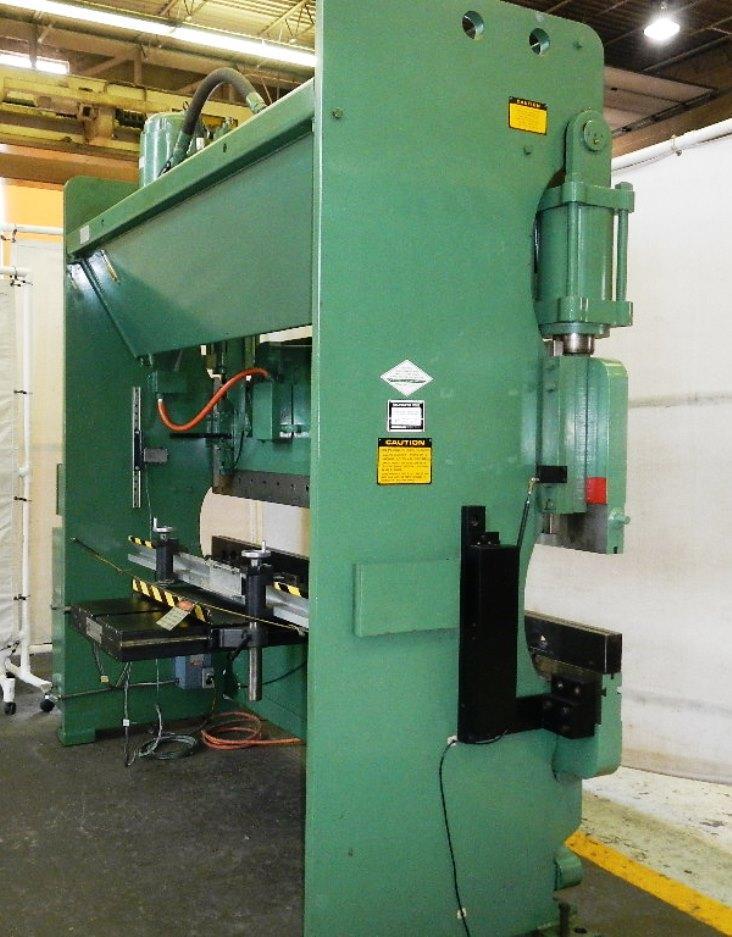

1988 Cincinnati 90CBx8 CNC Press Brake (#4304)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



90 Ton X 10’ Press Brake with Hurco AutoBend 7 CNC 2-Axis Back Gauge and Ram Control, Lower Die Rail, Adjustable Tonnage Control, Adjustable Stroke and Speed Change with Position Indicator, Micrometer Ram Tilt Adjustment, Palm Buttons Mounted On Machine Face, E-Stop, Bed / Ram Machined For Angles, Full Set Of Manuals and Remote Foot Pedal


GENERAL SPECIFICATIONS


Capacity: 90 Tons
Bending Capacity: 10’ X 12 Gauge / 5’ X ¼”
Distance Between Housings: 8’ 6”
Stroke: 8”
Throat: 7”
Overall Die Surface: 10”
Die Space:
Open: 15”
Closed: 7”
Ram Speed:
High: 150 IPM
Medium: 71 IPM
Low: 21 IPM
Return: 136 IPM
Back Gauge Range: 24”
R-Axis Adjustment (Manual): 2” - 10”
Motor: 15 HP
Approximate Overall Dimensions: 60 D X 120 W X 116 H
Approximate Weight: 14,000 LBS

INCLUDES: Hurco AutoBend 7 CNC 2-Axis Back Gauge and Ram Control, Lower Die Rail, Adjustable Tonnage Control, Adjustable Stroke and Speed Change with Position Indicator, Micrometer Ram Tilt Adjustment, Palm Buttons Mounted On Machine Face, E-Stop, Bed / Ram Machined For Angles, Full Set Of Manuals and Remote Foot Pedal



***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
