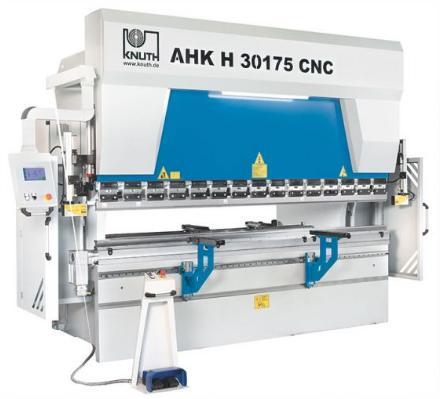

Knuth AHK H 30175 CNC Hydraulic Press Brake (#4498)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

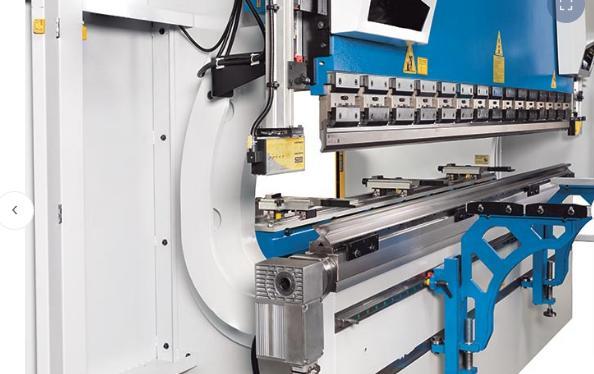

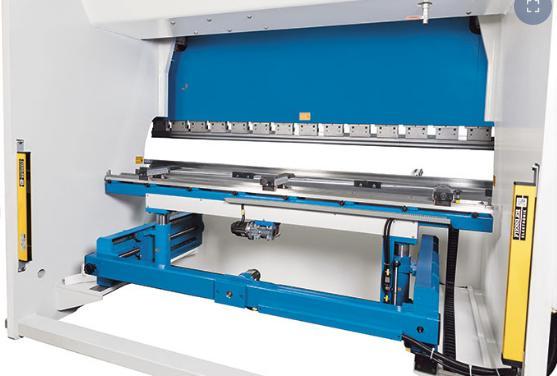

175 Ton X 122" CNC Hydraulic Press Brake with Delem 53 T 2D Control, X Axis Back Gage, Manual Lower Table Crowning, Light Barrier, European Type Male Die, 2 Front Supports, European Style 4 Way Die, and Adjustable Back Gauge Fingers

GENERAL SPECIFICATIONS
Brake force: 192.5 Tons
Brake Length: 122”
Distance Between Columns: 102”
Throat : 16”
Stroke: 10.4”
Clear Opening: 19.09”
Table Width: 4”
Main Drive Motor: 24.8 HP

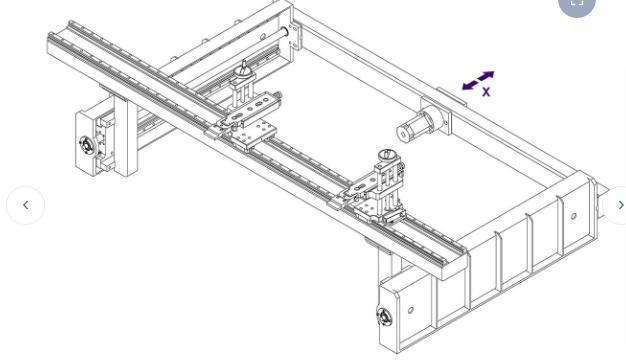

Travel in X Axis: 28”
Bending Speed: .39” p/Sec
Rapid Feed: 5” p/Sec
Return Speed : 4.72” p/Sec
Manual Crowning: Std.
Delem 53 T 2D Back Gage: Std.
European Tool Mount: Std.
Overall Dims L X W X H: 156” X 78” X 113”
Weight: 24,200 LBS
Hydraulic Tank Volume: 17.4 Gal.

INCLUDES: Delem 53 T 2D Control, X Axis Back Gage, Manual Lower Table Crowning, Light Barrier, European Type Male Die, 2 Front Supports, European Style 4 Way Die, and Adjustable Back Gauge Fingers


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
