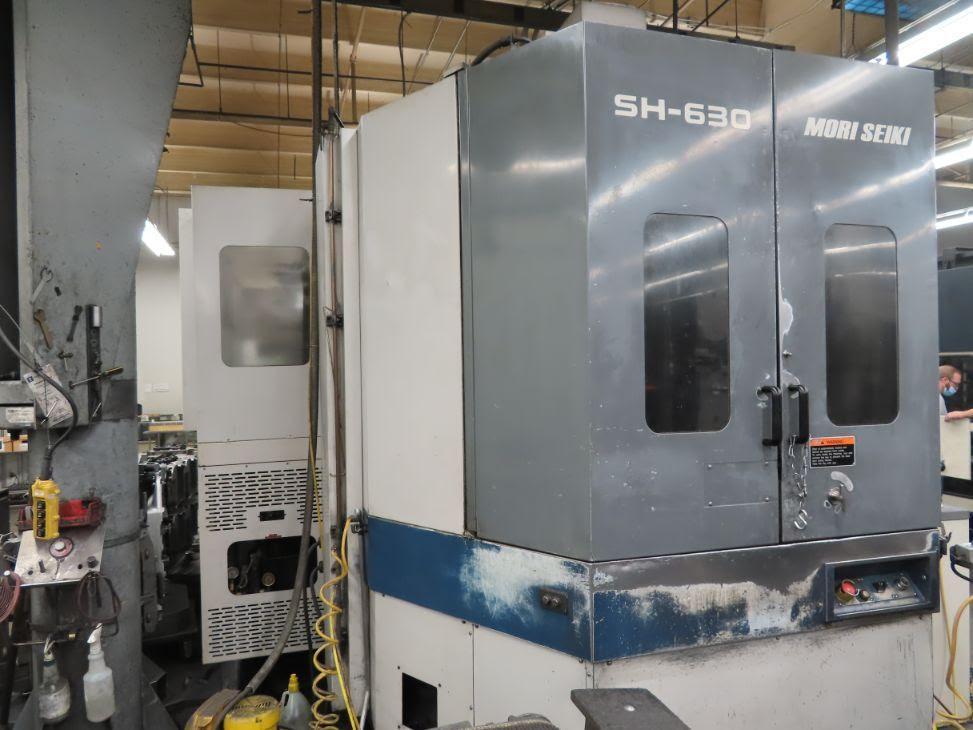

1998 Mori Seiki SH-630 Horizontal Machining Center (#4579)

Manufacturer

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

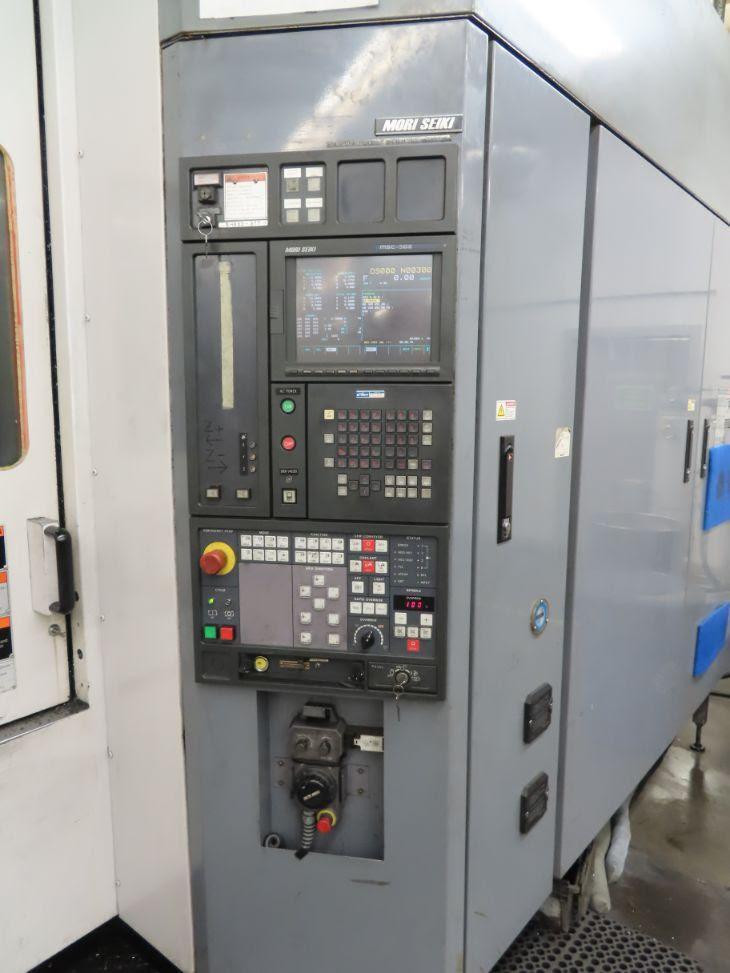

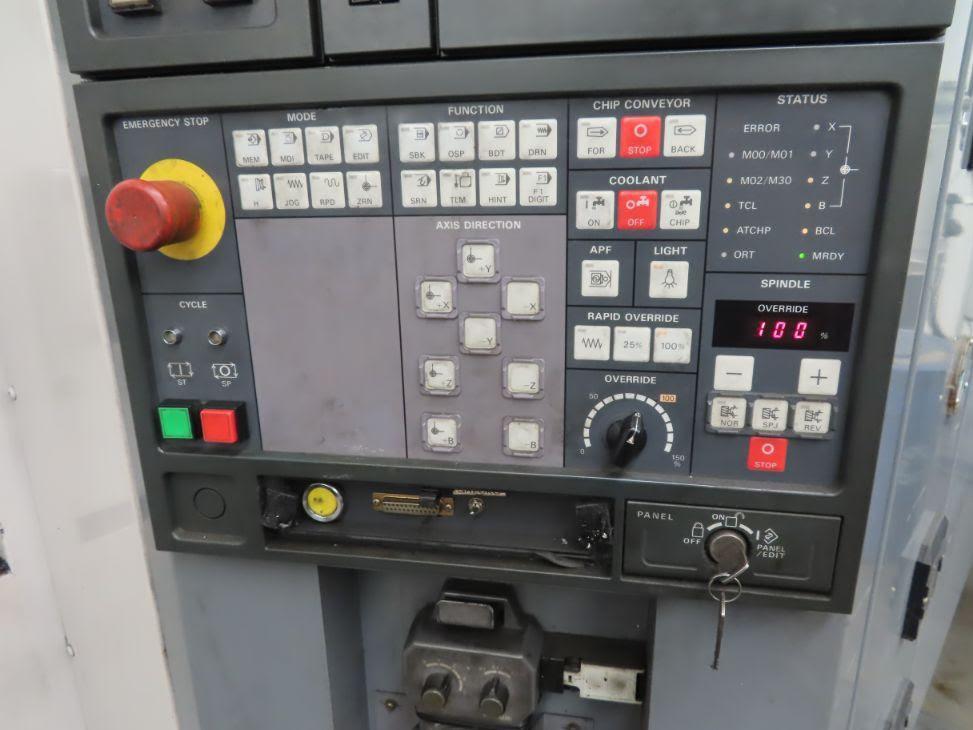

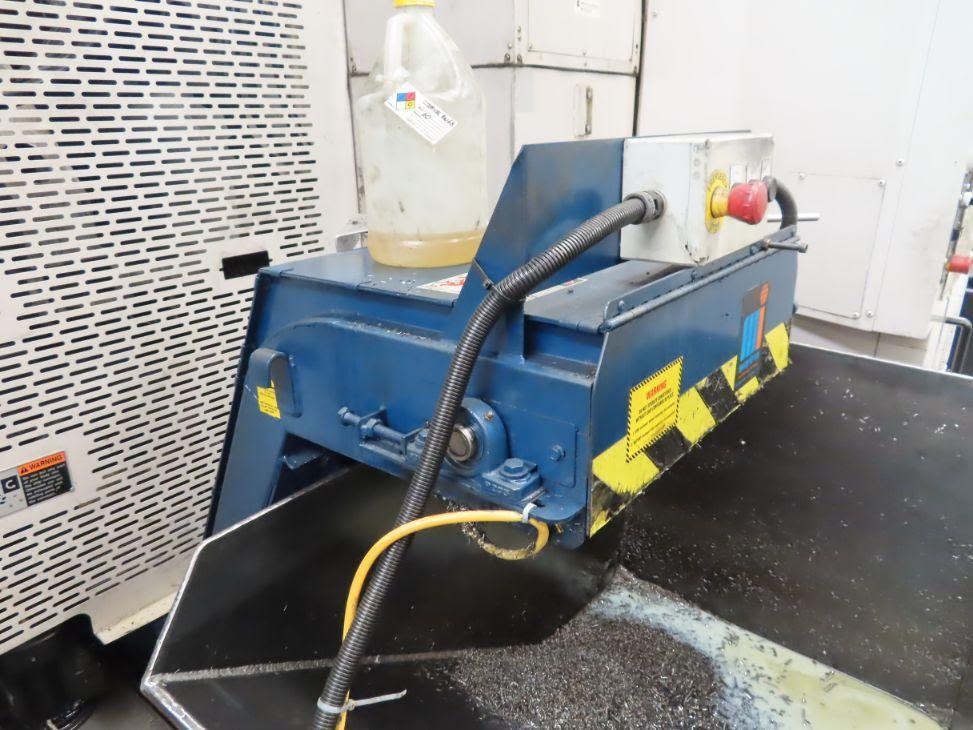

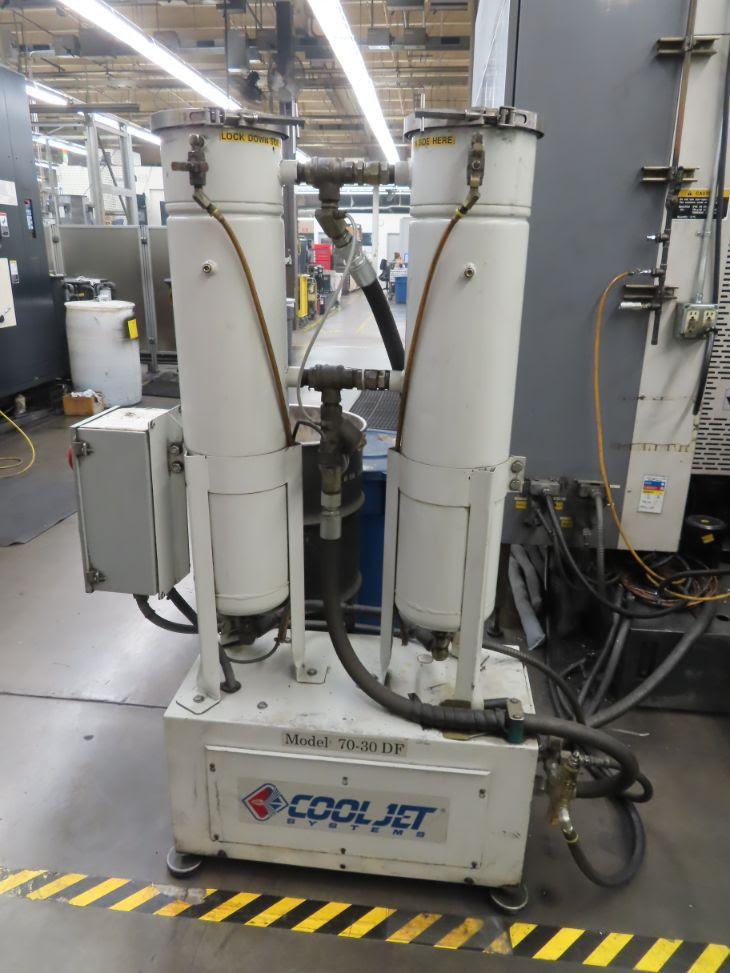

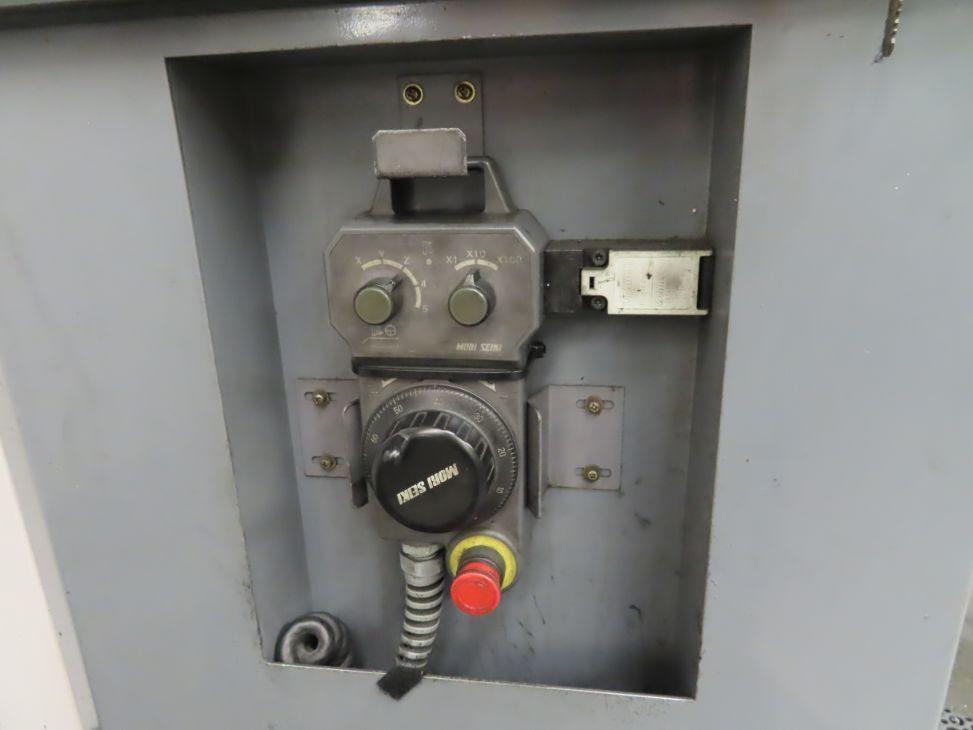

31.1" X 29.9" X 33.1" Horizontal Machining Center with MSC - 502 Control Panel, CAT 50 Tool Holders, Full 4th - Axis, Coolant Thru Spindle, Cool Jet High Pressure Coolant System, Remote Pendant and Chip Conveyor

GENERAL SPECIFICATIONS
Working Surface: 24.8" X 24.8"
X - Axis Travels: 33.1"
Y - Axis Travels: 29.9"
Z - Axis Travels: 33.1"
Spindle Nose to Table Center: 5.9" - 39"
Max Spindle Speed: 10,000 RPM
Rapid Traverse Rates: 1,260 IPM
Spindle Taper: CAT 50
CAT 50 Tool Holders (Approx.): 60 - 80
Max Tool Diameter: 11.8"
Max Tool Mass: 66.3 LBS
ATC: 120 Slots (Standard is 60)

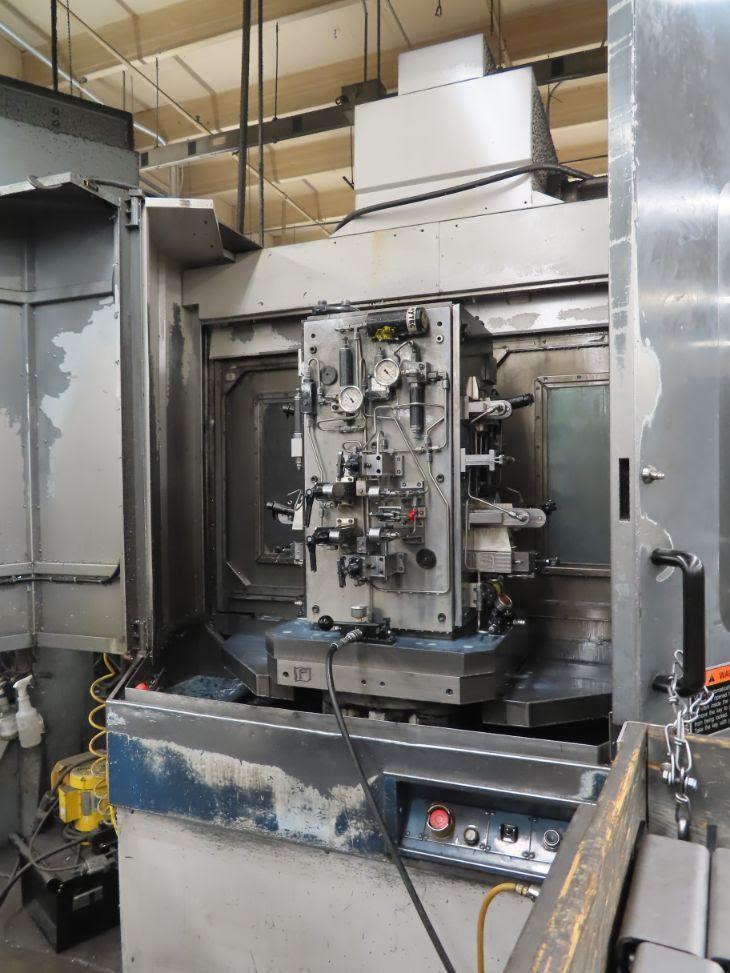

Pallets: 2
Pallet Load Capacity: 2,640 LBS

INCLUDES: MSC - 502 Control Panel, CAT 50 Tool Holders, Full 4th - Axis, Coolant Thru Spindle, Cool Jet High Pressure Coolant System, Remote Pendant and Chip Conveyor


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
